USER MANUAL WIE-FC-25B Wiesenfield

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Getreidemühle

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Flour Mill
Model	WIE-FC-25A	WIE-FC-25B
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	1300
Capacity [l]	6.5
Capacity of the container [l]	25	X
Production [kg/h]	300
Dimensions [Width x Depth x Height; mm]	300 x 360 x 845 460	x 595 x 1005
Weight [kg]	5.85	5.95

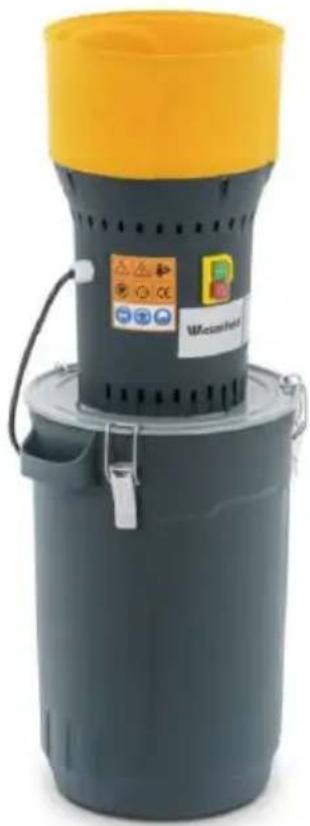

WIE-FC-25A

Exterior view of a portable industrial vacuum cleaner with yellow top and black body (no visible text or symbols)

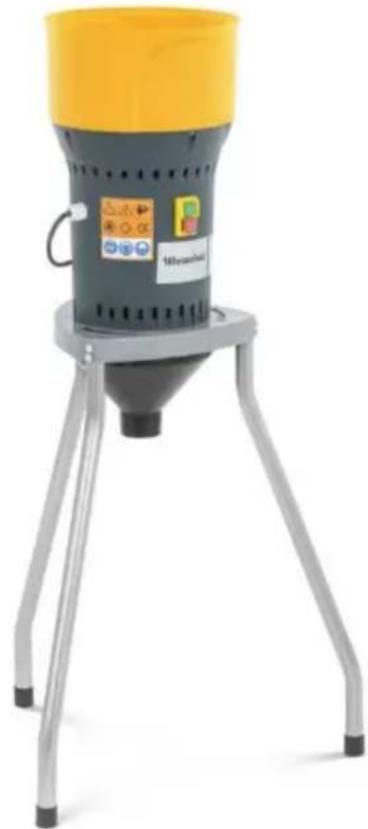

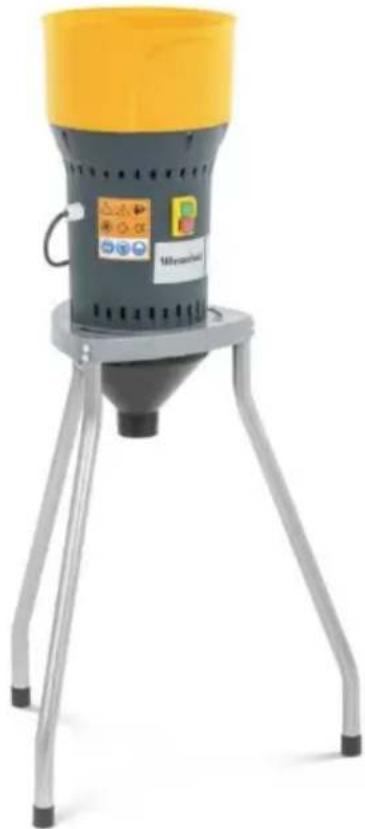

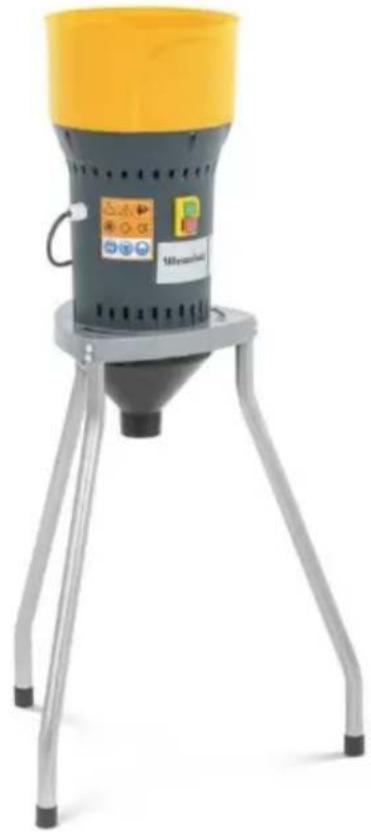

WIE-FC-25B

Exterior view of a portable industrial machine with a yellow top and metallic legs (no visible text or symbols)

Grain Mill

The grain mill is designed for grinding small quantities of flours for feeding chickens, cows, or pigs (it can grind corn, rice, barley, oats, rye, wheat, millet, pepper, and other grains). Due to its powerful motor and solid construction, the grain mill can also be used for alimentary purposes to grind sugar, salt, or other granular products.

This manual is an integral part of the machine, covering all the necessary information for operation and maintenance.

It is important to read the manual carefully and follow the instructions.

All safety norms are crucial and must be strictly observed.

SAFETY REGULATIONS

In order to avoid accidents, it is necessary to pay attention to the information below:

• The acoustic pressure level is around 50-60dB while working, so wear earmuffs for long operation times.
• When the Grain mill has finished grinding, ensure the product switch is turned off immediately and disconnect the plug from the switch.
• Do not carry out any cleaning or maintenance while the motor is working, and never with the plug connected.

• Make sure all parts are set tight, and check them before working.
- Do not use the Grain mill in the rain or in spaces with high humidity, or in the presence of flammable gases or liquids. Never use the Grain mill with wet hands.
- Before working with the Grain mill, place it on flat ground. Before switching on the feeder crusher, make sure all parts are fixed properly and ready for operation.
- Never introduce anything other than the material for feed or animal consumption into the feeder crusher.

1. Every Grain mill is tested before delivery by the manufacturer, but it is better if you check on your side before operation too. Safety is most important for you!
2. Open the carton, unbox the product.
3. Fix the upper (hopper) part on the metal bucket and close the metal ring tightly. Make sure that it must be laid on the ground correctly and ensure that the screen is chosen correctly for the proposed duty and is fixed tightly.
4. Before starting the Grain mill, make sure the hopper is filled with proper dried seeds (no wet seeds admitted to be milled).
5. Grain mill should be stable after point 2, plug the crusher into electricity.
6. Push the on/off button and start the milling process.
7. After milling, push the STOP button and only then open the metal ring and remove the milled product from the bucket. DO NOT open the metal ring while the mill is working.
8. If you want to change the mesh, UNPLUG the Mill. DO NOT change the mesh with the Mill plugged or working!
9. Do not keep the Grain mill ON after finishing the milling.

MAINTENANCE

Every-time maintenance must be done with the motor powered off and the electric cable unplugged from the switch.

Before performing any maintenance or check operations, clean the working area, use protective gloves, and ensure tools are in good condition.

• After every use, it is recommended to clean the inside parts of the grain mill.
- Every 10 hours of working, check the tightness of all screws, inspect the hammer, and ensure the input cable is in good condition.
- Every 50 hours of working, check the rotating parts to ensure they are in good shape and rotating without noise.

- Every 200 hours, replace the hammer if needed, clean the inside of the grain mill and motor with a fan and a pressure air compressor to remove dust, and check the rotation manually to ensure smooth operation.

TROUBLES-SOLUTIONS

If the grain mill stops working by itself, you should check one of the following reasons:

• The motor may have overheated. You need to wait for it to cool down before restarting.
• The thermal protection may have stopped the motor due to hard-working conditions. Wait for it to cool and restart the grain mill.
• The milling product may contain foreign objects. Before opening the mill, UNPLUG and stop the machine. Ensure that no foreign objects are in the material you are milling.

Vibrations

• Check the hammer knife.
• Check the sieve.
• Check the motor support.

If any parts are damaged, they need to be replaced.

UTILIZATION

All Grain mill models are used for home use or small family farms and are not proposed for industrial use. They assist in the preparation of various thickness flours for animal consumption

The Grain mill can be plugged into any kind of domestic electric switch single phase 230V/50Hz. Make sure the switch is off before plugging it in.

It is forbidden to use the Grain mill for grinding wood branches, plastic, or ferrous materials. Always check that the grains you mill are clean of any foreign materials as described before.

The final product size is controlled by the sieve size.

Only adults are allowed to use the Grain mill. It is forbidden for children to work and use the Grain mill!

Any arbitrary modification to the machine relieves the manufacturer of any responsibility for any damages caused.

Before working with the Grain mill, it is necessary to wear the following protective gear: earmuffs, safety gloves, dust mask, and protective eyewear. Use the Grain mill in well-ventilated environments only.

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Młyn zbożowy

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Mlynek na obilí

Exterior view of a portable industrial vacuum cleaner with yellow top and black body (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with a yellow top and metallic legs (no visible text or symbols)

Moulin à céréales

Exterior view of a portable industrial vacuum cleaner with yellow top and black body (no visible text or symbols)

Modello WIE-FC-25B

Exterior view of a portable industrial machine with a yellow top and metallic legs (no visible text or symbols)

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Gabonamalom

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Kornkværn

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Graanmolen

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Kornmølle

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with three legs and a yellow top (no visible text or symbols)

Spannmålskvarn

Exterior view of a portable industrial vacuum cleaner with yellow top and black body (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with a yellow top and metallic legs (no visible text or symbols)

Moinho de grãos

Exterior view of a gray industrial vacuum cleaner with yellow top cover and control buttons (no readable text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Mlynček na obilie

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Μύλος Σιτηρών

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Mlin za žito

Mlin za žitarice namijenjen je za mljevenje manjih količina brašna za ishranu pilića, krava ili svinja (može mljeti kukuruz, rižu, ječam, zob, raž, pšenicu, proso, papar i druge žitarice). Zbog svog snažnog motora i čvrste konstrukcije, mlin za žitarice može se koristiti iu prehrambene svrhe za mljevenje šećera, soli ili drugih zrnastih proizvoda.

Ovaj priručnik je sastavni dio stroja i sadrži sve potrebne informacije za rad i održavanje.

Exterior view of a portable industrial vacuum cleaner with yellow top and black body (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with a yellow top and metallic legs (no visible text or symbols)

Grūdų malūnas

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Moara de cereale

Exterior view of a gray industrial vacuum cleaner with yellow top and control panel (no visible text or symbols)

WIE-FC-25B

Exterior view of a portable industrial machine with yellow top and metallic legs (no visible text or symbols)

Mlin za žito

For the disposal of the device please consider and act according to the national and local rules and regulations.
