USER MANUAL PS2600 Powertec

16 17 C J 18

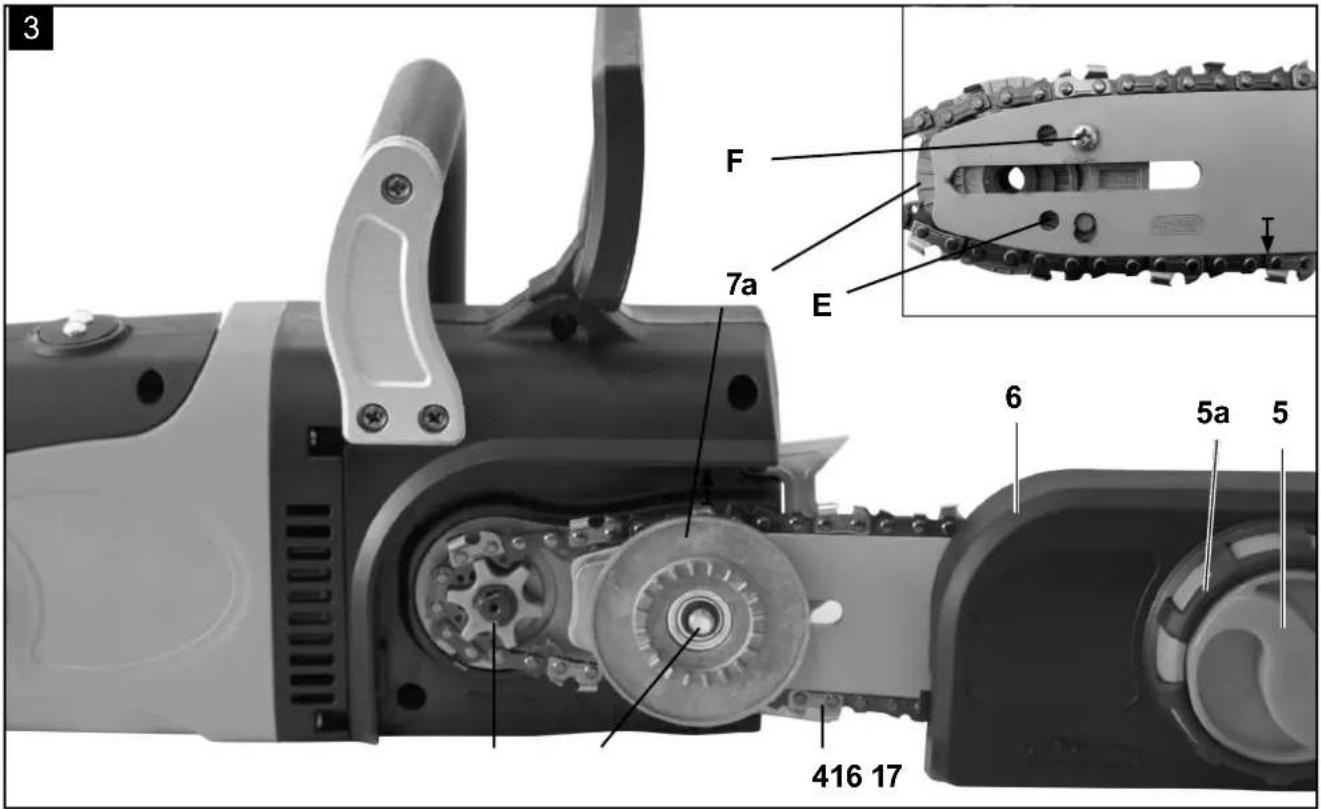

3 F 7a E 6 5a 5 416 17

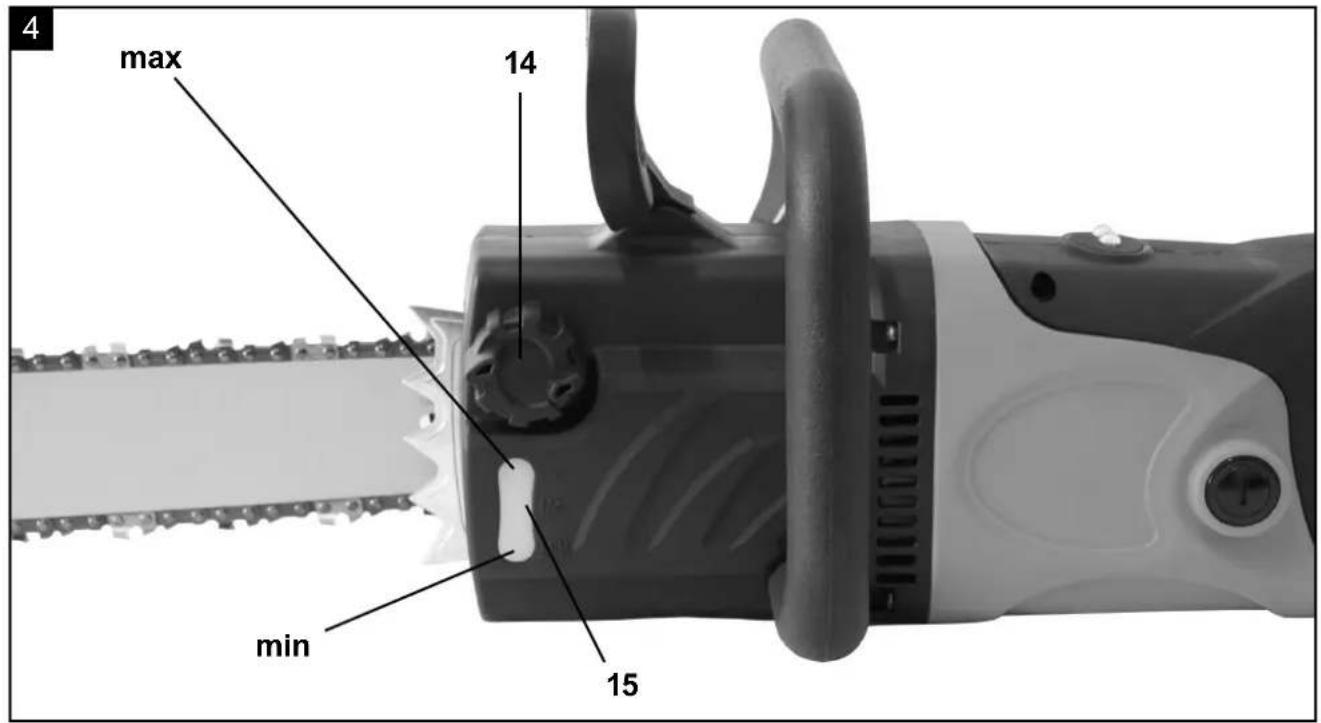

max 14 min 15

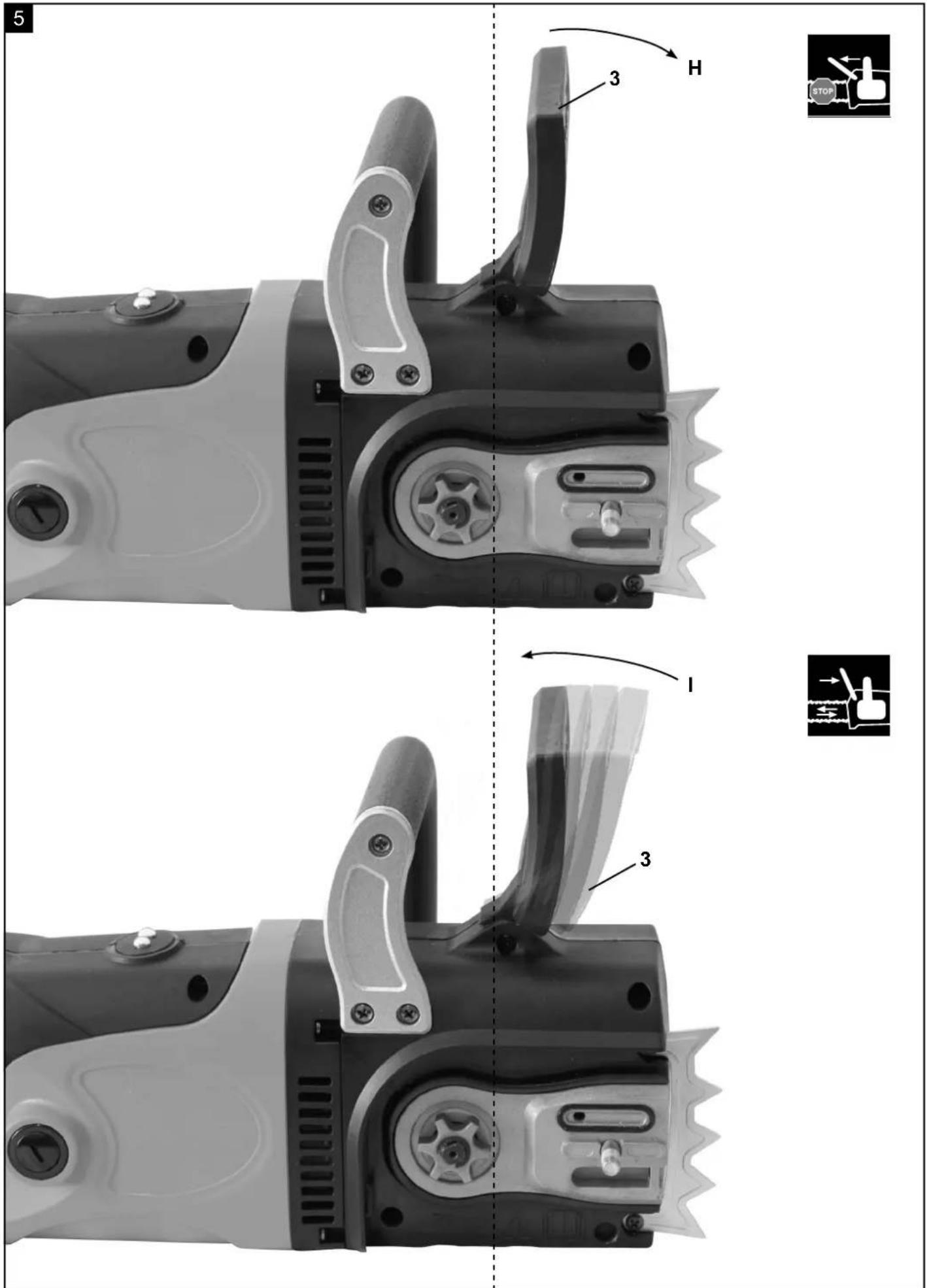

5 H 3 1 3

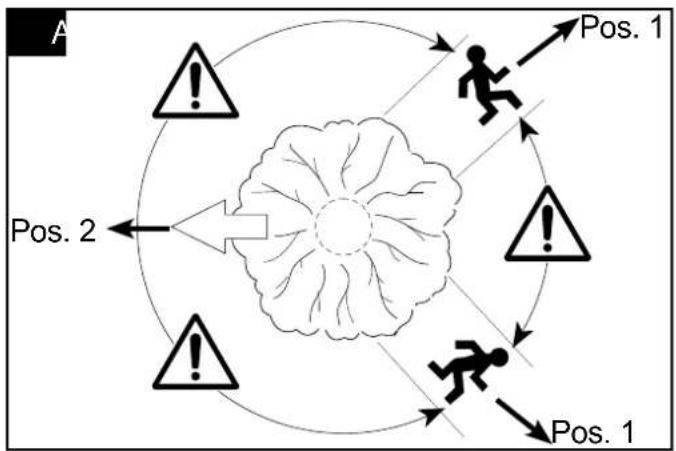

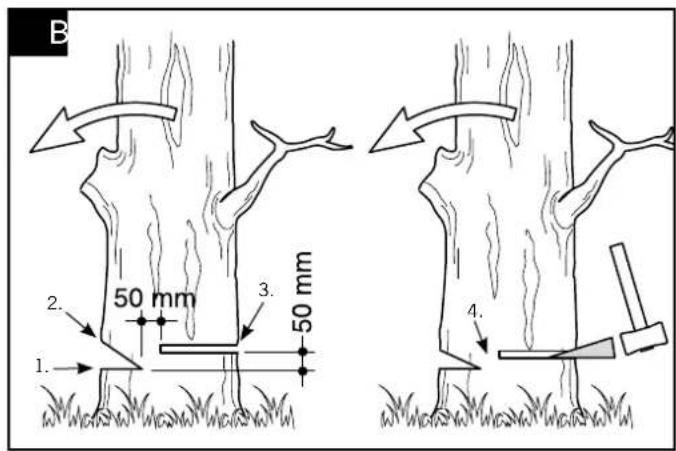

B 2. 50 mm 3. 50 mm 1. 4.

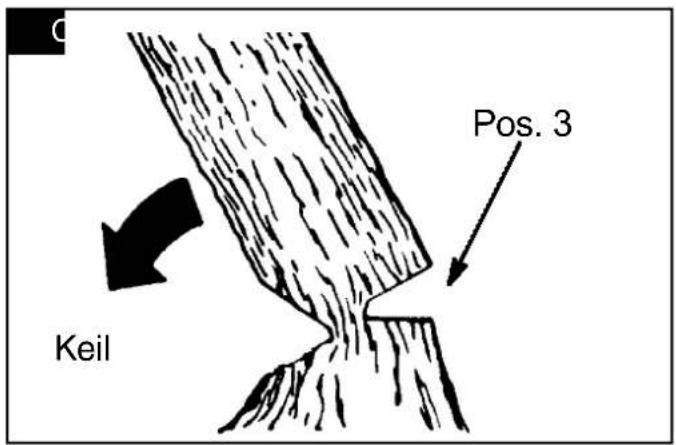

Keil Pos. 3

Illustration of a person using a power saw to cut a wooden plank (no text or symbols present)

Diagram of a hand holding a piece of paper with arrows indicating movement or force direction (no text or symbols)

Illustration of a person using a power tool to cut a tree trunk (no text or symbols present)

Illustration of a person using a belt drive a car seatbelt, showing mechanical components and motion direction (no text or symbols)

Close-up of a medical or laboratory procedure showing tubing and a connector (no visible text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Table of contents: Page:

1. Introduction 24
2. Device description 24
3. Scope of delivery 24
4. Intended use 24
5. Safety information 25
6. Technical data 27
7. Attachment and operation 28
8. Initial operation 28

9. Working instructions 29

10. Maintenance 32

11. Storage 32

12 Electrical Connection 33

1. Disposal and recycling 33

2. Troubleshooting 34

3. Declaration of conformity 93

4. Warranty certificate 94

Explanation of the symbols on the equipment

	GB	Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance.
	GB	Caution - Read the operating instructions to reduce the risk of inquiry
	GB	Always wear safety glasses, hearing protection and a safety helmet
	GB	Wear security gloves when you use the device.
	GB	Always wear non-skid safety shoes with cut protection when using this product.
	GB	It is important you wear the protection clothing for feet, legs, hands and forearms.
	GB	Remove plug from the mains immediately if the cable is damaged or cut.
	GB	Protection class II
	GB	Warning! Chance of kickback (kickback). Beware of a check of the chain saw and avoid contact with the tip of the bar.
	GB	Do not use the device with one hand.
	GB	Use the device with both hands.
	GB	Do not expose the unit to rain. The device must not be wet, nor should it be operated in a moist environment.

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of woodworking machines.

We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

2. Layout (Fig. 1-4)

1. Rear grip
2. Front grip
3. Front finger guard / Chain break
4. Saw chain
5. SDS system
6. Guide bar cover
7. Guide bar
8. Rear finger guard
9. Power cable
10. Claw stop
11. Safety lock-button
12. Cable hook
13. ON/OFF switch
14. Oil tank cap
15. Oil gauge
16. Chain wheel
17. Guide bolt
18. Operation/Overload indicator

3. Scope of delivery

Open the packaging and remove the device carefully. Remove the packaging material as well as the packaging and transport bracing (if available).

Check that the delivery is complete.

Check the device and accessory parts for transport damage.

If possible, store the packaging until the warranty period has expired.

Attention

The device and packaging materials are not toys! Children must not be

allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

• 1 Electrical chainsaw
• 1 Manual
- 2 chain
• 1 bar
- 1 bar sheath

4. Intended use

The machine meets the currently valid EU machine directive.

Before starting any work, all protective and safety devices must be in place.

• The machine has been designed to be operated by one person.
• The operator is responsible for third parties in the area of operations.
• All safety and hazard notices on the machine must be observed.
• All safety and hazard notices on the machine must be kept in a completely legible condition.
• Use the machine in a technically flawless condition only, as well as for its intended purpose, in a safe

manner and being aware of dangers, in compliance with the operating instructions!

• Disruptions which can affect safety in particular must be eliminated straight away!
• The manufacturer's safety, operation and maintenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to.
• The machine may only be used, maintained or repaired by trained persons who are familiar with the machine and have been informed about the dangers. Unauthorized modifications of the machine exclude a liability of the manufacturer for damages resulting from the modifications.
• The machine is intended for use only with original spare parts and original tools from the producer.
• Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user.
• The device must not be used for commercial, technical or industrial applications.
• If you are not sure whether working conditions are safe or unsafe, do not work with the machine.
• The chainsaw has been designed to cut wood and smaller trees with a diameter not bigger than the chain bar length.

Warning!

For your own safety, please thoroughly read this manual and the general safety instructions before turning the device on. If you give the device to third parties, always include these instructions.

5. Safety information

Please read all instructions before working with this tool.

When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury.

Please read all instructions and warnings carefully. Non-compliance with instructions and warnings can lead to electric shock, fire and/or serious injuries. Please store instructions and warnings safely. The term "device" refers to electrically operated devices, either powered by mains operation (with mains cable) or battery powered (without mains cable).

General notes on safety

• Before you do any work with the electric chainsaw, make yourself familiar with all operating parts.

• Practise using the saw (sawing logs on a sawhorse) and get an experienced user or a specialist to explain to you the function of the saw, the way of working, the techniques of sawing and the personal protection equipment.

• Observe the noise protection and local regulations for woodcuts.

• Local regulations may require a qualifying examination. Contact the forest administration.

General safety instructions for power tools

1. Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)protected supply. Use of an RCD reduces the risk of electric shock. Use a surge protector with a release current of 30 mA or less.

3. Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriat e conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

1. Power tool use and care

2. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

3. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
5. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
6. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean.
  Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Chain saw safety warnings:

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention white operating chain saws may cause entanglement of your clothing or body with the saw chain.
• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
• Only ever hold the electric device by the handles' insulated gripping surfaces because the saw-chains may touch hidden cables. If the cutting tool comes in contact with a live cable, this may cause the device's exposed metal parts to be energised. This, in turn, can lead to the user being electrocuted.
• Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.
• Do not operate a chain saw in a tree. Operation of a chain saw white up in a tree may result in personal in jury.
• Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.
• When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.

• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

• Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

• Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
• Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or nonwood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

Causes and operator prevention of kickback

Beware of kickback!

• Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
• Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
• Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
• Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw.
• As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.
• Kickback is the result of tool misuse and/ or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:
• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces (Fig. L).
• Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
• Do not overreach and do not cut above shoulder height.
• This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
• Only use replacement bars and chains specified by the manufacturer.
• Incorrect replacement bars and chains may cause chain breakage and/or kickback.
• Follow the manufacturer's sharpening and maintenance instructions for the saw chain.
• Decreasing the depth gauge height can lead to increased kickback.

Additional safety informations

• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Lay the extension cable in such a way that it will not be caught by branches or similar during sawing.
• Use a surge protector with a release current of 30 mA or less.
• Have your power tool serviced by a qualified repair person using only identical replacement parts.
• Carefully follow the maintenance, control and service instructions in this manual.
• Practise using the saw (sawing logs on a sawhorse) and get an experienced user or a specialist to explain to you the function of the saw, the way of working, the techniques of sawing and the personal protection equipment.

6. Technical data

Technical data
Cutting data Chainsaw
cutting lenght cm 45,5
bar lenght cm 45,7
capacity oiltank l	0,125
type of oil	Saw chain oil
saw chain division	3/8"
drive link thickness	1,27mm
saw chain type	Oregon 91PX062X
number of teeths drive	6
sprocket
tooth pitch of drive	3/8"
sprocket
chain brake	yes
guide bar type	Oregon
	180SDEA041

engine
motor V/Hz	230-240V / 50 Hz
power W	2400
cutting speed max. m/s	14
Weight in kg	5,5
Weight without chain and bar kg	4,8

Subject to technical changes!

Information concerning noise emission measured according to relevant standards:

Sound pressure L_pA = 93 dB(A)

Sound power L_WA = 104.6 dB(A)

guaranteed Sound power LWA = 106 dB(A)

Uncertainty K_PA = 3 dB(A)

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Vibration A_hv (front handle) = 7,5 m/s²

Vibration A_hw (rear handle) = 7,5 m/s²

Uncertainty K_PA = 1,5 m/s^2

- The specified vibration emission value has been measured according to a standardised testing procedure and can be used for comparison of one

electric tool with another;

- The specified vibration emission value can also be used for an initial assessment of the load.

Warning:

• The vibration emission value can vary from the specified value during the actual use of the electric tool, depending on the type and the manner in which the electric tool is used;
• Try to minimise stress from vibrations as low as possible. Some examples of means for reducing the vibration stress are wearing gloves while using the tool and limiting work time. In the process all parts of the operating cycle must be taken into account (such as times in which the electric tool is switched off or time in which it is switched on, but is not running under a load).

7. Attachment and operation

Warning!

Always wear safety goggles, ear muffs, protective gloves and heavy-duty work clothes! Use the saw only with approved extension cables with the prescribed insulation and connections designed for outdoor use (approved rubber-sheathed cables) which fit the chainsaw plug.

The chain saw is equipped with safety switches, requiring the use of both hand. The chainsaw works only when one hand is pushing the button 11 and 13 at the same time. If the chainsaw does not run, the chain brake must be released at the front finger guard (3). Be

sure to read the sections "Chain brake" and "Releasing the chain brake" on this point.

To switch on:

• Release the chain brake (3), push in the lock (11) and press the power switch (13).
• Place the lowest claw (Fig 2, J) on the wood. Raise the chain saw by the rear grip (1) and saw into the wood. Move the chain saw back a little and place the claw further down.
• Be careful when sawing splintered wood as pieces of wood may be ripped off.

After switching on, the chainsaw will run immediately at high speed.

To switch off

• Release either the ON/OFF switch (13) on the rear grip.
• The release of ON/OFF switch results the stop of the chainsaw within 1sec., and heavy sparkling. This is normal and safe for the proper operation of the chainsaw.
  • After working with the chainsaw, you should always: Clean the saw chain and guide bar and replace the chain guard.
• If the chain brake is activated the chainsam will be deactivated immediately.

Explanation of the Operation/Overload indicator (Fig. 2,18):

Green LED:

The green LED comes on when the device is in use. Red LED:

The red LED comes on if the device is overloaded. It does not go out until the device is switched off and back on again.

8. Initial operation

The voltage and current supply must comply with the ratings on the type plate.

Before commencing work, always check that the chainsaw works properly and is safe to operate.

Check also that the chain lubrication and the oil gauge are in good working order (see Fig.4). When the oil lever is approx. 5 mm from the bottom mark, you must top up with oil. When the oil level is higher you can work without worry.

• Switch on the chain saw and hold it above the ground. Be careful not allow the chainsaw to touch the ground. For safety reasons it is best to keep a clearance of at least 20 cm. If you now see growing traces of oil, the chain lubrication system is working correctly. If there are no traces of oil at all, try cleaning the oil outlet (Fig 2, C), the upper chain tensioning borehole (Fig 3, e) and the oil duct, or contact your Customer Service. (Be sure to read the section “Filling in chain oil and chain lubrication” on this point).
• Check the chain tension and retention, if necessary (see the section "Tensioning the saw chain" on this point).
• Make sure the chain brake is working properly (see also the section "Releasing the chain brake").

Assembly

Fitting the guide bar and chain (Fig 1, 2, 3)

Warning! If the chain saw is already connected to the power supply: Pull the plug from the socket outlet. Wear protective gloves whenever doing any work on the saw chain. Important: The front finger guard (3) must always be in the top (vertical) position (Fig. 5).

The guide bar and saw chain are supplied separately. To assemble, first unscrew the lock nut (SDS-system/5) and remove the guide bar cover (6). The guide bolt (17) must be in the centre of the guide. If necessary, adjust the chain tensioning with the chain wheel (Fig.3, 5a).

Warning! To prevent injury on the sharp cutting edges, always wear gloves when assembling, tensioning and checking the chain.

Before assembling the guide bar with the saw chain, check the cutting direction of the teeth!

The running direction is marked with an arrow on the cover (6). To determine the direction of cut, it may be necessary to turn over the saw chain (4).

Hold the guide bar (7) vertically with the tip pointing upwards and put on the saw chain (4, beginning at the tip of the bar.

Then assemble the guide bar with the saw chain as follows:

• Place the guide bar with the saw chain on the chain wheel (16) and guide bolt (17). Ensure that the adjustment plate (Fig.3/7A) is showing to you.
• Place the saw chain round the chain wheel (16). Cause the chainsaw to the sprocket and check whether it is correctly.
• The adjustment plate (7a) is fastened to the guide rail (7) with the screw F.
• Place the cover (6) on top and tighten gently with the lock nut (5).

Now the saw chain has to be correctly tensioned.

Tensioning the saw chain

Warning!

Always pull the plug out of the power socket before doing any work on the chainsaw!

Wear safety gloves!

• Make sure the saw chain (4) is inside the guide groove of the guide bar (7).
• Turn the outer Knob (Fig. 3/5A) clockwise until the saw chain is correctly tensioned, then rotate the inside knob (5) to block the guide bar in that position.
• While the inside knob is being tightened, the guide bar must then be pushed upwards.
• Check the chain tension again. Do not tension the chain too tightly.
• When cold, it should be possible to lift the chain in the middle of the guide bar approx. 5 mm. Tighten the lock nut (5) securely.
• When warm, the saw chain will expand and slacken and there is a danger of it jumping off the rail altogether. Re-tension if necessary.
• If the saw chain is re-tensioned when hot, it must be loosened again when the sawing work has been completed.
• Otherwise, the contraction which takes place as the chain cools would result in excessively high tension.
• A new saw chain requires a running-in period of approx .5 minutes. Chain lubrication is very important at this stage. After running in, check chain tension and re-tension if necessary.

9. Working instructions

Transporting the chainsaw

Before transporting the chainsaw, always remove the plug from the power socket and slide the chain guard over the rail and chain. If several cuts are to be performed with the chain saw, the saw must be switched off between cuts.

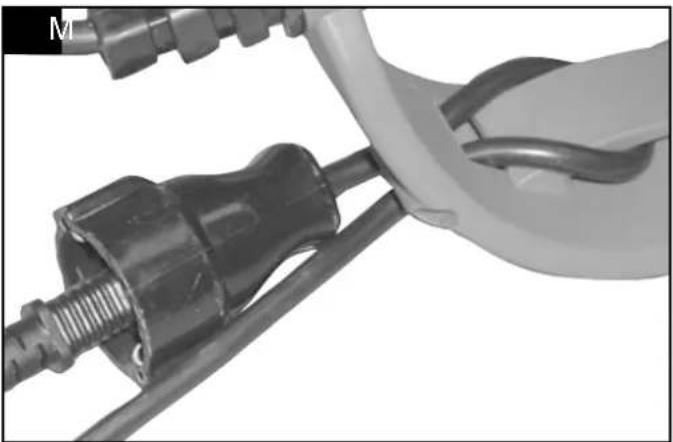

Securing the extension lead

Only use extension leads suitable for outdoor use. The cross section of the cable (max. length of extension cord: 75m) must be at least 2,5 mm ^2 . secure the chainsaw flex to the extension lead by inserting the extension lead into the strain relief gap of the housing (Fig..M). Extension leads longer than 30 m will reduce the performance of the chainsaw.

Chain lubrication

To prevent excessive wear, the saw chain and guide bar must be evenly lubricated during operation. Lubrication is automatic. Never work without chain lubrication. If the chain runs dry, the entire cutting apparatus will quickly become severely damaged.

It is therefore important to check both chain lubrication and the oil gauge every use (Fig. 4).

Never use the saw when the oil level is below the "Min." mark.

- Min.: When only approx. 5 mm of oil is visible at the lower rim of the oil gauge (15), you must top up with oil.

- Max.: Top up with oil until the window is full.

Chain lubricants

The service life of saw chains and guide bars depends to a large extent on the quality of the lubricant used. Old oil must not be used! Use only environment-friendly chain lubricant. Store chain lubricant only in containers which comply with the regulations.

Guide bar

The guide bar (7) is subjected to especially severe wear and tear at the nose and the bottom. To avoid one-sided wear and tear, turn the guide bar over every time when you sharpen the chain.

Chain wheel

The chain wheel (16) is subjected to especially high wear and tear. If you notice deep wear marks on the teeth, the chain wheel must be replaced. A worn chain wheel curtails the service life of the saw chain. Have the chain wheel replaced by a specialist dealer or your Customer Service.

Chain guard

The chain guard must be clipped onto the chain and sword as soon as the sawing work has been completed and whenever the chainsaw has to be transported.

Chain brake

In the event of kick-back, the chain brake (3) will be actuated via the front finger guard. The front finger guard is pushed forwards by the back of the hand and this causes the chain brake to stop the chain saw, or rather the motor, within 0.15 s (Fig 5, H).

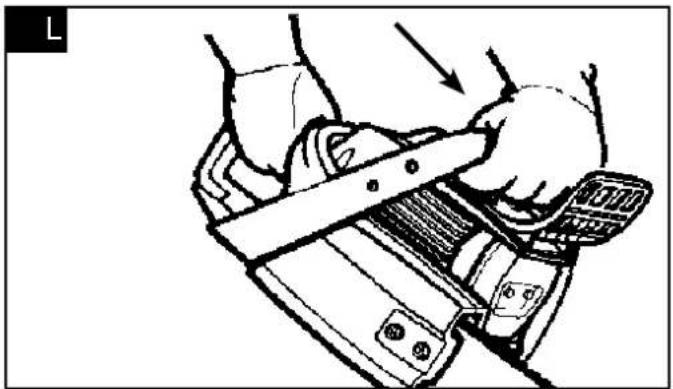

Releasing the chain brake (Fig 5)

To be able to use your chain saw again, you must release the saw chain again. First switch off the chainsaw. Then push the front finger guard (3) back into the vertical position until it locks in place (Fig 5, I). The chain brake is now fully functional again.

Chainsaw protection

Never use the chainsaw in the rain or in damp conditions.

Warning! If the extension cable is damaged, pull the plug out of the power socket immediately. Never work with a damaged cable.

• Check the chainsaw for damage. Before using your tool again, check the safety devices or any slightly damaged parts to ensure that they are in good working order.
• Make sure the moving parts are working correctly.
• All the parts must be correctly assembled and meet all the conditions required to ensure that the chainsaw works correctly.
• Any damaged safety devices and parts must be properly repaired or replaced immediately by a Customer Service workshop, unless there are instructions to the contrary in these operating instructions.

Notes on working practice

Kick-back

You can avoid accidents by not sawing with the tip of the guide bar as this may cause the saw to rear up suddenly. Always use the complete safety equipment and clothes when working with the saw. Kick-back is an upward and/or backward movement of the guide bar which can occur if the saw chain at the tip of the guide bar encounters an obstruction.

Make sure your work-piece is firmly secured. Use clamps to stop the work-piece slipping. This also makes it easier to operate the chainsaw with both hands. Kick-back causes the saw to behave uncontrollably and thus brings with a slack or blunt chain. A poorly sharpened chain increases the risk of kick-back. Never saw above shoulder height.

Operation - tips on chain saw use Important Notes

• Use the device exclusively for sawing wood. Do not cut metal, plastics, masonry, building material that is not made of wood, etc.
• Turn off the engine when the saw comes into contact with a foreign object. Inspect the saw and repair it if necessary.
• Protect the chain from dirt and sand. Even a small amount of dirt will quickly blunt a chain and increase the risk of kickback.
• Start by cutting a few small logs, using the exercise to get a feel for your device before you tackle more difficult tasks.
• Press the casing of the chain saw against the log when you start sawing.
• Allow the saw to work. Exert only slight downward pressure.
• In order not to lose control of the device you should lean towards the end of the incision so there is no pressure on the saw.

Felling Trees – Only after appropriate training

Caution: Watch for broken or dead branches that could fall during sawing and cause serious injury. Do not saw near buildings or electrical wires if you do not know in which direction the felled tree could fall. Do not work at night since you will not be able to see properly, or in rain, snow or storm, as it is difficult to predict the the direction in which the tree could fall.

• Plan your work in advance.
• The work area around the tree should be clear so you have a firm foothold.
• The operator should always stand on the uphill side of the terrain as the tree is expected to roll or slide after felling.
• Check for broken or dead branches, which can fall and cause serious injury.

The following conditions may affect the direction in which a tree falls:

• Wind direction and speed.
- Lean of the tree. The inclination is not always visible due to uneven or sloping terrain. Determine the lean of the tree using a solder or a spirit level.

- Branch growth (and hence weight) on one side only.

• Surrounding trees and obstacles.

If two or more people are involved in the cutting and felling, the distance between those who are felling and cutting should be at least twice the height of the tree to be felled. When felling trees, make sure that other people are not put at risk, that supply lines are not hit and that no material damage is caused. If a tree comes in contact with a supply line, the supply company has to be notified immediately.

Look for decay and rot. If the trunk is rotted, it may suddenly collapse and fall on you. Make sure there is enough space for the tree to fall safely. Keep a distance of 2 1/2 tree lengths from the nearest person or other objects. Engine noise can drown out a warning call.

Remove dirt, stones, loose bark, nails, staples, and wire from the tree where you are going to cut.

Keep an escape route (Fig. A)

Before felling, an escape route has to be planned and cleared, if necessary. The escape route should lead diagonally away from the back of the falling tree (Fig. A).

Item 1: Plan of emergency exits

Item 2: Position in which the tree falls

Felling of large trees - only with appropriate training

(15 cm in diameter)

Fell large trees using the notch method. Here, a wedge is laterally cut out of the tree according to the desired direction of fall. After a cut has been made on the case of the other side of the tree, the tree will fall in the direction of the wedge.

m Note: If the tree has large prop roots, they should be removed before making the notch. If the saw is

used to remove the prop roots, the chain should not touch the ground, to prevent it from becoming become blunt.

Undercut and felling of the tree (Fig. B-C)

• Saw a wedge with a depth of 1/3 of the tree diameter at a right-angle to the falling direction. Make the lower horizontal wedge cut first (Fig. B, No. 1). This will prevent the saw chain or the guide bar becoming jammed when the second wedge cut (Fig. B, No. 2) is made. Now remove the excised wedge.
• Next, you can run the felling cut (Fig. B, Pos. 3) on the opposite side of the tree. Do this at approximately 5cm above the centre of the notch. Make the dropping cut parallel to the horizontal wedge cut. For the dropping cut (No. 3), saw only to a depth so that a bridge (No. 4) (holding wood) remains which can act as a hinge. The bridge prevents the tree from turning and falling in the wrong direction. Do not cut through the bridge.

Note: When the dropping cut is made close to the bridge, the tree should start falling. If it looks like the tree may possibly not fall in the desired direction or it leans back and traps the saw chain, stop the dropping cut and use wedges of wood. plastic or aluminium to open the cut and to tilt the tree into the required falling direction.

When the tree starts falling, remove the chainsaw from the cut, turn it off, put it away and leave the danger zone via the planned escape route. Look out for falling branches and do not trip.

• Be alert to signs that the tree is starting to fall: cracking sounds, widening of the felling cut, or movement in the upper branches.
• To avoid injury, do not cut down a partially felled tree with your saw. Pay special attention to partially felled trees that may be poorly supported. If a tree does not fall completely, set the saw aside and pull with a cable winch, block and tackle, or tractor.

Sawing a felled tree (Bucking)

The term „BUCK“ means to cut a felled tree trunk into the desired log length.

Caution: Do not stand on the log while it is being cut. Any portion can roll, and you may lose your footing and control over the device. Never run the saw on sloping ground. Make sure you have secure footing and distribute your body weight evenly on both feet. If possible, put branches, beams or wedges under the tree to support it.

Important Notes

• Always only cut one log at a time.
- Be careful when cutting splintery wood. You could be hit by sharp wood particles.
- Cut small logs or branches on a sawhorse. When cutting logs, another person should hold the trunk. Do not secure the trunk with your leg or foot.

- If you use the saw in places where trunks and roots are tangled, drag the logs into a clear spot, and lift the cleared logs first.

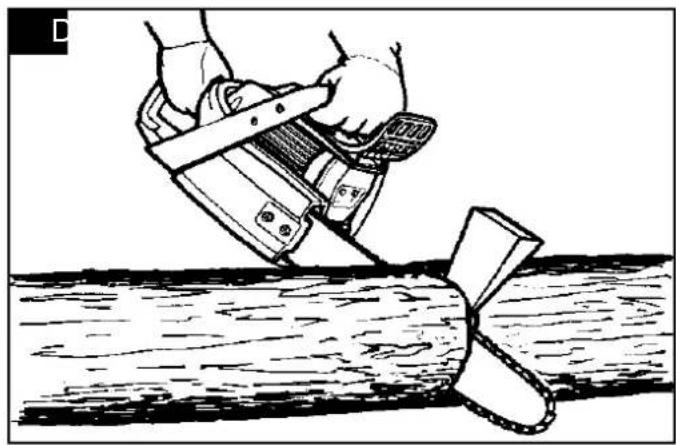

Different cuts for BUCKING (Fig. D)

Caution: If the saw is clamped into a log, do not pull it out by force. You risk losing control of the device, thereby resulting in injury and / or damage to the saw. Hold the saw, and drive a plastic or wood - wedge into the cut until the saw can be pulled out easily. Position the saw carefully and allow it to cut again. Start the saw if it is trapped in a trunk.

Upper section (Fig. E, Item 1)

Position the saw at the upper end of the log. With the overcut apply only slight downward pressure.

Sub-section (Fig. E, item 2)

Place the undercut at the bottom of the trunk, holding the top of the saw down against the log. Practice the undercut; it is just as easy to train from the top. Hold the saw firmly and maintain control. The saw will push backwards (towards you).

Caution: Never hold the saw upside down for an undercut. In this position, you have no control over the device. Always execute the first cut on the compression side of the log. The compression side of a log is where the pressure of the root weight is concentrated.

Bucking without supports (Fig. F)

• When the whole length of the tree trunk is stable and even, start sawing from the top (No. 1).
  • Make sure you do not saw into the ground.

Trunk cutting, supported on one end (Fig. G)

• When the tree trunk is propped up on one end, make the first cut (No. 1) from underneath (1/3 of the trunk diameter) in order to prevent splitting.
• The second cut is made from the top (2/3 of the diameter) in the same line as the first cut to prevent the saw from becoming jammed.

Trunk cutting, supported on both ends (Fig. H)

• When the tree trunk is propped up on both ends, make the first cut (No. 1) from the top (1/3 of the trunk diameter) in order to prevent splitting.
• The second cut is made from underneath (2/3 of the diameter) in the same line as the first cut to prevent the saw from becoming jammed.

Limbing and Trimming

Attention: Always pay attention to, and protect yourself against kickback. Never let the moving chain at the top of the guide bar come into contact with other branches or objects when limbing or trimming. Such contact can cause serious injury.

Attention: Climb the tree for pruning or trimming. Do not stand on ladders, platforms, etc. as you may lose your balance and lose control of the device.

Important Notes

• Work slowly, and hold the saw firmly with both hands. Ensure safe standing position and balance.
• Watch out for spring backs. Use extreme caution when cutting small size limbs. Pliable material may catch in the saw chain and be whipped toward you or pull you off balance.
• Watch out for spring backs. This is especially true for branches that are bent or under pressure. Avoid coming in contact with the branch or the saw when there is tension in the wood.
• Keep your work area clear. Keep the path clear of branches to avoid tripping over them.

Lopping (Fig.J)

• Lopping means removing branches from the felled tree.
• Leave the larger limbs that are underneath the felled tree, and use them as support while you continue to work.
• Start at the base of the felled tree and work your way up to the top. Remove smaller parts of the tree with a cut in the direction of growth (arrows Fig. J).
• Be sure to keep the tree between you and the saw.
• Remove larger, supporting branches using the methods in the section „Bucking without restraints“.
• Always cut branches under tension from the underneath to the top, so the saw does not become trapped.
  • Always cut small and freely hanging limbs with one cut. By undercutting they could fall in and pinch the saw.

Trimming (Fig. I)

Attention: Leave stubs in branches or below cut them to shoulder level only. Never cut branches above shoulder height. Leave such work to an expert.

• Make the first cut (Item 1) 1/3 in the bottom of the limb.
• Then cut the second section (Item 2) all the way through the branch. The third section (item 3) is a general section that allows you to separate the branch at 2.5 to 5cm from the trunk.

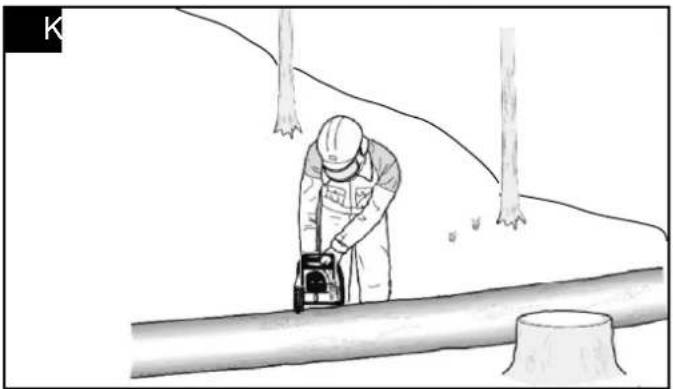

Sawing on a slope (Fig. K)

When sawing on a slope, make sure you always stand higher than the tree trunk (Fig. K). In order to maintain complete control at the moment of “sawing through”, reduce pressure towards the end of the cut without releasing your tight grip on the handles of the chainsaw.

Warning!: The saw chain must not come in contact with the ground..

After completing the cut, wait for the saw chain to come to a standstill before removing the chainsaw. Always turn off the chainsaw's motor when going from one tree to the next.

10. Maintenance

Always pull the plug out of the power socket before doing any work on the chainsaw!

• Keep the cooling vents on the motor housing clean and unobstructed at all times.
• Only the maintenance work described in these operating instructions may be carried out. Any other maintenance work must be carried out by our Customer Service.
• Do not modify the power saw in any way as this could jeopardize its safety.
• Should the chainsaw fail despite our careful manufacturing and inspection procedures, have it repaired by an authorized Customer Service work-shop.

Filling in chain oil

To prevent dirt getting inside the tank, clean the oil tank cap (21) before opening. Check the contents of the oil tank during sawing work by checking the oil gauge (15). Close the oil tank cap tightly and wipe away any spills.

Sharpening the saw chain

You can have your saw chain sharpened fast and correctly by specialist dealers, from whom you can also obtain chain sharpening equipment to enable you to sharpen the chain yourself.

Please follow the corresponding operating instructions.

Take care of your tools. Keep your tools sharp and clean to enable you to work well and safely.

Follow the maintenance regulations and the instructions for changing tools

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Wear parts*:

• saw chain
• guide bar
• chain oil
• carbon brushes
• claw stop
  * Not necessarily included in the scope of delivery!

11. Storage

• Before every transport and storage, attach the chain guard.
• Store the device in a dry place beyond the reach of children.
• When the device is not being used, store it so it cannot be started by unauthorised persons.

Warning!

Do not store the device without protection outside or in a damp environment.

12. Electrical Connection

The installed electric motor is connected and is ready to work.

The connection complies with the relevant VDE and DIN regulations.

The customer-side mains supply and the used extension line must meet these regulations.

Important information

In the event of an overloading the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Defective Electric Connection Lines

Often, insulation damages occur on electrical connection lines.

Causes are:

• Drag marks if connection lines are led through window or door clearances.
• Kinks due to improper attachment or routing of the connection line.
• Cuts caused by running over the connection line.
• Insulation damages caused by pulling the connection line out of the wall socket.
• Fissures caused by the ageing of the insulation. Such defective electric connection lines must not be used and are hazardous due to the insulation damages.

Regularly check the electrical connection lines for damages. Please make sure that the connection lines are disconnected from the mains supply during the check.

Electrical connection lines must comply with the relevant VDE and DIN regulations. Only use connection lines labelled with H05VV-F. The labelling of the connection cable with the type specification is required.

AC motor

• The mains voltage must be 230 - 240 V\~
• Extension leads up to 25 m in length must have a cross-section of 1.5 mm2. Extension leads whose length is over 25 m must have a cross-section of at least 2.5 mm2.

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Machine data - type plate

13. Disposal and recycling

The equipment is supplied in packaging to preven it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

14. Troubleshooting

Fault Possible cause	Remedy
Motor does not run No	electricity	Check socket, cable and plug . Damaged cable: Have repaired by Customer Service. It is prohibited to patch the cable with insulating tape . Damaged switches have to be replaced by a Customer Service workshop
	Chain brake	See section “chain brake” and “Releasing the chain brake”
	Running out of carbon brush	Change the carbon brush, ask a Customer Service workshop
Chain does not move Ch	chain brake Check the chain brake, release if necessary.
Poor cutting performance	Blunt chain	Sharpen the chain
	Chain tension	Chain wrongly fitted
	Check that the chain is fitted correctly	Check the chain tension
Saw works only with difficulty Chain jumps off sword	Chain tension Check the chain tension
Chain becomes hot Chain lubrication Check oil level		Check Chain lubrication

Table des matières: Page:

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

D-89335 Ichenhausen

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Technical diagram of a mechanical assembly with numbered parts and dimension annotations

CE - Declaration of Conformity

Standard references:

EN 60745-1:2009+A11, EN 60745-2-13:2010+A1,

EN 61000-3-2:2014, EN 61000-3-11:2000, EN 55014-1:2006+A1+A2, EN 55014-2:2015

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyerls rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufac-

tured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded. The saw blade is a consumable item and explicitly excluded from any warranty.

Garantie FR
