USER MANUAL Conga Flash Connected CECOTEC

Robot aspirador/ Robot vacuum cleaner

CONGA oscolec

cecòtec

Safety instructions 7

1. Parts and components 40

2. Before use 41

3. Installation 41

4. Operation 42

5. Cleaning and maintenance 44

6. Troubleshooting 46

7. Technical specifications 47

8. Disposal of old electrical appliances 47

9. Technical support and warranty 47

10. Copyright 47

11. Statement of compliance 48

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

- This product must be used in accordance with the directions in this instruction manual. Cecotec cannot be held liable or responsible for any damage or injuries caused by improper use.

- Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

- This product can only be assembled and disassembled by qualified personnel.

- Do not touch the cable, the power socket or the charger when your hands are wet.

- Keep the robot vacuum cleaner away from clothing, curtains and any other similar materials.

- Do not expose the device to direct sunlight, fire or wet environments.

- Do not sit or place heavy or sharp objects on top of the appliance.

- This product is designed for household use only, do not use it outdoors or with commercial purposes.

- Before operating the robot vacuum cleaner, prepare the room and supervise it, to do so, remove any objects and cables that may affect its operation.

• Always place the device on a flat and stable surface. Avoid placing it in unstable places where there is risk of falling, such as tables or chairs.

- Turn off the power switch, located on the lower part of the robot, when it is not used for a long period of time.

• Before operating it, make sure all the robot and charging base connections are in good condition.
• Avoid operating the product under extremely high or low temperatures.
• The appliance should only be used with the battery and power adapter supplied with it or with compatible units approved by Cecotec.
• WARNING: to recharge the battery, use only the detachable power supply provided with the device.
• Disconnect the appliance from the power socket before removing the battery or carrying out any maintenance tasks.
• Remove the battery from the product interior before disposing of the robot vacuum cleaner.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.
• Cleaning and maintenance should not be performed by children without supervision.
• The plug must be removed from the charging base before cleaning or any maintenance task.

BATTERY INSTRUCTIONS

• This appliance includes a Li-ion battery, do not incinerate or expose them to high temperatures, as they may explode.
• Leaks from the battery or battery cells can occur under extreme conditions. Do not touch any liquid that leaks

from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.

• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails or screws.
• Before a new battery is used or the battery is used for the first time after long-term storage, fully charge the battery.
• When the device is stored and not used for long periods of time, ensure that the battery pack is fully charged.
• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft tissue perforation and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion please seek medical help immediately.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

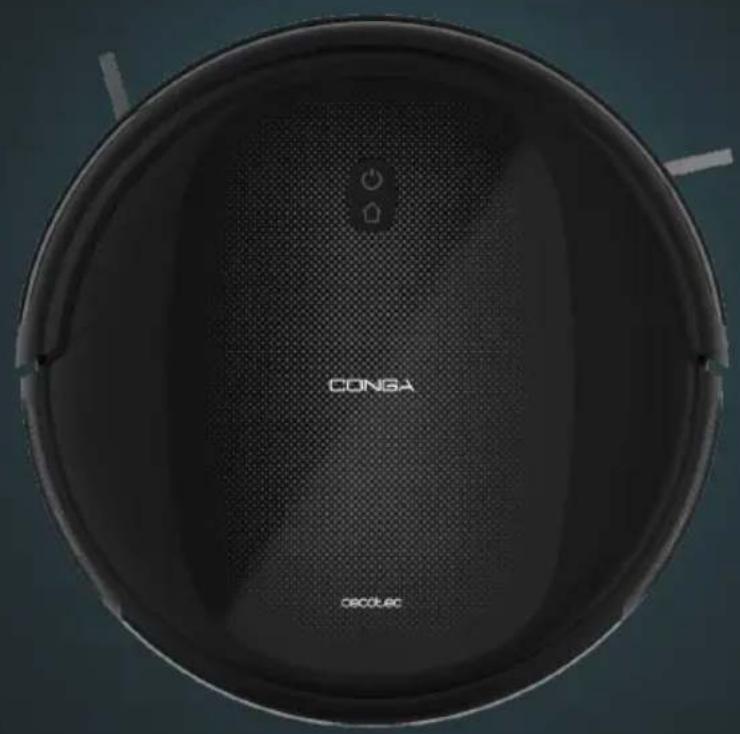

Fig. 1

1. Start/Pause button
2. Back home button

Back home button

By pressing this button or selecting it on the app, the robot will automatically go to the charging base.

Indicator light

• Steady orange light: low battery/back home mode.
• Flashing orange light: charging.
• Steady blue light: fully charged/standby mode/cleaning.
• Oscillating/steady red light: error.

Start/Pause button

• Hold down this button to turn the robot on or off.

• Press it to start cleaning too.

• Anti-collision sensor. Fig. 2

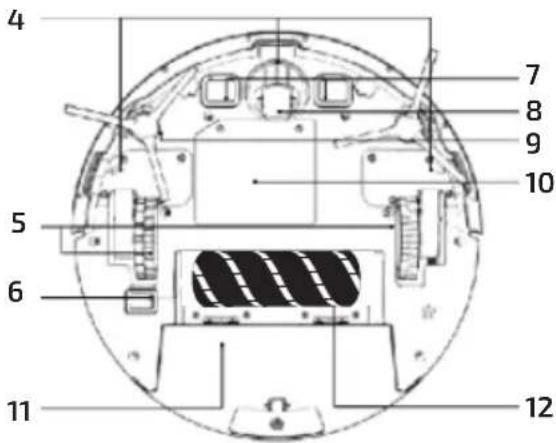

Fig. 3

1. Free-fall sensors
2. Driving wheels
3. Power switch
4. Charging terminals
5. Omnidirectional wheel
6. Side brushes
7. Battery
8. Mixed tank
9. Jalisco brush

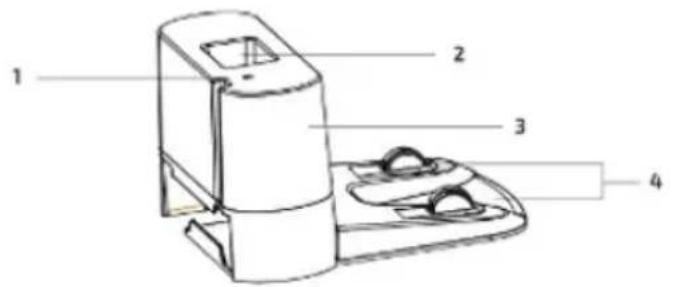

Charging base. Fig. 4

1. Charge indicator
2. Remote control slot for compatible models
3. Signal transmitter
4. Charging terminals

Power adapter. Fig. 5

Mixed tank with different Velcro strips to fix the mop. Fig. 6

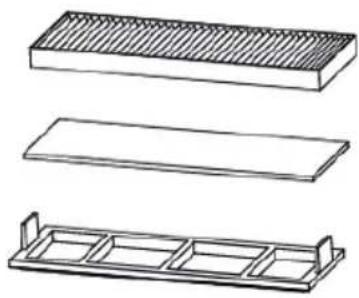

Primary and high-efficiency filters. Fig. 7

Side brushes (4). Fig. 8

Jalisco brush. Fig. 9

Mops (2). Fig. 10

Autoclean brush. Fig. 11

2. BEFORE USE

• This robot vacuum cleaner includes a package designed to protect it during transport. Take the robot vacuum cleaner out of the box. Keep the original box and other elements in a safe place, as this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the Technical Support Service of Cecotec immediately.

Warnings

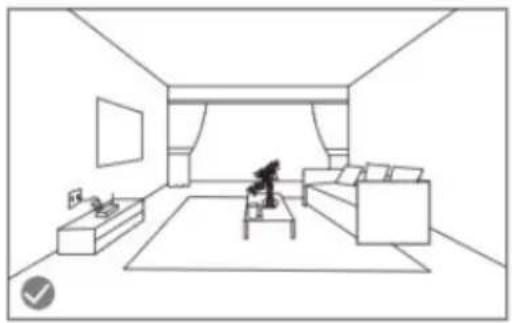

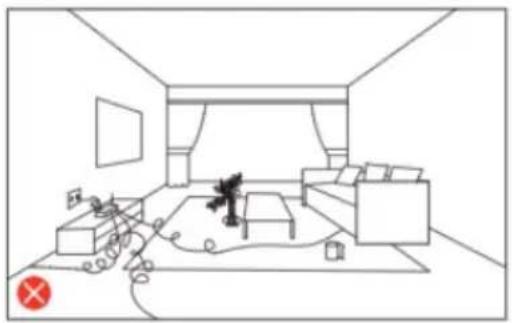

• Remove all objects around the robot vacuum cleaner such as clothing, papers, cables, curtains or other fragile objects which may block or slow down the operation of the robot vacuum cleaner. Fig. 12

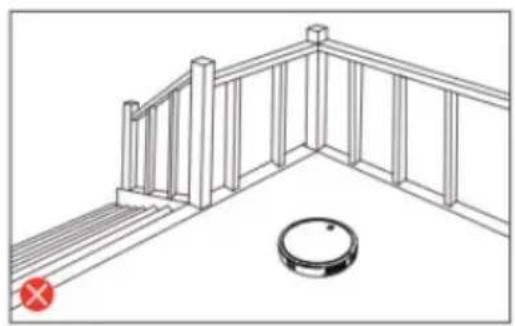

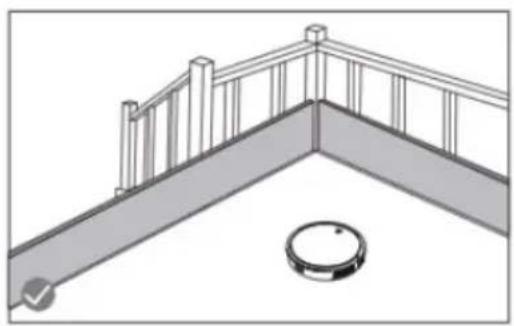

• If the room to be cleaned is near a balcony or stairs, a physical barrier must be placed in order to prevent product damage and ensure safe operation. Fig. 13
• Direct exposure to sunlight or great light contrasts may affect the correct operation of the sensors. If this happens, the robot will stop operating, move it to a new location for it to start operating again.

3. INSTALLATION

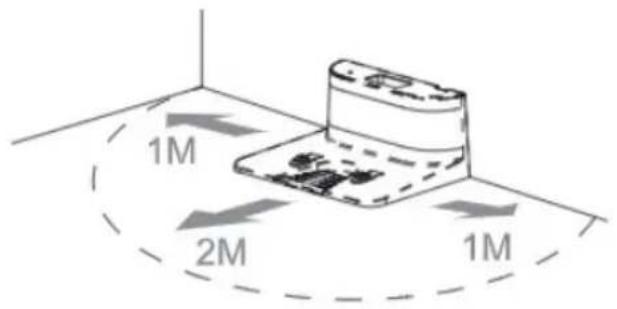

1. Place the charging base against the wall and leave a minimum free space of 2 metres to the front and 1 metre to each side. Fig. 14
2. Connect the charging base to a power socket. Wind and store the remaining cable in the lower part of the charging base to prevent accidents. Fig. 15

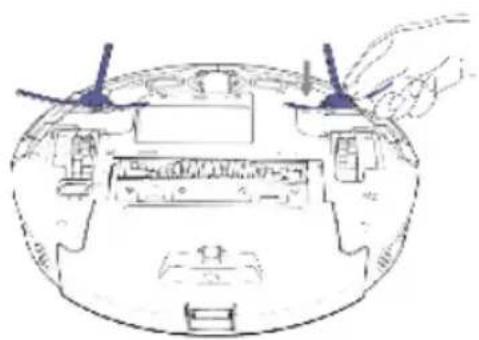

3. Install both side brushes in their corresponding slots, located on the robot lower part. Press until they click to make sure they are properly fixed. Fig. 16

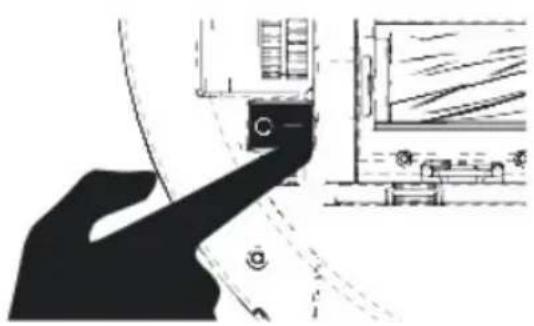

4. Press the power switch located on the lower part of the robot. Make sure the power switch is in the on position (I). Fig. 17

ENGLISH

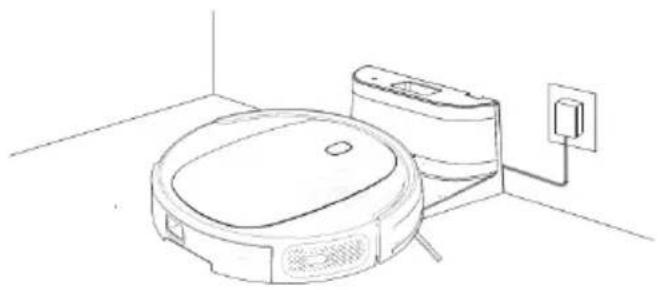

1. Place the robot on the charging base and make sure the charging terminals on the robot match those of the charging base. Once the robot is properly placed, it will beep once and the power button will light up. If the light is oscillating orange, it means the battery is not completely charged. To ensure maximum cleaning time, wait until the light switches to steady blue. This will indicate the battery is fully charged and the robot is ready to clean. Fig. 18

4. OPERATION

Starting the cleaning. Fig. 19

Hold down the Start/Pause button on the robot to turn it on.

Press the Start/Pause button on the robot vacuum cleaner or on the app to start cleaning.

Note

• If the robot runs out of battery while cleaning, it will automatically return to the charging base. Once the battery is fully charged, the robot can start a new cleaning cycle.
• If there is no good access to the charging base, the robot will not be able to return to it. If this happens, place it manually on the charging base.

Pausing the cleaning. Fig. 19

Press the Start/Pause button on the robot vacuum cleaner or on the app to pause the cleaning process.

Press the Start/Pause button on the robot vacuum cleaner or on the app to resume the cleaning process.

Off. Fig. 19

Hold down the Start/Pause button on the robot to turn it off.

Warning

The robot vacuum cleaner has a power switch (with positions I and 0) located on the lower part of the main body. If the robot will not be used for long periods of time, it is recommended to turn it off using this switch. As a safety measure, if the robot is switched off (0 position), it will restore the factory default settings. To operate the robot, the switch must be in the on position (I)

Cleaning modes

This robot includes different modes and functions that can be activated via the app.

Auto mode. Fig. 19

- Press the Start/Pause button or select the auto cleaning mode on the app, then the robot vacuum cleaner will start the automatic cleaning.

- The robot will clean the whole surface, edges, around objects such as tables, chairs etc., until the battery is low, then it will return to the charging base.

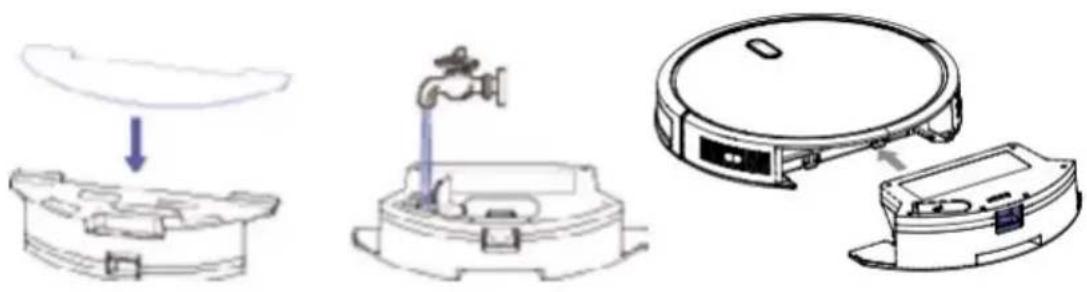

Scrubbing mode. Fig. 20

• Attach the mop to the mixed tank and fill the tank with water.
• Place the mixed tank on the robot vacuum cleaner and select the scrubbing level on the app: high, medium or low.
• Once you have selected the desired scrubbing level, the robot vacuum cleaner will start the All in One function to vacuum, scrub and sweep simultaneously thanks to its mixed tank.

Note:

• If you wish to mop, do not fill the water tank.
• If the robot has the mixed tank installed with water in it, when it leaves the charging base, it will turn around itself to soak the mop.
• To ensure a perfect scrubbing from the start, it is suggested to dampen the mop evenly with water before fixing it to the mixed tank. It is also recommended to wash the mop after every use.
• It is recommended to be present when the robot is scrubbing.
• When the robot vacuum cleaner returns to the charging base, you must remove the mop. Do not leave the robot vacuum cleaner charging with the mop assembled.

Spiral mode. Fig. 21

• The robot will carry out an intense cleaning of a specific area when this mode is activated. The robot will start cleaning in a specific spot and will move outwards performing spiral movements (1 metre). Then, it will return to the start point by performing inwards spiral movements again.
• Once it has finished and returns to the starting spot, the robot will start cleaning in Auto mode until it runs out of battery.
• Before using this mode, place it in the spot you wish to clean.
• Select the spiral cleaning mode on the app.

Edge mode. Fig. 22

• When this mode is selected, the robot will clean along walls and around furniture (e.g. table or chair legs).
• Select the edge cleaning mode on the app.

Room mode. Fig. 23

• The robot will carry out a 30-minute cleaning cycle when this mode is selected.
• Select the room cleaning mode on the app.
• To ensure an efficient cleaning of the room, make sure the robot stays in the room.

ENGLISH

Returning to the charging base

Press the Back home button on the robot or on the app (with a house icon) in order to send the robot to the charging base. The robot vacuum cleaner will continue vacuuming until it reaches the charging base.

Manual mode

Select the manual cleaning mode on the app to steer your robot vacuum cleaner manually.

Power level function

Select the power level on the app to control the robot suction power during cleaning processes. There are 3 suction power levels: Turbo, Normal and Eco.

Cleaning scheduling

To make cleaning easier, the robot has a function that allows it to be programmed daily from the app. According to the setting, the robot will automatically start cleaning in the selected days at the desired time.

5. CLEANING AND MAINTENANCE

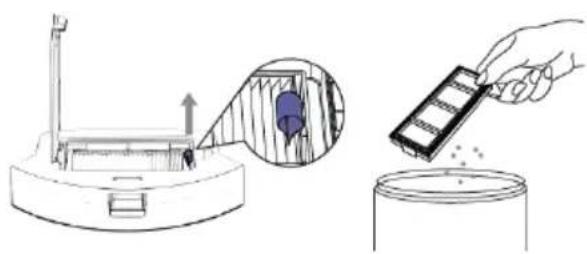

High-efficiency filter. Fig. 24

• The high-efficiency filter is designed with fibres that help trap dust particles, dust mites, pollen... It is very important to periodically clean the filter, to avoid these particles from building up in the filter, causing efficiency loss. It is convenient to carry out this maintenance once a week.
• It is recommended to replace the high-efficiency filter with a new one without exceeding 160 cleaning hours.

Recommendation

Dirt can be removed with a small brush or by shaking carefully against a hard surface for dust to fall off. The high-efficiency filter cannot be washed.

Mesh primary filter and sponge filter

The filtering system is featured with a primary mesh filter and a sponge filter, located next to the high-efficiency filter. It is suggested to replace them either after a maximum of 160 hours of use or when they are worn out due to operation.

Recommendation

Dirt can be removed with a small brush or by shaking carefully against a hard surface for dust to fall off. You can also use warm water without detergents to obtain better results. Always make sure they are completely dry before installing them again; otherwise, moisture can reach the robot motor and damage it.

Free-fall sensors cleaning

Use a clean, dry and soft cloth to wipe off any dust from the free-fall sensor located on the robot lower part.

Warning

Do not apply cleaning products directly on the sensors.

Cleaning the Jalisco brush

The Jalisco brush is designed for hard floors. Its micro-fibre technology captures dust, sand, mites and lint efficiently in a single pass. This brush is in contact with the floor, and therefore with dirt, so it can be worn out over time, affecting negatively to the cleaning efficiency. For this reason, it is suggested to replace the Jalisco brush after a maximum of 320 hours or less.

1. Slightly press the Jaliscazo brush frame tabs in order to open the slot and remove it. Fig. 25
2. Remove any hair, lint or other dirt trapped in the brush and around the shafts.

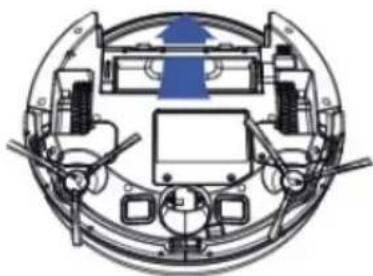

3. Clear and clean the robot suction channel. Fig. 26
4. Reinstall the Jalisco brush and its frame.

Side brushes

Side brushes are designed with multiple bristles and are used to push dirt towards the suction nozzle and to thoroughly clean edges and corners. These brushes can wear out over time, affecting negatively to the cleaning efficiency. For this reason, it is suggested to replace each side brush after a maximum of 220 hours or less.

Recommendation

It is recommended to clean the side brushes once a week with the help of the autoclean brush.

Sensors

• Your robot vacuum cleaner has different types of sensors, for example, proximity sensors that allow the robot to move around while detecting obstacles, or free-fall sensors that help the robot detect slopes or possible gaps/unevenness such as staircases. These sensors are always in contact with dust particles, and therefore can be blocked over time, causing possible navigation errors.
• It is suggested to clean all the robot sensors with the cleaning brush or with a dry, soft cloth after a maximum of 35 hours of operation or less.

Battery charge and replacement

To lengthen the battery shelf life, keep the robot charging on the charging base when not in use. Remove the battery and store it in a safe, dry place if the device will not be used for a long period of time.

To replace the battery, follow the instructions below:

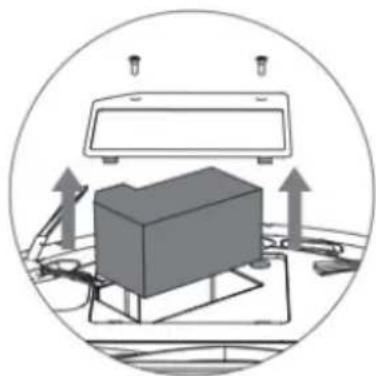

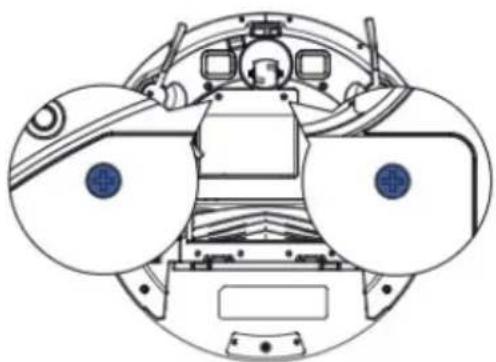

1. Unscrew the 2 screws on the battery slot, remove the battery cover and the battery. Fig. 27

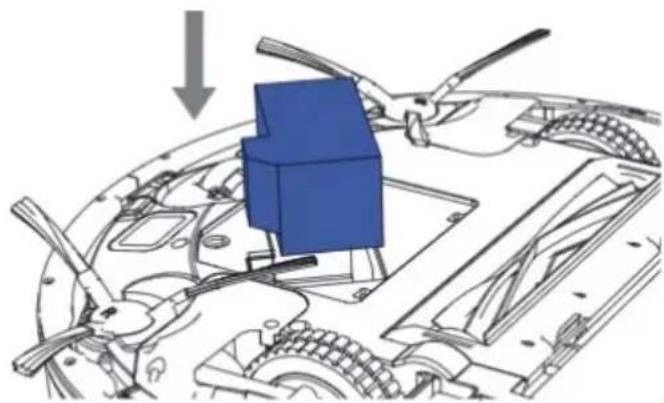

2. Insert the new battery with the battery label facing up. Fig. 28

3. Place the battery and the battery cover in its place and fix properly the screws back again.

4. TROUBLESHOOTING

Robot signal Cause Solution
Steady red light	1 beep Omnidirectional wheel error.		Clean the omnidirectional wheel and press the Start/Pause button to restart the robot vacuum cleaner.
	2 beeps Side brushes error Clean the side brushes and press the Start/Pause button to restart the robot vacuum cleaner.
	3 beeps	Suction motor error	Remove the tank and empty it. Remove the robot filter and shake off the dirt.
	4 beeps Main brush error Remote and clean the main brush and press the Start/Pause button to restart the robot vacuum cleaner.
Flashing red light	1 beep Mixed tank error Introduce the dust tank and press the Start/Pause button to restart the robot vacuum cleaner.
	2 beeps Bumper error Check if the bumper is blocked and press on both sides and center to unblock it.
	3 beeps Free-fall sensor error Check if the robot is placed on an uneven surface, if its wheels are off the ground or if it is stuck in a dark place and move it to a new location. Otherwise, clean the free-fall sensor.
	4 beeps The robot cannot return to its charging base or starting position.		Make sure there are no obstacles in front of the charging base. Clean the charging terminals on both the charging base and the robot with a clean, soft and dry cloth.

7. TECHNICAL SPECIFICATIONS

Product: Conga Flash Connected Ultimate

Product reference: 05795

Voltage: 100-240 V \~, 50/60 Hz

Battery: 14.4 V, 2600 mAh

Nominal Capacity: 14.4 V DC 2500 mAh

Typical capacity: 2600 mAh

Frequency bands: 2.4 GHz

Maximum Transmission Power: 17.5 dBm

Technical specifications may change without prior notification to improve product quality.

Manufactured in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for detailed information concerning the correct disposal of old electrical appliances and/or their batteries.

Compliance with the above guidelines will help protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means

ENGLISH

(electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. STATEMENT OF COMPLIANCE

Cecotec Innovaciones hereby declares this robot vacuum cleaner, 05795_Conga Flash

Connected Ultimate, complies with the Directive 2014/53/EU on radio equipment.

The complete text of the EU declaration of conformity is available in the following Internet address: www.cecotec.es

1. PIÈCES ET COMPOSANTS

Product: Conga Flash Connected Ultimate

Program Auto Obr. 19

Technical diagram showing a circular component with internal structure and a connected electrical or control device labeled 1 and 2.

Fig./Img./Abb./Afb./Rys./Obr.1

Line drawing of a robotic vacuum cleaner with labeled parts (no text or symbols beyond labels)

Fig./Img./Abb./Afb./Rys./Obr.2

4 7 8 9 10 5 6 11 12

Fig./Img./Abb./Afb./Rys./Obr.3

1 2 3 4

Fig./Img./Abb./Afb./Rys./Obr. 4

Simple line drawing of a plug connected to a U-shaped cable (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 5

Line drawing of a 3D mechanical part with a rectangular cutout and flange (no text or symbols)

Three technical line drawings of rectangular metal grates or trays, showing different top and front views (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 6 Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Pure electrical circuit lines without any symbols

Fig./Img./Abb./Afb./Rys./Obr. 9

Two identical curved mechanical or architectural diagrams with notches, shown in side profile (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 10 Fig./Img./Abb./Afb./Rys./Obr. 11

Line drawing of a cozy living room with furniture and a small object, no text or symbols present

Line drawing of a minimalist living room interior with sofa, coffee table, and lamp (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 12

Line drawing of a balcony railing with a circular robot on the floor, marked with a red X (no text or symbols)

Architectural diagram of a balcony with railing and circular base (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 13

1M 2M 1M

Fig./Img./Abb./Afb./Rys./Obr. 14

Pure mechanical diagram showing a piston and cylinder assembly without any text, numbers, or symbols

Fig./Img./Abb./Afb./Rys./Obr. 15

Technical line drawing of a mechanical component with no visible text or symbols

Fig./Img./Abb./Afb./Rys./Obr. 16

Silhouette of a person interacting with a wall-mounted device (no text or symbols visible)

Fig./Img./Abb./Afb./Rys./Obr. 17

Line drawing of a robotic vacuum cleaner next to an electrical outlet (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 18 Fig./Img./Abb./Afb./Rys./Obr. 19

Diagram of a hand pressing a button on an electrical switch, enclosed in a circular outline (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 20

Abstract spiral diagram with concentric circles and a small dot, no text or symbols present

Fig./Img./Abb./Afb./Rys./Obr. 21

Simple geometric diagram with a circle and an arrow inside a rectangle (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.22

Simple line drawing of a looped cable with a circular component at the center (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 23

Illustration showing a robotic arm with a brush and a hand pouring liquid into a container (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.24

Top-down schematic of a vehicle's internal components (no text or labels)

Fig./Img./Abb./Afb./Rys./Obr. 25

Diagram of a vehicle's internal components with no visible text or symbols

Fig./Img./Abb./Afb./Rys./Obr. 26

Top-down schematic of a spacecraft cockpit with visible cockpit, wings, and control panels (no text or labels)

Fig./Img./Abb./Afb./Rys./Obr.27

Diagram of a device with a box and surrounding components, no visible text or symbols

Mechanical assembly diagram showing a blue component mounted on a vehicle head with toolbars and gear (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.28

www.cecotec.es

Quart de Poblet, Valencia (Spain)

PE01220311
