USER MANUAL Easymix Luvion

Line drawing of a cylindrical device with a lid and side ports (no text or symbols)

EN Manual & Safety Instructions .... 3
NL Handleiding & Veiligheidsinstructies 9
FR Manuel d'utilisation & Consignes de sécurité .... 15
DE Bedienungsanleitung & Sicherheitshinweise 21

WELCOME / WELKOM / BIENVENUE / WILLKOMMEN

EN Thank you for purchasing the Luvion® EasyMix Water Dispenser. With this instruction manual you have all the information to quickly start using your Luvion® product. Please preserve this guide for further reference. More information can be found at www.luvion.com.
NL Hartelijk dank voor de aanschaf van de Luvion® EasyMix Water Dispenser. Deze handleiding voorziet in alle informatie om uw Luvion® product snel in gebruik te nemen. Bewaar de handleiding voor toekomstige raadpleging. Meer informatie vindt u op www.luvion.com.
FR Merci d'avoir acheté le Luvion® EasyMix Water Dispenser. Avec ce manuel d'utilisation, vous disposez de toutes les informations pour commencer à utiliser rapidement votre produit Luvion®. Veuillez conserver ce guide pour référence ultérieure. Plus d'informations sont disponibles sur www.luvion.com.
DE Vielen Dank, dass Sie sich für den Luvion® EasyMix Water Dispenser entschieden haben. Mit dieser Bedienungsanleitung verfügen Sie über alle Informationen, um Ihren Luvion® produkt schnell in Betrieb zu nehmen. Bitte bewahren Sie dieses Handbuch zum späteren Nachschlagen auf. Weitere Informationen finden Sie unter www.luvion.com.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN YOUR PRODUCT OVERHEATING OR BECOMING DAMAGED.

READ ALL THE INSTRUCTIONS CAREFULLY BEFORE USING YOUR BOTTLE WATER HEATER.

INTENDED FOR USE BY ADULTS ONLY.

WARNING:

• To avoid danger, if the electrical cable is damaged, it must be replaced by the manufacturer, the after-sales service department or a qualified electrician.

• Always disconnect the appliance from the power supply when it is left unattended and before assembling, disassembling, or cleaning.

- The surface of the heating element may emit residual heat after use.

- Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children shall not play with the appliance.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Ensure water does not spill out onto the connector.

- This appliance is designed for domestic use and similar applications, such as kitchen areas reserved for staff in shops, offices, and other professional environments; farms; use by guests in hotels, motels, and other accommodation settings; and bed and breakfast establishments.

- Clean the appliance using a damp cloth only.

- Do not switch on the appliance if the power cord or plug is damaged or after the appliance has malfunctioned or if it has been damaged in any way. Return the appliance to your closest authorised service centre to be inspected, repaired or adjusted.

- Place the appliance on a stable, flat surface and ensure there is enough space to prevent damage to cabinets or other items from the steam emitted by the appliance.

- Do not put the appliance on or near the stove or cooker which are being used or heating.

- Do not use a sterilizer or microwave oven to disinfect any parts of the appliance.

CAUTION:

- If the water is overfilled, boiling water may be ejected.

- Do NOT use this product without adding water.

- Do NOT add water to the tank when boiling. Otherwise, the hot water or steam may be expelled.

- Do NOT remove the lid whilst the water is boiling.

DISPOSAL INFORMATION

This symbol indicates that, throughout the European Union, this product must not be thrown away or mixed with household waste but must be collected separately. Electrical and electronic equipment must be disposed of separately from household waste. Do not throw such appliances away with unsorted municipal waste. Ensure they are taken to an appropriate collection point for separate recycling.

SAFETY INSTRUCTIONS

• To prevent the risk of electric shock, do not immerse the apparatus or its electrical cord in water or any other liquid.
• Do not use the appliance for any purpose other than heating and dispensing water. Using it for any other purpose may be dangerous.
• The appliance does not contain any parts that can be serviced or repaired by the user. Do not attempt to open or modify the unit.
  • Monitor the apparatus when in use with children nearby. Keep the apparatus out of reach of children.
  • This apparatus is for indoor use only. Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter, or come into contact with hot surfaces.
• Use the apparatus on a flat, stable and dry surface.
• Do not place the apparatus on a hot surface or near an oven or gas burner, or any other heat source.
• Do not touch the hot surfaces on the apparatus (heating chamber).
• Do not move the apparatus during use, once it has been plugged in, or if it contains hot water.
• Do not use the appliance under wet conditions and do not place it directly in water.
  • The appliance must not be immersed.
• Ensure that the voltage marked on the bottom of the appliance matches your local mains voltage before connecting it to the power supply.

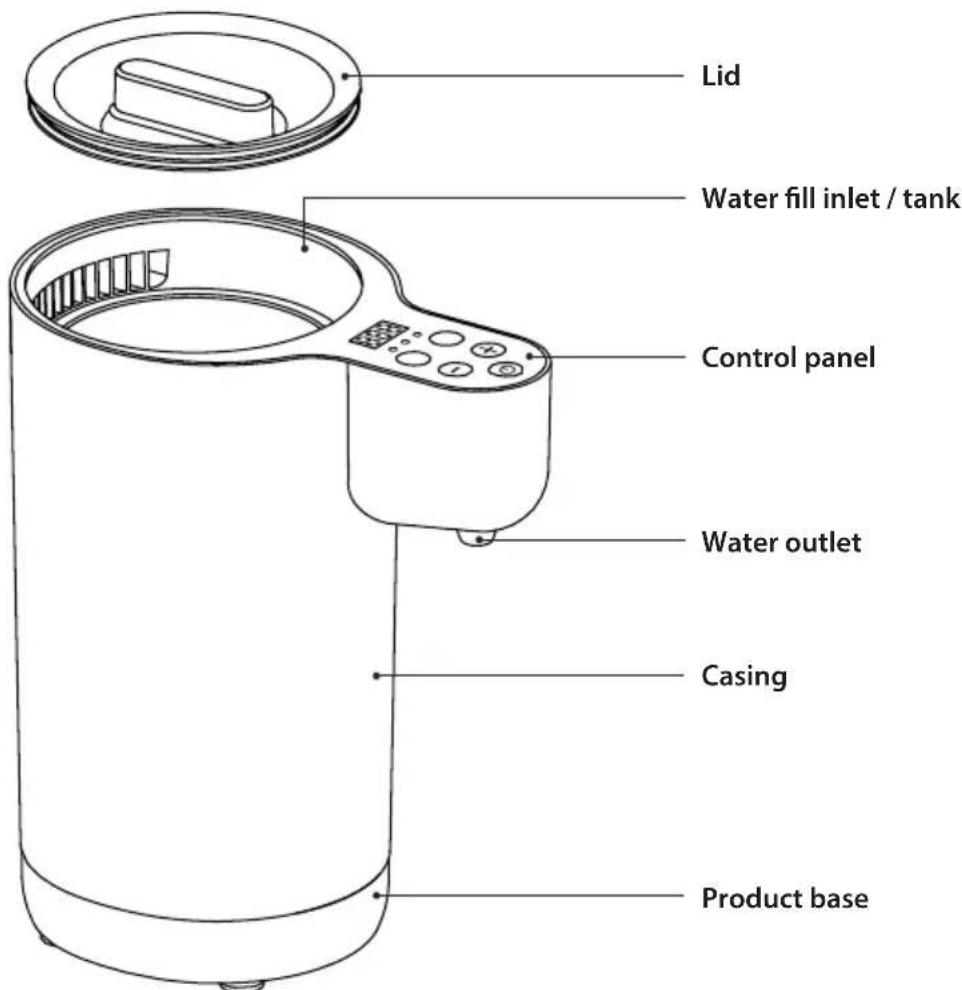

PRODUCT OVERVIEW

Lid Water fill inlet / tank Control panel Water outlet Casing Product base

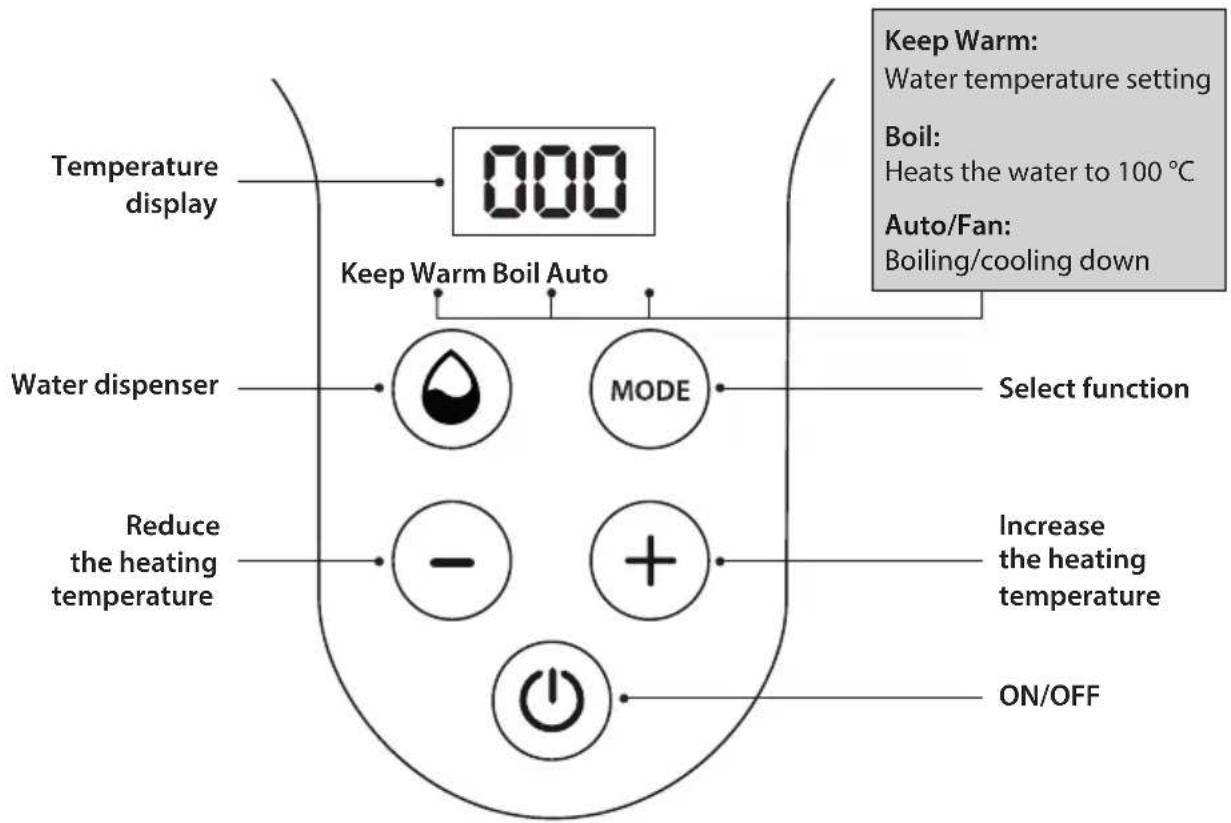

CONTROL PANEL DISPLAY

Temperature display 000 Keep Warm Boil Auto Keep Warm: Water temperature setting Boil: Heats the water to 100 °C Auto/Fan: Boiling/cooling down Water dispenser MODE Select function Reduce the heating temperature - + Increase the heating temperature ON/OFF

TECHNICAL SPECIFICATIONS

Input: 220V - 240V \~ 50/60 Hz

Heating power: 800 W

Maximum capacity: 1.1L

Heating time: 36 seconds (for heating 0.3 L of water from 20 °C to 38 °C)

STARTING THE APPLIANCE

BEFORE USING FOR THE FIRST TIME

• Wipe the product with a damp cloth (except the electric plug).
• Add water up to the tank up to the "MAX" level, before using the appliance for the first time. Then run one cycle using the Boil function (see how in the next chapter). Afterwards, manually press and hold the water dispenser button 🔒 to drain the water from the tank. Leave a small amount of water, then pour it out.

TURN ON THE APPLIANCE

1. Plug in the appliance.
2. Place a baby bottle or container underneath the water outlet.
3. Pour water into the water fill inlet/tank (1.1L maximum) and close with the lid. The maximum water level should not exceed the "MAX" line on the inner wall of the tank.
4. Switch on the appliance: press the ON/OFF button ⏻ for 1.5 seconds. The appliance and control panel will light up. The display will show the current water temperature.

TURN OFF THE APPLIANCE

• In 2 minutes without any operation after the machine was on, the display and the indicator lights will become half bright, and the machine enters Auto-Lock mode. If you need to restart the machine, press the ON/OFF button to activate it again.
• Long press the ON/OFF button ⏻ for 1.5 seconds to turn off the appliance. The machine will enter the shutdown state and all functions are stopped.

FUNCTIONS AND OPERATION

3 FUNCTIONS AVAILABLE

1	Keep Warm	For keeping your water at the required temperature.
2 Boil	For purifying your water by boiling it.
3 Auto/Fan		For rapidly cooling water using the automatic fan.Includes a feature that also boils water before cooling it down.

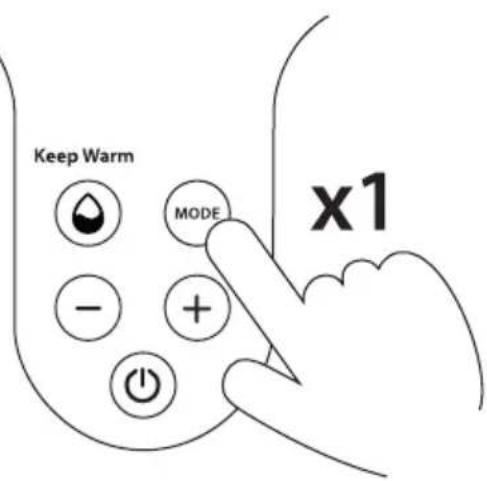

KEEP WARM (FUNCTION 1)

Choosing the heating temperature and keeping the water hot.

1. Press the MODE button once to choose the Keep Warm function.
2. Choose the required temperature by pressing the increase/decrease buttons ⊕ / ⒻThe required temperature must be between 38 °C and 85 °C. Once you have selected your temperature, you will hear a beep. Once the water reaches the required temperature, you will hear a second beep.

3. Your water is now hot. Press the water dispenser button to release the water:

4. Press once: approximately 60 to 70 milliliters (ml) of water is dispensed.

5. Press and hold: water dispenses continuously to the desired amount. Release the button to stop the flow.

Keep Warm MODE x1

Note: if the machine enters Auto-Lock mode, just press the ON/OFF button to return to normal operation.

Caution: the water pouring out of the baby bottle water heater may be hot, take care not to scald yourself.

Note: the Keep Warm function starts automatically once the required temperature is reached. It will remain active for 24 hours unless any other button is pressed. After 24 hours, the appliance turns itself off and the water drops down to room temperature.

LOW WATER LEVEL

When you press the water dispenser button ⚙, no liquid will come out of the water outlet if the water level is too low. If you have selected one of the 3 functions, your appliance will display the error messages "E2" or "E3". Add water to the fill tank and restart the selected cycle. The error messages will disappear after a few seconds.

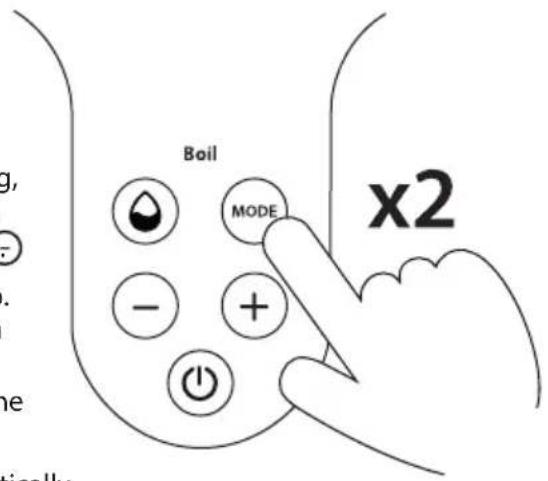

BOIL (FUNCTION 2)

Boiling the water to 100 °C to ensure it is sterile and free from bacteria.

1. Press the MODE button twice to choose the Boil function.
2. When you have selected the function and the display is flashing, choose the temperature you wish to reach after boiling (between 38 °C and 85 °C) by pressing the increase/ decrease buttons ⊕ / ⊖

3. Once you have selected your temperature, you will hear a beep. The water continues to heat up until it reaches boiling point, then stops. You will hear a second beep to let you know that the water has reached 100 °C. Then, the water will naturally cool down to the set temperature, and there will be a final beep to alert you.

4. Once it reaches the set temperature, the appliance will automatically enter the Keep Warm function, which remains active for up to 24 hours.

Boil MODE x2

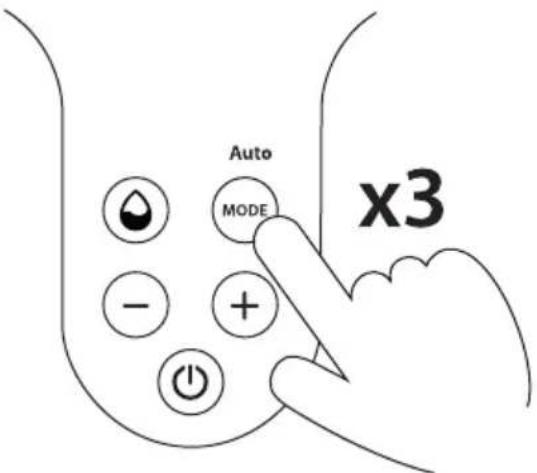

AUTO/FAN (FUNCTION 3)

Automatic fan function for rapidly cooling water. Includes a feature that also boils water before cooling it down.

1. Press the MODE button three times to choose the Auto function.
2. The machine automatically detects the actual water temperature and adjusts accordingly:
3. If the water temperature is higher than the set temperature, the fan activates to cool the water quickly until it reaches the set temperature (Keep Warm temperature).
4. If the water temperature is lower than the set temperature, the appliance boils the water to 100 °C, then uses the fan to cool it down to the set temperature.

Auto MODE x3

1. Once the set temperature is reached, the appliance automatically maintain this temperature.

Note: the water cools down faster because of the fan. However, if you prefer to boil and cool down the water with less noise, you can use Boil function, which cools the water naturally. This process takes more time but operates more quietly.

SET TEMPERATURE MEMORY

When the Keep Warm or Boil function is activated, the appliance automatically uses the last temperature setting. If the machine has been powered off, it will revert to the factory default temperature.

CLEANING AND MAINTENANCE

CAUTION:

• Clean the appliance immediately after each use.
• Do not immerse the main body in water.
• Do not use bleach or chemical solutions/tablets for the appliance.
• Do not use steel wool, abrasive cleaners, or corrosive liquids (such as petrol, acetone, or alcohol) to clean the appliance.
• Do not lift or move the appliance while in use.

CLEANING METHOD

To thoroughly clean the inside of your appliance:

• After use, the appliance may still retain residual heat, wait at least 10 minutes before resuming cleaning.
- Before cleaning, disconnect the power and remove the tank cover.
- Pour out any remaining water from the tank, then wipe the inside with a dry towel or cotton cloth.

To clean the outside of your appliance:

• Always unplug the appliance and ensure the tank is cold.
- Clean the outer casing with a soft damp cloth. Leave to dry naturally.

To ensure your bottle warmer works effectively, reduce the build-up of scale caused by minerals in the water, and keep the internal channels clean. Clean the appliance at least once a week (depending on usage), and also after any period of two consecutive days without use.

DESCALING THE HEATING PLATE

Regular descaling helps prevent limescale build-up and ensures efficient operation. Using purified or filtered water can also reduce limescale formation. Follow the steps below to clean scale from the water tank:

1. Prepare a descaling solution: mix about 10 grams of citric acid with 100ml of purified water, then pour it into the water tank. Alternative solution: mix 100ml of boiled water with 30ml of vinegar (8% acetic acid concentration) to remove limescale.
2. Start the cleaning cycle: select the Boil function and allow it to complete, then disconnect the appliance from the power supply.
3. Empty the tank: Pour out the cleaning solution and wipe the inside of the tank with a dry towel or cotton cloth.
4. Clean the heating plate: Wipe the surface of the heating plate several times with a soft towel or cotton cloth until completely clean.
5. Dry thoroughly: Keep the tank as dry as possible to prevent bacterial growth.

TROUBLESHOOTING

PROBLEMS POSSIBLE CAUSES SOLUTION
Appliance does not heat	Thermostat is not connected.	Wait for the appliance to cool down then switch it back on.
	The temperature set is below that of the actual water temperature.	Follow the instructions to set the temperature.
“E2” or “E3” appears on the control panel	The water level is too low. Add water.

If the above review has failed to resolve your problem, please call our customer service.

HET NIET OPVOLGEN VAN DEZE INSTRUCTIES KAN LEIDEN TOT OVERVERHITTING OF BESCHADIGING VAN HET PRODUCT.

LEES ALLE INSTRUCTIES ZORGVULDIG DOOR VOORDAT U UW WATERVERWARMER IN GEBRUIK NEEMT.

DIT APPARAAT IS UITSLUITEND BEDOELD VOOR GEBRUIK DOOR VOLWASSENEN.

WAARSCHUWING:

HET APPARAAT INSCHAKELEN

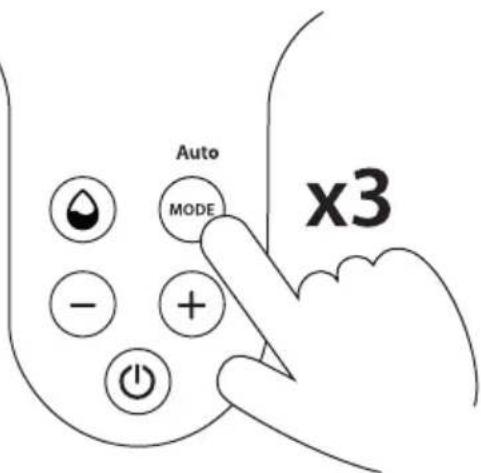

KEEP WARM (FUNCTIE1)

Boil MODE x2

Auto MODE x3

3 FONCTIONS DISPONIBLES

KEEP WARM (FONCTION 1)

Boil MODE x2

AUTO/FAN (FONCTION 3)

Auto MODE x3

MÉMOIRE DE TEMPÉRATURE RÉGLÉE

KEEP WARM (FUNKTION 1)

Boil MODE x2

AUTO/FAN (FUNKTION 3)

Auto MODE x3

Delft, The Netherlands

Visit us on www.Luvion.com
