Product Type	Baby Monitor
Brand	Luvion
Model	Supreme Connect WiFi Bridge
Connectivity	Wi-Fi 2.4 GHz
Camera Resolution	720p HD
Night Vision	Infrared LEDs (up to 5m)
Two-Way Audio	Yes, built-in microphone and speaker
Field of View	110° horizontal
Power Supply	5V DC, 1A (USB adapter included)
Dimensions (Camera)	90 x 60 x 60 mm
Weight (Camera)	150 g
Temperature Sensor	Yes, in camera
Motion Detection	Yes, with push notifications
Sound Detection	Yes, adjustable sensitivity
App Compatibility	iOS and Android (Luvion Connect app)
Multiple Cameras	Supports up to 4 cameras
Indoor Range	Up to 50 m (subject to obstacles)
Mounting	Desktop stand and wall mount (not included)
Maintenance	Clean with a soft, dry cloth
Safety Certifications	CE, RoHS
Spare Parts Availability	Power adapter and camera available via Luvion support
Repairability	Modular design; camera unit replaceable
General Information	Indoor use only; operating temperature 0-40°C

Frequently Asked Questions - Supreme Connect WiFi Bridge Luvion

How do I set up the Luvion Supreme Connect WiFi Bridge?

Download the Luvion Connect app from the App Store or Google Play. Plug in the camera, wait for the LED to blink, then follow the in-app instructions to connect to your Wi-Fi network.

Can I use multiple cameras with one app?

Yes, the app supports up to 4 cameras. You can add them via the 'Add Device' option in the settings.

What is the range of the Wi-Fi connection?

The camera uses your home Wi-Fi, so the range depends on your router. Typically, it works within 50 meters indoors with a clear line of sight.

Does the camera have night vision?

Yes, it has infrared LEDs that automatically activate in low light, providing clear black-and-white video up to 5 meters.

Can I talk to my baby through the monitor?

Yes, the camera has a built-in microphone and speaker for two-way audio. You can speak through the app.

Does the monitor support motion or sound alerts?

Yes, you can enable motion detection and sound detection with adjustable sensitivity. Alerts are sent as push notifications to your phone.

Is it safe to use the monitor over the internet?

The monitor uses encrypted data transmission to protect your privacy. Ensure your Wi-Fi network is secured with a strong password.

What if I lose the power adapter?

You can order a replacement from Luvion customer support. The adapter is a standard 5V DC, 1A USB adapter.

How do I reset the camera to factory settings?

Press and hold the reset button on the camera for 10 seconds until the LED flashes rapidly. Then reconnect via the app.

Can I mount the camera on the wall?

The camera has a stand for desktop use. For wall mounting, you will need a standard camera mount (not included) with a 1/4-inch screw.

USER MANUAL Supreme Connect WiFi Bridge Luvion

Wifi Bridge

HANDLEIDING

INSTRUCTION MANUAL

INHOUDSOPGAVE

INTRODUCTIE				2
VEILIGHEIDSINSTRUCTIES				3
INHOUD	VAN	DIT	PAKKET		3
OVERZICHT	BRIDGE			4
ONDERSTEUNDE MOBILE PLATFORMEN				4
BELANGRIJK	OM	TE	WETEN		5
AAN	DE	SLAG			5
IPHONE/IPAD ETHERNET SETUP				6
GEBRUIK VAN DE IPHONE/IPAD APP				8
LIVE VIEW
INZOOMEN LIVE VIEW
BEKIJKEN EN DELEN VAN FOTO'S
VERANDEREN VAN BRIDGEWACHTWOORD
VERANDEREN VAN VIDEOKWALITEIT
ANDROID	ETHERNET	SETUP			12
GEBRUIK VAN ANDROID APP				14
LIVE VIEW
INZOOMEN LIVE VIEW
BEKIJKEN EN DELEN VAN FOTO'S
VERANDEREN VAN BRIDGE WACHTWOORD
VERANDEREN VAN VIDEO KWALITEIT
TECHNISCHE	SPECIFICATIES			18
PROBLEEM	& OPLOSSING				18

INTRODUCTIE

iPhone/iPad ETHERNET SETUP

Download de Luvion app op uw smartphone of tablet via uw app store (iOS App Store of Android's Google Play Store).

BEKiJKEN EN dEIEN vaN FOTO'S

vERaNdEREN vaN BRidgE WaCHTWOORd

aNdROid ETHERNET SETUP

1 Start de Luvion App

BEKiJKEN EN dEIEN vaN FOTO'S

Share image using

Decode QR Code

Dropbox

Facebook

Gmail

HET vERaNdEREN WaCHTWOORd BRidgE

vERaNdEREN vaN vidEOKWaliTEiT

TECHNISCHE SPECIFICATIES

Technische Specificaties
Ethernet 10 / 100 M Ethernet port
DHCP DHCP Client / Server
Mobile Apps iOS (5.1+) / Android (2.2+)
Adapter 5V DC 1.5A
Gebruikstemperatuur 0 - 40 C / 32 - 104 F

PROBLEEM EN OPLOSSING

Thank you for purchasing the Luvion Supreme Connect Wifi Bridge. Now you can see and hear your baby or even more babies through your tablet or smartphone. Please retain your original dated sales receipt for your administration. For service and warranty issues you will always be asked for a copy of the receipt. For warranty issues you can contact your Luvion dealer or your local Luvion distributor. More information can be found on www.luvion.com.

This user manual provides you with all information necessary for a safe and easy use of this baby monitor. Before using the Luvion Supreme Connect Wifi Bridge we ask you to thoroughly read this user manual. We ask for your special attention for the safety instructions.

SaFETY iNSTRUCTIONS

• Keep small parts away from children.
• This product is not a toy. Do not allow children to play with it.
• This product is not intended as a substitute for adult supervision.
• Only use the original supplied power chargers.
• Do not use this product within humid conditions or nearby water.
• Only use the product between 10°C en 35°C.
• Always keep the cords of the power adapters at least 1 meter away from the baby.
• Do not attempt to open the product. This should be done by qualified personnel.

CONTENTS OF PaCKagE

• 1 x WiFi charging Bridge
• 1 x Ethernet cable

Please check whether the package is complete.

OvERviEW BRidgE

1. Connector for the Supreme Connect monitor. Place your monitor on this connector to charge and connect with internet.
2. Service Switch. Please make sure the switch is reading 'INTERNET'. The 'DIRECT' mode is for service purposes only.
3. Ethernet port. Connector for the ethernet cable.
4. Power Connector for the included Luvion adapter (5V)
5. Reset button, hold this button for 5 seconds in case you've changed and lost the password of your WiFi Bridge. Please be advised that after a reset, the WiFi Bridge requires a full reinstallation to your router.
6. QR Code, to be scanned during install.
7. UID, in case the QR code does not work during the installation, this unique code can be entered manually.

COMPaTiBIE MOBiE PiaTFORMS

The Luvion app supports the following platforms:

iPhone/iPad iOS 5.1 and above

Android 2.2 and above

NOTE: Luvion recommends a minimum upload speed of 512Kbps

An upload speed of 1Mbps or higher is recommended for best performance.

NOTE : Up to 3 users can be connected to the bridge at the same time.

iIMPORTaNT TO KNOW

When no one is connected using a smartphone/tablet, you may use all monitor functions except:

• The handheld monitor cannot be turned off.
• AV output to a TV is disabled.

When someone is connected to the cameras using a smartphone or tablet, you will not be able to use the buttons or menus on the handheld monitor.

The icon 📞 appears on the handheld monitor when someone is connected using the Luvion app.

If Recording is in progress when someone connects remotely, the recording will be stopped and it does not resume when they disconnect.

While viewing on a smartphone or tablet, you may press to take a snapshot with the device's camera if you wish to record an event.

The smartphone/tablet app makes use from external servers.

gETTiNg STaRTEd

1. Connect the bridge power adapter to the bridge. Connect the other end to a power outlet.

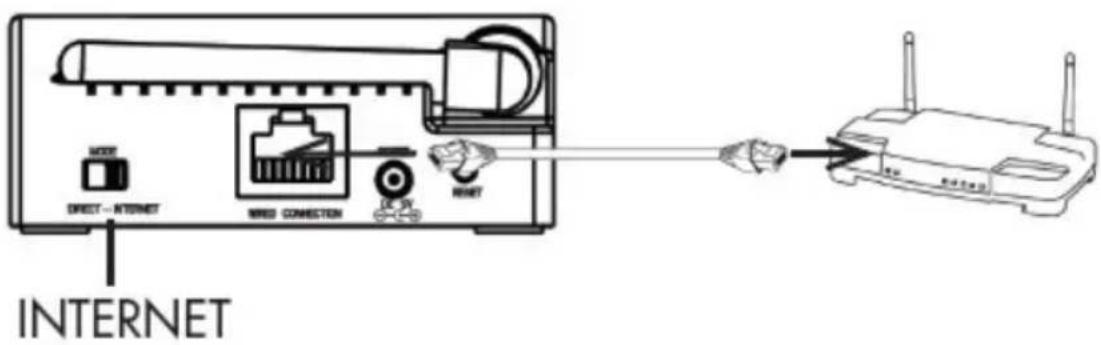

1. Connect the bridge to your router using an Ethernet cable (included). Please check whether the Service Switch reads 'INTERNET'. The 'DIRECT' mode is only intended for service purposes.

1. Place the monitor onto the power/network connector on the bridge. Use the stand-up guides to help place the monitor. The monitor will charge when connected to the bridge. It takes 5 hours to fully charge a battery.

On your smartphone or tablet, download our Luvion App for free from the App Store (iPhone®) or the Google Play Store (Android™).

iPhone ETHERNET SETUP

1 Complete chapter 'Getting Started' and launch the Luvion App.

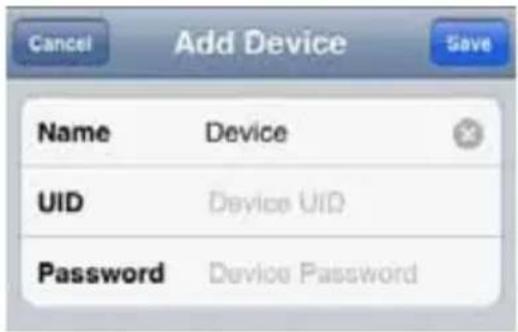

2 Go to 'Add Device' - Enter the UID code for the bridge in one of the following ways:

Option A: Tap QRCode and scan the QR code (the black and white square found on the side of the bridge).

Option B: Tap Add and manually enter the UID printed below the QR code on the side of the bridge. You may need to do this if your device does not have a camera.

Option C: If your device is on the same network as the bridge, it will automatically detect the bridge UID. Tap the UID to enter.

3 Enter a name for your Supreme Connect. Enter the default password '000000' (six times zero). Tap 'Save'.
4 Your Supreme Connect Bridge should now show up in the 'Device List' with an 'Online' indication.
5 The app will connect to your monitor and stream live video from your cameras.

NOTE: The WiFi Bridge should always be connected with the ethernet cable to the router.

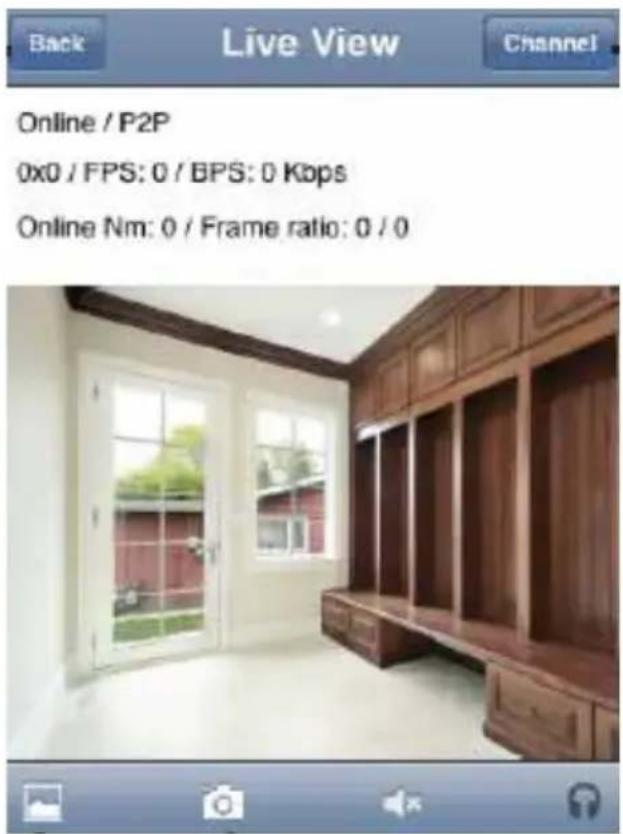

USiNg livE viEW (iPhone/iPad)

You can view your camera in either portrait or landscape mode.

NOTE: The controls above are only shown in portrait mode.

With Live View you may control the camera, allowing you to look around and zoom in/out. This is done with the standard 'gestures' of your phone Please look below for a short explanation.

Zooming in: Pinch and make an outward moving gesture with the index finger and the thumb. NOTE: You cannot move around freely with the camera when the cam view is zoomed in. Please zoom out completely to regain control over the movements of the camera.

Zooming out: Place your thumb and index finger on the screen and make an inward, pinching motion to zoom out.

Navigation: When zoomed in with Live View, press and drag to move the zoom area. When zoomed all the way out, press and drag to control the camera. Please note that there might be a slight delay in movement when controlling the camera.

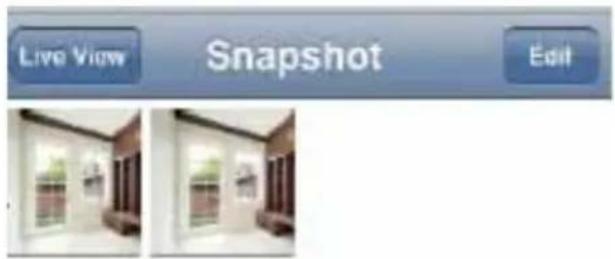

viEWiNg aNd SHaRiNg SNaPSHOTS

You can take snapshots of live video from

your cameras by pressing You can view or share snapshots using the app.

To view your snapshot, tap the landscape icon.

You are now viewing the photo gallery. To open and share a snapshot, tap on it. To E-mail, Delete or Save the photo in the iOS

gallery, press:

You have now the option to delete the Photo ('Delete Photo'), e-mail it ('E-mail Photo') or to save it ('Save Photo') within the iOS photo gallery.

NOTE: Your email settings must be configured to share the snapshot using email. See the User Guide for your iPhone®/iPad® for details.

CHaNgiNg THE BRidgE PaSSWORd

The default password is 000000 (Six times zero). It is recommended to create your own password to ensure that no one may access your video.

To change the password:

1 Open the Device List screen in Luvion. Press 'Back' if you are currently connected to a camera.

2 Tap the '▶' button next to the device, then select 'Advanced Setting'

4 You are now in the 'Change Password' menu.

5 Enter the old password (eg '000000'), your new password and your new password once more for confirmation.

6 Confirm these new settings by tapping 'OK'. Press 'Back' two times to return to the Device List.

7 Tap the Device to connect.

If you forget your password, press and hold the Reset button on the bridge for 5 seconds, it will reset using the default '000000' password.

CHaNgiNg THE vidEO QUaliTY

The video quality can be increased for fast Internet connections or decreased to improve the video performance. If the video is choppy or slow, it is recommended to reduce the video quality setting.

1 Open the Device List screen in the Luvion app. Press 'Back' if you are currently connected to a camera.
2 Tap the '→' button next to the device to go the device settings.
3 Tap 'Advanced Setting'

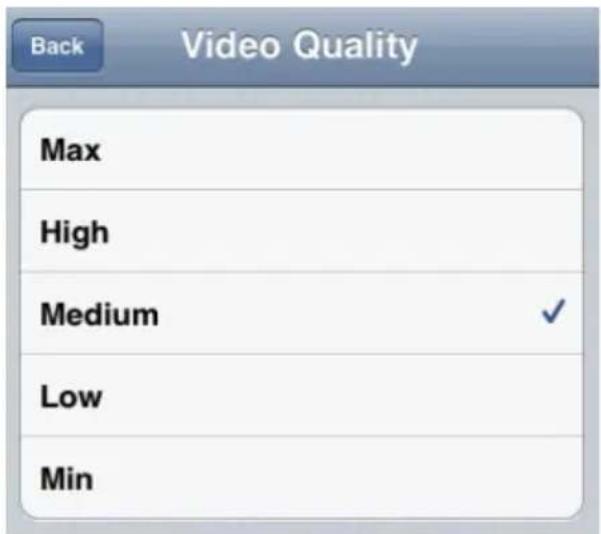

4 Select 'Video Quality'
5 You are now in the 'Video Quality' menu. Now you may select the desire video quality.
6 Tap 'Back' three times to return to the Device List.

aNdROid ETHERNET SETUP

1 Start the Luvion App

2 Tap 'Click here to add device'

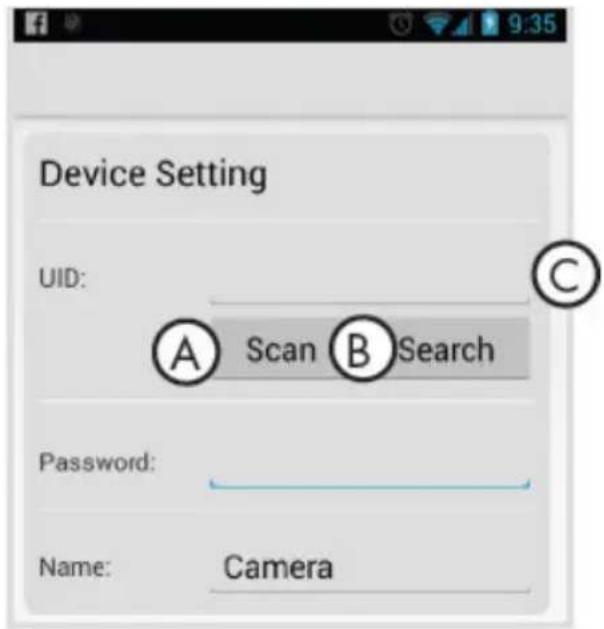

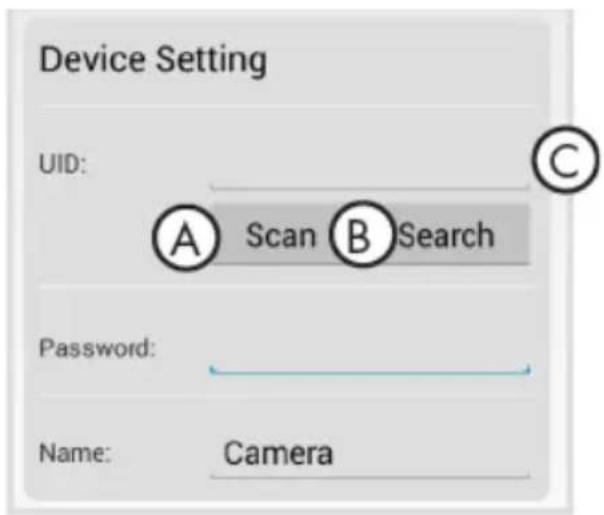

3 Enter the UID code for the bridge in one of the following ways:

A. Tap Scan and scan the QR code on the side of the bridge using your device's camera. You may be prompted to select the app that will be used to scan the QR code. Select 'Google' and press 'Always to continue'.

B: If your device is on the same network as the bridge, tap 'Search' to detect the bridge UID automatically. Tap the UID to enter.

C: Tap UID and manually enter the UID printed on the side of the bridge. You may need to do this if your device does not have a camera.

4 Enter the default password 000000 (six times zero) and enter a name for your monitor.

5 The bridge will show up in your Device List with an 'Online' status, select your device to connect. The app will now connect to your system and stream live video from your cameras.

NOTE: The WiFi Bridge should always be connected with the ethernet cable to the router.

USiNg livE viEW aNdROid

You can view your camera in either portrait or landscape mode.

With Live View you may control the camera, allowing you to look around and zoom in/out. This is done with the standard 'gestures' of your phone Please look below for a short explanation.

Zooming in: Pinch and make an outward moving gesture with the index finger and the thumb. NOTE: You cannot move around freely with the camera when the cam view is zoomed in. Please zoom out completely to regain control over the movements of the camera.

Zooming out: Place your thumb and index finger on the screen and make an inward, pinching motion to zoom out.

Navigation: When zoomed in with Live View, press and drag to move the zoom area. When zoomed all the way out, press and drag to control the camera. Please note that there might be a slight delay in movement when controlling the camera.

viEWiNg aNd SHaRiNg SNaPSHOTS

You can take snapshots of live video from your cameras by pressing the cam Icon. You can view or share snapshots.

Snapshots are saved in .jpg format. They are saved to the /DCIM/Luvion folder on your device's memory.

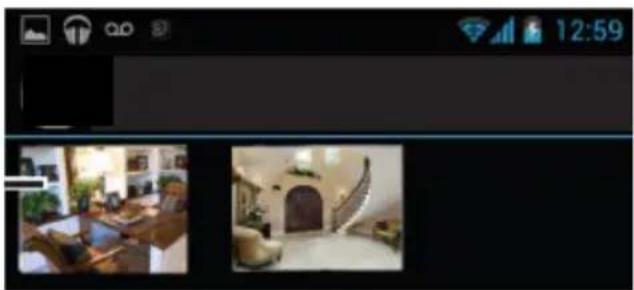

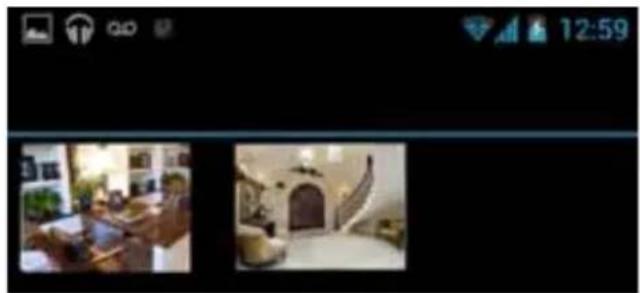

To view snapshots:

In order to view snapshots, use the

landscape icon within Live View to display the snapshot gallery.

When you have entered the snapshot gallery, you may tap a snapshot to view it full screen.

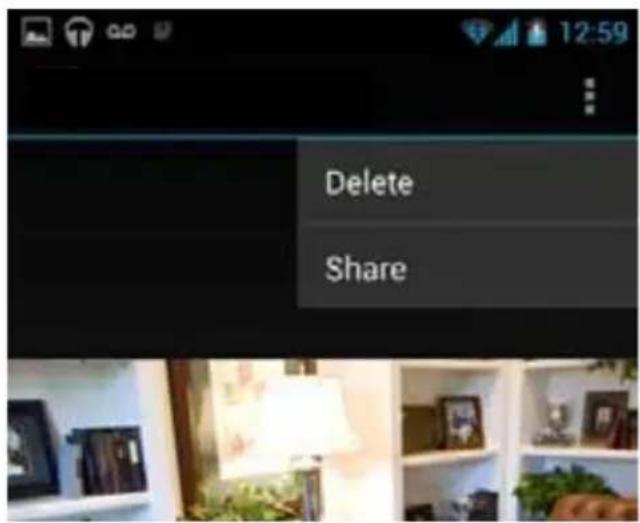

Next, you may choose the 'options' icon to select an application through which you would like to share the snapshot.

Share image using

Decode QR Code

Dropbox

Facebook

Gmail

CHaNgiNg THE BRidgE PaSSWORd

The default password is 000000 (six times zero). It is recommended to create your own password to ensure that no one may access your video.

To change the password:

1 Open the Device List screen. Go back if you are currently connected to a camera.
2 Tap ' Next to the bridge to access the device options.
3 Tap 'Edit Device'
4 Select 'Advanced Setting'
5 Select 'Change Password'. Enter the old password (eg '000000'), your new password and your new password once more for confirmation.

Record your password:

Tap 'OK' twice to return to the Device List.

6 Now select your device in order to connect.
7 If you forget your password, press and hold the Reset button on the bridge for 5 seconds, it will reset using the default '000000' password.

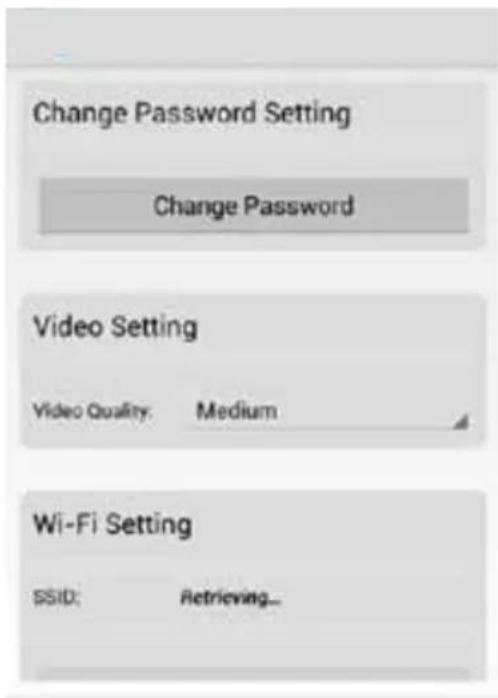

CHaNgiNg THE vidEO QUaliTY

The video quality can be increased for fast Internet connections or decreased to improve the video performance. If the video is choppy or slow, it is recommended to reduce the video quality setting.

Changing the video quality:

1 Open the Device List screen in Luvion. Press back if you are currently connected to a camera.
2 Tap ' ☺' next to the bridge.
3 Select 'Edit Device'
4 Go to 'Advanced'
5 Tap the field next to 'Video Quality', then select the desired video quality
6 Tap OK to return to the Device List.

TECHNICAL SPECIFICATIONS

Technical Specifications
Ethernet 10 / 100 M Ethernet port
DHCP DHCP Client / Server
Mobile Apps iOS (5.1+) / Android (2.2+)
Adapter 5V DC 1.5A
Operation Temperature 0 - 40 C / 32 - 104 F

TROUBLESHOOTING

Problem Solution
Cannot connect to the monitor on my smartphone or tablet	Monitor is not placed on the bridge. The monitor must be on the bridge to enable remote connectivity.Make sure the bridge is connected to power using the bridge power adapter. The bridge cannot use the power adapter for the monitor or cameras.Ethernet cable not connected. Connect an Ethernet cable to the bridge and connect the other end to your router. For details, see “iPhone®/iPad® Ethernet Setup” or“Android Ethernet Setup”Ensure the switch on the back of the bridge is set to INTERNET mode. DIRECT mode is for service use only. Disconnect and reconnect the power adapter after switching to INTERNET mode.
I have forgotten the password to the bridge	Press and hold the Reset button on the bridge with a paper clip or other thin object for 5 seconds to reset the bridge to the default password, 000000. You will need to re-enter your Wi-Fi network in the bridge, as this will cause the bridge to forget any configured Wi-Fi networks.
I do not see Live Video controls on the screen in the iPhone®/iPad® app	Controls are only shown when the device is held in portrait mode.

Luvion Premium Babyproducts

Delft, The Netherlands

Visit us at: www.Luvion.com

v.2014-4
