DO1201V - Fan DOMO - Free user manual and instructions

Brand	DOMO
Model	DO1201V
Type of fan	Column (tower) fan
Original brand	Belgian - domo-elektro.be
Manual languages	French, Dutch, English, German, Spanish, Italian, Czech, Slovak

Frequently Asked Questions - DO1201V DOMO

What is the DOMO DO1201V used for?

The DOMO DO1201V is a tower fan designed to cool a room in a quiet and consistent manner. Its vertical shape allows it to distribute air over a large height while occupying little floor space.

How do I turn the DO1201V fan on and off?

Press the power button located on the control panel of the device. Some DOMO models also have a remote control that allows you to turn it on or off remotely.

How do I change the fan speed?

Use the speed selection button on the control panel or the remote control. The DO1201V offers several speed levels (check your manual for the exact number), from the quietest to the most powerful.

Can the DO1201V oscillate?

The DOMO tower fans in this range are generally equipped with an oscillation function to distribute air throughout the room. Activate or deactivate this function from the control panel or the remote control.

How do I use the timer?

Press the Timer button to schedule the automatic shutdown of the device. You can select different durations depending on the options available on your model. Consult the manual for the exact settings.

The fan is making an unusual noise, what should I do?

Check that the device is placed on a flat and stable surface. A vibrating noise may indicate that a part is loose or that the grille is clogged. Gently clean the grille with a dry cloth or soft brush after unplugging the device.

How do I clean the DOMO DO1201V?

Always unplug the device before cleaning. Wipe the outer casing with a slightly damp soft cloth. Do not use abrasive products or water jets. Never immerse the device in water.

Does the DO1201V heat up abnormally?

A slight warming of the motor is normal during prolonged use. If the device becomes very hot or emits a burning smell, turn it off immediately, unplug it, and contact DOMO customer service at www.domo-elektro.be.

Where can I find the official manual for the DOMO DO1201V?

The manual is available in French on the official DOMO website: www.domo-elektro.be. It is also provided in the product box, in several languages including Dutch, English, German, and Spanish.

Can the fan be used at night?

Yes. DOMO tower fans often offer a night mode (sleep) that reduces speed and noise for nighttime use. This mode is activated from the control panel or the remote control.

Where can I find spare parts or have the DO1201V repaired?

For spare parts or repairs, contact DOMO consumer service via www.domo-elektro.be. You can also consult specialist sites like spareka.fr for compatible parts.

USER MANUAL DO1201V DOMO

Black vertical tower with ventilation grilles and a small remote control unit (no visible text or symbols)

NL Handleiding Kolomventilator

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

AFSTANDSBEDIENING

Diagram showing four steps of a device or component assembly: pin, cable, clamp, and package with numbered labels.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

TÉLÉCOMMANDE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

FERNBEDIENUNG

Diagram showing four steps of a mechanical clamp or clip assembly with numbered labels 1 to 4.

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.
• Do not use the fan in an area with high humidity, a temperature higher than 40^ , or a dusty environment.
• Do not point the fan at people for long periods, especially the elderly, children, or the sick.
• Do not hang or install this fan on a wall or ceiling.
• Unplug the adapter from the appliance before moving it.

• Under extreme circumstances, there could be leakage of the battery.

• If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.

• If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.
• When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out. Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.

- If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

PARTS

1. Control panel
2. LED display
3. Air outlet
4. Base
5. Handle and storage for remote control
6. Remote control

CONTROL PANEL/REMOTE CONTROL

1. On/Off button
2. Fan speed
3. Function button
4. Mood lighting button
5. Timer
6. Oscillation
7. Button to mute alarm sound

1 2 3 4 5 6

DOMO 10 SPEED MODE LIGHT TIMER OSC 8 9 7 11 12

7 11 9 10 10 DOMO POWER SPRING TIME TIME MODE MODE NASH COOL 8 12 13

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Clean the outside of the device with a soft damp cloth.

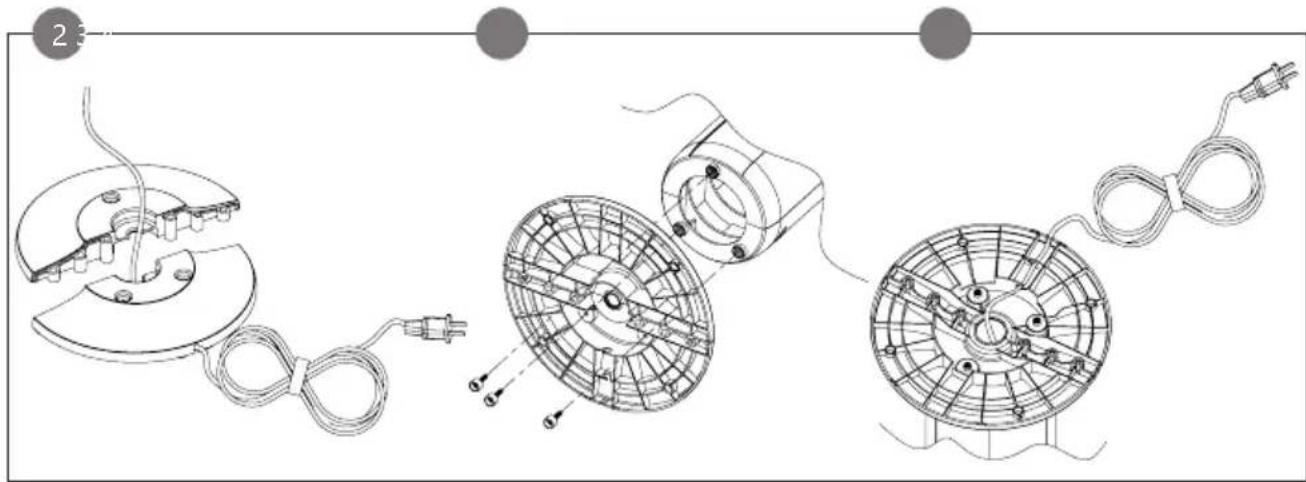

ASSEMBLY

1. Turn the fan upside down and put it on a soft surface, so that the control panel can not get damaged.
2. Click the 2 parts of the base together. Guide the cord through the recess in the base.
3. Ensure correct placement of the base on the fan such that the screw points of the base match the provisions on the fan.
4. Attach the base to the fan with the screws provided. Guide the cord to the side and fasten it by using the provided fixation points of the base.
5. Turn the fan upside down again. The appliance is now ready for use.

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

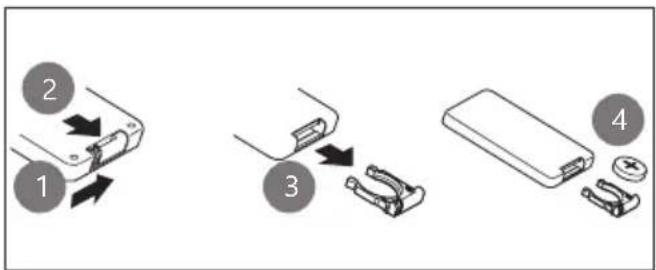

REMOTE CONTROL

Before using the appliance with the remote control, a coin cell battery (CR2025) must be placed in the remote control. Follow the instructions below.

Diagram showing four-step assembly steps of a device with labeled parts and directional arrows indicating motion.

• The battery CR2025 is included.
• The remote control has a range of 5 metres.
- Remove the battery insulation strip from the remote control battery holder.

⚠️ Remove the battery from the remote, when you won’t use it for a longer period of time. (more than two months)

⚠️Recycle used batteries correctly.

USE

• Place the fan on a flat, stable surface.
• Plug the power cord into a socket. A beep indicates that the device is in standby mode.
• You can control the fan from the control panel or with the remote control. A beep sounds for each press of a button and a symbol lights up on the LED display to indicate that the desired setting has been made. If you have not pressed a button for about 25 seconds, the LED display turns off. Press any button to turn the LED display back on.

ON/OFF BUTTON

Press this button to turn the device on or off. The LED display lights up. The fan starts working at the lowest speed or at the last set speed. You can tell from the symbols visible on the LED display.

FAN SPEED

Press this button to set the speed as desired. Each press of the button will increase the speed. The fan has 5 speeds. The selected speed is indicated on the LED display.

FUNCTION BUTTON

There are 4 different modes, which you can select by pressing the MODE button. The selected mode will be indicated on the LED display.

Normal

The fan will operate at a constant speed, namely the speed that you have selected. Select one of five speeds.

Natural

The fan simulates a natural, cool breeze. The different speeds are alternated, interrupted by breaks in which the fan does not operate for a moment. You determine the maximum speed present in the airflow based on the selected ventilation rate.

Sleep

This mode is a copy of the natural mode but the fan will decrease in maximum speed every half hour, eventually settling on speed 1.

EXAMPLE: If you select speed 3, the fan will start at speed 3 and cycle through the 'natural' function. After half an hour, it will switch to speed 2 and cycle through the natural function. Another half-hour later, it will switch to speed 1 and cycle through the natural function. The fan will settle on this speed.

Turbo

The fan blows at a constant, extra high speed.

MOOD LIGHTING BUTTON

If desired, you can switch on mood lighting that lights up at the back of the appliance (under the handle). You have a choice of four settings:

1. Warm white bright
2. Warm white soft
3. Cold white clear
4. Cold white soft

Through the control panel, you change the colour in the above order at the press of a button.

Via the remote control, you choose between warm white or cold white by pressing the corresponding button. You choose between the bright or soft light variant/light intensity via the corresponding button.

TIMER

Press the timer button to set the timer to a maximum of 8 hours. Each press of the button will increase the time. The LED display shows the selected time.

• Press this button once to set the timer for 1 hour.
• Press this button twice to set the timer for 2 hours.
• Press this button three times to set the timer for 4 hours.
• Press this button four times to set the timer for 8 hours.
• Press this button a fifth time to turn off the timer.

Afterwards, the fan switches itself off automatically.

OSCILLATION

Press this button to turn the oscillation on or off. With oscillation, the device rotates alternately to the left and to the right to distribute the air better.

BUTTON TO MUTE ALARM SOUND

Press "MUTE" to turn off the sound the device makes in any setting. If you enable this function, the appliance will not emit a sound. A symbol appears on the display to show that the mode is activated. Press MUTE again to switch off the function.

This setting is only available from the remote control.

CLEANING AND MAINTENANCE

• This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.
• Prior to assembling the fan or cleaning it, remove the plug from the outlet.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
• You may clean the exterior of the machine with a soft moist cloth.
• Make sure that no water gets into the motor of the machine.

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The remote control is not working. • The range is about 5 metres. Point the remote control towards the control panel.Make sure that the battery insulation strip has been removed.Make sure a sufficiently charged CR2025 battery is correctly inserted in the remote control.
The column fan is not stable (or at an angle). • Check that the cord is positioned in the recess of the base.Check that the screws are screwed straight onto the base and are tightened sufficiently.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

MANDO A DISTANCIA

Diagram showing four-step assembly steps of a device with labeled parts and directional arrows indicating motion.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

TELECOMANDO

Diagram showing four steps of a device or connector assembly with numbered labels 1 to 4 indicating sequence.

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base (no text or numbers present)

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

DÁLKOVÉ OVLÁDÁNÍ

Diagram showing four steps of a device or connector assembly with numbered labels 1 to 4 indicating different states or components.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Technical line drawing of three mechanical components with wiring and connectors, no visible text or symbols

DIAL'KOVÉ OVLÁDANIE

Diagram showing four steps of a device or connector assembly with numbered labels 1 to 4 indicating sequence.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
