USER MANUAL DO1202V DOMO

Modern office fan with a metallic stand and blue fan blade, mounted on a dark base (no text or symbols visible)

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Exploded view diagram of a smart air conditioner with numbered parts including fan, motor, and power adapter

CONTROLEPANEEL EN AFSTANDSBEDIENING

Aan/uit-knop

Diagram showing a device with labeled components and directional arrows indicating assembly or connection steps.

Hand holding a circular device with a red circular arrow indicating rotation (no text or symbols)

3

Close-up of a black electric fan mounted on a wooden post, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand holding a circular component with a red arrow indicating rotation (no text or symbols)

6

Hand holding a fan blade with a red circular mark, no text or symbols visible

8

Close-up of a wooden table with a black cable inserted into a corner, no visible text or symbols

AAN/UIT-KNOP

Diagram showing three-step assembly steps of a mechanical clamp or connector, labeled 1 to 4 with directional arrows indicating movement.

REINIGING EN ONDERHOUD

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Oscillation verticale

Oscillation horizontale

Hand holding a circular device with a red curved arrow indicating rotation (no text or symbols)

3

Close-up of a black electric fan mounted on a pole, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand turning a circular component with a red arrow indicating rotation (no text or symbols)

6

Hand turning a fan blade with a red circular mark highlighting the blade (no text or symbols present)

8

Close-up of a wooden table with a black cable inserted into a corner, no visible text or symbols

BOUTON MARCHE/ARRÊT

Diagram showing four-step assembly steps of a device with labeled parts and directional arrows indicating motion.

NETTOYAGE ET ENTRETIEN

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Diagram showing a device with labeled components and directional arrows, likely illustrating a mechanical or electrical assembly.

Hand holding a circular object with a red curved arrow indicating rotation (no text or symbols)

3

Close-up of a black electric fan mounted on a wooden post, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand holding a circular mechanical component with red motion arrows (no text or symbols)

6

Illustration of a hand turning a fan blade with a red circular mark highlighting the blade (no text or symbols present)

8

Close-up of a wooden plank with a black cable and wire attached, no visible text or symbols

EIN/AUS-TASTE

Diagram showing four steps of a device grip or clamp assembly with numbered labels 1 to 4.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or numbers present)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

• Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.
• Do not use the fan in an area with high humidity, a temperature higher than 40^ , or a dusty environment.
• Do not point the fan at people for long periods, especially the elderly, children, or the sick.
• Do not hang or install this fan on a wall or ceiling.
• Unplug the adapter from the appliance before moving it.

• Under extreme circumstances, there could be leakage of the battery.

• If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.

• If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.
• When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out. Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.

- If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

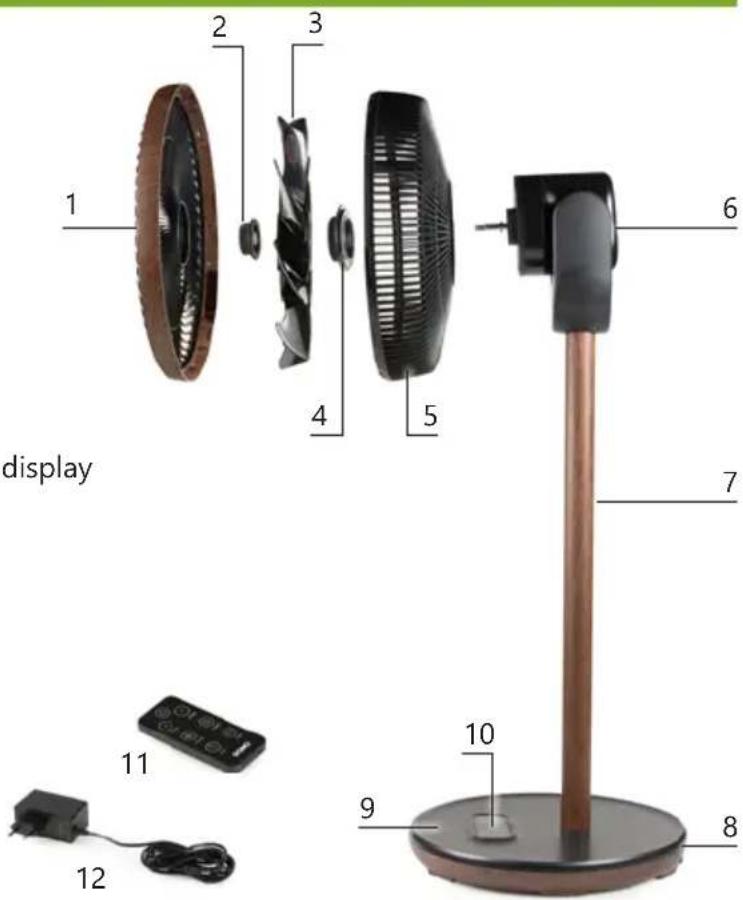

PARTS

1. Front grille
2. Cap
3. Fan blades
4. Nut
5. Rear grille
6. Motor
7. Tube
8. Base
9. On/Off button
10. Control panel with indicator lights and display
11. Remote control
12. Adapter

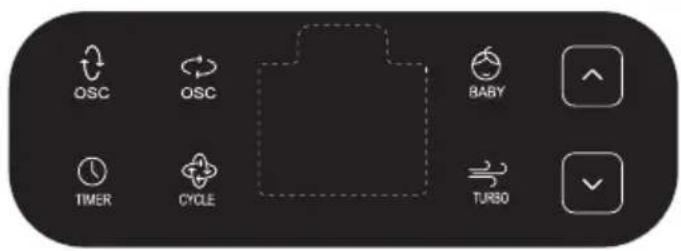

CONTROL PANEL AND REMOTE CONTROL

On/Off button

Vertical oscillation

Horizontal oscillation

Turbo mode with 3D oscillation

Baby mode

Turbo mode

Timer

Increase speed

Reduce speed

1 2 3 4 5 6 7 display 11 12 9 10 8

Two electronic devices: a black power adapter and a black remote control unit, both with cable (no visible text or symbols)

10 9 8

OSC OSC BABY TIMER CYCLE TURBO

SPEEDSPEED CYCLE TIMER OSC OSC DOMO

BEFORE THE FIRST USE

- Remove all packaging materials and any promotional stickers.

- Remove the battery insulation strip from the remote control battery holder.

INSTALL THE FAN

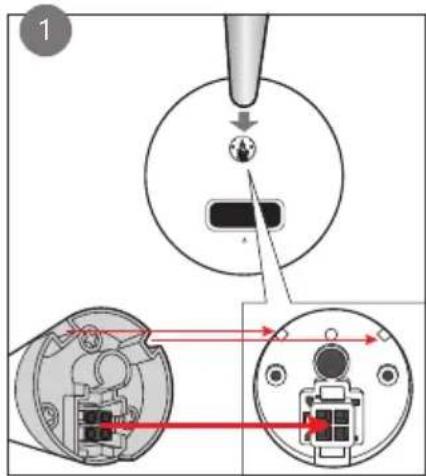

1. Insert the tube into the hole provided in the base. Make sure the grooves in the tube correspond to the tongues in the base.

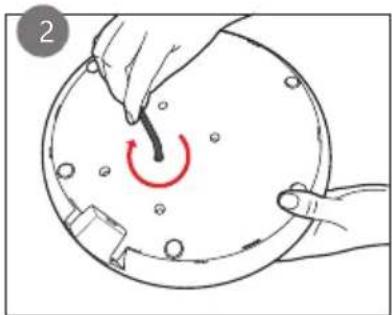

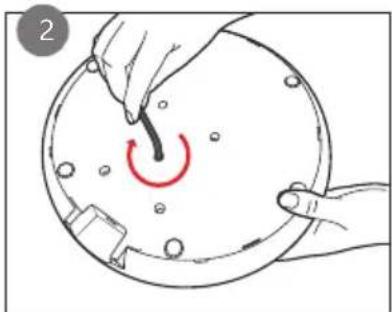

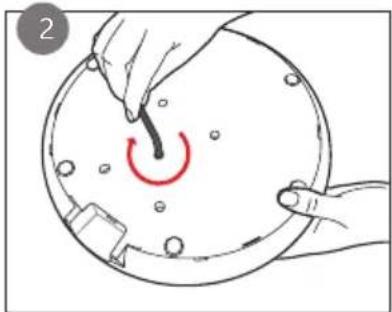

2. Attach the tube to the bottom of the base using the screw and Allen key provided.

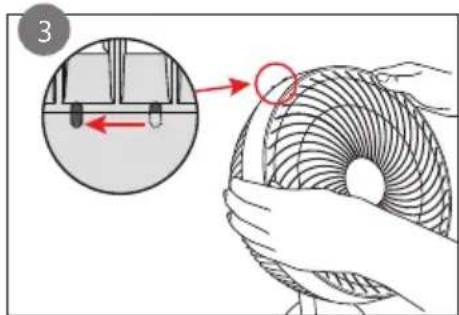

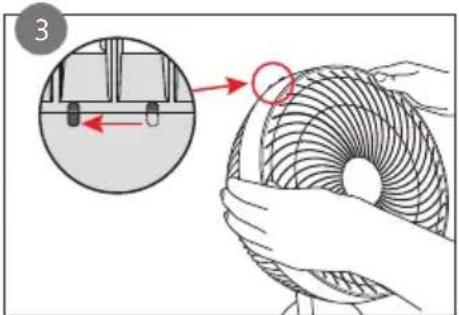

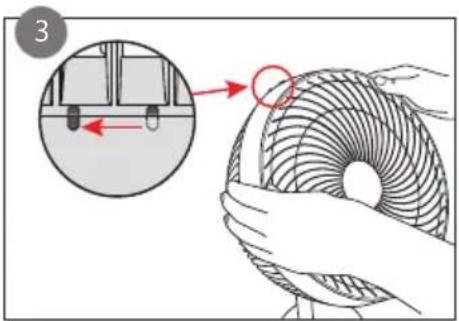

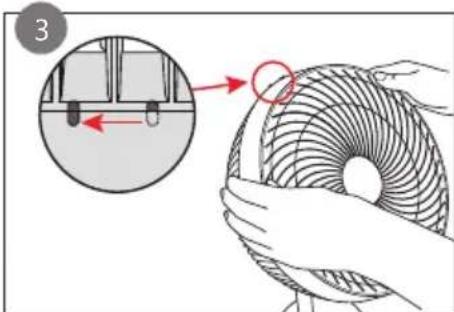

3. Dismantle the grille by unscrewing it anticlockwise.
4. Remove the cap from the motor section and place the rear grille on the motor section. When doing so, make sure the arrow on the rear grille points upwards.

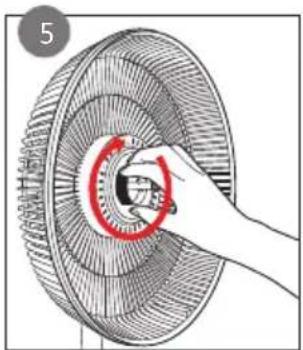

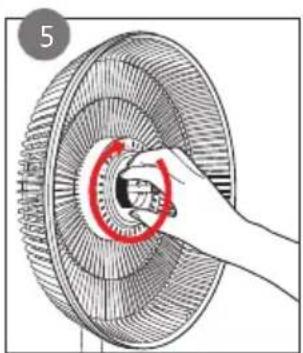

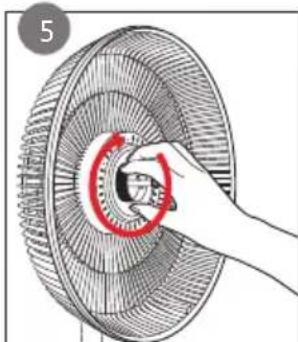

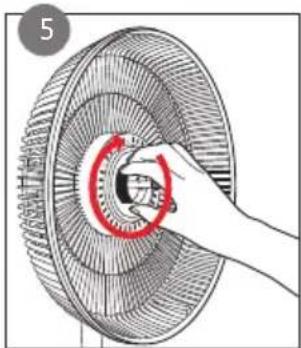

5. Secure the rear grille with the nut. Tighten in a clockwise direction.

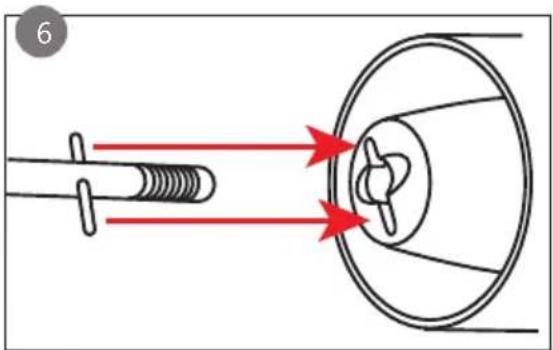

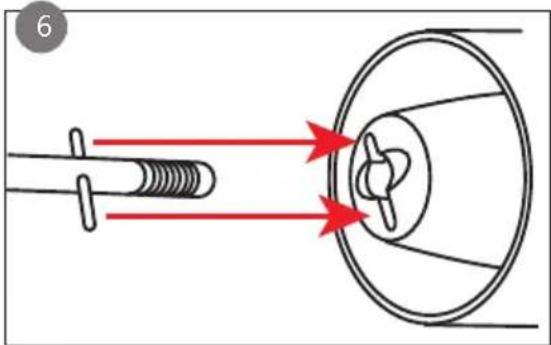

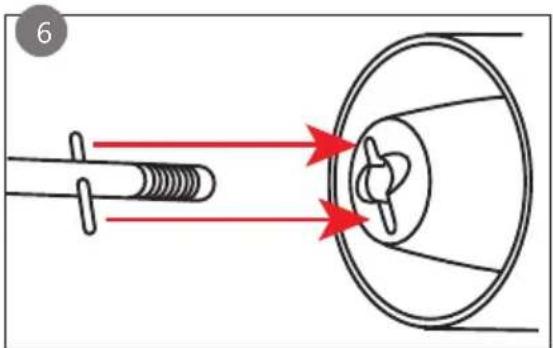

6. Install the fan blades. Make sure the grooves in the fan blades correspond to the tongue on the motor.

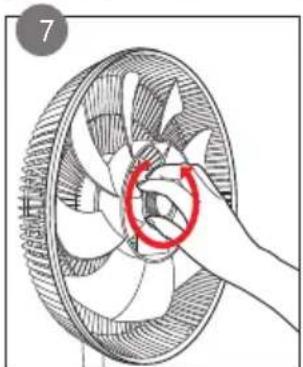

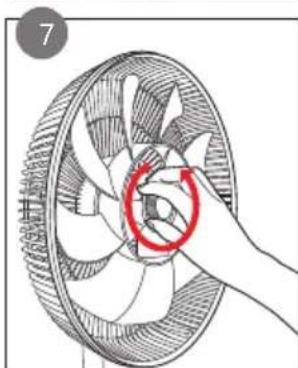

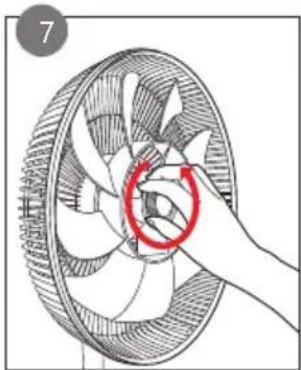

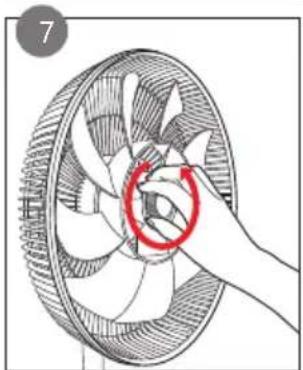

7. Secure the fan blades with the cap. Tighten anticlockwise.

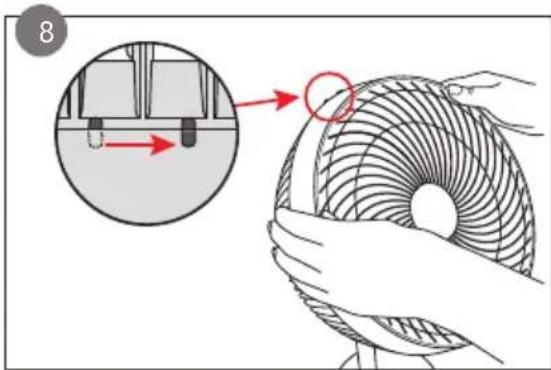

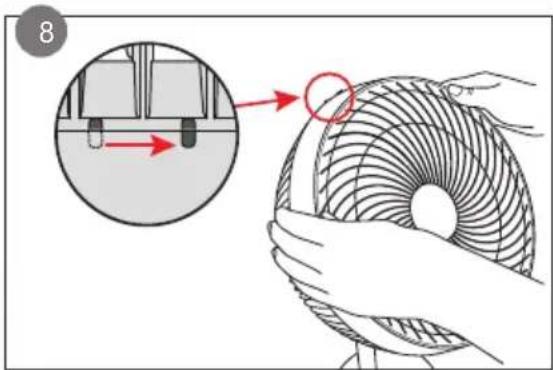

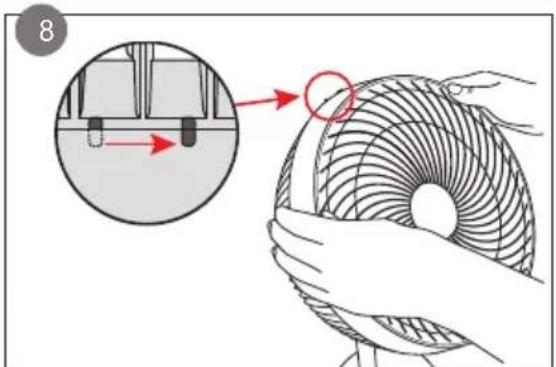

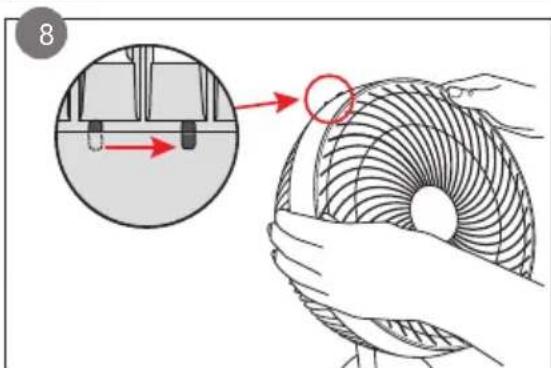

8. Install the grille by tightening it clockwise. Note the indicator lines to position the grille correctly.

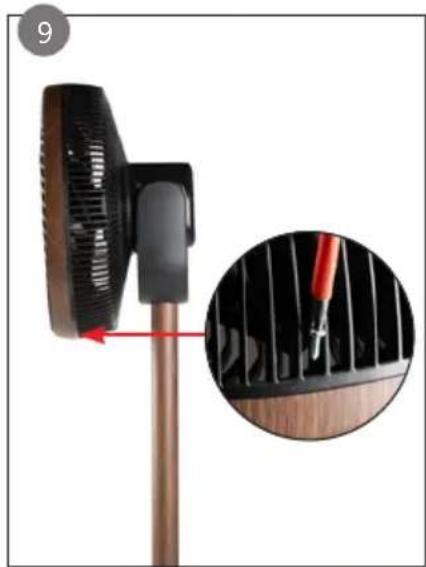

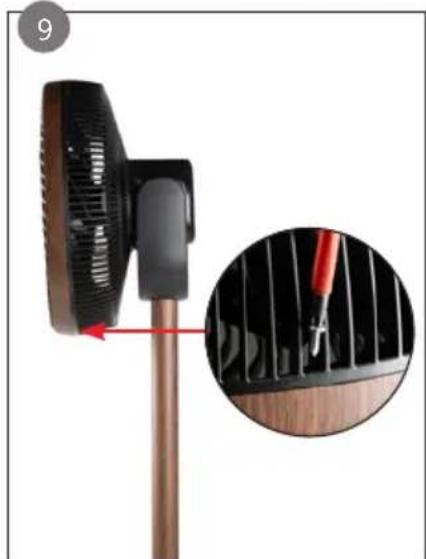

9. Secure the grille with the small screw provided at the place provided for this purpose on the back of the front grille.

1

Hand holding a circular device with a red curved arrow indicating rotation (no text or symbols)

3

Close-up of a black electric fan mounted on a wooden post, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand turning a circular component with a red arrow indicating rotation (no text or symbols)

6

Hand holding a fan blade with a red circular mark highlighting the blade (no text or symbols present)

8

- Wipe the fan with a soft, damp cloth.

USE

• Plug the adapter into the connection on the appliance provided for this purpose, then plug it into the wall socket.
• A beep tone indicates that the device is in standby mode. You can operate the fan via the control panel or with the remote control.

Close-up of a wooden plank with a black cable and wire inserted, no visible text or symbols

ON/OFF BUTTON

This button turns the ventilation on or off. The fan always starts on position 2.

FAN SPEED

The fan has nine speeds (from 0 to 8).

The arrow buttons incrementally increase or decrease the speed between 1 and 8.

Use the baby mode button to set the fan to the lowest setting: 0.

The turbo mode button sets the fan immediately to the highest setting, 8.

VENTILATION DIRECTION

With vertical oscillation, the fan moves up and down alternately.

With horizontal oscillation, the fan moves left and right alternately.

⚠ When you activate both oscillation directions, the fan will move both horizontally and vertically.

In cycle mode, the fan moves both horizontally and vertically at maximum speed (turbo).

⚠️ Switch off cycle mode by pressing the cycle button again, or reduce the speed.

TIMER TIMER

This button allows you to determine the operating time of the fan. When you press the timer button, the operating time is shown in the display on the base. Each time you press this button, the operating time increases by 1 hour, up to a maximum of 12 hours. The fan switches itself off when the operating time has expired.

DISPLAY AND INDICATOR LIGHTS

• When the fan is on standby, the ambient temperature is shown in the display.
• When the fan is operating, the ambient temperature and ventilation speed are alternately shown in the display.
• When the timer is set, the ambient temperature, ventilation speed and operating time are shown alternately in the display.
• When one of the functions is selected, the corresponding indicator light comes on.

⚠️ The brightness of the LED display and indicator lights will decrease by half after 15 seconds. When the control panel or remote control is operated, full brightness will return.

When the appliance is not used for an extended period of time, it is recommended to unplug it from the mains and remove the adapter from the appliance.

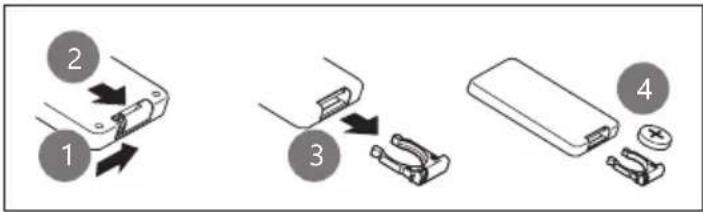

REPLACING THE BATTERY:

If the remote control no longer works, the battery (CR2032) must be replaced.

Diagram showing four-step assembly steps of a device with labeled parts and directional arrows indicating motion.

CLEANING AND MAINTENANCE

• Prior to assembling the fan or cleaning it, remove the plug from the outlet.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
• If necessary, you can remove the front grille to remove dust from the grille and between the fan blades.
• You may clean the exterior of the machine with a soft moist cloth.
• Never use corrosive or abrasive products to clean the machine.

Do not immerse unit, cord, or plug in water or other liquid. Make sure that no water gets into the motor of the machine.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The fan is not working. • Check that the adapter is properly connected to the contact of the base and that it is plugged into a working socket.• Check that the fan blades are not blocked. Should this be the case, remove the obstacle.
The remote control does not work. • Make sure that the battery insulation strip has been removed.• Make sure a sufficiently charged CR2032 battery is correctly inserted in the remote control.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Exploded view diagram of a smart air conditioner with numbered parts including fan, motor, and power plug

PANEL DE CONTROL Y MANDO A DISTANCIA

Hand holding a circular device with a red curved arrow indicating rotation (no text or symbols)

3

Close-up of a black electric fan mounted on a wooden post, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand turning a circular component with a red arrow, no text or symbols present

6

Hand holding a fan blade with a red circular mark highlighting the blade (no text or symbols present)

8

Close-up of a wooden table with a black cable inserted, no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Hand holding a circular object with a red curved arrow indicating rotation (no text or symbols)

3

Close-up of a small electric fan mounted on a pole, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand turning a circular mechanical component with a red arrow indicating rotation (no text or symbols)

6

Illustration of a hand turning a fan blade with a red circular mark (no text or symbols)

8

Close-up of a wooden plank with a black cable inserted into a small opening, no visible text or symbols

PULSANTE ON/OFF

DISPLAY E INDICATORI LUMINOSI

Diagram showing three-step assembly steps of a device with labeled parts 1, 2, and 3, and 4 indicating different states or components.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Exploded view diagram of a smart air conditioner with numbered parts including fan, motor, and power plug

OVLÁDACÍ PANEL A DÁLKOVÉ OVLÁDÁNÍ

Hand holding a circular device with a red curved arrow indicating rotation (no text or symbols)

3

Close-up of a black electric fan mounted on a wooden post, with an inset showing a screwdriver inserted into the grille (no text or symbols visible)

Illustration of a hand turning a circular component with red motion arrows (no text or symbols)

6

Hand holding a fan blade with a red circular mark highlighting the blade (no text or symbols present)

8

Close-up of a wooden table with a black band and cable inserted, no visible text or symbols

TLAČÍTKO ZAP/VYP

Diagram showing three-step assembly steps of a device with labeled parts and directional arrows indicating motion.

ČIŠTĚNÍ A ÚDRŽBA

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Exploded view diagram of a smart air conditioner with numbered parts including fan, motor, and power plug

OVLÁDACÍ PANEL A DIAL'KOVÉ OVLÁDANIE

Tlačidlo zapnutia/vypnutia

Diagram showing a device's internal components with labeled parts and directional arrows indicating assembly or connection.

Illustration of hands using a tool to rotate or rotate a circular object with a red curved arrow (no text or symbols)

3

Close-up of a black electric fan mounted on a wooden post, with a magnified inset showing the internal structure (no text or symbols visible)

Illustration of a hand holding a circular component with a red ring, no text or symbols present

6

Illustration of a hand holding a fan blade with a red circle highlighting the blade (no text or symbols present)

8

- Ventilátor utrite mäkkou vlhkou handričkou.

POUŽITIE

Close-up of a wooden plank with a black band and cable inserted, no visible text or symbols

TLAČIDLO ZAP/VYP

Diagram showing four-step assembly steps of a device with labeled parts and directional arrows indicating motion.

ČISTENIE A ÚDRŽBA

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
