NL Handleiding Statiefventilator "Multiblade"

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or transformation.

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Diagram showing a hand using a camera to adjust a circular component, with an inset magnifying the action and rotation direction.

Diagram showing mechanical assembly with labeled components and directional arrow indicating rotation or movement

5

6

Technical diagram illustrating the installation of a fan blade assembly, showing steps from mounting to final installation.

GEBRUIK

Close-up of a dual-panel electric fan with visible blades and mounting base (no text or symbols)

Close-up of a black electric fan with ventilation grille and mounting base, showing height measurement (no text or symbols visible)

VENTILATIERICHTING

Close-up of a black flat-screen camera with a rotating frame and directional arrows indicating rotation (no text or symbols)

HOOGTE INSTELLEN

Three black outdoor fan holders standing upright, no text or symbols visible

REINIGING EN ONDERHOUD

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Exploded view diagram of a fan assembly with numbered parts for identification

10 11

AVANT LA PREMIÈRE UTILISATION

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or transformation.

Mechanical assembly diagram showing a rotating shaft and housing with a circular component (no text or symbols)

3

4

5

Diagram illustrating the process of a fan blade and impeller assembly with labeled components and directional arrows.

Diagram illustrating the installation of a fan blade assembly, showing steps from fan blade to mounting bracket.

UTILISATION

Two views of a black electric fan with visible blades and side-mounted head (no text or symbols)

INCLINAISON DU VENTILATEUR

Close-up of a black camera lens mounted on a tripod, with rotational arrow indicating rotation (no text or symbols visible)

Three black outdoor fan holders standing upright, no text or symbols visible

NETTOYAGE ET ENTRETIEN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating motion or flow.

Mechanical assembly diagram showing a rotating shaft and housing with no visible text or symbols

3

4

5

6

Technical diagram illustrating the installation of a fan blade assembly, showing steps from mounting to final installation.

GEBRAUCH

Two views of a desktop fan with visible blades and a side-mounted head-mounted unit (no text or symbols)

VENTILATORRICHTUNG

Close-up of a black plastic fan with a rotating arrow indicating rotational motion (no text or symbols)

HÖHENVERSTELLUNG

Three black outdoor fan holders standing upright, no text or symbols visible

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

• Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.
• Do not use the fan in an area with high humidity, a temperature higher than 40^ , or a dusty environment.
• Do not point the fan at people for long periods, especially the elderly, children, or the sick.
• Do not hang or install this fan on a wall or ceiling.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

PARTS

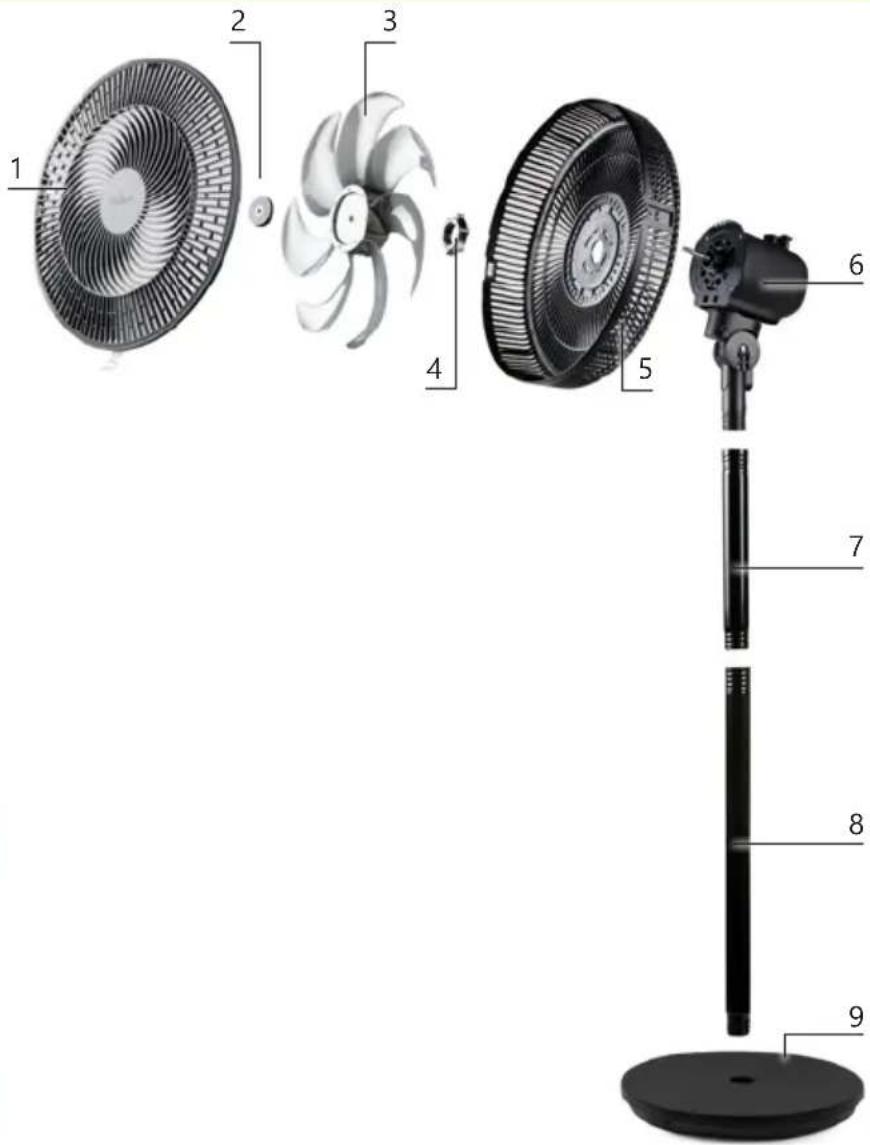

1. Front grille
2. Cap
3. Fan blades
4. Nut
5. Rear grille
6. Motor
7. Short tube
8. Long tube
9. Base

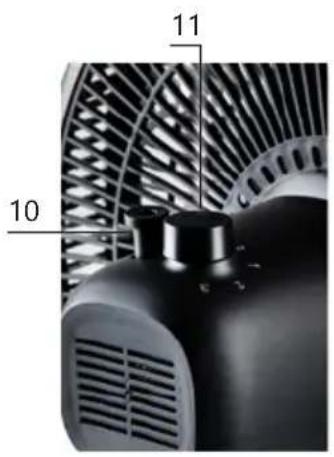

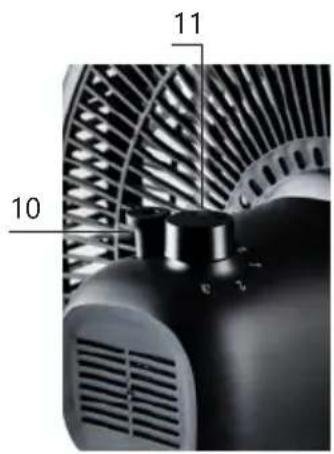

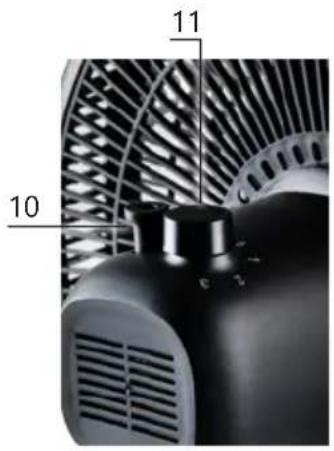

10. Oscillation button
11. Knob for setting speed

Exploded view diagram of a fan assembly with numbered parts for identification

10 11

BEFORE THE FIRST USE

- Remove all packaging materials and any promotional stickers.

INSTALL THE FAN

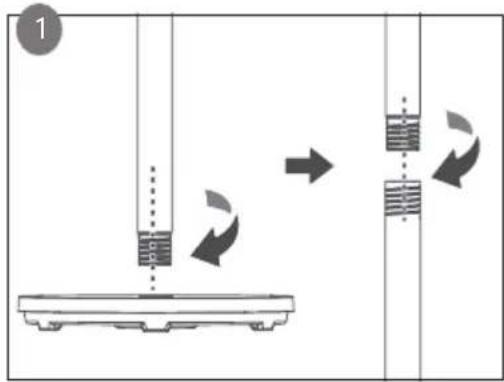

1. Insert the long tube into the designated opening in the base. Tighten it by turning clockwise. Screw the short tube onto the long tube.
2. Attach the motor unit to the tubes.

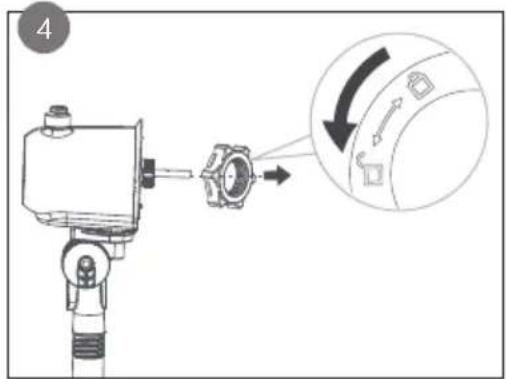

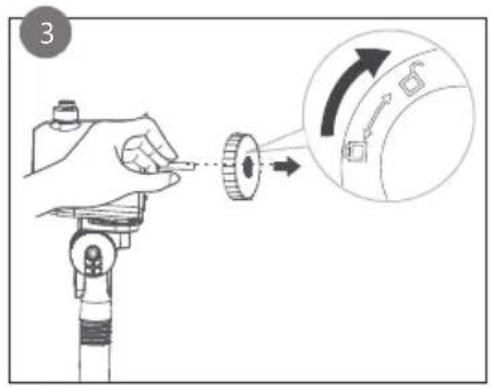

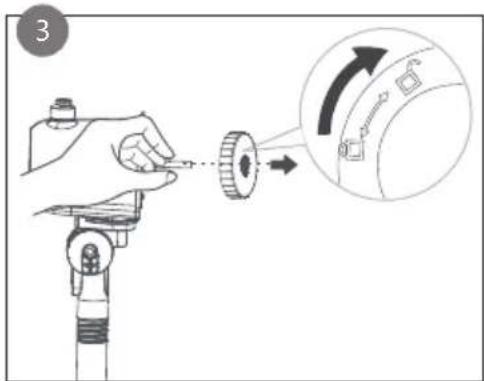

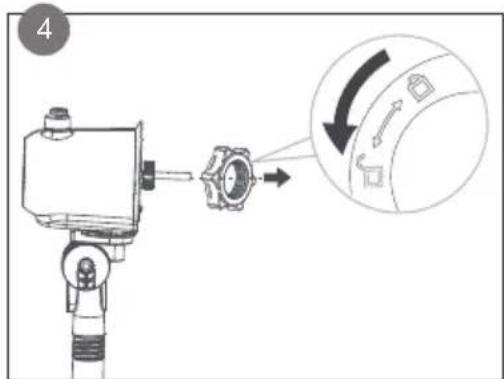

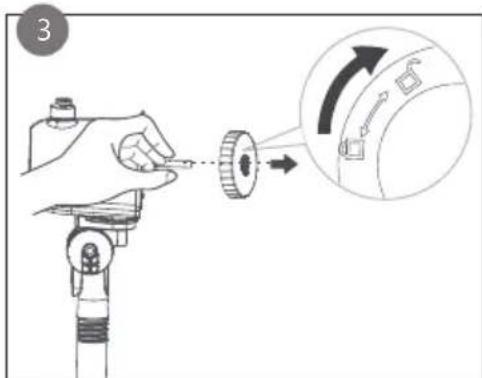

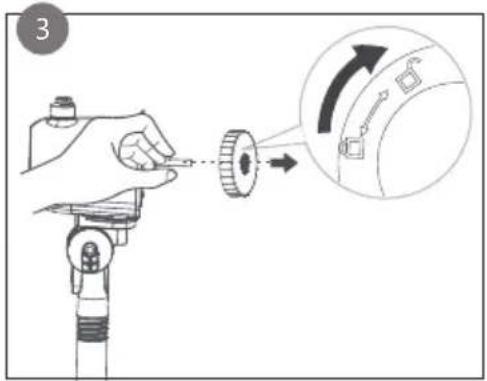

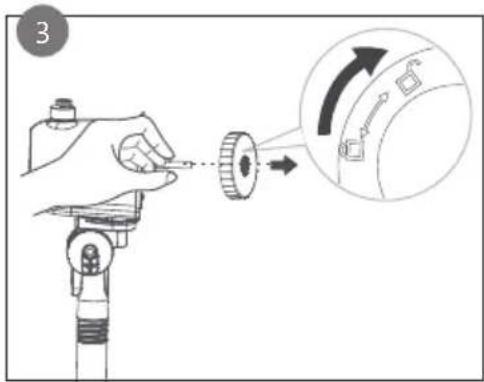

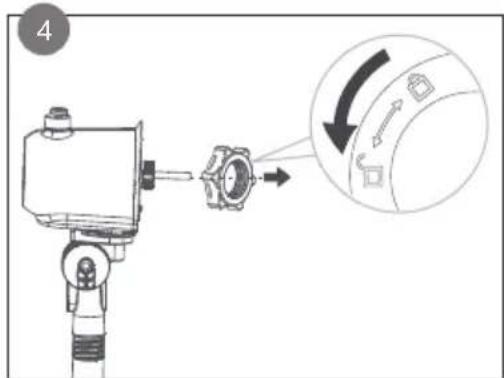

3. Unscrew the cap by turning clockwise.

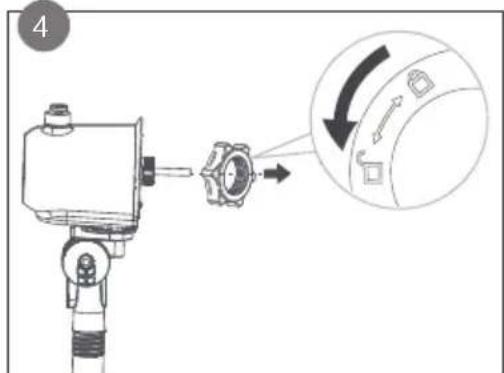

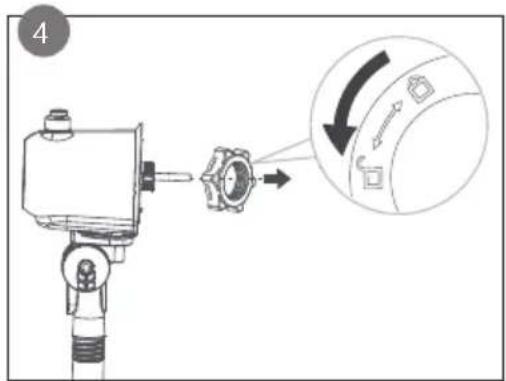

4. Unscrew the nut by turning anticlockwise.

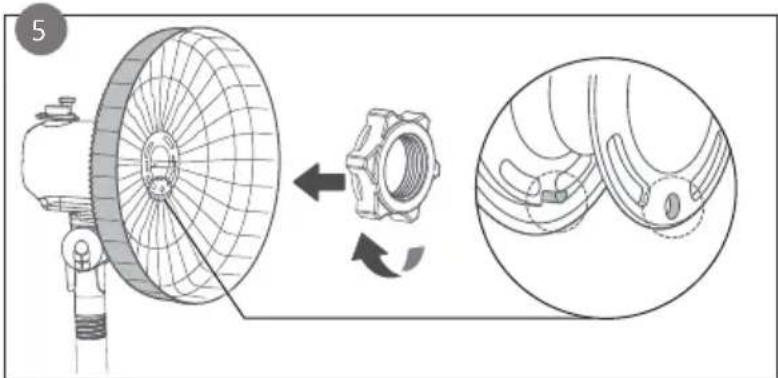

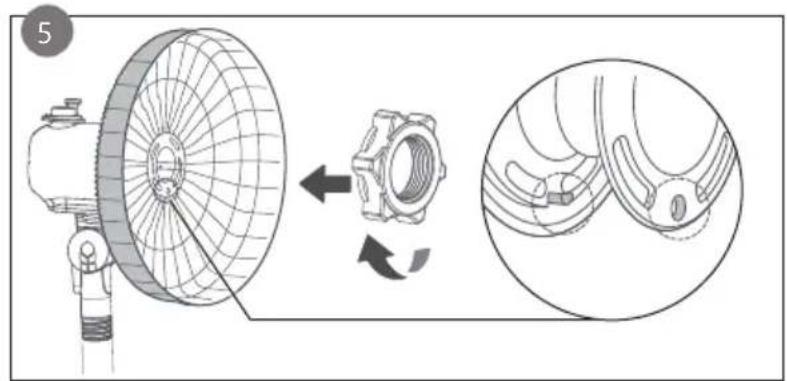

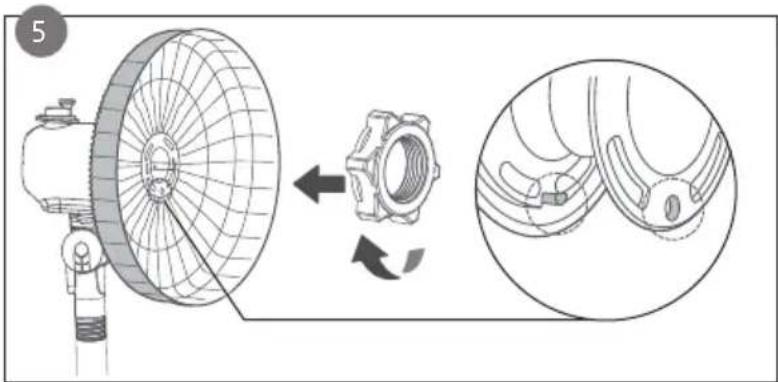

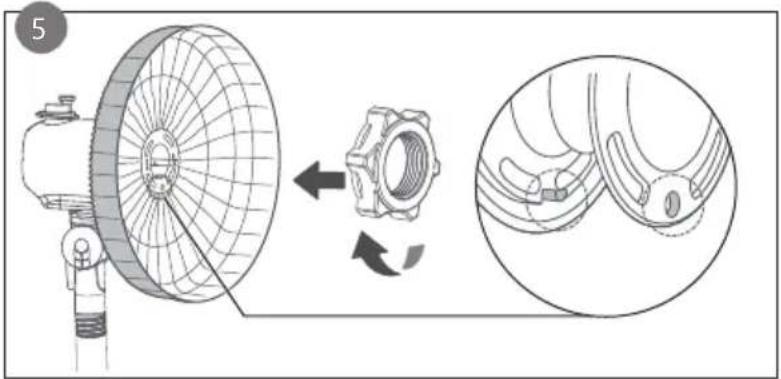

5. Place the rear grill on the motor, making sure that the groove in the grill corresponds to the tongue on the motor. Secure the rear grille with the nut. Tighten in a clockwise direction.

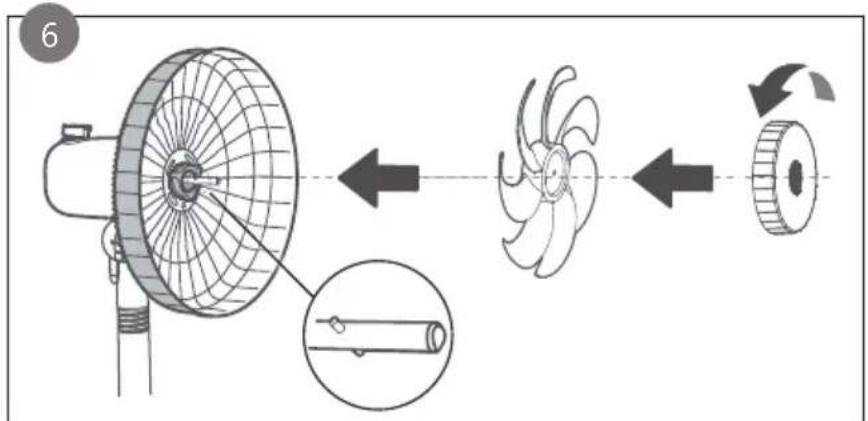

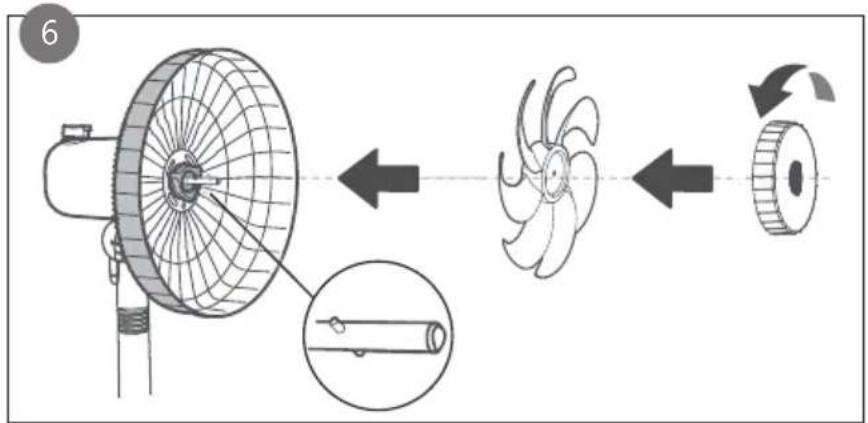

6. Place the fan blades on top of the unit so that the groove in the fan blades corresponds to the tongue on the motor. Secure the fan blades with the cap. Tighten anticlockwise.

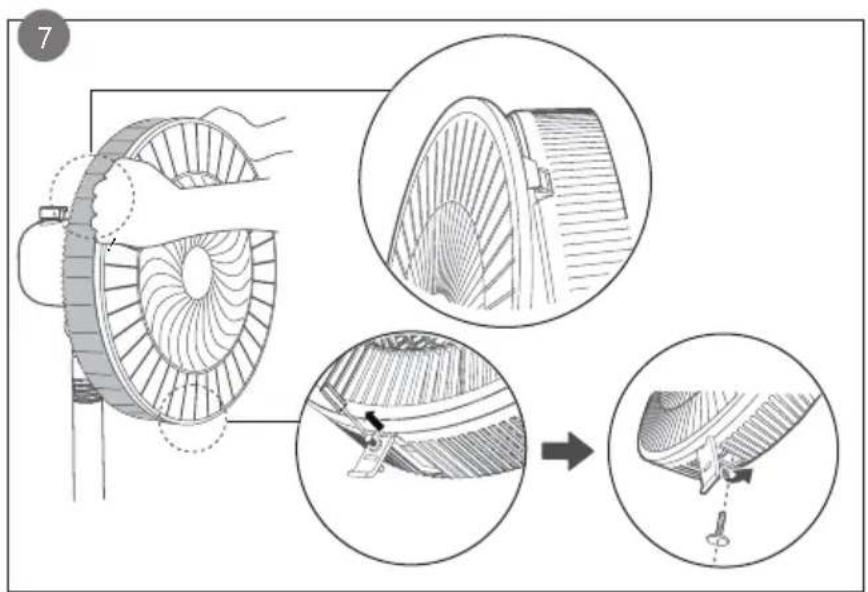

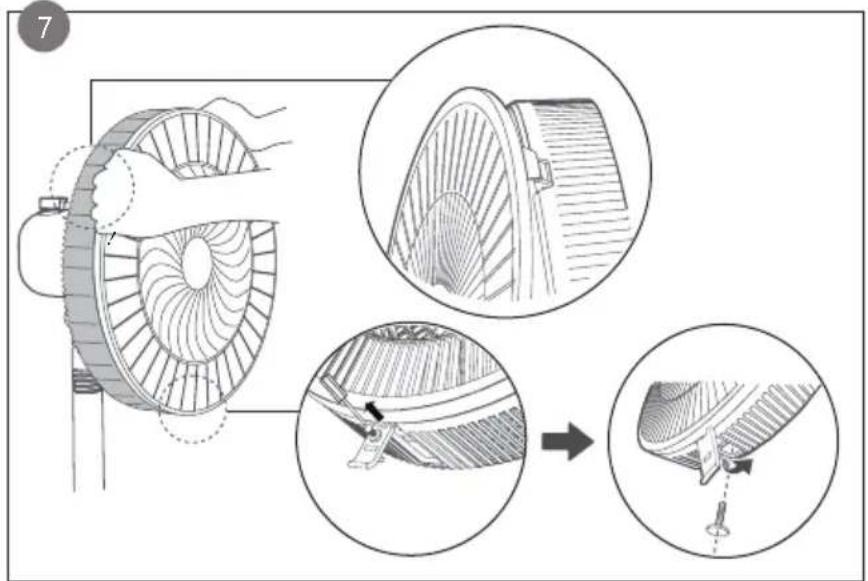

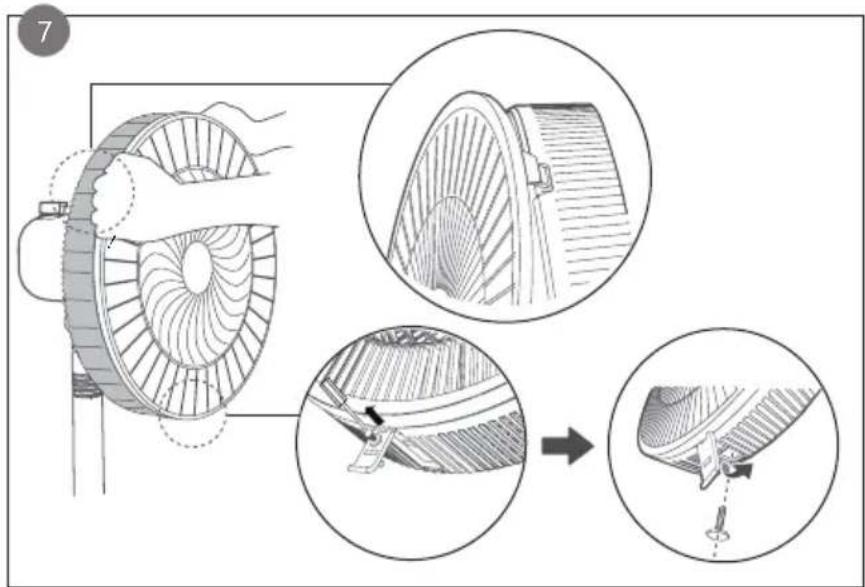

7. Place the front grille onto the fan so that it clicks into the rear grille. Remove the screw from the flap at the bottom of the grille. Close the flap and secure it with the screw.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or transformation.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Diagram illustrating a hand using a device to interact with a camera, showing a magnified view of the camera's motion direction.

4

5

6

Technical diagram illustrating the process of fan blade folding and cutting, with labeled steps and magnified views.

USE

Put the plug in the socket. The button for the speed settings allows you to turn the fan on and off. There are 3 speeds to choose from (low - medium - high). To switch the appliance off again, turn the button back to 0.

OSCILLATION

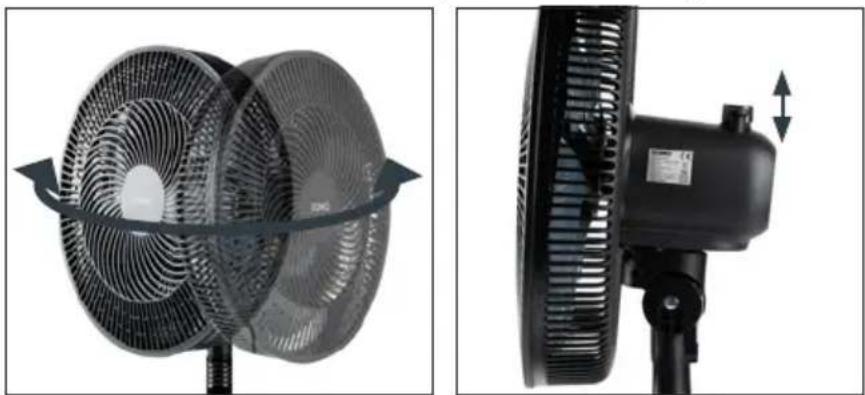

To allow the fan to oscillate, push in the oscillation button. To stop the fan from oscillating, pull the button up. When it is switched on, it will alternately turn to left and right to better spread the air.

Two views of a black desktop fan with visible blades and side-mounted head (no text or symbols)

DIRECTING THE AIR FLOW

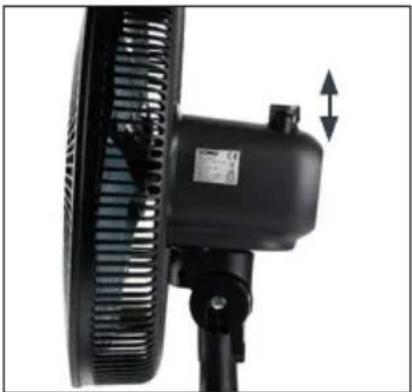

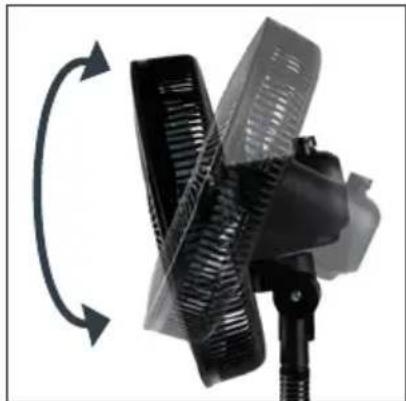

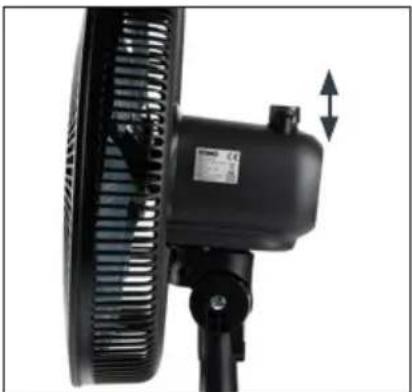

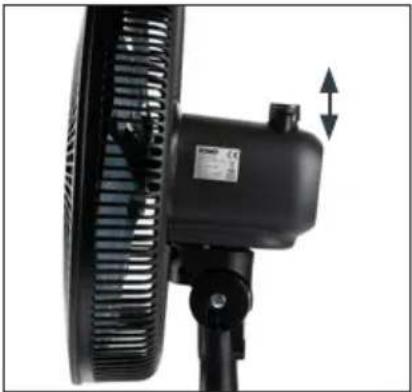

To adjust the ventilation direction up or down, push the fan head up or down.

Close-up of a black camera lens mounted on a tripod, with rotational arrow indicating rotation (no text or symbols visible)

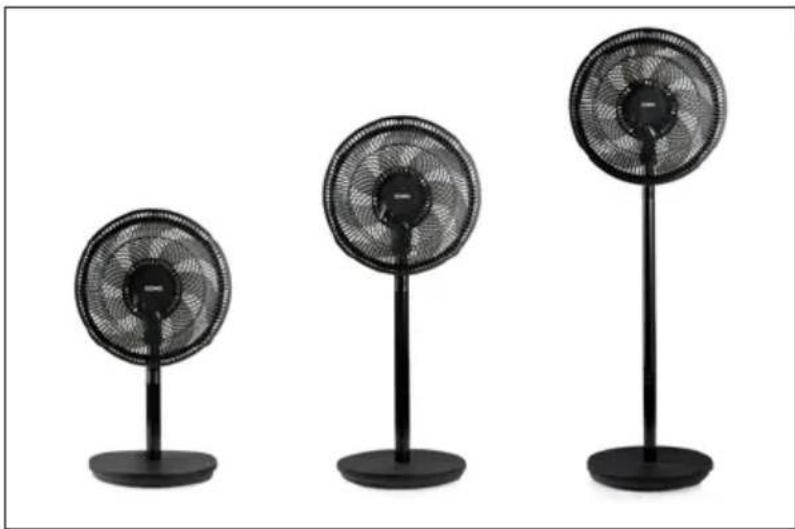

ADJUSTING THE HEIGHT

You can adjust the height of the fan by removing one of the two tubes.

Three black outdoor fan holders standing upright, no text or symbols visible

CLEANING AND MAINTENANCE

• Before (dis)assembling or cleaning the fan, the dial must be turned to position 0 and the plug must be removed from the socket.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
• You may clean the exterior of the machine with a soft moist cloth.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The fan is not working. • Check the plug is properly connected to a working socket.• Check that the fan blades are not blocked. Should this be the case, remove the obstacle.• Check the dial is turned to position 1, 2 or 3.
The fan is making an abnormal noise.	• Check that the fan has been assembled correctly according to the instructions in the chapter “Assembling the fan”.

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Exploded view diagram of a fan assembly with numbered parts for identification

10 11

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or transformation.

Mechanical assembly diagram showing a rotating shaft and housing with a circular component (no text or symbols)

Diagram illustrating a hand using a camera to adjust a mechanical component, with an inset showing the motion of the component.

4

5

6

7

USO

Close-up of a black plastic fan with rotating arrow indicating rotation (no text or symbols)

AJUSTAR LA ALTURA

Three black electric fan holders standing upright, no text or symbols visible

LIMPIEZA Y MANTENIMIENTO

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or transformation.

Mechanical assembly diagram showing a rotating shaft and housing with a circular component (no text or symbols)

Diagram showing a hand using a camera to interact with a device, with an inset illustrating the motion of the device's rotation.

4

5

6

Technical diagram illustrating the installation of a fan blade assembly, showing three stages from raw material to final assembly.

UTILIZZO

Close-up of a dual-panel electric fan with visible blades and mounting base (no text or symbols)

Close-up of a black electric fan with visible blades and a mounted power supply (no text or symbols)

Close-up of a black plastic fan with a rotating arrow indicating rotation (no text or symbols visible)

Three black outdoor fan holders standing upright, no text or symbols visible

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Exploded view diagram of a fan assembly with numbered parts for identification

10 11

PŘED PRVNÍM POUŽITÍM

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

Diagram showing a hand using a camera to interact with a gear, with an inset magnified view highlighting the motion direction.

4

5

Diagram illustrating the process of a fan blade and impeller assembly with labeled components and directional arrows.

Technical diagram illustrating the installation of a fan blade assembly, showing steps from mounting to disassembly.

POUŽITÍ

Close-up of a dual-panel electric fan with visible blades and mounting base (no text or symbols)

Close-up of a black electric fan with ventilation grille and side-mounted power supply (no visible text or symbols)

Close-up of a black adjustable flash unit mounted on a tripod, with rotational arrow indicating rotation (no text or symbols visible)

NASTAVENÍ VÝŠKY

Three black outdoor fan holders standing upright, no text or symbols visible

ČIŠTĚNÍ A ÚDRŽBA

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or transformation.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

3

4

5

Diagram illustrating the process of a fan blade and impeller assembly with labeled components and directional arrows.

Technical diagram illustrating the process of fan blade folding, showing steps from raw material to final structure with magnified views.

POUŽITIE

Close-up of a dual-panel electric fan with visible blades and mounting base (no text or symbols)

Close-up of a black electric fan with ventilation grille and side-mounted power supply (no visible text or symbols)

VERTIKÁLNE NASMEROVANIE VENTILÁCIA

Close-up of a black plastic fan mounted on a tripod, with a curved arrow indicating rotational motion (no text or symbols visible)

NASTAVENIE VÝŠKY

Three black outdoor fan stand holders standing upright, no text or symbols visible

ČISTENIE A ÚDRŽBA

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
