USER MANUAL EES1 Essentiel B

3D rendering of a modern computer with a circular disc and ventilation slots (no visible text or symbols)

Labeled diagram of a mechanical device with numbered parts, showing internal components and wiring connections.

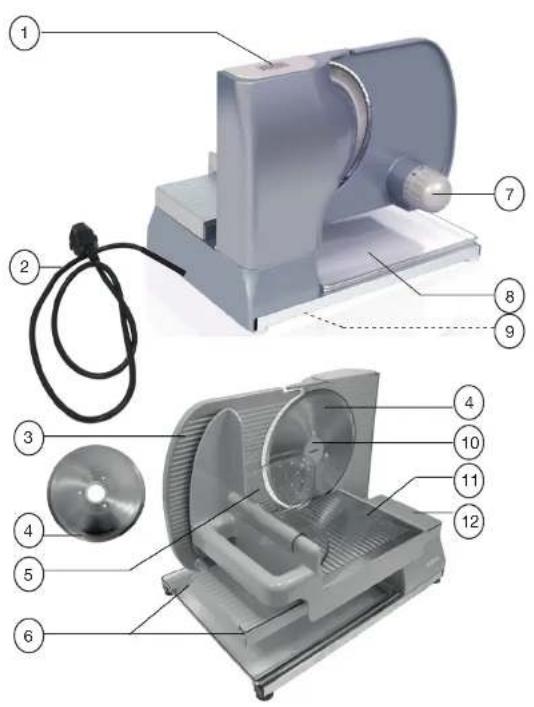

	FR EN NL DE
1	Interrupteur marche/ arrêt	On/off switch Aan/uit-schakelaar Ein-/Aus-Schalter
2	Cordon d'alimentation	Power cord Voedingssnoer Stromkabel
3	Plaque de butée Stop	plate Aanslagplaat Anschlagplatte
4	Lame Blade Lemmet Messer
5	Poussoir d'aliment avec protège-dolgts	Food pusher with fl inger guard	Beschermplaat met vingerbescherming	Lebensmittelschieber mit Fingerschutz
6	Guide de coulissement	Sliding guide Geleider	Gleitführung
7	Molette de réglage de l'épaisseur	Thickness adjustment knob	Instelknop voor de snijdikte	Schnittstärken-Einstellschraube
8	Plateau récupérateur	Recovery tray Opvangplaat Auffang-Tablett
9	Rangement pour enrouler le cordon d'alimentation	Storage for winding the power cord	Opbergvakje voor het voedingssnoer	Kabel-Aufrollung
10	Vis de serrage centrale	Central clamping screw	Centrale spanschroel	Zentrale Spannschraube
11	Chariot coulissant	Food tray	Schuifplaat	Gleitschilitten
12	Table d'appui	Food support plate	Basis	Schneidtisch

consignes d'usage

LISEZ ATTENTIVEMENT CES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL ET CONSERVEZ-LES POUR POUVOIR LES CONSULTER LORSQUE VOUS EN AUREZ BESOIN.

instructions for use

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE.

• This appliance is intended for domestic use only. It is not intended for use in the following domestic, or similar, applications:
• Kitchen areas for staff use in shops, offi ces and other professional environments;
• Farms;
• Hotels, motels and other residential settings;
• Bed-and-Breakfast type settings.
• Do not use outside. This appliance must be used in a dry place.
• Always place your appliance on a stable, level surface.
• Before plugging in your appliance, make sure that the voltage of your home matches that indicated on the appliance's rating plate.
• Never leave your appliance unattended when it is on. Switch it off when it is not is use.
• Keep it out of the reach of children. Take care when using the appliance in the presence of children.

• This appliance should not be used by children.

• This appliance may be used by people with reduced physical, sensory or mental capacities or who lack the required experience and knowledge, provided that they are supervised or have received instructions on how to use the appliance safely and that they understand the risks involved.

• Keep the appliance and its power cord out of the reach of children.
  • Children must not play with the appliance.
• The appliance must not be cleaned and maintained by children.
• Switch off and unplug the appliance before leaving it unattended and before assembling, disassembling and cleaning it.
• Switch off and unplug the appliance before changing the accessories or accessing moving parts during use.
• Before each use, make sure that the power cable is in perfect condition.
• Do not connect or use the appliance:
  if the plug or power cord is damaged or
  if the appliance has been damaged in any way.
  Take it to an after-sales service centre where it will be inspected and repaired.
• Repairs should not be carried out by the user

except in the specific cases listed in the Faults and repairs section of these instructions and only if the instructions provided are followed meticulously.

• If the power cord is damaged, it must be replaced by your retailer, their after-sales service or a similarly qualified person to avoid any danger.
• Do not immerse the appliance, power cord or plug in water or any other liquid, and keep them away from splashes.
• Do not use the appliance with wet or damp hands.
• Do not let the power cord hang over the edge of a table or work surface, and do not let it come in contact with hot surfaces.
• When you unplug the cord, always pull it out at the plug. Do not pull on the cord itself.
• Only use the accessories provided and recommended by your retailer.
• The use of accessories, which have not been recommended by the manufacturer, can cause injuries.
• Do not insert anything in the ventilation holes on the engine block.

Special instructions

- WARNING: Risk of injury if used improperly.

• Do not use the appliance for more than 5 minutes, to avoid overheating. If the appliance has heated up, allow it to cool down before using it again.
• This appliance should only be used with the food tray provided and the associated food holder, unless this isn't possible given the size or shape of the food.
• Never touch the moving parts.
• Always use the food pusher (6) to do the cutting: never use your fingers, a fork, spoon or any other metal utensil.
• The blade is very sharp: handle it with care. Never touch the blade while the appliance is on. Keep your hands, hair, clothing or other objects away from the appliance's moving parts.
• Only use the slicer to prepare food like cheese, boneless meat or bread.
• Do not use this appliance to slice frozen food, pieces of bone-in meat, roasts still wrapped with string, or hard, inedible foods.
• Read the "Use" section on how to use the accessories and the appliance's operating times.
• Read the "Cleaning and care" section to clean the surfaces in contact with food.

your product

Technical features

• Power supply: 220-240 V\~ 50/60 Hz
• Power: 150 W
• Recommended continuous operating time: 5 min
- Blade diameter: 17 cm
- Adjusting the cutting thickness: from 1 to 15 ~mm

before first use

• Carefully unpack the slicer and remove all the protective packaging.
• Wash the food tray, food pusher and blade in hot soapy water (see "Cleaning and maintenance" section). Rinse with clear water and dry carefully.
• Wipe the outside of the device with a soft, damp sponge. Dry with a soft, clean cloth.
• Clean the blade to prevent any residual dirt from the production process from getting on the ingredients.

Familiarise yourself with the appliance and how to fit the accessories before plugging it into a power outlet.

use

• Do not cut frozen products
• Remove all bones before cutting meat
• Cut with a smooth motion for a regular cut and do not strain the motor.
• Do not put your hands between the food and the blade!
• Do not push too hard in a direction parallel to the worktop, as this can make the slicer tip over
• Use the slicer on a STABLE work surface, on which the feet have good grip.

Application

Meat, cold meats and hard cheeses can be sliced, as well as fruits and vegetables such as potatoes, courgettes, cucumbers, aubergines, kiwi, pineapple, etc.

Operating for short periods

The appliance has been designed to be used only for short periods of time, i.e. the slicer must not be used continuously for more than 5 minutes. Switch it off after using it and allow the engine to cool before turning it back on.

Assembly/disassembly of the food tray

The food support plate has two sliding guides, one on each side, into which you need to insert the food tray.

To remove the food tray, place the thickness adjustment knob in position P and pull the food tray backwards.

Adjusting the thickness of the slices

The thickness of the slices can be changed using the adjustment knob. Always return the stop plate to its original position (zero) after use.

Operating time

The appliance should not be operated for more than 5 minutes continuously. Take a 30-minute break between 2 long uses (> 3 minutes).

Cut

Follow the instructions above when using the slicer.

• Adjust the cutting thickness using the knob; the smoothness and regularity of the cutting will depend on the food being sliced.
• For a regular cut, press moderately and constantly on the ingredient to be sliced: this will prevent any deformation of the blade.
• Position the tray so as to recover the slices that fall behind the machine.
• Fit the food pusher to the food tray, with the pebbled side facing the blade.
• Set the on/off switch to the "I" (on) position to turn on the appliance. Move the food tray toward the rotating blade.
  • The food pusher with fi nger guard keeps you safe when cutting the food.
• When you have finished using the appliance, turn the on/off button to the "0" (off) position and unplug the appliance from the mains power.

For safety reasons, always return the stop plate to its original position after use, so that it aligns with the blade.

practical advice

• To prevent food from sticking to the blade, moisten it with a damp cloth. This will facilitate cutting. Unplug the appliance before doing this.
  • If you have prepared or baked bread, wait a few hours before slicing it.
• Do not slice cooked meat too long prior to consuming it, to avoid altering the taste.
• Do not slice soft food items.

cleaning and maintenance

• Make sure that the appliance is switched off, unplugged and that the blade has finished rotating before cleaning the appliance.
• Never immerse the appliance, power cord or plug in water or any other liquid.
• Do not use abrasive cleansers, scouring sponges, or sharp objects to avoid damaging the coating.

Clean the slicer before using it for the first time or after a prolonged period of non-use.

General points

• To prevent the remains of perishable food accumulating in the slicer, clean it thoroughly after each use.
• Unplug the slicer from the power outlet before cleaning or removing accessories.
• Wait for the motor to completely stop. Put the stop plate in its original position, so that the blade does not protrude.
• To avoid the risk of electric shocks, do not clean the appliance with water or immerse it in any liquid.

- Do not use abrasive or corrosive detergents. If necessary, wipe the exterior surfaces with a slightly damp lint-free cloth. The food pusher can be cleaned with hot water and a mild detergent (do not put it in the dishwasher).

Disassembling and cleaning the blade

Warning: the blade is very sharp.

Handle it with care, so as not to injure yourself.

• After cutting, pieces of food may get stuck behind the blade. Disassemble it with a coin by turning it in the direction indicated and remove any remaining food on the tray. Clean the blade.
• The stop plate and blade must be cleaned with soap and hot water. Do not clean them in the dishwasher.
• When cleaning the blade, do not remove the grease in the gearing area (risk of wearing down the transmission prematurely).
• If you find black marks on the food after cutting, dismantle the blade and remove the grease from its edges with a cloth.

Removing the stop plate

For thorough cleaning, the stop plate can be removed.

However, to avoid the risk of injury, always remove the blade fi rst. Place the thickness adjustment knob in its unlocked position. In this position, the stop plate can be removed by sliding it to the side. When you reassemble the stop plate, the adjustment knob must be in the same position.

Cleaning the food pusher

• Wash the food pusher, the recovery tray and the cutting board in hot soapy water.
• Rinse with clear water and dry carefully.

Cleaning the outer surfaces

- Wipe the outside of the appliance with a soft sponge, slightly dampened in soapy water. Rinse with clean water and dry with a soft dry cloth.

troubleshooting guide

The appliance is not working:

- Unplug the appliance and check that the power has not been cut.

The blade does not spin:

- Check that the blade is properly attached to the appliance.

The food tray does not move:

- Check that the food tray is properly fitted on the machine. Read the "Cleaning and maintenance - Cleaning the food tray" section for the food tray assembly procedure.

The blade no longer spins, spins irregularly or there is a mechanical noise when the blade spins:

- The pinion must be replaced. Follow the procedure provided on the attached sheet.

Product Information for power consumption and maximum time to reach applicable low power mode
Power consumption in off mode	0 W
Power consumption in standby	NA
The maximum time needed to automatically reach the applicable low power mode or condition	NA
Power consumption in network standby if all wired network ports are connected and all wireless network ports are activated	NA

Bedienungshinweise

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and systems are available in your area (waste removal) and by distributors. By taking allowance at its end of life to a recycling facility, you will contribute to environmental protection and prevent any harm to your health.

Umweltschutz

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

\* In unseren Labors getestet

Customer Relations Department / Kundenservice / Klantenafdeling

Avenue de la Motte

CS 80137

59811 Lesquin cedex

FABRIQUÉ EN R.P.C. / Made in China /
