USER MANUAL DO1164I DOMO

Black and white photo of a Domo ice cream maker with colorful ice cream scoops in a bowl, no visible text or symbols on the main objects.

EN Instruction booklet Ice cream maker

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Diagram of a device with labeled parts: top part, middle part, and bottom part.

4

5 6

Black cylindrical object with a labeled measurement line and '7' annotation (no other text or symbols)

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a small component (no visible text or symbols)

7 40:00

Close-up of a kitchen appliance with a black lid and red arrows indicating motion or movement (no text or symbols visible)

TIPS

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Exploded view diagram of a cooking pot with numbered parts from top to bottom

AVANT LA PREMIÈRE UTILISATION

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a small component on a white surface (no visible text or symbols)

7 40:00

Close-up of a device with a black lid and red arrows pointing to a component, no visible text or symbols.

CONSEILS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Black rectangular electronic device with a curved cable and labeled line '1' (no text or symbols on the device itself)

Close-up of a transparent cylindrical object with a numbered line pointing to it (no text or symbols on the object itself)

4

Simple illustration of a cylindrical container with a labeled line indicating '5' (no text or symbols on the container itself)

Black cylindrical object with a labeled measurement line and '7' annotation (no other text or symbols)

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a component, no visible text or symbols

7 40.00

Close-up of a kitchen appliance with a black lid and red arrows pointing to a component (no visible text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

- The bowl must be dry before you put it in the freezer.

- Never touch a frozen bowl with wet hands!

- Do not heat the bowl to more than 40^ C .

- Hard or sharp objects (such as metal spoons) may damage the inside of the freezer bowl. Only use rubber spatulas and wooden utensils to remove the ice cream from the bowl.

- Only pour the mixture you have prepared into the bowl when the machine is already on.

- Do not turn the device off and on when the ice cream is being churned. The ice cream mixture might freeze to the bowl and block the mixing arm.

- Never put your hands in the ice cream machine when it is operating and make sure that hair, clothing and other objects are sufficiently distanced in order to avoid wounds and damage.

- To prevent overheating, the direction of rotation of the mixing arm will automatically change if the mixture becomes too thick. If the direction changes too often, it is best to turn off the appliance and end the preparation.

- The device has an overheating safety. This will shut the device off when the motor threatens to overheat. Always pull the plug from the outlet and wait at least 15 minutes until the motor has completely cooled.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

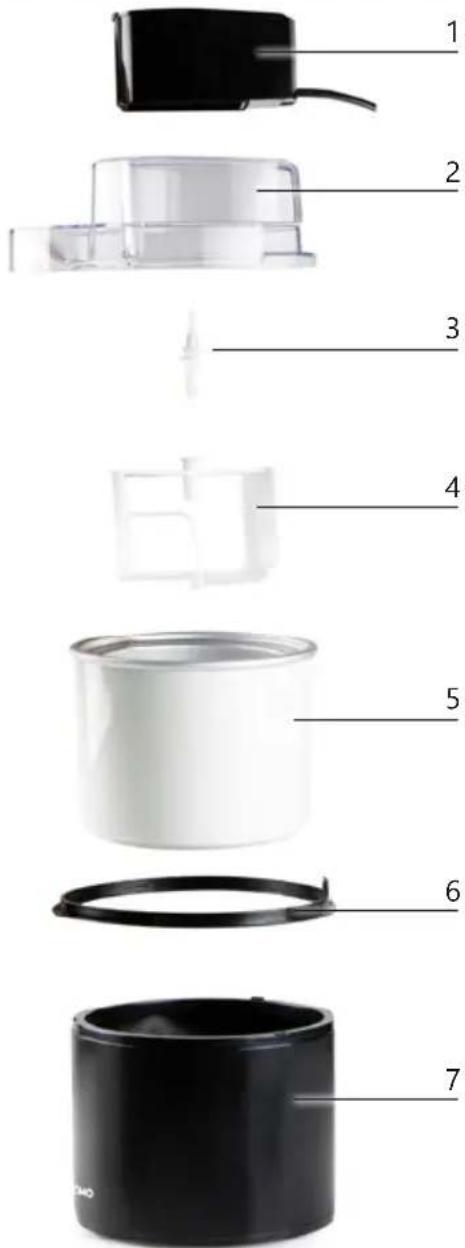

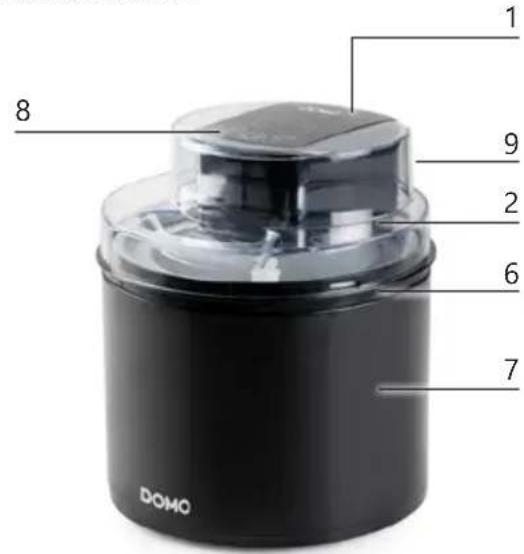

PARTS

1. Motor block
2. Cover with fill opening
3. Connector
4. Mixing arm
5. Freezer bowl
6. Bearing ring
7. Container
8. Control panel
9. Release button

1 8 9 2 6 7 DOMO

Exploded view diagram of a smart appliance with numbered parts from top to bottom

BEFORE THE FIRST USE

1. Remove all packaging materials and any promotional stickers.
2. Wipe the motor block clean with a slightly moist cloth.
3. Wipe the interior of the freezer bowl clean with a moist cloth.
4. Rinse the other components thoroughly in warm water.
5. Dry all of the components.

USE

24 HOURS IN ADVANCE: FREEZE BOWL

1. Put the bowl in a freezer bag and close it up to prevent ice formation.
   The bowl must be completely dry before you put it in the freezer.

2. Put the bowl in the freezer for at least 24 hours (-18°C or colder).

3. Only take the bowl out of the freezer just before churning the ice cream to make sure that the bowl is as cold as possible.

4 HOURS IN ADVANCE: PREPARE THE MIXTURE

1. Prepare the mixture according to the recipe. Up to 2 litre can be made in the ice cream machine per cycle.

2. Put the mixture in the refrigerator for about 4 hours.

CHURNING THE ICE CREAM IN THE ICE CREAM MACHINE

Put the mixture into the machine only when the machine is set up and is on. Otherwise the mixture will freeze to the interior walls of the bowl.

⚠️ Work fast, so that the bowl and the mixture stay as cold as possible.

1. Insert the engine block into the cover until it clicks.

2. Put the connector into the underside of the motor block.

3. Put the mixing arm into the connector.

4. Take the bowl out of the freezer and out of the bag and place it in the bearing ring.

5. Place the bowl with the bearing ring into the container. Make sure the grooves in the ring correspond to the tongues in the housing.

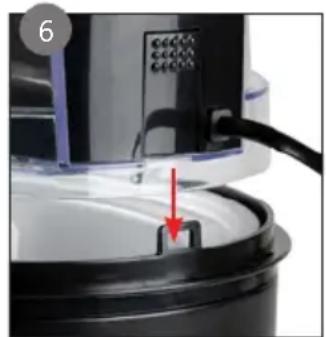

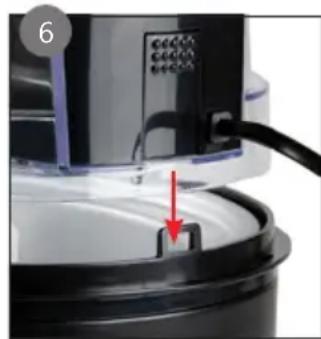

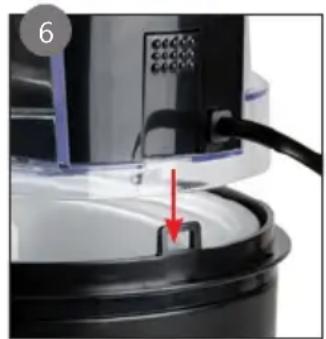

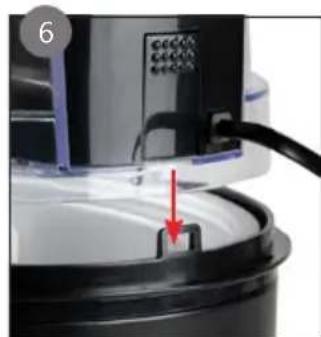

6. Place the cover with the recess in the right place on the ring and click it into place.

7. Put the plug into the outlet and press the power button ☑ on the control panel. By default, an operating time of 40 minutes appears in the display. You can use the arrow keys 🔊 to shorten or lengthen the time: each press of an arrow key decreases or increases the running time by 5 minutes. You can choose a run time from 5 to 45 minutes.

8. After 3 seconds, the device starts running automatically. The remaining running time is shown in the display.

9. Now pour the mixture into the bowl through the fill opening in the cover.

The appliance must be running when you add the mixture! This is to prevent the mixture from immediately freezing to the inner wall of the bowl.

1. Run until the ice cream has reached the desired consistency. This takes 20 to 40 minutes, depending on the recipe you chose. If the ice cream is not hard enough after 45 minutes, turn the machine off and put the ice cream in the freezer to let it harden further.

Do not turn the machine off during the churning process.

1. Press the on/off button to stop the machine.

2. Pull the plug from the outlet.

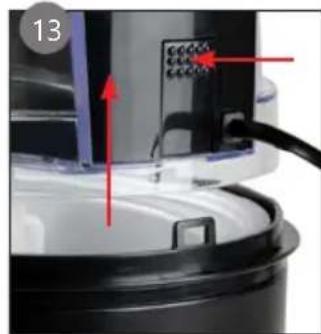

3. Press the release button on the back of the engine block to lift and remove the cover.

4. Remove the bowl from the container using the bearing ring.

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a component, no visible text or symbols

7 40.00

Close-up of a kitchen appliance with a mounted control panel and red arrows indicating motion (no text or symbols visible)

1. Take the ice cream out of the bowl with a rubber spatula or a wooden spoon.

Do not use metal utensils to remove the ice cream from the bowl.

1. The ice is ready to eat. If you want it a bit harder, you can put it in the freezer to let it harden.

But in that case, be sure to remove the ice cream from the bowl first.

TIPS

• Store the freezer bowl in the freezer so it is always ready to use. Stick it in a freezer bag and keep it upright at all times.
  ⚠️ The bowl must be completely dry before you put it in the freezer.
• You make the best ice cream with high quality ingredients.
• Fat-rich dairy products (cream, whipping cream, mascarpone, ...) provide a creamy consistency and full flavour.
• When following recipes in which the sugar is not dissolved, use very fine sugar. Sugar makes the ice cream stiffer and also prevents the formation of large ice crystals.
• When using frozen fruit, it is not necessary to first let the fruit thaw. It is easier to purée fruit which is still half frozen.
• Ice cream will stay softer when alcohol is added.
• For an optimal result, it is advised to pre-cool the mixture in advance (min. 4 hours).
• The ice cream made by the machine is soft and spoonable. Serve the ice cream immediately. Then it will taste the best.
• If the ice cream has not set up sufficiently after about 45 minutes, put it in the freezer until it is solid enough.

⚠️ Never freeze ice cream that has been completely or partially thawed.

⚠ Ice cream or sorbet with raw ingredients should be consumed within a week. Ice cream tastes best when it's fresh.

⚠️ Ice cream or sorbet containing raw or partially cooked eggs should not be given to young children, pregnant women, the elderly, or people with compromised health.

CLEANING AND MAINTENANCE

1. Unplug the appliance before cleaning.
2. Take the mixing arm and the connector off of the motor block.
3. Press the release button and remove the engine block from the cover.
4. Take hold of the bearing ring, thereby lifting the bowl out of the container.
5. Clean the motor block clean with a slightly moist soft cloth.
6. Let the bowl warm up to room temperature and wash it in water not warmer than 40^ C with a mild detergent.

⚠️Do not completely submerge the bowl in water.

1. Wash the other components by hand in warm water and a little detergent.

2. Dry all of the components thoroughly.

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️Never use aggressive or abrasive cleaning agents.
⚠️ No part of this appliance is dishwasher safe.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The machine does not start up. • Put the plug into the outlet.• Check the wall socket and the fuses in the fuse box.
There are ice crystals on the bowl. • Completely dry the bowl and put the bowl in a freezer bag before putting it into the freezer.
The ice cream comes out of the bowl during churning.	• The mixture works itself upward during churning. Use a smaller amount of the mixture.
The ice cream is still too runny. • Were the bowl and the mixture cold enough? Put the ice cream into the freezer to harden further.
The device turns itself off. • The overheating safety switch has probably engaged.Pull the plug and wait until the motor has cooled.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection. The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Exploded view diagram of a food appliance with numbered parts from top to bottom

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a small component, no visible text or symbols

7 40:00

Close-up of a kitchen appliance with a mounted control panel and red arrows indicating motion (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Diagram of a device with labeled parts: top part, middle part, and bottom part

4 5 6

Black cylindrical object with a labeled measurement line and 'CHNO' text, no other visible text or symbols.

PRIMA DELL'USO

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a small component, no visible text or symbols

7 40:00

Close-up of a kitchen appliance with a digital display and red arrows indicating motion (no text or symbols visible)

SUGGERIMENTI

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Diagram of a device with labeled parts: top part, middle part, and bottom part.

4 5 6

Black cylindrical object with a labeled measurement line and '7' annotation (no other text or symbols)

PŘED PRVNÍM POUŽITÍM

Close-up of a black cylindrical object with a red circle highlighting a small feature, no visible text or symbols.

Close-up of a kitchen appliance with a red arrow pointing to a small component (no visible text or symbols)

7 40.00

Close-up of a kitchen appliance with a control panel and red arrows indicating movement (no text or symbols visible)

TIPY

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Diagram of a device with labeled parts: top view, front view, and side view.

4 5 6

Black cylindrical object with a labeled measurement line and '7' annotation (no other text or symbols)

PRED PRVÝM POUŽITÍM

Close-up of a mechanical component with a red circle highlighting a specific area (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a small component, no visible text or symbols

7 40:00

Close-up of a kitchen appliance with a digital display and red arrows indicating movement (no text or symbols)

TIPY

- Mraziacu misku skladujte v mrazničke, aby bola vždy pripravená na použitie. Vložte ju do mraziaceho vrecka a udržujte vždy vo zvislej polohe.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
