Brand	DOMO
Model	DO1020SV
Device type	Cordless stick vacuum
Usage	Household
Power supply	Rechargeable lithium-ion battery
Voltage	22.2 V (typical)
Run time	Approximately 30 minutes (depending on use)
Initial charging time	24 hours
Container capacity	0.6 L (estimation)
Filter	Washable HEPA filter
Main brush	Motorized rotating brush
Included accessories	Flat crevice tool, small dusting brush, wall mount
Weight	Approximately 2.5 kg
Dimensions (L x W x H)	Approximately 25 x 20 x 110 cm (assembled)
Warranty	2 years (accessories: 6 months)
After-sales service	Linea 2000: [phone], [e-mail]
Safety	Automatic shut-off in case of brush blockage
Maintenance	Container and filters washable with water, rotating brush cleanable
Spare parts	Battery, filter, rotating brush available via webshop

Frequently Asked Questions - DO1020SV DOMO

How to charge the DO1020SV vacuum for the first time?

Charge the device for 24 hours before first use to fully activate the battery. First connect the charger to the device, then to the mains socket.

What to do if the vacuum does not start?

Check that the battery is charged and properly engaged in the motor unit. If the problem persists, contact after-sales service.

How to clean the dust container?

Press the release button to open the container. Remove the dirt, then turn the container to the left to detach it. Wash it with water and dry it completely before replacing.

Are the filters washable?

Yes, the HEPA filter and pre-filter are washable with water. Make sure they are completely dry before reinstalling to avoid damaging the motor.

How to clean the rotating brush?

Remove the floor nozzle, unclip the side flap, take out the brush. Remove tangled hair, rinse it under running water, dry it and reinstall.

Why does the run time decrease?

A worn battery or insufficient charge can reduce run time. Fully recharge the device. If the problem persists, replace the battery.

Can I use the vacuum without a filter?

No, never use the device without filters. This would damage the motor and render the vacuum unusable.

How to assemble the vacuum in stick mode?

Click the handle into the front suction opening, then attach the floor brush or another accessory to the end of the handle. Slide the battery into the motor unit until it clicks.

What to do if the vacuum no longer sucks?

Check that the container is not full, the filters are not clogged, the brush is not blocked by hair, and the suction opening is not obstructed. Clean according to the manual.

How to replace the battery?

Press the battery release button, remove it. Insert a new compatible DOMO battery by pushing until it clicks. Purchase it from the official webshop.

USER MANUAL DO1020SV DOMO

Blue and black compact vacuum cleaner with blue handle and black body (no visible text or symbols)

DO1020SV

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with a hand holding a clip (no text or symbols)

DE STEELSTOFZUIGER

Technical line drawing of a mechanical device with a hand holding a connector (no text or symbols present)

Line drawing of a portable electronic device with a plug inserted, showing internal components and a close-up view (no text or symbols)

BATTERIJ VERVANGEN

Diagram of a hand holding a device next to a mechanical component, showing a red arrow indicating direction (no text or symbols present)

Technical line drawings of a mechanical device showing front, side, and top views (no text or symbols)

REINIGING EN ONDERHOUD

HET STOFRESERVOIR EN DE FILTERS

Diagram of a mechanical device with arrows indicating motion or flow, no visible text or symbols

Illustration of a mechanical device with a blue spiral component and red button (no text or symbols)

Technical illustration of a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical component diagram showing a valve assembly with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device emitting blue arrows, showing motion or force direction (no text or symbols)

Diagram showing two views of a mechanical device with a tool inserted, no text or symbols present

PROBLEEM EN OPLOSSING

Warning sign with crossed-out trash bin and a blank rectangular base, indicating no waste or pollution.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical assembly showing exploded and assembled parts (no text or symbols)

Technical line drawing of a mechanical device with a hand holding a component (no text or symbols)

Technical line drawing of a mechanical device with a hand holding a clip (no text or symbols)

Diagram of a portable device with a plug inserted, showing internal components and a directional arrow (no text or symbols)

REEMPLACEMENT DE LA BATTERIE

Technical line drawing of a mechanical device with a hand holding a component (no text or symbols)

Technical line drawings of three mechanical components (no text or symbols)

NETTOYAGE ET ENTRETIEN

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical illustration of a mechanical device with a blue circular motion indicator (no text or symbols)

Mechanical device with a blue arrow indicating downward motion (no text or symbols visible)

Technical illustration of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a valve assembly with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device emitting blue arrows, showing motion or force direction (no text or symbols)

Two views of a digital caliper with a screw and adjustment knob (no text or symbols)

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Line drawing of a mechanical device with a hand holding a clip, showing internal components and an arrow indicating motion (no text or symbols)

DER STAUBSAUGER

Technical line drawing of a mechanical device with a hand holding a clip (no text or symbols)

Line drawing of a portable device with a plug inserted, showing internal components and a close-up view (no text or symbols)

BATTERIEWECHSEL

Technical line drawing of a mechanical device with a hand holding a connector (no text or symbols present)

Technical line drawings of three mechanical components (no text or symbols)

Diagram of a manual electric drill with motion arrows indicating motion (no text or symbols)

Illustration of a mechanical device with a blue circular motion indicator (no text or symbols)

Mechanical device with blue arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical illustration of a mechanical component with two views showing directional changes (no text or symbols)

Diagram of a vehicle launching from a launch pad with directional arrows indicating motion (no text or symbols)

Two views of a mechanical device with a close-up view showing internal components and a pull-up of a threaded component (no text or symbols visible)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

• Read all instructions before use.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children cannot be allowed to play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.
• This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

- Attention: This appliance cannot be used with an external timer or a separate remote control.

- Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

- Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

- Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

• Keep the cord away from sharp edges and hot parts or other heat sources.
  · Before use, remove all packaging materials and any promotional stickers.
• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

· Make sure that the air intake or the floor suction opening do not become blocked.

· Make sure that the machine does not come into contact with liquids.

- First charge a new battery up completely.

- Pull the plug from the outlet when the vacuum cleaner is fully charged.

- This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

· Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

- Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

- Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.

- Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.

- Never use the appliance without a filters. This will damage the motor and render it unusable.

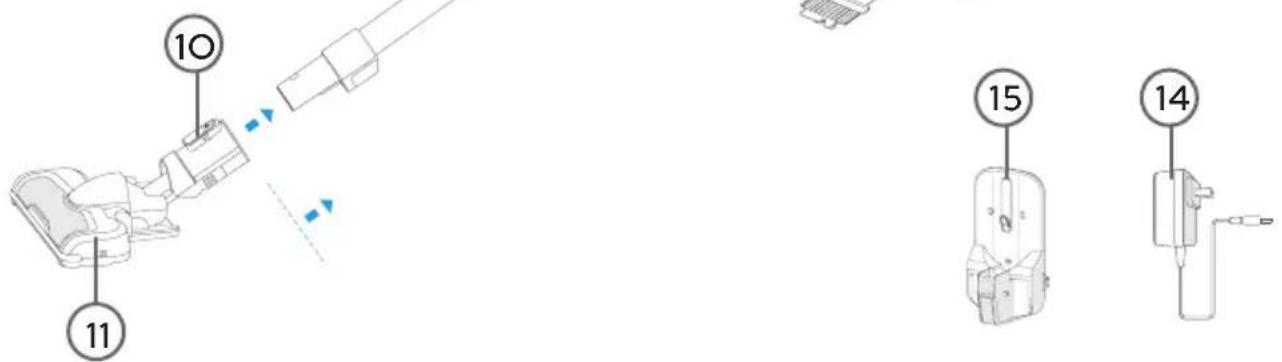

PARTS

1. On-off button
2. Battery charge indicator
3. Dust reservoir
4. Unlock button for dust reservoir
5. Release filter
6. Motor compartment
7. Battery release button
8. Handle release button
9. Tube
10. Release button floor nozzle
11. Floor nozzle with rotating floor brush
12. Crevice vacuum cleaner
13. Dust brush
14. Adapter
15. Wall fixing

10 11 15 14

MONTAGE

THE HAND VACUUM CLEANER

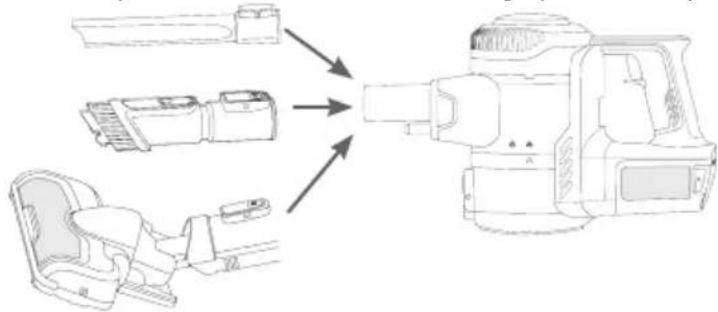

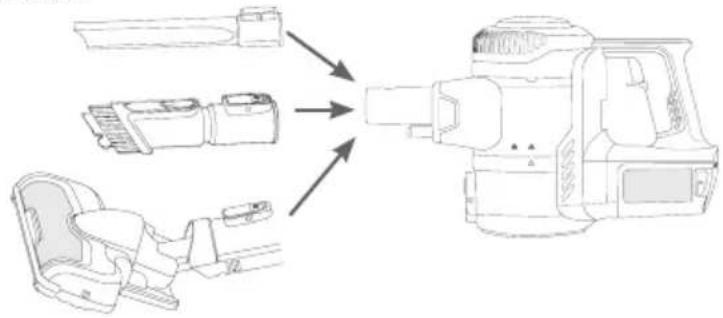

1. Click the floor brush, dust brush or crevice tool securely into place in the opening on the front of the appliance.

Technical line drawing of a mechanical assembly showing exploded and assembled views (no text or symbols)

1. Insert the batteries of the motor compartment. Push until it clicks into place in the motor compartment.

Technical line drawing of a mechanical device with a hand holding a clip, showing internal components and an arrow indicating motion (no text or symbols present)

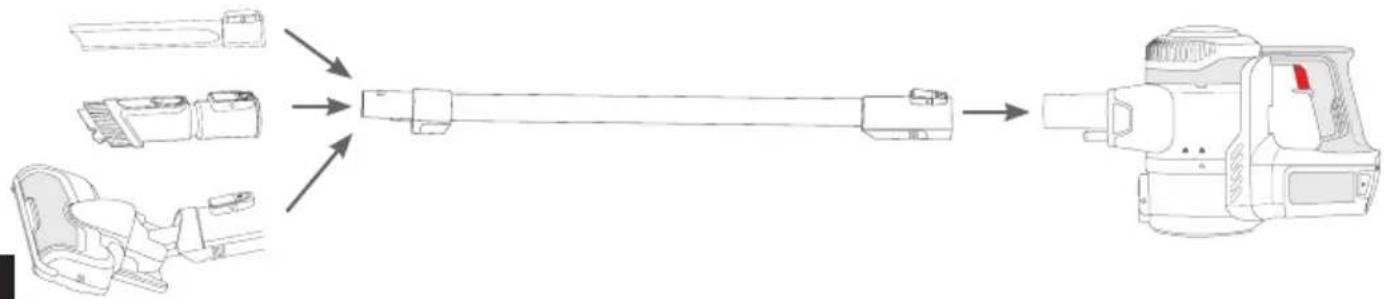

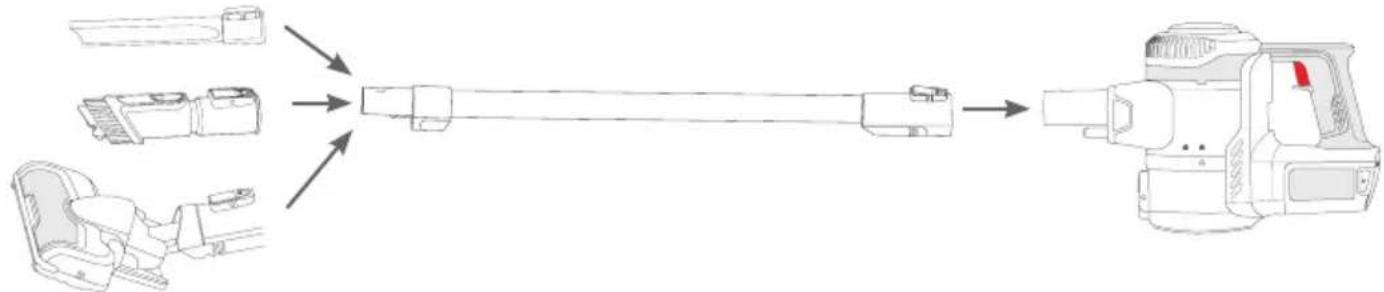

1. Click the tube firmly into place in the vacuum opening on the front of the machine.

2. Click the floor brush, dust brush or the crevice tool firmly into place in the tube.

1. Insert the batteries of the motor compartment. Push until it clicks into place in the motor compartment.

Technical line drawing of a mechanical device with a hand holding a clip (no text or symbols)

To disassemble the appliance, remove the various parts step by step: the floor brush, the crevice tool, the dust brush and the tube. To do this, press the release button and remove the relevant part by pulling it firmly.

CHARGING

- Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

- First connect the adapter to the machine and put the adapter in the outlet.

- The battery level indicator will now light up and indicate when the machine is fully charged.

- To extend the life cycle of the battery, you should regularly charge the machine fully, and allow the battery to run flat.

Line drawing of a portable device with a plug and connector (no text or symbols)

CHANGE BATTERY

If you notice the battery is quicker exhausted and takes longer to charge, the battery is worn out. You can easily replace the battery by following the steps below.

1. Remove the battery from the motor compartment via the battery release button.

Diagram of a mechanical device with a hand holding a connector, showing a red arrow indicating direction (no text or symbols present)

1. Slide the new battery into the motor compartment. Push until it locks into the motor compartment.

You can buy this battery via our webshop or after sales service.

USE

• Press the on-off switch on the handle to turn the machine on. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. The dirt will be collected in the dust reservoir.
• The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button again.
• For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine.

ACCESOIRES

You can attach the following accessories to the vacuum:

· Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.
- Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

STORAGE

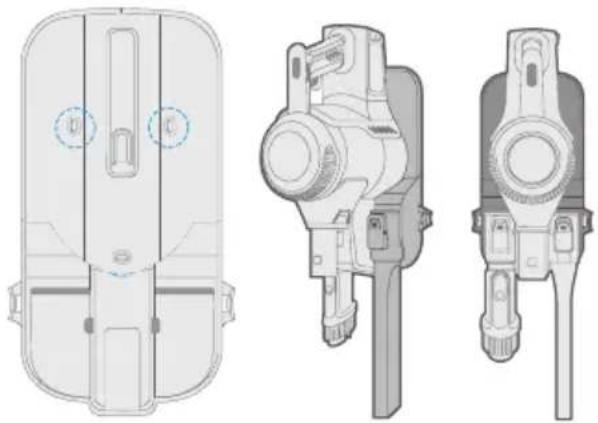

WALL FIXING

1. Hold the wall fixing in a vertical position against the wall.
2. Mark the holes with a pencil.
3. Drill the holes in the wall and insert the plugs supplied.
4. Use the screws to secure the wall fixing.
5. Place the motor unit on the fixing to store it.

Technical line drawings of a mechanical device showing front, side, and top views (no text or symbols)

CLEANING AND MAINTENANCE

THE DUST CONTAINER AND THE FILTERS

Never exceed the maximum indicator on the dust container.

1. Empty the dust container by pressing the release button. The dust container falls open and you can then remove the coarse dirt.

Illustration of a manual electric drill with motion arrows indicating flow (no text or symbols)

1. Close the dust container and turn it to the left to detach it from the appliance.

Illustration of a mechanical device with a blue circular motion indicator (no text or symbols)

Mechanical device with blue arrow indicating downward motion (no text or symbols)

1. Turn the filter to the left to remove it from the motor compartment.

Technical illustration of a mechanical device with no visible text or symbols

1. Loosen the release of the filter at the top of the appliance to remove the HEPA filter.

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a valve assembly with a blue arrow indicating upward motion (no text or symbols)

1. Clean all these parts carefully with water. Pay attention that the parts are completely dry before using the appliance again.

2. Replace all the parts step by step in the appliance before using it again.

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.

Diagram of a mechanical device emitting particles from a fan or socket, with arrows indicating motion direction (no text or symbols)

1. Unclip the cover on the left side of the floor nozzle.

2. Remove the rotating floor brush from the floor nozzle.

Diagram showing two views of a mechanical component with a pin inserted, no text or symbols present

1. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.

2. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.

3. Place the floor brush back into the floor nozzle when it is clean.

4. Click the closure valve back into place to close it.

5. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

PROBLEM AND SOLUTION

Problem Solution
The machine does not start up. ·	The battery is empty. Charge the machine.· The battery is not inserted properly. Insert the battery until it clicks into place.

The machine does not vacuum. · The filters are dirty/the dust reservoir is full.· The floor nozzle is clogged/the floor brush is blocked.· The nozzle opening is clogged.· Stuck hairs. Remove the hairs stuck on the brushes.· Clean the machine as described in this manual.

The running time of the machine is shorter and shorter. · The machine is not sufficiently charged. Charge the machine fully and try again.· The battery is broken or old. Replace the battery.

The indicator light does not burn while charging. · There is poor contact.· Check that the adapter is connected properly.· Remove the dust on the connector of the upright vacuum cleaner.

ENVIRONMENTAL GUIDELINES

Warning symbol for a trash bin with crossed and unshaded lanes, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Line drawing of a mechanical device with a hand holding a connector (no text or symbols)

LA ASPIRADORA VERTICAL

Technical line drawing of a mechanical device with a hand holding a component (no text or symbols present)

Diagram of a portable electronic device with a plug inserted, showing internal components and a close-up of the plug (no text or symbols present)

CAMBIAR LA BATERÍA

Diagram of a mechanical device with a hand holding a connector, showing a red arrow indicating direction (no text or symbols present)

Technical line drawings of a mechanical device showing front, top, and side views (no text or symbols)

LIMPIEZAY MANTENIMIENTO

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a mechanical device with a blue circular motion indicator (no text or symbols)

Mechanical device with directional arrows indicating motion or force (no text or symbols)

Technical illustration of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a valve assembly with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device emitting blue arrows, showing motion or force direction (no text or symbols)

Two views of a mechanical device with a tool inserted, showing internal components and a close-up view of the handle (no text or symbols visible)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Line drawing of a mechanical device with a hand holding a clip, showing a left-hand rule for assembly or maintenance (no text or symbols present)

KLASICKÝ TYČOVÝ VYSAVAČ

Technical line drawing of a mechanical device with a hand holding a connector (no text or symbols present)

Technical line drawing of a portable electronic device with a plug and connector (no text or symbols)

VÝMĚNA BATERIE

Diagram of a hand holding a device next to a mechanical component, showing a red clip and arrow indicating motion (no text or symbols present)

Technical line drawings of a mechanical device showing front, top, and side views (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

ZÁSOBNÍK PRACHU A FILTRY

Diagram of a manual push-button with arrows indicating motion direction (no text or symbols)

Technical illustration of a mechanical device with a blue circular arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Technical illustration of a mechanical device with no visible text or symbols

Diagram of a mechanical component with a blue arrow pointing to a section (no text or symbols visible)

Diagram of a mechanical device with a spring and handle, showing no text or symbols

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed-out trash bin and no text, indicating no waste or plastic waste.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

15 14

ZOSTAVENIE

RUČNÝ VYSÁVAČ

1. Vezmite štrbinovou alebo podlahovú hubicu a nasadte ju pevne na vysávač.

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with a hand holding a clip (no text or symbols)

KLASICKÝ TYČOVÝ VYSÁVAČ

1. Trubicu pevne nasadte a zaistite do otvoru na vysávači.
2. Na trubicu môžete nasadit' klasickú podlahovú, štrbinovú hubicu alebo prachová kefa.

Technical line drawing of a mechanical device with a hand holding a component (no text or symbols)

Technical line drawing of a portable electronic device with a plug and cable connector (no text or symbols)

VÝMENA BATÉRIE

Line drawing of a mechanical device with a hand holding a small component (no text or symbols)

1. Vložte novú batériu do priehradky na batérie v motorovej časti. Batériu zatlačte do vysávača kým sa nezacvakne.

Technical line drawings of a mechanical device showing front, top, and side views (no text or symbols)

ČISTENIE A ÚDRŽBA

ZÁSOBNÍK PRACHU A FILTRE

Diagram of a manual push-button device with motion arrows indicating movement (no text or symbols)

Illustration of a mechanical device with a blue circular motion indicator (no text or symbols)

Mechanical device with a blue arrow indicating downward motion (no text or symbols visible)

1. Otočte filter dolava a vyberte ho z motorového priestoru.

Technical illustration of a mechanical device with no visible text or symbols

Technical illustration of a mechanical component with two views (top and side), showing internal parts and directional arrows (no text or symbols)

Two views of a digital caliper device showing internal components and a close-up of the handle (no text or symbols visible)

Prohibition sign with crossed-out trash bin and black rectangular block below, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

QR code image containing encoded data, no visible human-readable text
