USER MANUAL DO253SW DOMO

White and blue electric vacuum cleaner with a long propeller, shown against a white background (no text or symbols visible)

NL Handleiding Vloerreiniger

EN Instruction booklet Floor cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Diagram showing a curved tool interacting with a cylindrical object, with an arrow indicating motion (no text or symbols present)

Diagram of two mechanical components with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical component before and after assembly, showing internal components and wiring (no text or symbols)

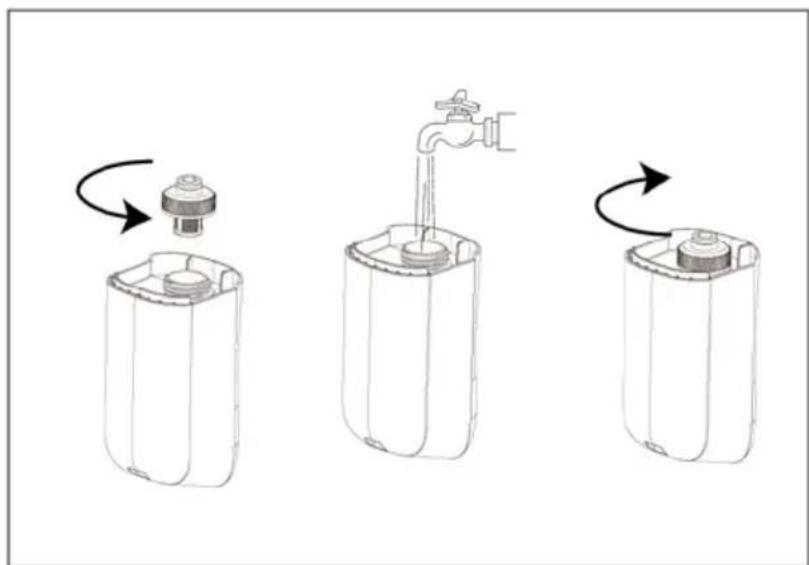

WATERRESERVOIR VULLEN VOOR GEBRUIK

Line drawing of a hand holding a tool or device against a plain background (no text or symbols)

Three-step diagram showing a valve being inserted into a cylindrical container, with arrows indicating the process (no text or symbols present)

Line drawing of a mechanical lever mechanism (no text or symbols)

OPLADEN

Line drawing of a vacuum cleaner with attached power outlet, showing height and offset arrows (no text or symbols)

GEBRUIK

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner units, shown from front and side views with no text or symbols.

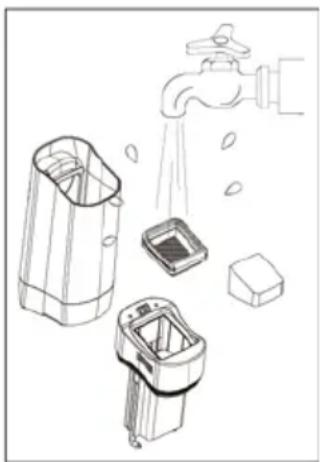

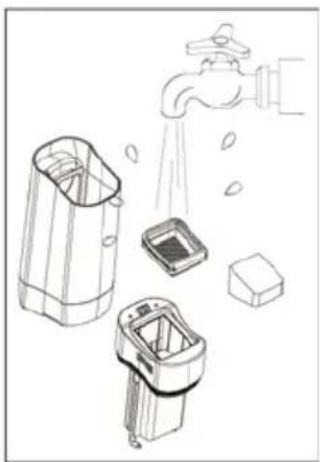

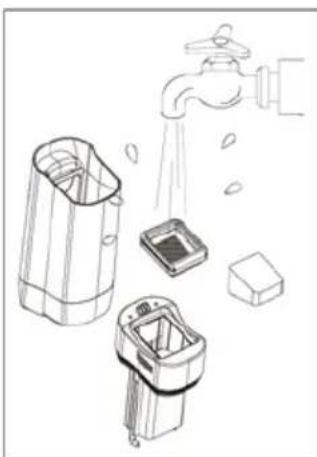

WATERRESERVOIR VOOR VUIL WATER REINIGEN

Line drawing of a vacuum cleaner with a hand holding the base, showing two sequential steps (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Illustration of a faucet spraying water into a container and a small sink, with no text or symbols present.

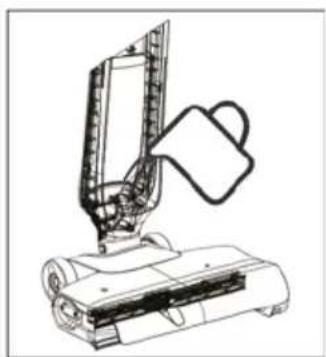

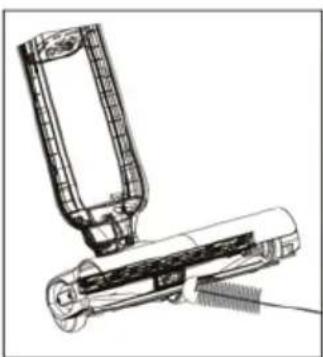

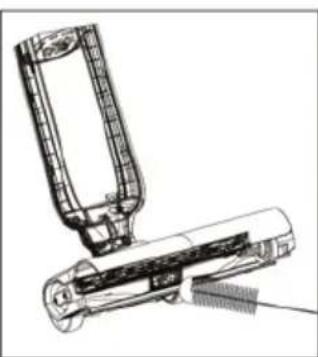

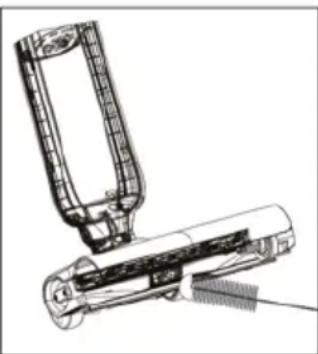

ZUIGOPENING REINIGEN

Line drawing of a mechanical device with a lever and base (no text or symbols)

Technical line drawing of a mechanical device with a bracket and base (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with attached device (no text or symbols)

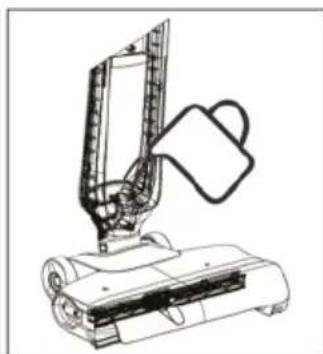

ZELFREINIGINGSFUNCTIE VOOR EEN EENVOUDIGE REINIGING

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Three-step diagram showing a mechanical component with downward and upward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with two views showing assembly and connection (no text or symbols)

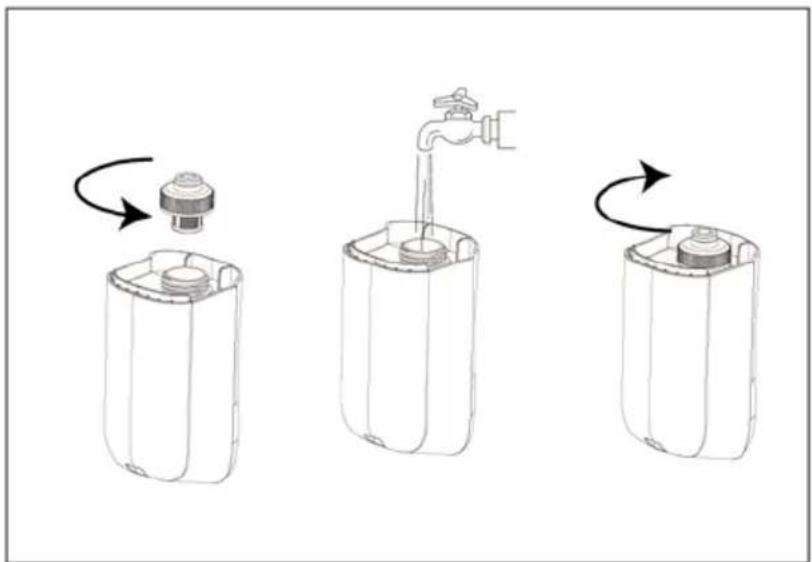

REMLISSAGE DU RÉSERVOIR D'EAU AVANT D'UTILISER L'APPAREIL

Line drawing of a hand holding a curved mechanical device (no text or symbols)

Three-step diagram showing a device being inserted into a cylindrical container, with arrows indicating the process (no text or symbols present)

Line drawing of a mechanical tool or device with a curved handle and lever mechanism (no text or symbols)

CHARGE

Line drawing of a vacuum cleaner with attached power outlet, showing height and offset arrows (no text or symbols)

UTILISATION

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner designs, shown from front and side views (no text or symbols)

Line drawing of a vacuum cleaner with a hand inserting a component, shown in two sequential steps (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Line drawings of various household appliances including a faucet, water drop, and storage unit (no text or symbols)

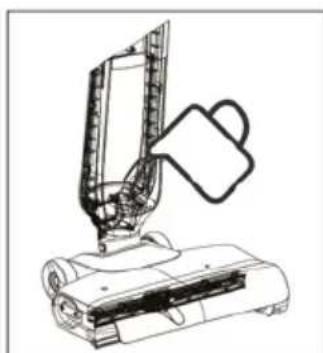

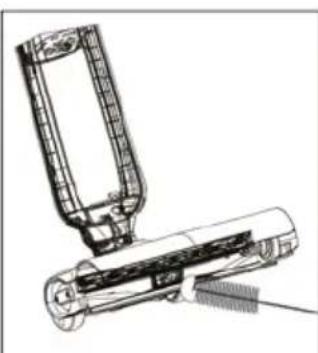

NETTOYAGE DE L'ORIFICE D'ASPIRATION

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a bracket and shaft assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with attached device (no text or symbols)

FONCTION AUTONETTOYANTE POUR UN NETTOYAGE FACILE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing the internal structure.

Three sequential diagrams showing a bent tool or device with arrows indicating movement, no text or symbols present.

Technical line drawing of two mechanical components with a cable and power outlet, shown in two sequential views (no text or symbols)

Line drawing of a hand holding a tool or device against a plain background (no text or symbols)

Three-step diagram showing a valve assembly in cylindrical containers, with arrows indicating rotation (no text or symbols)

Line drawing of a mechanical device with lever and handle (no text or symbols)

AUFLADEN

Line drawing of a vacuum cleaner with attached power outlet, showing height and position changes (no text or symbols)

GEBRAUCH

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner designs, shown from front and side views (no text or symbols)

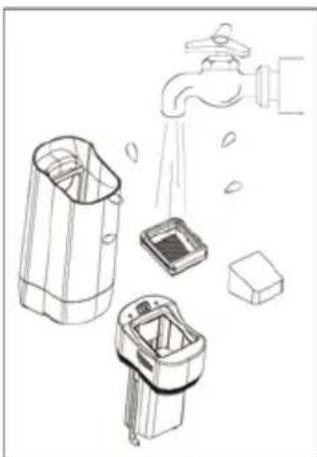

SCHMUTZWASSERTANK REINIGEN

Line drawing of a vacuum cleaner with a hand inserting a component (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Line drawing of a faucet spraying water into a plastic bucket and outlet (no text or symbols)

Line drawing of a robotic arm gripping a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a bracket and shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with attached device (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a black rectangle below (no text or labels)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

- Do not use the vacuum to clean up detergents, paint, foam liquids, flammable/corrosive liquids (such as solvents, flammable and explosive materials such as petrol, alcohol, etc.), and other similar liquids, needles, matches, sharp objects, or flammable items.

- Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

- Make sure that the air intake or the floor suction opening do not become blocked.

- First charge a new battery up completely.

- Pull the plug from the outlet when the vacuum cleaner is fully charged.

- Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

- Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.

- Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.

• After using the appliance, it is important to clean the dirty water reservoir to prevent the suction power from decreasing and the motor from heating up due to blockage. This could affect the performance and lifetime of the appliance.

• Do not remove the roller when the appliance is in operation.
• It is dangerous if a large amount of cleaning agent enters the motor.
• Only use the supplied charger to charge the appliance. Other chargers may damage the appliance/battery and render the appliance unusable.
• Follow the requirements in the instructions (ratio of cleaning product to water is 1:40) to prepare the solution. The solution must not contain any acids, alkalis, or substances that are harmful to the environment.
  • Take care when using the appliance in damp rooms, such as bathrooms, toilets, and storerooms, etc., so that the appliance cannot get wet.
  • After use, place the appliance back in the charging station to avoid water stains on the floor.
• If too much soy sauce or other salt solutions are sucked up, this will activate a false alarm of the dirty water tank; clean the dirty water tank to dilute the concentration allowing the appliance to resume normal operation.
• This product contains a rechargeable battery. Batteries must be recycled in accordance with local laws and regulations when they are no longer of use. Do not pierce the battery or expose it to high temperatures; this may cause the battery to explode.
• Under extreme circumstances, there could be leakage of the battery.

- If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.

- If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.

- When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out. Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.

- If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

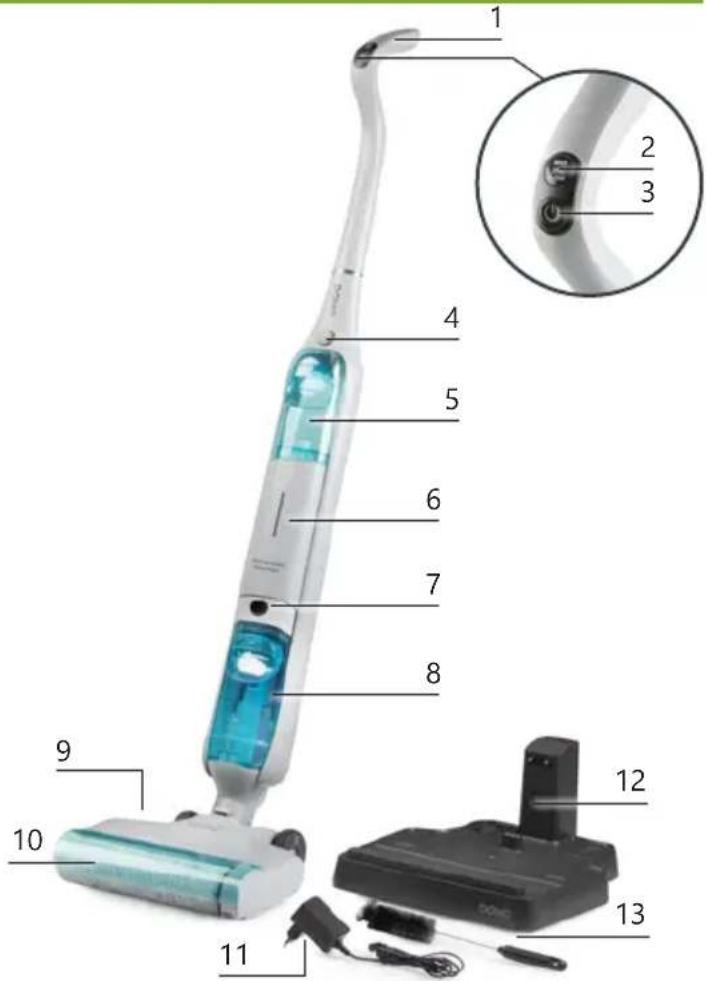

PARTS

1. Handle
2. Speed control
3. On-off button
4. Water tank release
5. Water reservoir
6. Indicator light
7. Dirty water tank release
8. Dirty water reservoir/dust reservoir
9. Cleaning head
10. Roller
11. Charger
12. Charging station
13. Cleaning brush

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing the interior detail

BEFORE THE FIRST USE

- Remove all packaging materials and any promotional stickers.

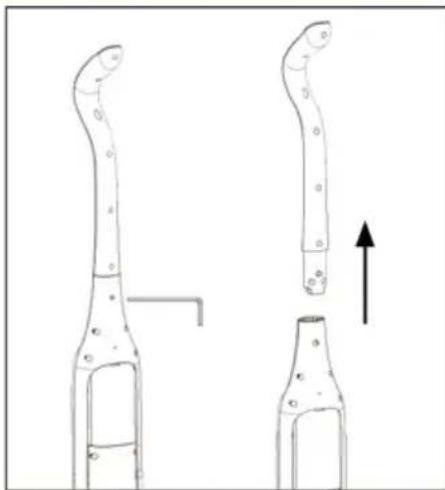

ASSEMBLY

- Attach the handle to the appliance, making sure the connecting points are lined up. You will hear a click when it is in place.

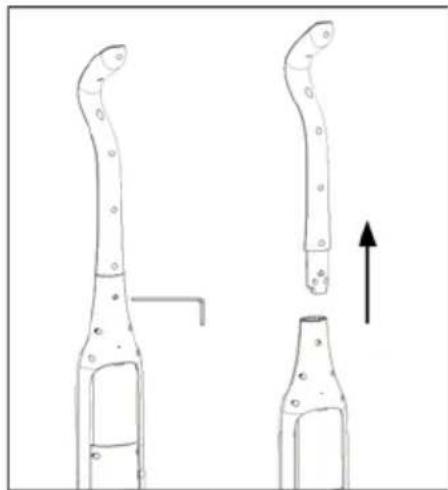

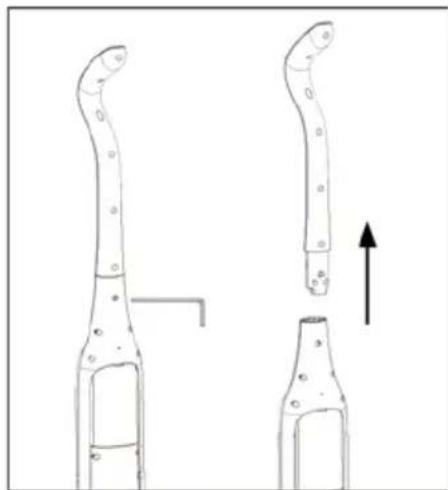

- The handle can be removed. Insert the Allen key into the hole at the back and remove the handle.

Diagram showing a curved tool interacting with a flanged tool, with an arrow indicating motion (no text or symbols present)

Diagram of two mechanical components with an upward arrow indicating motion or force (no text or symbols present)

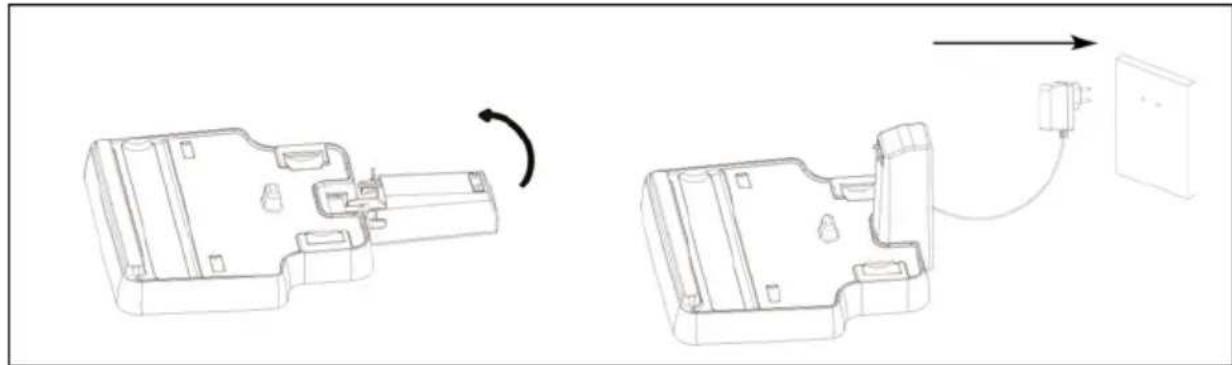

• Tilt the back of the storage base upright until it clicks into place.
• Attach the charger to the charging station via the in-built connector on the bottom and then plug the adapter into the wall socket.

Technical line drawing of two mechanical components with a cable and connection point (no text or symbols)

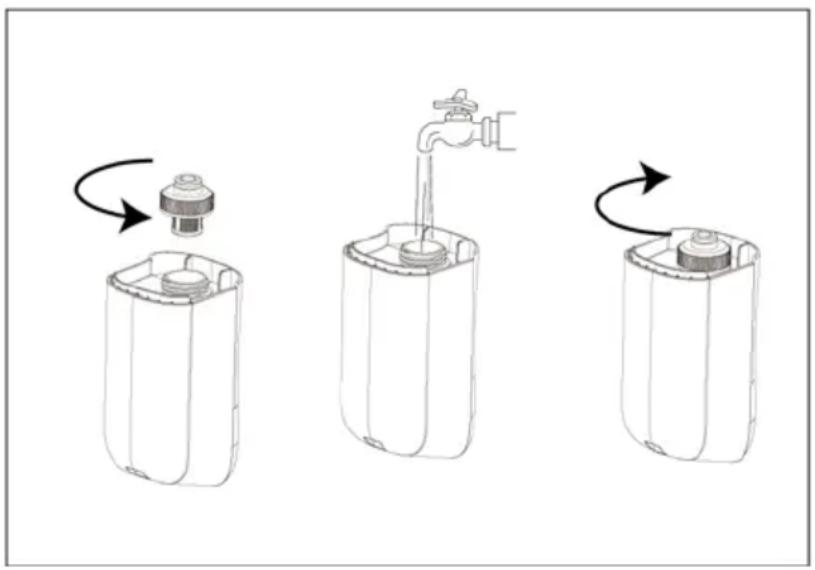

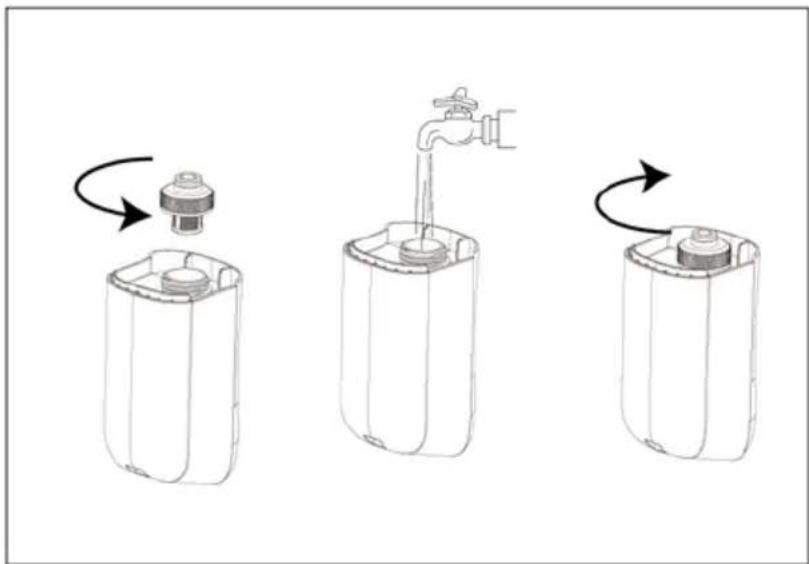

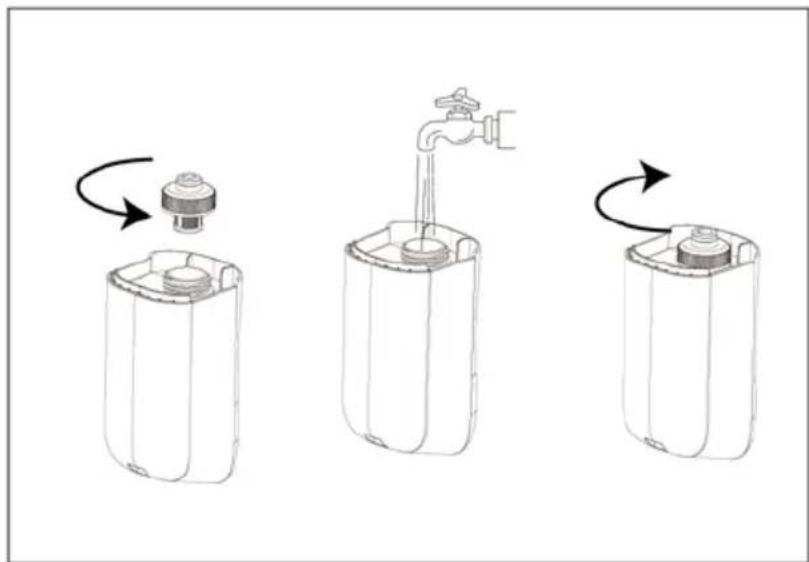

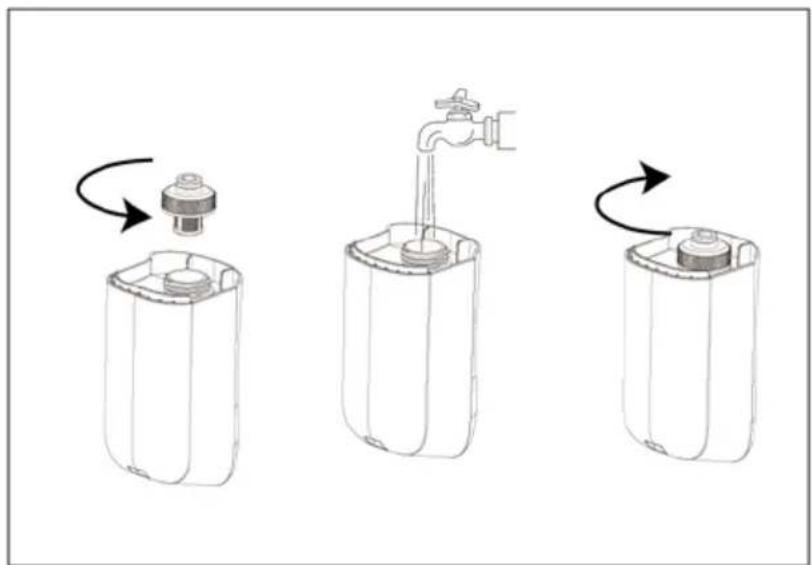

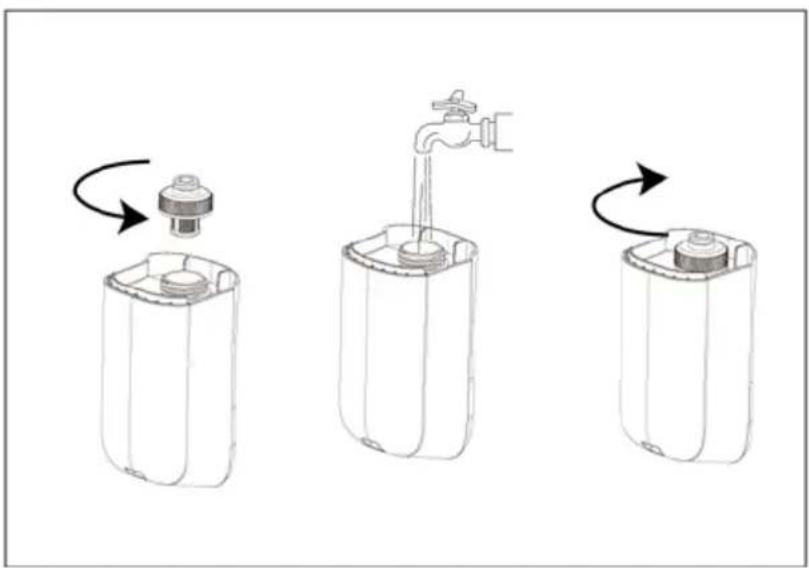

FILL THE WATER RESERVOIR BEFORE USE

• Remove the water tank from the appliance using the release and turn it upside down.
• Open the screw cap and fill the reservoir with water through the opening.

Note: a detergent can be added to the water if desired. A cleaning product with a PH neutral value between 7 and 8 is recommended.

- Place the screw cap back on the reservoir after filling.

- Place the reservoir back on the appliance upside down.

Line drawing of a hand holding a tool or device against a vertical axis (no text or symbols)

Three-step diagram showing a device being inserted into a cylindrical container, with arrows indicating the process (no text or symbols present)

Line drawing of a mechanical device with lever and handle (no text or symbols)

CHARGING

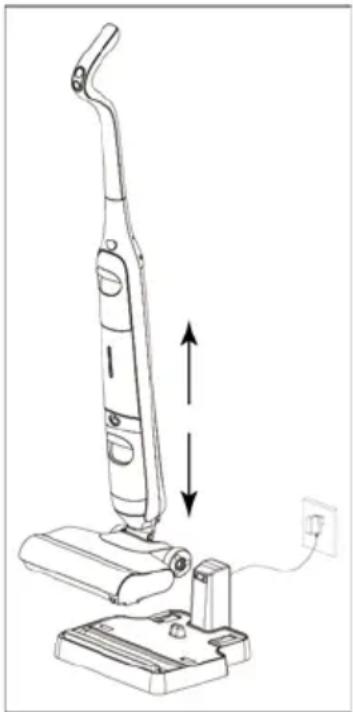

1. Put the floor cleaner into the charging station, so that the contact points on the cleaner are aligned with the contact points on the charging station. Make sure it all is stable.
2. During charging, the indicator light flashes on and off. When the appliance is fully charged, the indicator light will no longer flash but will remain lit.
3. The machine cannot be started during charging.

REMARKS:

- Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

- It is recommended that the battery be fully charged for the first three charges.

- The temperature while charging should be between 15 °C and 25 °C. Higher or lower temperatures reduce battery life.

- It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.

- Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.

- The recommendation is to disconnect the adapter if the vacuum cleaner is not used for more than two months. To ensure a longer lifespan, the battery must be charged at least once every two months.

- The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.

Line drawing of a vacuum cleaner with a mounted base and power outlet, showing height measurement (no text or symbols)

USE

• Take the floor cleaner from the charging station.
- To start using the appliance pull the handle back a little.

- Press the on/off button to turn the appliance on. When you turn the appliance on, the rollers in the cleaning head will start rotating. The indicator light will illuminate to show the appliance is in operation.

- Press the speed controller to adjust the speed. Each time you press the button, you hear a beep. There are two modes:

• High speed: 10 kPa
- Low speed: 8.5 kPa

⚠ For use on wet surfaces, the highest speed is not recommended as the water may spray around.
⚠️ If you use it flat, e.g. under furniture, the suction power will automatically decrease to 6 kPa.

- Press the power button for 3 seconds to switch off the appliance. You hear a beep, the roller stops spinning and after a few seconds, the appliance stops working.

- Clean the dirty water reservoir after use each time. After use, place the appliance in its storage base.

PARK MODE

If you place the appliance upright in park mode during use, the roller will pause. The appliance will be in standby mode and the indicator light remains white. You can remove the appliance from park mode to continue working. You will hear an occasional beep as a reminder that the appliance is still on. If you don't want to continue cleaning, turn the appliance off. After approx. 5 minutes, the floor cleaner will automatically switch off.

INDICATOR LIGHTS

Indicator light Description
White • The appliance is in operation.• While charging: battery is fully charged.
White flashing The appliance is charging.
Pink flashing + 2 beeps The battery percentage is less than 5%. The appliance needs to be charged. When the battery is completely empty (<1%), the appliance will automatically stop working.
Red + 2 beeps The dirty water tank is full. The appliance stops working. Empty the dirty water tank.
Red + 3 beeps The roller is blocked. Remove the blockage, dirt, and/or hairs blocking the roller.
Red + 4 beeps The fan is not working properly. Clean the entire appliance as described in the "cleaning and maintenance" section.

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Wipe the appliance and the storage base down with a damp cloth and dry thoroughly.

QR code image containing encoded data, no visible human-readable text

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

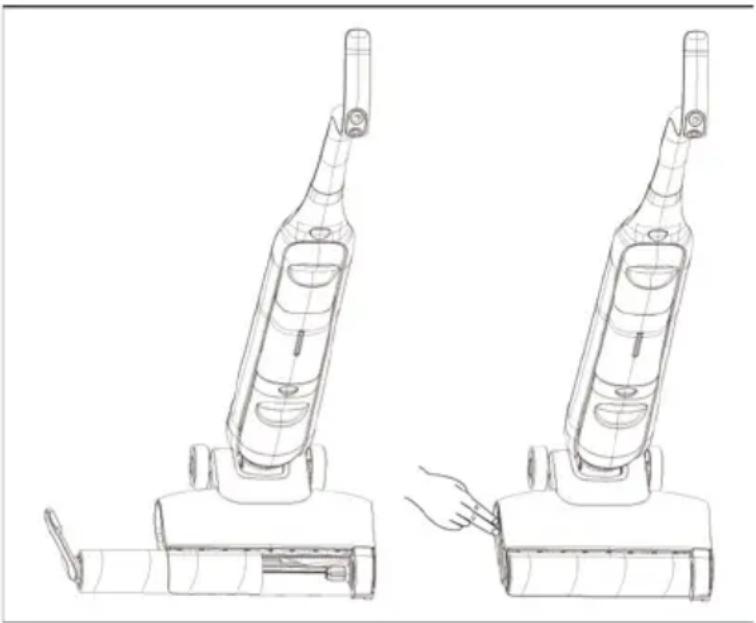

CLEANING THE CLEANING HEAD (ROLLERS)

1. Remove the roller from the nozzle.
2. Clean the cleaning head with a damp cloth and then dry.

3. Cut or clip off any jammed hairs around the roller and remove as much dirt as possible from the roller.

4. Use warm water and a mild detergent to wash the roller and the nozzle cover. Leave to dry thoroughly.

5. Place the roller back into the nozzle. Push the magnetic flap so that the roller is correctly repositioned.

⚠️Note: Make sure the parts are correctly assembled. If they are not properly assembled in the appliance, the appliance will make a strange noise. If this happens, switch off the appliance immediately and reassemble the parts.

Line drawing of two different vacuum cleaner designs, one with a handle and the other with a handle (no text or symbols)

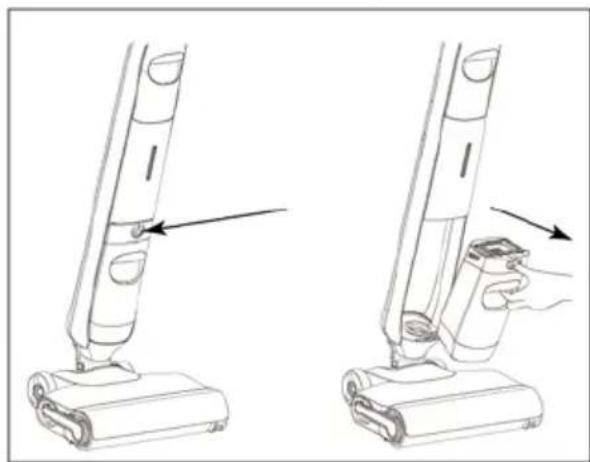

CLEANING THE DIRTY WATER RESERVOIR

When the dirty water tank has reached its maximum level, the indicator light will turn red and you will hear 2 beeps. Follow the steps below to clean the waste water tank:

1. Remove the waste water tank from the appliance using the release.
2. Remove the top of the tank and pour the contents into the sink. Use warm water and a mild detergent to clean the tank. Dry thoroughly.
3. Remove dust and dirt from the filter. The filter can also be removed for even more thorough cleaning. All parts can be rinsed under running water. Allow to dry thoroughly before reassembling all parts.
4. After cleaning, place the top back on the tank. Make sure the top piece slides into the grooves of the tank. Put the filters back in place. Then place the tank back into the unit, you will hear a click when the tank is in place.

Line drawing of a vacuum cleaner with a hand holding the base, showing two sequential steps (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Technical line drawing of a mechanical component with exploded views (no text or symbols)

Illustration of a faucet releasing water into a plastic container and a small sink (no text or symbols)

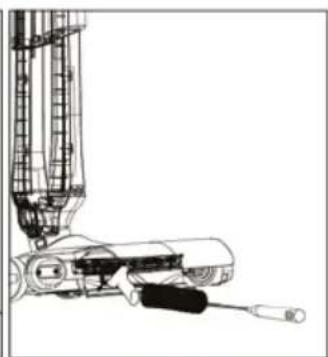

CLEANING THE SUCTION OPENING

1. Remove the roller from the nozzle. Remove the dirty water tank.
2. Clean the suction opening with the cleaning brush included. You can do this either from the bottom up, through the nozzle, or from the top down, through the opening of the dirty water tank.

3. Insert the cleaning brush into the nozzle, turn it and pull down, this way you can lower the rubber water-stop valve from the nozzle. You don't have to take it out completely.

4. Pour some water into the opening of the dirty water tank to flush the pipes. ⚠️ Be careful. Do not submerge the appliance in water. Do not allow water to enter the battery compartment or into the motor unit.

5. After cleaning, place all parts back into the appliance – except for the roller. Do not push the rubber water-stop valve back manually: it will be automatically drawn into place when the appliance is switched on. Turn on the appliance at high speed without the roller until the valve is properly seated. Then switch off the appliance and insert the roller.

Line drawing of a robotic arm joint (no text or symbols)

Technical line drawing of a mechanical device with a bracket and base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner device with attached clamped components (no text or symbols)

SELF-CLEANING FUNCTION FOR EASY CLEANING

The appliance is equipped with a self-cleaning function for easy cleaning. For a thorough cleaning, we recommend following the previous steps. To quickly clean the appliance, follow the steps below.

⚠️ Note: Before using this function, clean the dirty water reservoir.

1. Remove the water reservoir and turn it upside down. Open the screw cap and fill the tank with water (at least half full). Put the screw cap back on the reservoir and place it back in the appliance.
2. Place the appliance in its base. Connect the charger to the charging station.
3. Press the speed controller. The white indicator light lights up. The roller will start spinning. The appliance now starts its self-cleaning programme (4.5 minutes). If you want to end the programme earlier, press the speed controller again.
4. At the end of this programme, the appliance will switch itself off automatically. The indicator light will then also light up to indicate that the appliance is charging.
5. Clean the waste water tank after the self-cleaning programme.

STORING THE APPLIANCE

• Clean the appliance after every use before storing it.
  • After use, place the appliance in its storage base to prevent the damp rollers from damaging the floor.
• It is recommended the appliance be stored in a well-ventilated area.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The machine does not start up. • The battery is empty. Charge the machine.Stuck hair. Remove the trapped hair from the appliance.The waste water tank has reached its maximum level. Empty the tank and clean it.
Loss of suction. • The waste water tank has reached its maximum level. Empty the tank and clean it.Stuck hair. Remove the trapped hair from the appliance.The filter in the waste water tank is full of dirt. Clean the filter thoroughly.The battery is empty. Charge the machine.
The appliance is making a strange noise. • Something is stuck in the nozzle. Remove all dirt from the nozzle.The waste water tank has reached its maximum level. Empty the tank and clean it.The parts on the appliance have not been attached properly. Try to attach again.
No water in the pump. • The water reservoir	is empty. Fill the water reservoir.• The water tank is not attached properly. Try to attach again.
The running time of the machine is shorter and shorter.	• The machine is not sufficiently charged. Charge the machine fully and try again.• Stuck hair. Remove the trapped hair from the appliance.
The indicator light does not burn while charging.	• The charger is not properly connected to the appliance. Reinsert the charger into the provided opening of the charging station. Make sure the charger is connected to a working socket.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

NON-REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

CE

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing the internal structure.

Three-step diagram showing a tool or device with an arrow indicating movement, no text or symbols present.

Technical line drawing of a mechanical assembly with two views showing internal components and a connected electrical outlet (no text or symbols)

Line drawing of a hand holding a tool or device against a plain background (no text or symbols)

Three-step diagram showing a mechanical assembly with a valve and tap, no text or symbols present

Line drawing of a mechanical lever mechanism (no text or symbols)

CARGA

Line drawing of a vacuum cleaner with height measurement arrows (no text or symbols)

USO

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner designs, shown from front and side views with no text or symbols.

LIMPIEZA DEL DEPÓSITO PARA AGUA SUCIA

Line drawing of a vacuum cleaner with a hand inserting a component, shown in two sequential steps (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Technical line drawings of a mechanical component, showing exploded and assembled views (no text or symbols)

Line drawing of a faucet spraying water into a plastic housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a bracket and base, showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Labeled diagram of a cleaning vacuum cleaner with numbered parts and a zoomed-in inset showing internal components.

PRIMA DELL'USO

Three-step diagram showing a mechanical component with downward and upward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing internal components and a connected electrical outlet (no text or symbols)

RIEMPIMENTO DEL SERBATOIO DELL'ACQUA PER L'UTILIZZO

Line drawing of a hand holding a tool or device with a curved handle (no text or symbols)

Three-step diagram showing a valve assembly in cylindrical containers, with arrows indicating rotation (no text or symbols)

Line drawing of a mechanical lever mechanism (no text or symbols)

CARICAMENTO

Line drawing of a vacuum cleaner with attached power outlet, showing height and position changes (no text or symbols)

UTILIZZO

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner designs, shown from top and side views (no text or symbols)

PULIZIA DEL SERBATOIO DELL'ACQUA SPORCA

Line drawing of a vacuum cleaner with a hand inserting a component (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Illustration of a faucet spraying water into a plastic container and a small sink (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with attached device (no text or symbols)

FUNZIONE DI AUTOPULIZIA PER UNA PULIZIA RAPIDA

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing the interior detail

PŘED PRVNÍM POUŽITÍM

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Technical line drawing of two mechanical components with an upward arrow indicating motion (no text or symbols)

Technical line drawing of two mechanical components with a cable and connection point (no text or symbols)

PŘED POUŽITÍM JE POTŘEBA NAPLNIT ZÁSOBNÍK ČISTOU VODOU.

Line drawing of a hand holding a tool or device (no text or symbols present)

Three-step diagram showing a valve assembly with arrows indicating rotation (no text or symbols)

Line drawing of a mechanical lever mechanism (no text or symbols)

NABÍJENÍ

Line drawing of a vacuum cleaner with attached power outlet and cable, showing height measurement (no text or symbols)

POUŽITÍ

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner designs, shown from front and side views with no text or symbols.

ČIŠTĚNÍ ZÁSOBNÍKU ŠPINAVÉ VODY

Line drawing of a vacuum cleaner with a hand inserting a component (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Illustration of a faucet spraying water into a container and a plastic container (no text or symbols)

ČISTÝ SACÍ OTVOR

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with attached device (no text or symbols)

FUNKCE SAMOČIŠTĚNÍ

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Labeled diagram of a DC motor with numbered parts and an inset showing the component detail

PRED PRVÝM POUŽITÍM

Three-step diagram showing a mechanical component being lifted, with arrows indicating motion direction (no text or symbols)

Technical line drawing showing two views of a mechanical component with an electrical outlet connected to it (no text or symbols present)

PRED POUŽITÍM JE POTREBNÉ NAPLNIŤ ZÁSOBNÍK ČISTOU VODOU.

Line drawing of a hand holding a tool or device with a curved handle (no text or symbols)

Three-step diagram showing a mechanical device with a valve, illustrating the process of rotation and assembly (no text or symbols)

Line drawing of a mechanical device with lever and handle (no text or symbols)

NABÍJANIE

1. Dajte čistič podláh do nabíjacej stanice tak, aby sa kontaktné body na čističi spojili s kontaktnými bodmi na nabíjacej stanici. Uistite sa, že je všetko stabilné.
2. Počas nabíjania bude kontrolka blikat'. Ked' je zariadenie úplne nabité, kontrolka prestane blikat' a zostane svietit'.
3. Prístroj počas nabíjania nedá spustit'.

POZNÁMKA:

Line drawing of a vacuum cleaner with attached circuit board and power outlet (no text or symbols)

POUŽITIE

QR code image containing encoded data, no visible human-readable text

Line drawing of two different types of vacuum cleaner designs, shown from front and side views (no text or symbols)

ČISTENIE ZÁSOBNÍKA ŠPINAVEJ VODY

Line drawing of a vacuum cleaner with a hand inserting a component, shown in two sequential steps (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Exploded view diagram of a mechanical component showing internal parts (no text or labels)

Illustration of a faucet spraying water onto a plastic container and a small box, with no text or symbols present.

ČISTÝ SACÍ OTVOR

Line drawing of a robotic arm gripping a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a bracket and base, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with attached device (no text or symbols)

FUNKCIA SAMOČISTENIA

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
