Product type	Canister vacuum cleaner
Brand	DOMO
Model	DO7283S
Dimensions (L x W x H)	400 x 280 x 340 mm
Weight	5,2 kg
Suction power	1800 W
Dust bag capacity	3,0 L
Filtration	HEPA 13
Operating radius	8 m
Cord length	7 m
Noise level	78 dB(A)
Combined nozzle	Yes
Parquet nozzle	Yes
Crevice tool	Yes
Blower function	Yes
Power control	Electronic
Bag type	Disposable microfilter
Maintenance	Regular cleaning of HEPA filter
Safety	Automatic shutdown in case of overheating
Spare parts available	Bags, filters, brushes, tools
Repairability	Repairability score 7.4/10

Frequently Asked Questions - DO7283S DOMO

How to change the bag of the DOMO DO7283S vacuum cleaner?

Open the front cover, remove the full bag, insert a new one aligning the notches. Put the cover back in place.
Use only compatible bags (ref. DOMO DOBAG001).

How to clean the HEPA filter?

Remove the filter located behind the grille. Tap it gently to remove dust. If very dirty, wash it with cold water, dry it completely before reinstalling.
Replace it every 6 months.

The vacuum cleaner stops during use, what to do?

Check if the bag is full or if a blockage in the hose causes overheating. Unplug the appliance, let it cool for 30 minutes, then check the filters and air path.
The thermal safety device resets automatically after cooling.

How to use the blower function?

Connect the hose to the air outlet located at the back of the vacuum cleaner. You can then blow air to dust hard-to-reach areas or inflate objects.
Do not direct the airflow towards people or animals.

What accessories are included with the DO7283S?

The kit includes:
- Combined floor/carpet nozzle
- Parquet nozzle
- Crevice tool
- Brush tool
- Telescopic tube
- Ergonomic handle

How to adjust the suction power?

Use the electronic power control located on the handle. Turn the dial to increase or decrease power according to the surface (carpet, parquet, curtains).
An indicator light shows the selected level.

The vacuum cleaner loses suction, what to check?

1) Bag full? Change it.
2) Filter saturated? Clean or replace it.
3) Hose or tool blocked? Disconnect and check.
4) Seals worn? Inspect connections.
5) HEPA filter dirty? Wash it.

How to store the power cord?

Press the rewind pedal located at the back of the vacuum cleaner. Guide the cord with your hand to avoid knots.
Do not leave the cord trailing on the floor to prevent wear.

Can you use the vacuum cleaner without a bag?

No, the DO7283S is designed only with a disposable bag. Never use the appliance without a bag, as this would damage the motor and reduce filtration.
Remember to keep spare bags.

How to clean the rotating brush?

Unplug the vacuum cleaner. Remove the brush from the nozzle by unlocking the side clips. Remove hair and wrapped fibers with scissors or a comb. Replace the brush and snap it back in.
Clean it regularly to maintain efficiency.

USER MANUAL DO7283S DOMO

DOMO Downloaded from www.vandenborre.be

HANDLEIDING

MODE D'EMPLOI

GEBRAUCHSANLEITUNG

INSTRUCTION BOOKLET

Red and black Domo vacuum cleaner with coiled hose, displayed against white background (no text or symbols visible)

DO7283S-DO7284S

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with two diagonal lines, no text or labels present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Close-up of a red and black vacuum cleaner with ventilation slots, labeled with number 13 (no text or symbols on device)

Close-up of a red industrial vacuum cleaner with a circular component, labeled with numbers 14 and 15 (no text or symbols on the device itself)

MONTAGE

Close-up of a red vacuum cleaner with black handle and circular vent, no visible text or symbols

Telescopische buis

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessoires

Close-up of a black vacuum cleaner component with numbered parts (1, 2, 3) and no visible text or symbols on the main body.

GEBRUIK

Close-up of a black ODMO vacuum cleaner with red filter and labeled parts A and B (no text beyond labels)

ONDERHOUD

Close-up of a red vacuum cleaner with black hose and nozzle, showing airflow direction (no text or symbols)

Close-up of a red and white mechanical component with a circular hole, no visible text or symbols

Red robotic vacuum cleaner head with internal black housing and white arrows indicating component (no text or symbols)

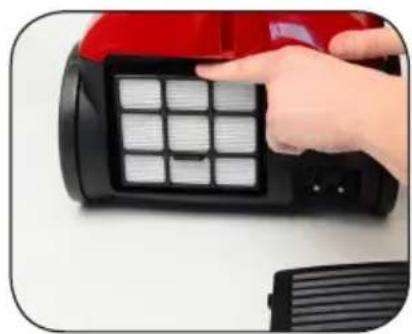

De luchtfilter of HEPA-filter schoonmaken

Red and black vacuum cleaner with ventilation slots, no visible text or symbols

Close-up of a hand pressing a grid on a red and black device (no visible text or symbols)

OPGELET:

Red and black vacuum cleaner device with ventilation slots, labeled with number 13 (no text or symbols on device body)

Close-up of a red industrial machine component with circular annotations pointing to parts 14 and 15 (no readable text or symbols beyond labels)

MONTAGE

Close-up of a red vacuum cleaner with a coiled hose and handle (no visible text or symbols)

Tube télescopique

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

Accessoires

Black mechanical component with numbered parts (1, 2, 3) shown in a diagram view, no text or symbols present.

UTILISATION

ENTRETIEN

Close-up of a red and black vacuum cleaner's head panel, showing ventilation grille and ventilation slots (no text or symbols visible)

Close-up of a hand pointing at a grid-based device with black and red buttons (no visible text or symbols)

ATTENTION:

Close-up of a red and black vacuum cleaner with ventilation slots, labeled with number 13 (no text or symbols on device)

Close-up of a red industrial vacuum cleaner with open lid and mounting base (no visible text or symbols)

MONTAGE

Close-up of a red vacuum cleaner with a black hose and handle, no visible text or symbols

Teleskoprohr

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of hands holding a measuring tape with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and arrow indicating motion (no text or symbols)

Zubehör

Black vacuum cleaner component with numbered parts (1, 2, 3) shown in a diagram view, no text or symbols present.

BENUTZUNG

Close-up of a red plastic device with a black circular component and an arrow indicating direction (no text or symbols visible)

Red automotive hood with internal black plastic component and white arrows indicating movement (no text or symbols)

Close-up of a red and black vacuum cleaner with ventilation slots (no visible text or symbols)

Close-up of a hand pressing down on a red and black handheld device with a grid layout (no visible text or symbols)

ACHTUNG:

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

- Kitchen for personnel of shops, offices or

other similar professional surroundings

• Farms
  • Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  • Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
  • Make sure that children do not touch the cord

or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

• Only use the vacuum cleaner as described in this instruction booklet. Only use accessories recommended by the manufacturer.
• Do not use the appliance when the plug or cord is damaged, when the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left outside or has been dropped in water. In that case, take your vacuum cleaner to a service center for a check-up and/or repair.
• Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
• Do not touch the plug or the vacuum cleaner when you have wet hands.
• Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.
• Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.
• Be extra careful when cleaning stairs.
• Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.
• Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.
• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.
• Unplug the appliance before connecting the hose.
• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without dust bag and/or filter.
• Always connect the appliance to an earthed socket.

SAVE THESE INSTRUCTIONS

PARTS

1. Floor nozzle
2. Button to pull out or retract brushes
3. Slide button to set length of tube
4. Telescopic tube
5. Hose
6. Connection for hose
7. Handle
8. Handle lid dust bag compartment
9. Full dust bag indicator
10. Button for automatic cord rewinding
11. Button to set the suction power
12. On/off button

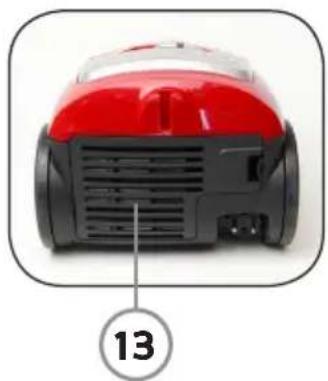

13. HEPA filter behind grid

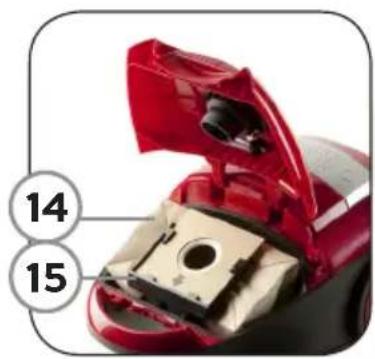

14. Dust bag: 2.5 l
15. Dust bag frame
16. Additional suction power control

Close-up of a red and black vacuum cleaner with ventilation slots, labeled with number 13 (no text or symbols on device)

Close-up of a red industrial machine component with open lid and mounting base (no visible text or symbols)

ASSEMBLY

Always unplug the vacuum cleaner before (dis)assembling any parts.

Hose

Assembly: Put the connection ring at the end of the hose into the hose connection in the vacuum cleaner and turn to the right so that it is locked into place.

Disassembly: Unplug the vacuum cleaner. Turn the connection ring at the end of the hose to the left and remove from the hose connection.

Close-up of a red and black vacuum cleaner with a black handle and hose, no visible text or symbols

Telescopic tube

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. To do this, push the slide button forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.

3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Line drawing of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a medical procedure showing hand placement and needle insertion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

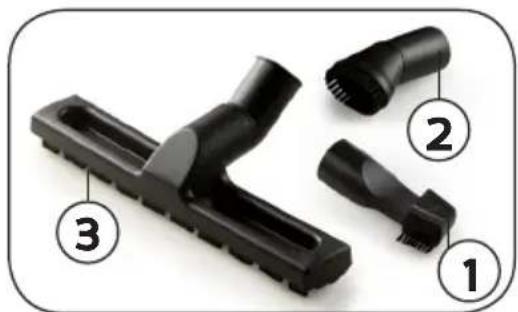

Accessories

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

3. Parquet brush: for parquet floors and other delicate floors

Close-up of three black vacuum cleaner components with numbered callouts (1, 2, 3), no text or symbols on the parts themselves.

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐ symbol.

3. To set the suction power, slide the suction power button to the left or right in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for mattresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard floors.

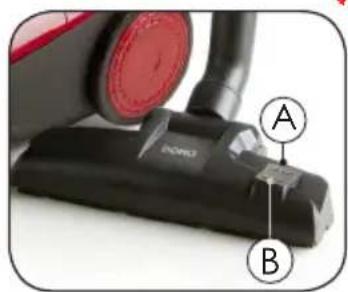

4. When you want to clean hard floors, make sure that the brushes in the floor nozzle are down.

5. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted.

6. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

Close-up of a black vacuum cleaner with red circular component and labeled parts A and B (no text or symbols beyond labels)

MAINTENANCE

Check the hose, dust bag and filters regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the filters when they are dirty.

Disposable dust bags and filters

The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

To keep the cleaner operating at maximum efficiency, change the dust bag frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

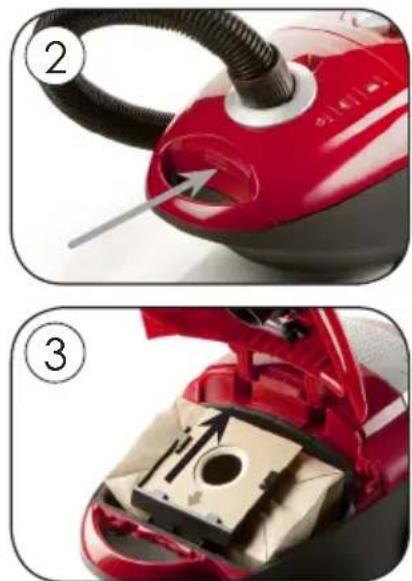

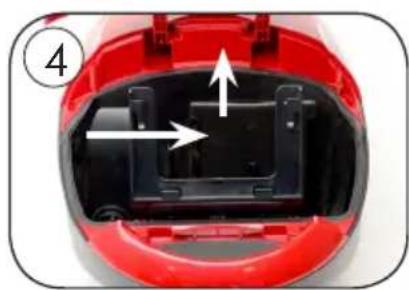

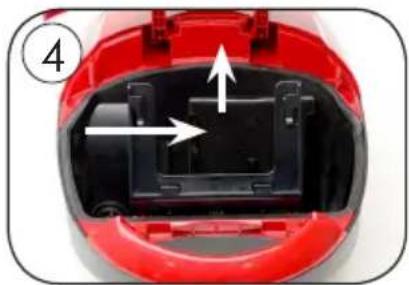

Replacing the dust bag and cleaning the motor filter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or cleaning the filter. Never vacuum without the dust bag or filters in place.

1. Turn off and unplug the vacuum cleaner.
2. Remove the hose from the hose connection and open the dust bag compartment by pushing the handle upwards and lifting the lid.
3. Slide the dust bag out of the frame and remove the dust bag from the dust bag compartment.

4. If at this point you want to clean the motor filter, take out the filter by sliding it upwards. Clean the filter by rinsing it under warm water. Let the filter air dry completely before reinstalling it. Reinstall the filter before placing the dust bag into the dust bag compartment.

5. Slide a new dust bag (2.5 l) in the dust bag frame.

Two-step photo showing a red vacuum cleaner's internal components being opened, with no visible text or symbols.

1. Close the dust bag compartment and push the lid back into place. The spring on the dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

Red automotive component with internal black housing and white arrows indicating movement (no text or symbols)

Cleaning the air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. This filter and the grid that covers the filter should be cleaned regularly. You can clean the filter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.

2. Open the grid that covers the filter by pushing it left at the clip. The filter is visible when the grid is removed.

3. Take out the filter.

4. Rinse the filter under cold water and let it air dry completely.

5. Put the filter back into place or replace the filter by a new one. Make sure that the filter is placed properly.

6. Seal with the grid. Make sure that the grid clicks into place.

Red and black vacuum cleaner with airflow indicator (no text or symbols visible)

Hand pointing at a red handheld device with a grid of white panels (no visible text or symbols)

CAUTION:

• Always use the vacuum cleaner with the filters in place. If not, this can lead to loss of power or damage to the motor.

- Remove the plug from the socket before cleaning the filters.

- Do not place the filters in the dishwasher.

- Do not use a hair dryer to dry the filters.

PRECAUCIONES IMPORTANTES

Close-up of a red and black vacuum cleaner with ventilation slots, labeled with number 13 (no text or symbols on device)

Close-up of a red vacuum cleaner's head with open lid and mounting base (no visible text or symbols)

MONTAJE

Close-up of a red and black vacuum cleaner with a black handle (no visible text or symbols)

Tubo telescópico

Line drawing of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating force direction (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accesorios

Close-up of a black vacuum cleaner component with numbered callouts (1, 2, 3), no visible text or symbols on the component itself.

Uso

Close-up of a black vacuum cleaner with red circular head and labeled parts A and B (no text or symbols beyond labels)

MANTENIMIENTO

Close-up of a red vacuum cleaner with black hose and nozzle, no visible text or symbols

Close-up of a red and black vacuum cleaner with ventilation slots (no visible text or symbols)

Close-up of a hand pressing down on a red and black handheld device with a grid of white panels (no visible text or symbols)

ATENCIÓN:

Close-up of a red and black vacuum cleaner with ventilation slots, labeled with number 13 (no text or symbols on device)

Close-up of a red and black electric shaver with open lid, showing internal components (no text or symbols)

POSTUP SESTAVENÍ

Close-up of a red and black vacuum cleaner with a coiled hose (no visible text or symbols)

Line drawing of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

Příslušenství

Close-up of three black vacuum cleaner components with numbered callouts (1, 2, 3) indicating parts of each part.

POUŽITÍ

ÚDRŽBA

Close-up of a red vacuum cleaner with a black handle and arrow pointing to the outlet (no text or symbols visible)

Close-up of a red robotic device with a square component and an arrow indicating motion (no text or symbols visible)

Red robotic device interior showing internal components and directional arrows (no text or symbols)

DÔLEŽITÉ

Close-up of a red and black vacuum cleaner with ventilation slots, labeled with number 13 (no text or symbols on device)

Close-up of a red industrial machine component with open lid and circular opening, labeled with numbers 14 and 15 (no readable text or symbols beyond labels)

POSTUP ZOSTAVENIE

Close-up of a red and black vacuum cleaner with a black handle and circular vent, no visible text or symbols.

Line drawing of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Príslušenstvo

Close-up of a black vacuum cleaner component with numbered parts (1, 2, 3) shown in view, no text or symbols present.

POUŽITIE

ÚDRŽBA

Close-up of a red vacuum cleaner with a black handle and arrow pointing to the outlet (no text or symbols visible)

Close-up of a red robotic device with a square component and directional arrow (no visible text or symbols)

Close-up of a red robotic device showing internal components and a white arrow indicating direction (no text or symbols)

Red and black vacuum cleaner device with ventilation slots, no visible text or symbols on the device itself

Close-up of a hand pointing at a red and black device with a grid layout (no visible text or symbols)

DOMOWebshop

BESTEL

de originele Domo-accessoires en -onderdelen online via:

COMMANDEZ

Two cylindrical milk dropers on a white surface, no text or symbols visible

Three product photos: cardboard sheets, a clear glass coffee maker, and a white rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
