USER MANUAL DO1191SC DOMO

Black and white photo of a Domino Sharp Detect vacuum cleaner with coiled tubing (no visible text or symbols on body)

NL Handleiding Multifunctionele vlekkenreiniger

EN Instruction booklet Multifunctional spot cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Two transparent plastic devices labeled 12 and 13, shown from different angles (no text or symbols on the devices themselves)

1 2 3 4 5 6 7 8 DONO SUN II ELECTR

11 10 9

Transparent container with liquid and a small black object at the bottom (no visible text or symbols)

Close-up of two black cable connectors labeled 'a' and 'b', showing internal components with red arrows pointing to them (no text or symbols beyond labels)

Hand holding a black handheld device with a green clip, against a white background (no text or symbols visible)

Product photo of a vacuum cleaner with labeled parts (no text or symbols visible)

Three views of a plastic enclosure with different packaging designs (no text or symbols visible)

SCHOONMAKEN VAN DE ACCESSOIRES

Close-up of a black plastic connector with red arrows indicating assembly or disassembly (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Two transparent plastic devices labeled 12 and 13, shown side by side (no text or symbols on the devices themselves)

DOHO Spin O DETECT 1 2 3 4 5 6 7 8

11 10 9

AVANT LA PREMIÈRE UTILISATION

Transparent container with liquid and a black base, no visible text or symbols

Close-up of three black plastic connectors labeled a, b, and a white connector with red arrows pointing to them (no text or symbols on the connectors themselves)

Hand holding a black handheld device with a green handle, against a white background (no text or symbols visible)

Product photo of a black DOME vacuum cleaner with attached plastic components (no visible text or symbols)

Two plastic components with black outlines and a separate inset showing a curved outline (no text or symbols)

NETTOYAGE DES ACCESSOIRES

Close-up of a black plastic connector with red arrows indicating assembly or disassembly (no text or symbols visible)

NETTOYAGE DU FILTRE

Symbol of a trash bin crossed with two crossed lines and a black rectangular base (no text or numbers present)

Two transparent plastic devices labeled 12 and 13, showing internal components (no text or symbols on the devices themselves)

1 2 3 4 5 6 7 8 DOHO Scent & Detect

11 10 9

Transparent cylindrical container with internal compartments and a black base, no visible text or symbols

Close-up of two black automotive electrical connectors with red arrows pointing to a component, labeled 'a' and 'b' (no text or symbols on the devices themselves)

Hand holding a black handheld device with a green handle, against a white background (no text or symbols visible)

Product photo of a Dondo vacuum cleaner with labeled parts (no text or symbols on main body)

Three types of plastic containers: a black box, a transparent container, and a black plastic sheet (no text or symbols visible)

Close-up of a black cable connector with red arrows indicating assembly or movement (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not insert any objects in the openings of the device.
• Do not use the device if any of the openings are blocked. If the suction opening, flexible hose or air inlet are blocked by any object, turn off the device immediately. Remove the blockage first before turning on the device again.
• Ensure that hair, loose clothing, fingers, and other body parts are kept away from the openings and moving parts of the device.
• Do not use the device to remove flammable or explosive substances, e.g. fuel. Do not use the device in an area where such substances are present.
• Do not vacuum up anything hot or smoking, e.g. cigarettes, matches or hot ashes.
• Do not use the device on surfaces with electrical wiring.
• Never use the device without the filter. This may damage the motor and significantly shorten its life.
• Remove all sharp or large objects before you start vacuuming to avoid damaging the device.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

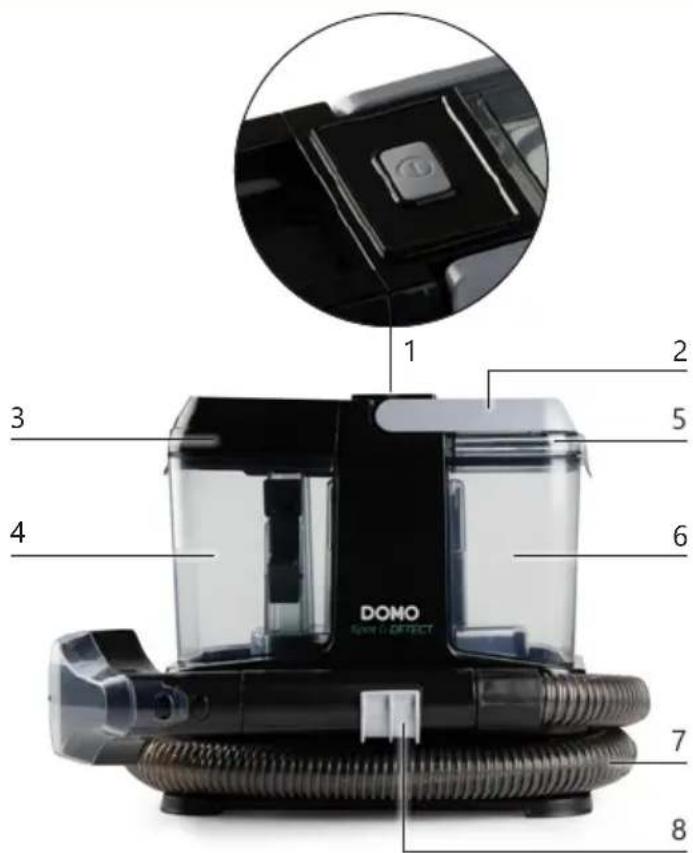

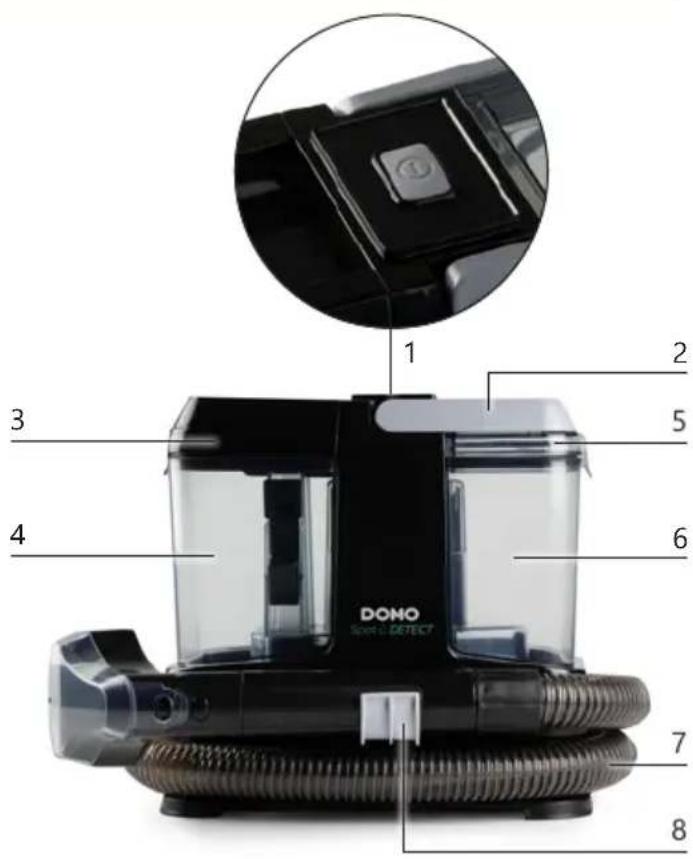

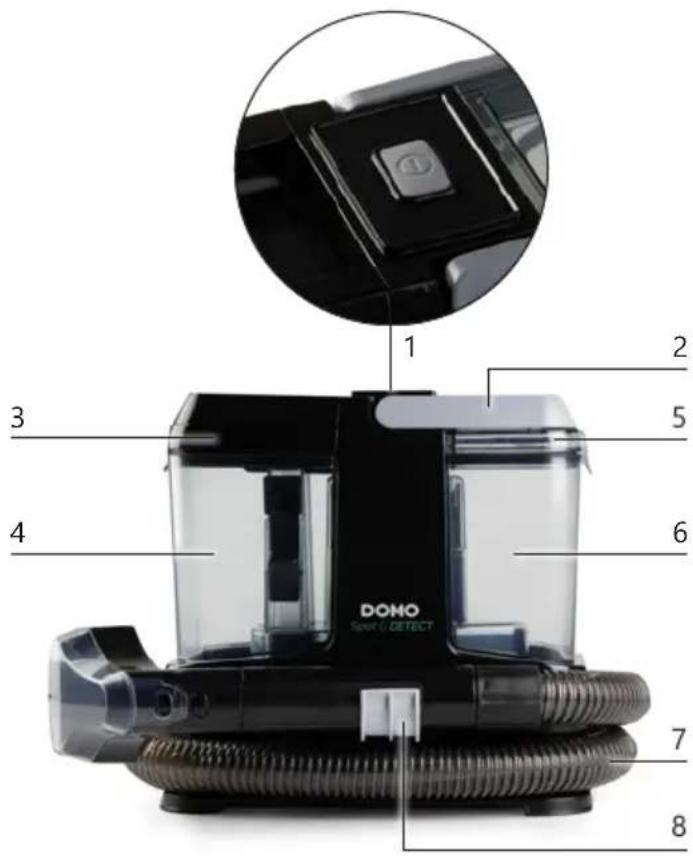

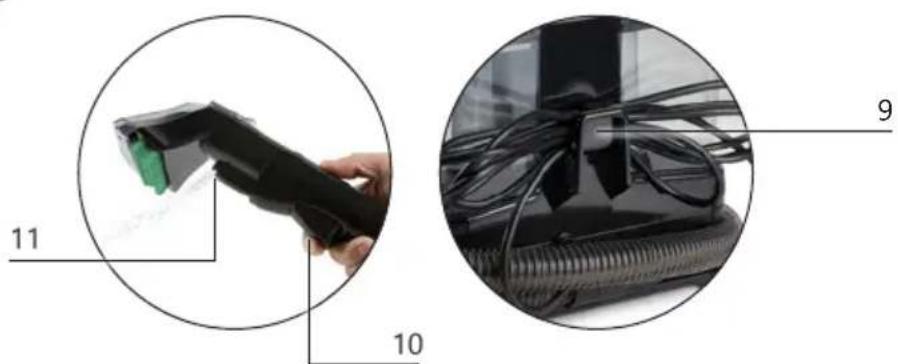

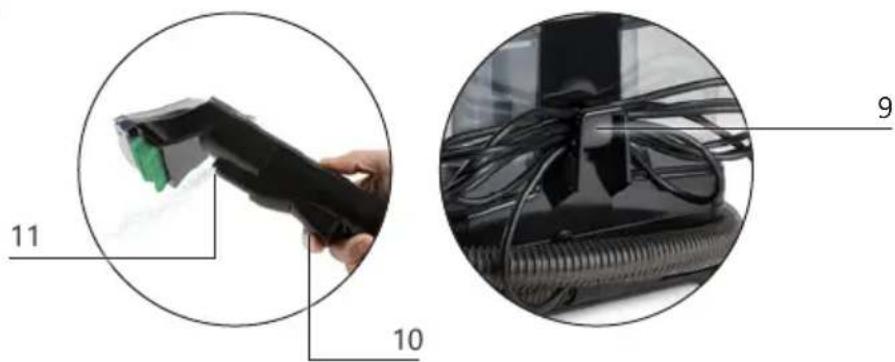

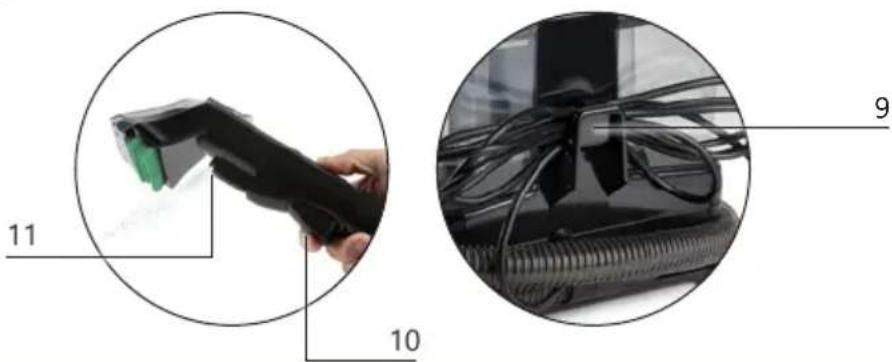

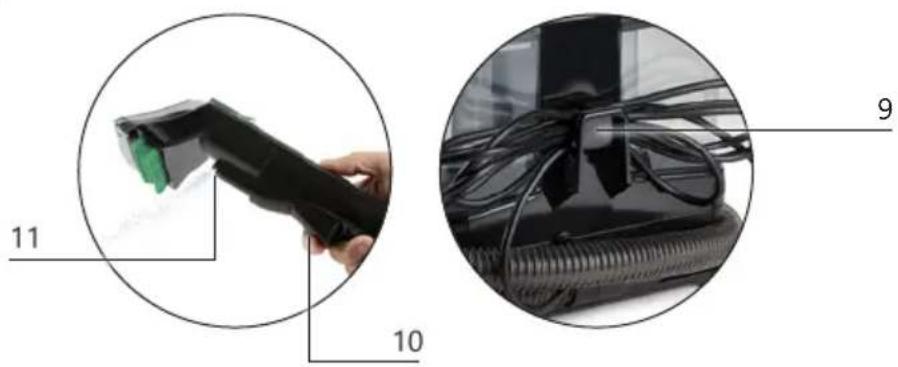

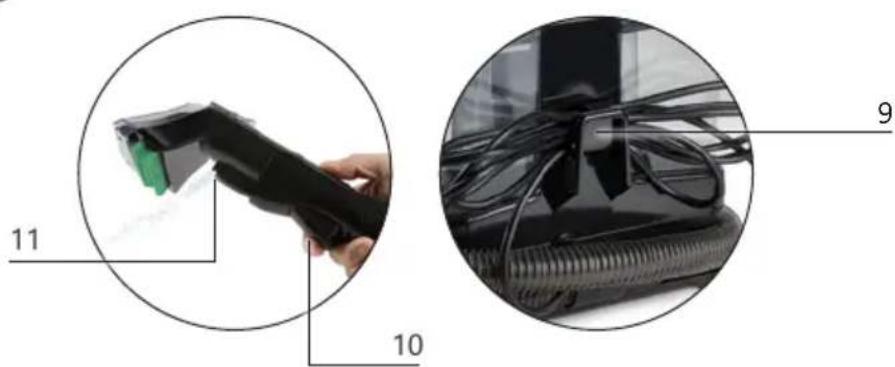

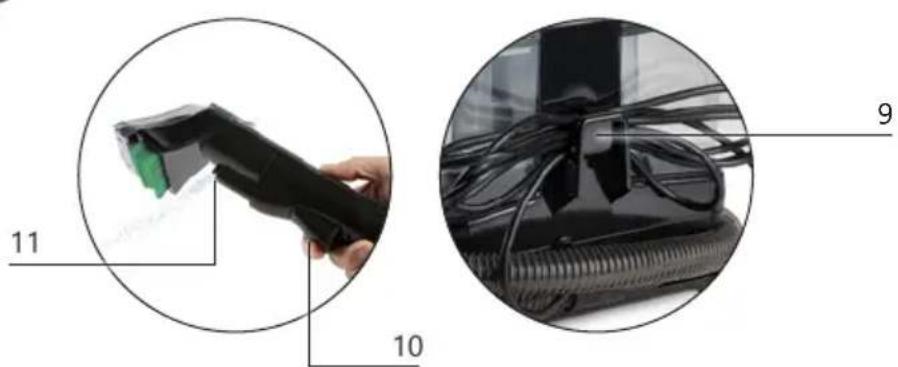

PARTS

1. Power button
2. Handle
3. Dirty water tank lid
4. Dirty water tank
5. Clean water tank lid
6. Clean water tank
7. Hose
8. Storage clamp for hose

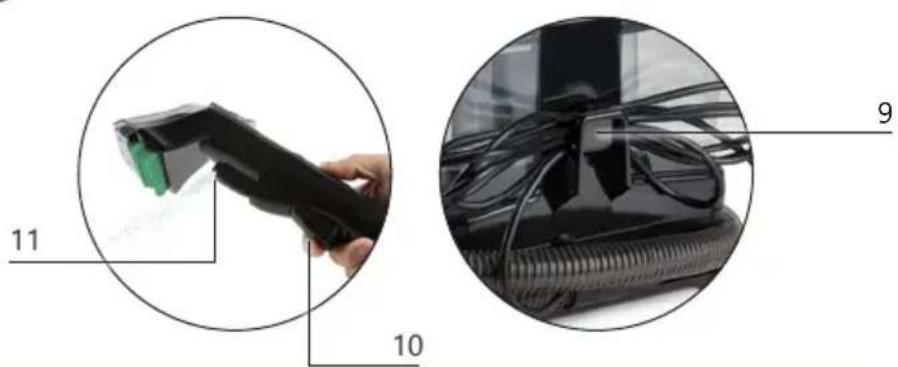

9. Cable storage
10. Spray button
11. Spray nozzle
12. Suction nozzle with brush
13. Transparent suction nozzle

1 2 3 4 5 6 7 8 DOHO SONYO DETECT

Two transparent plastic devices with labeled parts, no visible text or symbols on the devices themselves.

11 10 9

BEFORE THE FIRST USE

1. Remove all packaging materials and any promotional stickers.
2. Attach the clamp for storing the hose to the device.

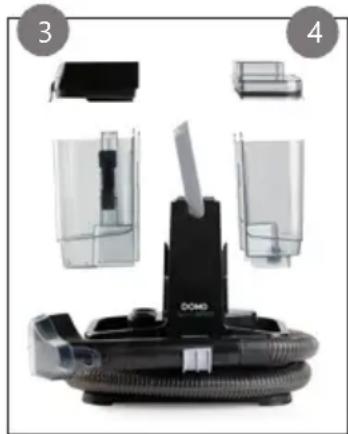

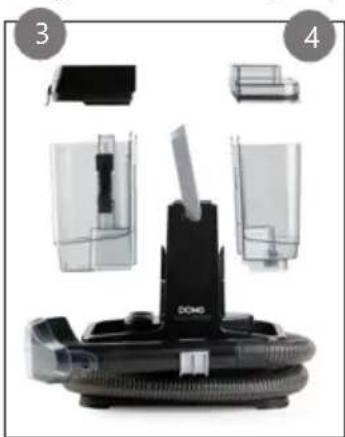

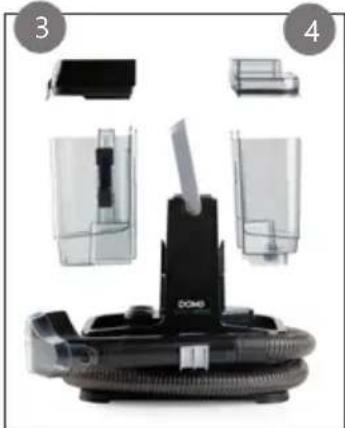

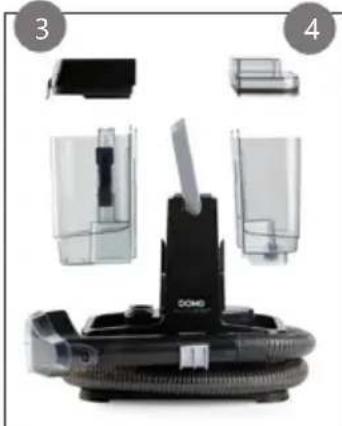

3. Remove the clean water tank from the device and take off the lid.

4. Fill the tank with clean cold or lukewarm water (<40 °C). Never use hot water. Carefully close the tank with the lid.
   ⚠️Never exceed the MAX indication on the water tank.

5. Place the filled water tank back onto the appliance.

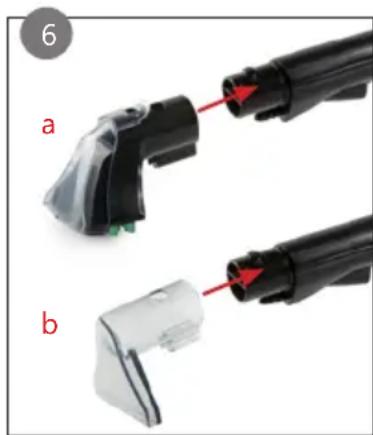

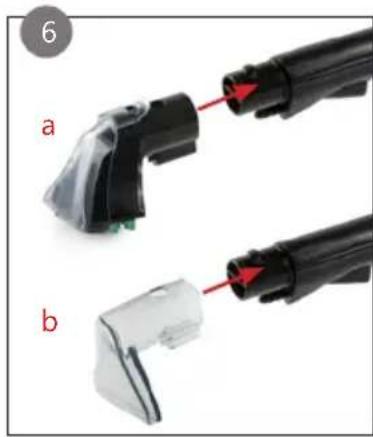

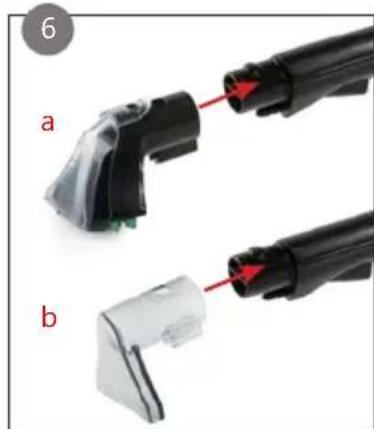

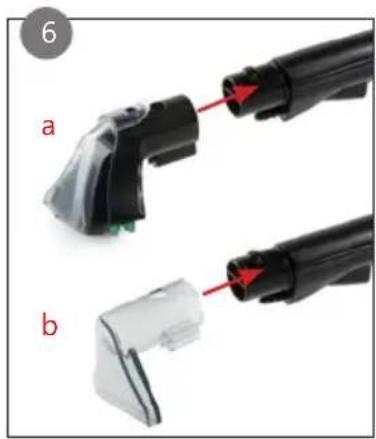

6. Attach the desired accessory to the hose:

a. Suction nozzle with brush: for stubborn stains
b. Transparent suction nozzle: for superficial stains

1. The device is now ready for use.

3 DOHO

Transparent rectangular container with internal components and a small black object at the bottom (no visible text or symbols)

Close-up of two black automotive electrical connectors labeled 'a' and 'b', with red arrows pointing to their connectors (no text or symbols on the devices themselves)

Do not shake the filled clean water tank when placing it on the device to avoid spillage.

USE

⚠️Do not add detergent to the clean water tank.

⚠️ Never use the device on fabrics or surfaces that are not water-resistant. If you are unsure whether the object is water-resistant, perform a cleaning test on a small area to avoid causing any damage.

△ Always place the object to be cleaned on a water-resistant surface.

Do not use the device to clean any seats with seat heating or electrical wiring.

1. Insert the mains plug into the power socket.

2. Turn on the device by pressing the power button.

3. Press and hold the spray button on the handle to moisten the surface to be cleaned. The longer you press the button, the wetter the surface becomes.

4. After moistening the surface, slowly move the suction nozzle over the moistened surface. While doing so, apply pressure on the suction nozzle for optimum suction of unclean water. Repeat several times until the stain is removed.

⚠ For stubborn stains, you can use the suction nozzle fitted with a brush. First, brush over the moistened stain to loosen the dirt. Then slowly move the suction nozzle over the stain. While doing so, apply pressure on the suction nozzle for optimum suction of unclean water. Repeat several times until the stain is removed.

It is normal that not all the moisture will be removed from the surface. The surface will still be damp. So you should ensure that the cleaned surface is allowed to dry completely to avoid the formation of mould.

1. Stop using the device immediately when the liquid level (including any foam) threatens to exceed the MAX indication on the dirty water tank. Remove the dirty water tank. Take off the lid and carefully empty the tank. Rinse the dirty water tank with clean water and place it back into the device before resuming cleaning.

2. After use, switch off the device and unplug it. Then clean the device according to the instructions in the "Cleaning and maintenance" section.

TIP

For stubborn stains, you can use a detergent first:

1. Rub some detergent on the stain with a brush or sponge and allow it to soak in for a while.

2. Afterwards, moisten the stain with the spray function and then vacuum up the water and detergent. Do not leave behind any traces of detergent on the surface.

Do not add detergent to the clean water tank but directly on the stain.

CLEANING AND MAINTENANCE

CLEANING THE WATER TANKS

1. Remove the clean water tank. Take off the lid and empty the tank. Place the empty tank back into the device.
2. Turn on the device and press the spray button to remove any remaining water from the hose.

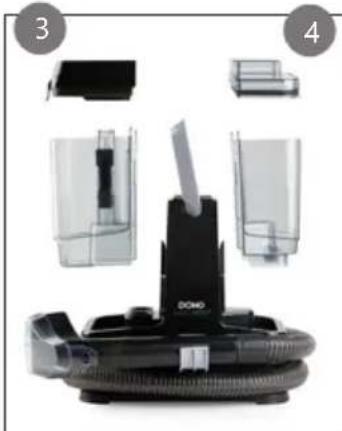

3. Remove the dirty water tank. Take off the lid and carefully empty the tank.
4. Remove the clean water tank again and take off the lid.

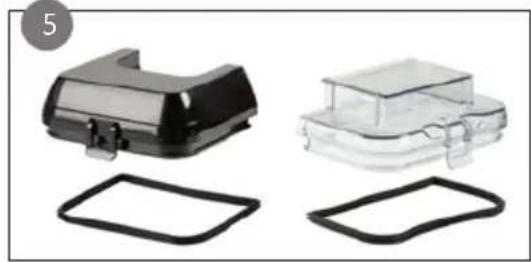

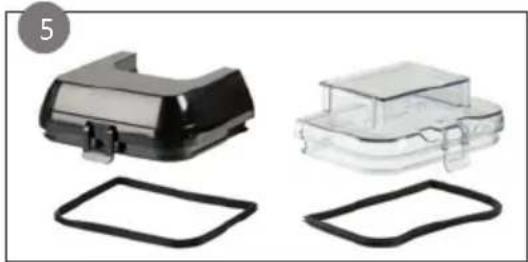

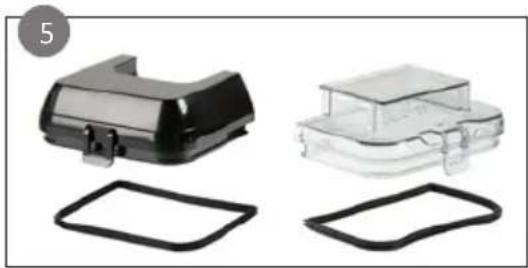

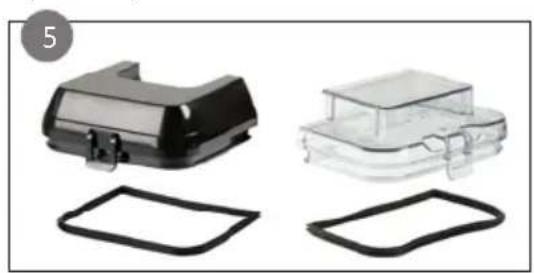

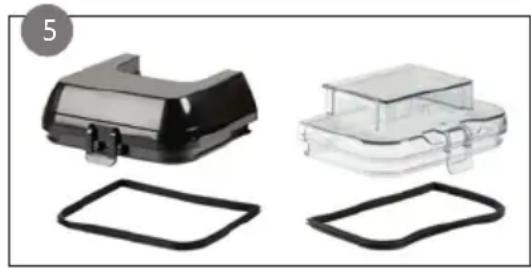

5. Take out the sealing ring from each lid and thoroughly clean the rings, lids and tanks with clean water. If necessary, use a mild detergent. Rinse well and dry carefully.

6. Turn the device upside down (without the tanks) over the sink to remove any remaining water inside.

7. Only reassemble the sealing rings, lids and tanks once all parts are completely dry.

Hand holding a black handheld device with a green handle, against a white background (no text or symbols visible)

Product photo of a black DODO vacuum cleaner with attached plastic components (no visible text or symbols)

Three types of plastic containers: a black box, a transparent case, and a black plastic sheet (no text or symbols visible)

CLEANING THE ACCESSORIES

1. Remove the accessory from the hose by pressing the button above the accessory. Remove the transparent section of the suction nozzle fitted with a brush.

2. Clean the accessories with lukewarm water and a mild detergent.

3. Once cleaned, reattach the transparent section to the suction nozzle and snap it into position.

4. Allow the components to air dry before storing them away.

Close-up of a black plastic connector with red arrows indicating assembly or repair (no text or symbols visible)

CLEANING THE FILTER

There is a filter in the compartment of the dirty water tank. You can remove this filter and clean it under running water.

If the filter is damaged, it must be replaced.

⚠️Remove the remaining clean water from the tank after each use.
Do not immerse unit, cord, or plug in water or other liquid.
⚠️Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The device does not turn on. • Check	that the device is connected to a working power socket (as described on the identification plate at the bottom of the device).• Check to see if any fuse is switched off in the fuse box.
The device does not work. • Check	whether the dirty water tank is too full (above the MAX indication). If so, empty the dirty water tank first.
No water comes out of the nozzle. •	Make sure there is enough water in the clean water tank. Fill it up to the maximum level as indicated.• Check that the suction nozzle is properly clicked into place.• Make sure the spray opening is completely clear. Clean the opening with the fine cleaning brush if necessary.
The device is leaking. • Make sure the	clean water tank, the dirty water tank and their lids are properly positioned.

GUIDELINES

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Two transparent plastic devices labeled 12 and 13, shown side by side (no text or symbols on the devices themselves)

1 2 3 4 5 6 7 8 DONO SOHU-DETECT

11 10 9

3 DOMO SOMI - 50.007

Transparent container with internal components and a black base, no visible text or symbols

Close-up of two black automotive electrical connectors with red arrows pointing to their parts, labeled 'a' and 'b' (no text or symbols on the devices themselves)

Hand holding a black handheld device with a green screen, against a white background (no text or symbols visible)

Product photo of a black DOMO vacuum cleaner with attached plastic components (no visible text or symbols)

Two black plastic containers with plastic caps and separate plastic sheets below (no text or symbols visible)

Close-up of a black plastic connector with red arrows indicating movement or assembly (no text or symbols)

LIMPIEZA DEL FILTRO

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Two transparent plastic devices with numbered labels (12 and 13) shown in separate views.

1 2 3 4 5 6 7 8 DOMO SHELI DETECT

11 10 9

PRIMA DELL'USO

Transparent rectangular container with internal compartments and a black base, no visible text or symbols

Close-up of two black adhesive connectors with red arrows pointing to their contacts, labeled 'a' and 'b' (no text or symbols on the devices themselves)

Hand holding a black handheld device with a green accent, against a white background (no text or symbols visible)

Product photo of a DODD vacuum cleaner with four labeled parts (3, 4), showing internal components and casing (no text or symbols on main body)

Two black plastic containers with plastic caps and separate plastic sheets below (no text or symbols visible)

PULIZIA DEGLI ACCESSORI

Close-up of a black plastic connector with red arrows indicating assembly or disassembly (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Two transparent plastic devices labeled 12 and 13, shown from different angles (no text or symbols on the devices themselves)

11 10 9

PŘED PRVNÍM POUŽITÍM

Transparent rectangular container with internal compartments and a black base, no visible text or symbols

Close-up of two black plastic electrical connectors with red arrows pointing to them, labeled 'a' and 'b' (no text or symbols on the devices themselves)

Hand holding a black handheld device with a green handle, against a white background (no text or symbols visible)

Product photo of a DC-MS vacuum cleaner with attached circuit breakers and a central brush (no visible text or symbols)

Two plastic packaging components with black outlines and a separate inset showing a rectangular outline (no text or symbols)

Close-up of a black plastic connector with red arrows indicating assembly or movement (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Two transparent plastic devices labeled 12 and 13, shown side by side (no text or symbols on the devices themselves)

1 2 3 4 5 6 7 8 DOHO SOXC DETECT

11 10 9

PRED PRVÝM POUŽITÍM

Transparent container with internal compartments and a small black object at the bottom (no visible text or symbols)

6 a b

Hand holding a black handheld device with a green handle, against a white background (no text or symbols visible)

Product photo of a DOME-branded vacuum cleaner with multiple plastic components (no visible text or symbols)

Illustration of two plastic containers with different packaging designs (no text or symbols)

ČISTENIE PRÍSLUŠENSTVA

Close-up of a black plastic connector with red arrows indicating assembly or movement (no text or symbols visible)

ČISTENIE FILTRA

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with ports and mounting brackets (no visible text or symbols)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
