USER MANUAL DO1083SV DOMO

Exterior view of a modern office building (no signage)

DO1083SV

Handleiding Steelstofzuiger

Mode d'emploi Aspirateur-balai

Gebrauchsanleitung Handstaubsauger

Instruction booklet Stick vacuum cleaner

Manual de instrucciones Aspirador escoba

Istruzioni per l'uso Scopa elettrica

Návod k použití Tyčový vysavač 2v1

Návod na použitie Tyčový vysávač 2v1

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Three-step photo sequence showing a hand using a vacuum cleaner to clean the air (no text or symbols visible)

OPLADEN

Close-up of a black electric shaver with a hand inserting a screwdriver (no visible text or symbols)

MUURBEVESTIGING

Close-up of a black handheld device with attached bracket and hanging clip (no visible text or symbols)

GEBRUIK

Close-up of a mechanical tool with a black handle and metallic body (no visible text or symbols)

REINIGING EN ONDERHOUD

HET TOESTEL PROPER MAKEN

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Close-up of a metallic mechanical component with a circular highlight highlighting a small feature (no visible text or symbols)

Two black vacuum cleaner designs with arrows indicating assembly or inspection (no text or symbols visible)

PROBLEEM EN OPLOSSING

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Three-step photo sequence showing hand holding a vacuum cleaner, with no visible text or symbols

CHARGE

Close-up of a hand using a black handheld device to press or install a white cylindrical device (no visible text or symbols)

SUPPORT MURAL

Close-up of a handheld industrial vacuum cleaner with attached hook (no visible text or symbols)

UTILISATION

Three black industrial vacuum cleaner units shown from different angles (no text or symbols visible)

NETTOYAGE ET ENTRETIEN

NETTOYER L'APPAREIL

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Close-up of a mechanical component with a magnified inset showing a small feature (no visible text or symbols)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon (three chasing arrows) inside a rounded square frame, no text or labels present.

Three-step photo sequence showing hand cleaning a vacuum cleaner's brush, with no visible text or symbols

AUFLADEN

Close-up of a black handheld device with a hand holding a screwdriver (no visible text or symbols)

WANDBEFESTIGUNG

Exterior view of a modern office building (no signage)

GEBRAUCH

Three black industrial mechanical devices with attached connectors, shown from different angles (no visible text or symbols)

Exploded view of a mechanical device with labeled components (A, B, C) and a transparent container (no text or symbols on parts)

Close-up of a mechanical component with a circled detail (no visible text or symbols)

Two black vacuum cleaner designs with arrows indicating motion, one being cleaned and the other assembled (no text or symbols visible)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · Attention: This appliance cannot be used with an external timer or a separate remote control.
• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.

- Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

- Make sure that the air intake or the floor suction opening do not become blocked.

· Make sure that the machine does not come into contact with liquids.

- First charge a new battery up completely.

- Pull the plug from the outlet when the vacuum cleaner is fully charged.

· This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

- Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

- Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.

- Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.

· Never use the appliance without a filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

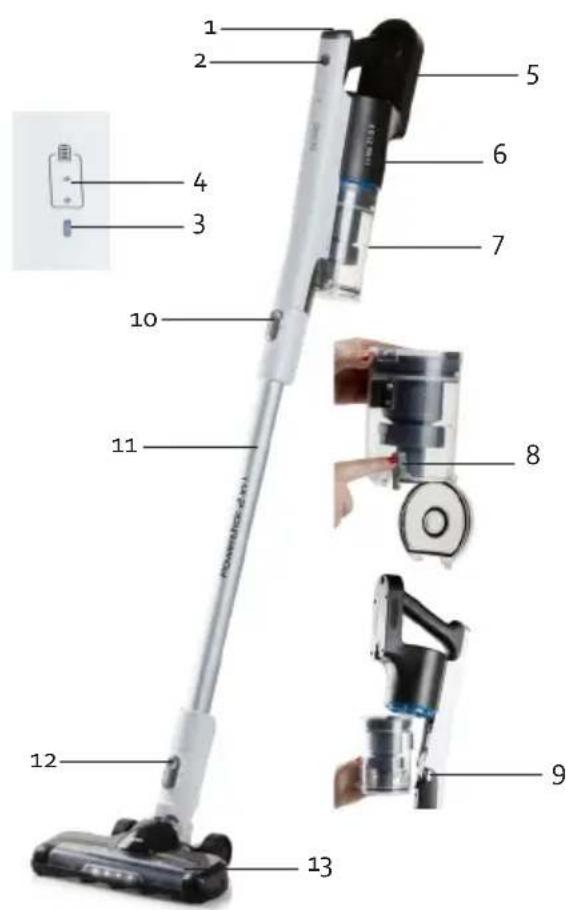

PARTS

1. On-off button
2. Speed controller
3. Speed indicator light
4. Battery level indicator
5. Battery
6. Motor compartment
7. Dust reservoir
8. Button to open dirt receptacle
9. Unlock button for dust reservoir
10. Handle release button
11. Tube
12. Release button floor nozzle
13. Floor nozzle with rotating floor brush
14. Adapter
15. Wall fixing (screws and plugs included)
16. Crevice vacuum cleaner
17. Dust brush

16 17 15 14

1 2 3 4 5 6 7 8 9 10 11 12 13

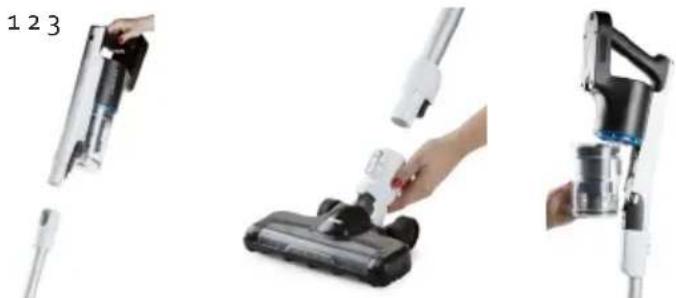

BEFORE THE FIRST USE

To set up the machine properly, please follow the steps below:

1. Place the motor compartment on the shaft via the opening provided.
2. Make sure the floor nozzle is clicked into the stick vacuum cleaner.
3. Click the dust reservoir into the stick vacuum cleaner.

Three-step photo sequence showing a hand using a vacuum cleaner to clean the air (no text or symbols visible)

CHARGING

• Connect the adaptor to the upright vacuum cleaner using the provided connection to the battery to charge the upright vacuum cleaner.
• The battery charge indicator indicates when the appliance has been fully charged. When all the lights are on, the battery is fully charged.
  · The machine cannot be started during charging.
• Prior to first use, charge the machine for 8 hours in order to be able to utilize the full capacity of the battery.

Close-up of a black handheld device with a hand inserting a screwdriver (no visible text or symbols)

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount.
2. Insert the supplied plugs into the wall.
3. Fix the wall mount using the supplied screws.
4. To store the device, simply hang it on the wall mount.

Exterior view of a modern office building (no signage)

USE

1. Press the on/off button to turn the appliance on. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.
2. Press the speed controller to adjust the speed. The speed indicator lights up to indicate that the highest speed is on. Press the speed controller again to return to the default speed. The corresponding indicator light turns off.
3. Press the on/off button again to turn off the appliance.

- The battery indicator light indicates the battery level. When the battery is low, the indicator will blink on and off.

- The autonomy depends on the type of surface. It will work for less time on carpets than on a hard surface.

· While vacuuming, warm air will come out of the motor compartment. This is normal.

• The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button once more.
• For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine. Make sure that the dust in the dust reservoir does not exceed the maximum level.

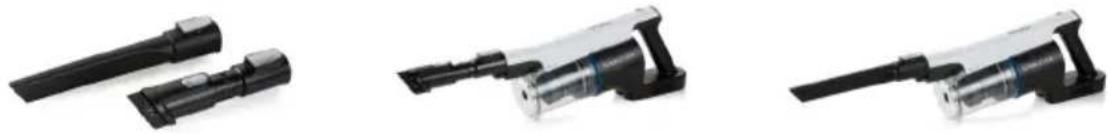

ACCESSORIES

You can use the following accessories on the hand-held vacuum cleaner (by removing the shaft) or secure them on the shaft:

1. Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.
2. Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

Three black industrial vacuum cleaner components with attached clamps, shown from different angles (no text or symbols visible)

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

CLEANING THE DUST RESERVOIR

1. Never exceed the maximum indicator on the dust container. Press the button to open the dirt receptacle to empty it. The dust container falls open and you can then remove the coarse dirt.
2. Press the release button to remove the dirt receptacle. The dirt receptacle will come loose from the motor section. You can now clean all the parts separately. We recommend you do this with compressed air. If you do not have compressed air, you can wash out the filters. Make sure they are completely dry before using them again.

A. HEPA filter: this round dust filter captures the small dust particles.
B. Plastic coarse debris filter: this ensures that the large dust particles remain in the dirt receptacle.
C. Dirt receptacle: this is where all large dirt particles are collected.

1. Pull the filters out of the dirt receptacle. Remove the HEPA filter (A) from the coarse debris filter (B) by pulling it up. You can also disassemble the coarse debris filter (B) for more precise cleaning. Pay attention to the lock symbol on the filter. Blow the filters clean with compressed air. You can also clean the filters and the dirt receptacle (C) under running water. Make sure they are completely dry before using the appliance again.

2. Replace the HEPA filter in the coarse debris filter.

3. Put the filters back in the dirt receptacle. Make sure that the notch in the dirt receptacle lines up with the protrusion in the filter.
4. Put the dirt receptacle back on the motor section. You will hear a click when it is in place.

Mechanical component assembly showing two parts (A and B) with a transformation arrow indicating assembly direction (no text or symbols present)

Exterior view of a transparent cylindrical container with two side legs and a small black-and-white component (no text or symbols visible)

Close-up of a metallic component with a circular highlight, possibly part of a device or assembly (no visible text or symbols)

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

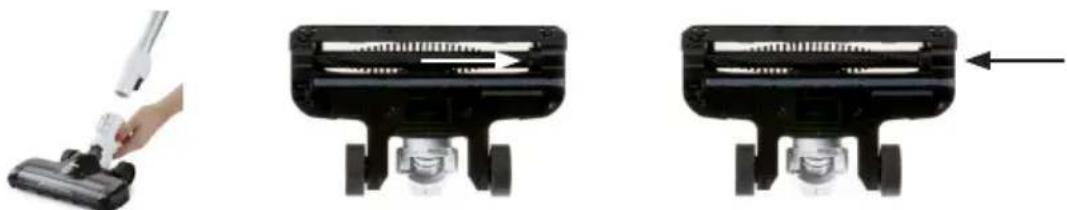

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Slide the cover on the right side of the floor brush to the right.
3. Remove the rotating floor brush from the floor nozzle.

4. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.

5. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.

6. Place the floor brush back into the floor nozzle when it is clean.

7. Slide the cover closed again to secure the floor brush.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Three-step diagram showing a hand using a vacuum cleaner to clean a black cylindrical device, with no visible text or symbols.

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

PROBLEM AND SOLUTION

Problem Solution
The battery charge indicator will flash on and off.	· The battery is empty. Charge the machine.
The machine does not start up. · The battery is empty. Charge the machine.
The machine does not vacuum. · The filters are dirty/the dust reservoir is full.· The floor nozzle is clogged/the floor brush is blocked.· Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	· The filters are dirty/the dust reservoir is full.· The machine is not sufficiently charged. Charge the machine fully and try again.· The battery is broken or old. Contact the after sales service.· Stuck hairs. Remove the hairs stuck on the brushes.

SPECIFICATIONS ADAPTOR

Published information Value and precision Unit
Linea 2000 BV – Dompel 9 – 2200 Herentals – Belgium	-	-
Model number DO1083SV -
Supply voltage 100 - 240 V
Power frequency	50-60	Hz
Output voltage	25.0	V
Output current	0.5	A
Output power	12.5	W
Average active efficiency	86.94	%
Efficiency at low load	73.68	%
Non-loaded energy consumption	0.06	W

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Three-step photo sequence showing hand holding a vacuum cleaner, with no visible text or symbols

CARGA

Close-up of a black electric shaver with a hand inserting a screwdriver (no visible text or symbols)

SOPORTE MURAL

Exterior view of a black and white handheld vacuum cleaner with attached ring (no text or symbols visible)

USO

Three black industrial vacuum cleaner units with attached shafts, shown from different angles (no text or symbols visible)

LIMPIEZAY MANTENIMIENTO

LIMPIAR EL APARATO DE POLVO

Mechanical component assembly showing two parts (A and B) with a transformation arrow indicating assembly direction (no text or symbols present)

Close-up of a transparent cylindrical container with metal fittings and a small black object on the right (no visible text or symbols)

Close-up of a metallic mechanical component with a magnified circular detail (no visible text or symbols)

Three-step diagram showing a hand using a vacuum cleaner to adjust the air gap, then to install a black device with a white arrow indicating motion (no text or symbols present)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Three-step photo sequence showing hand holding a vacuum cleaner, with no visible text or symbols

CARICARE

Close-up of a black electric shaver with a hand inserting a screwdriver (no visible text or symbols)

SOSTEGNO A PARETE

Product photo of a handheld vacuum cleaner with attached electrical connector (no visible text or symbols)

UTILIZZO

Three black industrial vacuum cleaner units with attached connectors, shown from different angles (no text or symbols visible)

Exploded view of a mechanical device with labeled components A, B, and C (no text or symbols on parts)

Close-up of a metallic mechanical component with a magnified circular detail (no visible text or symbols)

Prohibition sign with a trash bin crossed out and a blank rectangular base

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Three-step photo sequence showing hand holding a vacuum cleaner, with no visible text or symbols

NABÍJENÍ

Close-up of a hand using a black electric shaver to handle a cylindrical device (no visible text or symbols)

DRŽÁK NA STĚNU

Product photo of a handheld vacuum cleaner with attached cable (no visible text or symbols)

POUŽITÍ

Three different types of industrial vacuum cleaner devices shown in black and white, no visible text or labels.

ČIŠTĚNÍ A ÚDRŽBA

ČIŠTĚNÍ PŘÍSTROJE

Two views of a vacuum cleaner's internal structure, showing hand tool and two views with arrows indicating motion (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Three-step photo sequence showing hand holding a vacuum cleaner, with no visible text or symbols

NABÍJANIE

Close-up of a black electric shaver with a hand holding a screwdriver (no visible text or symbols)

DRŽIAK NA STENU

Product photo of a handheld vacuum cleaner with attached ring and handle (no visible text or symbols)

POUŽITIE

Three different types of black handheld devices, shown from different angles (no text or symbols visible)

ČISTENIE A ÚDRŽBA

ČISTENIE PRÍSTROJA

Mechanical component assembly diagram showing a valve and fitting process (no text or symbols)

B

C

White cylindrical container with two metallic clips attached (no visible text or symbols)

Close-up of a metallic mechanical component with a circular highlight (no visible text or symbols)

Two black vacuum cleaner components with arrows indicating assembly or adjustment (no text or symbols visible)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
