USER MANUAL One 360 SL Mini Osann

Diagram of a car with numbered positions and checkmarks indicating status or options, including red and green checkmarks.

1. & 2.:

mind. 15 Monate alt:

Illustration of a baby car seat with seatbelt and belt, no text or symbols present

Illustration of a child in a car seat with yellow motion arrows indicating rotation (no text or symbols)

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating force (no text or symbols present)

Line drawing of a stylized object with two views: top shows a rounded rectangular shape, bottom shows a symmetrical abstract shape (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a full-body safety harness (no text or symbols)

√

Diagram of a car seatbelt with a yellow belt and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Isofi x-Konnektoren

Diagram showing car seatbelting with directional arrows and safety check icons for correct and incorrect states

Illustration of a device with a yellow tag and handle, no text or symbols present

40-105 cm:

REINIGUNG

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

USE

• This product is suitable for children with a height of 40 to 105 cm.
- Rear-facing installation for children between 40 to 105cm in height takes place with the help of the Isofi x connectors and the support leg. The child is strapped in with the 5-point child car seat belt.
- Forward-facing installation for children between 76 and 105cm in height and a minimum age of 15 months takes place with the help of the Isofi x connectors and the support leg. The child is strapped in with the 5-point child car seat belt.

IMPORTANT

DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

EXTREME DANGER

We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use for children with a height of 40 to 105 cm on a front seat where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information about this.

PLEASE NOTE

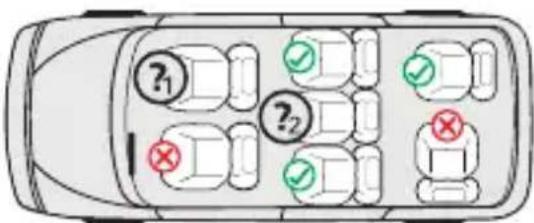

NOTE (40–105 cm):

This is an i-Size child restraint system. It is approved under Regulation No. 129 for use on 'i-Size compatible' vehicle seats as specified by the vehicle manufacturer in the vehicle manual. In cases of doubt, please contact the manufacturer of the child restraint system or the dealer.

Diagram of a car with numbered positions and checkmarks indicating status or availability

1. and 2.:

Only if Isofi x connectors are present. For rear-facing use and only if the airbag can be deactivated.

The following table provides information about the fastening devices and methods:

Height range	Installation direction	Installation Type Child safety device
40–105 cm	Rear-facing	Isofi x connectors and support leg	i-Size 5-point child car seat belt
76–105 cm	Forward-facing	Isofi x connectors and support leg	i-Size 5-point child car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child seat can only be used with its own 5-point belt system for children who weigh under 18 kg and are less than 105 cm in height.
• The child seat CANNOT be used with its own 5-point belt system for children who weigh over 18 kg or are taller than 105 cm.
• The child seat can be installed rear-facing and forward-facing with the Isofix connectors and the support leg. When used with a support leg, the maximum height is 105 cm, and the maximum weight is 18 kg. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.
• The child seat must be replaced if it is exposed to heavy impact in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.

• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them from falling out.

• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.

• This child seat is designed for children with a maximum height of 105 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

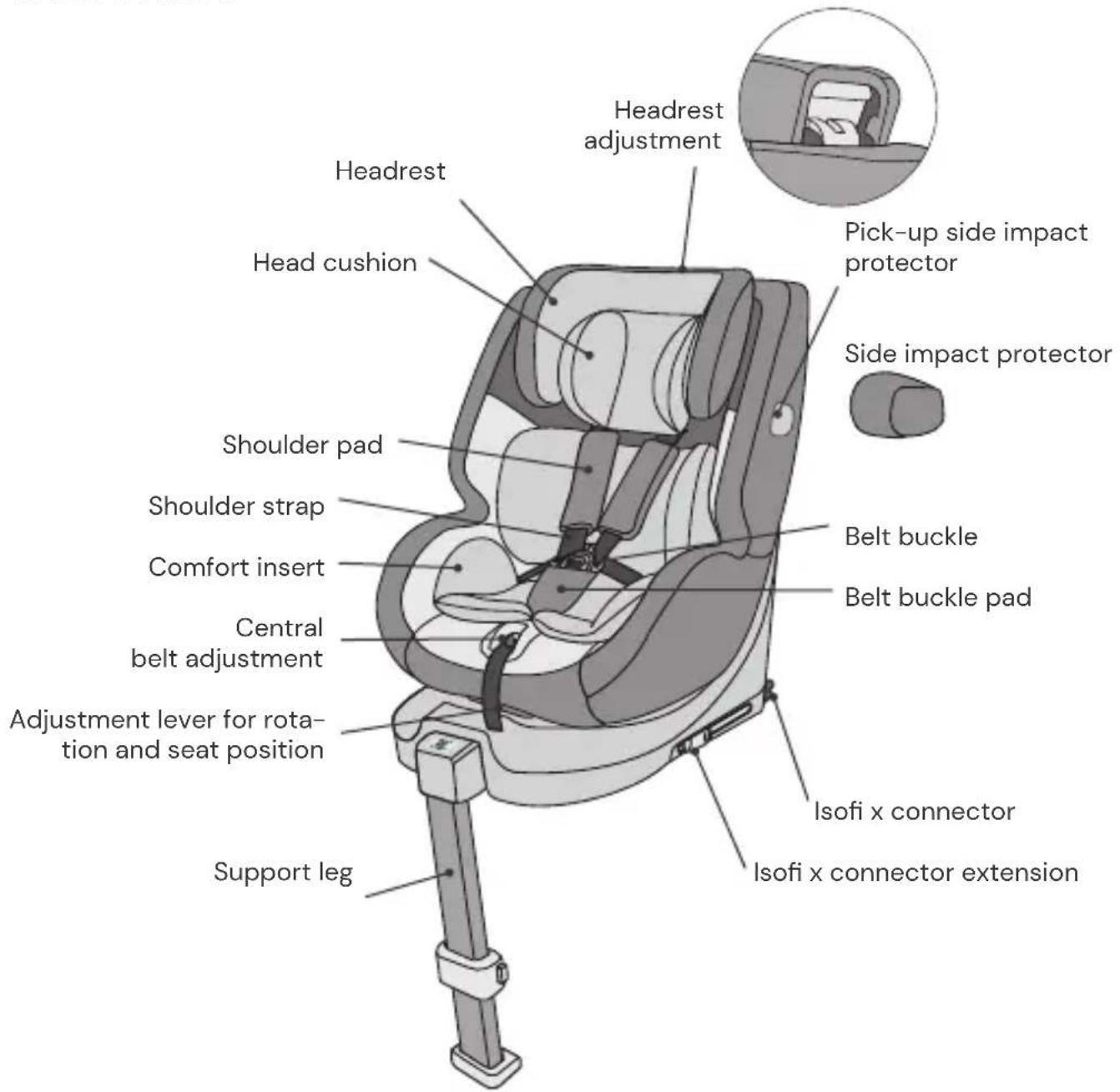

SEAT PARTS

Headrest adjustment Pick-up side impact protector Side impact protector Headrest Head cushion Shoulder pad Shoulder strap Comfort insert Central belt adjustment Adjustment lever for rotation and seat position Support leg Belt buckle Belt buckle pad Isofi x connector Isofi x connector extension

USING THE CHILD CAR SEAT

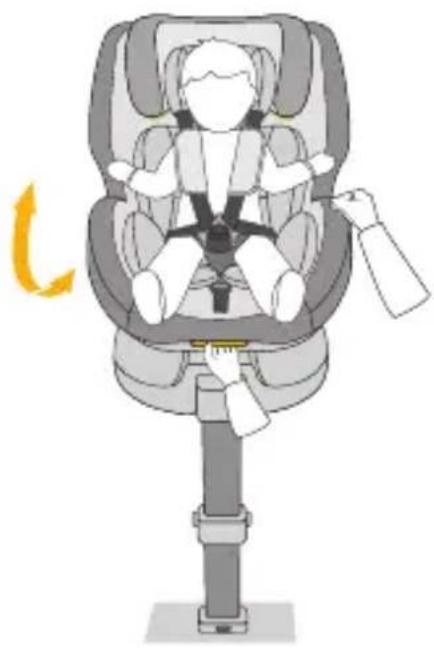

Adjusting the child car seat tilt angle

• Operate the adjustment lever on the lower front of the seat bucket with one hand.
• Hold the seat bucket with the other hand and adjust the angle.

The following seat positions are possible:

(Please see the label on the child car seat)

Rear-facing,

Body height 40–75 cm, position: R1

Body height 76–105 cm, position: R2

Forward-facing,

height 76–105 cm,

at least 15 months old:

4 positions (1–4)

Illustration of a baby car seat with a hand adjusting the seatbelt, showing no text or symbols.

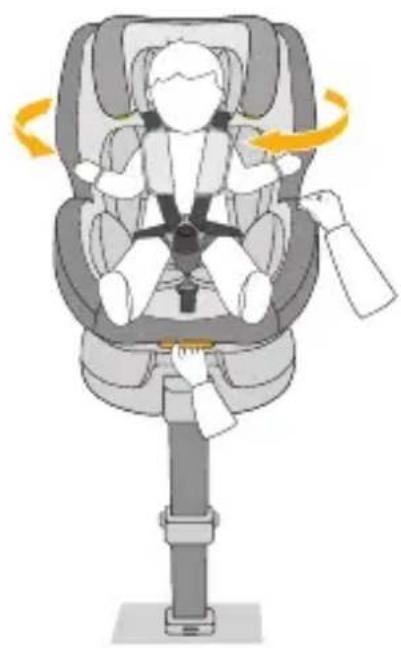

Turning the child car seat

• Pull the adjustment lever on the front of the base with one hand and use the other hand to rotate the seat unit in the desired direction of travel.
• The forward-facing position is only suitable for children who are at least 15 months old with a minimum height of 76 cm. The rear-facing position is designed for children from 40 to 105 cm in height with a maximum weight of 18 kg.
• The side position is only intended to facilitate the child's entry. This position must not be used while driving.

Illustration of a child in a car seatbelt with orange arrows indicating rotation or motion (no text or symbols)

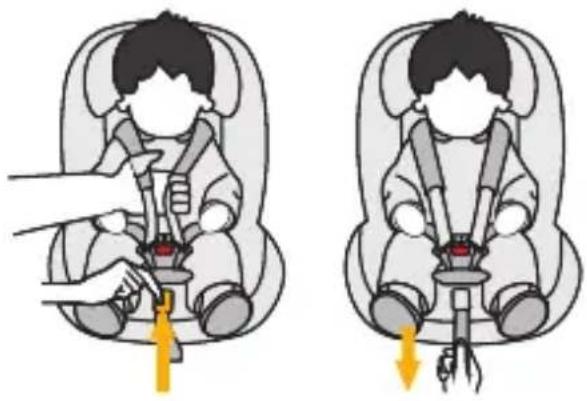

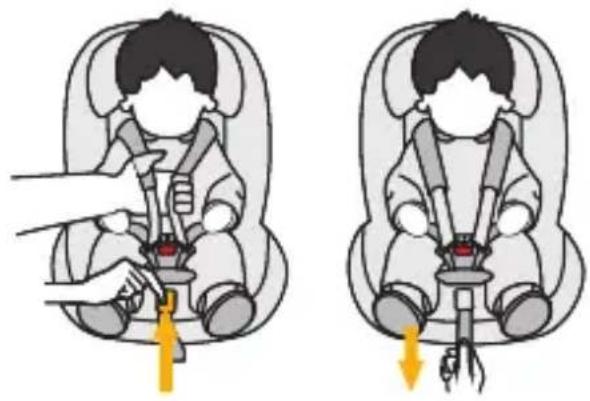

Adjusting the belt

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached belts.
• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating force (no text or symbols present)

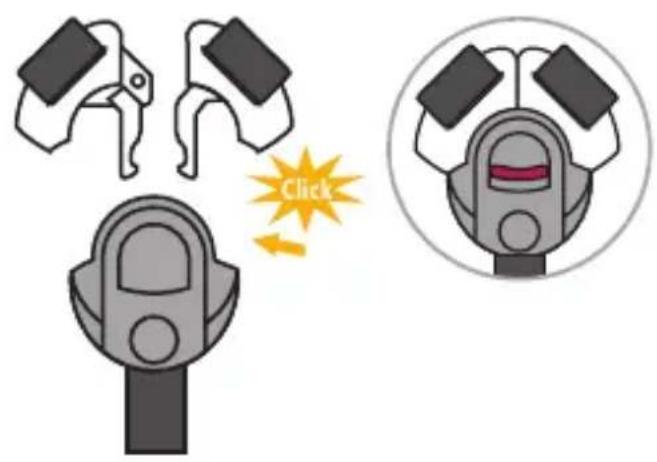

Opening/closing the belt

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.
• To lock the belt, first connect both tongues of the buckle and then insert them together into the belt buckle.

Click

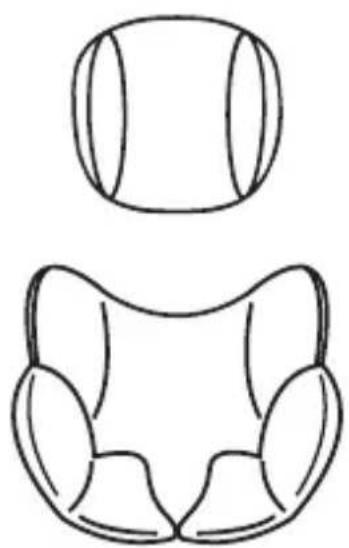

Head cushion and comfort insert

• The head cushion and comfort insert are designed for babies with a body height of 40–75 cm.
• Please remove both inserts as soon as your child has exceeded the specified body size.

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

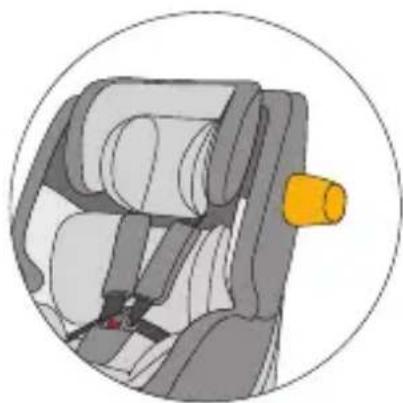

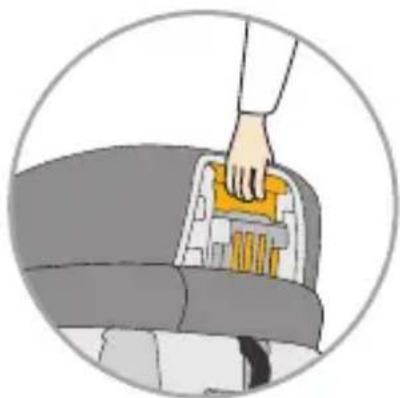

Adjusting the headrest

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.
• Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
• Release the lever and ensure that the headrest is engaged.

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

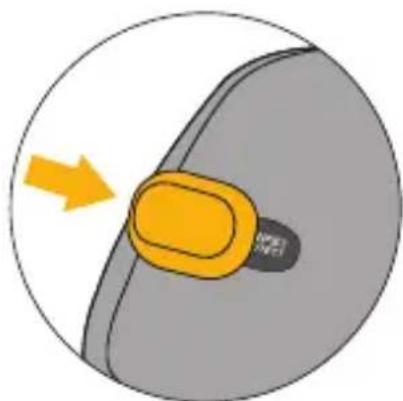

Side impact protector

• The side impact protector is inserted from the front to the rear of the child car seat on the side located on the car door.
• If the child car seat is located in the centre seat on the rear bench, e.g. because three child car seats are to be installed next to each other, the separate side impact protector can be dispensed with.
• To remove the side impact protector again, lift the release lever on the rear side of the protector and pull the protector forwards again.

Diagram showing a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

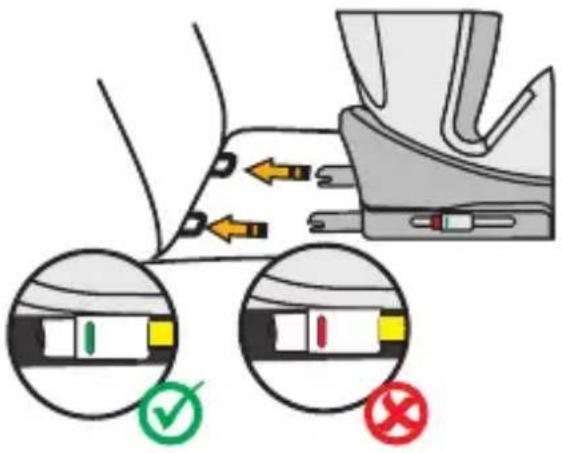

Isofi x connectors

• Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.
• Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.
• Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.

Diagram showing seatbelting process with checkmark and nocheckmark indicators

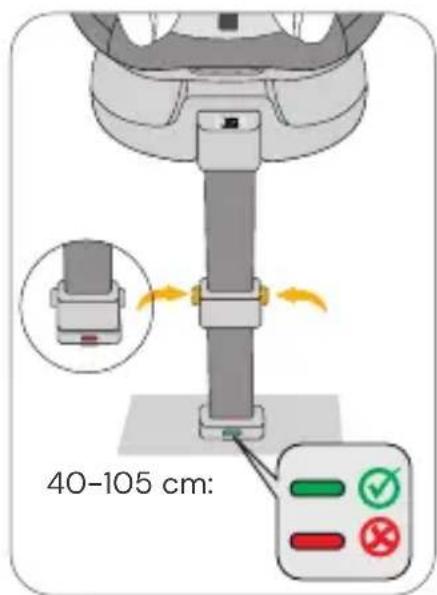

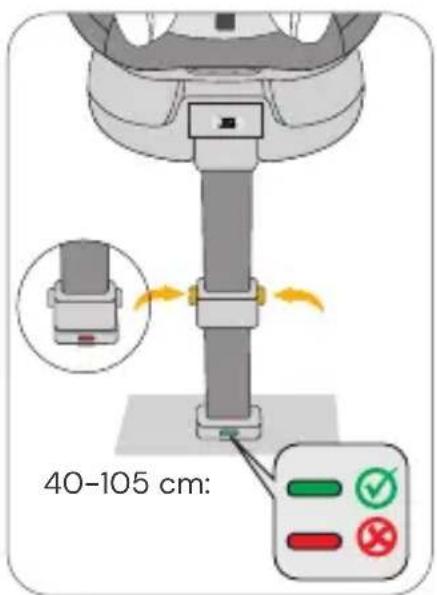

Support leg for size class 40–105 cm

• Fold out the support leg underneath the child car seat. For children under 105 cm in height, the child car seat may only be used with the Isofi x support leg folded out together with the Isofi x connectors.
• Press the buttons on the side to adjust the height of the support leg and extend the telescopic support leg. Make sure that this is fully in contact with the footwell of your vehicle.
• Ensure that the indicator on the support leg is showing green.

Illustration of a car seatbelt with a yellow belt and arrow indicating motion (no text or symbols)

40-105 cm:

CLEANING

To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30 °C, gentle cycle

DO NOT iron

DO NOT bleach

DO NOT dry-clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of reach of children.

In case of any issues, please contact

Osann customer service on [phone].

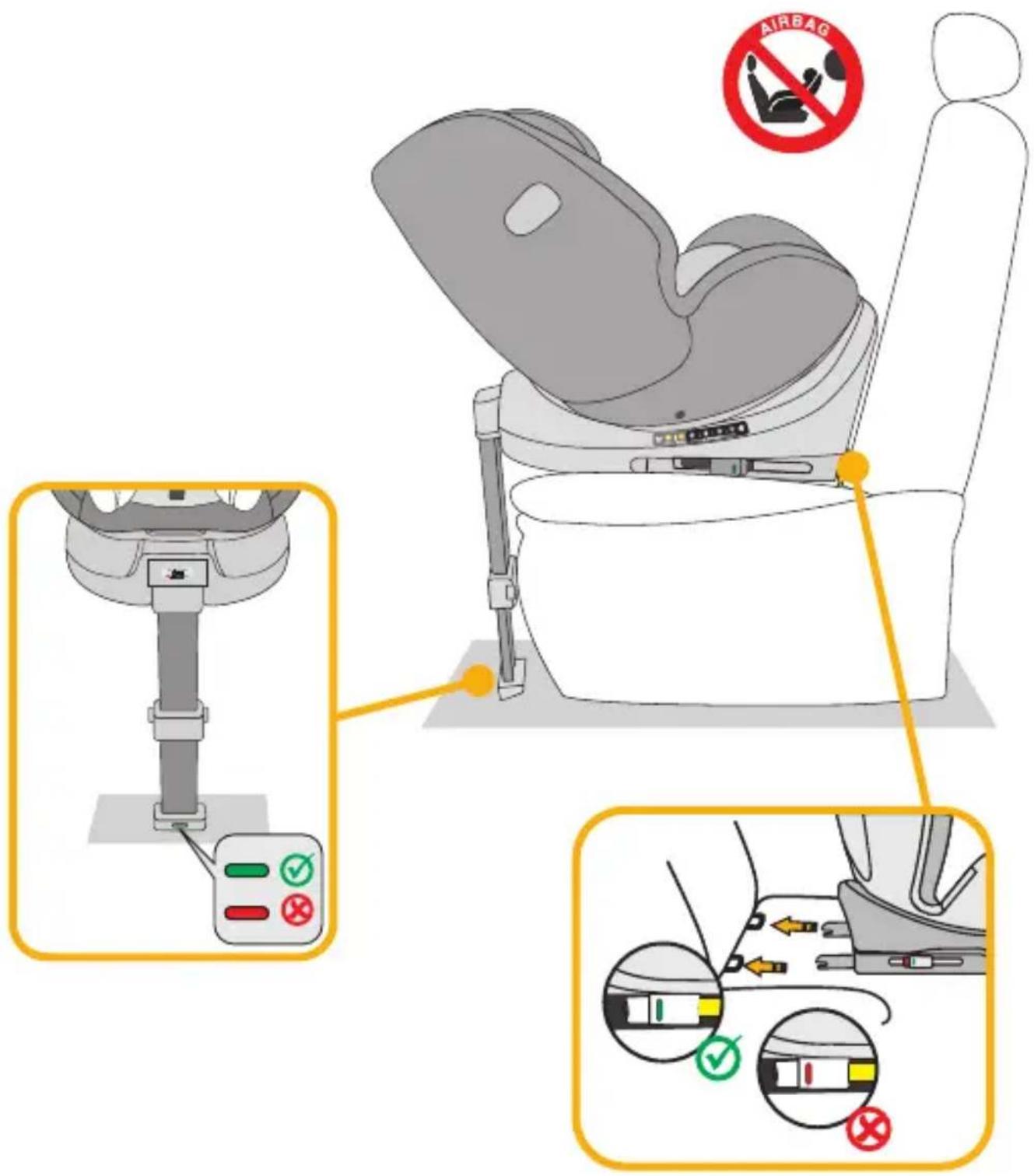

INSTALLATION OF THE CHILD CAR SEAT

1) Height range 40–105 cm, max. 18 kg, rear-facing

AIRBAG

1. Adjust the child car seat to the maximum reclining position and turn it so that it points to the R1 - 40-75 cm seating position in rear-facing orientation. If your child's height exceeds 75 cm, please change to the seat position R2 - 76-105 cm.
2. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
3. Fold out the support leg underneath the child car seat.
4. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
5. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
6. Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.
7. Ensure that the indicator on the support leg is switched to green.
8. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
9. Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
10. Put your child in the child car seat.
11. Adjust the height of the headrest as described above.
12. Fasten the belt buckle again until you hear a click.
13. Pull the front adjustment strap to tighten the belts.
14. Ensure that the straps are not twisted.
15. Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.
16. Fit the side impact protector as described above.

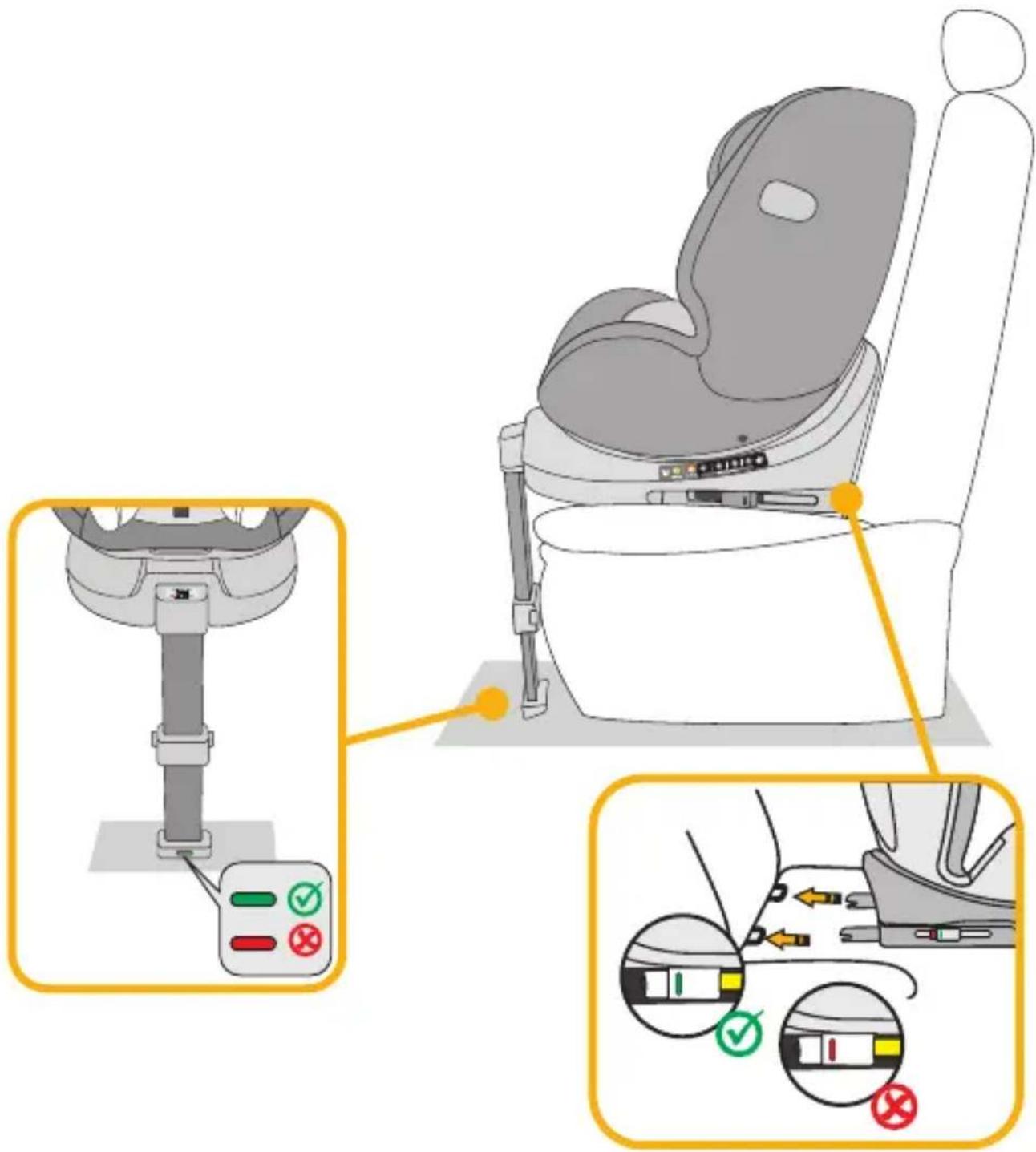

INSTALLATION OF THE CHILD CAR SEAT

2) Height range 76–105 cm, at least 15 months of age, max. 18 kg, forward-facing

IMPORTANT: DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

1. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
2. Fold out the support leg underneath the child car seat.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
5. Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.
6. Ensure that the indicator on the support leg is showing green.
7. The child car seat has four adjustable seat positions in the direction of travel.
8. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
9. Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
10. Put your child in the child car seat.
11. Adjust the height of the headrest as described above.
12. Fasten the belt buckle again until you hear a click.
13. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
14. Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.
15. Fit the side impact protector as described above.

Diagram of a car interior layout with numbered zones and checkmarks indicating locations or status indicators.

1 & 2 :

Illustration of a child wearing a car seatbelt, no text or symbols present

Illustration of a child in a car seatbelt with orange arrows indicating rotation or motion (no text or symbols)

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating movement (no text or symbols present)

Simple line drawing of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a child wearing a vest and holding hands (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram of a yellow USB flash drive on a gray circular component, with an arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Connecteurs Isofi x

Diagram showing seatbelt buckle adjustment with checkmark and no change symbols indicating status

Illustration of a device with a yellow tag and handle, no text or symbols present

40-105 cm :

NETTOYAGE

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered positions and checkmarks indicating status or options, possibly for inspection or testing purposes.

1. e 2.:

Illustration of a baby car seat with seatbelt and belt, no text or symbols present

Illustration of a child in a car seat with yellow motion arrows indicating rotation (no text or symbols)

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating movement (no text or symbols present)

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a child wearing a vest and holding hands (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram of a car seat with a yellow belt and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

IT

Connettori Isofi x

Diagram showing seatbelting process with checkmark and cross symbols indicating status or failure

Illustration of a computer mouse with a yellow scroll wheel (no text or symbols)

40-105 cm:

PULIZIA

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered compartments and checkmarks indicating status or options, marked with question marks.

1 en 2:

Illustration of a child in a car seatbelt with a belt, showing seatbelt and seat (no text or symbols)

Illustration of a child in a car seatbelt with yellow motion arrows indicating rotation (no text or symbols)

Gordel instellen

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating force (no text or symbols present)

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a child wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram of a car seat with a yellow belt and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Isofi x-connectoren

Diagram showing seatbelting process with checkmark and no crossing symbols indicating status

Illustration of a device with a yellow tool inserted into a gray device (no text or symbols)

40-105 cm:

REINIGING

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered positions and checkmarks indicating status or options, possibly for inspection or testing purposes.

1. y 2.:

Illustration of a child wearing a car seat with a belt, no text or symbols present

Illustration of a child in a car seat with orange arrows indicating rotation or motion (no text or symbols)

Ajustar el cinturón

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating force (no text or symbols present)

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Protector contra impactos laterales

Diagram of a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Conectores Isofi x

Diagram showing seatbelting process with checkmark and cross icons indicating status or failure

Illustration of a car seatbelt with a yellow belt and arrow indicating motion (no text or symbols)

40-105 cm:

LIMPIEZA

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered zones and checkmarks indicating status or options, including question marks and red/green checkmarks.

1. a 2.:

Illustration of a baby car seat with seatbelt and belt, no text or symbols present

Illustration of a child in a car seat with orange motion arrows indicating rotation (no text or symbols)

Nastavení pásu

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating movement (no text or symbols present)

Simple line drawing of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram showing a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Konektory Isofi x

Diagram showing seatbelt buckle adjustment with checkmark and no change symbols indicating status

Illustration of a device with a yellow tag and handle, no text or symbols present

40-105 cm:

ČIŠTĚNÍ

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered positions and checkmarks indicating status or failure points

1. & 2.:

Illustration of a baby car seat with a hand adjusting the seatbelt, no text or symbols present

Illustration of a child in a car seat with yellow motion arrows indicating rotation (no text or symbols)

Regulacja pasa

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating force (no text or symbols present)

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

Regulacja zagłówka

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest and hands (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram of a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Łączniki Isofi x

Diagram showing seatbelting process with checkmark and no crossing symbols indicating status

Illustration of a car seatbelt with a yellow belt and arrow indicating motion (no text or symbols)

40-105 cm:

CZYSZCZENIE

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered positions and checkmarks indicating status or failure points

1. a 2.:

Illustration of a baby car seat with a hand adjusting the seatbelt, no text or symbols present

Illustration of a child in a car seatbelt seat with yellow motion arrows indicating rotation (no text or symbols)

Nastavenie pásu

• Ak chcete pás uvol'nit, stlačte jednou rukou tlačídlo prestavenia pásu v sedacej časti. Druhou rukou držte zámok pásu a opatrne uvol'ni-te pripevnené pásy.
• Zatiahnite za prednú nastavovaciu sponu, aby ste pásy napli. Dbajte na to, aby sa remene nepretočili.

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating movement (no text or symbols present)

Rozopnutie/zapnutie pásu

Line drawing of two abstract anatomical or mechanical shapes with no text or symbols

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram showing a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Konektory Isofi x

Diagram showing seatbelt buckle adjustment with checkmark and no change symbols indicating status

Illustration of a device with a yellow tag and handle, no text or symbols present

40 - 105 cm:

ČISTENIE

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered positions and checkmarks indicating status or options, including question marks ?1 and ?2.

1. i 2.:

40 – 105 cm: Samo ako su Isofix konektori dostupni. Ugradnja prema natrag dozvoljena je samo ako se zračni jastuk može deaktivirati.

Illustration of a baby car seat with a belt and seatbelt, no text or symbols present

Illustration of a child in a car seat with a yellow motion arrow indicating rotation (no text or symbols)

Namještanje pojasa

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating force (no text or symbols present)

Otvaranje/zatvaranje pojasa

• Za otvaranje pojasa pritisnite gumb na kopči pojasa, izvucite jezičce kopče i odvojite ih.
• Za zatvaranje pojasa najprije spojite dva jezičca kopče i zajedno ih umetnite u kopču pojasa.

Click

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram of a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Isofi x konektori

Diagram showing seatbelt buckle adjustment with checkmark and no change symbols indicating status

Stalak za razred veličine 40 – 105 cm

Illustration of a device with a yellow tag and handle, no text or symbols present

40 - 105 cm:

ČIŠĆENJE

Kako biste osigurali dugačak vijek trajanja dječje autosjedalice, nemojte je čistiti sredstvima koja sadrže otapala, abrazivnim ni agresivnim sredstvima za čišćenje. Nakon svakog pranja provjerite postojanost tkanine i šavova. Pri pranju tkanine pažljivo slijedite upute na etiketi (pogledajte u nastavku).

Prati na 30 °C, nježan ciklus pranja

NE glačati

NE izbjeljivati

NE čistiti kemijski

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car with numbered positions and checkmarks indicating status or failure points

1. in 2.:

Illustration of a baby car seat with a belt and seatbelt, no text or symbols present

Illustration of a child in a car seatbelt with orange arrows indicating rotation or motion (no text or symbols)

Nastavitev pasu

Illustration of a child in a car seat being adjusted for seatbelt, showing two scenarios with arrows indicating movement (no text or symbols present)

Odpenjanje/pripenjanje pasu

Simple line drawings of a top and bottom views of a stylized animal head (no text or symbols)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt and scarf (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram showing a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Priključki Isofi x

Diagram showing seatbelt buckle adjustment with checkmark and no change symbols indicating status

Illustration of a device with a yellow tool inserted, showing a circular component and a handle (no text or symbols)

40-105 cm:

ČIŠČENJE

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.

Diagram of a car interior layout with numbered compartments and checkmarks indicating status or options

1. és 2.:

Illustration of a child wearing a car seat with a belt, no text or symbols present

Illustration of a child in a car seat with seatbelt and belt, showing motion arrows (no text or symbols)

Az öv beállítása

Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)

Line drawing of two abstract anatomical or mechanical structures with no text or symbols

Illustration of a hand placing a yellow object into a gray car seat cover (no text or symbols)

Simple line drawing of a person wearing a vest (no text or symbols)

×

Simple line drawing of a person wearing a V-neck shirt and scarf (no text or symbols)

×

Simple line drawing of a person wearing a sling (no text or symbols)

√

Diagram of a yellow object on a gray circular surface with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Isofi x-csatlakozók

Diagram showing seatbelting process with checkmark and no crossing symbols indicating status

Illustration of a device with a yellow tag and handle, no text or symbols present

40-105 cm:

TISZTÍTÁS

Diagram illustrating car seatbelt usage, showing step-by-step instructions for adjusting seatbelt controls.
