USER MANUAL DO741K DOMO

Modern black and white coffee machine with digital display and a white mug, no visible text or symbols on the device itself.

NL Handleiding Volautomatische espressomachine

EN Instruction booklet Fully automatic espresso machine

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Exploded view diagram of a device with numbered parts and close-ups of internal components

BEDIENINGSPANEEEL

x2 88888 °C S ml g - + x2

Hand placing a red button on a black industrial machine cover (no text or symbols visible)

Two-panel image showing a hand inserting a plastic bag into a black container, and a transparent container with liquid and bubbles (no text or symbols visible)

Hand pouring coffee beans into a black appliance with a lid (no text or symbols visible)

Close-up of a black plastic electronic component with a red indicator knob on its surface (no text or symbols visible)

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

BEREID EEN ESPRESSO

6. PRODUCTINFORMATIE

Close-up of a mechanical component with a circular dial and directional arrows, no visible text or symbols

Three-panel image showing hands operating a sewing machine, with one panel highlighting a black component and the other holding a black sewing machine (no visible text or symbols)

Close-up of a hand inserting a small electronic component into a kitchen appliance (no visible text or symbols)

Hand holding a syringe with liquid in a kitchen sink (no visible text or symbols)

INDICATIELAMPJES EN WAARSCHUWINGEN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Exploded view diagram of a device with numbered parts and close-ups of internal components

PANNEAU DE COMMANDE

x2 88888 °C S ml 9 - + x2

Hand inserting a red button into a black industrial machine (no text or symbols visible)

Two views of a transparent container with liquid and a hand inserting a component, no visible text or symbols.

Hand pouring coffee beans into a white bowl on a black stove (no text or symbols visible)

Close-up of a black electronic device with ventilation slots and a red indicator light (no visible text or symbols)

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

PRÉPARER UN EXPRESSO

6. INFORMATIONS SUR LE PRODUIT

Close-up of a mechanical component with a circular dial and directional arrows, no visible text or symbols

Close-up of a hand pressing down on a computer keyboard, with a pink arrow pointing to a button (no text or symbols visible)

Hand placing a black internal component into a black computer case (no text or symbols visible)

Close-up of a mechanical device with a hand operating it, no visible text or symbols

Close-up of a hand inserting a small metallic object into a kitchen appliance (no visible text or symbols)

Close-up of a hand using a pipette to clean or wash water from a sink (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Exploded view diagram of a device with numbered parts and close-ups of internal components

BEDIENFELD

x2 88888 °C S ml g - + x2

Hand inserting a red button into a black industrial machine (no text or symbols visible)

Two views of a transparent container with liquid and a hand inserting a component, no visible text or symbols.

Hand pouring coffee beans into a kitchen appliance (no text or symbols visible)

Close-up of a black plastic electronic device with ventilation grilles and a red indicator knob (no text or symbols visible)

Two white ceramic mugs on a black tray with ventilation slots (no text or symbols visible)

6. INFORMATIONEN ZUM PRODUKT

Close-up of a mechanical component with a circular dial and directional arrows, no visible text or symbols

Close-up of a hand pressing down on a computer tower panel (no visible text or symbols)

Hand placing a black internal component into a black computer case (no text or symbols visible)

Close-up of a hand operating a black mechanical device on a white workbench (no visible text or symbols)

Close-up of a mechanical component with a pink arrow pointing to a small component (no visible text or symbols)

Close-up of a hand interacting with a metallic device, featuring a black and silver tool and a white cylindrical component (no visible text or symbols)

Close-up of a hand holding a metal tool in a kitchen sink, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

CAUTION: the appliance is likely to get warm during use. Keep the power cord away from hot parts and don't cover the appliance.

Do not touch the hot parts of the appliance and avoid contact with hot liquids and steam coming from the appliance, to prevent burns. Never point the steam nozzle at yourself or others.

• Never move or tilt the appliance when in use or still hot. Turn the appliance off, unplug it and always allow it to cool down before moving it.
• Make sure the water filter and drip tray are empty before moving the appliance.
• Do not open the side panel or coffee bean hopper when the appliance is in use. Do not remove the water tank from the appliance when in use.
• Do not spill any liquid on the power cord.
  • Always use cold water, or water at room temperature, to fill the water tank. Never use hot water or liquids other than water!
• Do not exceed the MAX indicator when filling the water tank.
• Empty the water tank and drip tray if the appliance is not used for an extended time.
• Never use the appliance without a drip tray.

- Use the grinder to grind natural coffee beans only. Never add ground coffee, instant coffee, caramelised or frozen coffee beans, or other ingredients to the coffee bean hopper.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

PARTS

1. Water reservoir
2. Coffee bean hopper lid
3. Coffee bean hopper
4. Grind settings dial
5. Cup warmer
6. Control panel
7. Coffee spout
8. Drip tray grate

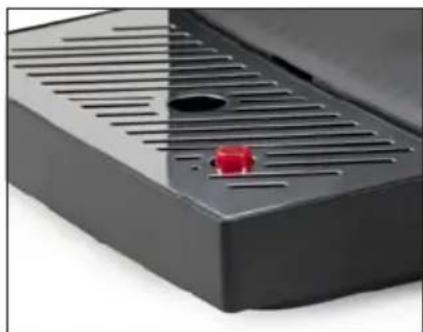

9. Overflow indicator
10. Drip tray
11. On/off button
12. Coffee grounds collection tray
13. Steam nozzle
14. Brewing unit
15. Side panel
16. Cleaning brushes: 1 fine and 1 coarse
17. Set of spare sealing rings

9. Overflow indicator 1 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17

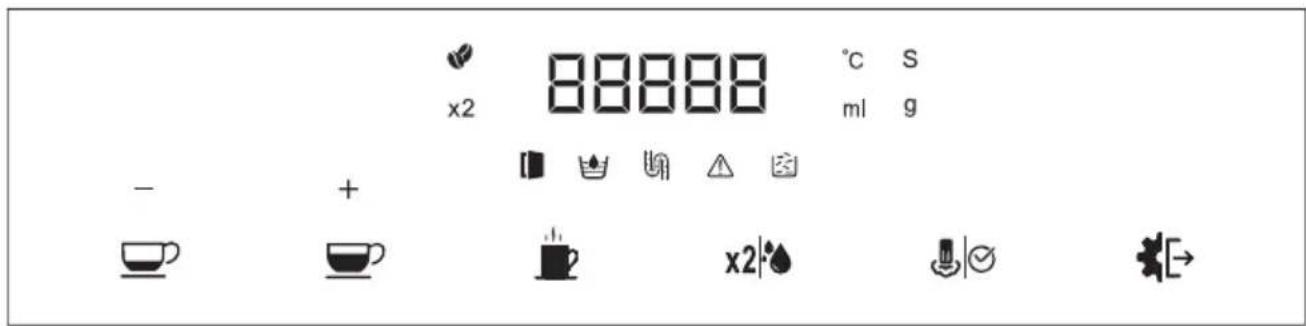

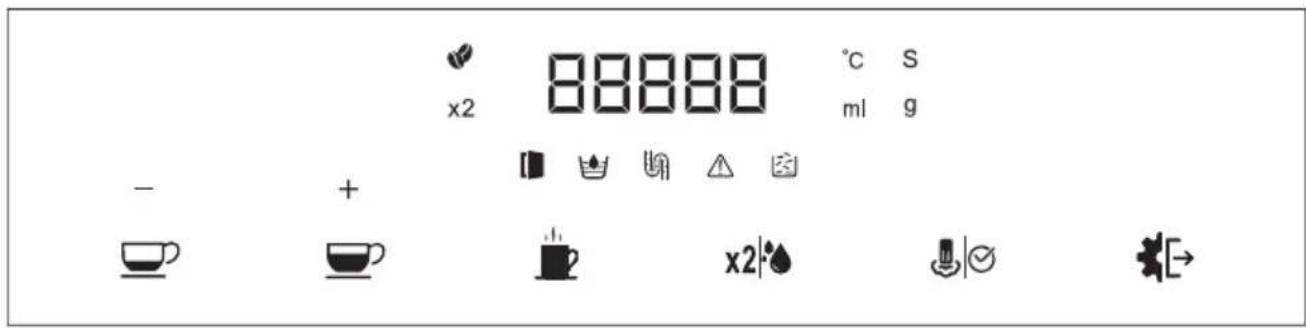

CONTROL PANEL

x2 88888 °C S ml g - + x2

Touch button Description
	Espresso (small, strong coffee)
	Lungo (large espresso, milder coffee)or Americano (espresso diluted with extra water)
	Hot water
	2 cups | Rinse
	Steam | Confirm
	Settings | Exit

Indicator light Issue
[8440]	The coffee bean hopper is empty
	2 cups are prepared in succession

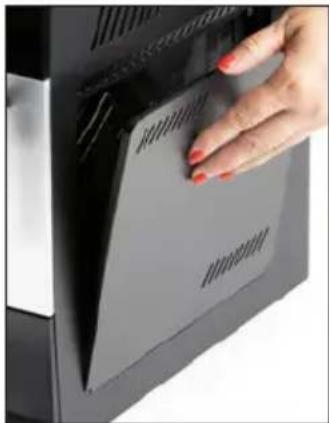

	The side panel is open
[W60D]	The water tank is empty or not inserted (correctly)
[T7A0]	Constant: appliance requires descalingFlashing: descaling in progress

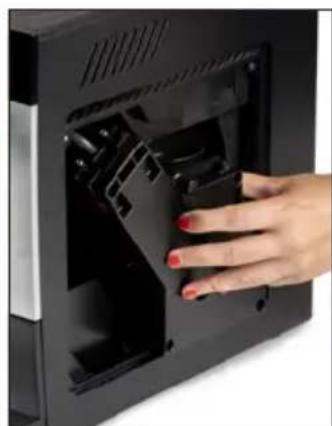

	The brewing unit is not inserted (correctly)
[T505]	The coffee grounds collection tray is full or the coffee grounds collection tray or drip tray are not inserted (correctly)

BEFORE THE FIRST USE

1. Remove all packaging materials and any promotional stickers.
2. Place the appliance on a flat, stable surface. Provide adequate space around the appliance for ventilation.

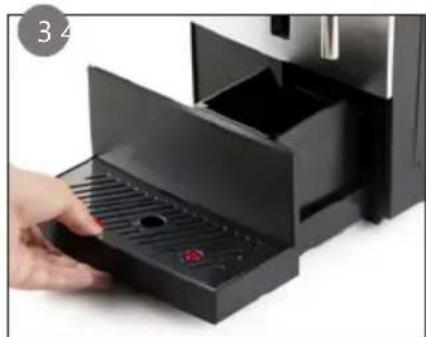

3. Insert the drip tray and coffee grounds collection tray. Make sure these are positioned correctly.

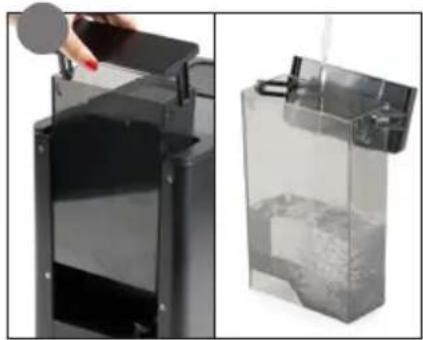

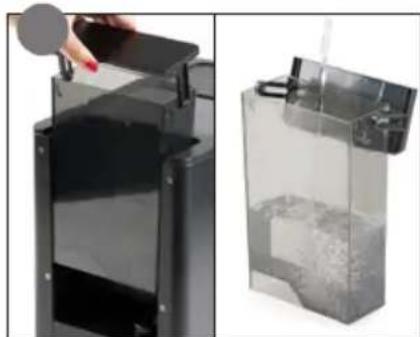

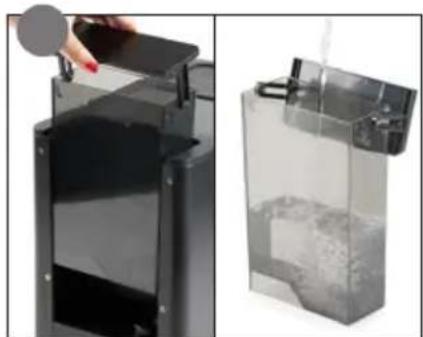

4. Remove and clean the water tank. Fill with clean water and place in the espresso machine.
   ⚠️ Never exceed the MAX indicator on the water tank.

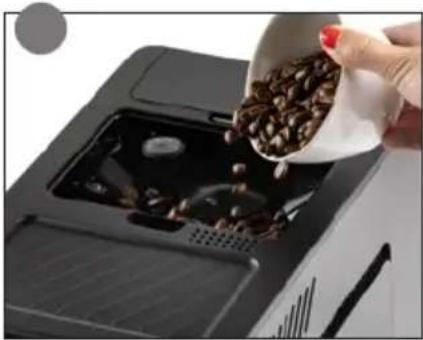

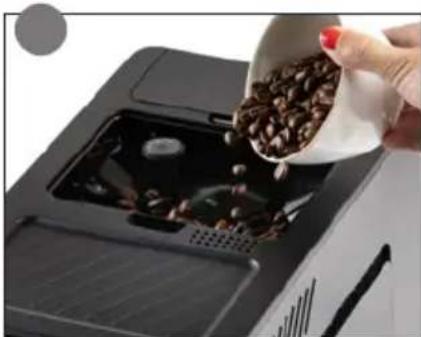

5. Fill the coffee bean hopper.

Hand placing a red button into a black industrial machine (no visible text or symbols)

Two views of a transparent container with liquid and a hand holding a lid, showing internal components (no text or symbols visible)

Hand pouring coffee beans into a black oven on a stovetop (no text or symbols visible)

1. Plug the plug into an electrical socket.

2. Place a cup or container under the coffee spout and press the on/off button to turn the appliance on. The appliance will automatically heat up and rinse. The display will show 'ON'. The appliance is now in standby mode and ready for use.

3. Perform the rinse function one more time before first use. Press and hold the rinse button x2 ^1 for 3 seconds to start the rinse function of the espresso machine. Discard the water dispensed by the coffee machine.

4. To turn off the appliance, press and hold the on/off button for 3 seconds.

USE

- Press the on/off button to turn the appliance on. The appliance will automatically heat up and rinse. The display will show 'ON'. The appliance is now in standby mode and ready for use. ⚠ When the appliance is rinsing, the rinse water will be collected in the drip tray. Empty and clean this tray regularly. When the overflow rises, it means the drip tray is almost full and needs to be emptied.

Close-up of a black rectangular electronic component with a red indicator light on its surface (no text or symbols visible)

- Choose the desired preparation.

Tip

To achieve the optimal coffee temperature, we recommend that you prewarm your cup using the cup warmer on top of the appliance. You can also store your cups here, so you always have a warmed cup ready to use.

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

PREPARING AN ESPRESSO

1. Adjust the height of the coffee spout and place a cup under the spout.

2. Press the espresso button. The appliance will now brew an espresso according to the saved settings (the default setting is 7 g coffee with 40 ml water).

The quantities of ground coffee and water can still be adjusted as the coffee is being prepared. Press + or - during grinding to adjust the quantity of ground coffee (the display shows the current settings for the amount of coffee in 'g'). Press + or - during coffee preparation to adjust the coffee volume (the display shows the current settings for the quantity of water in 'ml').

The stop coffee preparation early, press the ➕ button.

PREPARING A LUNGO OR AMERICANO

This function uses 2 steps to prepare the coffee: first, the coffee is brewed, then hot water is added. You can adjust the volume of water used in both steps in the settings.

Preparing a lungo

The default setting for this button is lungo; the coffee is brewed during the first step (default setting: 7 g coffee and 120 ml water), no extra water is added during the second step.

Preparing an americano

To prepare an americano, first go to the settings to adjust the quantity of extra hot water you want to add during the second step (see 'Settings and configuration').

1. Adjust the height of the coffee spout and place a cup under the spout.

2. Press the lungo/americano button. The appliance will now brew an americano according to the saved settings.

⚠ The quantities of ground coffee and water can still be adjusted as the coffee is being prepared:

- Press + or - during grinding to adjust the quantity of ground coffee (the display shows the current settings for the amount of coffee in 'g').

- Press + or - during step 1 to adjust the quantity of brewed coffee (the display will show '1' and the current settings for the quantity of water in 'ml').

- Press + or - during step 2 to adjust the quantity of extra hot water (the display will show '2' and the current settings for the quantity of water in 'ml').

The stop coffee preparation early, press the ➕ button.

DUAL PREPARATION

Press the xButton to brew two cups of coffee in succession. This can be done both prior to brewing the coffee and while the coffee is brewing. The icon xWill light up on the display. While this is lit, the appliance will always brew 2x the selected preparation. Press the x2Button again to turn off this function.

FROTHING THE MILK

1. Add the desired amount of milk to a jug and insert the steam nozzle into the milk.

2. Press the button to activate the steamer. The display will show a countdown timer to indicate the warm-up time. As soon as this is finished, steaming will begin.

⚠️ If the appliance is still sufficiently heated up from previous use, the warm-up time will be shorter or even unnecessary. This means the appliance could start steaming immediately! As such, please make sure to always insert the steam nozzle into the milk before pressing the steam button.

1. The standard steam time is 45 seconds. If the milk is frothed to your preference sooner, press the button to stop steaming the milk.

⚠️ If you wish to make the steam time longer or shorter, turn on the steam function and press + or - during steaming, The appliance will save the set time as the new default setting.

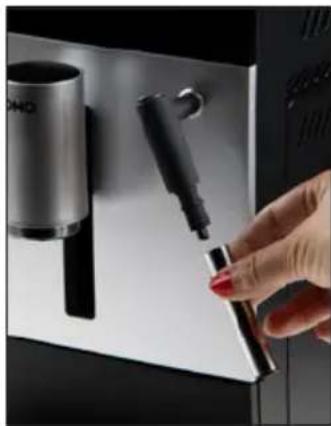

1. Clean the steam nozzle after each use: insert the nozzle into a jug of clean water and follow the same procedure as for frothing milk. Then wipe the nozzle using a clean cloth to prevent milk from sticking to it and to stop the nozzle from becoming blocked. Alternatively, remove the nozzle and rinse under running water.

PREPARING HOT WATER

1. Adjust the height of the coffee spout and place a cup under the spout.

2. Press the hot water button.

3. The appliance will dispense 200 ml of hot water. If you need less water, press the 📄Gotton to stop the flow as soon as you have the desired amount of water. If you need more water, press the hot water button again and then the 📋E→ button as soon as the desired amount of water is obtained.

RINSING

1. Adjust the height of the coffee spout and place a container under the spout.

2. Press and hold the button for 3 seconds to start the rinse function of the espresso machine.

SETTINGS AND CONFIGURATION

In standby mode, press and hold the button for 3 seconds to open the settings interface. After each step, press the button again to move to the next step in the settings interface. To return to standby mode, press the button multiple times to quickly move through all the steps. The appliance will automatically return to its standby mode after 15 seconds of inactivity in the settings interface.

1. SETTINGS FOR COFFEE PREPARATION

When you are in the settings interface, the pictograms for espresso and lungo/americano will flash.

Espresso

- Press the espresso button 📐

- Adjust the quantity of ground coffee (indicated in 'g' on the display). Press + or - to increase or decrease the quantity.

- Then press the ⚙→ button to set the coffee volume (this is shown in 'ml' on the display). Press + or - to increase or decrease the coffee volume.

- Now press the button to move to the next step.

Lungo/americano

- Press the lungo/americano button 📐.

- Adjust the quantity of ground coffee (indicated in 'g' on the display). Press + or - to increase or decrease the quantity.

- Then press the ⚙→ button to set the quantity of brewed coffee (step 1: the display will show '1' and the volume in 'ml'). Press + or - to increase or decrease the coffee volume.

- Then press the button to set the quantity of extra hot water (step 2: the display will show '2' and the volume in 'ml'). Press + or - to increase or decrease the water volume. For a lungo, select '0' here, and for an americano, select the quantity of extra hot water here.

- Now press the button to move to the next step.

2. TEMPERATURE SETTING

The default temperature for the dispensed water is 90 °C . Press + or - to adjust this temperature (between 75 °C and 95 °C ).

Now press the button to move to the next step.

3. AUTOMATIC SWITCH -OFF SETTING

• The display will show the letter A (for automatic) and the set time in minutes. The appliance will switch itself off if it hasn't been used during this set time.
• Press + or - to set the desired time. This period can be from 10 to 30 minutes, in 5-minute increments. The default automatic switch-off for this device is set at 20 minutes.
• Now press the button to move to the next step.

4. START -UP SETTINGS

The display will show "init". This setting allows you to return to the factory default settings.

- If this is what you want, press the confirmation key (OK) to do so. The appliance will erase all settings and reset to factory defaults. The appliance will then return to standby mode.

If you do NOT wish to return to factory default setting, briefly press the MENU button to move to the next step.

5. DESCALING

The Union will light up when the appliance needs to be descaled. Please use a descaler that is suitable for espresso machines.

1. Dissolve the descaler in water. To do this, follow the instructions on the packaging of the descaler.

2. Pour the descaling product into the empty water tank and add clean water until the tank is full up to the MAX indicator.

3. Insert the water tank into the appliance and place a container of at least 1100 ml under the coffee spout.

4. In standby mode, press and hold the button for 3 seconds to open the settings interface, and then press the button 4 times until the icon lights up.

5. Press the confirm button ⚠️ to start the descaling function.

6. Once the water tank is empty, rinse it, fill it again with clean water and insert the tank back into the appliance. Repeat this step until the appliance stops dispensing water and the descaling process is finished. The icon will turn off and the appliance will return to standby mode.

6. PRODUCT INFORMATION

This step in the settings interface shows the production date of the appliance on the display.

ADJUSTING THE GRIND SETTINGS

The grind settings can be adjusted using the dial on the coffee bean hopper.

Close-up of a mechanical gear mechanism with directional arrows indicating rotation (no text or symbols)

Do this only when the grinder is turning; otherwise, the grinder may get damaged.

The default setting on the dial is the coarsest setting. We recommend that you do not change this setting for the first 100 cups.

- If the coffee is dispensed too slowly during brewing (powder is too fine), turn the grind dial clockwise until the grind setting is coarser.

- If the coffee is dispensed to quickly and looks too diluted (coffee powder is too coarse), turn the grind dial counterclockwise until the grind setting is less coarse.

Tips

- Only adjust the grind settings if the coffee tastes too bitter or too sour, and all other settings (quantity of ground coffee, water volume, and water temperature) have been tested. If the appliance dispenses a nice steady stream and the flavour is balanced, no adjustment is needed.

- A coarser grind means more sour flavours. Using a finer grind produces more bitter flavours.

- Do not overfill the coffee bean hopper and don't leave the coffee beans in the hopper for too long, so they don't take on too much moisture and lose their freshness (especially on humid days). Moisture affects the grinding, brewing, and flavour of the coffee.

- If the coffee beans are wet, empty the hopper, dry it using a soft cloth and fill with fresh coffee beans for a better flavour. Set the grind settings to maximum first and try to grind the coffee beans. If the coffee machine is working correctly, return the dial to its original setting.

- If the coffee beans are not ground properly, the coffee beans may be too wet, or there may be too much coffee bean oil in the grinder. If the latter is the case, add grind cleaner to the coffee bean hopper and follow the instructions on the packaging of the coffee grinder cleaner.

CLEANING AND MAINTENANCE

It is recommended that steps 1-6 are carried out daily. Daily maintenance is important to extend the life of the espresso machine and achieve better results.

1. Turn the appliance off and remove the plug from the socket.
2. Remove the drip tray. Empty the coffee grounds collection tray. Using clean water, clean the drip tray, the grate, the tray. Dry thoroughly.

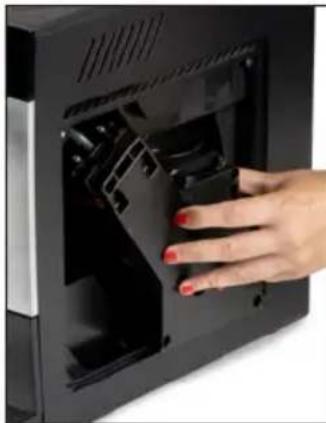

3. Open the side panel. Remove the brewing unit by pressing the button on the side of the brewing unit and pulling the brewing unit towards you. Rinse the brewing unit thoroughly under running water and dry.

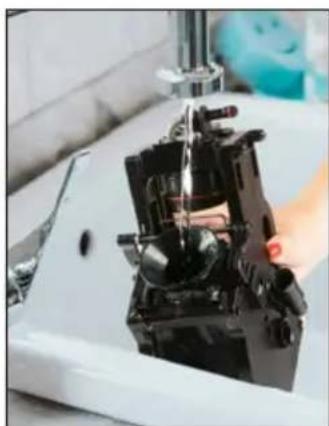

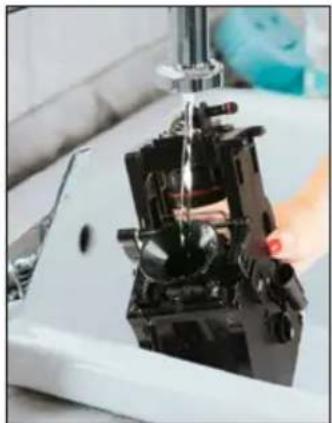

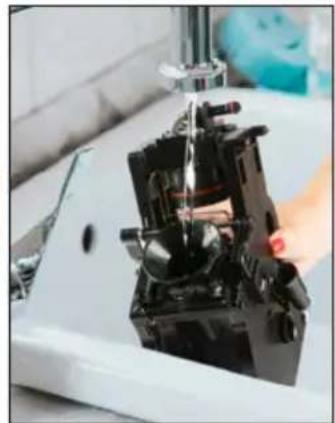

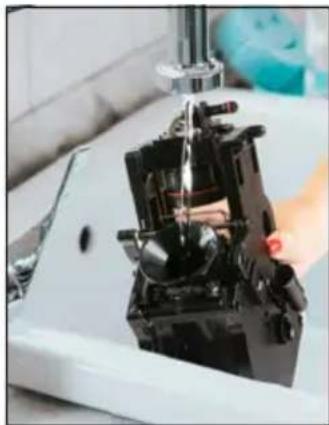

⚠️ Never clean the brewing unit in the dishwasher!

Close-up of a hand pressing down on a black computer tower panel (no visible text or symbols)

Hand inserting a device into a black computer case (no text or symbols visible)

Close-up of a sewing machine with black components and a red handle, no visible text or symbols

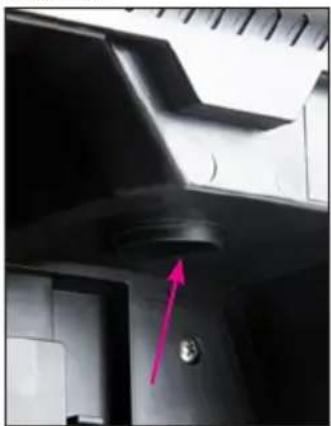

1. Use the cleaning brush to remove coffee residue in and around the internal ground coffee channel.

Close-up of a mechanical component with a pink arrow pointing to a small feature (no visible text or symbols)

1. Clean the outside and the inside of the housing and the control panel using a soft, damp cloth.

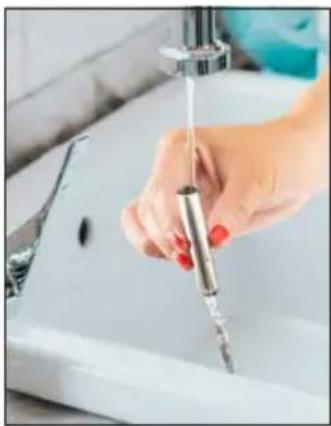

2. Clean the steam nozzle after every use as described earlier in this manual. Remove the nozzle daily and rinse thoroughly under running water.

Close-up of a hand holding a small metallic object next to a silver beverage can (no visible text or symbols)

Close-up of a hand using a pipette to clean water from a sink (no text or symbols visible)

1. Rinse the water tank under running water every 3 days.

2. Clean the coffee bean hopper weekly. Remove the leftover coffee beans from the hopper (or clean when the hopper is empty) and wipe clean using a soft cloth.

⚠️ If you experience problems when grinding coffee beans, thorough cleaning of the grinder may be required. To do this, use a coffee machine grinder cleaner and follow the instructions on the packaging.

1. Place all parts back in their original position. If a part is not (properly) installed, the appliance will indicate this on the display (see 'Indicator lights and warnings').

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

INDICATOR LIGHTS AND WARNINGS

Indicator light/Warning	Meaning Solution
	The coffee bean hopper is empty. Fill the hopper with beans.
x2	Two cups are prepared in succession.
	The side panel is open. Close the side panel.
	The water tank is empty or not inserted (correctly).	Fill the tank with water up to the MAX indicator and make sure it is inserted in the appliance correctly.
	Constant: appliance requires descaling.	Start the descaling function as explained in this manual.
	Flashing: descaling is in progress.
	The brewing unit is not inserted (correctly).	Insert the brewing unit into the appliance correctly. You should hear a clicking sound when inserting the brewing group. The absence of this sound means the brewing unit has not been inserted correctly.
	The coffee grounds collection tray is full or the coffee grounds collection tray or drip tray are not inserted (correctly).	Empty the coffee grounds collection tray (after every 8 cups, if the appliance gives a warning, or if the appliance is not used for an extended time) and insert the tray and the drip tray in the appliance correctly.
	There is not enough water in the internal hose of the appliance.	Make sure the water tank is filled and correctly inserted. Press the ➕ button to restart the pump and expel the accumulated air so that the water can flow through the hose again.

PROBLEMS AND SOLUTIONS

PROBLEM SOLUTION
The appliance does not turn on when the on/off button is pushed.	· Check the plug is placed in the socket.· Check the appliance is connected to a working wall socket.
The display shows a dotted rectangle. · Make sure	· Use the water tank is filled and correctly inserted. Press the button to restart the pump and expel the accumulated air so that the water can flow through the hose again.· If the appliance does not dispense water and the warning does not disappear from the display, please contact customer service at DOMO or at the point of purchase.
When pressing the control panel buttons, the appliance responds slowly or not at all.	· The appliance is electro-magnetically restricted. Remove the plug from the socket and try again a few minutes later.· The control panel is dirty. Clean the control panel using a soft cloth.
The coffee is too light in colour or too watery. ·	· The grind settings are too coarse. Turn the grind settings to a finer grind while the appliance is grinding.· The coffee beans may be too wet or there may be too much coffee bean oil in the grinder. Replace the coffee beans with dry beans, clean the grinder using a coffee machine grinder cleaner, or contact customer service at DOMO or at the point of purchase.
The appliance grinds and brews, but no coffee comes out of the spout.	Check there is sufficient water in the tank.Check that all parts are correctly inserted.Thoroughly clean all parts.Descale the appliance as described in this manual.Open the side panel and then press and hold the espresso button for 3 seconds to reset the pressure gauge.If none of the solution above resolve the issue, please contact customer service at DOMO or at the point of purchase.
The grinder is not working. • Check there are no	foreign objectsblocking the grinder. Remove these if present.The coffee beans may be too wet or there may be too much coffee bean oil in the grinder. Replace the coffee beans with dry beans or clean the grinder using a coffee machine grinder cleaner.The grinder motor or wiring are faulty. Contact customer service at DOMO or at the point of purchase.
The milk does not froth. • No steam comes out	of the steam nozzle.Clean the nozzle thoroughly and try again.The milk used is not suitable for frothing. Use high-fat milk.
The brewing unit is not working. • Open the side	panel and then press andhold the espresso button for 3 seconds to reset the pressure gauge.If this does not resolve the issue, contact customer service at DOMO or at the point of purchase.
The brewing unit is stuck and cannot be removed from the appliance.	Open the side panel and then press and hold the espresso button for 3 seconds to reset the pressure gauge.If this does not help, close the side panel and switch the device off and then on again using the power button.If this does not resolve the issue, contact customer service at DOMO or at the point of purchase.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

x2 88888 °C S ml g - + x2

Hand placing a red button on a black industrial machine cover (no text or symbols visible)

Two views of a transparent cylindrical container with liquid, one being filled and the other empty (no text or symbols visible)

Hand pouring coffee beans into a black appliance with a lid (no visible text or symbols)

Close-up of a black plastic electronic component with a red indicator knob on its surface (no text or symbols visible)

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

PREPARAR UN ESPRESSO

Close-up of a mechanical component with a circular dial and directional arrows, no visible text or symbols

Close-up of a hand pressing down on a black electronic device with a metallic panel (no visible text or symbols)

Hand placing a black internal component into a black computer case (no text or symbols visible)

Close-up of a sewing machine needle stitching black components, with a hand adjusting the part (no visible text or symbols)

Close-up of a mechanical component with a pink arrow pointing to a circular feature (no visible text or symbols)

Close-up of a hand inserting a small metallic object into a kitchen appliance (no visible text or symbols)

Close-up of a hand using a pipette to clean or wash water from a sink (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Exploded view diagram of a device with numbered parts and close-ups of internal components

PANNELLO DI CONTROLLO

x2 88888 °C S ml g - + x2

Hand placing a red button into a black industrial machine (no visible text or symbols)

Two views of a transparent container with liquid and a hand inserting a circular component (no text or symbols visible)

Hand pouring coffee beans into a kitchen stove (no text or symbols visible)

Close-up of a black plastic electronic component with ventilation slots and a red indicator knob (no text or symbols visible)

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

PREPARARE UN CAFFÈ ESPRESSO

Close-up of a mechanical component with a circular dial and directional arrows, no visible text or symbols

Close-up of a hand pressing down on a black electronic device panel (no visible text or symbols)

Hand placing a black plastic device into a black server case (no text or symbols visible)

Close-up of a black mechanical device with a hand adjusting it, no visible text or symbols

Close-up of a mechanical component with a pink arrow pointing to a circular feature (no visible text or symbols)

Close-up of a hand inserting a small metallic object into a kitchen appliance (no visible text or symbols)

Close-up of a hand washing a white vanity sink with a water dropper (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Exploded view diagram of a device with numbered parts and close-ups of internal components

OVLÁDACÍ PANEL

x2 88888 °C S ml g - + x2

Hand inserting a red button into a black industrial machine (no text or symbols visible)

Two views of a transparent container with liquid and a hand inserting a component (no text or symbols visible)

Hand pouring coffee beans into a black appliance with a lid (no text or symbols visible)

Close-up of a black plastic electronic device with a red indicator knob on its surface (no text or symbols visible)

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

PŘÍPRAVA ESPRESSA

2. NASTAVENÍ TEPLOTY

Close-up of a hand holding a circular mechanical component with directional arrows (no text or symbols visible)

Close-up of a hand pressing down on a black computer tower panel (no visible text or symbols)

Hand inserting a black plastic into a black computer case (no text or symbols visible)

Close-up of a sewing machine with black components and a red handle (no visible text or symbols)

Close-up of a mechanical component with a pink arrow pointing to a small circular feature (no text or symbols visible)

Close-up of a hand holding a small metallic object next to a silver and black beverage cup (no visible text or symbols)

Hand holding a syringe over a kitchen sink (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Exploded view diagram of a device with numbered parts and close-ups of internal components

OVLÁDACÍ PANEL

x2 88888 °C S ml g - + x2

Tlačidlo Popis
	Espresso (malá, silná káva)
	Lungo (vel'ké espresso, jemnejšia káva)alebo Americano (espresso zriedené vodou)
	Horúca voda
	2 šálky | Oplachovat'
	Naparenie | Potvrdit'
	Nastavenia | Zatvorit'

Hand placing a red button on a black industrial machine cover (no visible text or symbols)

Two views of a black plastic container with a hand holding a lid, showing internal components and liquid (no text or symbols visible)

Hand pouring coffee beans into a black appliance with a lid (no text or symbols visible)

Close-up of a black plastic electronic component with a red indicator knob on its surface (no text or symbols visible)

Two white ceramic mugs on a black tray with ventilation grilles (no text or symbols visible)

PRÍPRAVA ESPRESSA

2. NASTAVENIE TEPLOTY

6. INFORMÁCIE O PRODUKTE

Close-up of a mechanical gear mechanism with directional arrows (no text or symbols visible)

Close-up of a hand pressing down on a black office chair cover (no visible text or symbols)

Hand placing a black plastic device into a black case (no text or symbols visible)

Close-up of a hand operating a black mechanical device on a sewing machine (no visible text or symbols)

Close-up of a mechanical component with a pink arrow pointing to a small circular feature (no text or symbols visible)

Close-up of a hand interacting with a small electronic device, possibly a coffee maker or scanner, in a kitchen setting (no visible text or symbols)

Close-up of a hand holding a pipette over a white sink (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
