USER MANUAL Pocket Pro DREAME

High-Speed Hair Dryer

User Manual

EN User Manual 001
DE Benutzerhandbuch 017
FR Manuel d'utilisation 033
IT Manuale dell'utente ....049
ES Manual de usuario 065
NL Gebruikershandleiding 081
PT Manual do utilizador 097
GR Εγχειρίδιο χρήστη ......113
KO 사용 설명서....129

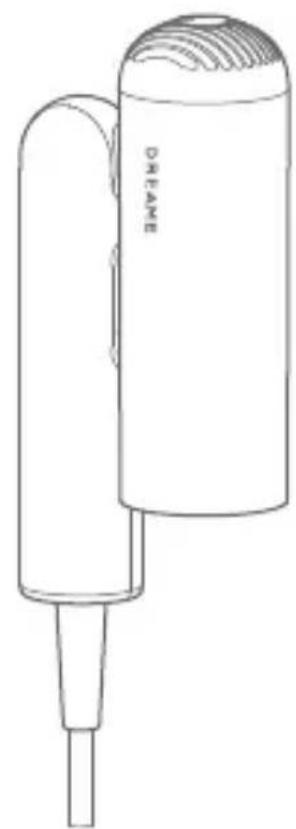

Package Contents

Line drawing of a device with a cylindrical body and a pointed tip, labeled 'DRAXER' (no other text or symbols)

Dreame Pocket High-Speed Hair Dryer

Cross-sectional diagram of a cylindrical mechanical component with internal grooves and fasteners (no text or symbols)

Diffuser Nozzle

Simple line drawing of a handheld device with a circular body and handle (no text or symbols)

Styling Nozzle

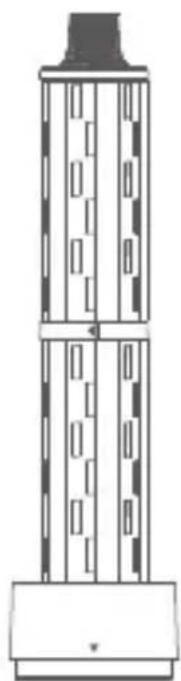

Technical line drawing of a vertical cylindrical structure with internal divisions and mounting base (no text or symbols)

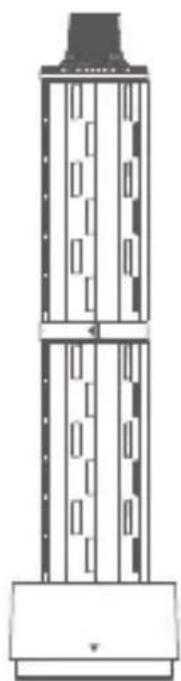

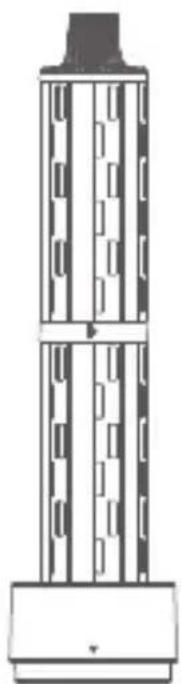

32mm Curling Nozzle (left)

Technical line drawing of a cylindrical mechanical component with internal channels and a top mount (no text or symbols)

32mm Curling Nozzle (right)

Line drawing of a cylindrical heating unit with heat sink and ventilation grille (no text or symbols)

Unfrizz Nozzle

(Some accessories may not be included. For more accessories, please visit www.dreame.tech or Dreame's official flagship store.)

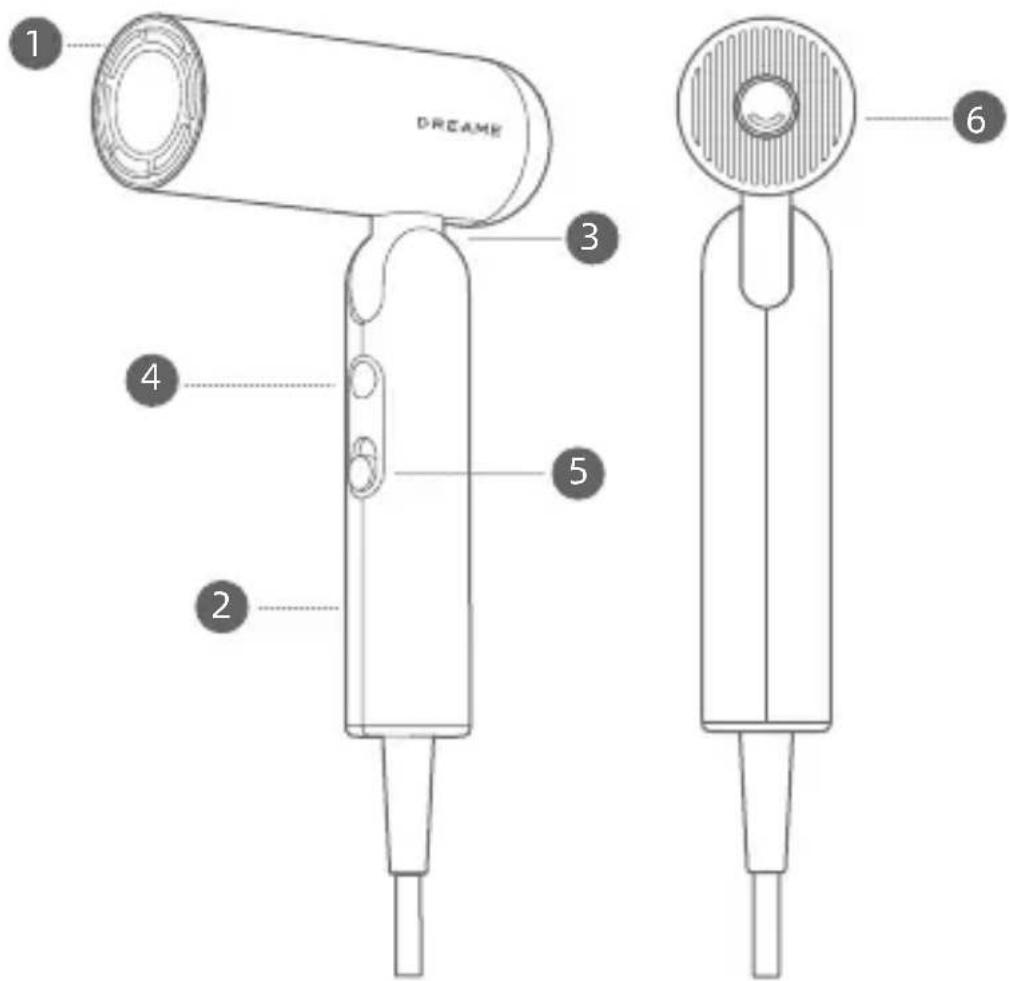

EN Getting started

1 DREAM 2 3 4 5 6

1 Air Outlet Vent

5 On/Off Switch & Speed Settings

2 Handle

6 Removable Airflow Filter

3 Shaft

For safety reasons, do not use the hair dryer without the airflow filter.

4 Temperature settings/ Airflow temperature indicator light

These symbols mean "Do not use while bathing or showering."

Illustrations of the hair dryer, accessories, and user interface in the user manual are for reference purposes only. The actual product may vary due to product updates and improvements.

Settings

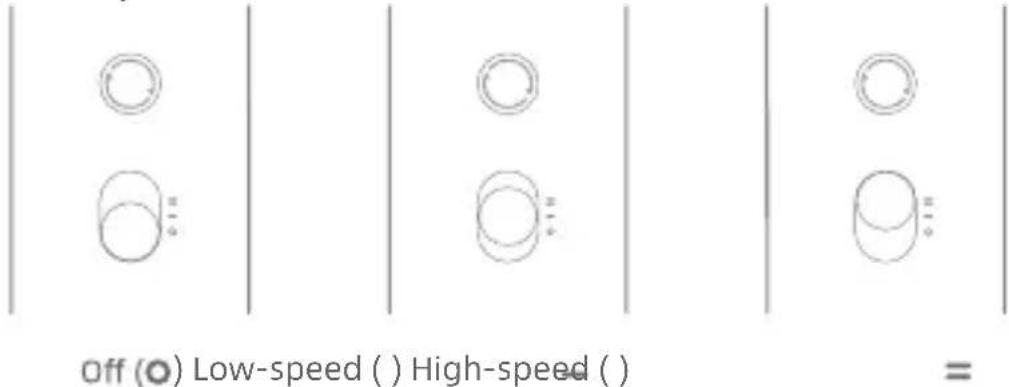

On/Off Switch & Speed Settings

Slide up and down to quickly switch between the two speed settings.

Make sure that the switch is turned off before plugging the hair dryer in.

Off (○) Low-speed ( ) High-speed ( ) =

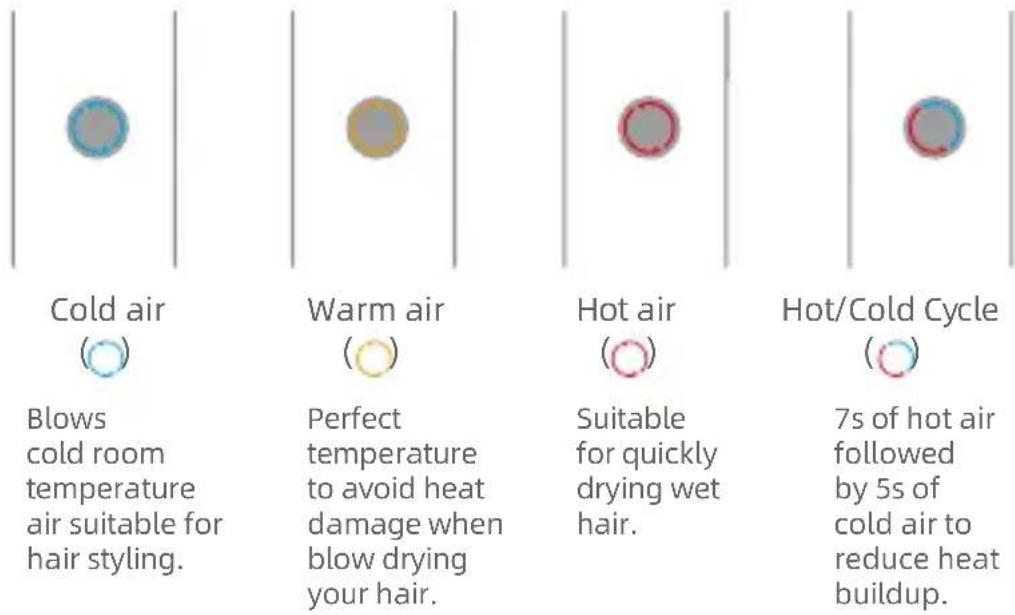

Temperature Settings

Press to cycle through the four heat settings: cold air, warm air, hot air, and hot/cold cycle.

Press and hold to switch to coldair, the temperature will return to its previous state after letting go of the button.

Cold air Blows cold room temperature air suitable for hair styling. Warm air Perfect temperature to avoid heat damage when blow drying your hair. Hot air Suitable for quickly drying wet hair. Hot/Cold Cycle 7s of hot air followed by 5s of cold air to reduce heat buildup.

Quickly Switch To The Cold Temperature

Press and hold the temperature button Ⓞ to quickly switch to the cold temperature setting for styling. Release the temperature button to revert to the original temperature settings.

EN

Hair Dryer Configurations

Pocket offers three transformable modes for convenience in various scenarios.

Simple line drawing of a cylindrical device with a pointed tip and a side rod (no text or symbols)

"N" Shape: Folded form for easy storage.

Line drawing of a handheld device with cylindrical and articulated arms (no text or symbols)

"7" Shape: Allows using the flyaway barrel for a smooth and straight style while drying hair.

Technical line drawing of a mechanical device with multiple ports and shafts (no text or symbols)

"1" Shape: Use curling barrels of different directions to create curl styling.

Line drawing of a handheld hair dryer with a circular head and attached cable (no text or symbols)

7-shaped: Use with the diffuser nozzle to add volume and create natural curls while drying.

Line drawing of a handheld hair dryer with two connectors (no text or symbols)

7-shaped: Use with the styling nozzle and a round comb to create targeted styles while drying.

Create a Smooth and Straight Hairstyle

Use the Unfrizz Nozzle

The combination of three-stage acceleration and streamlined surfaces create a powerful suction air flow that straightens your hair and smooths flyaways. Use with a comb to add a natural curve.

Step 1

Dry your hair with the Dreame Pocket hairdryer

Line drawing of a woman holding a hairdryer with a brush (no text or symbols)

Step 2

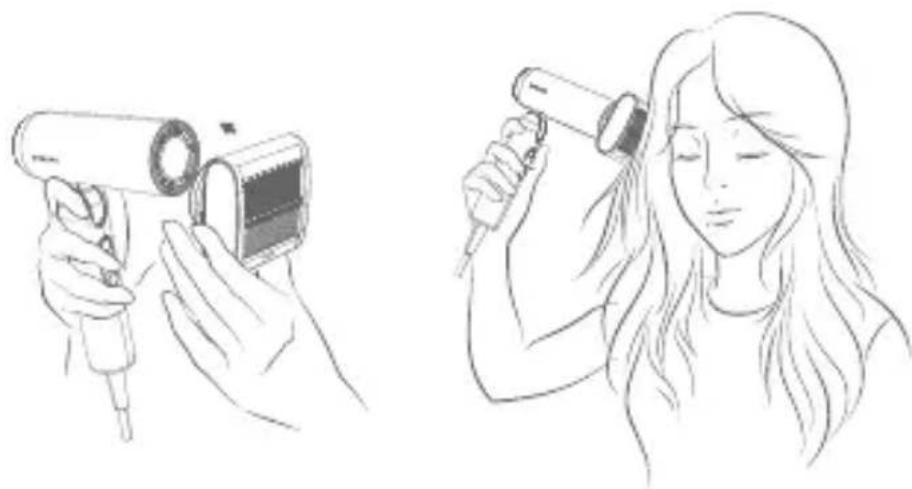

Attach the Unfrizz Nozzle, arrow indicates the direction of airflow, hold the nozzle close to your hair so that the strands are drawn to the nozzle, then slowly move the nozzle down until you reach the ends. Use on blow-dried hair to smooth flyaways.

Line drawings of a person holding a handheld device and a woman looking down (no text or symbols)

EN

Create a Smooth and Straight Hairstyle

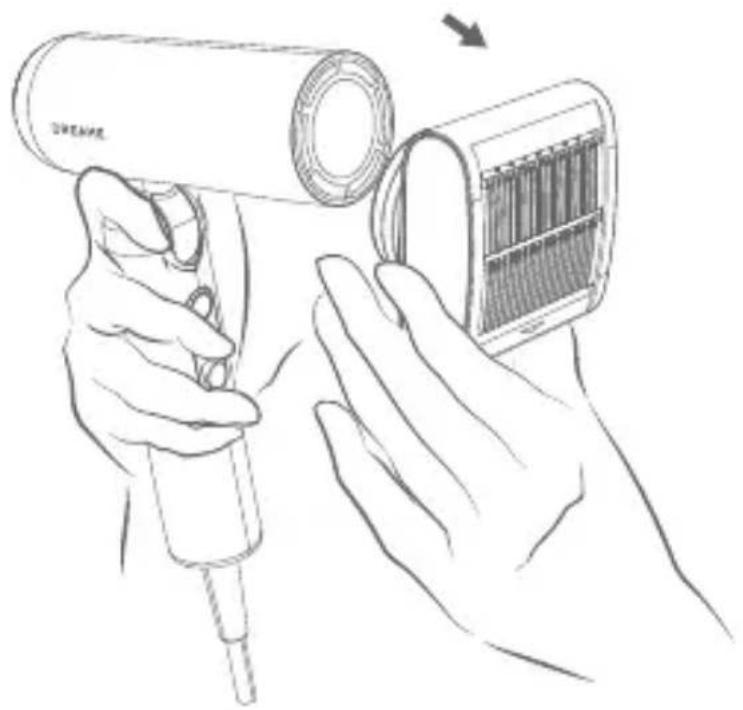

Step 3

When you are done using the nozzle, let it cool down before removing it by grasping both sides of the nozzle.

Line drawing of hands using a handheld device to interact with a digital scanner (no text or symbols visible)

Create a Curly Hairstyle

Use the curling nozzle

The suction curling nozzle lets you blow dry and style at the same time, saving you time and preventing damage to the hair.

Step 1

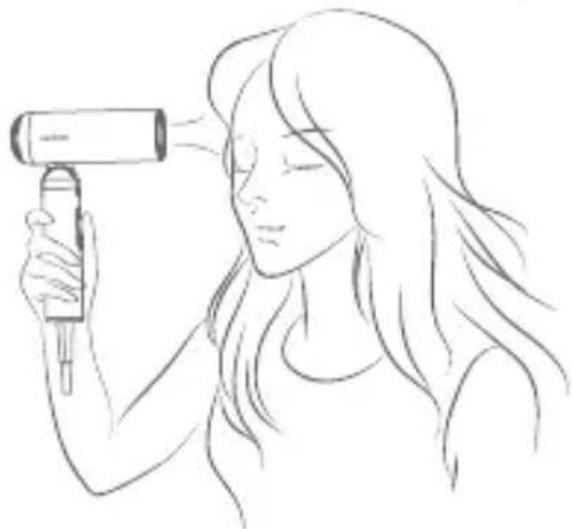

Dry your hair with the Dreame Pocket hairdryer.

Line drawing of a person holding a hairdryer with long hair (no text or symbols)

Step 2

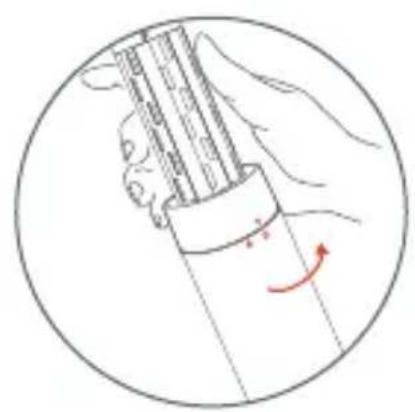

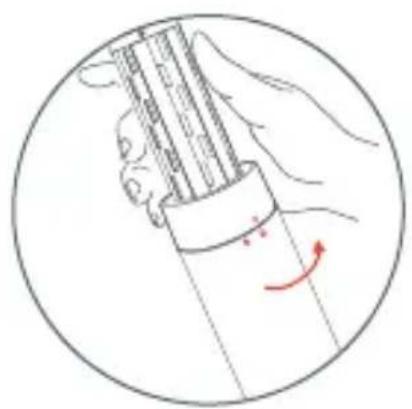

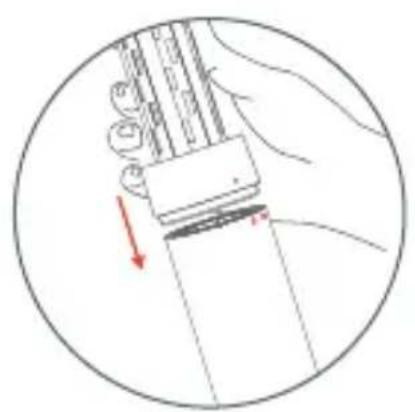

Before use, determine the direction of auto-wrap barrel to be used and choose the appropriate auto-wrap barrel. Install the curling nozzle as instructed and rotate it into place.

Illustration of a hand holding a tool with a red arrow indicating force or movement (no text or symbols present)

Illustration of a hand holding a cylindrical object with a red curved arrow indicating rotation (no text or symbols)

EN Create a Curly Hairstyle

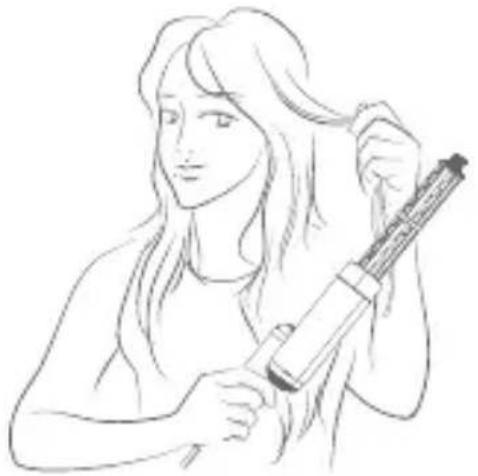

Step 3

Take a section of hair, set the dryer to high-speed hot air mode, and bring the curling barrel close to the hair ends. The hair will automatically wrap around the barrel.

Line drawing of a person styling hair with a curling iron (no text or symbols)

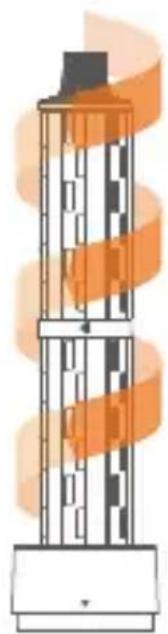

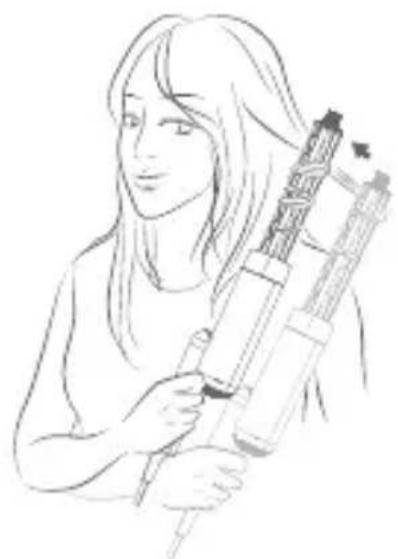

Step 4

Move the stylist toward your head without rotating it. Hold it in hot air mode for 10 seconds.

Line drawing of a person holding a cylindrical object (no text or symbols)

Line drawing of a woman holding a curling iron, no text or symbols present

Create a Curly Hairstyle

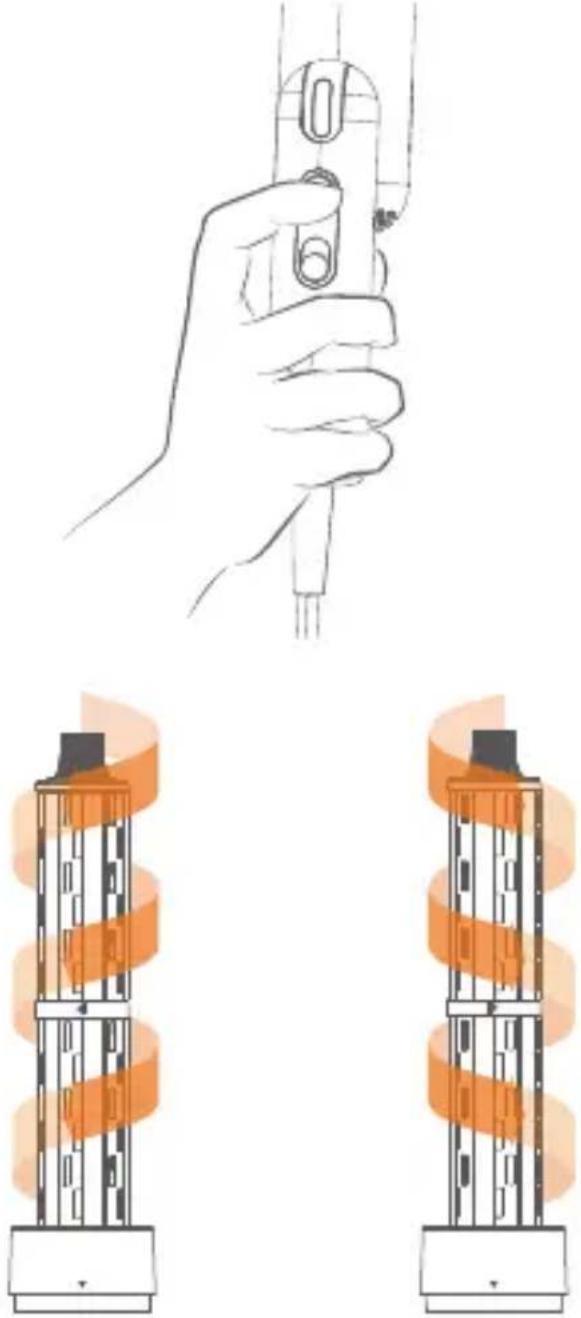

Step 5

Long press the mode button to enter the one-touch cool air mode. Hole it for 5-10 seconds to set the curl. Turn off the device to release the hair section.

32mm Curling Nozzle (left) 32mm Curling Nozzle (right)

After use, allow the barrel to cool. Then follow the instructions to remove the barrel safely.

EN Create a voluminous look

Use with the diffuser nozzle

Step 1

Use the Dreame Pocket Hair Dryer to blow-dry your hair until it is 50% dry.

Line drawing of a woman holding a hairdryer, eyes closed, with no text or symbols present.

Step 2

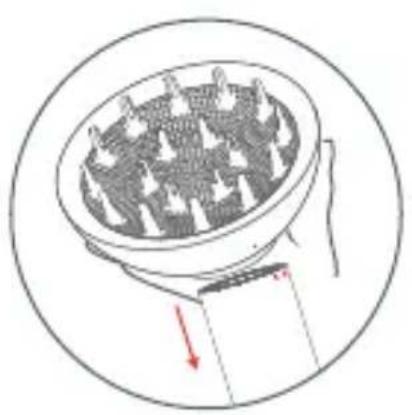

Attach the diffuser nozzle as directed and rotate it until it locks into place.

Diagram of a hand holding a bowl with a grid pattern, showing a red arrow pointing to the side (no text or symbols present)

Diagram of a hand holding a bowl with a grid-like pattern inside, no text or symbols present

Create a voluminous look

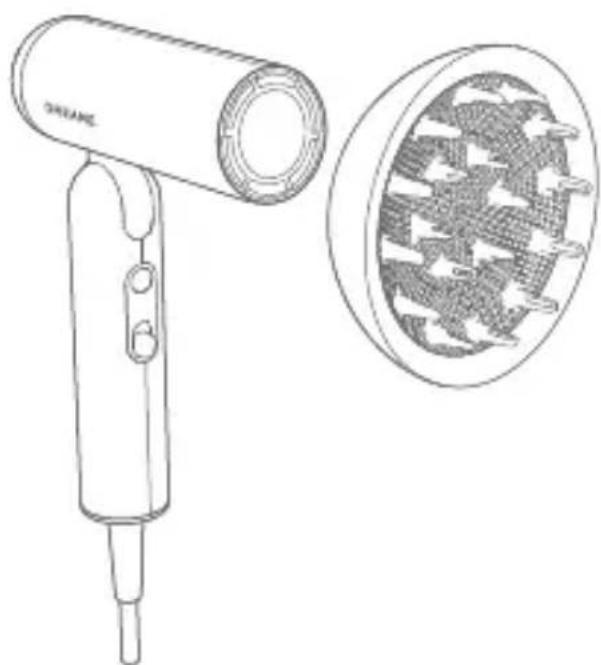

Step 3

Gently place your curls into the diffuser nozzle to dry them. This will help you achieve natural and elegant curls.

Line drawing of a DREAM hair dryer and its internal mesh pattern (no text or symbols)

EN

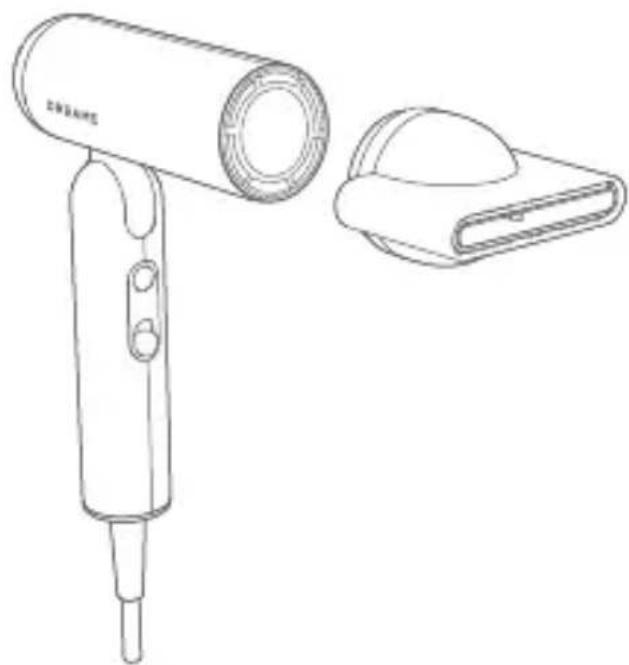

Styling Nozzle

The styling nozzle allows the hair dryer's airflow to be wider and more concentrated. When paired with a curling comb, it helps create inward-curved hair ends, set bangs, and allowing for precise localized styling.

Line drawing of a hair dryer and its accessories (no text or symbols)

Cleaning and Maintenance

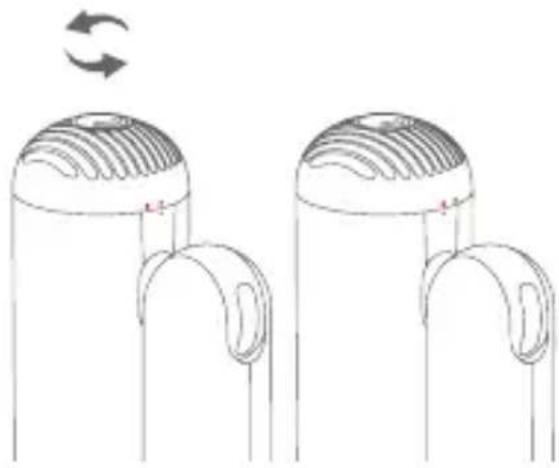

The removable airflow filter is fixed in place by snaps. Turn in the direction indicated to remove.

Diagram of two identical cylindrical containers with curved handles and a circular arrow indicating rotation (no text or symbols)

Rotating airflow filter

Diagram showing a lid and a mug with a lid removed, illustrating the process of cleaning or packaging (no text or symbols present)

Remove the airflow filter

The metal filter needs to be cleaned regularly to prevent debris from building up and maintain a smooth flow of air.

EN Cleaning and Maintenance

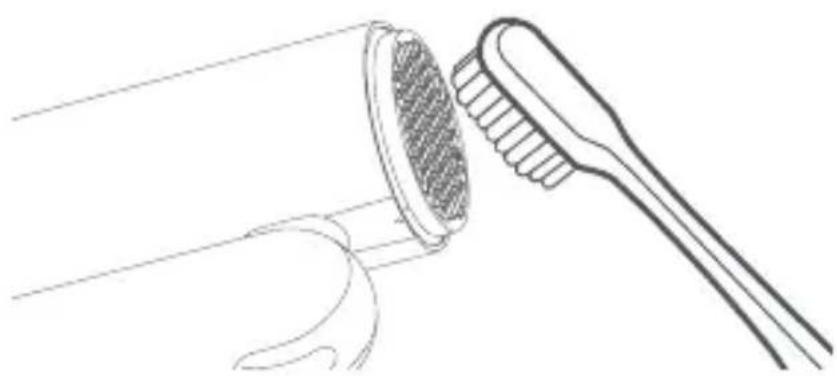

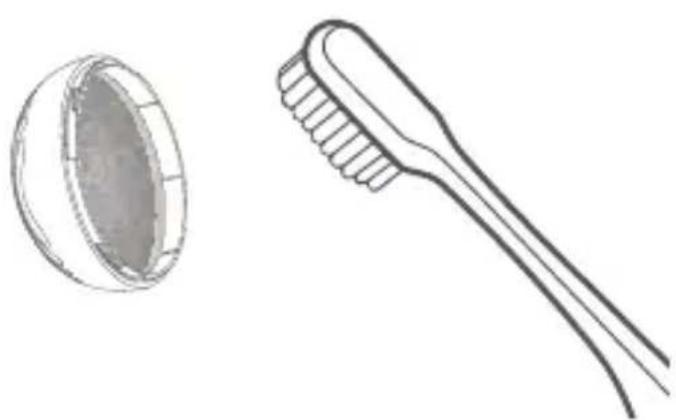

Use a dry, lint-free cloth, soft brush or toothbrush to remove any debris stuck to the surface of the airflow filter or stainless steel filter.

Illustration of a toothbrush and its circular base (no text or symbols)

Cleaning airflow filter

Line drawing of a toothbrush and toothpaste being inserted into a circular tooth (no text or symbols)

Cleaning Metal filter

Do not rinse the metal filter with water as this may prevent it from working properly.

After cleaning, reinstall the airflow filter, making sure it snaps firmly back into place.

Basic Parameters

Product name	Dreame Pocket High-Speed Hair Dryer
Model number AHD51	240 V~
Rated voltage 220-240 V~
Rated frequency 50/60 Hz
Rated power 1300 W
Product dimensions	50×145×201 mm

We, Dreame Trading (Tianjin) Co., Ltd., here by, declare that this equipment is in compliance with with the applicable Directives and European Norms, and amendments.

The full text of the EU declaration of conformity is available at the following internet address:https://global.dreametech.com

WEEE Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

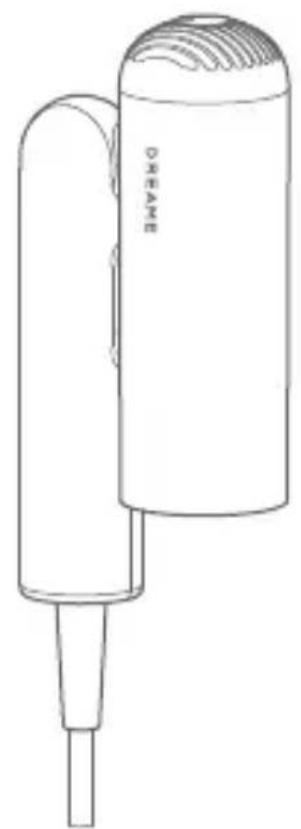

Verpackungsinhalt

Line drawing of a handheld device with a cylindrical body and a pointed tip, labeled 'OSEAKER' (no other text or symbols)

Dreame Highspeed-Taschen-haartrockner

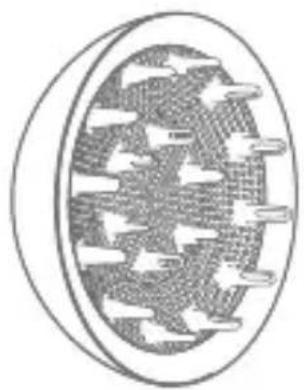

Cross-sectional diagram of a cylindrical mechanical component with internal grooves and fasteners (no text or symbols)

Diffusordüse

Line drawing of a handheld device with a circular body and handle (no text or symbols)

Stylingdüse

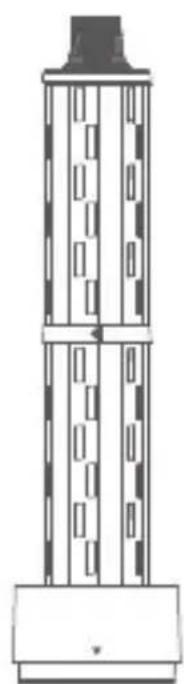

Technical line drawing of a vertical cylindrical structure with internal divisions and a top protrusion (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal divisions and a top handle (no text or symbols)

Line drawing of a cylindrical fan or vent with a mesh grille (no text or symbols)

Flyaway-Aufsatz

Simple line drawing of a cylindrical device with a handle and spout (no text or symbols)

Line drawing of a handheld device with two ports and a cylindrical body (no text or symbols)

Technical line drawing of a handheld electronic device with ports and connectors (no text or symbols)

Technical line drawing of a handheld device with a circular component and two cylindrical connectors (no text or symbols)

Line drawing of two hairless tools with handles and connectors (no text or symbols)

Line drawing of a woman holding a hairdryer, eyes closed, with no text or symbols present.

Schritt 2

Illustration of two hand-drawn scenarios: one holding a handheld device and the other showing a person using a handheld device (no text or symbols present)

Line drawing of a hand using a handheld device to interact with a device labeled '医用口罩' (no text or symbols on the device itself)

Line drawing of a person styling hair with a hairdryer (no text or symbols)

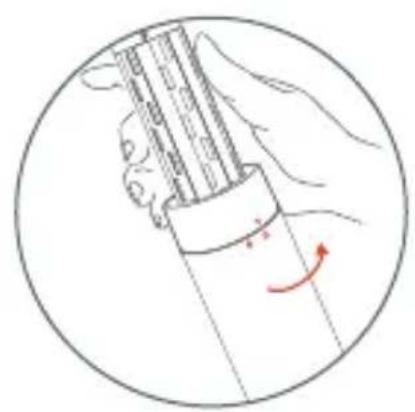

Schritt 2

Illustration of a hand holding a tool with a red arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a cylindrical object with a red arrow indicating rotation (no text or symbols)

Line drawing of a woman holding a curling iron, no text or symbols present

Schritt 4

Line drawing of a person holding a long, ornate object (no text or symbols)

Line drawing of a woman holding a hair curling iron, no text or symbols present

Line drawing of a hand holding a medical or surgical tool (no text or symbols present)

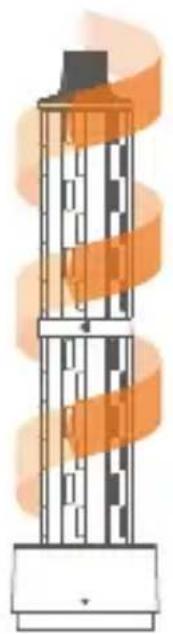

Illustration of a vertical cylindrical device with orange spiral pattern, no text or symbols present

Illustration of a vertical cylindrical structure with orange bands, resembling a tower or industrial lamp (no text or symbols)

Line drawing of a person holding a hairdryer, eyes closed, with no text or symbols present.

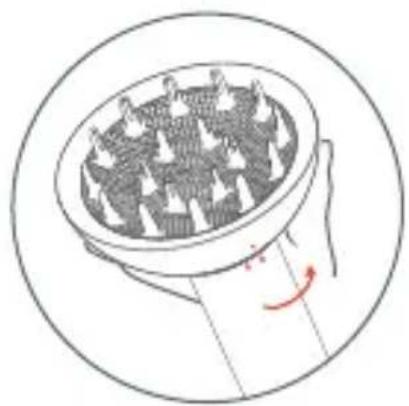

Schritt 2

Diagram of a hand holding a bowl with a grid pattern, no text or symbols present

Diagram of a hand holding a circular container with internal mesh structure (no text or symbols)

Einen voluminösen Look stylen

DE

Schritt 3

Line drawing of a CREAM hair dryer and its internal mesh pattern (no text or symbols)

DE

Stylingdüse

Line drawing of a DREAM hair dryer and its corresponding compact device (no text or symbols)

Diagram of two identical mechanical components with curved ends and a rotation arrow indicating clockwise motion (no text or symbols)

Diagram showing a lid being folded into a thermosacchar container with arrows indicating rotation (no text or symbols)

Illustration of a toothbrush and a circular object (no text or symbols)

Line drawing of a dental tool interacting with a toothbrush and toothpaste (no text or symbols)

Line drawing of a DREAM brand air purifier with a cylindrical body and spout (no text or symbols on the device itself)

Cross-sectional diagram of a cylindrical mechanical component with internal grooves and arrows indicating direction (no text or symbols)

Buse de diffusion

Line drawing of a stylized object resembling a device or tool, with no visible text or symbols.

Embout de brushing

Technical line drawing of a cylindrical mechanical component with internal structural details (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal channels and a top mount (no text or symbols)

Line drawing of a cylindrical fan or vent with a side-mounted grille (no text or symbols)

Four identical diagrams showing circular and oval shapes with dot patterns, arranged horizontally (no text or symbols)

Five vertical panels showing colored circular shapes, no text or symbols present

Air froid

Air tiède

Air chaud

Cycle chaud/froid

Souffle de l'air

Blows cold room temperature air suitable for hair styling.

Simple line drawing of a handheld electronic device with a bulb and connector (no text or symbols)

Illustration of three different laboratory devices with no visible text or symbols

Line drawing of a handheld medical device with two cylindrical components and a central connector (no text or symbols)

Line drawing of a handheld device with a circular head and two cylindrical connectors (no text or symbols)

Line drawing of a handheld hair dryer with two different designs (no text or symbols)

Line drawing of a person styling hair with a hairdryer (no text or symbols)

Étape 2

Line drawings of a person using a handheld device and a medical device, both showing hand gestures (no text or symbols)

FR

Line drawing of a hand holding a handheld device next to a device with a grid array (no text or symbols)

Line drawing of a person with long hair using a hairdryer (no text or symbols)

Étape 2

Illustration of a hand holding a tool with a red arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a cylindrical object with a red arrow indicating rotation (no text or symbols)

FR

Line drawing of a person styling hair with a curling iron (no text or symbols)

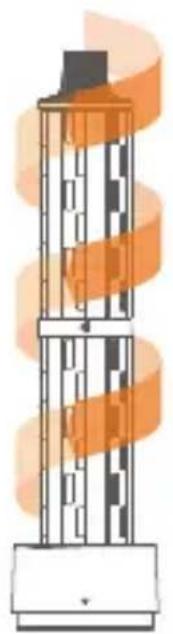

Étape 4

Line drawing of a person holding a cylindrical object (no text or symbols)

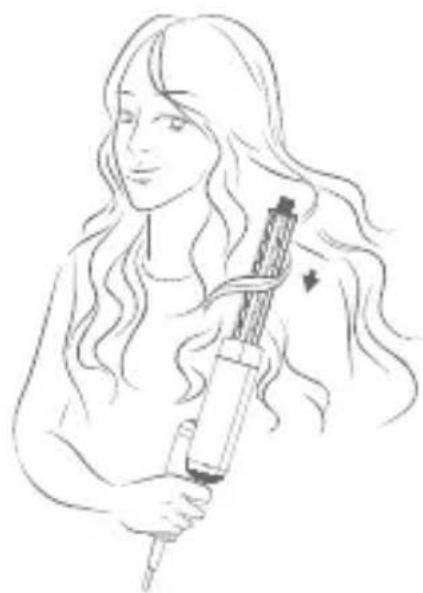

Line drawing of a woman holding a curling iron, no text or symbols present

Line drawing of a hand holding a medical or surgical instrument (no text or symbols)

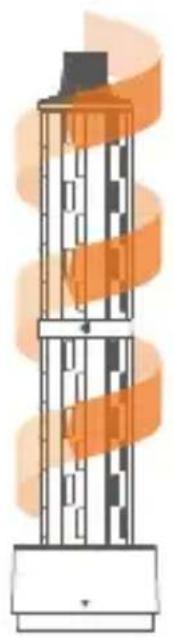

Illustration of a cylindrical mechanical device with orange spiral blades and black top (no text or symbols)

Illustration of a cylindrical structure with orange ribbons, no text or symbols present

Line drawing of a person holding a hairdryer, eyes closed, with no text or symbols present.

Étape 2

Diagram of a hand holding a circular container with a grid-patterned lid and red arrow indicating direction (no text or symbols)

Diagram of a hand holding a circular device with a grid-patterned top (no text or symbols)

Créer du volume

Étape 3

Line drawing of a DREAM hair dryer and its internal mesh pattern (no text or symbols)

FR

Embout de brushing

Line drawing of a steamer and a handheld device (no text or symbols)

Diagram of two identical cylindrical containers with curved handles and a circular arrow indicating rotation (no text or symbols)

Diagram showing a lid and a mug with arrows indicating rotation or movement (no text or symbols)

Illustration of a toothbrush and its circular base (no text or symbols)

Line drawing of a toothbrush and toothpaste brush applying material to a circular object (no text or symbols)

Line drawing of a handheld electronic device with a cylindrical body and a pointed tip, no text or symbols present.

Cross-sectional diagram of a cylindrical mechanical component with internal grid pattern (no text or symbols)

Diffusore

Line drawing of a handheld device with a circular body and handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal structural details (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal vertical grooves and a top protrusion (no text or symbols)

Line drawing of a cylindrical air vent with internal grating (no text or symbols)

Simple line drawing of a handheld device with a cylindrical body and a curved handle (no text or symbols)

Line drawing of a handheld medical device with two ports and a cylindrical tube (no text or symbols)

Technical line drawing of a mechanical device with multiple ports and shafts (no text or symbols)

Line drawing of a handheld electronic device with two ports and a cylindrical body (no text or symbols)

Line drawing of a handheld hair dryer with two different designs (no text or symbols)

Line drawing of a woman holding a hairdryer, no text or symbols present

Fase 2

Illustration of two hand-drawn scenarios: one holding a handheld device, the other showing a person with long hair holding a tool (no text or symbols present)

IT

Line drawing of a hand holding a handheld device next to a cylindrical device with a grid array (no text or symbols)

Line drawing of a woman holding a hairdryer, eyes closed, with no text or symbols present.

Passo 2

Illustration of a hand holding a tool with a red arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a cylindrical object with a red curved arrow indicating rotation (no text or symbols)

IT

Line drawing of a person styling her hair with a curling iron (no text or symbols)

Passo 4

Line drawing of a person holding a cylindrical object, possibly a brush or tool, with no visible text or symbols.

Line drawing of a woman holding a curling iron, with no text or symbols present

Line drawing of a hand holding a medical device (no text or symbols)

Illustration of a vertical cylindrical device with orange and black bands, no visible text or symbols

Illustration of a cylindrical industrial device with orange ribbons and internal components (no text or symbols)

Line drawing of a person styling hair with a hairdryer (no text or symbols)

Passaggio 2

Diagram of a hand holding a bowl with a grid pattern, showing directional arrows (no text or symbols)

Diagram of a hand holding a bowl with a grid pattern, no text or symbols present

Line drawing of a hair dryer and its internal mesh pattern (no text or symbols)

Line drawing of a DREAM hair dryer and its corresponding compact device (no text or symbols)

Diagram of two identical cylindrical containers with curved handles and a top dome, showing a rotation arrow (no text or symbols)

Diagram showing a lid and a mug with arrows indicating rotation or movement (no text or symbols)

Illustration of a toothbrush and its circular base (no text or symbols)

Line drawing of a toothbrush and toothpaste brush applying material to a circular tooth (no text or symbols)

Line drawing of a handheld device with a cylindrical body and a pointed tip, no text or symbols present.

Cross-sectional diagram of a cylindrical object with internal grid pattern (no text or symbols)

Boquilla difusora

Line drawing of a stylized object resembling a device or tool handle (no text or symbols)

Boquilla para dar forma

Technical line drawing of a vertical cylindrical structure with internal divisions and mounting base (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal channels and a top protrusion (no text or symbols)

Line drawing of a cylindrical object with a side panel and internal grating (no text or symbols)

Four identical diagrams showing circular and oval shapes with internal dots, arranged horizontally (no text or symbols)

Five identical circular shapes with different colors and shades, arranged horizontally (no text or symbols)

Aire frío

Simple line drawing of a handheld electronic device with a cylindrical body and a pointed tip (no text or symbols)

Technical line drawing of two mechanical devices with no visible text or symbols

Line drawing of three handheld devices with no visible text or symbols

Line drawing of a handheld hair dryer with two connectors and a circular head (no text or symbols)

Line drawing of a handheld hair dryer with two different designs (no text or symbols)

Line drawing of a person styling hair with a hairdryer (no text or symbols)

Paso 2

Line drawings of a person using a handheld device and a mirror, both showing hand gestures (no text or symbols)

ES

Para alisar el pelo

Paso 3

Line drawing of hands using a handheld device to interact with a device labeled 'DRANGE' (no text or symbols on the device itself)

Line drawing of a woman holding a hairdryer, eyes closed, with no text or symbols present.

Paso 2

Illustration of a hand holding a tool with a red arrow indicating force or movement (no text or symbols present)

Illustration of a hand holding a cylindrical object with a red arrow indicating rotation (no text or symbols)

ES

Line drawing of a person styling hair with a curling iron (no text or symbols)

Paso 4

Line drawing of a person holding a cylindrical object (no text or symbols)

Line drawing of a woman holding a hair iron, no text or symbols present

Line drawing of a hand holding a medical or surgical tool (no text or symbols present)

Illustration of a vertical cylindrical device with orange and black bands, no text or symbols present

Illustration of a vertical cylindrical structure with orange ribbed pattern, no text or symbols present
