USER MANUAL KD0015 Concept

Baby monitor with camera and app

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it.

Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical parameters
Power supply 5	/ 1 A typ C	Power consumption when switched off	max. 0,2 W
WiFi network 2	4 GHz

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Care should be taken when using the appliance near children.

EN

concept

concept

EN

• Do not let the power cord touch hot surfaces.
• Keep the power cord out of the reach of children.
• Protect the appliance from direct sunlight, high temperatures and humidity.
• Do not allow the appliance to hang on the power cord.
• Do not use the appliance in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives, etc.).
• Do not use coarse and chemically aggressive substances to clean the appliance.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not wrap the power cord around the appliance body.
• Do not use the appliance outdoors.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not use any accessories other than those recommended by the manufacturer. Do not use an extension cord.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by

the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

PRODUCT DESCRIPTION

Baby Camera Description

1 Camera Lens
2 Microphone
3 Call/Pairing Button
4 LED Light
5 SD Card Slot (Max. 128 GB)
6 Speaker
7 USB-C Power Connector
8 Restart Button

9 Night Vision LEDs
10 Temperature Sensor
11 Pairing Button
12 Status Indicator
13 Infrared Sensor
for Night Vision
14 Flexible Holder
15 Mounting Kit
16 Adapter

Monitor Description

1 Microphone
2 Charging Indicator Light
3 In-Use Indicator Light
4 Zoom In/Out
5 Menu
6 Direction
7 Confirm
8 Call

9 Back
10 Antenna
11 Power Button
12 Speaker
13 Monitor Holder
14 Restart
15 USB-C Connector

Note: The charging indicator light (2) on the monitor is red during charging and green when fully charged. The in-use indicator light (3) is blue.

concept

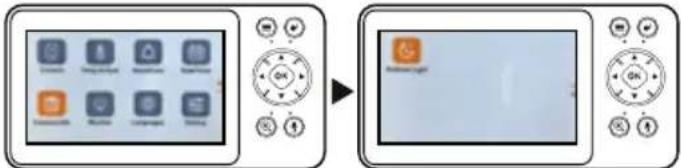

Monitor Display Description

• Press Menu button to enter multi-function settings - icons will appear in the bottom row, use <> to switch between icons. Press OK on the selected icon, options will appear.

volume

adjustment

Screen bright

ness adjustment

Screen sleep

time

Feeding time

reminder

Channe

Light source

frequency

SettingsLullaby

• Press Menu button -> Settings icon -> OK to display settings options. Use << to switch between icons. Use down arrow to go to the next page. Press OK on the selected icon, options will appear.

OPERATING INSTRUCTIONS

Download the App

1. Make sure your Wi-Fi network is 2.4GHz. The camera does not support 5 GHz networks.
2. Scan the QR code below or search for "Concept Home" on Google Play or App Store to download the app to your mobile phone. If you already have Concept Home, open the app, log in, and follow

the pairing instructions. Note: The camera is designed for AC power. The indicator will be red when the camera is connected to power. The indicator will flash red during pairing. When the indicator is green, pairing is successful.

App Concept Home

concept

Connecting the camera to the app

• Connect the camera to the power source using the USB-C cable.
• Register or log in to the app.
• Follow the instructions in the app on your mobile phone.
• Once logged in, click on "Add device" or click on the "+" in the upper right corner of the app to add the device (see picture no. 1). A list of appliances will appear, select from the list -> Baby care section -> KD5010 (see picture no. 2).
• Press and hold the restart button for 5 seconds, a tone will sound and the indicator will flash red (picture no. 3).
• Fill in the login details for your wireless network (see picture no. 4).
• A QR code will appear on the screen of your mobile phone, point it at the camera from a distance of 15 - 20cm . Then click on the "Beep" button (see picture no. 5). The camera will now connect to your mobile phone.
• After successfully connecting the camera to the mobile phone, you can rename the device and then click the Done button (see Figure 6).

Connecting the camera to the monitor

• Turn on the camera and monitor, both will connect automatically.
  If the connection fails, please follow the steps below to pair.
• On the monitor screen, press the Menu button and select Settings -> Camera, select Camera No. 1, confirm with the OK button.
• Long press the pairing button on the camera until you hear a tone.
• If you need to pair multiple cameras, repeat the previous step.
  Note: If you want to set parameters for one of the cameras or enable its functions, select the camera first.

Camera display: Press the Menu button -> Channel View icon and select manual switching in the camera view or select automatic camera switching.

Canceling the connection of the camera and monitor

1. On the monitor screen, press the Menu button and select Settings -> Camera.
2. Select the camera you want to cancel the connection.
3. Long press the OK button.

Baby monitor features

Motion/sound detection - The baby monitor can detect motion and sound and then send a notification to your phone.

concept

concept

LED light/lullaby - When your baby cries, you can play a lullaby or turn on the night light. There are various lullaby modes to choose from (loop playback, switching between lullabies) and LED lights.

Night light - Can be set to automatic/off/on. When less light is detected, the night light is activated, the image switches to black and white mode.

Temperature and humidity detection - the alarm is triggered every time the upper or lower limit of the set temperature/humidity is exceeded.

Two-way communication - If you find that your baby is crying in the app, you can talk to him and calm him with your voice even from a distance.

Feeding time reminder - Set a reminder for regular feeding time.

Video recording and photo taking (SD card required)

Baby monitor installation options

You can place the baby monitor on a flat surface (see Method 1 figure), or mount it on the wall using the included mounting bracket (see Method 2 figure), or attach to the crib frame or headboard of a double bed using the flexible mount (see picture method 3). Adjust the desired viewing angle by manually rotating the camera up/down/left/right or in the app/on the monitor.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for

the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.
