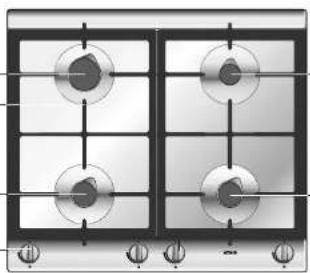

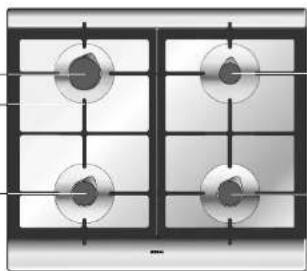

simmer burner

semi-rapid burner

HG40..A

rapid burner

pan support

semi-rapid burner

Pure electrical circuit lines without any symbols

simmer burner

semi-rapid burner

ignition zone (HG40..A)

0 setting

high setting

low setting

burner indication

This manual contains information to help you make the best possible use of your gas hob. In addition to information about its controls, you will also find background information which may be useful when using this product.

The safety instructions which are important during installation are included in the installation instructions; these installation instructions are supplied separately and are meant for the fitter.

Keep this manual carefully, since any later user will also find it very useful.

We wish you much pleasure with your hob!

your gas hob

introduction

This Atag gas hob has been designed for the real lover of cooking. The generous separation of the burners makes for comfortable working.

The differences in burner capacity mean that you can cook any type of dish. Thanks to the integration of the spark ignition in the knobs, you can ignite and control the burners with one hand.

your gas hob

contents

safety

what you should pay attention to 4

controls

igniting and adjusting 5

comfortable cooking

burners 7

pans 8

maintenance

cleaning 9 - 10

faults

what should I do if ... 11

environmental aspects

disposing of packaging and appliance 12

appendix

gas information 13

safety

what you should pay attention to

controls

igniting and adjusting

general

Before installing the appliance, check that the type of gas and the gas pressure are in accordance with the appliance's specifications.

When using a metal connecting pipe, make sure that it cannot get damaged or pinched.

The use of gas cooking appliances releases heat and moisture into the room in which the appliance is fitted. Take care that the room is sufficiently ventilated; keep natural ventilation openings open or install a mechanical ventilator (extractor hood).

If the hob is in use for a long time, extra ventilation may be necessary – for example, an open window, or a higher setting for the ventilator (extractor hood).

during use

This cooking appliance has been designed for domestic use. Only use it for preparing foods. Do not use the appliance to heat the kitchen. This will cause the atmosphere to become damp.

Flambéing under an extractor hood is not permitted. The high flames can cause a fire, even when the extractor hood is switched off.

The appliance is hot during and after use. Bear this in mind if young children come anywhere near the appliance. Do not leave young children alone near a hot cooking appliance.

attention!

The distance from a knob or a non heat resistant wall is always greater than 2 cm. If the pan is nearer, the knobs or the wall may become discoloured or deformed.

Pans with a diameter greater than 24 cm should preferably be put on the rear burner.

igniting HG60..A

0-setting

high setting

low setting bumer indication

1. Turn the control knob to the position required, between the high and low settings.
2. Press the control knob. The burner ignites.

If the burner does not ignite, check whether:

• the cap is on the burner properly:
• the burner is clean and dry.

adjusting

The burner is continuously adjustable between the high and low settings.

controls

igniting and adjusting

comfortable cooking

burners

igniting HG40..A

0--setting

ignition zone

high setting

low setting

burner indication

1. Press the control knob.
2. Turn the control knob carefully to the ignition zone. The burner ignites.
3. Turn the control to the desired setting once the burner is alight.
4. Press the control knob.
5. Turn the control knob carefully to the ignition zone. The burner ignites.
6. Turn the control to the desired setting once the burner is alight.

If the burner fails to ignite, check if:
- The burner cap is positioned correctly.
- The burner is clean and dry.

adjusting

You may set the knob at any position between full-on and simmer.

rapid burner

Sautéing and frying, deep-frying and blanching, boiling large quantities and stir-frying are best done on the rapid burner. This has the highest output.

Pay attention to the diameter of the pan, however. A diameter of between 16 and 28 cm is best, although a pan of 12 cm also fits on this burner.

semi-rapid burner

The semi-rapid burner is highly suitable for stewing and steaming, boiling average-size portions (about four people) and making a roux.

Pay attention to the diameter of the pan, however. A diameter of between 16 and 28 cm is best, although a pan of 12 cm also fits on the burner.

simmer burner

Preparing sauces, simmering and boiling can be done best on the simmer burner. On its high setting this burner is large enough for cooking food right through.

pan supports

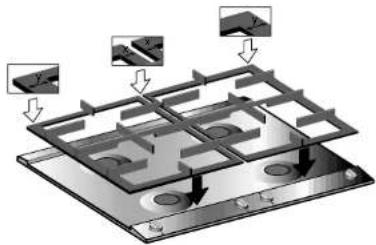

The pan supports should have their narrow edges next to each other. When putting the pan supports in place and removing them, take care that you lift them straight up and put them straight down to prevent scratching of the stainless steel.

Technical diagram of a mechanical assembly with arrows indicating motion or assembly steps (no text or symbols present)

comfortable cooking

pans

maintenance

cleaning

diameter

Use pans of the correct size.

Use pans with a maximum size of 28 cm for the simmer, rapid and semi-rapid burners. Do not use pans with a base diameter of less than 12 cm. Smaller pans are not very stable; larger pans can result in walls becoming too hot. Pans with a diameter greater than 24 cm should preferably be put on the rear burner.

The tips of the flames are the hottest. If the flames play around the pan, a lot of heat is wasted. To make the most efficient use of gas, you should use a pan with a large diameter.

Two identical photos of a cooking pot on a gas stove, showing heating setup (no text or symbols visible)

wrong right

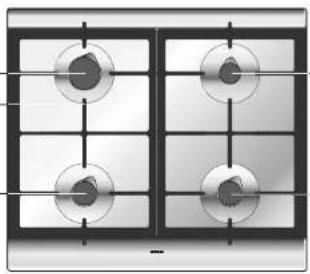

position

The distance from a knob or a non heat resistant wall is always greater than 2 cm. If the pan is nearer, the knobs or the wall may become discoloured or deformed.

lid

Cook with a lid on the pan. You will make energy savings of up to 50%.

Regular cleaning immediately after use prevents food that has boiled over from affecting the hob over a period of time and causing stubborn stains that are hard to remove.

First clean the control knobs, burners and pan supports and only then the glass top. This prevents the top from becoming dirty again while you are cleaning.

daily

For daily cleaning of your gas hob, it is best to use a mild cleaning agent. Do not use too much liquid, since this could get into the burner or ventilation openings.

stubborn stains on enamel

Remove with a non-abrasive cream or a soft sponge. Never use scouring powders, aggressive cleaning agents, green scours.

maintenance

cleaning

faults

what should I do if...

stubborn stains on stainless steel

Remove with a special stainless-steel cleaning agent. Always polish in the direction of the surface structure of the stainless steel. In this way, you will prevent shiny patches occurring. This damage is excluded from the guarantee. If stains cannot be removed, clean the hob with the proprietary HG barbecue grill & oven cleaner. Always treat the whole drip-tray, to prevent "colour differences". Always treat with a stainless-steel polish/care product afterwards.

attention!

Remove food remains that have boiled over immediately, particularly red cabbage, apple sauce and rhubarb. If these remains are allowed to affect the hob over a period of time, they can cause discoloration.

Never immerse hot burner caps in cold water. The rapid cooling can damage the enamel.

If the appliance does not work properly, it does not always mean that it is defective. Try to deal with the problem yourself first. Phone the service department if the advice given below does not help.

fault	cause	solution
Burner does not burn or ignite properly.	Burner is dirty or damp.	Clean and/or dry the burner.
	Burner cap not fitted on the burner correctly.	Fit the burner cap on the burner correctly.
	The ventilation slots at the rear of the appliance are blocked.	Unblock the ventilation slots.
	Appliance is not suitable for the type of gas used.	Check the data plate and contact service if necessary.
The spark ignition sparks, but does not ignite.	Sparking plug dirty.	Clean the sparking plug.
	Burner is dirty or damp.	Clean and/or dry the burner.
	Burner cap not fitted on the burner correctly.	Fit the burner cap on the burner correctly.

The appliance's packaging is recyclable. The following can be used:

• cardboard;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS rigid foam).

Dispose of these materials in a responsible way and in accordance with government regulations.

The authorities can provide you with information about how to dispose of discarded domestic appliances in a responsible way.

	appliance variant I, natural gas			appliance variant II, liquid gas low pressure			appliance variant III, liquid gas high pressure
burner	rating G25 25 mbar ^1_2L kW	rating G20 20 mbar ^2H^12E^12E^+ kW	rating G25 20 mbar ^1_2LL kW	rating G30 29 mbar ^1_3B/P kW	rating G31 29 mbar ^1_3* kW	rating G31 37 mbar ^1_3P kW	rating G30 50 mbar ^1_3B/P kW	rating G31 50 mbar ^1_3* kW	rating G31 67 mbar ^1_3P kW
simmer: high setting	0.90	0.95	0.80	0.80	0.70	0.83	0.90	0.75	0.90
semi rapid: high setting	2.00	2.20	1.60	1.75	1.50	1.70	1.95	1.70	1.95
rapid: high setting	2.90	3.20	2.60	2.80	2.40	2.75	3.20	2.75	3.20

The stated ratings are nominal power ratings.
