USER MANUAL YT-82207 Yato

SK EXCENTRICKÁ BRÚSKA

HU EXCENTER CSISZOLÓ

RO POLIZOR CU EXCENTRIC

ES PULIDOR EXCENTRICO

FR PONCEUSE ORBITALE

IT LEVIGATRICE ECCENTRICA

NL EXCENTRIEKE SLIJPMACHINE

GR EKKENTPO TPIBEIO

YT-82207

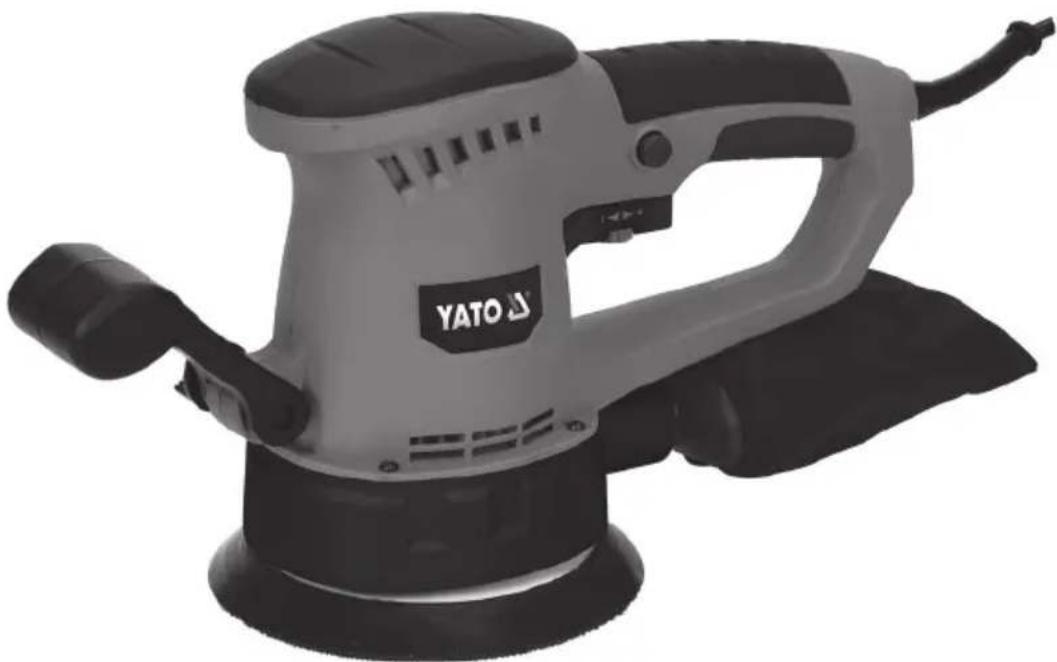

YATO-branded power tool with black and gray body, no visible text or symbols on the device itself

CE

PL DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

Labeled diagram of a cleaning or power tool with numbered parts for identification

Close-up of a mechanical device with a black rubber band and a white handle, no visible text or symbols.

Two views of a hand holding a perforated sand pad, showing front and side views with dot patterns (no text or symbols)

Close-up of a mechanical component with a black cylindrical part inserted, showing no visible text or symbols.

Close-up of a mechanical device handle with a control panel and playback button (no visible text or symbols)

Close-up of hands operating a power tool on a plain surface (no text or symbols visible)

Close-up of hands using a power tool on a flat surface (no visible text or symbols)

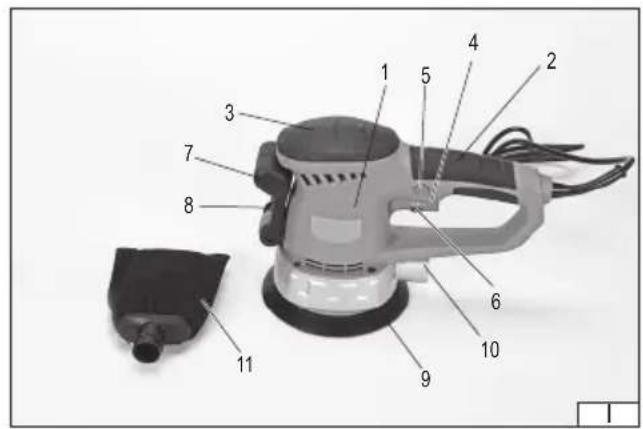

1. housing
2. grip handle
3. handle
4. switch
5. switch lock
6. speed control
7. additional handle
8. locking screw
9. disc
10. dust extraction
11. dust bag

DE

Read the operating instruction

Wear hearing protectors

Wear protective goggles

Schutzbrille tragen

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

The random orbital sander is an ordinary power tool, with class II insulation, designed to sand and smooth wooden surfaces, paint coatings, and filler putties when dry. Thanks to the base disc adapted for attaching sandpaper of different grit sizes, it is possible to use the tool in a comprehensive manner. The tool is designed for household use only and must not be used professionally, i.e. in workplaces or for paid work. The correct, reliable, and safe operation of the tool depends on its proper use, therefore:

Read this entire instructions manual before the first use of the tool and keep it for future reference.

The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.

EQUIPMENT

The sander is supplied complete and does not require any further assembly. The sander comes with a bag for collecting dust generated during work.

TECHNICAL PARAMETERS

Parameter Unit Value
Catalogue No. YT-82207
Rated voltage [V~] 220 - 240
Rated frequency [Hz] 50/60
Rated power [W] 450
Rated speed [min]	^-1 4000 - 13000
Sanding disc size [mm]	150
Weight	[kg]	2.4
Noise level (without load)
sound pressure	[dB(A)]	82.0 ± 3.0
sound power	[dB(A)]	90.0 ± 3.0
Vibration level (under load)	[m/s ^2 ]	12.5 ± 1.5
Insulation class		II
Protection rating		IPX0

Caution! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.

Caution! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

EN

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

ADDITIONAL SAFETY INSTRUCTIONS

Warnings related to sanding

Do not use too large sanding discs. Observe the recommendations of the tool manufacturer when selecting the sanding discs. A sanding disc that protrudes excessively outside the tool base disc increases the risk of cutting and may cause jamming, kickback, or abrasion of the disc.

Toxic dust may form during sanding of some surfaces. For example, surfaces coated with lacquer with lead addition. Inhalation of toxic dust may pose a risk to the sander operator or bystanders. In this case, use appropriate personal protective equipment such as dust masks, work in well-ventilated rooms and use external dust extraction systems.

EN

TOOL OPERATION

Before starting work, make sure that the housing body and the connection cable with a plug are not damaged. In case of damage, do not proceed with work.

Warning! All activities related to attaching and replacing working tools and their adjusting etc. should be carried out with the tool disconnected from the supply voltage. For this reason, before proceeding with such activities: Pull the tool power cord plug out of the power socket!

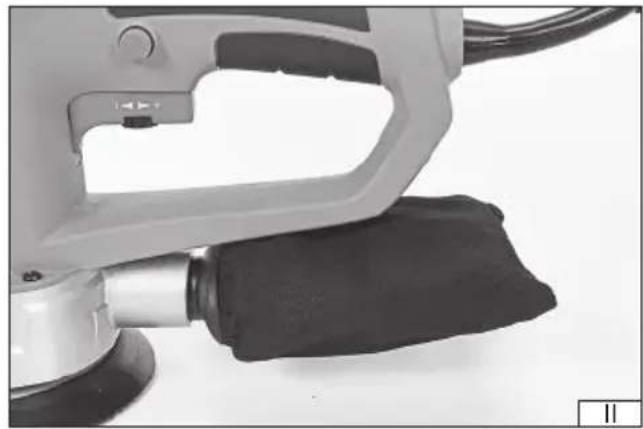

Dust bag assembly (II)

The sander is equipped with a bag to collect dust generated during work. The bag must be assembled at the dust extraction outlet by inserting the bag connector into the dust extraction opening of the sander.

Instead of using a bag, the sander can be connected to an external dust extraction system, e.g. an industrial vacuum cleaner.

The connection should be made using adapters available separately and a flexible hose so that it does not restrict the operation freedom of the sander during work.

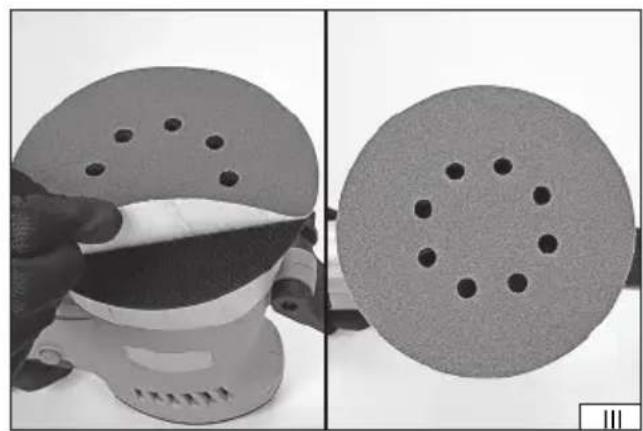

Selecting and installing the sanding disc

Use sanding discs with the diameter shown in the table. The sanding disc should have holes that match the holes in the sander base disc. One side of the disc should have fibres that allow the hooks placed on the sander base disc to grip and connect the disc to the base disc on a Velcro basis.

Place the sanding disc concentrically on the base disc so that the holes in the base disc match the holes in the sanding disc (III).

This will ensure less vibration during work and allow for proper extraction of dust generated during operation. The dust remaining between the sandpaper and the sanded surface reduces efficiency and quality of work.

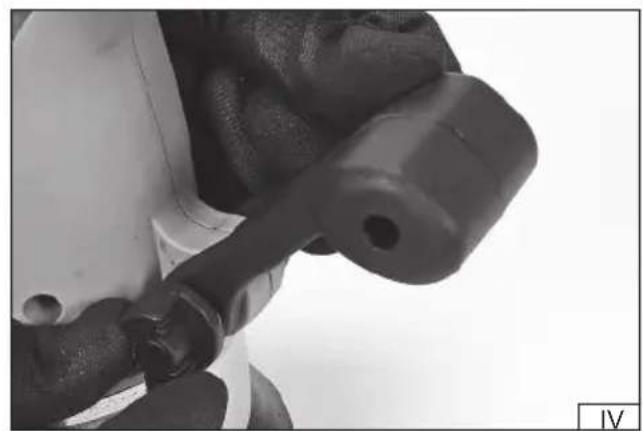

Setting of the additional handle (IV)

The sander has an adjustable additional handle. To change its position, unscrew the locking screw, set the handle in the required position, and then lock the handle with the screw.

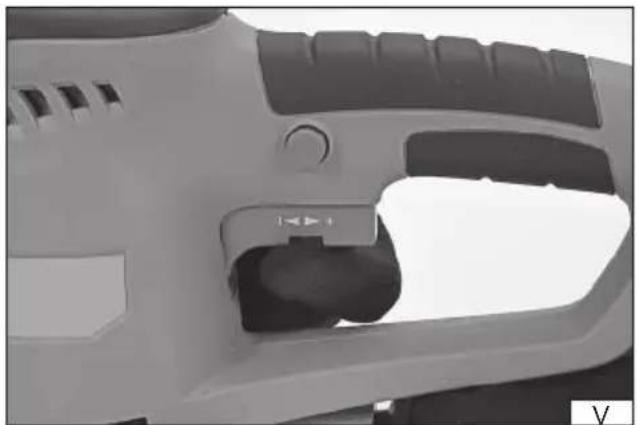

Adjusting the rotational speed (V)

The sander has a power switch that allows you to control the rotational speed of the sander. The deeper the power switch is pressed, the higher the speed of the sander. The knob on the power switch allows you to set the depth of pressing the switch and thus the rotational speed. The arrows and symbols above the knob show the direction of rotation to increase the rotational speed (symbol +) or decrease the rotational speed (symbol -).

Starting and stopping the tool

Make sure that the rated voltage and frequency of the mains correspond to the values shown on the tool's rating plate.

Make sure that the tool's power switch is in the "off" position. To do this, press and release it.

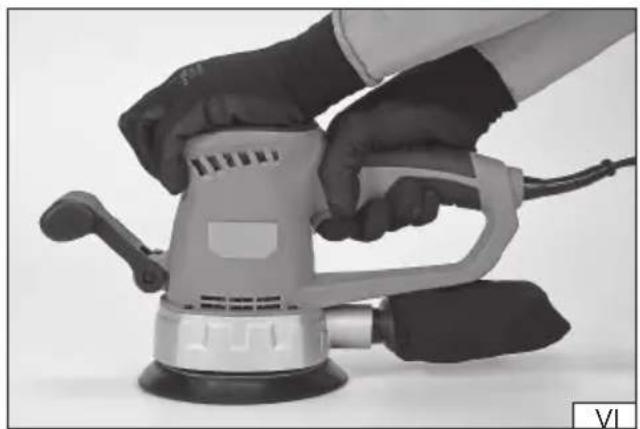

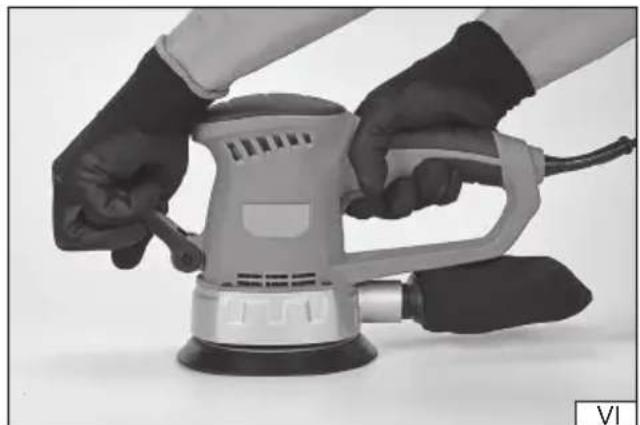

Grasp the sander with both hands (VI). Surfaces intended for gripping and guiding the sander during operation are the grip, handle, and auxiliary handle. The position of your hand on the sander should not cover the ventilation openings in the sander housing. Do not grab near the base disc!

Lift and hold the sander so that the base disc does not come into contact with any object.

Turn the tool on by pressing and holding the power switch. Wait until the disc has reached its rated speed.

The tool is stopped by releasing the power switch. Wait for the disc rotation to stop completely before putting the tool away. Do not stop the disc by applying it to any surface.

The power switch can be locked in the "on" position. To do this, when the power switch is pressed, press the lock button, then release the power switch and next release the lock button. The power switch lock can be used during prolonged operation. The sander with the power switch locked is stopped by pressing and releasing the power switch.

Warning! If suspicious noises, cracks, odour etc. are observed, immediately turn off the tool and pull the plug out of the mains socket.

Sanding

Before starting work, fasten the surfaces to be machined in such a way that they do not move in an uncontrolled manner during work. You can use clamps, handles, vices, etc.

The sandpaper must be selected according to the type of sanded surface. It is recommended to consult the dealer or the manufacturer of the sandpaper for advice on its intended use.

Do not reuse the used sandpaper. Do not use damaged sanding discs. Sanding discs with cracks, tears, cavities, or other damages may disintegrate during operation and cause injuries. Select the sandpaper grit size according to the type of work. Use more coarse sandpaper for sanding and peeling. Use smoother sandpaper for finishing work.

It is recommended to start with coarser sandpaper and finish with finer-grit sandpaper. Sanding in this manner will be faster and lead to a better end result.

Do not use the sandpaper used once to sand metal for wood sanding. Do not use the sandpaper used once to sand the varnish coating for wood sanding.

EN

When sanding, move the sander in a circular or reciprocating motion. Do not stop the sander in one place; this will cause uneven work results. Do not apply excessive pressure on the sanded surface during sanding. The pressure should be uniform throughout the entire working time. The sander should be guided in such a way that the sanding disc adheres to the sanded object with the entire surface.

MAINTENANCE AND OVERHAUL

ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.

DE

GERÄTEBESCHREIBUNG

DECLARATION OF CONFORMITY

0325/YT-82207/EC/2025

We declare and guarantee with full responsibility that the following products:

Orbital sander; 220-240 V\~; 50/60 Hz; 450 W; 4000-13000 min ^-1 ; 150 mm; item no. YT-82207

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-2-4:2015

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019 + A2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
