USER MANUAL YT-81953 Yato


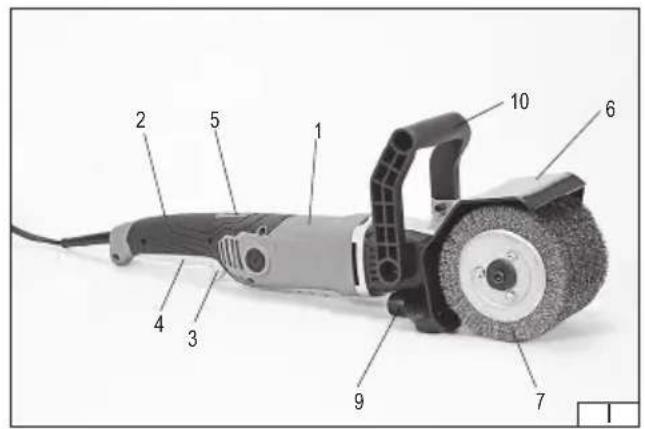

- handle
- power switch lock
- power switch
- rotational speed control
- brush guard
- brush
- spindle
- dust extraction port
- additional handle
DE
Read the operating instruction
Wear protective goggles
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
The brush sander is an ordinary, class II insulation tool, designed for sanding with a drum-shaped brush. Depending on a brush mounted it can be used for processing wooden or metal surfaces. The brush sander can be used to clean the surface from varnish coatings and also to smooth it. As the proper use of the power tool is required for the correct, reliable and safe operation please:
Read the entire instructions manual before the first use of the tool and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.
EQUIPMENT
The factory packaging should contain: the brush sander, an additional handle, a metal and nylon brush.
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. YT-81953 | ||
| Rated voltage [V~] 230 | ||
| Rated frequency [Hz] 50 | ||
| Rated power [W] 1300 | ||
| Rated rpm [min] | ^-1 900 – 3700 | |
| Brush diameter [mm] | 120 | |
| Brush width | [mm] | 100 |
| Brush assembly diameter | [mm] | 19 |
| Weight | [kg] | 5.0 |
| Noise level | ||
| - sound pressure L_pA ± K | [dB(A)] | 88.0 ± 3.0 |
| - power L_wA ± K | [dB(A)] | 99.0 ± 3.0 |
| Vibration level | [m/s2] | 8.85 ± 1.5 |
| Insulation class | II | |
| Protection rating | IP20 |
The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.
The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.
Caution! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.
Caution! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.
GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS
Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.
Keep all warnings and instructions for future reference.
The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.
Workplace safety
Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.
Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.
Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.
Electrical safety
The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.
Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.
EN
Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.
Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.
Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.
In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.
When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.
Personal safety
Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.
Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.
Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.
Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.
Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.
Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.
If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.
Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.
Carefree action can cause serious injuries in a fraction of a second.
Use and care of the power tool
Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.
Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.
Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.
Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool.
Many accidents are caused by incorrectly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.
Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.
Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.
Repairs
Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.
ADDITIONAL SAFETY INSTRUCTIONS
Warnings related to sanding
Hold the tool by the insulated handles, as the sanding surfaces may come into contact with its power cord. Cutting the cord may cause the metal parts of the tool to become live and give the operator an electric shock.
Toxic dust may form during sanding of some surfaces. For example, surfaces coated with lacquer with lead addition. Inhalation of toxic dust may pose a risk to the tool operator or bystanders. In this case, use appropriate personal protective equipment such as dust masks, work in well-ventilated rooms and use external dust extraction systems.
EN
PREPARING FOR OPERATION
Warning! Only install the equipment and make adjustments with the supply voltage off. Pull the tool power cord plug out of the mains socket!

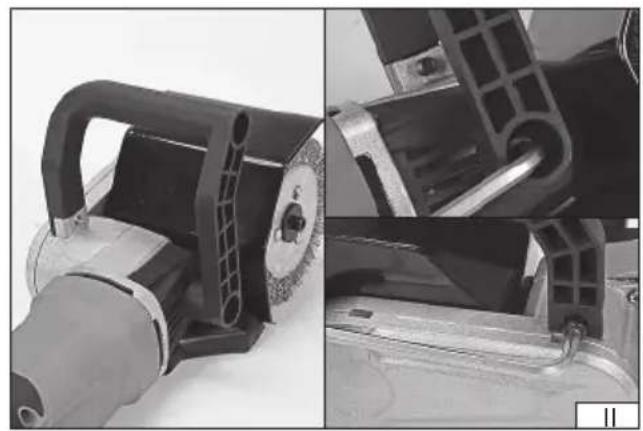

Installing the additional handle (II)
Fix the handle to the housing so that the mounting holes of the handle and the housing are opposite each other. Then fix the handle with bolts.
The handle cannot be adjusted.
Brush installation

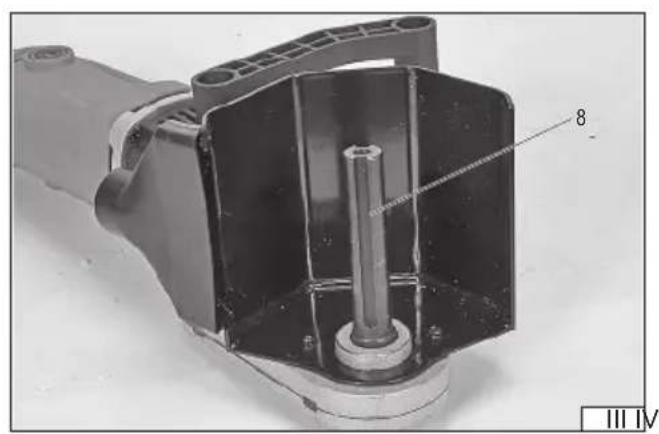

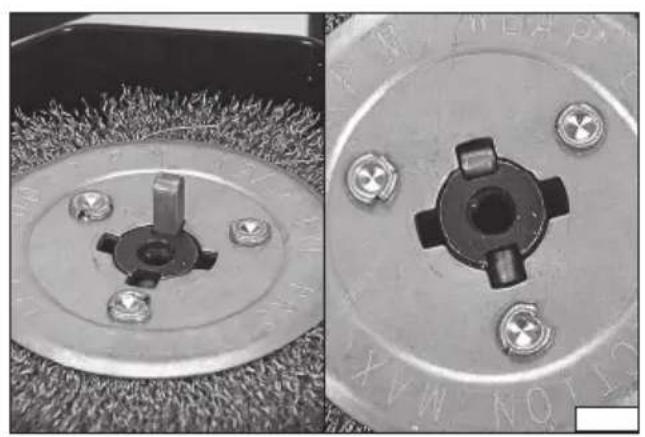

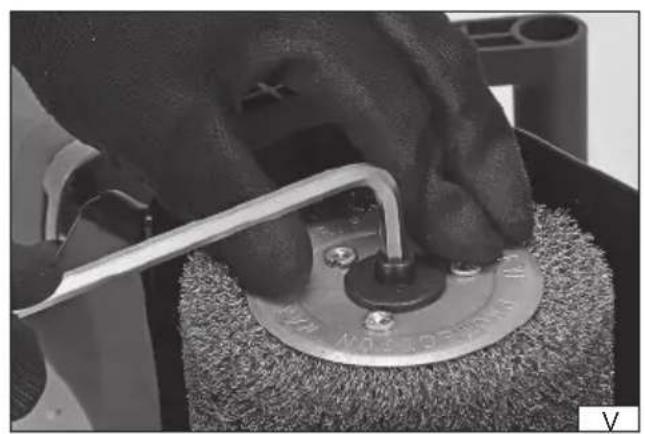

Clean the spindle and the inside of the brush guard (III). Place the brush on the spindle and rotate it so that the grooves in the spindle are placed opposite to those around the brush mounting hole. Insert the locking pins (III) into the resulting slots. The pins should be inserted so that they are opposite one to another (III). This will allow you to better balance the tool during work. The pins should not protrude beyond the side surface of the brush. Secure the brush to the spindle with a bolt and washer (IV).
Dust extraction
The tool is equipped with a dust extraction system. The use of a dust extraction system improves efficiency and safety at work. A flexible hose connected to the dust extraction system, e.g. an industrial vacuum cleaner, must be fixed to the dust extraction outlet. Do not use household vacuum cleaners as dust extraction systems. Household vacuum cleaners are not suitable for extracting dust generated during operation with a tool and such use can lead to damage to the vacuum cleaner.
The adapter for connecting the hose to the dust extraction outlet must be purchased separately. The connection must be made in such a manner that the flexible hose does not interfere with manoeuvring the tool during operation.

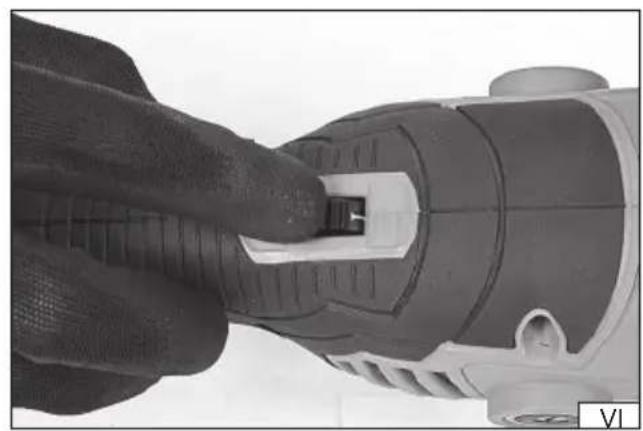

Rotational speed control (VI)
The rotational speed can be smoothly adjusted within the range presented in the technical data table. The higher the number visible on the knob, the higher the speed.
USING THE TOOL
Warning! Before starting work, make sure that the housing and the connecting cable with a plug are not damaged. Stop working in case of damage! The damaged cord or plug cannot be repaired and must be replaced with a new one by an authorised service centre.
Starting and stopping the tool

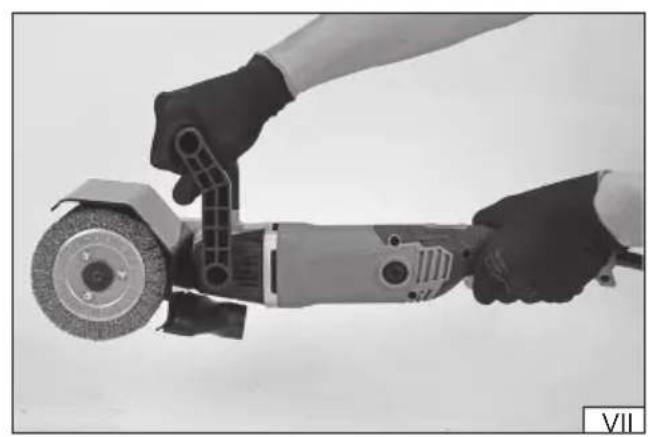

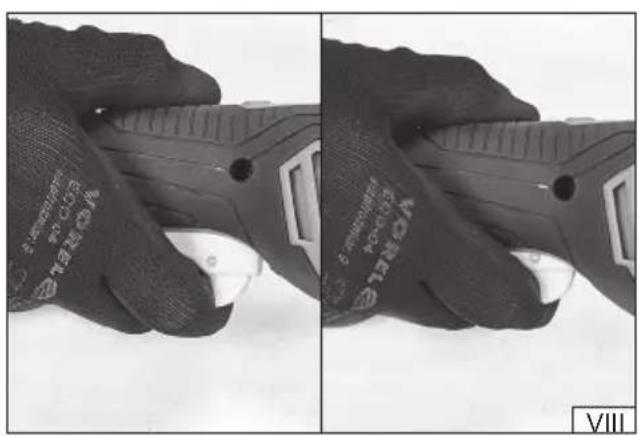

Connect the tool to mains. Grasp the tool with both hands by the handle and the additional handle (VII). Make sure that the sanding brush does not come into contact with any object. The on/off switch of the tool has a safety lock to prevent unintentional pressing. Press and hold the lock button towards the front of the tool in this position (VIII). Then press the power switch (VIII). The tool will start, the direction of rotation of the brush is indicated by an arrow on the tool housing. While working with the tool, it is not necessary to hold the lock button, but keep the switch pressed at all times. The switch does not have a lock to secure it in the ON position.
The tool is stopped by releasing the power switch. The brush may still rotate for some time after releasing the pressure on the switch. Wait until the brush has stopped rotating before putting the tool down. It is forbidden to force stop the brush by pushing it against a workpiece or other object.
After stopping the tool, unplug it from mains and proceed with maintenance.
Tips for working with the brush sander
Select a brush with the appropriate bristle for the work. Use plastic brushes to age soft wood, metal, stone and marble. Metal brushes should be used for processing of hardwood, removal of varnish coatings and rust from metal surfaces. A metal brush can also be used to smooth metal surfaces.
The tool is only suitable for dry use. Always use dust extraction to reduce dust in the work area. Regardless of the dust extraction system, respiratory protection such as a mask or half-mask must also be worn. Always use eye protection as well.
The speed must be selected experimentally by working e.g. on a waste piece of the same material as the surface to be worked on. While working, move the brush sander evenly over the work piece so that its entire surface is evenly finished. Do not press the brush too hard against the work surface, and do not change the pressure during operation, as this may cause uneven surface finish.
Always fasten the work pieces so that they do not move unexpectedly during operation. Use supports, vice, clamps, etc. to secure the workpiece.
The brush sander wears in use. The brush bristle gets shorter, or can be thrown out or broken. Replace excessively worn brushes with new ones. Excessive wear of the brush can be seen in clearly visible spots where the bristles are missing and in difficulties in
EN
operating the brush. The housing elements and the guard will prevent efficient use of the tool if the brush diameter is excessively reduced.
MAINTENANCE AND OVERHAUL
ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.
GERÄTEBESCHREIBUNG
DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE
1025/YT-81953/EC/2025
We declare and guarantee with full responsibility that the following products:
meet requirements of the following European Standards / Technical Specifications:
and fulfil requirements of the following European Directives:
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
