The following symbols are used throughout themanual, and they havethe following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning-generaldanger

GASCONNECTION!

Warning-gasconnection

ELECTRICSHOCK!

Warning-dangerofelectricshock

HOTSURFACE!

Warning-dangerofhotsurface

DANGEROFFIRE!

Warning-dangeroffire

Itisimportantthatyoucarefullyreadtheinstructions.

WARNING!

READCAREFULLYANDKEEPITFORFUTUREREFERENCE!

General

Themanufacturercannotbeheldliableforanydamageresulting fromfailuretofollowthesafetyinstructionsand warnings.

Damagecausedbyincorrectconnection,incorrectfitting,orincorrect useisnotcoveredbythewarranty.

WARNING!

This appliance and the accessible partswill become hot during use. Don't touch hot parts. Keep children younger than away from the appliance unless they are under continuous supervision.

DANGEROFFIRE!

WARNING: Dangeroffire:donotstoreitemsonthecooking surfaces.

NOTE!

CAUTION! The cooking process has supervised. Ashort term cooking process has supervised continuously.

DANGEROFFIRE!

WARNING: Cooking with fatoroilonahob without supervision can bedangerousandcanleadtofire.

• NEVERtrytoextinguishafirewithwater. Instead, switch the applianceoffandthencoverthe flameswith,forexample, alid orafireblanket.
• Neverflambéunderacookerhood. The highflamescancause afire, even if the cookerhood disswitched off.

WARNING!

Useonlyhobguardsdesignedbythemanufacturerofthecooking applianceorindicatedbytheappliancemanufacturerinthe instructionsforuseassuitableorhobguardsincorporatedinthe appliance.Theuseofinnappropriateguardscancauseaccidents.

• Ifadrawerunderneaththeapplianceis permitted(seethe installationinstructions),withoutanintermediatebottom,this shouldnotbeusedtostorehighlyflammableobjects/materials. Ensurethatthereisadequateclearanceofafewcentimetres betweenthebottomofthehobandthecontentsofanydrawers.
  Thehobisonlytobeusedforthepreparationoffood.
• Theunitisnotdesignedforheatingrooms.
• Donotwarmclosedtinsonthehob. Therewillbeabuild-upof pressurethatwillcausetinstoexplode. Youmightgetinjuredorscalded.
• Nevercovertheappliancewithaclothorsomethingsimilar.Ifthe applianceisstillhotorisswitchedon,thereisariskoffire.
• Donotusetheapplianceerasaworktop. Theappliance may accidentallybeswitchedonorstillbehot, whichmeansobjectscouldmelt, becomehotorcatchfire.
• Donotusetheapplianceintemperaturesbelow 5^ C .
• The appliances should not be placed or used outdoors.
• Whenyouusethehobforthefirsttime,youwillnoticea“new smell”. Don’t worry, this is normal. If the kitchen is well ventilated, thesmellwillsoon disappear.
• Theapplianceisnotintendedtobeoperatedbymeansofan externaltimerorseparateremotecontrolsystem.
• Neveropenthecasingoftheappliance.
• Neveruseapressurecleanerorsteamcleanertocleanthehob.
• Theceramictopisextremelystrongbutnotunbreakable. Forexample,aspicejarorsharputensilfallingonitcouldcause ittobreak.

Safety

WARNING!

Ceramicglassplatebroke

• Shutimmediatelyoffallburnersandanyelectricalheating elementandisolatetheappliancefromthepowersupply.
• Donottouchtheappliancesurface.
• Donotusetheappliance.

WARNING!

Householdswithchildrenandpeoplewithspecialneeds

This appliance can be used by children aged 8 years and over, as well as people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved.

• Donotallowchildrentoplaywiththeappliance.
• Donotallowchildrentocleanormaintaintheapplianceunless supervised.
• Donotkeepobjectsthatchildrenmightfindinteresting in cupboardsaboveorbehindtheappliance.
• Thecookingzones/burnersheatupduringuseandstayhotfor awhileafterwards.Keepyoungchildrenawayfromthehobduring andimmediatelyaftercooking.

Gasburners

WARNING!

Prolongedintensiveuseoftheappliancemaycallforadditional ventilation,foreampleopeningofawindow,ormoreeffective ventilation,foreampleincreasingthelevelofmechanical ventilationwherepresent.

CAUTION: The use of gas cooking appliances in the production of heat, moisture and product of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open to install mechanical ventilation device (mechanical extractor hood).

• Theburnercomponentsarehotduringandimmediatelyafteruse. Donottouchthem, and avoid contact with non-heatresistant materials.
• Neverimmersehotburnercapsandpansupportsincoldwater. Rapidcoolingcandamagetheenamel.
• Thedistancebetweenthepanandaknoborn-non-heatresistant wallshouldalwaysbegreaterthanonecentimetre.Inthecase ofsmallerdistances,thehightemperaturemaycausetheknobs orwalltodiscolourand/ordeform.
• Alwaysusethepansupportsandsuitablecookware.
• Alwaysplacethepanonthepansupport. Placingthepandirectly ontheburnercapcanresultindangeroussituations.
• Aluminiumtraysorfoilarenotsuitableascookingutensils. They canburnintotheburnercapsandpansupports.
• Thehobcanonlyfunctioneffectivelyiftheburnercomponents havebeenassembledusingtheguideridges.Ensurethat the pansupports Lieproperlyagainsteachotherandflatonthedrip tray.Onlythencanthepansbepositionedstably.
• Keepovenglovesorovenclothsawayfromtheflame.
• Donotusegriddleplatesorbakingplates.
• Cleantheburnerpartsregularlyforthesafeandcorrectoperation oftheburners.
• Missingrubberfeetfromthepansupportscancausescratches onthedriprayorpoorcombustionoftheburner.lftherubber feetaremissing,pleasecontactourservicedepartment.

Inductioncookingzonesandcookingareas

• Donotplacemetalobjectssuchasknives,forks,spoons,and lidsonthesurfaceofthecookinghof;theymaybecomehot.
• Assoonasyouremovethepanfromthehob, thecookingprocess willstopautomatically. Getintothehabitofswitchingoffthe cookingzoneorhobmanuallytoavoidunintentionallyswitching ontheappliance.
• Afteruse, switchoffthehobeblement using the controls and don't rely only on the Hepodetector.
• Rememberthatifthehobisusedonahighsettingtheheating timewillbeveryshort.Donotleavethehobunattendedifyouare usingazoneinahighsetting.
• Whentheinductionhobisinuse,keepobjectsthataresensitive tomagneticfields(creditcards,bankcards, discs, watches and similaritems)awayfromthehob. Weadviseanyonewitha pacemakertoconsulttheircardiologistfirst.

Safeuse

Temperaturesafetyinductionzones

Eachinductionzoneisequippedwithasensor. Thissensormeasuresthemperatureofthe baseofthepanandthesectionsofthehob. Thisfacilitypreventsoverheating(forexample throughapanboilingdry). Incaseoftemperaturesrisingtoohigh, thepowerofthecooking zone/hubisreducedautomaticallyyorshutoffcompletely.

Cookingtimelimiter

WARNING!

Ifacookingzoneorthewokburnerisswitchedonforanunusuallylongtime,itwillbeswitched offautomatically.

Dependingonthesettingyouhavechosen, thecookingtimewillbelimitedasfollows:

Cookingsettings	Thecookingzoneorwokburnerswitchesoff automaticallyafter:
	9hours1and2
	5hours3,4and5
	4hours6,7and8
	3hours9
	2hours10
	1hour11and12

The cooking zone or wokburners switches off automatically when the above-stated time has elapsed.

Cookingsettings	Thecookingzoneswitchosetting12 automaticallyafter:
	10minutesboost

Yourgas-inductionhob

Dearcustomer!

Please read the operating instructions before use. They include general tips, information about the settings and adjustments you can make, and the best way to take care of your appliance.

The manual also serves as reference material for service technicians. Please, therefore, stick the applianceidentificationcardinthespaceprovidedatthebackofthemanual.Theappliance identificationcardcontainsalltheinformationthattheservicetechnicianwillneedinordertorespond appropriatelytoyounearedsandquestions.

TIP!

You can find themostrecentversionoftheinstructionsforuseonourwebsite.

Enjoyyourcooking!

Description

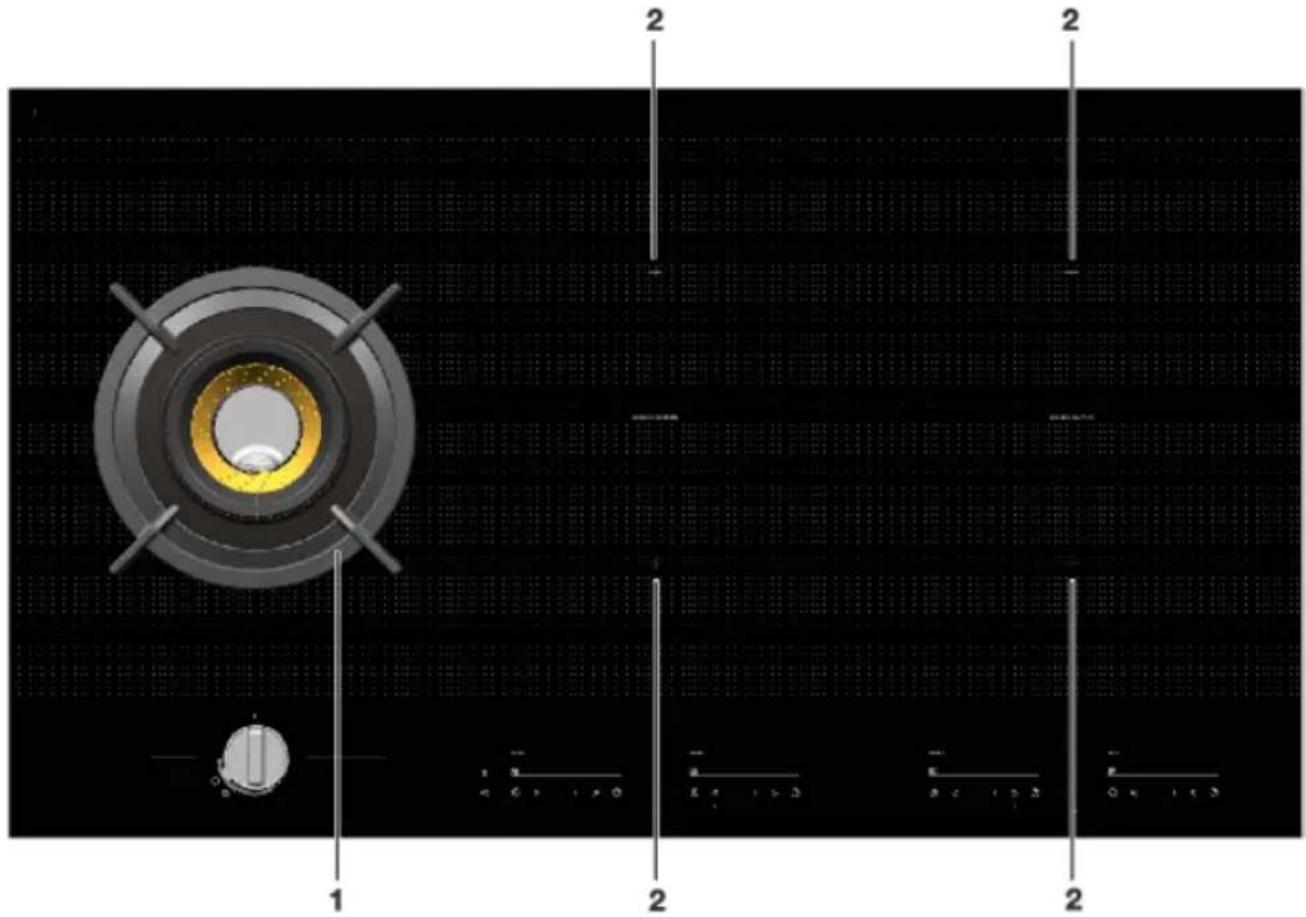

1.FusionVolcanoWokburner(gas)
2.Bridgelnductionzone

Wokburneroperation

1.0position
2.Highsetting
3.Lowsetting
4.Woksetting(wokburner)
5.Roastingsetting(wokburner)

Yourgas-inductionhob

Inductionzoneoperation

1.Pausebutton
2.Pauseindicator
3.Childprooflock/Ecostandbybutton
4.Childprooflockindicator/Ecostandbyindicator
5.Levelindicatorincubes
6. On/offbutton
7.Reducethepowerquickly
8.Reducethepower
9.Raisethepower
10. Raise the power quickly
11.Boost
12.Kitchentimerbutton/timerbutton
13.Kitchentimerindicator
14.Cookingtimeindicator
15. 'Reducemethetime' button
16. Bridge Induction function (two zones are connected; this creates one 'big' zone. Control 2 zones withoneslider).
17. 'Raisethetime'button
18. 'Minutesafterdot'indicator
19. Timer/kitchentimer
20. Menufunctions
21.Menubutton
22.Settingsindicator
23.Cookingzoneindication

Inductioncooking

Inductioncookingisfast

Tostartwith, you will besurprised by the speed of induction cooking. Especially athighersettings, foodsandliquidswillcometoaboilvery rapidly. It is bestnottoleavepansunattendedtoavoidthemboiling overorboilingdry. With inductioncooking, there is no heat loss, and the handleststaycool.

Thepowerleveladjustsitself

Ininductioncooking,onlythezoneonwhichthepanisplacedisused.Ifyouseasmallpanona largezone,thezonewilladjustthepowertothepan'sdiameter.Thepowerwillthusbelow,and itwilltake longerbeforethefoodcomestoaboil.

CAUTION!

• Grainsofsandmaycausesscratchatyoucannotremove. Therefore,onlyputpanswithcleanbaseonthecooking surfaceandalwayspickpansuptomovethem.
• Donotusethehobasaworktop.
• Alwayskeep theidonthepanwhencooking, inordertoavoid energyloss.
• Pansthavaleadyyebenusedforcookingonagashobarenolongersuitableforuseonaninduction Hob.

Operationofthetouch-sensitivebuttons

Placethetipofyourfingerflatonthecontroltoachievethebestresults.Youdonothavetoapply anypressure.

Thetouchsensorshavebeensetinsuchawaythattheyonlyreacttothepressureandsizeof fingertips. The hob can't be operated with other objects and won't, for instance, be switched on if yourpetwalksoverthehob.

Howinductionworks

Thecoil(1)inthehob(2)generatesamagneticfield(3).Byplacinga panwithanironbase(4)onthecoil,acurrentisinducedinthethebase ofthepan.

Easy

The electronic controls are accurate and easy to set. On the lowest setting, you can melt chocolate directly in the pan, for example, or cooking ingredientsthat you would normally heat in aubain-marie.

Fast

Thanks to the induction hob's high power levels, bringing food to the boil is very quick. Cooking food takes just as long as those types of cooking.

Clean

Thehobiseasytoclean.Because the cooking zones donot get any hotter than the pansthem selves, foodspills cannot burn into the glass.

Safe

Theheatisgeneratedinthepanitself.Theglasstopdoesnotgetanyhottherthanhepan.Thismeans that the cooking zone is considerably cooler than aceramicchob,forexample.

Onceapanhasbeenremoved, the cookingzonecoolsdownquickly.

Inductionsounds

Tickingsound

Alighttickingsounddiscussedbythecapacitylimiteronthefrontandbackzones.Asoftticking soundcanalsooccuratlowersettings.

Panmakessounds

Thepancanmakesoundsduringcooking. Thisiscausedbytheenergyflowingfromthehobtothe pan. Thisisnormalforcertainpans, particularly athighsettings. This is notharmfulforthepansor the Hob.

Ventilatormakessounds

Theapplianceisfittedwithaventilatorinordertoincreasesethelfespanofelectroniccomponents. Ifyouusetheapplianceintensively, theventilatorwillbeswitchedonandyouwillhearahumming sound. Theventilatorcanalsomakesoundsafteryouhaven'tswitchedofftheappliance.

Pansforinductioncooking

Inductioncookingrequiresaparticulartypeofpanintermsofquality.

• Pansthavaleadlybeenusedforcookingonagashobarenolongersuitableforuseon aninduction Hob.
  -Onlyusepansthataresuitableforelectricandinductioncookingwith: -athickbaseofaminimumof2.25mm; -afatbase.

TIP!

You can use amagnettocheck whetheryour pansaresuitable. Apanissuableifthebase of the panis attracted by themagnet.

UnsuitableSuitable

EarthenwareSpecialstainlesssteelpans

StainlesssteelClassInduction

Tablecontinuedfromlastpage

	UnsuitableSuitable
	PorcelainSolidanellemelledpans
	CopperEnamelledcast-ironpans
	Plastic
	Aluminium

WARNING!

Becarefulwiththinenamelledsheetsteelpans:

• theenamelmaycome loose fromthesteelathighsettingsifthepanboilsdry;
• highpowerlevelsettingsmaycausethebaseofthepantowarp.

Neverusepanswithamisshapenbase.Aholloworroundedbasecaninterferewiththeoperation oftheoverheatingprotection,causingtheappliancetobecometoohot. Thismayleadtothe glasstopcrackingandthepanbasemelting.Damagecausedbyusingunsuitablepansorboiling dryisexcludedfromtheguarantee.

Pandiameter

Theminiumdiameterforthepanbaseis12cm.Ifapanistoosmall,thezonewillnotwork.

Pressurecookers

Inductioncookingisveryssuitableforpressurecookers.Thefast-reactingcookingzonebringes the pressurecookertopressurequickly.Assoonasyouswitchoffacookingzone,thedishstops cookingimmediately.

Pans

wrong

Alwaysensurethattheflamesremainunderthepan.Alotofenergyis lostwhenflamesburnaroundtheoutsidehepan.Thehandscould alsobecome too hot.

right

Donotusepanswithabasediameterssmallerthan12cm.Smallerpans arenotasstable.

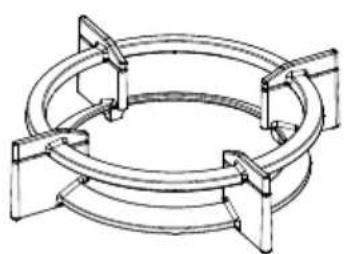

Wokring

Wok ring

Thewokringforusewiththewokburnersuppliedorobtainableasan accessoryprovidesextrastabilityforwokswitharoundbase.

NOTE!

Onlyusethewokringonthewokstandincombinationwitha (round-based)wok. Thewokringmaydiscolourifusedonthe searingsetting.

Pansupport

Placethepansupportvertically,withoutslidingitovertheglasstop.Usethepositioningnotchesto positionthepansupportontheglasstop.

Wokburnerposition

Placethewokburnerinthecorrectway. Placingthewokburnerpartsincorrectlycan resultinapoorlyfunctioningburner.

1. Placeetheburnerdistributor(2)inthe burnerhousing(1).
2. Use the deposition of the inner ring (3) on the burner distributor (2)
3. Use the deposition of the outerring (4) on the burner distributor (2)

Theecostandbymode

Intheecostandbymode, thehobisswitchedoffanditusesaslittleenergyaspossible.

Thehobcanalsobeswitchedtotheecostandbymodefromthestandbymodeandwhencooking zonesarestillactive.

Switchingthehobtotheecostandbymode

Pressthekeybuttonbriefly.

Asingleaudiosignalsounds.

Theecostandbymodeisactive,theredlightnexttothekeybutton flashesslowly.

From the eco standby mode, you can't immediately start cooking. To be able to, the hob first needs to beswitchedtothestandbymode.

Standbymode

Instandbymode, the induction hobisswitchedon, but all zones are off. Youcanswitchtothe standbymodefromtheecoststandbymode, orbyswitchingoffseparatecookingzones.

Fromthestandbymode,youcandrectlystartcookingbypressingtheon/offbuttonofthedesired cookingzone.

Switchingthehobfromtheecostandbymodetothestandbymode

Theredlightnexttothekeybuttonflashesslowly.

Pressthekeybuttonbrieflytoactivatethestandbymode.

You will hear as singleaudiosignal.All lights on the Hobareout, except possibly the residual heat indicator H

TIP!

Thehobuseslessthan0.5Wattintheecostandbymode.After30minutesinthestandbymode, thehobwillautomaticallyswitchtotheecostandbymodetopreventunnecessaryenergy consumption.

Thechildproofflockmode

Your induction hobisequipped with a childprooflockthatletsyoulocktheappliance. It prevents unintended switching on of the cooking zones.

Switchingonthecchildprooflock

1.Pressthekeybuttonfor2seconds.

Adoubleaudiosignalwillbeheard.Allbuttonssarenowinactive, exceptforthekeybutton.

Thehobfirstswitchetheecostandbymodeandthentothe childproofflockmode.

Theredlightisconstantlyon.

2.Pressthechildclockbuttonagainfor2secondstoswitchoffthe childprooflock.

Asingleaudiosignalwillbeheard.Thehobisnowinstandbymode. Theredlightnexttothekeybuttonisoff.

TIP!

Setthehobtothechildproofflockmodebeforecleaningthehobtopreventitfromaccidentally switchingon. Whenthehobissettochildproofmode, itusesjustaslittleenergyaswhenitisin ecostandbymode.

Pause

With this pause function, you can set the entire hob to 'pause' for 5 minutes during cooking. The energysupplytothecookingzoneewillstop,withoutlosingsettings.However,dorememberthatthe cookingzoneewillstaywarmforsometime;preferablyremovedelicatedishesfromthecookingzone.

Switchingthehobstopausemode

Pressthepausebuttononce. Adoubleaudiosignalwillbeheard and thereclightnexttothepausebuttonflashes.

Anysettimers/kitchentimersstop.

Allcookingzonesareautomaticallyswitchedbacktosetting1or2;the wokburnerwillreturntothelowestsetting.

Allbuttonsareinactive, exceptforthekeybuttonandthepausebutton. Theon/offbuttonoftheindividualcookingzonesalsoremainactive; theydo, however, reactwithadelayoftwosecondssothatyoucan cleanthecontrolpanel.

• If you press the pause button again within 5 minutes, the paused cooking processes will resume. Adoubleaudiosignalwillbeheard, the Hobresumesthesettingsastheyweresetbeforethe pause.
• Ifyoudonotundertakeanyfurtheractionwithin5minutes: Allactivecookingzoneswillswitchoffautomatically. Afterthat, thepausebuttonwillkeepflashing for25minutestoindicatethecookingprocesseshavebeenendedbythepausemode. Thehobautomaticallyswitchesfromthepausemodetothecocostandbymodeafter25minutes.

Recognisingamode

Theredlightnexttothekeybuttonflashesslowly.Theecostandby

Tablecontinuedfromlastpage

	Notasinglightislit. Thestandbymode
Thechildprooflockmode	Theredlightnexttothekeybuttonislit constantly.
	Theredlightnexttothepausebuttonflashes. Thepausemode

Timer/kitchentimer

	ThekitchentimerfunctionThetimerfunction
Thisfunctioncanberecognized bytheredsmallarrowpointingup.	Thisfunctioncanberecognized bytheredsmallarrowpointing down.
Thetimeincreasesinthetimes function.	Thetimecreasesinthetimes timerfunction.
Thetimercannotbelinkedtoa cookingzone.	Thekitchentercelinkedto acookingzone.Thismeans the cookingzoneswitchesofffifteset timehaspassed.
Whentherimbuttonispressed, thetimerfunctionautomatically switchesafter3secondsifyou donnothing.	Thekitchentimerfunctioncanbe reachedfromthetimesfunctionby pressingthered+buttonorred- button.

NOTE!

There'sonetimer/kitchentimeravailablercookingzone.

Thetimer/kitchenimercanonlybelinkedtooneofbothcookingzonespersetoftwocooking zones.

Thetimer/kitchentimerfunctioncanalsobeusedwithoutactivatinganaccompanyingcooking zone.

Switchingonthetimer

1. Pressthetimer/kitchentimerbuttonfromthecookingzoneonce. Thedisplayofthetimerlightsupandyou'llseethree zeroes flashing.A+and-appearbelow.

If youdonotsetatimewiththe+or-button, the timerwillstart runningautomaticallyafter3seconds. The timercangoasfaras 9hoursand59minutes. Theredarrowpointingupwardslightsup andthetimeincreases.

2.Pressthetimer/cookingtimerbuttonagaintoswitchitoff.

Switchingonthekitchentimer

1.Presssthetimer/cookingtimerbuttonfromthecookingzoneonce.
2. Press the + or - button switch from the timer function to the kitchen timer function. After that, you can set the desired cooking time with the + button. Then you can change the setting time with the - button.

Theredarrowpointingdownwardslightsup. Timeiscountingdown.

3.Presssthetimer/cookingtimerbuttononcemoretoswitchitoffagain.

NOTE!

• Thekitchen timer is linked to the cooking zone if the accompanying cooking zone iss switched on.
• If the kitchen timer is linked to a cooking zone, the cooking zone will switch off after the set timehaspassed. Thekitchenimalarmgoesoffandreleasesanaudiosignalforaquarter of an hour while decreasing as the time passes, while '0.00' and the downwards red arrow keepflashing. Pressthetimer/kitchenimerbuttonagainorremovethepanfromthecooking zonetoswitchhoffthekitchenimalarm.

Settingthecookingtime

		TimeStepsofxperrorcontactButton
		0.00to...x=1minute+
		5.00-0.00x=10seconds-
		9.00-5.00x=30seconds-
		...to9.00x=1minute-

After 9 minutes and 0 seconds ('9.00'), the word '.min' appears above the display and the minutes will be added behind the dot.

TIP!

You can press and hold the + or - button set the desired cooking time quicker.

Switchingtheaudiosignalandoff

1.Presstheon/offbuttononthefarlefttwice.
2. Pressandholdthe < buttonandthe + buttonsimultaneouslyuntilyouhearabeep.

Thebeepisnowswitchedoffforallbuttonoperations, exceptforthepausebuttonandthechild lockbutton.

1. Usethesamebuttoncombinationtoswitchthesoundbackon.

NOTE!

Please note: the kitchen timeralarmandtheaudiosignalforerrormessage can not be switched off.

Switchingonandpowersetting

1.Pressthekeybutton.
Asingleaudiosignalsounds.
2. Placeapaninthemiddleofacookingzone.
TheAPdregistersapananda flashing'-'appearsinthedisplay. If youdon'tdoanythingelse, the cooking zone will switch off automatically after 10 seconds.
3. Pressthe +or - button, orthe << or >> buttonselectthedesired setting. The cooking zone starts automatically in the levelthathas been set (whenapanisdetected).
- Ifyoupressthe+or-buttonfirst,level6appears.
- If you press the >> button first, level 12 + 'boost' appear in the display. This is powerlevel 'boost' and you can use this setting if you want to bring dishestheboil quickly.
- Ifyoupressthe < buttonfirst,level1willappear.

NOTE!

IftheAPdffunctionisswitchedoff,activateacookingzoneusingtheon/offbutton.

Automaticpandetection(APd)

Oncethehobisswitchedon,ifapanisplacedonaninactivecookingzone,thecorresponding controlwilllightupandcanbeoperatedimmediately(withoutoperatingtheon/offbutton).Ifthe cookingzoneisnotswitchedonwithin10secondsitwillsswitchitselfoffagain.

Thecookingzonecanbereactivatedbyremovingthepanandreplacingitonthecookingzoneon byusingtheon/offbutton.

Thisfunctionisactivebydefault,butcanalsobeswitchedoff.Thisisdonebyswitchingthoboff and operating the 'Menu' and 'on/ off button' on the left-hand control panel for 5 seconds. 'APd OFF' will appear on the display. By repeating this process, the function can be reactivated and the 'APd On' willappearonthedisplay.

NOTE!

If the hob doesn't detect a pan, with or without iron content, after a power level has been set, the displaywillcontinuetoflashandthecookingareawillremaincold. Ifnopanwithorwithoutiron contentisplacedonthezonewithinoneminate, thecookingzonewillswitchoffautomatically.

Residualheatindicator

Afteruse, the cooking zone used may stay hot for several minutes. As long as the cooking zone is still hot, an 'H' will be visible in the display.

Boost

You can use the 'boost' function for cooking at the highest power level during a short time (max 10minutes).Afterthemaximumboosttimehaspassed,thepowerwillbereducttosetting12.

Switchingon'boost'

1.Putapanonacookingzoneandswitchthecookingzone.

1. Pressthe>>buttonimmediatelyafteryouhaven'twitchedonthe zone.

'12' and 'boost' appear in the display.

Switchingoff'boost'

'Boost' has been switched on, the display shows setting 12 and 'boost'.

1.Pressthe < < buttonorthe-button.

Inthedisplayyouwillsealowersetting.

Or:

2.Presstheon/offbuttonofthecookingzoneyouwanttoswitchoff.

You will hear asingleaudiosignalandthedisplaydims. The cookingzonehasbeenswitched offcompletely.

NOTE!

If a cooking zone has already been set to a power level and you want to use 'boost', press several times the >> buttonorthe+buttonofthecookingzoneconcerned.

Twocookingzonesbehindeachother

• Thetwocookingzoneswhicharebehindeachotheraffecteachother. Whenbothof these cookingzonesareswitchedonatthesametime, the powerissharedbetweenthemautomatically. Thefirstsetcookingzonewillremainatthesetsettingataltimes. Themaximumsetsettingfor thecookingzonetothefrontorbackthatisaddedlaterdependsonthesettingofthefirstcooking zone. Whenyouhaveneachedthemaximumamountofcookiningsettingcombinations, thelast setsettingwillstarttoflashandisautomaticallyloweredtothehighestpossiblesetting.
• Twocookingzonesnexttoeachotherwillnotinfluenceeeachother.

You can set both cooking zones onahigh setting.

Bridgelnductionzone

TheBridgelnductionzonescanbelinkedtoeachother.Thiscreates1largezonethatcanbeused,forexample,foralargefishpanorvariouspansonsthesamepower.

• IftheBridgelnductionzonesarelinked,theycannotbesettoboostand,themenufunctions cannotbeused.
• Use a fish pan or other pan covering at least one of the Bridge Induction zones in the middle.

EnableconnectingBridgInductionzones

1. Placealargepanonbothcookingzonessothatbothzonesare wellcovered.
   2.Switchonthefrontcookingzone.
   3.Holdtwokeysdownatthesametime(forafewseconds):the<< buttononthearBridgelnductionzoneandthe>>buttononthefrontBridgelnductionzone.

'br'willappearinthedisplayoftherearzone. Therearzonecan nolongerbcontrolled.Bothzonesareheatedaccordingly the settingsetinthefrontcookingzone.

4.Setthedesiredcookinglevelusingthe+or-button,ortho<>buttonofthefrontzone.Bothzonesareheatedinthevelset.

DisableconnectingBridgelnductionzones

Holdtwokeysdownatthesametime(forafewseconds):the<>buttononthefrontBridgelnductionzone.

Thezones Arenotconnectedanymore. Therearcookingzonedisplaydimsandsetting 1appears inthefrontcookingzonedisplay.

Or:

Presstheon/offbuttonofthefrontcookingzonetoswitchbothcookingzones.

You will hear as single audiosignal and the displaydims. The cooking zone has been switched off completely.

Switchingoff

Switchingoffonecookingzone

Presstheon/offbuttonofthecookingzoneyouwanttoswitchoff.

You will hear asingleaudiosignalandthesliederdims.

• Ifallcookingzoneshavebeenswitchedoffthisway, thehobwillautomaticallybeinthe standbymode(alsoreferto'standbymode').

Switchingoffallcookingzones

Pressthekeybuttonbrieflytoswitchchoffallthecookingzonesatthesametime.

Asingleaudiosignalsounds.Teredlightnexttothekeybuttonwillflashslowly.

The hob is now in eco standby mode (see also 'eco standby mode').

Automaticcookingprograms

Eachinductionzoneisequippedwith6automaticcookingprograms.Youcansetanyendtimeof anAutomaticcookingprogramwiththeaidofthekitchentimerfunction.

Thecookingprogramsarebasedonregularquantities.

Thesemenufunctionsworkbestiftheyarestartedatthebeginningofthecookingprocess.

Tosetanautomaticprogram

Thecookingzoneisswitchedon.

1.Pressthemenubutton.

Aseriesof6iconswilllightup, 1ofwhichbrighterthantheothers.

2.Againpressthemenubutton,orpressandholddownthemenu buttontogotothenextmenufunction.

Theselectedcookingprogramautomaticallystartsafter3seconds.

An 'A' for 'automatic' appears in the display.

Ifana automatic cooking program is active, you can use the following buttonstogoback totemanual cooking process: <<, +,->> .

NOTE!

Please note! The cooking programs donot work if the zones are connected.

山

Heating-up/cookingfunction

Thisfunctionbringsthecontentofthepantoaboil(100°C)andkeeps itboiling.Anaudiosignalcanbeheardwhenthecontentiscookingor ifthefoodhastobeadded.Thisfunctiononlyworkswithoutthelidon thepan.

山

Simmeringfunction

Thetemperatureofthedishisconstantlykeptneartheboilingpoint(90 ^ C - 95^) .Thesimmersettingworksbestwithalidonthepan.Thicker disheshavetobestirredevery15minutes. Themaxumsimmering timeis8hours,unlessashortertimehasbeensetwiththeaidofatimer.

山

Keep-warmfunction

Thetemperatureofadishisautomaticallykeptataconstanttemperature of 70^-75^ .Thekeep-warmsettingworksbestwithalidonthepan.Largerquantitiesandthickerdishesneedtobestiredoccasionally. Themaxumtimeforkeepingwarmis8hours,unlessashortertime hasbeensetwiththeaidofatimer.

wok

Wokfunction

Thewoksettingprovidesanoptimalwoktemperature,forboththeoil andthewok. Aftertheaudiosignal, thepanhasreachedistemperature, theoilcanbeputinthepanandthenthedish.

Searingfunction

Theseearingsettingprovidestheoptimalsearingtemperature.

Aftertheaudiosignal, thepanhasreacheditstemperature. Theoilor buttercanbeputintothepanandthenthedish.

Grillfunction

Thegrillsettingprovidestheoptimalgrillingtemperature.Anaudiosignalcanbeheardwhenthepanhasreachedistemperature.

Cookingsettings

Because the settings depend on the quantity and composition of the panandits contents, the table below is intended as a guideline only.

Use 'boost' and settings 11 and 12 to:

• bringfoodorliquidtotheboilquickly;
• 'shrink'greens;
  -heatoilandfat;
• bringapressurecookeruptopressure;
• wok.

Usesettings9and10to:

-searmeats;
- fryfish;
- fryomelettes;
- fryboiledpotatoes;
- deepfry.

Usesettings7and8to:

• frythick pancakes;
• frythickslicesofbreadedmeat;
  fryupbacon;
• fryrawpotatoes;
  makeFrenchtoast;
• frybreadedfish;
• cookthroughpasta;
• frythinslicesofmeat;
  -roastlargepiecesofmeat.

Usesettings4to6to:

• cookfoodthrough;
• defrosthardvegetables;
• frythickslicesofmeat;
  steam.

Usesettings1to3to:

simmerbouillon;
- poach;
- keepwarm;
- stewmeats;
simmervegetables;
- meltchocolate;

Ignitionandadjustment

Theburnerisfullyadjustablebetweenhighhandlowsettings.

1. Pressthecontrolknobandturnitanticlockwise. Theburnerwill ignite.
2. Keep the control knob fully depressed for at least 3 seconds between high and low settings. The thermocouplesafetypilothas been activated.
   3.Turnthewokcontrolknobtothelowsetting(3).
3. If desired, turn the wok selector roasting setting (5). The innerring (wok setting) will switch off and the outerring (roasting setting) will switch on.
4. Thewokburnerwillswitchautomaticallytothewoksettingifthe controlknobofthewokburnerissetto0.

NOTE!

Itispossibletoswitchbetweenwoksettingandroastingsettingandbackduringcooking.

If the control knob is in the offsetting (0-setting) these selector ring cannot be changed to the roatingsetting. Always turn this knob back completely to 0.

Cleaningglassstop

TIP!

Activatethechildlockbeforecleaningthehob.

Dailycleaning

• Although food spills cannot burn into the glass, we never the less recommend you clean the hob immediately after use.
• Fordailycleaning,adampclothwithamildcleaningagentisbest.
• Dryoffwithkitchenpaperoradryteatowel.

Stubbornstains

• Stubborn stains can also be removed with a mild cleaning agent, washing-up liquid, for example.
• Removewatercirclesandlimescalewithcleaningvinegar.
• Tracesofmetals(causedbyslidingpans)canbedifficulttoremove.Specialproductsare availableforthis.
• Use a glass scraper to remove food spills. Melted plastic and sugar are also best removed with aglassscraper.

NOTE!

• Neveruseabrasives.Theseleavescratchesinwhichdirtandlimescalecanaccumulate.
• Neveruseanythingsharpsuchassteelwoolorscourers.

Cleaningwokburnerelements

NOTE!

Burnerpartssshouldnotbecleanedinthedishwasher.

Dishwasherdetergentscancrodeburnerparts!

Persistentstainsonename(pansupports,burnercaps)

Persistentstainscanbestberemovedwithafluiddetergentoraplasticscouringsponge.Never usescouringpowder,scouringpads,sharpobjectstoraggressivecleaningproducts.

Brasswokburnerparts

Somewokburnerpartsaremadeofbrass.Itisnotunusualtoeeachangeinthecolourofthe brassasaresultofthehightemperaturesinvolvedinwokuse.

TIP!

Consultthewebsiteforadditionalmaintenanceandcleaninginstructions!

General

NOTE!

If you notice a crack in the glasstop (however small), switch off the hob immediately, unplug the hob, and close off the gassupply.

ThencontacttheServiceDepartment.

		SolutionPossiblecauseSymptom
Wokburner
Thereisasmellofgasnear theappliance.	Theapplianceconnectionis leaking.	Turnoffthemaingassupplyvalve.Contactyourinstaller.
Theburnerdoesnotignite.	notcorrect.	Contactyourinstaller.Theelectricalconnectionis
ErrorcodeF4-0661)	Fusedefective/fuseswitched offinfusecupboard.	Replacethefuseorswitchthefuseagaininthefusebox.
		Clean/drythesparkplug.Sparkplug(1)dirty/damp.
	Burnerpartsnotplaced correctly.	Usethecentringnotchestoputtheburnerpartstogether.
	Burnerpartsdirty/damp.	Clean/drytheburnerparts.Makesurethattheoutflowholesareopen.
	closed.	Openthemaingasvalve.Maingassupplyvalve
		Consultyougassupplier.Faultingasmains.
	Gasbottleortankisempty.	Connectanewgasbottleorhavethetankrefilled.
	Thewrongtypeofgasused.	Checkwhetherthegasusedissuablefortheappliance.Contactyourinstallerifitisnotcorrect.
Theburnerdoesnotburnevenly.	Burnerpartsnotplaced correctly.	Usethecentringnotchestoputtheburnerpartstogether.
	Burnerpartsdirty/damp.	Clean/drytheburnerparts.Makesuresthattheoutflowholesareopen.
	Thewrongtypeofgasused.	Checkwhetherthegasusedissuablefortheappliance.Contactyourinstallerifitisnotcorrect.
igniting.ErrorcodeF3 1)		Clean/drythethermocouple.Thermocouple(2)isdir

Faults

Tablecontinuedfromlastpage

		SolutionPossiblecauseSymptom
Ceramicglassplatebroke		Closethegasmainswitchandpullthe plugoutofthesocket.Contactyour installer.
		Please note!Donotthrowabreaken ceramicglassplateintheglass recyclingbinbuttakethistothe Municipality'swasterecyclingcentre.
		Contacttheservicedepartment.Other

1) Reset error code: switch the hob 'off - on' using the key button. Then switch on the gas zone using the slider.

Informationaccordingtoregulation(EU)66/2014

MeasurementsaccordngEN60350-2/EN30-2-1

Modelidentification		IG9571MBBIG9571MBA
Typeofhob		GasinductionhobGasinductionhot
Numberofelectriccookingzonesand/orareas	4	4
Heatingtechnology	Inductioncooking zonesandcooking areas	Inductioncooking zonesandcooking areas
Forcirculararelectriccookingzones:diameter of usefulsurfaceareaperelectricleatedcooking zoneincm	-	-
Energyconsumptionpercookingzoneorarea calculatedperkg(EC electrichob)inWh/kg	-	-
Fornon-circularcookingzonesorareas:length andwidthofusefulsurfaceareaperelectric heatedcookingzoneorarea		22.0x18.0cm22.0x18.0cm
Energyconsumptionpercookingzoneorarea calculatedperkg(EC electrichob)inWh/kg		188.8188.8
Numberofgasburners	1	1
Energieefficiencypergasburner(EE gasburner) in %		56.556.5

Safety

Ifthesafetyinstructionsand warningsarenotfollowed, the manufacturer cannot beholdresponsibleforanyresultingdamage.

• This appliances should only be connected by registered installer.
• Priortoinvestment,ensurethatthelocaldistributionconditions (voltage,frequency,natureofthegasandgaspressure)andthe adjustmentoftheappliancearecompatible.
• Thevoltage, frequency, power, type of gas and the country for which the appliance has been designed to show nonthe appliancerating plate.
• Check the appliance for transport damage. Donot connect a damaged appliance.
• Thewallsandtheworktopsurroundingtheappliancemustbe heatresistantuptoatleast 105^ .
• Theworktopintowhichthehobisfittedshouldbeflat.

Electricalconnection

• Thisappliancemustbeearthed.
• Theelectricalconnectionmustcomplywithnationalandlocal regulations.
• Forclasslappliances, check that your home's electrical system provides propergarthing.
• Thewallplugsocketandplugshouldalwaysbeaccessible.

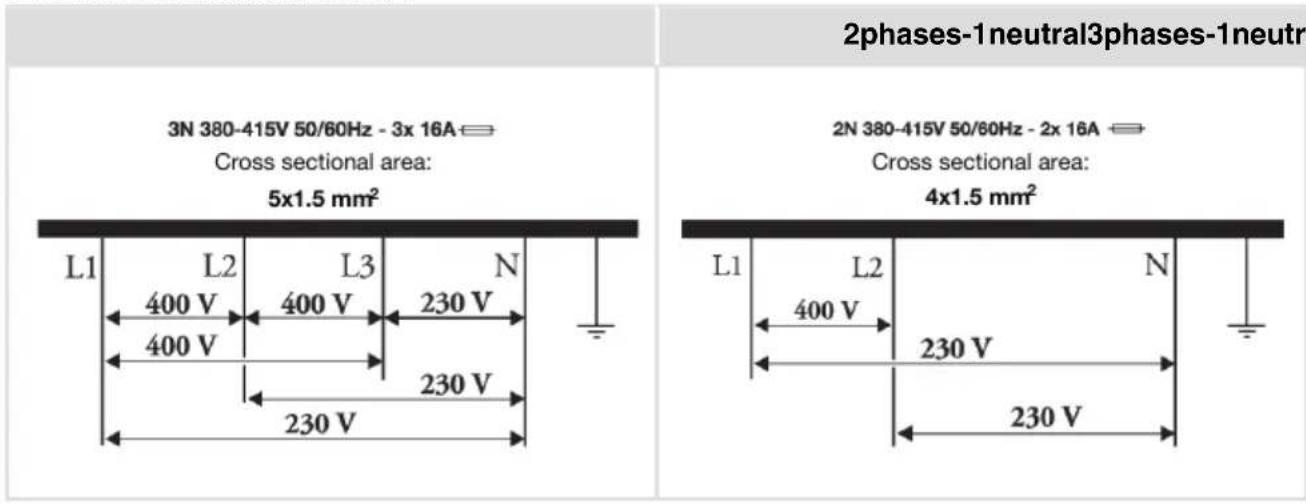

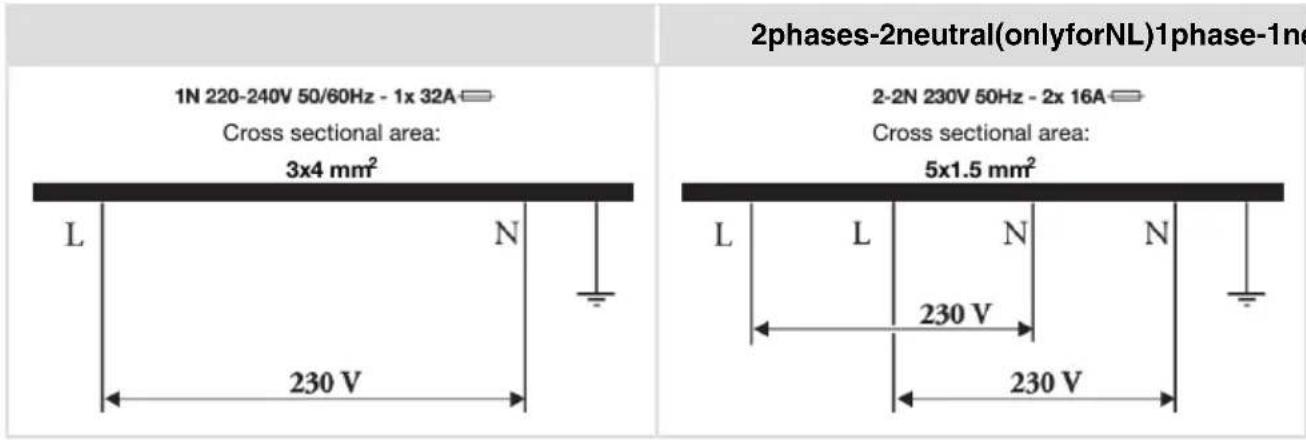

• Ifastationaryapplianceisnotfittedwithasupplycordanda plug,orwithothermeansfordisconnectionfromthesupplymains havingacontactseparationinallpolesthatprovidefull disconnectionunderovervoltagecategoryllconditions,the meansfordisconnectionmustbeincorporatedinthefixedwiring inaccordancewiththewiringrules.Usinganomnipolarswitch withacontactseparationofatleast3mmfittedinthesupply cablewillfulfilthisrequirement.

• Theconnectioncablemusthangfreelyandshouldnotbefed throughadrawer.

• Forconnecting,useanapprovedcablewiththecorrectcable diametersappropriatefortheconnection.Thecablecasingshould bemadeofrubber(preferablyoftheH05V2V2orH07V2V2type).

• Beforeconnectingtheappliance, makesurethevoltageindicated ontheratingplateconformstothevoltageinyourpowermains.
• Theconnectionshouldbeadjustedtothecurrentandfuses.
• The appliances should not be connected to themainsviaa multi-plugapterorextensioncable,asthesafeuseofthe equipmentcannotbeguaranteed.
• Afterinstallation, the partscarryingelectricalcurrentandinsulated partsshallbeprotectedagainstcontact.

WARNING!

Failuretousescrewsorfastenersforinstallationasdescribed intheinstallationinstructionsmayresultinelectricshock.

Gasconnection

• Gas connection 1 / 2" ISO 228 / ISO 7-1 / EN 10226-1 ( 1 / 2" ISO 228/1/2"ISO228FRonly).
• Thegasconnectionmustcomplywithnationalandlocal regulations.Seeappliancelabelfortechnicalgasdata.
• This applianceisnotconnectedtoacombustionproducts evacuationdevice. Itshallbeinstalledandconnected in accordancewithcurrentinstallationregulations. Particularattention shallbegiventotherelevantrequirementsregardingventilation.
• Werecommendthatthegashobbeconnectedbymeansafixedpipe.Connectionusingaspeciallydesignedsafetyhoseisalsopermitted.
  Thepipebehindtheovenmustbemadeentirelyoutofmetal.
• Asafetyhosemaynotbebentandmustnotcomeintocontact withmovingpartsofkitchenunits.
• Thegassupplyvalvemustalwaysbeplacedinaneasily accessibleposition.

Service

• Disconnecttheappliancefromthemainssupplybeforestarting anyrepairwork.
• Faultypartsmayonlybereplacedbyoriginalparts. Themanufacturercanonlyguaranteethatoriginalpartsmeet safetyrequirements.
• Ifthesupplycordisdamaged, it mustbereplacedby the manufacturer, its service agents similarly qualified persons in ordertoavoidahazard.

Preparationsforinstallation

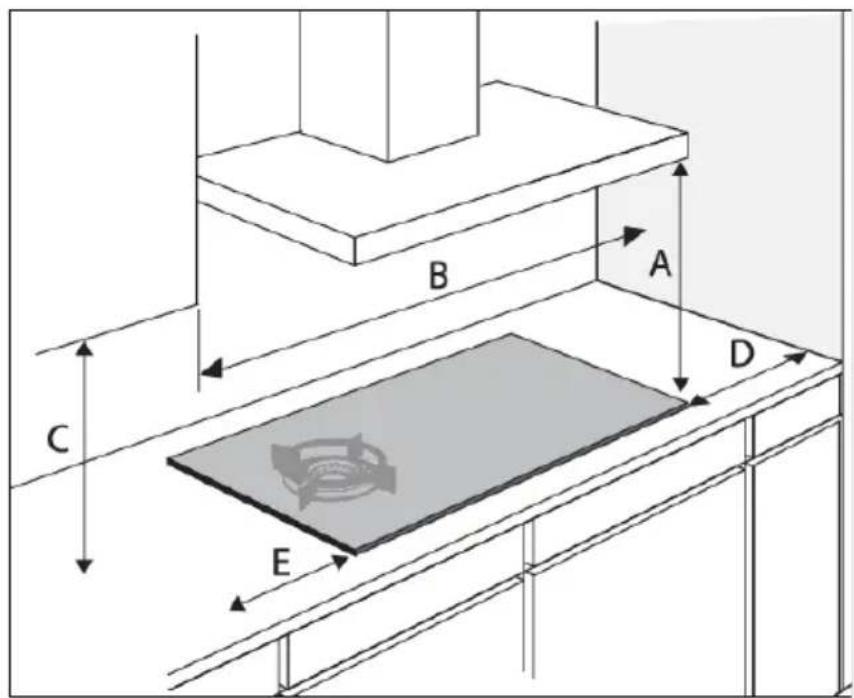

Freespacearoundtheappliance

	G20/20mbarG25.3/25mbar
	6.0kW6.0kWWokburner

NOTE!

When converting the appliance for use with another type of gas, see conversion set manual and usespecified conversion set.

Electricalconnection

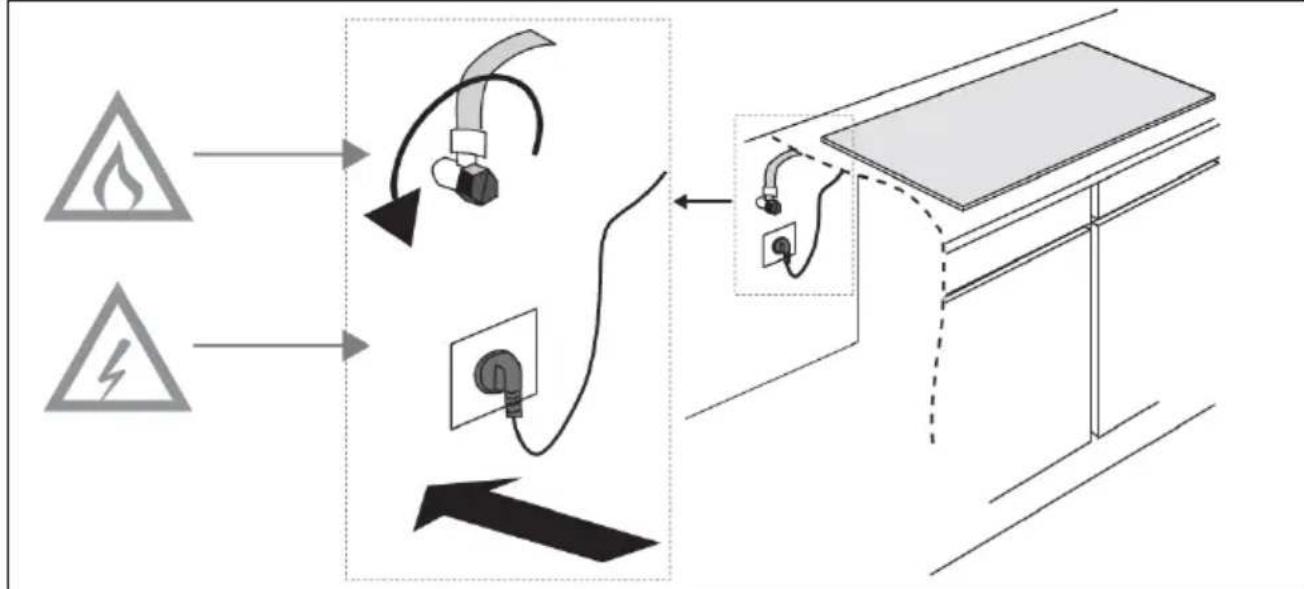

Connecting&testing

WARNING!

Checkifconnectionsaregastight.

Disposal of the appliance and packaging

Sustainable materialshavebeenusedduringthemanufactuereofthisappliance.Thisappliancemust be disposedresponsiblyattheendofitsservicelife. Askyourlocalauthoritiesformoreinformation abouthowtodothis.

Theappliancepackagingisrecyclable.Thefollowingmayhavebeenused:

cardboard;
polyethylenefilm(PE);
CFC-freepolystyrene(PSrigidfoam).
Disposeofthesematerialsinaresponsiblemannerandinaccordancewithgovernmentregulations.

Theproducthasbeenmarkedwithacrossed-outdustbinsymbolto
remindyouoftheobligationtodisposeofelectricalhousehold
appliancesseparately.Thismeansthatheappliancemaynotbe
includedwithnormaldomesticrefuseattheendofitsservicelife.
Theappliancemustbetakentoaspecialmunicipalcentreforseparated
wastecollectionortoadealerprovidingthisservice.

Aseparatecollectionofhouseholdapplianceshelpstoppreventany potentialnegativeimpactonteenvironmentandonhumanhealth causedbyimproperdisposal.Itensuressthatthematerialsofwhichthe applianceiscomposedcanberecoveredtoobtainsignificantssavings inenergyandrawmaterials.

NOTE!

Please note! Donot throw abrokenceramic glassplate in the glass recycling bin but take this tothe Municipality's swasterecyclingcentre.

Declarationofconformity

Weherebydeclare that our productssatisfytheapplicableEuropean directives, ordersandregulations, aswellasterequirementsstated inthereferencedstandards.

Theapplianceidentificationcardislocatedonthebottomoftheappliance.

Sticktheapplianceidentificationcardhere.

ATAG

www.atag.nl

www.atag.be
