USER MANUAL WHWBU30S2HB WHIRLPOOL

Installation of Your Wine Cooler 2

Indications 2

The control panel of your wine Cooler.... 3

Storage diagram 4

Installation dimensions 5

Fixation 6

How to remove the shelf ....7

Automatic door opening function 7

Recommended DRINKING temperature 8

Temperature Alarm 8

Temperature Recollection Function 8

CARE AND MAINTENANCE 9

Cleaning Your Wine cooler 9

Power Failure 9

Moving Your Wine cooler 9

Availability Of Spare Parts 9

TROUBLESHOOTING GUIDE.... 10

INFORMATION

ENERG SUPPLIER'S NAME MODEL IDENTIFIER (*) A A

The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label.

https://eprel.ec.europa.eu/

In order to receive a complete assistance, please register your product on www.register10.eu

Installation of Your Wine Cooler

This appliance is designed to be for built-in installation.

There is not foreseen door reversibility. Do not try to reverse the door. This appliance is intended to be used exclusively for the storage of wine.

Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.

Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.

Extreme cold ambient temperatures and moist areas may also cause the unit not to perform properly. Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

Indications

• Store wine in sealed bottles;
• Refrain to overload the cabinet;
• Do not open the door unless necessary;
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with bottles and accessible drainage systems.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.
• Refrain to cover shelves with aluminum foil or any other shelf material which may prevent air circulation;
• Should the Wine cooler be stored without use for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold or odors.
• This product contains a light source of energy efficiency class G.

The control panel of your wine Cooler

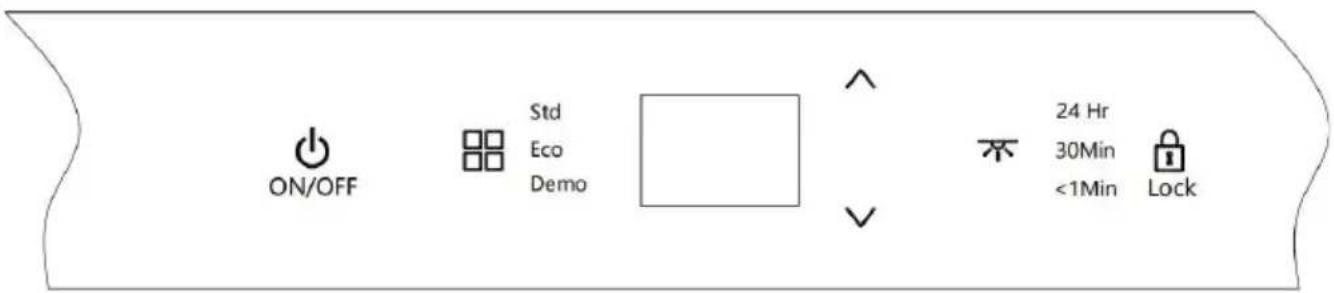

ON/OFF Std Eco Demo 24 Hr 30Min <1Min Lock

1. Press and hold this button (⏻) for 3 seconds to turn off the appliance. With a slight press again to turn it on. After electrifying, the power supply key is long and bright.
2. Changing the running modes

The default setting is "STD" (Standard) mode when appliance connect the power. Each press

button to alternate the three modes: STD, ECO and DEMO.

1. Changing the LED light mode

The default setting is door open light on with 50% brightness, door close light off. Each press button to alternate different modes: 24Hr, 30Min and 1Min.

• 24 Hr : The light will stay constantly illuminated whether the door is open or closed. (100% brightness when door open and 50% brightness when door closed).
• 30 Min : Delay off function A: 100% brightness when door open. 50% brightness when door closed and LED light will tune off automatically after 30 minutes.

• 1 Min : Delay off function B. 100% brightness when door open. 50% brightness when door closed and LED light will tune off automatically after one minute.

• Temperature setting (up button)

Press this button to increase the temperature by one degree increments. When the setting reach the temperature upper limit value 18^ C. The set temperature will no change again.

1. Temperature setting (down button)

Press this button to lower the temperature by one degree increments. When the setting reach the temperature lower limit value 5^ C. The set temperature will no change again.

1. To switch between the Celsius or Fahrenheit.

Press and hold ∧ and ∨ for 3 seconds to switch between C and F. The indicator light will illuminate on the desired temperature setting.

7.Key Lock button

The default setting is unlock when appliance connect the power. Press and hold the 🔊 button for 3 seconds to lock it. And press again and hold this 🔊 button for 3 seconds for unlock.

Temperature control range : 5 - 18 °C

The product have power off memory function.

Storage diagram

Total : 14 bottles max

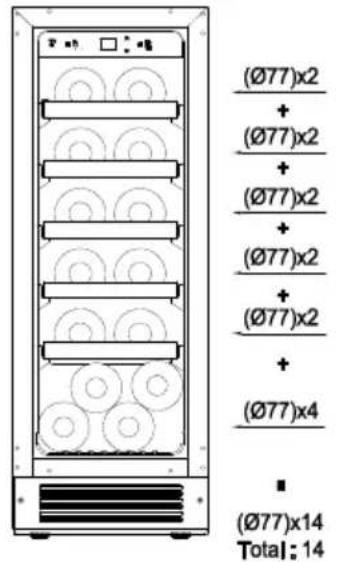

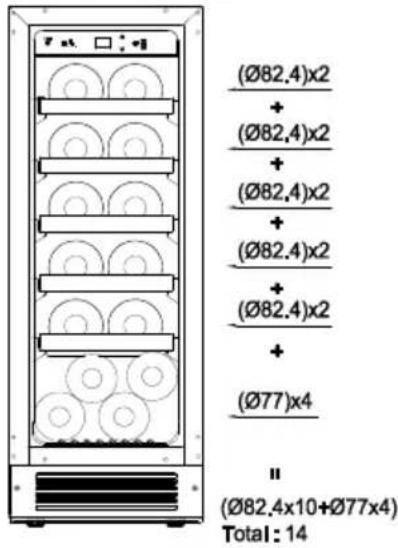

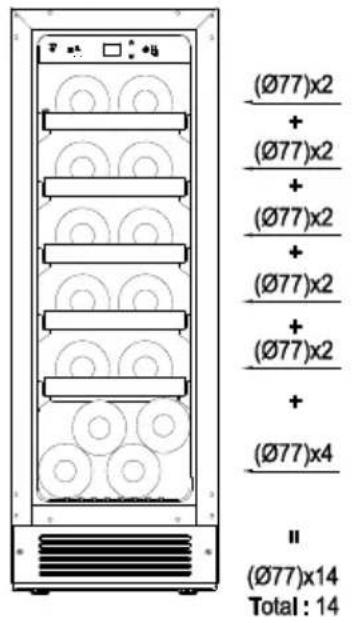

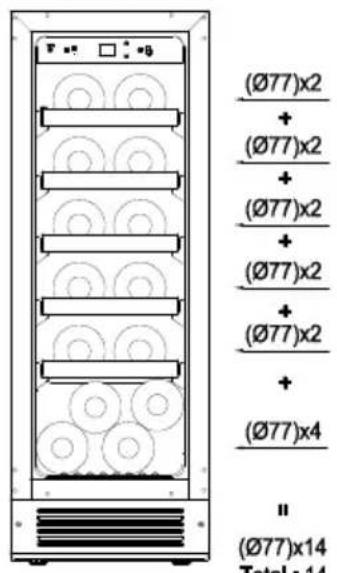

Bottle loading proposal#1 Shelf: full shelf (5)

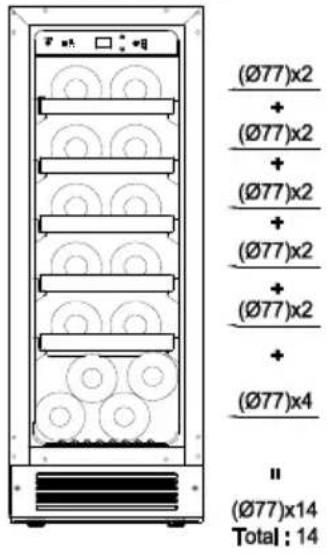

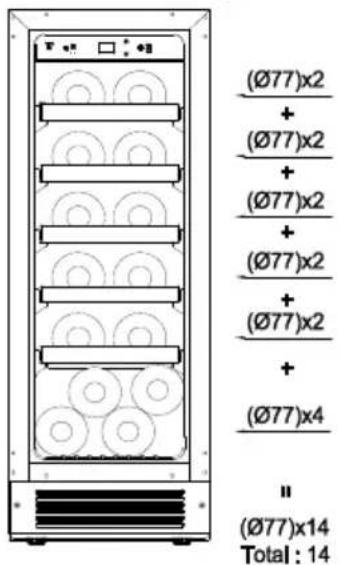

(Ø77)x2 + (Ø77)x2 + (Ø77)x2 + (Ø77)x2 + (Ø77)x2 + (Ø77)x4 " (Ø77)x14 Total : 14

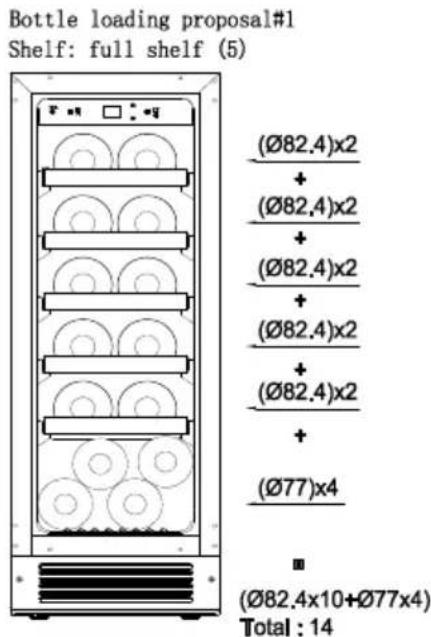

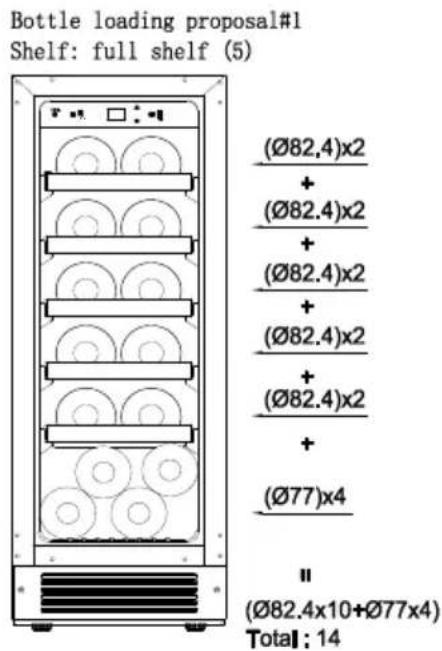

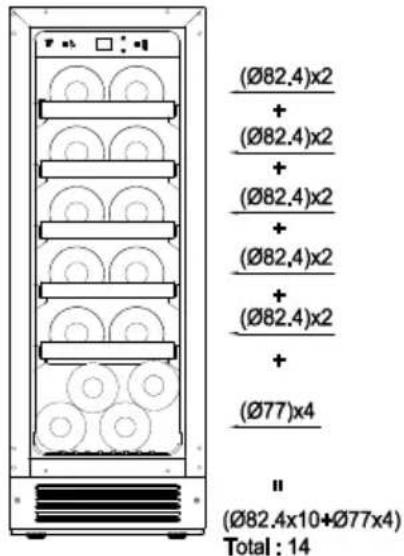

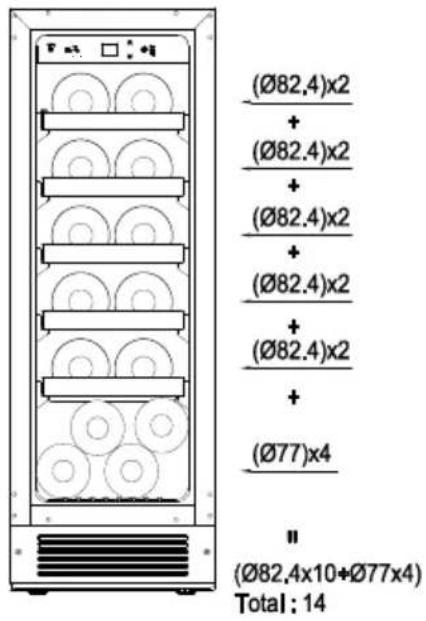

Bottle loading proposal#1 Shelf: full shelf (5)

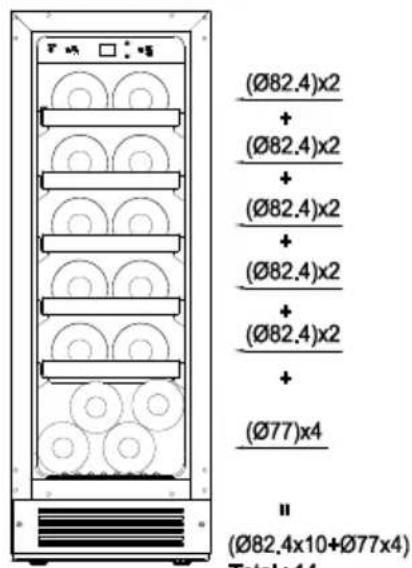

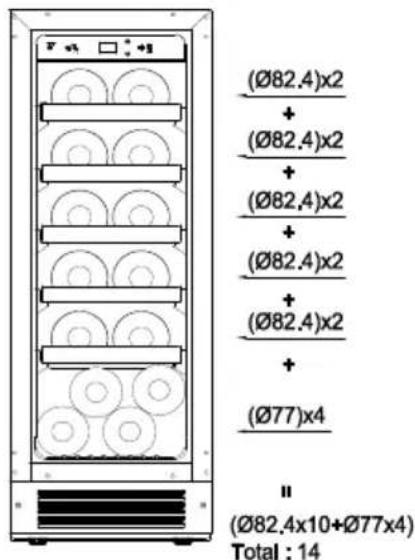

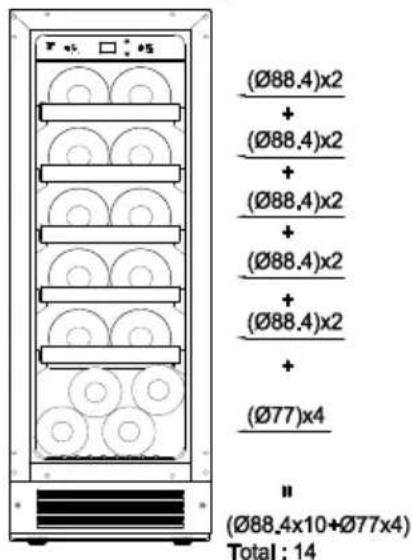

(Ø82.4)x2 + (Ø82.4)x2 + (Ø82.4)x2 + (Ø82.4)x2 + (Ø82.4)x2 + (Ø77)x4 " (Ø82.4x10+Ø77x4) Total : 14

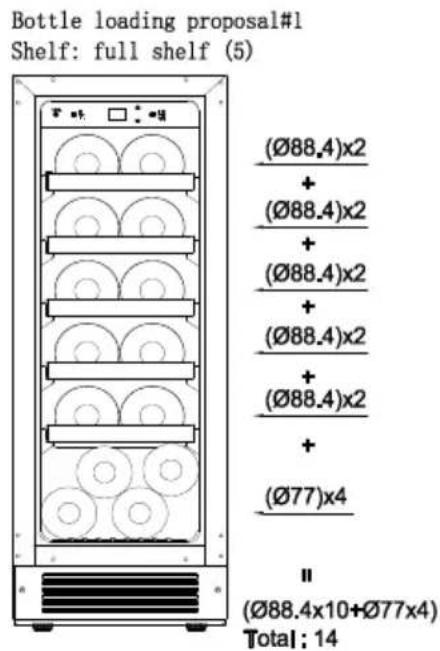

Bottle loading proposal#1 Shelf: full shelf (5)

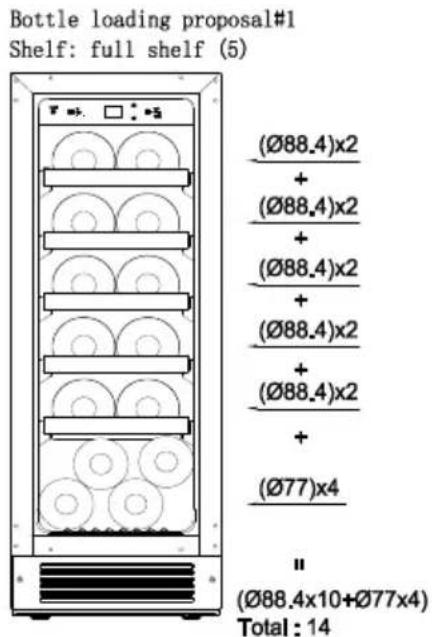

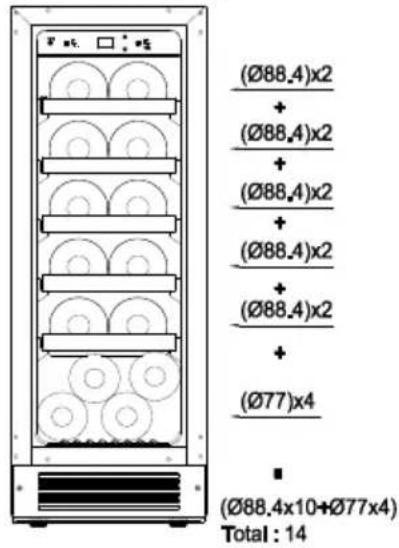

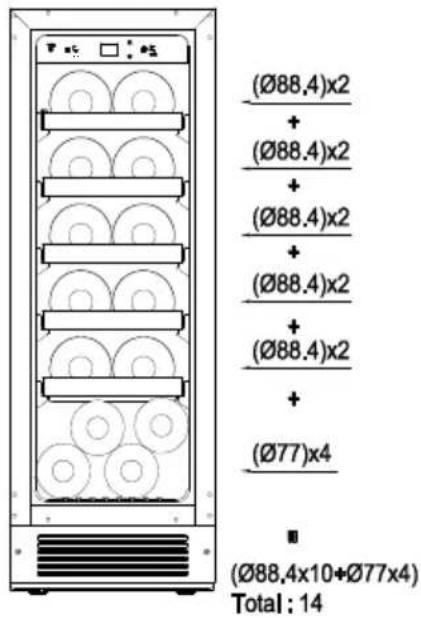

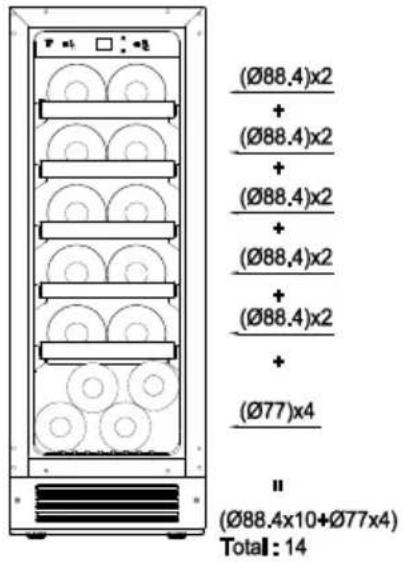

(Ø88.4)x2 + (Ø88.4)x2 + (Ø88.4)x2 + (Ø88.4)x2 + (Ø88.4)x2 + (Ø77)x4 " (Ø88.4x10+Ø77x4) Total : 14

full shelf (5)

077 301 Bordeaux

full shelf (5)

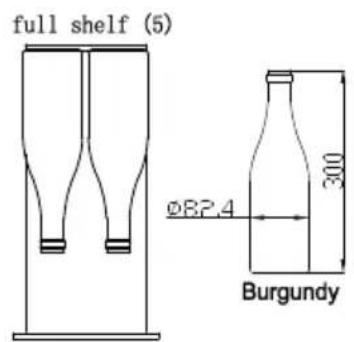

Ø82.4 300 Burgundy

full shelf (5)

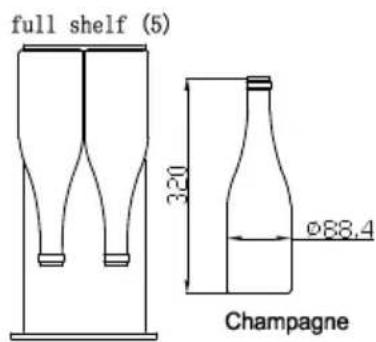

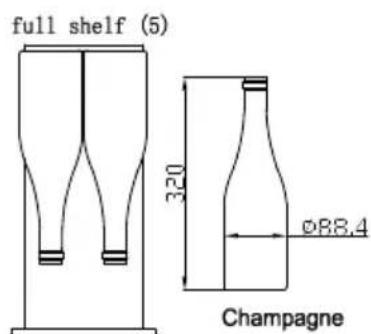

320 Ø88.4 Champagne

NOTE: The most energy-saving configuration requires the food box not to be positioned in the product.

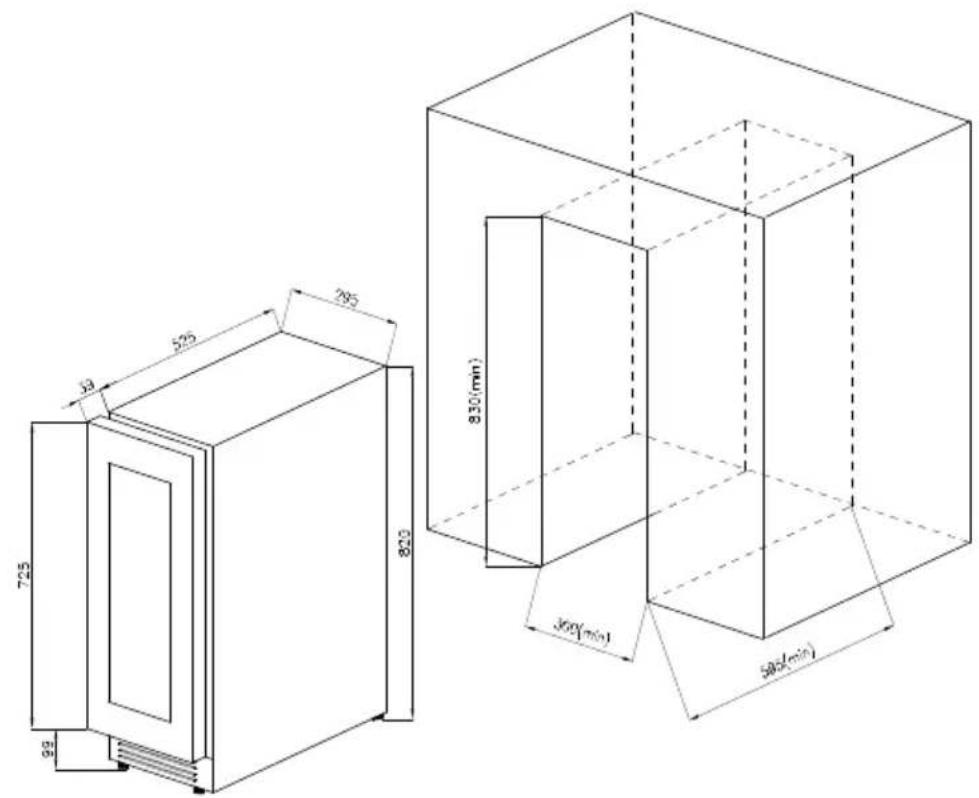

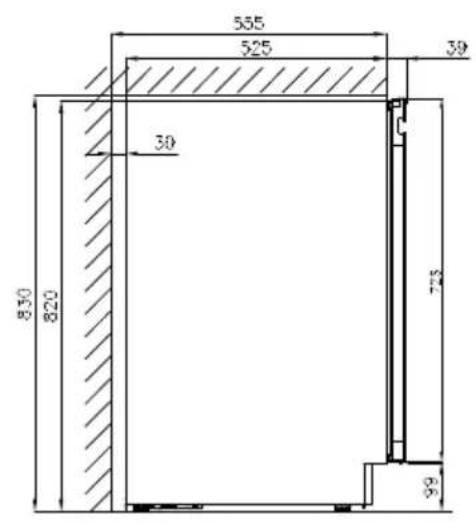

Installation dimensions

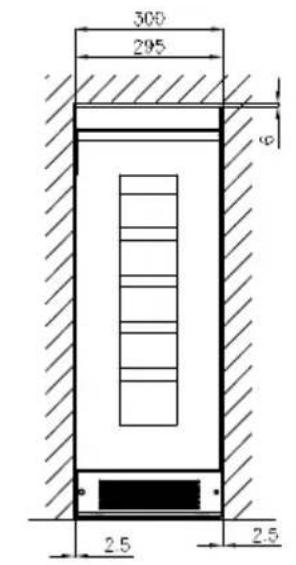

300 295 6 2.5 2.5

555 525 39 30 830 820 775 65

295 30 525 555 269

725 99 525 39 705 820 830 (min) 300 (min) 500 (min)

Fixation

Fig. A ① ① ② ③ ④ ⑤ ② ③ ④ ⑤

1 - M5*8 screws * 4 pieces
2 - Upper bracket * 1 piece
3 - Furniture
4 - Lower bracket * 1 piece
5 - ST4*12 self tapping screws * 4 pieces

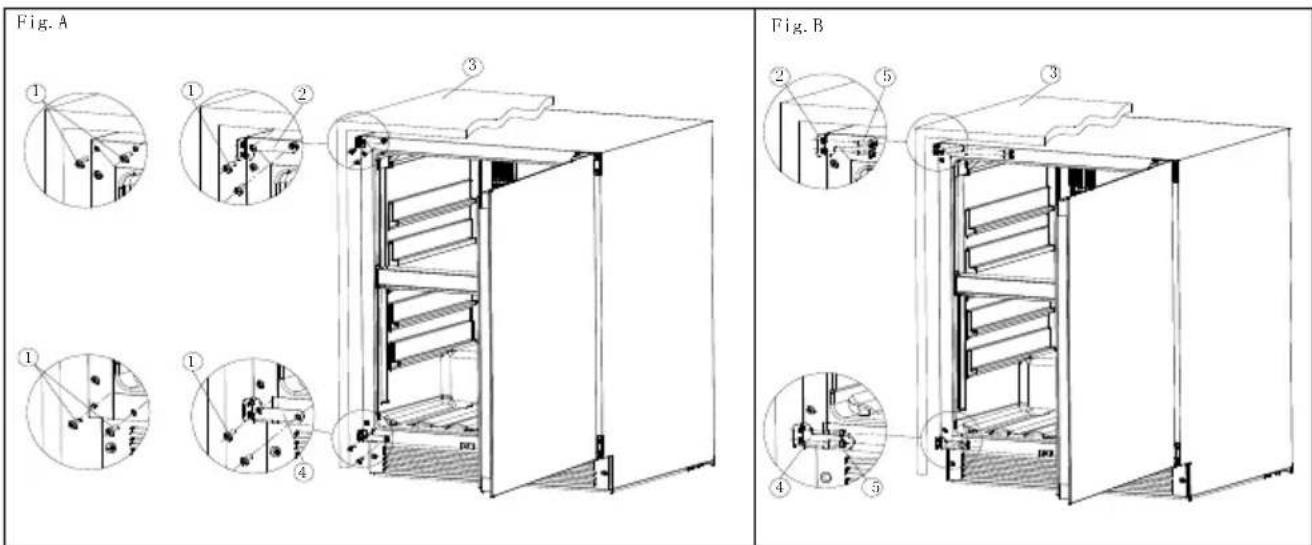

1. Built-in product into furniture, adjust product to the right place, then open the door to remove 2 screws from top-left corner and 2 screws from lower-left corner;
2. Remove the spare part listed above from user manual bag ;
3. Use 4 pieces of ①M5*8 screws to fix ②upper bracket on product's top-left screw holes and fix ④lower bracket on product's lower-left screw holes;
4. Use 4 pieces of ⑤ST4*12 self tapping screws to fix ②upper bracket and ④lower bracket on the furniture.

How to remove the shelf

To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment. To Remove Shelves :

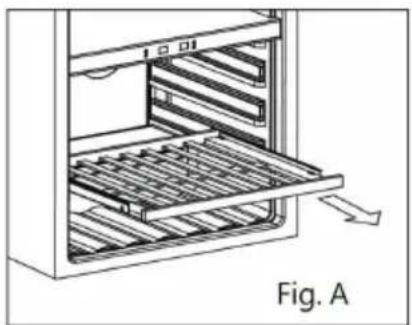

1. Fully extend the shelf you wish to remove (Fig. A)

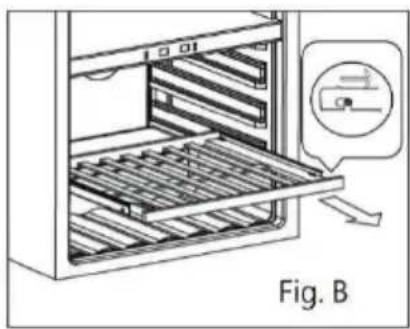

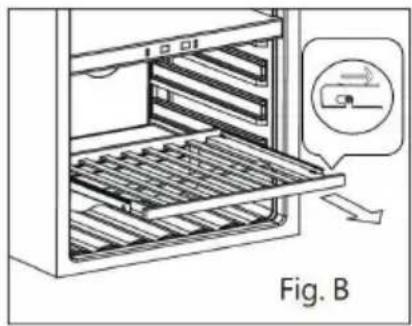

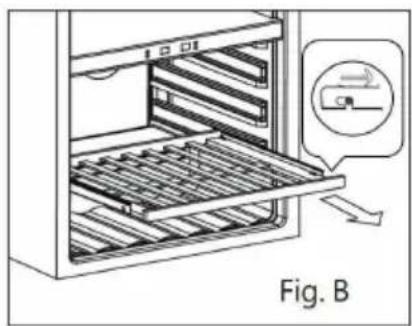

2. Pull the shelf towards you until the buckle is released. (Fig. B)

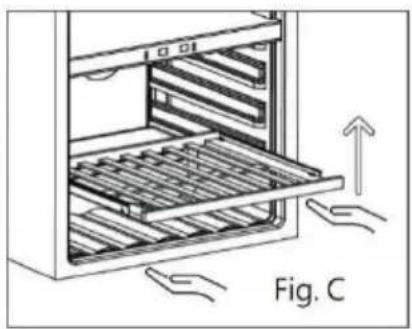

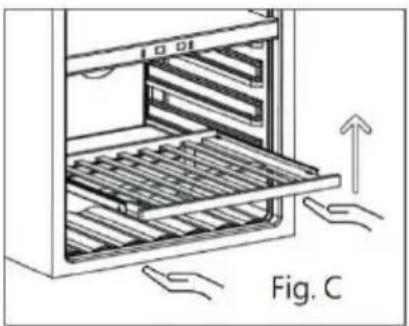

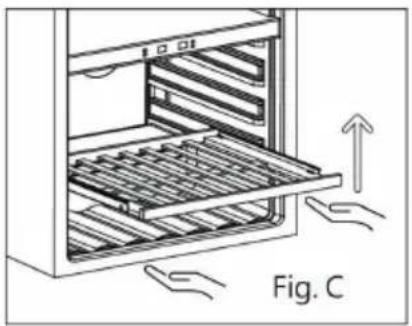

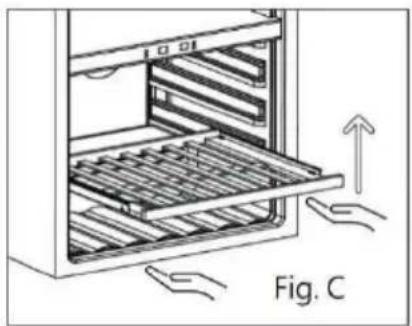

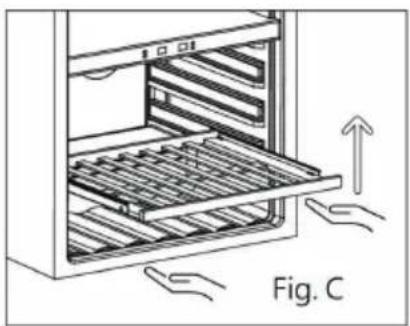

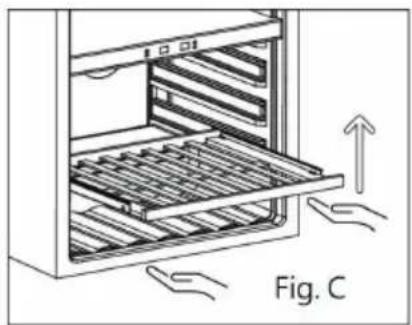

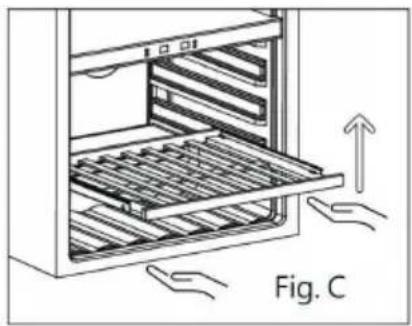

3. Holding the shelf track with both hands, push the shelf up horizontally (Fig. C)

Line drawing of a refrigerator interior showing shelves and a door, labeled Fig. A (no text or symbols on the diagram itself)

Diagram of a refrigerator interior showing rack arrangement and a hand valve (no text or symbols)

Diagram of a refrigerator interior with hand gestures indicating lifting or positioning (no text or symbols)

Recommended DRINKING temperature

The following (approximate) temperatures are recommended for wine drinking :

For storing ALL TYPES OF WINES 12 – 14 °C
Champagne NV, Sparkling 6 °C
Champagne Vintage 10 °C
Dry White Semillon, Sauvignon Blanc 8 °C
Dry White Gewürztraminer, Riesling 10 °C
Dry White Chardonnay 10 °C
Vintage Chardonnay 14 °C
Sweet White Sauternes Monbaillac, Late Harvest ice wine 10 °C
Sweet whites vintage Sauternesz 14 °C
Beaujolais 13 °C
Red Pinot Noir 16 °C
Vintage Pinot Noir red 18 °C
Red Grenache, Syrah	16 °C
Red Cabernet, Merlot, French, Australian, New Zealand, Chilean, Argentinean, Italian, Spanish, Californian	18 °C

Temperature Alarm

If inner temperature is higher than 23^ C, The “HI” is shown in display panel, and the buzzer alarm after one hour continuously. It inform that the inner temperature is too high, please check the reason. If inner temperature is lower than 0^ C, The “LO” is shown in display panel, and the buzzer alarm and the malfunction indicator light light at the same time.

Temperature Recollection Function

In the event of a power interruption, wine cooler can remember the previous temperature settings, and when the power is recovery, the cooler temperature will go back the same setting temperature as power off.

Note : In the event of a power interruption, wine cooler can remember the previous temperature settings, and when the power is recovery, the cooler temperature will go back the same setting temperature as power off.

CARE AND MAINTENANCE

Cleaning Your Wine cooler

1. Turn off the power, unplug the appliance, and remove all items including shelves and rack.
2. Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
3. Wash the shelves with a mild detergent solution.
4. Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
5. Wash the outside cooler with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Moving Your Wine cooler

1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable leg up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliances with a blanket, or similar item..

Availability Of Spare Parts

• Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.
• Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of ten years, after placing the last unit of the model on the market.

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.
	The appliance is turned off.
	The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	Check the temperature control setting.
	External environment may require a higher setting.
	The door is opened too often.
	The door is not closed completely.
	The door gasket does not seal properly.
Turns on and off frequently.	The room temperature is hotter than normal.
	A large amount of contents has been added to the Wine cooler.
	The door is opened too often.
	The door is not closed completely.
	The temperature control is not set correctly.
	The door gasket does not seal properly
The light does not work.	Not plugged in.
	The circuit breaker tripped or a blown fuse.
	The bulb has burned out.
	The light button is “OFF”.
Vibrations. Check to assure that the Wine cooler is level.
The Wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.
	As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.
	Contraction and expansion of the inside walls may cause popping and crackling noises.
	The Wine cooler is not level.
The door will not close properly.	The Wine cooler is not level.
	The door was reversed and not properly installed.
	The gasket is dirty.
	The shelves are out of position.
