USER MANUAL YT-828132 Yato

YATO 16-inch chain drive with black and gray metal bands (no visible text or symbols on the device body)

Close-up of a hand adjusting a mechanical component with a dial and chain, no visible text or symbols

Close-up of a mechanical chain assembly with numbered component (13), no visible text or symbols

3 - 4 mm IV

Close-up of a mechanical component with a black connector and pipe, no visible text or symbols

Diagram showing a circular layout with four figures, one marked with a tree and another with a crosshatch, surrounded by concentric rings and directional arrows.

H 2,5 x H VII

1. motor housing

2. side panel

3. side panel fi xing knob

4. chain tension knob

5. electric power switch

6. electric power switch lock

7. power on/off switch

8. kickback brake

9. back handle

10. front handle

11. guide bar

12. chain

13. chain drive wheel

14. oil tank lid

15. oil level indicator

16. battery

17. charging station

DE

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Always hold the chain saw with both hands

Do not expose to precipitation

Beware of the power saw kickback towards the operator and avoid contact with the tip of the guide bar

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

The chainsaw is only intended for cutting wood. The chainsaw electric drive allows it to be used under a canopy or near buildings. Thanks to the battery power supply, the pruning shears allow you to work in places where mains-powered products could not be used. It can be used for cutting trees, but due to the hazard, it is required that an experienced user performs the cutting operation. Proper, reliable and safe operation of the tool depends on appropriate use, that is why you should

Read the entire instructions manual before the first use of the tool and keep it for future reference.

The supplier shall not be held liable for any damage or injury resulting from improper use of the tool, failure to observe the safety regulations and recommendations of this manual. Using the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and statutory warranty.

PRODUCT EQUIPMENT

The power saw is supplied complete but requires assembly before first use. The following are supplied with the saw: chain guide, cutting chain, bar guard, 2 batteries, dual charging station. Note that the batteries and charging station are only supplied with the YT-828131 chainsaw. The YT-828132 chainsaw is supplied without batteries and charging station.

TECHNICAL DATA

Parameter Unit Value
Part No. YT-828131, YT-828132
Rated voltage [V DC] 36 (2 x 18)
Chain speed [m/s] 15
Guide bar length [mm / "'] 406 / 16
Chain pitch [mm] 9.52
Guide slot width	[mm / "']	1.3 mm/0.05
Number of chain drive wheel teeth and pitch		6 x 9.52
Oil tank capacity	[ml] 250
Weight (without the battery, guide bar and chain)	[kg]	3.7
Noise level
- L_pA (pressure)	[dB] (A)	95.5 ± 3.0
- L_mA (power)	[dB] (A)	102.4 ± 2.54
Vibration a_s (front handle/rear handle)	[m/s2]	3.25 ± 1.5 / 5.19 ± 1.5
Battery type		Li-ION
Battery capacity*	[Ah]	4
Battery energy	[Wh]	72
Charging station*
Input voltage	[V]	220 – 240
Mains frequency	[Hz]	50/60
Rated power	[W]	60
Output voltage	[V DC]	21
Output current	[A]	2.4
Charging time**	[h]	2

* only for models equipped with a battery and charger

** the specified charging time applies only to the battery with the capacity listed in the table

The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.

The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.

Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used. Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

EN

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool.

Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

EN

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power too

SAFETY INSTRUCTIONS FOR CHAINSAWS

While working with the chainsaw, keep all parts of the body away from the chain. Make sure that the chain is not in contact with anything before starting the chainsaw. A moment's distraction while working with a chainsaw can lead to cloth or body part entangling in the chainsaw chain.

Always hold the chainsaw with your right hand by the back handle and with your left hand by the front handle. Holding the chainsaw in the opposite way should never happen, as it increases the risk of injury.

Hold the power saw by the insulated grips only, as the chain may come into contact with a concealed wire or the chain-saw's power cord. The chain contacting a "live" wire may make metal parts become "live" and could give the operator an electric shock.

Wear eye protection. It is also recommended to use protective equipment for hearing, head, hands, legs and feet. Adequate protective equipment will reduce personal injury by contact with waste or accidental contact with the chain.

Do not operate the power saw on a tree, ladder, from the roof or on any unstable support. Working with the power saw while on the tree may result in injuries.

Always maintain a proper posture and work with the chainsaw standing on a still, safe, and level surface. A slippery or unstable surface, e.g., a ladder, may result in a loss of balance or control of the chainsaw.

Exercise caution in terms of a kickback when cutting a tensioned branch. If the tension accumulated in the wood fibres is released, the branch may strike the operator or make him/her lose control of the chainsaw.

Take special care when cutting shrubs and saplings. Slim material can nip the chain and push the chainsaw towards the operator or unbalance him/her.

Handle the chainsaw by the front handle, turned off and away from the body. Always put on the chain guide bar guard when transporting or storing the chainsaw. Correct holding of the chainsaw reduces the likelihood of accidental contact with moving parts of the chainsaw.

Observe the instructions for lubricating, tensioning the chain, and changing accessories. An improperly tensioned or lubricated chain can break and increase the chance of kickback towards the operator.

Cut wood only. The use of the chainsaw for other purposes than that intended is not allowed. For example: do not cut plastic, concrete, or non-wooden construction materials. Using the chainsaw for works other than that intended may result in dangerous situations.

Do not attempt to cut down trees until you understand the risk and how to avoid it. During the cutting of the tree, the operator and bystanders are exposed to serious injuries.

Causes and prevention of kickback towards the operator.

A kickback towards the operator may occur when the guide bar's end is in contact with an object or the cut wood jams the chain-saw in the kerf. In some cases, contact between the end of a guide bar and an object can cause a violent reaction driving the guide bar up and towards the operator. Jam in the guide bar upper edge kerf can suddenly point the guide bar towards the operator.

These reactions can result in a loss of control of the chainsaw, leading to serious injuries. Do not rely only on safety elements built in the chainsaw. The chainsaw operator should take some steps to prevent accidents and injuries during work.

A kickback towards the operator is the result of improper use or incorrect operating procedures or conditions. This can be avoided by taking the appropriate precautions listed below:

Keep a firm grip of both hands with thumbs and fingers closing around the chainsaw handles. The position of the body and shoulders should allow withstanding forces arising during the kickback. If appropriate precautions are taken, the kickback forces can be controlled by the operator. Do not allow the chainsaw to move freely.

Do not reach too far and cut above shoulder height. This will help prevent unintentional contact with the end of the guide bar and allow better control of the chainsaw in unexpected situations.

Use guide bar and chain replacements only as specified by the manufacturer. Incorrect replacement of the guide bar and chain may cause chain breakage or kickback.

Observe the instructions given by the manufacturer regarding the chain sharpening and maintenance. Reducing the depth of the chain guide bar groove can lead to an increased probability of kickback.

It is forbidden to expose the chainsaw to precipitation and use it in an atmosphere of increased humidity. It is also forbidden to use the chainsaw in an atmosphere with an increased risk of fire or explosion.

Avoid contact with grounded, conductive, and non-insulated objects such as pipes,

radiators or refrigerators. When not in use, store the chainsaw in a dry and closed room inaccessible to unauthorised persons.

Use the cutting chain adapted to the given load. Do not use cutting chains designed for light or heavy-duty work.

Always wear protective gloves when replacing, repairing, and adjusting the cutting chain.

EN

Make sure that the chainsaw has been disconnected from the power supply during transport. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery. A guard must be fitted on the cutting chain guide bar. Handle the chainsaw with the guide bar pointing back.

Do not handle the mains-powered chainsaw by its power cord. Do not disconnect the plug from the socket by pulling the power cord.

Avoid accidental starting of the chainsaw. When handling the chainsaw connected to the mains or with the battery connected, keep your fi ngers away from the power switch.

Always wear suitable protective clothing adhering to the body.

Operate the chainsaw holding it with both hands. When working, secure loose pieces of wood so as to

prevent them from moving, for example, by placing them in a stand. Avoid cutting wood that lays on the ground. Avoid processing wood that is not protected against movement during cutting.

Do not hold the chainsaw above your arms during operation. Do not operate the chainsaw while standing on the ladder. During work, adopt such a posture to eliminate the need to extend the hands to the full length.

Keep the chain clean. The chain must be sharpened and lubricated. This will ensure more efficient and safer work. The chain can be sharpened in a specialised service centre. Check the condition of the chain before each use. In the event of cracks, broken teeth, or any other damage, replace the chain with a new one before starting work.

In case of finding any damaged or broken chainsaw parts, stop working or do not start working. It is essential to replace damaged parts before starting work.

Use the chainsaw as intended. The chainsaw is designed only for cutting wood. When working, watch out for metal elements or stones that may be in the processed wood.

Use original spare parts only. Failure to use original spare parts may increase the risk of failure and lead to injuries.

The chainsaw should be repaired only in service centres authorised by the manufacturer using original spare parts. This will minimise the risk of accidents and damage to the equipment.

PRODUCT OPERATION

Preparing the chainsaw for operation

Caution! Unplug the chainsaw from the power supply before performing any assembly and adjustment work. Remove batteries from the tool.

Mount the guide bar and cutting chain before first use.

Unscrew the side panel fixing knob until the side panel can be removed (II). By turning the knob in the direction indicated by the arrow with the open padlock symbol, the panel can be removed. Turning the knob in the direction indicated by the arrow with the closed padlock symbol allows the side panel to be fitted.

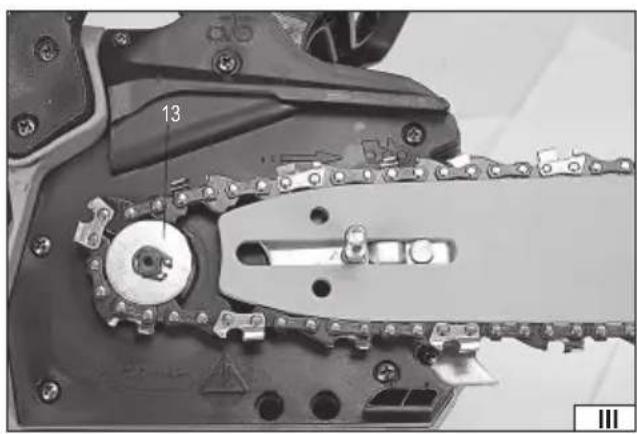

Mount the guide bar and chain as shown in picture (III).

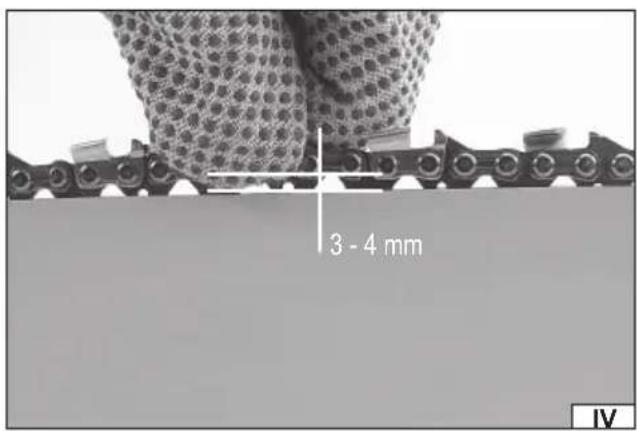

Make sure that the chain and guide bar are fitted in the correct direction. The shape and direction of the links visible on the chain-saw housing should correspond to the shape and direction of the chain. If there is a visible movement direction indication on the chain links, it should have the same direction as the indication on the housing and guide bar. Make sure the chain hits the guide slot and the teeth on the sprocket. The next step is to attach and tighten the side panel. In order for the side panel to be tightened, the guide travel pin on the inside of the side panel must hit the guide travel hole. Changing the position of the spindle is possible by turning the chain tension knob. Turning in the direction indicated by the arrow with a '+' sign increases the chain tension, and turning in the direction indicated by the arrow with a '-' sign. If the pin is in the correct position, pre-fix the side panel using the side panel fixing knob. Do not tighten the fixing knob all the way. Adjust the chain tension by turning the chain tension knob and then tighten the side panel fixing knob as far as it will go. Check the chain tension. To do this, set the chainsaw down and lift it by holding the middle part of the chain (IV). During this test, the chain should lift above the guide bar by 3 to 4 mm in the spot where it is held. If the chain is stretched too tight or too weak, loosen the side panel fixing knob slightly, readjust the degree of chain tension and tighten the side panel fixing knob as far as it will go. The chain tension level should also be checked every 10 minutes of operation.

Check the technical condition of the chainsaw before connecting it to the power supply. If any damage is detected, it is forbidden to connect it to the power supply before removing the damage.

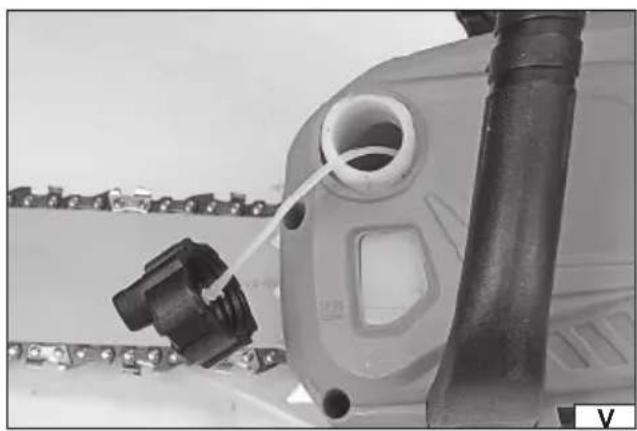

Oil topping-up (V)

Caution! Unplug the chainsaw from the power supply before performing any assembly and adjustment work. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery.

For lubricating the chain and chainsaw mechanisms, use only oil intended for such purposes. It is forbidden to use worn-out motor oil. It does not fulfil its purpose, which can lead to damage to the chainsaw mechanism.

Make sure that there is lubricating oil in the tank. Place the chainsaw on the horizontal surface and check the oil indicator. The oil level cannot be lower than the minimum indication. If there is no such indicator, the lower edge of the oil level indicator should be taken as the reference level.

It is forbidden to use the chainsaw with the empty oil tank. This can damage the chain, guide bar, and mechanisms of the chain-

EN

saw. It is recommended to start and operate the chainsaw at least 3 meters from the place where the oil topping-up procedure was performed. Perform oil topping-up away from fire and heat sources. To top up the oil, unscrew the oil tank cap, pour the oil inside the tank so the oil level levels out with a mark indicating the maximum oil level or upper edge of the oil level indicator, then screw the tank cap firmly and securely. In case of spilling the oil, thoroughly wash off any debris before connecting the chainsaw to the power supply.

Preparing the workplace

Before cutting with the chainsaw, properly prepare the workplace to minimise the risks associated with the chainsaw's operation. Make sure that only authorised persons are present at the workplace.

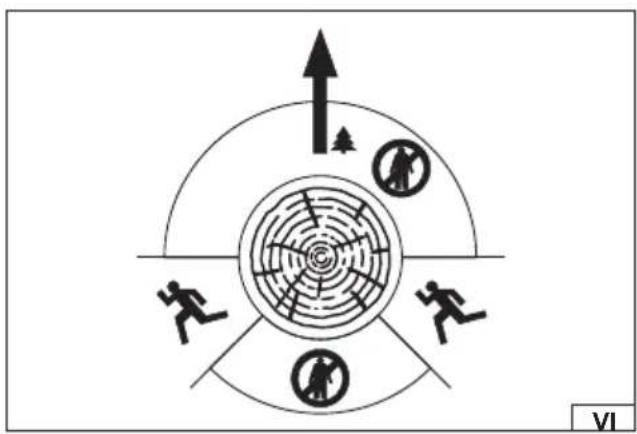

In the case of tree felling, danger zones and escape routes should be designated. A zone with a radius of 180^ around the planned tree fall plane and a zone with a radius of 90^ in the opposite direction to the planned tree fall plane are treated as danger zones. The remaining zones form escape routes (VI).

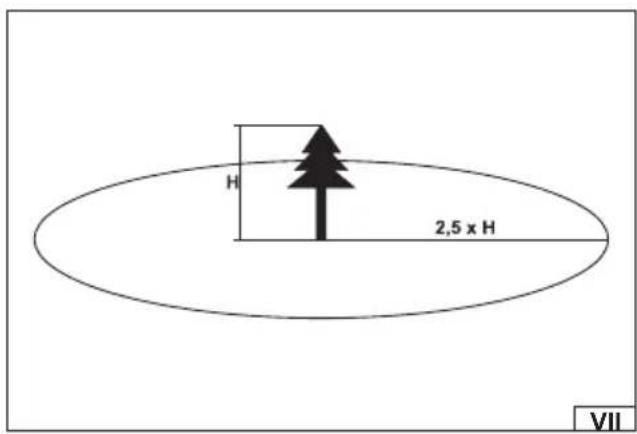

Remember that a falling tree can also overturn other trees. Therefore, the next workstation must not be closer than 2,5 x the height of the felled tree (VII). Ensure good visibility from the workplace; that is why take special care when cutting trees in difficult terrain conditions, e.g., mountains.

It is forbidden to start work during precipitation and in case of high air humidity, e.g., fog. Wear protective clothing and personal protective equipment.

Before starting cutting, perform a trial wood cut in safe conditions, e.g., cutting wood placed on the saw-horse.

Avoid cutting wires, young trees, and wooden beams.

Do not stand on cut wood.

Connecting the chainsaw to the power supply (VIII)

The tool is powered by two batteries. It will not start if one of the batteries is not installed in the tool or is flat. The batteries in the tool are connected in series, which means that the tool is supplied with the sum of their rated voltages. It is recommended that both batteries have the same capacity and are charged to the same level. The batteries used to supply the tool should also have the same level of wear. It is not recommended to connect a flat battery with a new one, even if both batteries are charged to the same level and have the same capacity. Failure to comply with the above recommendations will result in shorter operating times and faster wear of the batteries used to supply the tool.

Slide the battery into one of the seats so that its latch is outside the seat. Slide the battery into the seat until the latch engages. Repeat for the second battery. Make sure that the batteries will not disconnect on its own during operation. Disconnect the battery by pressing and holding the latch and then pulling the battery out of the seat.

Starting the chainsaw

Remove the guard from the guide bar and chain.

Switch on the saw by pressing the power switch button.

The lights indicating the approximate charge of the batteries will light up: Red, orange, green – battery charged. Red, orange – battery partially charged. Red – battery needs charging.

Make sure that the kickback brake is released (in the rear position).

Grasp the front handle with your left hand and the back handle with your right hand.

Make sure that the guide bar and chain do not come into contact with any object or surface.

Slide the electrical switch lock button on the top of the rear handle forward with your thumb. Press and hold the power switch in this position (IX). The electrical switch lock button can be released.

Before cutting, wait until the motor is at full speed and make sure that the chain runs smoothly along the guide bar. If you hear any suspicious sounds or vibration, turn the chainsaw off immediately by releasing the power switch.

The chainsaw is turned off by releasing the power switch.

It is forbidden to turn the chainsaw off by applying the kickback brake.

Once the chain has stopped, switch off the saw using the power switch, apply the kickback brake (so that it is in the forward position), disconnect the batteries and carry out maintenance.

Before starting the chainsaw, check that the automatic chain lubrication system works properly. To do this, start the chainsaw, let it reach its rated speed, and then point the guide downwards. Traces of oil should appear on the ground. If no such traces are visible, stop the chainsaw, disconnect it from the power supply and check that there is oil in the tank and check the condition of the seal and the oil outlet located above the guide. If necessary, clean the seal and socket. If the seal is damaged or worn, it must be replaced before starting operation.

Working with the power saw

Persons who intend to work with a chainsaw for the first time should seek advice on work and safety from a qualified chainsaw operator before starting work. The first works with the chainsaw should consist of cutting the prepared logs placed on the saw-horse.

During work, observe the basic occupational safety principles. Consider also the possibility of kickback in the operator's direction.

The chainsaw may kickback in the operator's direction when the cutting chain encounters resistance.

To reduce this risk:

Pay attention to the placement of the guide bar top when cutting. It is forbidden to cut with the upper quarter of the guide bar top (X).

EN

Cut only with the chain which moves along the bottom part of the guide bar. When cutting wood, the lower bumper tooth can be used as a hook for the chainsaw's axis of rotation (XI).

Only apply the started chainsaw to the wood to be cut. Do not start the chainsaw after first applying it to the processed wood.

When working, do not lift the chainsaw to arm height or higher (XII).

Do not stand in the cutting plane. This will reduce the risk of injury in case of kickback (XIII).

During work, always hold the power saw with both hands.

Make sure that the chain is always sharp and appropriately tensioned.

TIPS FOR WORKING WITH THE CHAINSAW

Take a comfortable position and ensure full freedom of movement when cutting.

When cutting branches and boughs, do not cut them at the trunk, but at a distance of about 15 cm from the trunk. Make two cuts to a depth of 1/3 of the branch diameter, approximately 8 cm apart. One cut from below, one from above. Then cut the branch just at the trunk to a depth equal to 1/3 of the branch diameter. Finish the process by cutting the branch at the trunk from above. Do not cut the branches by cutting from the bottom (XIV).

When cutting a tree, prepare the felling site in advance as described above. In addition to that

prepare safe ground when cutting the tree. When a tree falls, stand at a safe distance to the plane of the tree fall, on the side.

When choosing the path of wood fall, take into account factors such as terrain topography, tree centre of gravity, tree crown pattern, and wind direction. To properly prepare the tree for felling, make a cut in the trunk to a depth of 1/3 of the trunk diameter on the side to which the tree is to fall, and then cut another at an angle of 45 degrees to the first so as to cut a "wedge" in the trunk.

On the other side of the trunk, start cutting perpendicular to the trunk axis, slightly higher (approx. 4 cm) than the cut "wedge" base.

Do not cut the trunk. Leave a section of approximately 1/10 of the trunk diameter. Then insert the wedge for splitting the tree into the cut on the opposite side to the planned side of the tree fall (XV).

If the tree already falls during cutting, pull the chainsaw out of the trunk and move away along the prepared escape route to a safe distance.

If the chainsaw gets stuck while cutting the trunk, never leave it in this position with the motor running. Turn off the chainsaw motor, unplug the chainsaw from the power supply, and use wedges to extract the chainsaw from the trunk.

When cutting a tree that has already been felled into pieces, follow the rules indicated below. Place the wood on the saw-horse or a stand so the cut piece can freely fall off to the ground without causing the chainsaw to jam. If the chainsaw is jammed, proceed as described above. Do not touch the ground with the chainsaw or allow it to be contaminated with soil.

It is forbidden to use a chainsaw to form hedges or shear bushes.

When working on a slope, stay above the cut wood.

Exercise particular caution when cutting a tensioned tree and entrust this activity to a qualified lumberjack, if possible. When cutting tensioned wood and supported on both ends, cut it from above to a depth of 1/3 of the diameter, and then finish the cut from the bottom.

If the wood is supported only at one end, cut the wood from the bottom to a depth equal to 1/3 of the diameter, and then finish the process by cutting from the top (XVI).

This will reduce the risk of the power saw jamming during cutting.

Safety instructions for battery charging

Caution! Before starting charging, make sure that the power unit body, cable and plug are not cracked or damaged. It is forbidden to use a defective or damaged charging station and power unit! Use only the supplied charging station and power unit to charge the batteries. The use of another power unit may result in fire or damage to the tool. The battery should only be charged in a closed, dry room, protected against unauthorised access, especially by children. Do not use the charging station and power unit without the constant supervision of an adult! If you need to leave the room where the product is being charged, disconnect the charger from the mains by removing the power unit's plug from the mains socket. If smoke, suspicious odours, etc. are escaping from the charger, remove the charger plug from the mains socket immediately! The appliance is supplied with an uncharged battery and should therefore be charged according to the procedure described below with the included power unit and charging station before use. Li-ion (lithium-ion) batteries do not have the so-called "memory effect", which means they can be recharged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If, due to the nature of work, it is not possible to use the battery in such a manner every time, it should be done at least every several work cycles. Never discharge any batteries by short-circuiting the battery plates, as this will cause irreparable damage! In addition, do not check the battery charge status by short-circuiting the electrodes and checking their sparking.

Storing the battery

Ensure the proper storage conditions to extend the battery's life. The battery can withstand approximately 500 charge-discharge cycles. Store the battery at a temperature ranging from 0^ to 30^ at a relative air humidity of 50% . Charge the battery to approx. 70% of its total capacity to store it for a longer period of time. In case of prolonged storage, the battery should be periodically charged once a year. Do not over-discharge the battery as this will shorten its life and may cause irreparable damage. During storage, the battery will gradually discharge due to leakage. The self-discharge process depends on the storage temperature - the higher the temperature is, the faster the discharge process is. If the batteries are stored incorrectly, the electrolyte may leak.

EN

In case of leakage, secure the leak with a neutralising agent. In the case of electrolyte contact with eyes, rinse eyes thoroughly with water, and immediately seek medical attention. It is not allowed to use the tool with a damaged battery. If the battery is completely worn, return it to a specialist waste disposal centre.

Transporting the batteries

Lithium-ion batteries are treated as hazardous goods according to legal regulations. The user of the tool can transport the product together with the battery and the batteries alone by land. In that case, no additional conditions have to be met. If you entrust transport to third parties (e.g. a courier company), follow the regulations regarding the transport of hazardous goods. Before shipping, please contact a properly qualified person. It is not allowed to transport damaged batteries. For the duration of transport, remove the demountable batteries from the product and secure the exposed contacts, e.g. by covering them with insulation tape. Protect the batteries in the packaging in such a way that they do not move inside the packaging during transport. National regulations for the transport of hazardous materials must also be observed.

Charging the battery

Caution! Before charging, disconnect the charging station power unit from the mains by removing the plug from the mains socket.

In addition, clean the battery and battery clamps of dirt and dust with a soft, dry cloth.

The battery has a built-in charge indicator. The LEDs will light up by pressing the button (XVII), the more of them come on, the more charged the battery is. If the LEDs do not light up when the button is pressed, the battery is discharged.

Disconnect the battery from the tool.

Slide the battery into the charger socket (XVII).

Plug the charger into a mains socket.

The red LED will light up, which indicates the charging process.

When charging is complete, the red LED will turn off and the green LED will light up to indicate that the battery is fully charged.

Pull the power unit plug out of the mains socket.

Pull the battery out of the charging station by pressing the battery latch button.

Caution! If the green LED lights up when the charger is connected to the mains, the battery is fully charged. In this case, the charger will not start the charging process.

PRODUCT MAINTENANCE AND STORAGE

Caution! Before starting any activities described below, disconnect the power saw from the power supply. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery.

After each use, inspect the condition of the power saw with particular attention to the patency of ventilation openings.

Check the placement of all of the power saw's components. Tighten all loose screw connections, if any. Check the tension and condition of the chain. If any damage is observed, replace the chain with a new one. It is forbidden to use the power saw with a damaged chain!

If the chain is too loose, it may fall from the guide bar, which may cause injury to the person operating the power saw. The chain must also be properly sharpened, because it requires appropriate experience and tools. It is recommended to carry out sharpening at specialised service centres. To up any oil shortages in the tank. Clean the power saw's housing with a soft, dry cloth. Clean the housing from residues of wood, oil, grease, and other contaminants. The power saw should be stored in a dry, closed room, disconnected from the mains.

Caution! During storage of the saw, a small amount of oil may escape from the chain lubrication system, this is a normal symptom and does not affect the oil level in the tank and is not a sign of damage.

Store the power saw in shaded and dry places with appropriate ventilation preventing steam condensation. Such a place should not be accessible to unauthorised persons, especially children. During storage, the guide bar and chain must always be secured with a guard.

PRODUKTBESCHREIBUNG

CARACTÉRISTIQUES DU PRODUIT

Transport akumulatora

DECLARATION OF CONFORMITY

0425/YT-828131/EC/2025

We declare and guarantee with full responsibility that the following products:

Brushless cordless chainsaw 36 V d.c.; 406 mm; item no. YT-828131, YT-828132

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-4-1:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

TOYA S.A., ul. Sołtysowicka 13 - 15, 51-168 Wrocław, Poland

Wrocław, 2025.04.08

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.

DECLARATION OF CONFORMITY

0425/YT-828131/EC/2025

We declare and guarantee with full responsibility that the following products:

Brushless cordless chainsaw 36 V d.c.; 406 mm; item no. YT-828131, YT-828132

fulfil requirements of the following European Directive: 2000/14/WE

Conformity assessment procedure:

Manufacturer quality-control system

Measured sound power level on an equipment representative for this type: 102,4 dB(A)

Guaranteed sound power level for this equipment: 105 dB(A)

conformity and references of the other Community Directives applied:

2006/42/WE Machinery and safety devices

2014/30/UE Electromagnetic compatibility

2011/65/UE Restriction of the Use of Certain Hazardous Substances

Wrocław, 2025.04.08

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
