USER MANUAL Mr. Barbot Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

4 Temperature Power

Diagram of a portable appliance with labeled parts including temperature, power, and control panel

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Product description 10045458 26

Operation 10045458 27

Product description 10045459 28

Operation 10045459 29

Product description 10045460 30

Operation 10045460 31

Cleaning and Care 32

Troubleshooting 33

Product data sheet 34

Disposal considerations 40

Manufacturer & importer (UK) 40

TECHNICAL DATA

Article number 10045458
Power supply 220-240 V ~ 50 Hz
Volume 30 L

SAFETY INSTRUCTIONS

• Before use, check the voltage indicated on the nameplate. Ensure that you only connect the appliance to sockets with the appropriate voltage.
• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the appliance if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Make sure that the ventilation openings are free and clean them regularly.
• Do not use mechanical devices to speed up the defrosting process.
• Do not place electrical appliances, such as ice machines, in the refrigerator.
• Be careful not to damage the coolant circuit.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Check the power cord regularly for any damage. Do not use the device with a damaged power cord.
• Do not handle the device, plug or power cord with wet hands.
• If possible, do not use an extension cord. If you do use one, make sure that the ampere rating of the connected device does not exceed the maximum ampere rating of the power cord.
• Leave at least 5 cm space around the device on the sides and 10 cm space on the back for sufficient air circulation.
• Do not put hot food in the appliance. Let it cool down to room temperature first.
• Close the door as soon as possible after stowing food to prevent cold from escaping.
• Place the device on a firm, level surface. Do not place it on a soft surfaces, such as carpet.
• Do not place any objects on the appliance.
• Do not store flammable or explosive substances in the unit.
• Do not use the device outdoors.
• Do not pull the plug out of the socket by the cable; instead, hold it securely with your hand while unplugging it.
• Make sure that the power cord does not touch any hot surfaces.
• Only connect the unit to earthed sockets.
• Do not connect the device to sockets that are already connected to other kitchen appliances.
• Defrost the freezer compartment regularly.
• If the refrigerator goes out, breaks down or is turned off, wait 5 minutes before turning it back on, otherwise the compressor could be damaged.

This unit contains the refrigerant Isobutane (R600a), a natural gas with high environmental compatibility, but flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

Special Notes

• Children aged 3 to 8 may fill refrigerators with food and remove food.
- When positioning the unit, take care not to pinch or damage the power cord.
- Make sure that there are no power strips or power supply units on the back of the device.

WARNING

When using, during maintenance and when disposing of the device, pay attention to the left symbol located on the back or on the compressor of the device. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of drinks.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
• This appliance is not suitable for freezing food.

Notes on location

It is important that you leave your unit upright for at least 4 hours before switching it on to allow the cooling system to adjust.

- When moving the unit, do not tilt it more than 45 degrees. Do not apply force to parts such as the condenser, the door or the handle. These can deform and impair the operation of the cooler. Ensure ALL packaging is removed before installation.

- Make sure there is enough space around the product for the air to circulate freely.

- Do not connect the device to sockets that are already connected to other kitchen appliances.

- Make sure that the supply voltage of the socket corresponds to the voltage specified on the rating plate.

- Plug the power plug securely into the wall socket.

- The socket must be earthed. Do not insert the plug into unearthed sockets and do not use an extension cord.

- The product is equipped with adjustable feet. Once the product is in place, adjust the feet so that the refrigerator is level and does not slip.

Note: Do not place the product where the ambient temperature can drop below 5 °C, e.g. in the garage or shed.

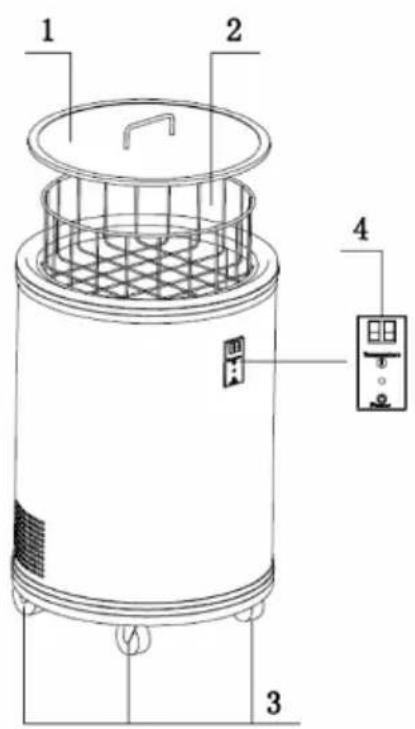

PRODUCT DESCRIPTION 10045458

1 2 3 4

4 Temperature Power

1 Removable transparent lid 3 Rollers (4 pieces)
2	Basket for storing drinks or wine bottles	4	Digital temperature control panel

OPERATION 10045458

Note: This appliance is intended exclusively for the storage of wine.

1 Plug the power plug into the mains socket.
2 Press the power button on the front panel to turn on the refrigerator.
3 Press the temperature button on the front panel to set the desired temperature of the refrigerator. The display flashes during the setting.

The temperature setting ranges from 0-16 °C. In normal use, the display shows the average temperature inside the refrigerator.

Recommended temperature settings

• White wine: 7-10 °C
  • Red wine: 12-16 °C

Measures to improve the cooling function

• When using the device for the first time, let it run continuously for 12-18 hours.
• Change the racks in the cooling compartment every 6 hours to improve cooling.
• Increase the distance between items placed in the cooler to allow them to cool properly (do not overload).

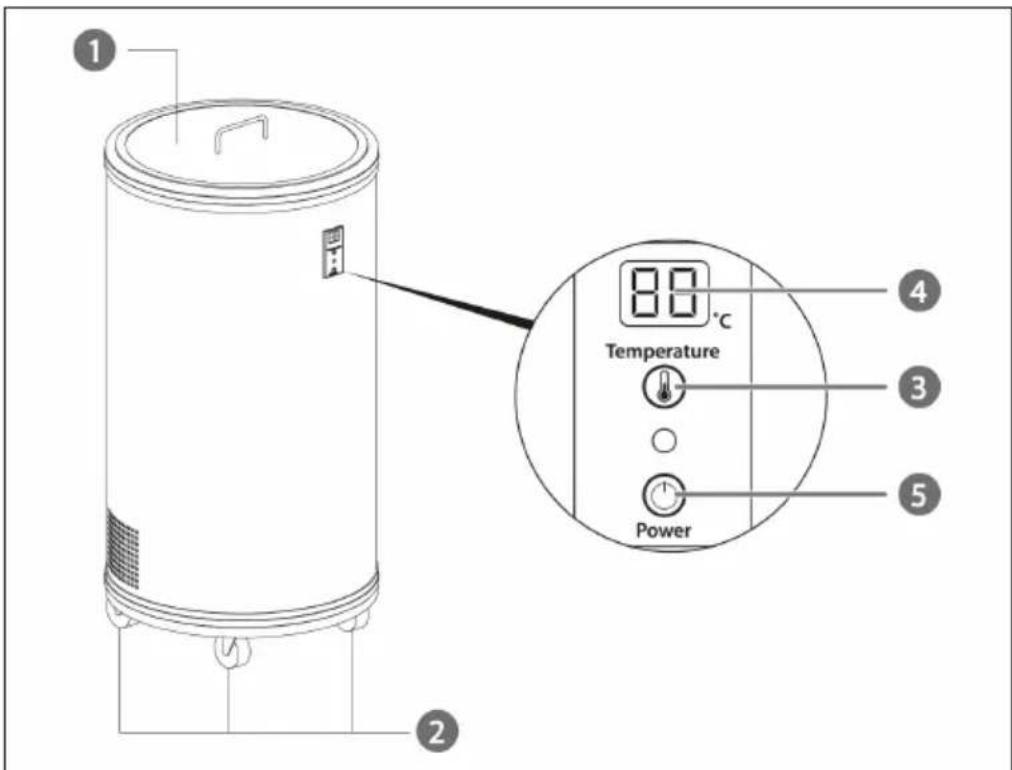

PRODUCT DESCRIPTION 10045459

1 2 Temperature 4 3 5 Power

1 Removable transparent lid 4 Display
2 Rollers (4 pieces) 5 Power button
3 Temperature button

OPERATION 10045459

Note: This appliance is intended exclusively for the storage of wine.

1 Place the device on a level surface.
2 Wipe the device with a damp cloth.
3 If the device has been tilted, allow it to stand upright for 20-30 minutes before operating.
4 Plug the power plug into the mains socket.
5 Press the power button (4) on the front panel to turn on the refrigerator.
6 Press the temperature button (5) on the front panel to set the desired temperature of the refrigerator. The display flashes during the setting.

The temperature setting ranges from 0-16 °C. In normal use, the display shows the average temperature inside the refrigerator.

Recommended temperature settings

• White wine: 7-10 °C
  • Red wine: 12-16 °C

Measures to improve the cooling function

• When using the device for the first time, let it run continuously for 12-18 hours.
• Change the racks in the cooling compartment every 6 hours to improve cooling.
• Increase the distance between items placed in the cooler to allow them to cool properly (do not overload).

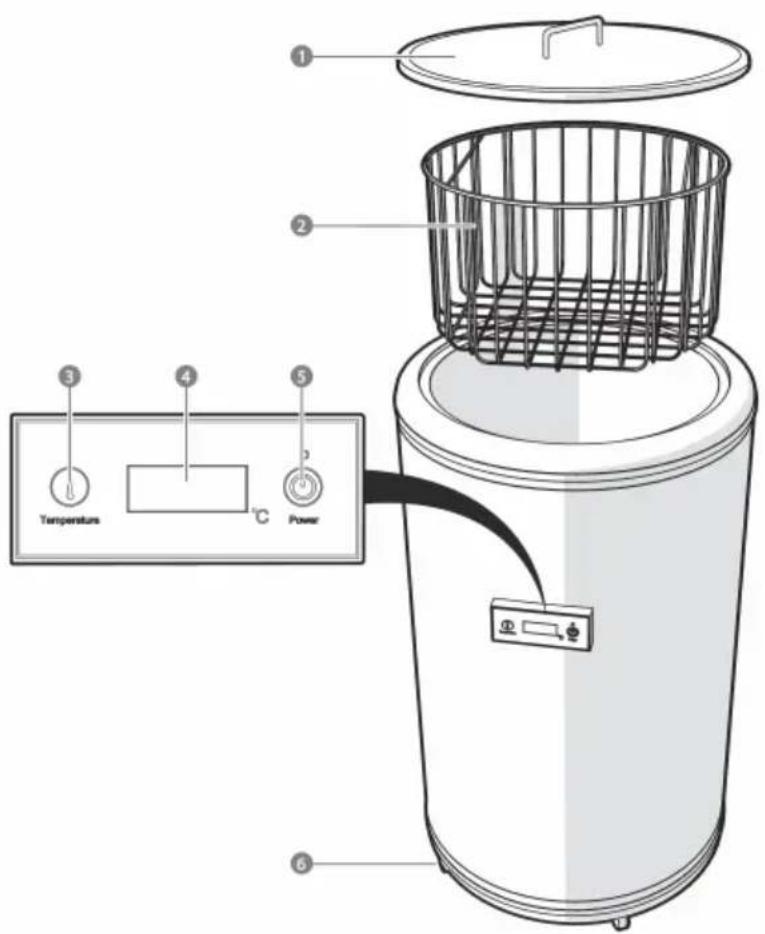

PRODUCT DESCRIPTION 10045460

Diagram of a portable appliance with labeled parts including temperature, power, and control panel

1 Removable transparent lid 4 Display
2 Basket for storing drinks or wine bottles	5 Power button
3 Temperature button 6 Rollers (4 pieces)

OPERATION 10045460

Note: This appliance is intended exclusively for the storage of wine.

1 Place the device on a level surface.
2 Wipe the device with a damp cloth.
3 If the device has been tilted, allow it to stand upright for 20-30 minutes before operating.
4 Plug the power plug into the mains socket.
5 Press the power button (5) on the front panel to turn on the refrigerator.
6 Press the temperature button (3) on the front panel to set the desired temperature of the refrigerator. The display flashes during the setting.

The temperature setting ranges from 0-16 °C. In normal use, the display shows the average temperature inside the refrigerator.

Recommended temperature settings

• White wine: 7-10 °C
  • Red wine: 12-16 °C

Measures to improve the cooling function

• When using the device for the first time, let it run continuously for 12-18 hours.
• Change the racks in the cooling compartment every 6 hours to improve cooling.
• Increase the distance between items placed in the cooler to allow them to cool properly (do not overload).

CLEANING AND CARE

Please note:

• To avoid electric shock, always unplug the appliance before cleaning or moving it.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents, or metal scouring pads for cleaning. Otherwise, the device may be damaged or discoloured.

Cleaning the appliance

• Remove the contents of the appliance
• Wipe the inside and outside surfaces with a damp cloth. Adding vinegar to the water is good for preventing mould and fungi.
  • Disassemble and clean the lid.
• Clean the removable base and lid parts with lukewarm water and washing-up liquid.
• Dry all parts thoroughly after cleaning.
• When assembling the lid, turn the slots in the sealing ring and hinge rubber strip down.

Note: when the party fridge is not in use, it must be completely dry inside to avoid mould growth (leave the lid open if possible).

Decommissioning during absence

• First switch off the appliance. Then disconnect the power cord from the power outlet.
• Remove all the contents.
• Clean the appliance.
• Leave the lid on slightly to prevent condensation, mould or odours from forming.

Installation at another location

• First switch off the appliance. Unplug the power cord.
• Remove all the contents.
• Secure all loose items with tape.
• Tape up the doors.

TROUBLESHOOTING

Problem Possible cause and solution
The appliance is not working.	It is not plugged in.
	It is switched off.
	The fuse is out or blown.
The appliance is not cold enough.	Check the temperature settings.
	The environment requires a lower setting.
	The door was opened too often.
	The door is not closed properly.
	The door seal does not seal properly.
The refrigerator cools excessively.	The temperature control may be set too high.
	If you place foods that contain a lot of moisture directly under the cooling outlets, they will freeze easily. This is not an indication of a device malfunction.
Vibrations Check if the device is level.

PRODUCT DATA SHEET

Information according to Regulation (EU) No 2019/2016

Manufacturer's name or trade mark: Klarstein
Manufacturer's address: Wallstraße 16, 10179 Berlin, Germany.
Article number: 10045458
Type of cooling device:
Low-noise device: no Construction type: Freestanding
Wine storage cabinet: yes Other cooling device: no
General product parameters:
Parameter Value Parameter Value
Dimensions(mm)	Height 620		Total volume(in dm3 or L)	30Width 42
	Depth 426
EEI 117 Energy efficiency class		F
Airborne sound emissions (in dB(A) re 1 pW)		43	Airborne sound emission class	D
Annual energy consumption(in kWh/a)		90	Climate class:	Extended temperate,temperate,subtropical
Minimum ambient temperature (in °C) for which the cooling device is suitable		10	Maximum ambient temperature (in °C) for which the cooling device is suitable	38
Winter circuit		no

Compartment parameters:
Compartment type		Compartment parameters and values
		Volume of the compartment (in dm3 or l)	Recommended temperature setting for optimised food storage (in °C) These settings must not conflict with the storage conditions set out in Table 3 of Annex IV	Freezing capacity (in kg/24h)	Defrost type (automatic defrost = A, manual defrost = M)
Pantry compartment no - - -
Wine storage compartment	yes	30.0 12 - M
Cellar compartment no - - -
Fresh food compartment no	- - -
Cold storage compartment	no	- - -
Zero-star or ice maker compartment	no	- - -
One-star compartment no	- - -
Two-star compartment no	- - -
Three-star compartment no	- - -
Four-star compartment no	- - -
Two-star compartment no	- - -
Variable temperature compartment	- - -
For wine storage cabinets
Number of standard wine bottles 16
Light source parameters:
Light source type -
Energy efficiency class -
Minimum term of the warranty offered by the manufacturer: 24 months
Further information:
Web link to the website of the manufacturer where the information specified in point 4(a) of the Annex to Commission Regulation (EU) 2019/2019 can be found: www.klarstein.de

Information according to Regulation (EU) No 2019/2016

Manufacturer's name or trade mark: Klarstein
Manufacturer's address: Wallstraße 16, 10179 Berlin, Germany.
Article number: 10045459
Type of cooling device:
Low-noise device: no Construction type: Freestanding
Wine storage cabinet: yes Other cooling device: no
General product parameters:
Parameter Value Parameter Value
Dimensions(mm)	Height 820		Total volume(in dm3 or L)	50Width 426
	Depth 426
EEI 121 Energy efficiency class F
Airborne sound emissions (in dB(A) re 1 pW)		43	Airborne sound emission class	D
Annual energy consumption(in kWh/a)		95	Climate class:	Extended temperate,temperate,subtropical
Minimum ambient temperature (in °C) for which the cooling device is suitable		10	Maximum ambient temperature (in °C) for which the cooling device is suitable	38
Winter circuit		no

Compartment parameters:
Compartment type		Compartment parameters and values
		Volume of the compartment (in dm3 or l)	Recommended temperature setting for optimised food storage (in °C) These settings must not conflict with the storage conditions set out in Table 3 of Annex IV	Freezing capacity (in kg/24h)	Defrost type (automatic defrost = A, manual defrost = M)
Pantry compartment no - - -
Wine storage compartment	yes	50.0 12 - M
Cellar compartment no - - -
Fresh food compartment no	- - -
Cold storage compartment	no	- - -
Zero-star or ice maker compartment	no	- - -
One-star compartment no	- - -
Two-star compartment no	- - -
Three-star compartment no	- - -
Four-star compartment no	- - -
Two-star compartment no	- - -
Variable temperature compartment	- - -
For wine storage cabinets
Number of standard wine bottles 22
Light source parameters:
Light source type -
Energy efficiency class -
Minimum term of the warranty offered by the manufacturer: 24 months
Further information:
Web link to the website of the manufacturer where the information specified in point 4(a) of the Annex to Commission Regulation (EU) 2019/2019 can be found: www.klarstein.de

Information according to Regulation (EU) No 2019/2016

Manufacturer's name or trade mark: Klarstein
Manufacturer's address: Wallstraße 16, 10179 Berlin, Germany.
Article number: 10045460
Type of cooling device:
Low-noise device: no Construction type: Freestanding
Wine storage cabinet: yes Other cooling device: no
General product parameters:
Parameter Value Parameter Value
Dimensions(mm)	Height 980		Total volume(in dm3 or L)	75Width 458
	Depth 458
EEI 122 Energy efficiency class F
Airborne sound emissions (in dB(A) re 1 pW)		43	Airborne sound emission class	D
Annual energy consumption(in kWh/a)		98	Climate class:	Extended temperate,temperate,subtropical
Minimum ambient temperature (in °C) for which the cooling device is suitable		10	Maximum ambient temperature (in °C) for which the cooling device is suitable	38
Winter circuit		no

Compartment parameters:
Compartment type		Compartment parameters and values
		Volume of the compartment (in dm3 or l)	Recommended temperature setting for optimised food storage (in °C) These settings must not conflict with the storage conditions set out in Table 3 of Annex IV	Freezing capacity (in kg/24h)	Defrost type (automatic defrost = A, manual defrost = M)
Pantry compartment no - - - -
Wine storage compartment yes 75.0		12 - M
Cellar compartment no - - - -
Fresh food compartment no - - - -
Cold storage compartment no - - - -
Zero-star or ice maker compartment	no	- - - -
One-star compartment no - - - -
Two-star compartment no - - - -
Three-star compartment no - - - -
Four-star compartment no - - - -
Two-star compartment no - - - -
Variable temperature compartment	- - - -
For wine storage cabinets
Number of standard wine bottles			32
Light source parameters:
Light source type			-
Energy efficiency class			-
Minimum term of the warranty offered by the manufacturer: 24 months
Further information:
Web link to the website of the manufacturer where the information specified in point 4(a) of the Annex to Commission Regulation (EU) 2019/2019 can be found: www.klarstein.de

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

4 Temperature Power

Diagram of a portable appliance with labeled parts including temperature, power, and control panel

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

4 Temperature Power

Diagram of a portable appliance with labeled parts including temperature, power, and control panel

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

4 Temperature Power

Diagram of a refrigerator with labeled parts including temperature, power, and control panel

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
