Snail - Drone DJI - Free user manual and instructions

Product Type	Propulsion system for racing drone
Brand	DJI
Model	Snail
Category	Drone (propulsion system)
Compatible propellers	6048-3D (6x4.8 inches, 4.10 g) and 5048 Tri-Blade (5x4.8 inches, 5.68 g)
Compatible motors	DJI Snail 2305 Racing motors
Required propeller adapter	Snail propeller adapter (sold separately)
Installation tools	M2 hex key
Propeller type	CW and CCW propellers (marked)
Weight of 6048-3D propellers	4.10 g per propeller
Weight of 5048 propellers	5.68 g per propeller
3D flight mode	Available via DJI Assistant 2 software
Power supply	LiPo battery (not included, suitable for drone)
Main functions	Propulsion for racing drone, acrobatic flight
Maintenance and cleaning	Check condition of propellers and adapters; clean with a soft cloth
Safety	Do not touch rotating propellers; use appropriate propellers; update firmware
Spare parts and repairability	Propellers, Snail propeller adapter available separately on DJI Store
General information	Manual available in multiple languages; version 1.0 2016.12

Frequently Asked Questions - Snail DJI

What types of propellers are compatible with the DJI Snail system?

The 6048-3D (6x4.8 inches) and 5048 Tri-Blade (5x4.8 inches) propellers are compatible, with or without the Snail propeller adapter.

How to install propellers on the Snail 2305 Racing motor?

Use an M2 hex key. Remove the quick adapter, install the Snail adapter (black for CW, red for CCW) with M2×4 screws, then fix the propellers by screwing the caps.

What to do to use 3D mode with the 6048-3D propellers?

Select 3D mode in DJI Assistant 2 and update the corresponding firmware before installation.

What safety precautions are essential?

Never touch rotating propellers, do not mix propeller types, and keep away from running motors.

Where can I buy spare parts like propellers or the Snail adapter?

Parts are available on the official DJI store or at www.dji.com/snail.

Is the Snail system compatible with motors other than the 2305 Racing?

No, it is specifically designed for DJI Snail 2305 Racing motors. The Snail propeller adapter is required.

How to distinguish CW and CCW propellers?

CW propellers are marked 'CW' and mount on the black adapter; unmarked propellers are CCW and mount on the red adapter.

What is the weight difference between the two propeller types?

6048-3D propellers weigh 4.10 g each, while 5048 Tri-Blade weigh 5.68 g.

Can I use the 5048 propellers without the Snail adapter?

No, the Snail propeller adapter is mandatory to mount the 5048 Tri-Blade propellers on the 2305 Racing motors.

Where to find the complete user manual?

The manual is available for free download at notice-facile.com for the DJI Snail model, or on the official DJI website.

USER MANUAL Snail DJI

Disclaimer and Warning

Thank you for purchasing the DJI™ Snail series product (hereinafter referred to as “product”). The information in this document affects your safety and your legal rights and responsibilities. Read this disclaimer carefully before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read it fully. Please install and use this product in strict accordance with the User Guide. SZ DJI TECHNOLOGY CO., LTD. and its affiliated companies assume no liability for damage(s) or injuries incurred directly or indirectly from using, installing or modifying this product improperly, including but not limited to using non-designated accessories.

DJI is a trademark of SZ DJI TECHNOLOGY CO., LTD. (abbreviated as "DJI") and its affiliated companies. Names of products, brands, etc., appearing in this document are trademarks or registered trademarks of their respective owner companies. This product and document are copyrighted by DJI with all rights reserved. No part of this product or document shall be reproduced in any form without the prior written consent or authorization of DJI.

This disclaimer is produced in various languages. In the event of divergence among different versions, the Chinese version shall prevail when the product in question is purchased in China, and the English version shall prevail when the product in question is purchased in any other region.

Introduction

Snail 6048-3D Propellers and 5048 Tri-Blade Propellers are compatible with the Snail Racing Propulsion System. When mounting onto the Snail 2305 Racing Motors, extra Snail Propeller Adapter is necessary for securing.

Parts

Get Snail 6048-3D Propellers pair (CW, CCW), 5048 Tri-Blade Propellers pair (CW, CCW) and Snail Propeller Adapter on Official DJI store separately.

Two symmetrical abstract shapes with central dots, no text or symbols present

6048-3D Propellers

Simple line drawing of a three-bladed propeller or fan with no text or symbols

5048 Tri-Blade Propellers

Simple line drawings of a bell and a cylindrical object with a base (no text or symbols)

Snail Propeller Adapter

Assembling the Propellers

Tools Required: M2 hex key and Snail Propeller Adapter

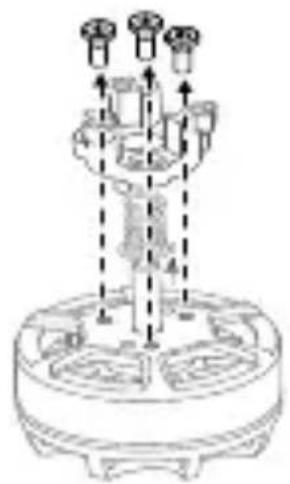

1. Remove the screws securing the Quick-Release Propeller Adapter on the 2305 Racing Motors, and then remove the Quick-Release Propeller Adapter and the spring if there is any.

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

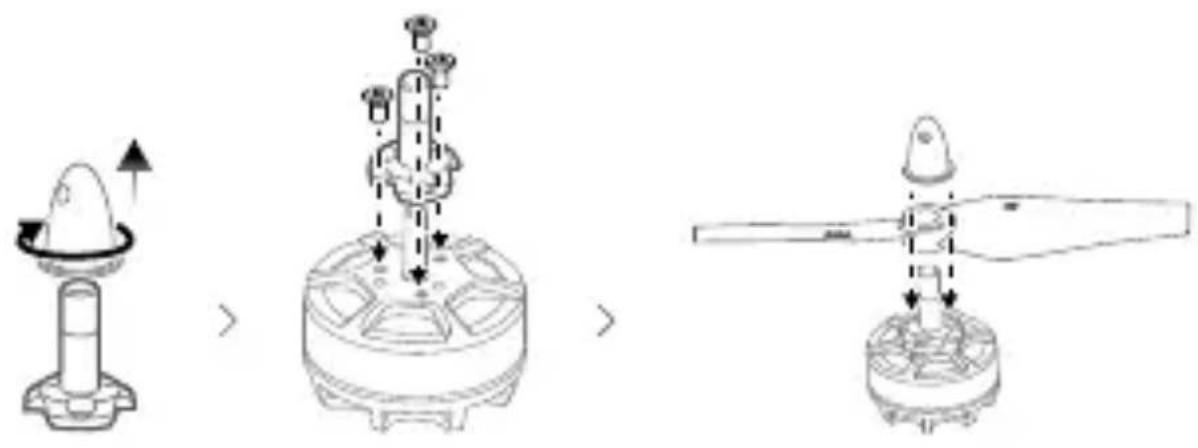

1. Remove the cap on the Snail Propeller Adapter.
2. Align the holes of the black Propeller Adapter with the holes on the CW motors. Insert the M2×4 screws and tighten to secure. Align the holes of the red Propeller Adapter with the holes on the CCW motors. Insert the M2×4 screws and tighten to secure.
3. Install the unmarked propellers onto the red Propeller Adapter, and install the propellers marked with CW onto the black Propeller Adapter.
4. Secure the propellers by rotating the red cap onto the axes of the red Propeller Adapter and black cap onto the axes of the black Propeller Adapter.

• Using 6048-3D Propellers installation as an example.
- Before mounting the 6048-3D propellers, select 3D Mode in DJI Assistant 2 and update the corresponding firmware.
- Stand clear of the motors and DO NOT touch the propellers when they are spinning.
• DO NOT mix propeller types.

• Use appropriate propellers for your needs, as they are easy to wear out.
• Look after screws during installation and removal.
  • Refer to the DJI Snail Racing Propulsion System User Manual for more information.

Specification

Propellers Diameter × Thread Pitch Weight (single propeller)

6048-3D propellers 6×4.8inch (15.24×12.19cm) 4.10g

5048 propellers 5×4.8inch (12.70×12.19cm) 5.68g

This content is subject to change.

Download the latest version from

http://www.dji.com/snail

DJI is a trademark of DJI.

Copyright © 2016 DJI All Rights Reserved.

免责声明

Simple line drawing of two symmetrical elongated shapes with internal dots, no text or symbols present.

6048-3D 桨

Simple line drawing of a four-bladed propeller or fan with no text or symbols

5048 三叶桨

Two technical line drawings of mechanical components: a conical component and a cylindrical shaft (no text or symbols)

Snail 普通桨转接件

安装螺旋桨

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

http://www.dji.com/snail

DJI 是大疆创新的商标。

Simple line drawing of two symmetrical oval shapes with internal dots, no text or symbols present

6048-3D 槃

Simple line drawing of a three-bladed propeller or fan with no text or symbols

5048 三葉漿

Two technical line drawings of mechanical components: a conical component and a cylindrical shaft (no text or symbols)

Snail 普通槳轉接配件

安裝螺旋槳

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

http://www.dji.com/snail

DJI 是大疆創新的商標。

Copyright © 2016 大疆創新 版權所有

免責事項および警告

Two symmetrical abstract shapes with circular motifs and curved lines, no text or symbols present.

6048-3D プロペラ

Simple line drawing of a three-bladed propeller or fan with no text or symbols

5048 トリブレードプロペラ

Two technical line drawings of mechanical components: a conical component and a cylindrical base (no text or symbols)

Snail プロペラアダプター

プロペラの組み立て

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

http://www.dji.com/snail

DJI は DJI の商標です。

Copyright © 2016 DJI All Rights Reserved.

고지 사항 및 경고

Two symmetrical abstract shapes with no text or symbols

6048-3D 프로펠러

Simple line drawing of a three-bladed propeller or fan with no text or symbols

5048 트라이 블레이드 프로펠러

Two technical line drawings of mechanical components: a conical component and a cylindrical shaft (no text or symbols)

Snail 프로펠러 어댑터

프로펠러 조립

Technical line drawing of a mechanical device with multiple ports and internal components (no text or symbols)

http://www.dji.com/snail

DJI 은 DJI의 상표입니다.

Copyright © 2016 DJI All Rights Reserved.

Technical line drawing of a mechanical device with no visible text or symbols

http://www.dji.com/snail

Two symmetrical elongated shapes with internal oval patterns, no text or symbols present

Hélices 6048-3D

Simple line drawing of a four-bladed propeller or fan with no text or symbols

Hélices de Tres Palas 5048

Two technical line drawings of mechanical components: a bell-shaped component and a cylindrical base (no text or symbols)

Adaptador de Hélice Snail

Technical line drawing of a mechanical device with no visible text or symbols

http://www.dji.com/snail

Two symmetrical abstract shapes with circular motifs, no text or symbols present

Hélices 6048-3D

Simple line drawing of a three-bladed propeller or fan with no text or symbols

Hélices 5048 Tri-Blade

Two technical line drawings of mechanical components: a conical component with a circular top and a cylindrical shaft with a flanged base (no text or symbols)

Technical line drawing of a mechanical device with multiple ports and a central hub (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a propeller with a base and rotor, showing internal components and alignment arrows (no text or labels)

If you have any questions about this document, please contact DJI by sending a message to [e-mail].
