Battery Voltage	60 V MAX FLEXVOLT (nominal 54 V)
Battery Technology	DEWALT FLEXVOLT 60V MAX
Cutting Width	42 cm (16.5 in)
Compatible Line Diameter	2.4 mm (0.095 in) and 2.7 mm (0.105 in)
Motor Type	Brushless
Number of Speeds	3
Runtime (without load)	Up to 69 min per battery
Display	LED charge indicator dashboard
Weight Saving vs Gas	26% lighter than a 28.4cc
Torque Gain vs Gas	+67% compared to an equivalent gas engine
Battery and Charger Included (kit Y2)	2 batteries 60V MAX + 1 charger

Frequently Asked Questions - DCST975 DEWALT

Which battery should be used with the DEWALT DCST975?

The DCST975 operates exclusively with DEWALT FLEXVOLT 60V MAX batteries. These batteries are versatile: they power FLEXVOLT tools in 60V and 20V MAX tools in 20V mode. The battery and charger are sold separately with the DCST975B version (tool only).

What is the cutting width of the DCST975?

The DCST975 offers a cutting width of 42 cm (16.5 inches), allowing large areas of lawn or edges to be treated quickly in fewer passes.

What line diameter is suitable for the DCST975?

The device is compatible with 2.4 mm (0.095 inch) and 2.7 mm (0.105 inch) lines. Opt for the 2.4 mm for fine grass and the 2.7 mm for thicker or tougher vegetation.

How long does the FLEXVOLT 60V MAX battery last?

With a FLEXVOLT 60V MAX battery, the DCST975 offers up to 69 minutes of runtime on idle. Actual runtime varies depending on the selected speed and vegetation density.

How do you change the cutting speed?

The DCST975 has 3 speed modes selectable directly on the device. An LED dashboard continuously displays the battery charge level, allowing you to anticipate recharges.

What to do if the motor does not start?

First, check that the FLEXVOLT battery is correctly inserted and sufficiently charged (the LED indicator should light up). Ensure that the safety lock is deactivated before pulling the trigger. Test with a battery charged to 100%.

What to do if the line breaks or gets stuck in the spool?

Turn off the device and remove the battery before intervening. Dismantle the cutting head, remove any stuck line debris, and rewind with a compatible diameter line (2.4 or 2.7 mm) following the winding direction indicated on the spool.

Is the DCST975 compatible with interchangeable attachments?

No, the DCST975 is not an Attachment Capable model. If you wish to use interchangeable attachments (hedge trimmer, blower, edger), consider the DEWALT DCST972 or DCST970 range which offer this functionality.

What are the advantages of the DCST975's brushless motor?

The brushless motor offers better energy efficiency, reduced wear, and less maintenance compared to a traditional brushed motor. It delivers 30% more power and 67% more torque compared to a reference 28.4cc gas engine.

How to maintain the DCST975 after use?

After each use, clean the cutting head and line guard of grass debris. Store the battery separately, in a dry place between 10°C and 30°C. Regularly check the line's condition and replace it as soon as it is too short to cut effectively.

Is the DCST975 lighter than a gas string trimmer?

Yes, according to DEWALT, the DCST975 is 26% lighter than a comparable 28.4cc gas string trimmer. This weight reduction improves comfort during long cutting sessions.

USER MANUAL DCST975 DEWALT

WARNING: Read all safety warnings, instructions, illustrations, and specifications in this manual, including the battery and charger sections provided in an original tool manual or the separate Batteries and Chargers manual.

Manuals can be obtained by contacting Customer Service as described elsewhere in this manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

RANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

English (original instructions) 5

Français (traduction de la notice d'instructions originale)	14
Español (traducido de las instrucciones originales)	24

Fig. A

Technical diagram of a mechanical device with numbered parts and labeled components, including a control panel and fan assembly.

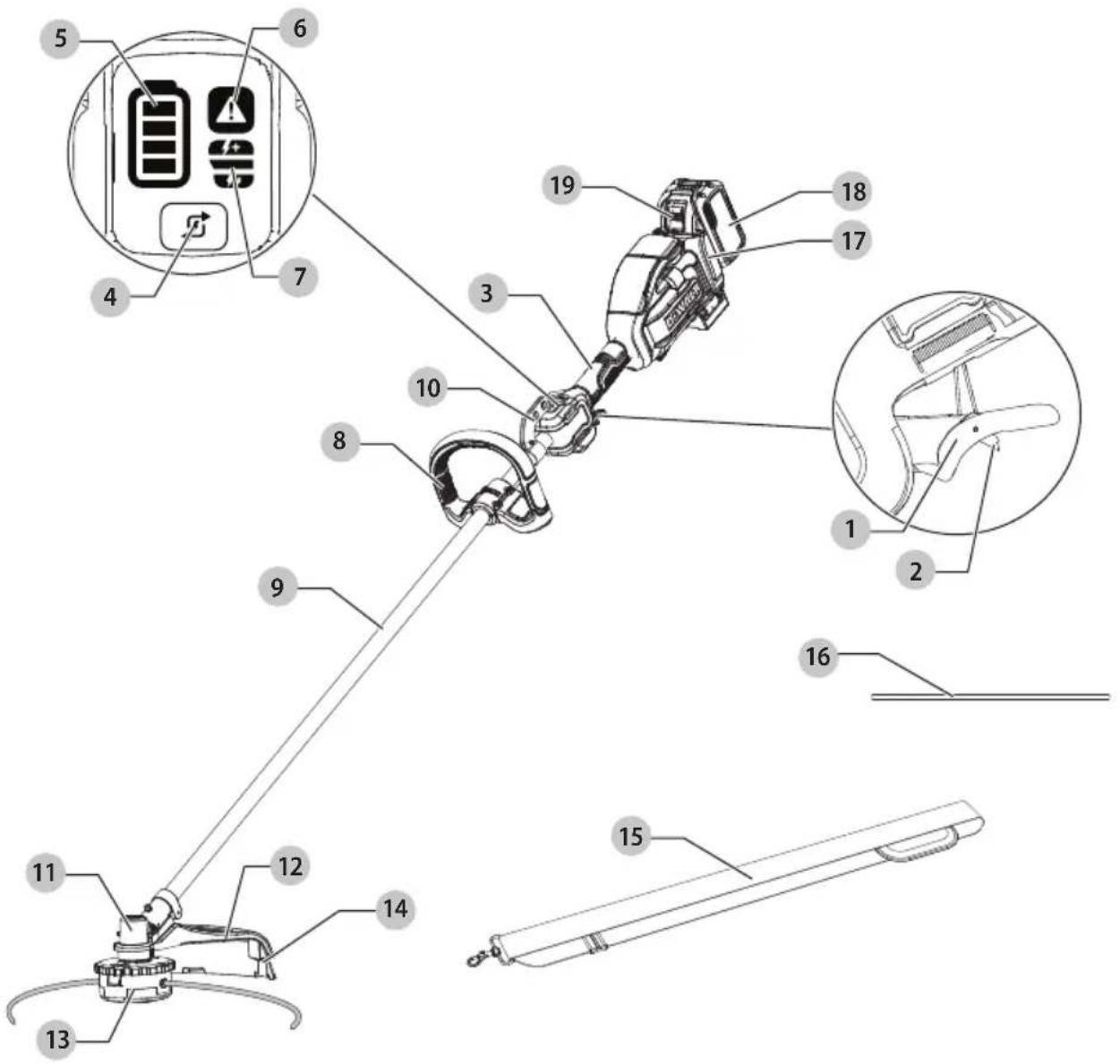

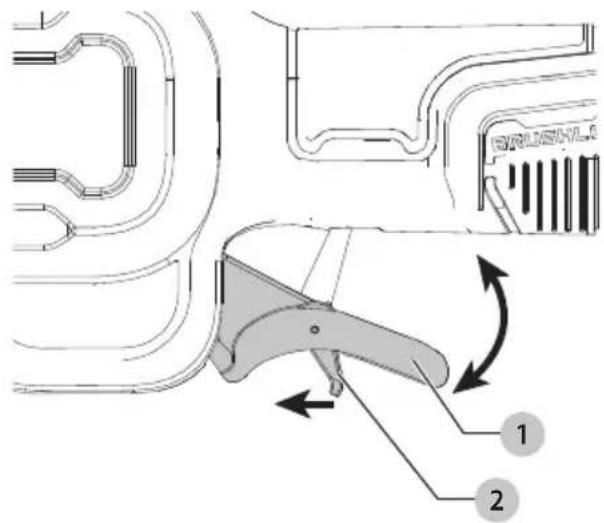

1 Variable speed trigger
2 Lock-off lever
3 Main handle
4 Speed control button/ Wake-up button

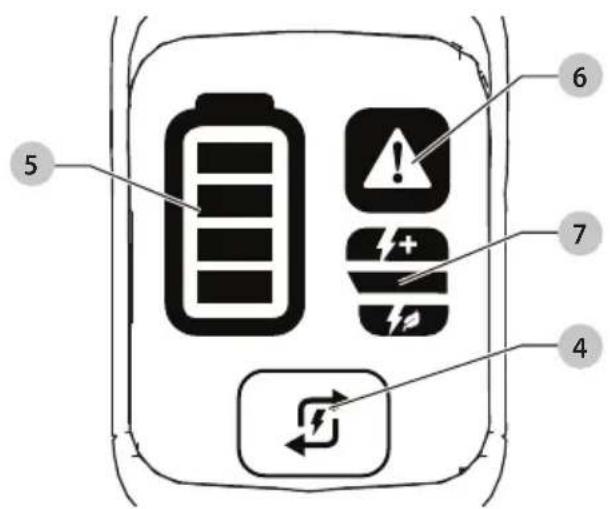

5 Battery state of charge LED
6 Overload indicator LED
7 Speed settings LEDs
8 Auxiliary handle
9 Pole
10 Strap mount
11 Gear case
12 String trimmer guard
13 Spool housing
14 String cutting blade

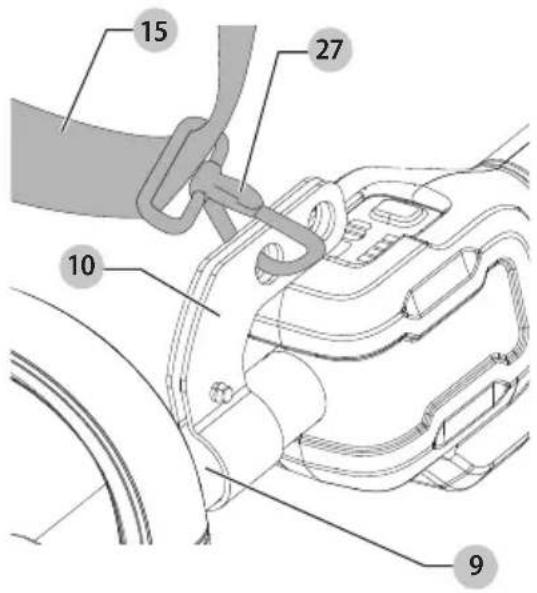

15 Single shoulder strap
16 Locking rod
17 Battery housing
18 Battery pack
19 Battery release button

Technical diagram of a mechanical assembly with numbered parts, likely a valve or connector assembly.

24 25 26 12 11

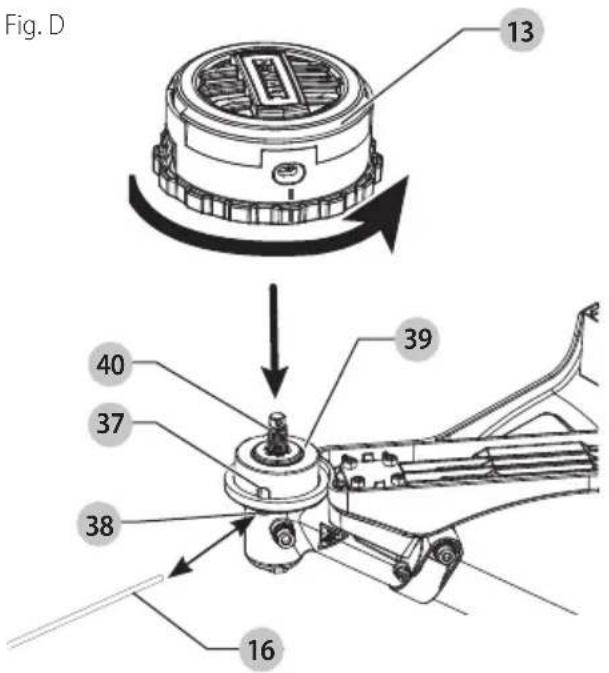

Fig. D 13 40 37 38 16 39

Fig. E

15 27 10 9

Fig. F

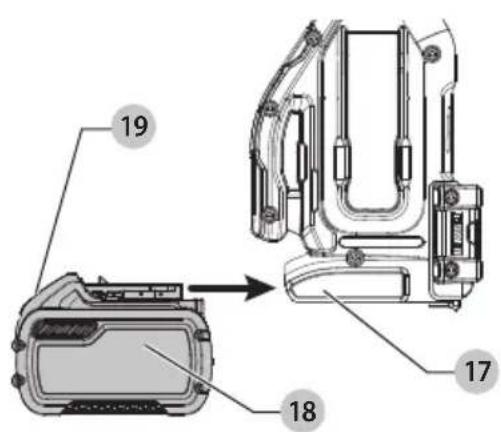

19 18 17

Fig. G

5 6 7 4

Fig. H Fig. I

Diagram showing a person using a tool to lift a surface, labeled with parts 3 and 8.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Fig. J Fig. K

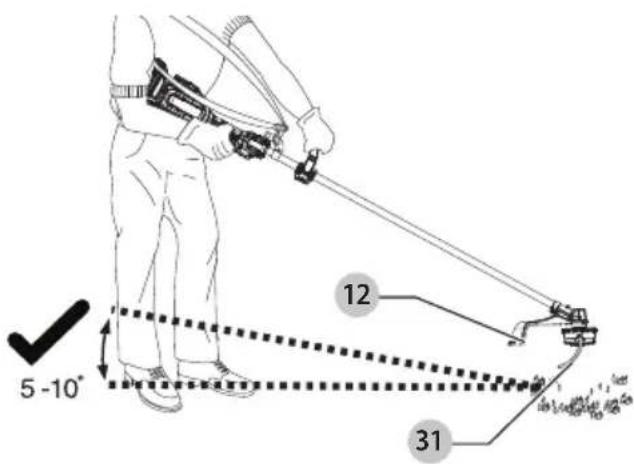

5 - 10° 12 31

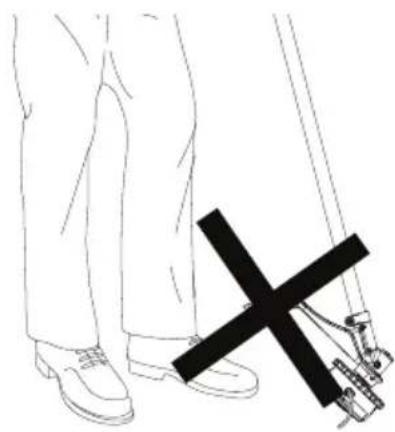

Line drawing of a person standing with a large 'X' symbol overlay (no text or symbols present)

Fig. L

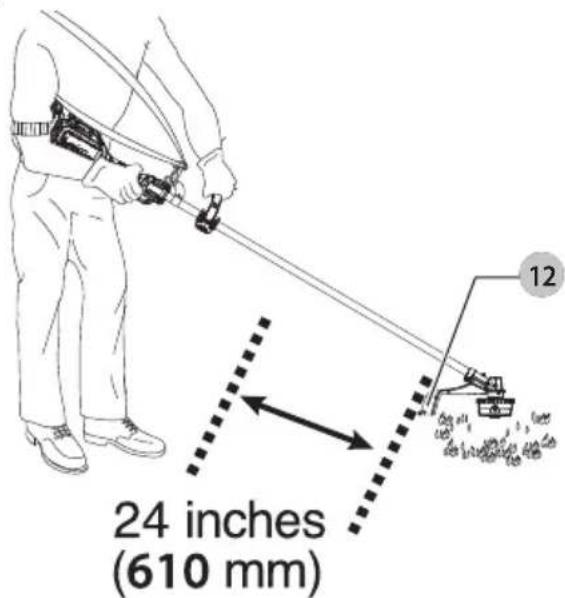

24 inches (610 mm)

Fig. M

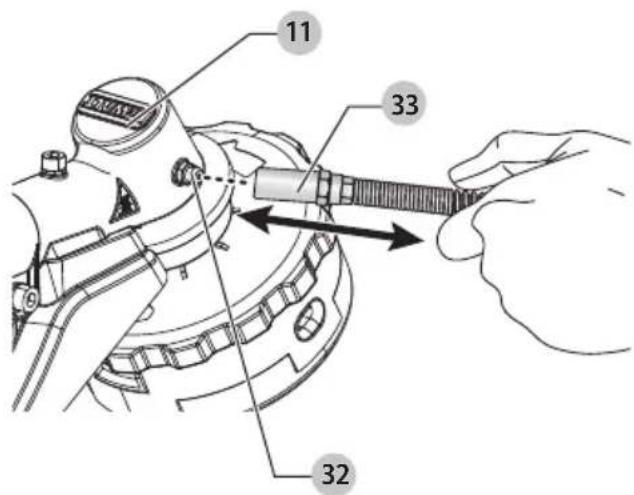

11 33 32

Fig. N Fig. O

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Fig. P

Technical diagram of a mechanical assembly with numbered parts and directional arrows indicating motion or assembly.

Fig. Q

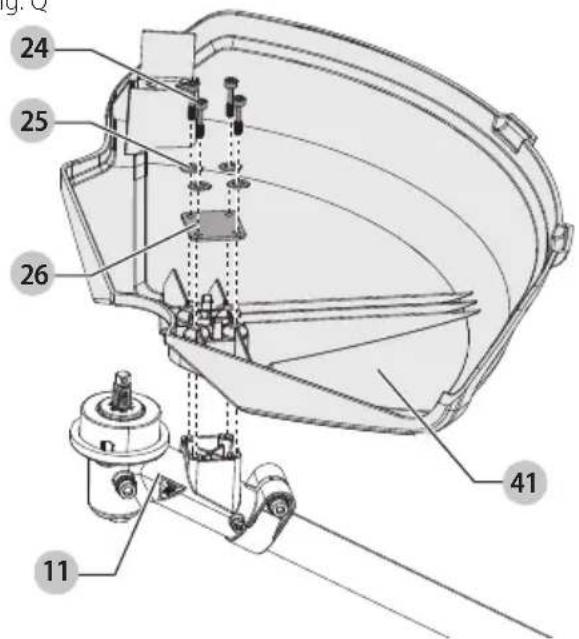

g. Q 24 25 26 41 11

Fig. R

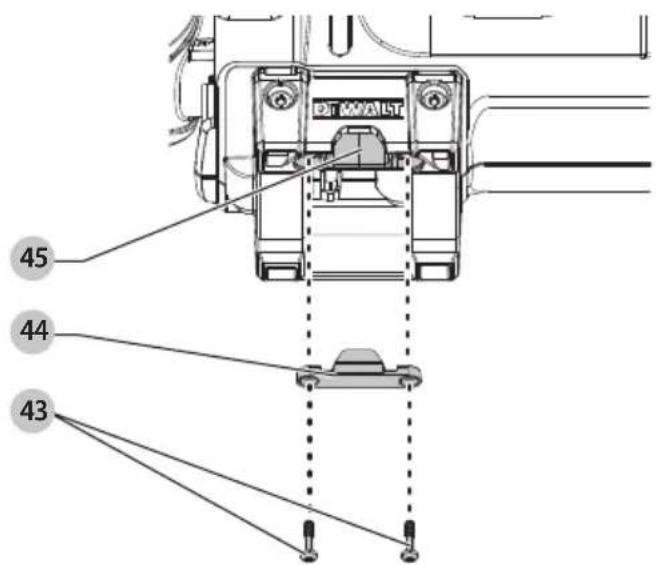

45 44 43

Intended Use

The DCST975 has been designed for the purpose of professional lawn and garden maintenance. It contains a line feeding system that requires the user to gently bump the spool on the ground to advance the line. It is recommended for use with DEWALT accessories. This product is not an edger and is not intended to be used for edging.

DO nOT use this tool for any purpose other than its intended use.

DO nOT use under wet conditions or in the presence of flammable liquids or gases.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

DO wear appropriate safety glasses, closed toe shoes and long pants.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

English

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Lawn Trimmer and Lawn Edge Trimmer Safety Warnings

a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
b) Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.
c) Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
d) Before using the machine, always visually inspect to see that the cutter and the cutter assembly are not damaged. Damaged parts increase the risk of injury.
e) Follow instructions for changing accessories. Improperly tightened blade securing nuts or bolts may either damage the blade or result in it becoming detached.
f) Wear eye, ear, head and hand protection. Adequate protective equipment will reduce personal injury by flying debris or accidental contact with the cutting line or blade.
g) While operating the machine, always wear non-slip and protective footwear. Do not operate the machine

when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving cutters or lines.

h) While operating the machine, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
i) Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury.
j) Always use two hands when operating the machine. Holding the machine with both hands will avoid loss of control.
k) Hold the machine by insulated gripping surfaces only, because the cutting line or blade may contact hidden wiring. Cutting line or blades contacting a "live" wire may make exposed metal parts of the machine "live" and could give the operator an electric shock.
1) Always keep proper footing and operate the machine only when standing on the ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine.
m) Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
n) When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
o) Keep all parts of the body away from the cutter, line or blade when the machine is operating. Before you start the machine, make sure the cutter, line or blade is not contacting anything. A moment of inattention while operating the machine may result in injury to yourself or others.
p) Do not operate the machine above waist height. This helps prevent unintended cutter or blade contact and enables better control of the machine in unexpected situations.
q) When cutting brush or saplings that are under tension, be alert for spring back. When the tension in the wood fibres is released, the brush or sapling may strike the operator and/or throw the machine out of control.
r) Use extreme caution when cutting brush and saplings. The slender material may catch the blade and be whipped toward you or pull you off balance.
s) Maintain control of the machine and do not touch cutters, lines or blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
t) When clearing jammed material or servicing the machine, make sure all power switches are off and the power cord is disconnected. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.
u) Carry the machine with the machine switched off and away from your body. Proper handling of the machine will reduce the likelihood of accidental contact with a moving cutter, line or blade.
v) Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.
w) When clearing jammed material or servicing the machine, make sure the switch is off and the battery pack is removed. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce risk of injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently.

READ ALL INSTRUCTIONS

WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following:

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Avoid Dangerous Environments – DO NOT use appliances in damp or wet locations. DO NOT operate portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
3. Don't Use In Rain or wet areas.
4. Keep All Bystanders Away – at a safe distance from work area, especially children.
5. Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
6. Always Wear Eye Protection – Wear ANSI Z87.1 approved eye protection at all times when battery is installed. Also use face or dust mask and hearing protection. Safety glasses and hearing protection are available at extra cost at your local DEWALT Service Center or authorized service facility.
7. Use Right Appliance – Do not use appliance for any job except that for which it is intended.
8. Avoid Accidentally Starting – Don't carry with finger on trigger when battery is installed.
9. Don't Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
10. Don't Overreach – Keep proper footing and balance at all times.
11. Stay Alert – Watch what you are doing. Use common sense. DO NOT operate while under the influence of alcohol or drugs, or when you are tired or ill.
12. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
13. Disconnect Appliance – Always remove the battery when not in use, before servicing, when changing accessories such as blades, and the like.
14. Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children.

15. Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

16. Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

17. Damage to Unit – If you strike or become entangled with a foreign object, stop appliance immediately, remove battery, check for damage and have any damage repaired before further operation is attempted.

18. DO NOT immerse appliance in water or squirt it with a hose. DO NOT allow any liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.

19. DO NOT store the appliance on or adjacent to fertilizers or chemicals.

20. Don't grasp the exposed cutting blades or cutting edges when picking up or holding the appliance.

21. DO NOT clean with a pressure washer.

22. DO NOT charge appliance in rain, or in wet locations.

23. DO NOT use battery-operated appliance in rain.

24. Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance.

25. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

26. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

27. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

1. SERVICE- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

3. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

4. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

5. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265^ F ( 129^ C) may cause explosion.

SAVE THESE INSTRUCTIONS

Additional Safety Warnings

WARNING: To reduce the risk of rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc.

• GUARD – Do not use this appliance without guard attached.
• DRESS PROPERLY – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Don't operate the appliance when barefoot or wearing open sandals. Wear heavy long pants to protect your legs. Wear protective hair covering to contain long hair.

- KEEP FACE, HANDS AND FEET CLEAR OF ROTATING NYLON LINE AT ALL TIMES. The rotating line performs a cutting function. Use care when trimming around screens and desirable plantings.

- KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children. MAKE SURE that other persons and pets are at least 100 feet (30 m) away.

- USE GREAT CARE when working close to solid objects and where necessary, do trimming by hand.

- DAMAGE TO UNIT – If you strike or become entangled with a foreign object, stop appliance immediately, remove battery, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken hub or spool.

- STAY ALERT – Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication.

- DO NOT immerse appliance in water or squirt it with a hose.

- DO NOT allow any liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.

• DO NOT clean with a pressure washer.

- DO NOT store the appliance on or adjacent to fertilizers or chemicals.

- DO NOT charge appliance in rain, or in wet locations.

- STORE IDLE APPLIANCES INDOORS – When not in use, appliances should be stored indoors in a dry, locked-up place out of reach of children.

- Beware of thrown objects.

• DO NOT use metal blades.

AUTION: Use only DEWALT replacement spools and line. Using any other manufacturer's line can reduce performance, damage the trimmer or cause personal injury.

Your trimmer uses 0.080 inches (2.0 mm) diameter line but can also use 0.095" (2.4 mm) or 0.105" (2.7 mm) that is spiral shaped with smooth round edges. Do not use other size lines. This can degrade performance, cause damage to the unit or injury.

WARNING: Do not use appliance if the switch trigger does not turn the appliance on or off. Any appliance that cannot be controlled with the switch trigger is dangerous and must be repaired.

Additional Safety Information

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),

• ANSI S12.6 (S3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with a large battery pack will stand upright but may be easily knocked over.

- Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

- Keep air ventilation openings clear of debris.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts Hz....hertz min....minutes

- - - or DC .....direct current

Class I Construction (grounded)

.../min.....per minute BPM.....beats per minute

IPM.... impacts per minute OPM.... oscillations per minute

RPM.... revolutions per minute sfpm.... surface feet per minute SPM.... strokes per minute

A.....amperes W.....watts

Wh....watt hours Ah.....amp hours

\~ or AC......alternating current

or AC/DC....alternating or direct current

ClassII Construction (double insulated)

n_0 ...... no load speed

n....rated speed PSI..... pounds per square inch

± earthing terminal

⚠️ ......safety alert symbol

▲......visible radiation—do not stare into the light

wearrespiratory protection

wear eye protection

O....wearhearing protection

read all documentation

do not expose to rain

Risk of thrown objects. Keep bystanders away.

Only string spool is to be used on the tool with this guard. Blades are not to be used.

Keep people and animals at least 100 m away from the work area.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can cause injury.

Attaching the Auxiliary Handle (Fig. A, B)

WARNING: The auxiliary handle 8 needs to be installed at least 250 mm away from the main handle 3 and no closer than 17.75" (450 mm) away from the trimming circle. Follow the below diagram to calculate where to install the auxiliary handle 8:

a. Main handle height
b. Cutting circle
c. Flat and level surface
d. Distance between auxiliary handle and rear handle.

2" (50 mm) 30.5" + 1" (775 mm +25mm) 9.8" (250 mm) a c b d

1. Place the auxiliary handle 8 on top of the handle base 20 so the pole 9 is between them. Hold the auxiliary handle in place and slide the handle bolts 21 and washers 22 into the handle from the top, threading them into the nuts 23 on the handle base.
2. Tighten the handle bolts with a 4 mm hex wrench (not supplied). Ensure the handle is securely attached.
3. Repeat for the other side of the auxiliary handle.

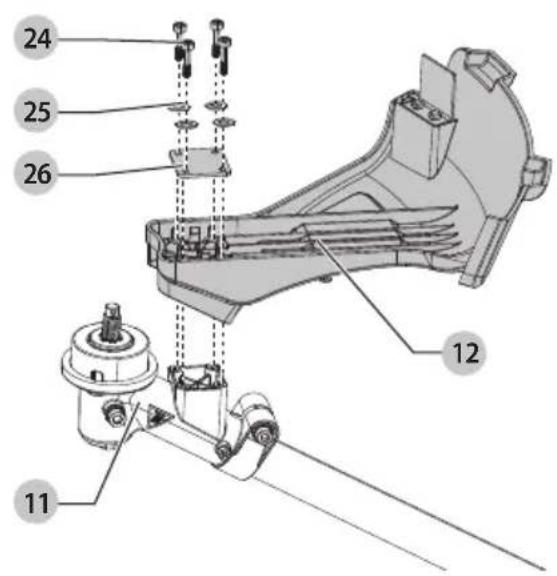

Assembling the Guard (Fig. A, C)

WARNING: NEVER OPERATE appliance WITHOUT GUARD FIRMLY IN PLACE. The guard must always be properly attached on the appliance to protect the user.

1. Place the string trimmer guard 12 into position as shown in Fig. A, C.
2. Use a 3 mm hex wrench (not included) to secure it to the gear case 11 with the four guard screws 24, washers 25 and plate 26 and tighten it securely.

Installing the Spool Assembly (Fig. A, D)

1. Remove the battery.
2. Ensure the string trimmer guard 12 is installed before proceeding.
3. Install the spindle plate 39 onto the shaft 40, so the notch is facing towards the gear case.
4. Align the spindle plate hole 37 with the notch 38, insert the locking rod 16 or screwdriver back into the hole 37 and thread the new spool housing counterclockwise.
5. Securely tighten the new spool housing onto the shaft 40.

Attaching and Adjusting the Shoulder Strap (Fig. E, H)

WARNING: The shoulder strap should only be slung over one shoulder and not across the body. See Fig H.

A shoulder strap 15 is recommended for any tool with a total weight exceeding 13 lbs. (6 kg). (Total weight includes the tool, attachment, and battery.) Attach the strap to the tool as shown in Fig. E and adjust for proper balance and support.

1. Snap the shoulder strap latch 27 onto the strap mount 10 located on the pole 9, just in front of the ON/OFF trigger as shown in Fig. H.
2. Adjust the shoulder strap 15 so it fits over your shoulder and provides proper balance and support.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. F)

WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.

NOTE: For best results, make sure your battery pack is fully charged.

1. To install the battery pack 18 into the tool handle 3, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.
2. To remove the battery pack from the tool, press the battery pack release button 19 and firmly pull the battery pack out of the tool handle. Insert battery into the charger.

State of Charge Indicator (Fig. A, G)

The DCST975 is equipped with a state of charge indicator. This will display the current level of charge in the battery during use. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

• The state of charge indicator LEDs 5 will illuminate, indicating the percent of charge in the battery.
• When all four state of charge indicator LEDs 5 illuminate, the battery is fully charged.
• When one state of charge indicator LEDs 5 illuminates, charge is low and then it will flash when the battery is discharged. Remove the battery and charge it.

State of Charge Indicator LED Status

	LEVEL OF CHARGE	CHARGE INDICATORLED COLOR
	100% - 75% White
	50% - 75% White
	20% - 50% White
	≤20% White
	Low battery shutdown White and blinking.
	Battery too hot All four, red and blinking.

English

Overloaded Battery Warning (Fig. A, G)

All four state of charge indicator LEDs 5 will illuminate red and then blink when the battery has reached a high temperature. To clear the overloaded battery warning, allow the battery to cool down then restart the trimmer and begin cutting again, this time with less force. Allow the trimmer to cut at its own pace.

Overload LED (Fig. A, G)

The DCST975 has an overload LED 6. The overload LED 6 will illuminate amber and then blink when the motor or module is overloaded during operation. To clear the overload LED 6, restart the trimmer and begin cutting again, this time with less force. Allow the trimmer to cut at its own pace.

The overload LED 6 will illuminate red and then blink when the module has reached a high temperature. To clear the overload LED 6, allow the trimmer to cool down then restart the trimmer and begin cutting again, this time with less force. Allow the trimmer to cut at its own pace.

Proper Hand Position (Fig. H)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

WARNING: Hold the tool using only the designated gripping surfaces: The powerhead handle and the auxiliary handle.

WARNING: Do not use the pole as a gripping surface. Proper hand position requires one hand on the main handle 3 and one hand on the auxiliary handle 8.

Switching On (Fig. G, I)

WARNING: Grip tool firmly when switching on.

AUTION: Always wear safety glasses and hearing protection. Wear a filter mask if the operation is dusty. Always wear gloves, long pants and substantial closed toe footwear. Keep long hair and loose clothing away from openings and moving parts.

1. The speed control button/wake-up button 4 must be pressed before use to wake up the appliance.

NOTE: The appliance will enter sleep mode after sixty seconds of inactivity. The appliance can also be forced into sleep mode by pressing and holding the speed control button/wake-up button 4 for two seconds.

1. To turn the appliance on, push the lock-off lever 2 forward, and then squeeze the variable speed trigger switch 1.

2. To turn the appliance off, release the variable speed trigger switch 1 and lock-off lever 2.

WARNING: Never attempt to lock the trigger switch in the on position.

Adjusting Motor Speed (Fig. G)

The DCST975 is equipped with a speed indicator 7. The speed indicator 7 will display the chosen speed. There are three speed setting LEDs, ECO mode 28, standard mode 29 and turbo mode 30. The speed indicator 7 helps you to optimize the appliance's performance and runtime needed for each job.

1. The speed control button/wake-up button 4 must be pressed before use to wake up the appliance.

nOTE: The tool defaults to ECO mode 28.

1. Press the speed control button/wake-up button 4, located on the appliance handle, until the desired speed LED is illuminated.

NOTE: Operate in ECO mode 28 or standard mode 29 for larger projects that require more runtime to complete.

1. Choose turbo mode 30 as needed to cut through heavier growth and for applications that need higher RPM. nOTE: Runtime will be reduced.

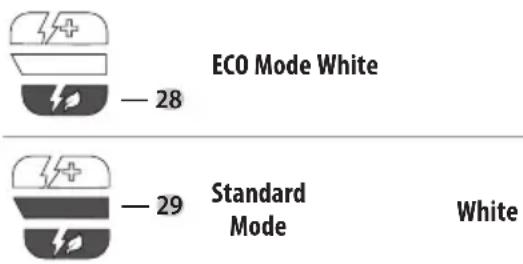

Speed Setting LED Colors

SPEED SPEED SETTING LED COLOR

ECO Mode White — 28 Standard Mode White — 29

— 30 Turbo Mode White

Trimming (Fig. H, J–L)

With the string trimmer on, angle it and swing side to side. Maintain a minimum distance of 24" (610 mm) between the string trimmer guard 12 and your feet.

WARNING: Keep the rotating string roughly parallel with the ground (tilted no more than 30°). This trimmer is not an edger. DO NOT TILT the trimmer so that the string is spinning near a right angle to the ground. Flying debris can cause serious injury.

Bump Feed Trimmer Line Feed (Fig. N, O)

Your trimmer comes with 0.095" (2.4 mm) but can also use 0.080" (2.0 mm) or 0.105" (2.7 mm) diameter nylon line. Cutting line 31 will wear faster and require more feeding if the cutting is done along sidewalks or other abrasive surfaces or heavier weeds are being cut.

WARNING: Keep hands away from the cutting line blade 14. As you use the trimmer, the cutting line 31 will get shorter due to wear. Gently bump the trimmer on the ground while running at normal speed and the cutting line 31 will feed.

NOTE: Each time it feeds the cutting line 31 the ends will be trimmed by the cutting line blade 14 on the guard 12. You may hear a rattling sound when this occurs. Be sure to follow all instructions and wear appropriate safety glasses, closed toe shoes and long pants. When the trimmer is out of cutting line the last few inches may exit the spool housing all at once.

NOTE: Extending the cutting line 31 beyond the cutting line blade 14 will negatively effect performance, runtime, and the life of the trimmer due to potential of damaging motor. Doing so may void the warranty.

Helpful Trimming Tips

• Use the tip of the string to do the cutting; do not force string head into uncut grass.
• Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs, and wood may wear string rapidly.

• Do not allow spool cap to drag on ground or other surfaces.

• In long growth, cut from the top down and do not exceed 12" (300 mm) high.

• Keep trimmer tilted toward the area being cut; this is the best cutting area.
• The trimmer spins counterclockwise when viewed from behind and above. Cutting from right to left will throw debris toward the guard and catch the trimmings. It is recommended to cut from right to left when near gardens or flower beds as this will help to keep trimmings from being thrown into those areas. Cutting from left to right will throw debris away from the guard. Use this method when debris location is not important.
• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the string.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can cause injury. Your DEWALT power tool has been designed to operate over a long period of time with minimum maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Applying Grease (Fig. M)

The DCST975 needs to be greased after every 50 hours of use.

1. Apply a small amount (3-5 grams) of DEWALT 30301914 grease 33 into the motor grease zerk 32 as shown in Fig. M.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT-recommended accessories should be used with this product. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT. Call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

WARNING: The use of any accessory not recommended by DEWALT for use with this appliance could be hazardous.

WARNING: Do not use any blades, or any accessory or attachment other than those recommended by DEWALT on this trimmer. Serious injury or product damage may result.

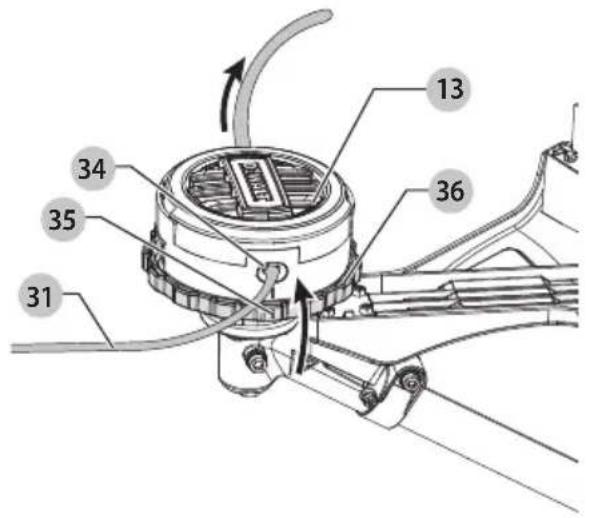

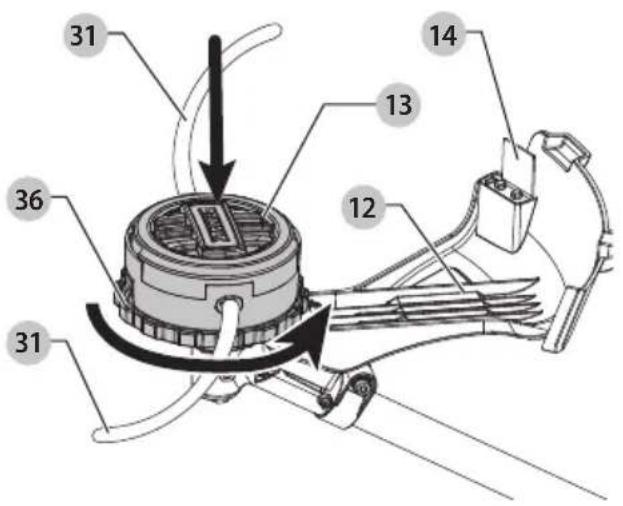

Reloading the Cutting Line (Fig. N, O)

CAUTION: Use only DEWALT replacement spools and line. Using any other manufacturer's line can reduce performance, damage the trimmer or cause personal injury. Your trimmer comes with 0.095" (2.4 mm) but can also use 0.080" (2.0 mm) or 0.105" (2.7 mm) diameter nylon line that is spiral-shaped with smooth round edges. Do not use other size lines. This can degrade performance, cause damage to the unit or injury.

CAUTION: To avoid appliance damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

Use only DEWALT replacement line. Do not use wire.

1. Remove battery.
2. Cut a maximum length of 20 ft (6 m) of 0.105", 30 ft (9 m) of 0.095" and 40 ft (12 m) of 0.080" cutting line.
3. Align the spool housing eyelets 34 with the white line 35 on the spool grip cover 36.
4. Thread one end of the trimmer line through an eyelet.
5. Guide the cutting line through to the second eyelet and continue to pull the line through until there are equal lengths of cutting line 31 on each side of the spool housing 13.
6. Secure the spool cap from moving with one hand. Using your other hand, wind the cutting line 31 onto the spool by rotating the spool grip cover 36 counterclockwise.
7. Continue winding until 5" (130 mm) of string remain on each side of the spool housing.

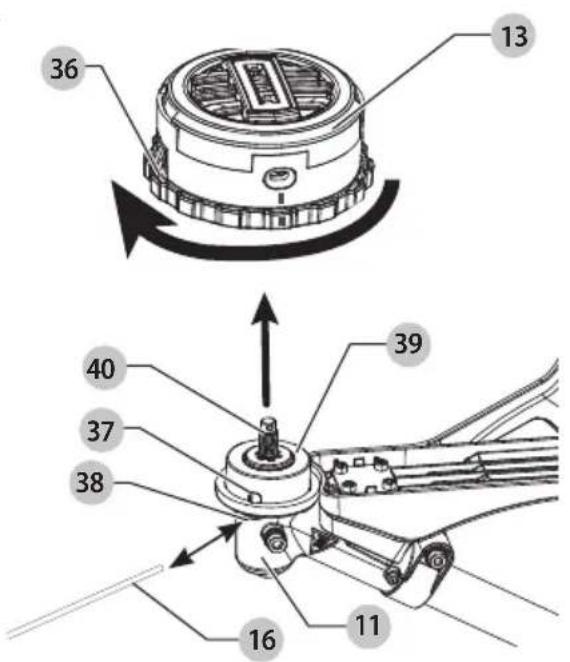

Replacing Spool Assembly (Fig. A, P)

1. Remove the battery.
2. Rotate the spool housing 13 until the hole 37 in the spindle plate aligns with notch 38 in the gear case 11. Insert the locking rod 16 or a screwdriver through the notch and into the hole, to prevent the spindle from turning.
3. Unscrew and remove the spool housing 13 by turning the spool grip cover 36 clockwise.
   NOTE: Do not try to remove the spool housing 13 by turning the spool housing 13.
4. Remove spindle plate 39 before installing a new spool housing. Remove any dirt and grass from the gear case and spindle plate.
5. Install spindle plate 39 onto the shaft 40, so the notch is facing towards the gear case 11.
6. Align the spindle plate hole 37 and notch 38, insert the locking rod 16 or screwdriver back into the hole 37 and thread the new spool housing counterclockwise. Securely tighten the new spool housing onto the shaft 40.

ENGLISH

Replacing Guard With Extended Coverage Guard (Fig. Q)

An extended coverage guard is available (sold separately) for extra coverage if desired. Use DEWALT replacement guard Part Number NA693585.

WARNING: Never operate appliance without guard firmly in place.

1. Remove the spool housing as described in the Replacing Spool Assembly section.
2. Use a 3 mm hex wrench (not included) to remove the four guard screws 24 as shown in Fig. Q.
3. Lift the guard off.
4. Attach the extended coverage guard 41 to the gear case 11 with the four guard screws 24, washers 25 and plate 26 and then tighten the screws to secure in position as shown in Fig. Q.
5. Install the spool housing as described in the Replacing Spool Assembly section.

Tool Connect™ Chip (Fig. R)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your tool is Tool Connect™ Chip ready and has a location for installation of a Tool Connect™ Chip.

Tool Connect™ Chip is an optional application for your smart device (such as a smart phone or tablet) that connects the device to utilize the mobile application for inventory management functions.

Refer to Tool Connect™ Chip Instruction Sheet for more information.

Installing the Tool Connect™ Chip

1. Remove the retaining screws 43 that hold the Tool Connect™ Chip protective cover 44 into the tool.
2. Remove the protective cover and insert the Tool Connect™ Chip into the empty pocket 45.
3. Ensure that the Tool Connect™ Chip is flush with the housing. Secure it with the retaining screws and tighten the screws.
4. Refer to Tool Connect™ Chip Instruction Sheet for further instructions.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
  Register online at www.dewalt.com/account-login.

Two-Year Commercial Warranty

For warranty terms, go to www.dewalt.com/support/warranty.

To request a written copy of the warranty terms, contact: Customer Service at DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 or call 1-800-4-DEWALT (1-800-433-9258).

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DeWALT (1-800-433-9258) for a free replacement.

TROUBLESHOOTING

Problem Solution

Unit will not start. Check battery installation.
	Check battery charging requirements.
	Press the On/Off button before squeezing the lock off lever and trigger switch.
	Check that lock off lever is fully pushed forward prior to moving trigger switch.
Unit shuts down in use.	Charge battery.
	Unit is being forced. Restart and apply less pressure.

LED Indicator Guide

The section provides a list of possible LED blink patterns, the causes and corrective solutions. The user or maintenance personnel can perform some corrective actions, while others may require the assistance of a qualified DEWALT technician or your dealer.

Overload LED

ORANGE LED

Problem Solution

Unit stopped working.

Unit is being forced. Restart and apply less pressure. If problem continues, contact DEWALT customer service representative at 1-800-4-D≡WALT (1-800-433-9258).

RED LED

Problem Solution

Unit module is too hot.

Unit is being forced. Let the unit rest and cool down. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

State of Charge Indicator LEDs

BLINKING WHITE LEDs

Problem Solution

Battery pack is depleted.

Remove and replace the battery pack.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

BLINKING RED LEDs

Problem Solution

Battery is too hot. Unit is being forced. Let the unit rest and cool down. Restart and apply less pressure.Remove and replace the battery pack. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

Utilisation prévue

2" (50 mm) 30.5" + 1" (775 mm +25mm) 9.8" (250 mm) a b c d

--- o DC.....corriente directa

2" (50 mm) 30.5" + 1" (775 mm +25mm) 9.8" (250 mm) a b c d

Poda (Fig. H, J–L)

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - (818) 375 23 13 Col. Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

WARNING: Use of any other battery packs may create a risk of injury and fire.

NOTE: DO NOT charge when the battery pack is below 40^ F ( 4.5^ C) or above 104^ F ( 40^ C). Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104^ F ( 40^ C).

QR code image containing encoded data, no visible human-readable text

PART NUMBER
