USER MANUAL DCBC580 DEWALT

WARNING: Read all safety warnings, instructions, illustrations, and specifications in this manual, including the battery and charger sections provided in an original tool manual or the separate Batteries and Chargers manual.

Manuals can be obtained by contacting Customer Service as described elsewhere in this manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

RANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

SAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

English (original instructions) 5

Français (traduction de la notice d'instructions originale)	12
Español (traducido de las instrucciones originales)	21

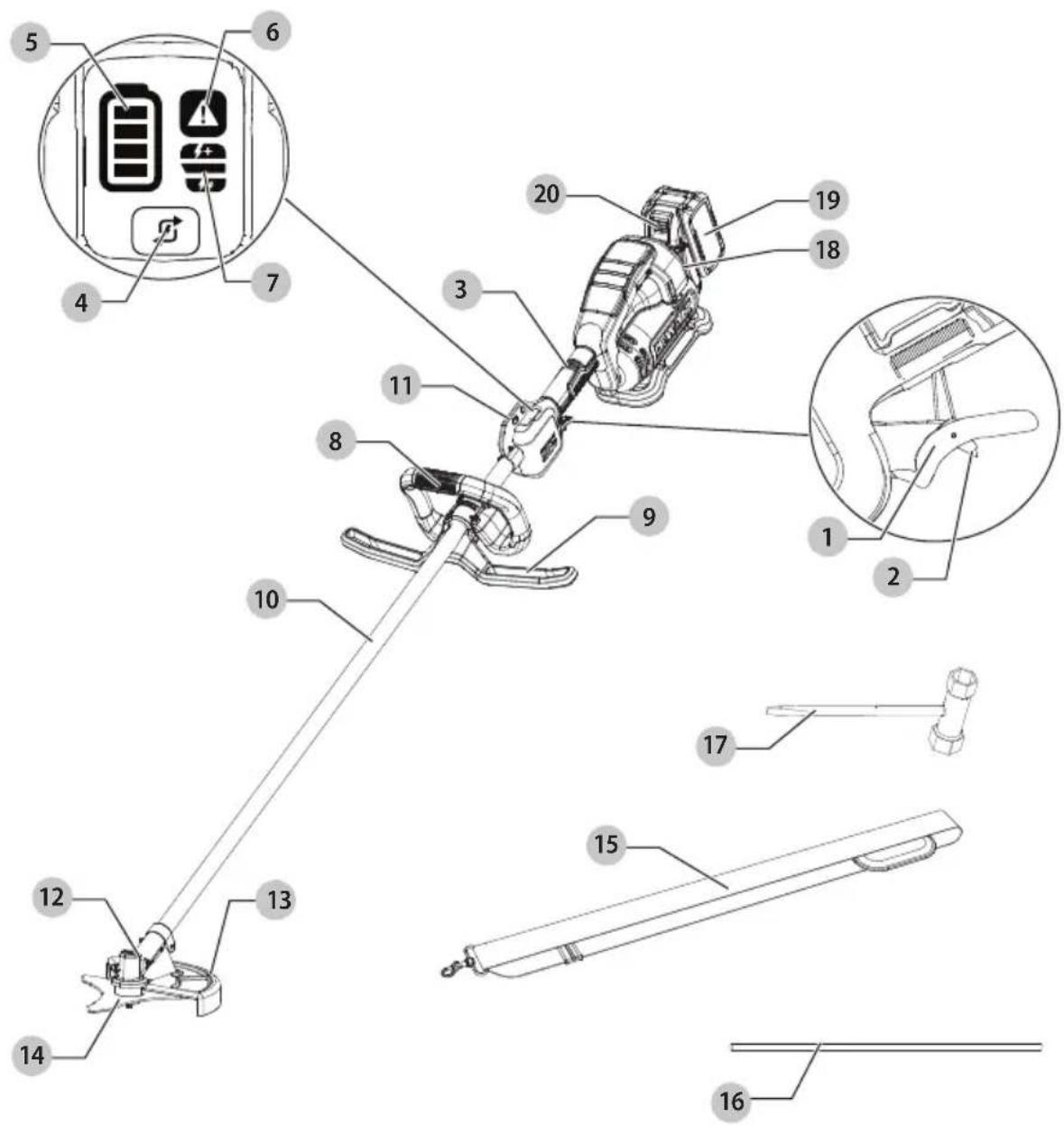

Fig. A

Technical diagram of a car interior with numbered components and labeled parts, including a digital display and mechanical assembly.

1 Variable speed trigger

2 Lock-off lever

3 Main handle

4 Speed control button/Wake-up button

5 Battery state of charge LED

6 Overload indicator LED

7 Speed settings LEDs

8 Auxiliary handle

9 Barrier bar

10 Pole

11 Strap mount

12 Gear case

13 Brush cutter guard

14 Brush cutter blade

15 Shoulder strap

16 Locking rod

17 Blade wrench

18 Battery housing

19 Battery pack

20 Battery release button

1 Variable speed trigger

2 Lock-off lever

3 Main handle

4 Speed control button/Wake-up button

5 Battery state of charge LED

6 Overload indicator LED

7 Speed settings LEDs

8 Auxiliary handle

9 Barrier bar

10 Pole

11 Strap mount

12 Gear case

13 Brush cutter guard

14 Brush cutter blade

15 Shoulder strap

16 Locking rod

17 Blade wrench

18 Battery housing

19 Battery pack

20 Battery release button

21 Positive feature

22 Hole in the bottom of the pole

23 Handle bolts

24 washers

25 nuts

26 Guard screws

27 Guard washers

28 Spindle plate

29 Shaft

30 Spindle plate hole

31 Gear case notch

32 Blade spacer

33 Flange nut

34 Cotter pin

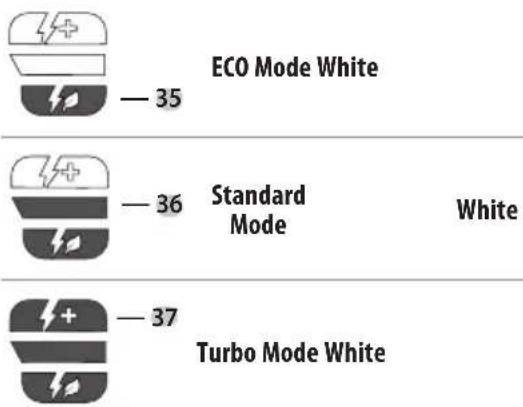

35 Eco mode

36 Standard mode

37 Turbo mode

38 Grease port screw

39 motor Grease port screw

40 Dewalt grease

41 strap latch

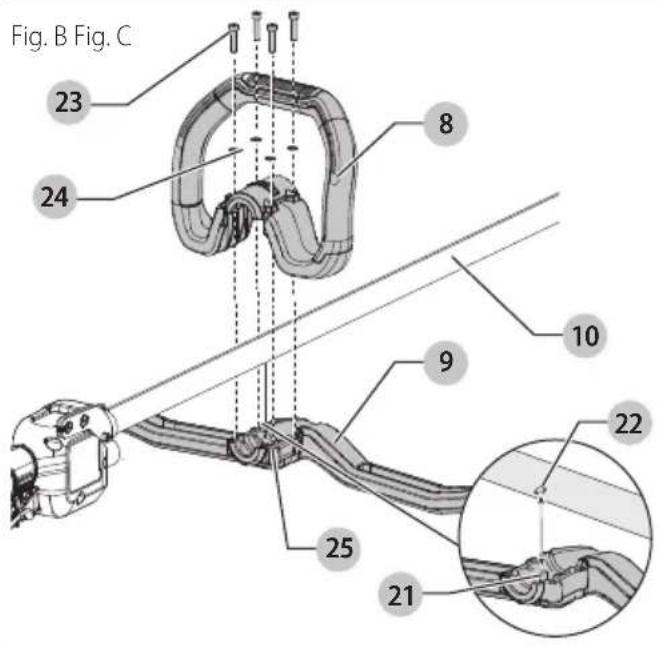

Fig. B Fig. C 23 24 8 10 9 22 25 21

Technical diagram of a mechanical assembly with numbered components labeled 12, 13, and 26.

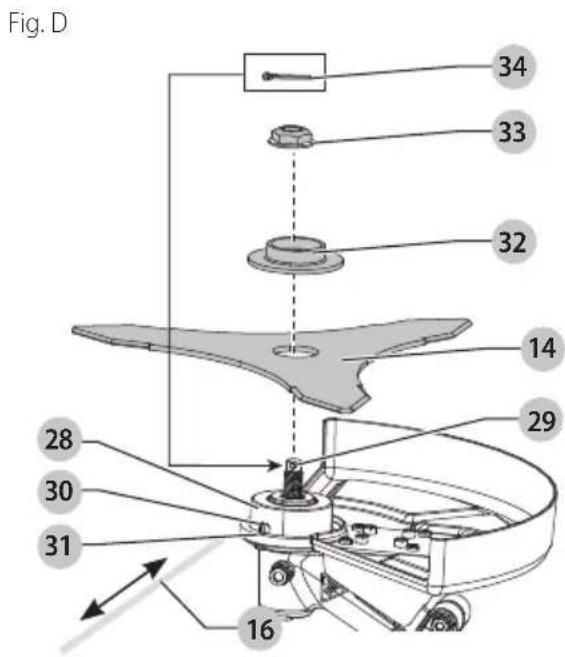

Fig. D 34 33 32 14 29 28 30 31 16

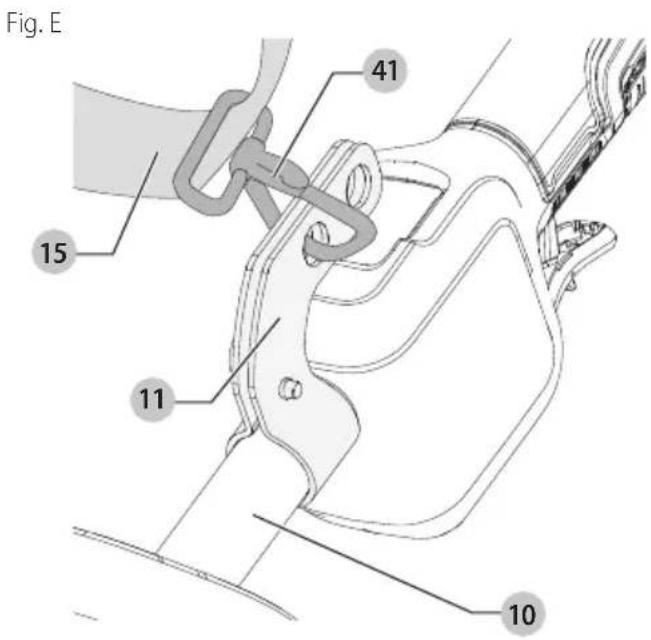

Fig. E 41 15 11 10

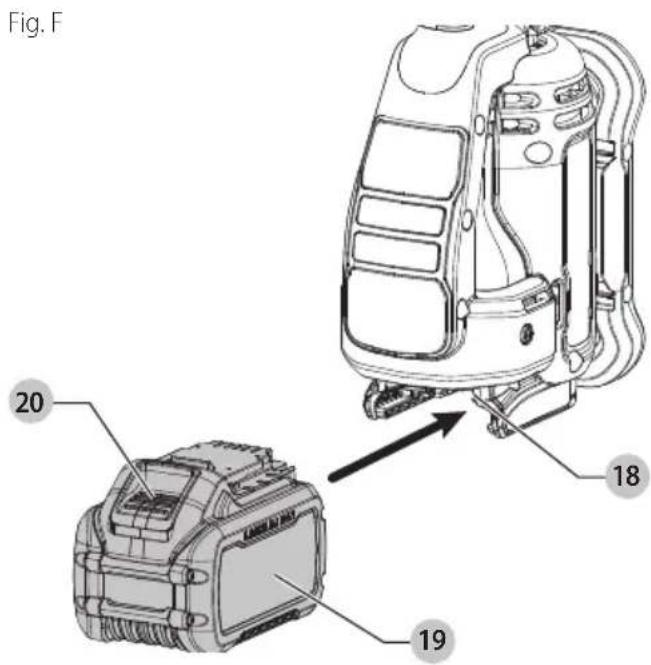

Fig. F 20 18 19

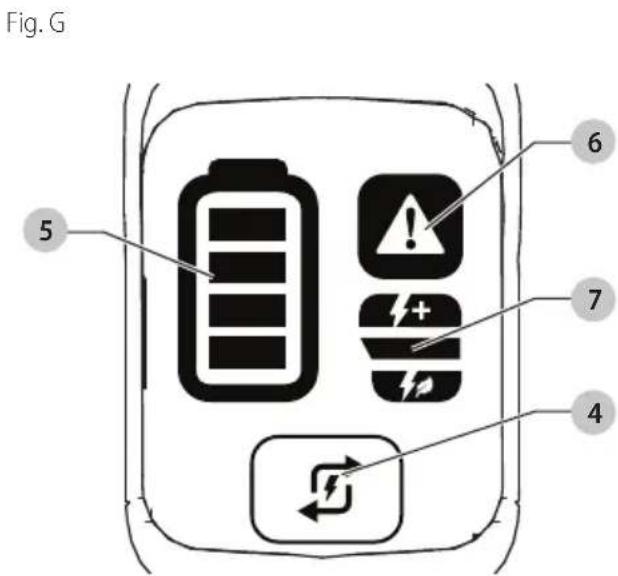

Fig. G 5 6 7 4

Intended Use

The DCBC580 has been designed for the purpose of professional lawn and garden maintenance. It is recommended for use with DEWALT accessories. This product is not an edger and is not intended to be used for edging.

DO nOT use this tool for any purpose other than its intended use.

DO nOT use under wet conditions or in the presence of flammable liquids or gases.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping

English

surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Grass Trimmer and Brush Cutter Safety Warnings

a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
b) Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.
c) Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
d) Before using the machine, always visually inspect to see that the cutter or blade and the cutter or blade assembly are not damaged. Damaged parts increase the risk of injury.
e) Follow instructions for changing accessories. Improperly tightened blade securing nuts or bolts may either damage the blade or result in it becoming detached.
f) The rated rotational speed of the blade must be at least equal to the maximum rotational speed marked on the machine. Blades running faster than their rated rotational speed can break and fly apart.

g) Wear eye, ear, head and hand protection. Adequate protective equipment will reduce personal injury by flying debris or accidental contact with the cutting line or blade.
h) While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving cutters or lines.
i) While operating the machine, always wear safety footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with a moving cutter, line or blade.
j) While operating the machine, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
k) Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury.
1) Always use two hands when operating the machine. Holding the machine with both hands will avoid loss of control.
m) Hold the machine by the insulated gripping surfaces only, because the cutting line or blade may contact hidden wiring. Cutting line or blades contacting a "live" wire may make exposed metal parts of the machine "live" and could give the operator an electric shock.
n) Always keep proper footing and operate the machine only when standing on the ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine.
o) Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
p) When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
q) Keep all parts of the body away from the cutter, line or blade when the machine is operating. Before you start the machine, make sure the cutter, line or blade is not contacting anything. A moment of inattention while operating the machine may result in injury to yourself or others.
r) Do not operate the machine above waist height. This helps prevent unintended cutter or blade contact and enables better control of the machine in unexpected situations.
s) When cutting brush or saplings that are under tension, be alert for spring back. When the tension in the wood fibres is released, the brush or sapling may strike the operator and/or throw the machine out of control.
t) Use extreme caution when cutting brush and saplings. The slender material may catch the blade and be whipped toward you or pull you off balance.
u) Maintain control of the machine and do not touch cutters, lines or blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
v) Carry the machine with the machine switched off and away from your body. Proper handling of the machine will reduce the likelihood of accidental contact with a moving cutter, line or blade.
w) When transporting or storing the machine, always fit the cover on metal blades. Proper handling of the machine will reduce the likelihood of accidental contact with the blade.
x) Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.
y) When clearing jammed material or servicing the machine, make sure the switch is off and the battery

pack is removed. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

Blade Thrust Causes and Related Warnings

Blade thrust is a sudden sideways, forward or backward motion of the machine, which may occur when the blade jams or catches on an object such as a sapling or a tree stump. It can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine.

Blade thrust and its related hazards can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the machine and position your arms to resist blade thrust.
Position your body to the left side of the machine. Blade thrust can increase the risk of injury due to the machine moving unexpectedly. Blade thrust can be controlled by the operator if proper precautions are taken.
b) If the blade binds, or when interrupting a cut for any reason, switch the machine off and hold the machine motionless in the material until the blade comes to a complete stop. While the blade is binding, never attempt to remove the machine from the material or pull the machine backward while the blade is in motion, otherwise blade thrust may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) Do not use blunt or damaged blades. Blunt or damaged blades increase the risk of jamming or catching on an object, resulting in blade thrust.
d) Always maintain good visibility of the material being cut. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.
e) If you are approached by another person while operating the machine, switch the machine off. There is an increased risk of injury to other persons being struck by the moving blade in the event of blade thrust.

Additional Safety Information

a) Always use the shoulder harness when operating.
b) Always keep the handle between the operator and blade during operation.
c) Do not cut material larger than 0.5" (13 mm) diameter.
d) The blade will continue to spin after the unit is shut off. Maintain control until the blade has stopped.
e) Do not operate the unit with a bent, cracked or dull blade.
f) Do not sharpen the blade.
g) Do not use for edging. This is not an edger.
h) KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children. MAKE SURE that other persons and pets are at least 100' (30 m) away.

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber.

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

AUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with a large battery pack will stand upright but may be easily knocked over.

- Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

=---or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

\~ or AC......alternating current
or AC/DC....alternatingor direct current
☐ Class II Construction (double insulated)
n_0 ......no load speed n ......rated speed
PSI..... pounds per square inch
earthing terminal
⚠️......safety alert symbol

▲......visible radiation—do not stare into the light
......wearrespiratory protection
⑦ wear eye protection
①....wearhand protection
L .... wear slip resistant footwear
wearhead protection
○ ....wearhearing protection
read user manual
do not expose to rain
do not use flexible line
do not use metal blades
Bewareof thrown objects
the distance between the machine and bystanders shall be at least 100 ft (30 m)
bewareof blade thrust
disconnectbattery before maintenance

English

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can cause injury.

Attaching the Auxiliary Handle (Fig. A, B)

1. Place the auxiliary handle 8 on top of the barrier bar 9 so the pole 10 is between them.
   NOTE: For proper assembly, make sure the positive feature 21 in the barrier bar 9 aligns with the hole 22 in bottom of the pole.
2. Hold the auxiliary handle in place and slide the handle bolts 23 and washers 24 into the handle from the top, threading them into the nuts 25 on the barrier bar 9.
3. Tighten the four handle bolts with a 3 mm hex wrench (not supplied). Ensure the handle is securely attached.

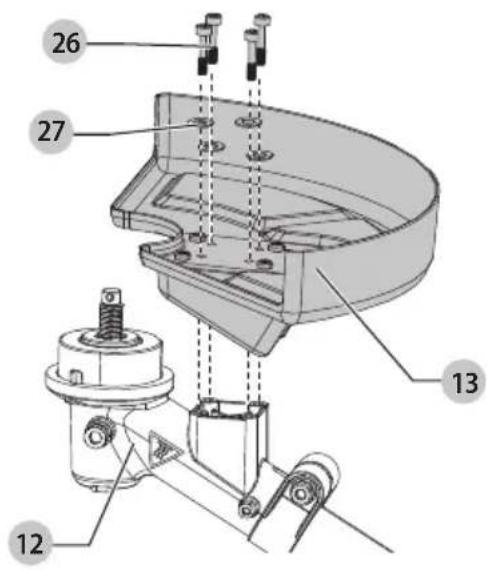

Assembling the Guard (Fig. A, C)

WARNING: NEVER OPERATE appliance WITHOUT GUARD FIRMLY IN PLACE. The guard must always be properly attached on the appliance to protect the user.

1. Place the brush cutter guard 13 into position as shown in Fig. A, C.
2. Use a 3 mm hex wrench (not included) to secure it to the gear case 12 with the four guard screws 26 and guard washers 27. Tighten securely.

Installing the Brush Cutter Blade (Fig. A, C, D)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, or prior to cleaning. An accidental start-up can cause injury.

WARNING: Use gloves and proper eye protection. Be careful of the sharp edges of the blade.

1. Remove the battery.
2. Ensure the brush cutter guard 13 is installed before proceeding.
3. Install the spindle plate 28 onto the shaft 29 ensuring the teeth of the spindle align with the slots of the spindle plate 28.
4. Install the new blade 14 onto the shoulder of the spindle plate 28 as shown in Fig. D.

NOTE: Ensure the arrow on the blade 14 matches the direction of rotation arrow on the brushcutter guard 13.
5. Align the spindle plate hole 30 and notch 31, and insert the locking rod 16 or a screwdriver into the hole 30. Hold the locking rod 16 or screwdriver in position.
6. Install the blade spacer 32 on the blade so that the wide, flat side faces the blade 14.
7. Install the flange nut 33 with the flange against the blade spacer 32 and securely tighten with the blade wrench 17 or a 19 mm wrench (not included).
8. Use the blade wrench 17 or a 19 mm wrench (not supplied) to tighten the flange nut 33 counterclockwise against the blade spacer 32 while holding the locking rod 16 or a screwdriver:
- If using a torque wrench and an 19 mm socket, tighten to: 325 -335 in lb, 27 - 28 ft. lb, 37 - 38 Nm.

- Without a torque wrench, use the blade wrench 17 or a 19 mm closed-end wrench or 19 mm socket and ratchet, turning the nut until the blade retainer is snug against the shaft bushing. Ensure that the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise.

1. Remove the locking rod 16 or a screwdriver from the spindle plate hole 30 and notch 31.
2. Using pliers (not included), install the cotter pin 34 into the shaft 29.

Attaching and Adjusting the Shoulder Strap (Fig. E)

WARNING: The shoulder strap should only be slung over one shoulder and not across the body. See Fig E.

A shoulder strap 15 is recommended for any tool with a total weight exceeding 13 lbs. (6 kg). (Total weight includes the tool, attachment, and battery.) Attach the strap to the tool as shown in Fig. E and adjust for proper balance and support.

1. Snap the shoulder strap latch 41 onto the strap mount 11 located on the pole 10, just in front of the ON/OFF trigger as shown in Fig. E.
2. Adjust the shoulder strap 15 so it fits over your shoulder and provides proper balance and support.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. F)

WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.

nOTE: For best results, make sure your battery pack is fully charged.

1. To install the battery pack 19 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.
2. To remove the battery pack from the tool, press the battery pack release button 20 and firmly pull the battery pack out of the tool handle.

State of Charge Indicator (Fig. A, G)

The DCBC580 is equipped with a state of charge indicator. This will display the current level of charge in the battery during use. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

• The state of charge indicator LEDs 5 will illuminate, indicating the percent of charge in the battery.
• When all four state of charge indicator LEDs 5 illuminate, the battery is fully charged.
• When one state of charge indicator LEDs 5 illuminates, charge is low and then it will flash when the battery is discharged. Remove the battery and charge it.

State of Charge Indicator LED Status

	LEVEL OF CHARGE	CHARGE INDICATORLED COLOR
	100% - 75% White
	50% - 75% White
	20% - 50% White
	≤20% White
	Low battery shutdown White and blinking.
	Battery too hot All four, red and blinking.

Overloaded Battery Warning (Fig. A, G)

All four state of charge indicator LEDs 5 will illuminate red and then blink when the battery has reached a high temperature. To clear the overloaded battery warning, allow the battery to cool down then restart the trimmer and begin cutting again, this time with less force. Allow the trimmer to cut at its own pace.

Overload LED (Fig. A, G)

The DCBC580 has an overload LED 6. The overload LED 6 will illuminate amber and then blink when the motor or module is overloaded during operation. To clear the overload LED 6, restart the trimmer and begin cutting again, this time with less force. Allow the trimmer to cut at its own pace.

The overload LED 6 will illuminate red and then blink when the module has reached a high temperature. To clear the overload LED 6, allow the trimmer to cool down then restart the trimmer and begin cutting again, this time with less force. Allow the trimmer to cut at its own pace.

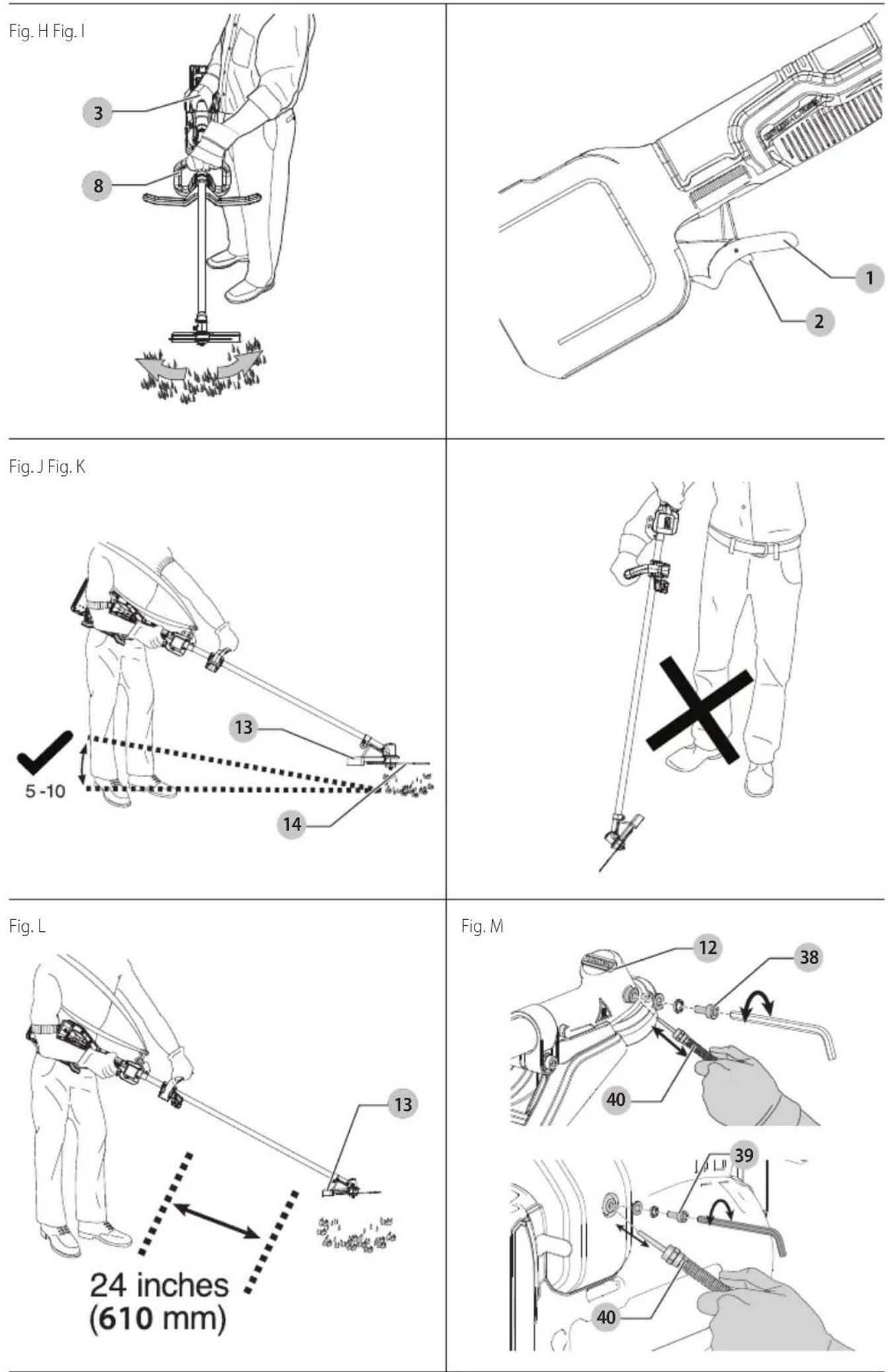

Proper Hand Position (Fig. H)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

WARNING: Hold the tool using only the designated gripping surfaces: The powerhead handle and the auxiliary handle.

WARNING: Do not use the pole as a gripping surface.

Proper hand position requires one hand on the main handle 3 and one hand on the auxiliary handle 8.

Switching On (Fig. G, I)

WARNING: Grip tool firmly when switching on.

AUTION: Always wear safety glasses and hearing protection. Wear a filter mask if the operation is dusty. Always wear gloves, long pants and substantial closed toe footwear. Keep long hair and loose clothing away from openings and moving parts.

1. The speed control button/wake-up button 4 must be pressed before use to wake up the appliance.

NOTE: The appliance will enter sleep mode after sixty seconds of inactivity. The appliance can also be forced into sleep mode by pressing and holding the speed control button/wake-up button 4 for two seconds.

1. To turn the appliance on, push the lock-off lever 2 forward, and then squeeze the variable speed trigger switch 1.
2. To turn the appliance off, release the variable speed trigger switch and lock-off lever.

WARNING: Never attempt to lock the trigger switch in the on position.

Adjusting Motor Speed (Fig. G)

The DCBC580 is equipped with a speed indicator 7. The speed indicator 7 will display the chosen speed. There are three speed setting LEDs, ECO mode 35, standard mode 36 and turbo mode 37. The speed indicator 7 helps you to optimize the appliance's performance and runtime needed for each job.

1. The speed control button/wake-up button 4 must be pressed before use to wake up the appliance.
   NOTE: The tool defaults to ECO mode 35.
2. Press the speed control button/wake-up button 4, located on the appliance handle, until the desired speed LED is illuminated.
   nOTE: Operate in ECO mode 35 or standard mode 36 for larger projects that require more runtime to complete.
3. Choose turbo mode 37 as needed to cut through heavier growth and for applications that need higher RPM.
   nOTE: Runtime will be reduced.

Speed Setting LED Colors

SPEED SPEED SETTING LED COLOR

ECO Mode White — 35 — 36 Standard Mode White — 37 Turbo Mode White

Brush Cutting (Fig. H, J–L)

With the brush cutter blade attached, angle the blade and swing side to side as shown in Fig. H.

Maintain a minimum distance of 24" (610 mm) between the guard and your feet as shown in Fig. L.

WARNING: Keep the rotating blade roughly parallel with the ground (tilted no more than 30°). This brush cutter is not an edger. DO NOT TILT the brush cutter so that the blade is spinning near a right angle to the ground. Flying debris can cause serious injury.

Helpful Cutting Tips

Brush cutter blades can be used for cutting brush up to 0.5" (13 mm) in diameter.

• Use the tip of the blade to do the cutting; do not force tool head into uncut brush.
• Wire and picket fences cause extra blade wear, even breakage. Stone and brick walls, curbs, and wood may wear the blade rapidly.

ENGLISH

• In long growth, cut from the top down and do not exceed 12" (305 mm) high.
• Keep brush cutter head tilted toward the area being cut; this is the best cutting area.
• The brush cutter cuts best when passing the unit from the right to left. This will help reduce the possibility of the cutter kicking back towards the operator.
• Avoid trees, tree bark, wood moldings, siding, and fence posts can easily be damaged by the blade.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can cause injury. Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Applying Grease (Fig. M)

The DCBC580 needs to be greased after every 100 hours of use.

1. Using a 5 mm hex wrench (not included), remove the grease port screw 38 and motor grease port screw 39.
2. Apply a small amount (3-5 grams) of DEWALT 30301914 grease 40 into the ports as shown in Fig. M.
3. Reinstall the port screws 38 and 39, using a 5 mm hex wrench (not supplied) to tighten the screws.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT-recommended accessories should be used with this product. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT. Call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

WARNING: The use of any accessory not recommended by DEWALT for use with this appliance could be hazardous.

WARNING: Do not use any blades, or any accessory or attachment other than those recommended by DEWALT on this trimmer. Serious injury or product damage may result.

Replacing the Brushcutter Cutting Blade (Fig. A, C, D)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, or prior to cleaning. An accidental start-up can cause injury.

WARNING: Do not use toothed blades, such as saw blades, with this product.

When replacing the brushcutter blade 14, use 10" (254 mm) diameter blades. Use DEWALT replacement blade model number DWZBC580. Other sizes may degrade performance or cause damage to the brushcutter.

WARNING: Use gloves and proper eye protection. Be careful of the sharp edges of the blade.

Removing the Cutting Blade

1. Remove the battery.
2. Using pliers (not included), remove the cotter pin 34 from the shaft 29.
3. Align the spindle plate hole 30 with the notch 31 and insert the locking rod 16 or a screwdriver (not supplied) into the hole. Hold the locking rod 16 or a screwdriver in position.
4. While holding the locking rod 16 or screwdriver, remove the flange nut 33 by turning it clockwise with the blade wrench 17 or a 19 mm wrench (not included) as shown in Fig. D.
5. Remove the blade spacer 32, blade 14, and the spindle plate 28 as shown in Fig. D. Remove any dirt and grass from the gear case and spindle plate. Examine all pieces for damage and replace if necessary.

Installing the New Brushcutter Blade

1. Remove the battery.
2. Install the spindle plate 28 onto the shaft 29 ensuring the teeth of the spindle align with the slots of the spindle plate 28.
3. Install the new blade 14 onto the shoulder of the spindle plate 28 as shown in Fig. D.
   NOTE: Ensure the arrow on the blade 14 matches the direction of rotation arrow on the brushcutter guard 13.
4. Align the spindle plate hole 30 and notch 31, and insert the locking rod 16 or a screwdriver into the hole 30. Hold the locking rod 16 or screwdriver in position.
5. Install the blade spacer 32 on the blade so that the wide, flat side faces the blade 14.
6. Install the flange nut 33 with the flange against the blade spacer 32 and securely tighten with the blade wrench 17 or a 19 mm wrench (not included).
7. Use the blade wrench 17 or a 19 mm wrench (not supplied) to tighten the flange nut 33 counterclockwise against the blade spacer 32 while holding the locking rod 16 or a screwdriver:
8. If using a torque wrench and an 19 mm socket, tighten to: 325 - 335 in lb, 27 - 28 ft. lb, 37 - 38 Nm.

9. Without a torque wrench, use the blade wrench 17 or a 19 mm closed-end wrench or 19 mm socket and ratchet, turning the nut until the blade retainer is snug against the shaft bushing. Ensure that the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise.

10. Remove the locking rod 16 or a screwdriver from the spindle plate hole and notch 31.

11. Using pliers (not included), install the cotter pin 34 into the shaft 29.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
  Register online at www.dewalt.com/account-login.

Two Year Commercial Warranty

For warranty terms, go to https://www.dewalt.com/support/warranty.

To request a written copy of the warranty terms, contact: Customer Service at DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 or call 1-800-4-DEWALT (1-800-433-9258).

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.

TROUBLESHOOTING

Problem Solution

Unit will not start. Check battery installation.Check battery charging requirements.Press the On/Off button before squeezing the lock off lever and trigger switch.Check that lock off lever is fully pushed forward prior to moving trigger switch.

Problem Solution

Unit shuts down in use.

Charge battery. Unit is being forced. Restart and apply less pressure.

LED Indicator Guide

The section provides a list of possible LED blink patterns, the causes and corrective solutions. The user or maintenance personnel can perform some corrective actions, while others may require the assistance of a qualified DEWALT technician or your dealer.

Overload LED

ORANGE LED

Problem Solution

Unit stopped working.

Unit is being forced. Restart and apply less pressure. If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

RED LED

Problem Solution

Unit module is too hot.

Unit is being forced. Let the unit rest and cool down. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

State of Charge Indicator LEDs

BLINKING WHITE LEDs

Problem Solution

Battery pack is depleted.

Remove and replace the battery pack. If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

BLINKING RED LEDs

Problem Solution

Battery is too hot. Unit is being forced. Let the unit rest and cool down. Restart and apply less pressure.Remove and replace the battery pack. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

FRAnÇAis

Utilisation Prévue

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

WARNING: Use of any other battery packs may create a risk of injury and fire.

NOTE: DO NOT charge when the battery pack is below 40 °F ( 4.5 °C ) or above 104 °F ( 40 °C ). Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F ( 40 °C ).

QR code image containing encoded data, no visible human-readable text

PART NUMBER
