USER MANUAL H-5484 Uline

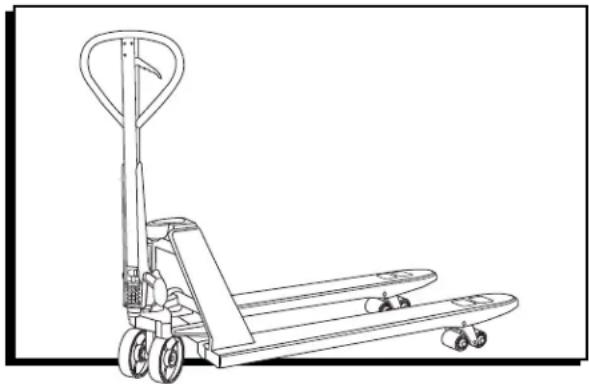

Line drawing of a manual pallet jack with wheels and handle (no text or symbols)

TECHNICAL DATA

MODEL	H-5484
Capacity 11,000 lbs.
Max. Fork Height	7.5"
Min. Fork Height	3"
Fork Length	48"
Overall Fork Width	27"
Fork Wheel Diameter	3" Nylon
Steering Wheel Diameter	7" Nylon
Net Weight	270 lbs.

OPERATION

WARNING! Operator must read and understand instructions here and on truck prior to use.

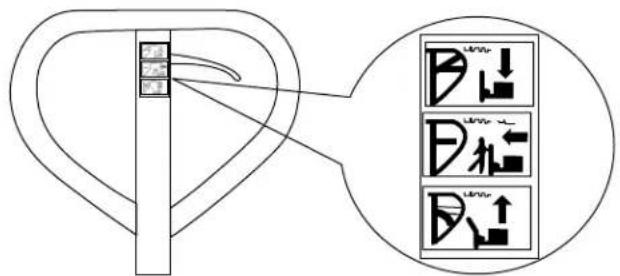

On the handle of the pallet truck, you will find the control lever, which can be set in three positions. (See Figure 1)

Figure 1

Diagram showing a mechanical component with three directional control icons and a magnified view of the component's direction.

• DOWN = to lower the forks
• NEUTRAL = to move the load

• UP = to raise the forks

• If the forks elevate while pumping in the NEUTRAL position, turn the setting screw clockwise until pumping the handle does not raise the forks and the NEUTRAL position functions correctly.

• If the forks descend while pumping in the NEUTRAL position, turn the setting screw counterclockwise until the forks do not lower.
• If the forks do not descend when the control lever is in the DOWN position, turn the setting screw clockwise until raising the control lever lowers the forks. Then check the NEUTRAL position as per steps 1 and 2.
• If the forks do not lift while pumping in the UP position, turn the setting screw counterclockwise until the forks elevate while pumping in the UP position. Then check the NEUTRAL and DOWN position as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle side, the setting screw is located on the right side of the pump above the right wheel. The truck will lower faster or slower depending on how far in or out the screw is adjusted.

MAINTENANCE

HOW TO EXPEL AIR FROM THE PUMP UNIT

Air may enter the unit over time or when the seals are replaced. To expel the air, lift the control lever to the DOWN position and move the handle up and down several times.

DAILY CHECK AND MAINTENANCE

Daily checks of the pallet truck can limit wear and tear on the unit. Pay special attention to the wheels, the axles, the handle, the forks and lift and lower control.

LUBRICATION

Use motor oil or grease to lubricate all movable parts.

SAFETY

NOTE: For safe operation of the Heavy-Duty Pallet Truck, read all warning signs and instructions here and on the pallet truck prior to use.

1. Do not operate the truck unless you are familiar with it and have been trained and authorized to do so.
2. Do not use the truck on sloping ground.
3. Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.

4. Operators should wear gloves and safety shoes.

5. Do not handle unstable or loosely stacked loads.

6. Do not overload the truck.

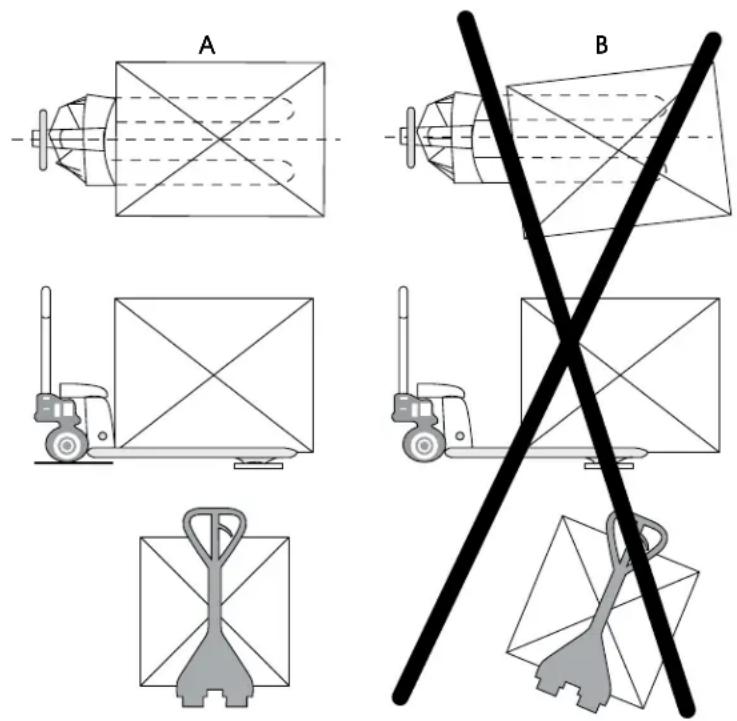

7. Always center loads on the forks, not at the end of the forks. (See Figure 2)
8. The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks.
9. Make sure the length of the forks matches the length of the pallet load.
10. Lower the forks to lowest height when the truck is not being used.

Figure 2

TROUBLESHOOTING

OPERATING ISSUE CAUSES	RECOMMENDATIONS
The forks do not raise. The setting	screw is not in the correct position.Air in the hydraulic oil.	Adjust the setting screw.(See Operation)Expel the air. (See Maintenance)
The forks do not descend. The rod	and/or cylinder are deformed resulting from a seriously unbalanced load.A part has been broken or deformed resulting from an unbalanced load.The setting screw is not in the correct position.	Replace the rod and/or cylinder.Repair or replace component.Adjust the setting screw.(See Operation)
Leaks. Seals worn out or damaged.	Some parts may be cracked or worn out.	Replace seals with new ones.Replace pump.
The forks descend without being lowered.	Air in the hydraulic oil.Components worn out or damaged.The setting screw is not in the correct position.	Expel the air. (See Maintenance)Replace components.Adjust the setting screw.(See Operation)

NOTE: Do not attempt to repair the pallet truck unless you are trained and authorized to do so.

Line drawing of a manual pallet jack with handle and wheels (no text or symbols)

INFORMACIÓN TÉCNICA

Diagram showing a mechanical component with three directional control icons and a magnified view of the component's direction.

Pure diagram of a cylindrical object with intersecting diagonally lines and a central axis, no text or symbols present.

B

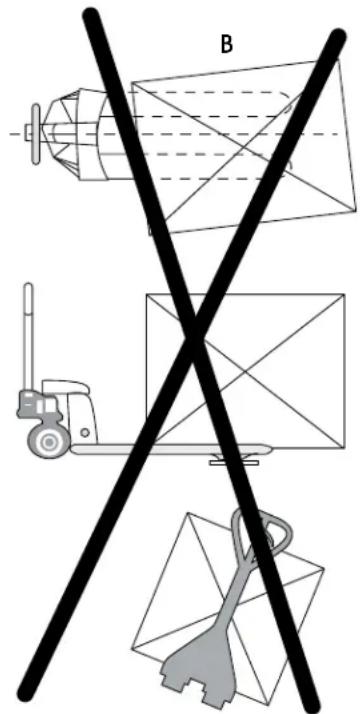

Line drawing of a pallet jack with a handle and cargo box (no text or symbols)
