USER MANUAL H-3045 Uline
H-2708, H-2900, H-3045
H-5387,H-6710,H-7504
H-8921, H-9612
1-800-295-5510
oline.com
| MODEL | H-2708/H-2900/H-3045/H-5387/H-7504 | H-6710 | H-8921 | H-9612 |
| Capacity | 5,500 lbs. | 5,500 lbs. | 5,500 lbs. | 4,400 lbs. |
| Max. Fork Height | 7.5" | 7.5" | 7.5" | 6.5" |
| Min. Fork Height | 3.0" | 3.0" | 3.0" | 2.0" |
| Fork Length | 48" | 48" | 72" | 48" |
| Overall Fork Width | 27" | 21" | 27" | 27" |
| Fork Wheel Diameter | 3" Polyurethane | 3" Polyurethane | 3" Polyurethane | 2" Polyurethane |
| Steering Wheel Diameter | 7" Polyurethane | 7" Polyurethane | 7" Polyurethane | 7" Polyurethane |
| Net Weight | 165 lbs. | 152 lbs. | 258 lbs. | 203 lbs. |
OPERATION
WARNING! Operator must read and understand instructions here and on truck prior to use.

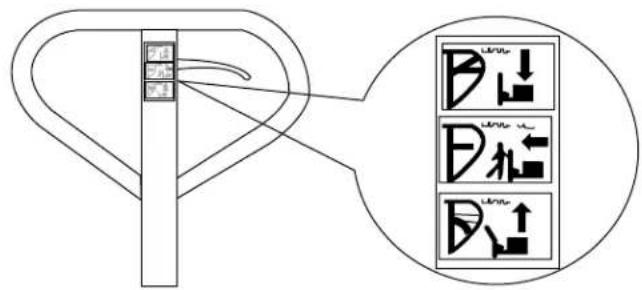

On the handle of the pallet truck, you will find the control lever, which can be set in three positions. (See Figure 1)
Figure 1
- LOWER = to lower the forks
- NEUTRAL = to move the load
-
RAISE = to raise the forks
-
If the forks elevate while pumping in the NEUTRAL position, turn the setting screw clockwise until pumping the handle does not raise the forks and the NEUTRAL position functions correctly.
- If the forks descend while pumping in the NEUTRAL position, turn the setting screw counterclockwise until the forks do not lower.
- If the forks do not descend when the control lever is in the LOWER position, turn the setting screw clockwise until raising the control lever lowers the forks. Then check the NEUTRAL position as per step 1 and 2.
- If the forks do not lift while pumping in the RAISE position, turn the setting screw counterclockwise until the forks elevate while pumping in the RAISED position. Then check the NEUTRAL and LOWER position as per steps 1, 2 and 3.
NOTE: When viewing the truck from the handle side, the setting screw is located on the right side of the pump above the right wheel. The truck will lower faster or slower depending on how far in or out the screw is adjusted.
MAINTENANCE
HOW TO EXPEL AIR FROM THE PUMP UNIT
Air may enter the unit over time or when the seals are replaced. To expel the air, lift the control lever to the LOWER position and pump the handle up and down several times.
DAILY CHECK AND MAINTENANCE
Daily checks of the pallet truck can limit wear and tear on the unit. Pay special attention to the wheels, axles, handle, forks and lift and lower controls.
LUBRICATION
Use motor oil or grease to lubricate all movable parts.
SAFETY
For safe operation, please read all warning signs and instructions here and on the pallet truck prior to use.
- Do not operate the pallet truck unless you are familiar with it and have been trained and authorized to do so.
- Do not use the truck on sloping ground.
- Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.
- Operators should wear gloves and safety shoes.
-
Do not handle unstable or loosely stacked loads.
-
Do not overload the truck.
- Always center loads on the forks, not at the end of the forks. (See Figure 2)
- The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks. (See Figure 2)
- Make sure that length of the forks matches the length of the pallet load. (See Figure 2)
- Lower the forks to lowest height when the truck is not being used.
Figure 2
TROUBLESHOOTING
| OPERATING ISSUE CAUSES | RECOMMENDATIONS | |
| The forks do not raise. The setting | screw is not in the correct position. | Adjust the setting screw. (See Operation) |
| Air in the hydraulic oil. | Expel the air. (See Maintenance) | |
| The forks do not descend. The rod | and/or cylinder are deformed resulting from a seriously unbalanced load. | Replace the rod and/or cylinder. |
| A part has been broken or deformed resulting from an unbalanced load. | Repair or replace component. | |
| The setting screw is not in the correct position. | Adjust the setting screw. (See Operation) | |
| Leaks. Seals worn out or damaged. | Some parts may be cracked or worn out. | Replace seals with new ones. |
| Replace pump. | ||
| The forks descend without being lowered. | Air in the hydraulic oil. Components worn out or damaged. The setting screw is not in the correct position. | Expel the air. (See Maintenance) Replace components. Adjust the setting screw. (See Operation) |
NOTE: Do not attempt to repair the pallet truck unless you are trained and authorized to do so.
H-2708, H-2900, H-3045
H-5387,H-6710,H-7504
H-8921, H-9612

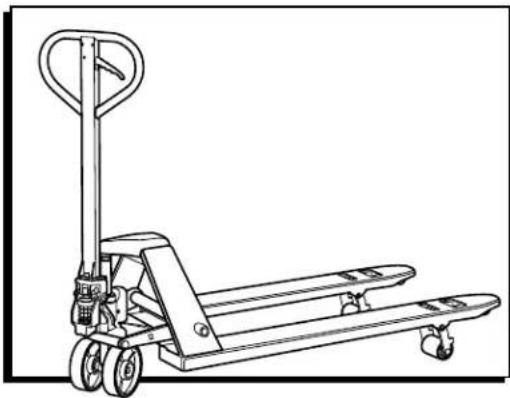

PATÍN HIDRAULICO INDUSTRIAL
800-295-5510
uline.mx
DATOS TECNICOS
| MODELO | H-2708/H-2900/H-3045/H-5387/H-7504 | H-6710 | H-8921 | H-9612 |
| Capacidad | 2,495 kg (5,500 lbs.) | 2,495 kg (5,500 lbs.) | 2,495 kg (5,500 lbs.) | 1,995 kg (4,400 lbs.) |
| Altura Max. de Horquilla | 19 cm (7.5") | 19 cm (7.5") | 19 cm (7.5") | 16.51 cm (6.5") |
| Altura Min. de Horquilla | 8 cm (3.0") | 8 cm (3.0") | 8 cm (3.0") | 5 cm (2.0") |
| Longitud de Horquilla | 122 cm (48") | 122 cm (48") | 183 cm (72") | 121 cm (48") |
| Ancho Total de Horquillas | 69 cm (27") | 53.3 cm (21") | 68.6 cm (27") | 68.6 cm (27") |
| Diámetro de la Llanta de Horquilla | Poliuretano de 8 cm (3") | Poliuretano de 8 cm (3") | Poliuretano de 8 cm (3") | Poliuretano de 5 cm (2") |
| Diámetro de la Llanta de Dirección | Poliuretano de 18 cm (7") | Poliuretano de 18 cm (7") | Poliuretano de 18 cm (7") | Poliuretano de 18 cm (7") |
| Peso Neto | 74.8 kg (165 lbs.) | 68.9 kg (152 lbs.) | 117 kg (258 lbs.) | 92 kg (203 lbs.) |
