ULINE H-11933, H-11934 PORTABLE FLOOR SCALE

1-800-295-5510
uline.com

TOOLS NEEDED

Phillips
Screwdriver

Flathead Screwdriver

Two Person Assembly Recommended

Installation Guide x 1Junction Box and Cable x 1U-Fram

SAFETY

Read and follow all instructions before use. Calibration, inspections and maintenance should be performed by professionals.

• Ensure the indicator rests on a stable surface.
• Do not disassemble or modify unit.
• Do not exceed the rated load limit of the unit.
• Do not step on the unit.
• Do not jump on the unit.
• Do not use this product if there are any signs of damage.
• Do not use for purposes other than weighing.
• Avoid faulty readings before weighing samples with static electric charge by discharging them or wiping the indicator with an anti-static agent.

ELECTRICAL SAFETY

• Unit must be connected to a GFCI outlet.
• Disconnect power before servicing unit.
• All operators must discharge themselves before servicing unit by touching a grounded surface or by wearing a grounded anti-static wrist strap.
  Always pull the plug - not the cord - when disconnecting from the outlet.
• Do not use if the power cord is worn or damaged.
• Power cords should only be replaced by qualified service technicians using genuine replacement parts.

SETUP

PREPARATION

• If the indicator is powered by an adapter, plug the adapter directly into the "DC" pin located at the bottom of the indicator.
  Always use a wall outlet to avoid interference from other wires.
• Turn on the indicator when there is no load.

• Calibrate before weighing when the scale is initially installed or moved to a new location.

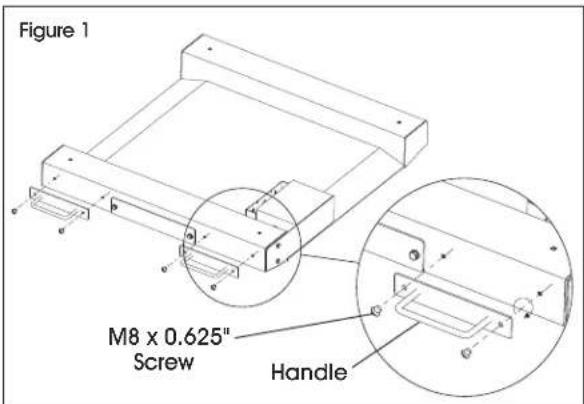

• Install the two handles using four M8 x 0.625" screws with a Phillips screwdriver. (See Figure 1)

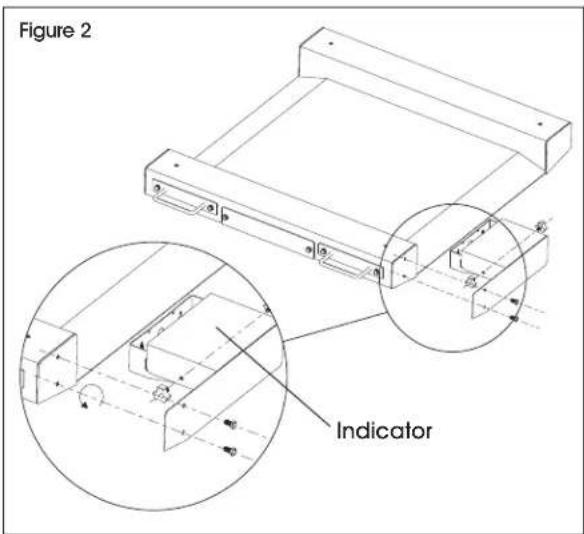

1. Remove the indicator. (See Figure 2)

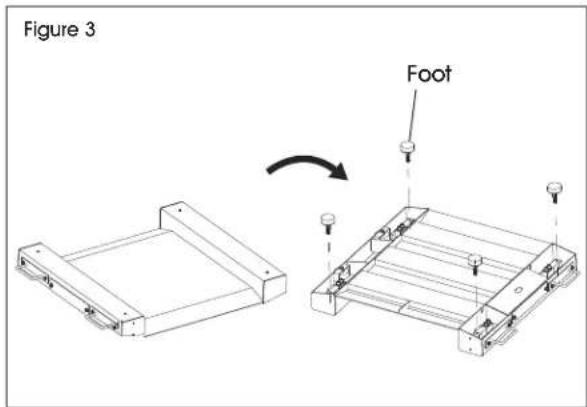

1. With a second person, flip the scale upside down. Screw in the feet clockwise on the four corners. Ensure feet are level. (See Figure 3)

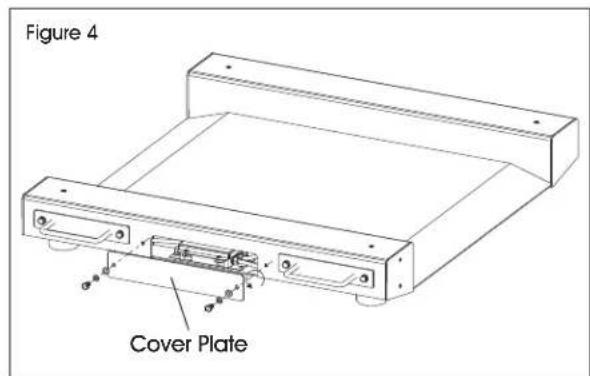

1. Remove the side cover plate. (See Figure 4)

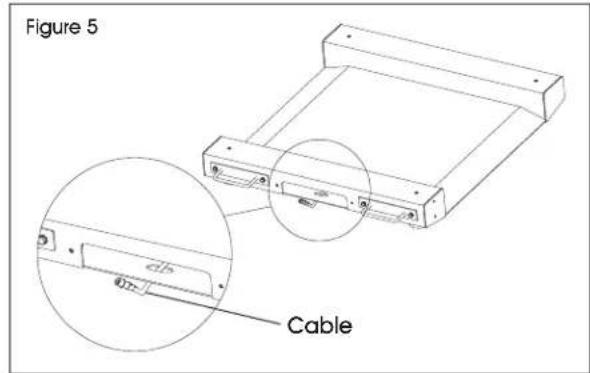

1. Run the cable through the oval hole inside the cavity and pull it out from the bottom. (See Figure 5)

SETUP CONTINUED

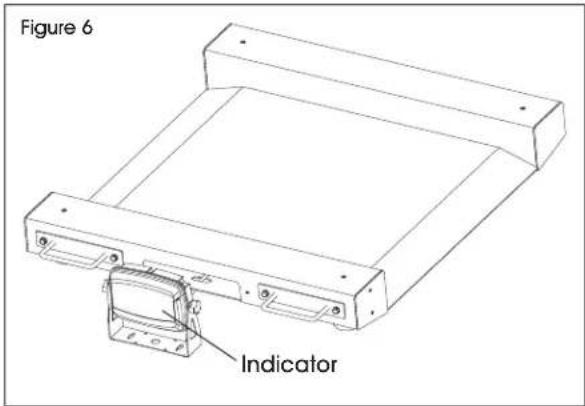

1. Plug the cable to the load cell port on the indicator. (See Figure 6)

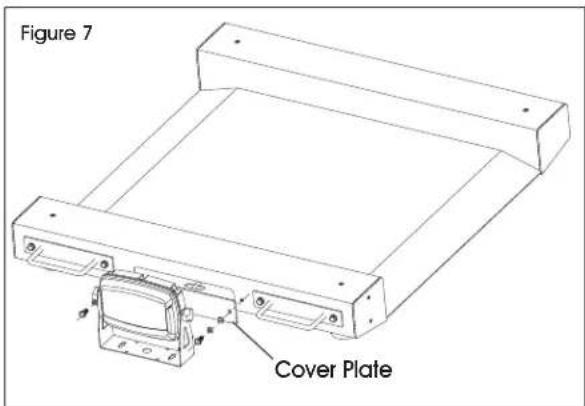

1. Resecure the cover plate. (See Figure 7)

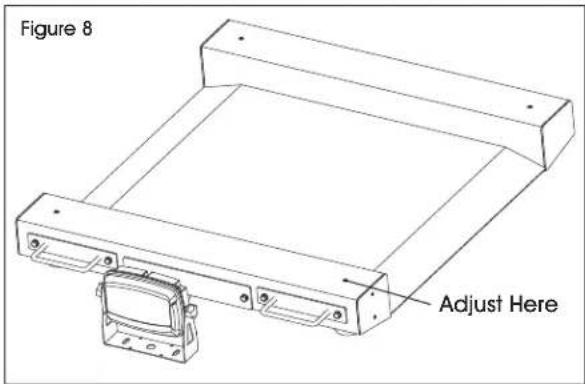

1. If the scale is not level, adjust the feet from the top with a flathead screwdriver. (See Figure 8)

IMPORTANT! Before measuring your weight, ensure scale is placed horizontally on a hard and flat surface. Avoid placing it on soft wooden floors, carpets or gaps between tiles and avoid bringing it into contact with the wall or other objects.

POWER SUPPLY

AC ADAPTER

• If the indicator is powered by an adapter, plug the adapter directly into the "DC" pin located at the bottom of the indicator. It is recommended to plug into a wall outlet to avoid interference with other wirings.

BATTERY

• If you have an indicator with the rechargeable battery option, charge the internal battery fully before first use.
• A 110 to 220 V AC adapter should be provided with the indicator. Use only the AC adapter provided to prevent damage to the indicator. To keep the battery in best condition, fully discharge the battery every month by leaving the indicator on until the indicator powers off, and then recharge fully. If the battery is not going to be used for a long period of time, it is recommended to remove it to avoid leakage.

OVERVIEW OF CONTROLS

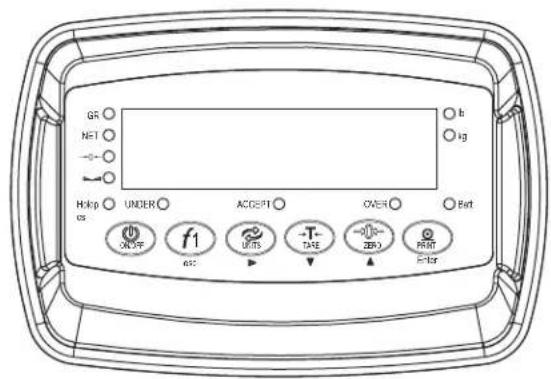

CONTROL PANEL

DISPLAY

LED INSTRUCTION
GR ON when the current weight is GROSS weight.
NET ON when the current weight is NET weight.
→0←	ON when the current weight is 0 lb.
-	The weighing data is stable.
Hold ON when the weight is hold.
UNDER ON when the weight below min. value.
ACCEPT ON when in normal weight.
OVER ON when overload.
Batt	GREEN when the battery is full. RED when it is low.
lb. ON when the weight unit is pound.
kg. ON when the weight unit is kilogram.
g ON when the weight unit is gram.
OZ. ON when the weight unit is ounce.

CONTROL FUNCTIONS

KEY PRIMARY FUNCTION SECONDARY FUNCTION
ON/OFF ON/OFF Powers the indicator ON or OFF if held for two seconds.		--------
f1 esc	F1 Used as the main function key for either hold or piece counting application.	ESC Saves and exits.
UNITS	UNITS Shifts between weighing units. Right arrow key.	▲
-T-	TARE Reset the scale to zero when there is something on the scale. (ex. Tare out the weight of a pallet to weigh only the product on it.)	▼ Down arrow key.
ZERO	ZERO Zeros the scale.	▲ Up arrow key.
PRINT Enter	PRINT Prints data.	ENTER Enter.

OVERVIEW OF CONTROLS CONTINUED

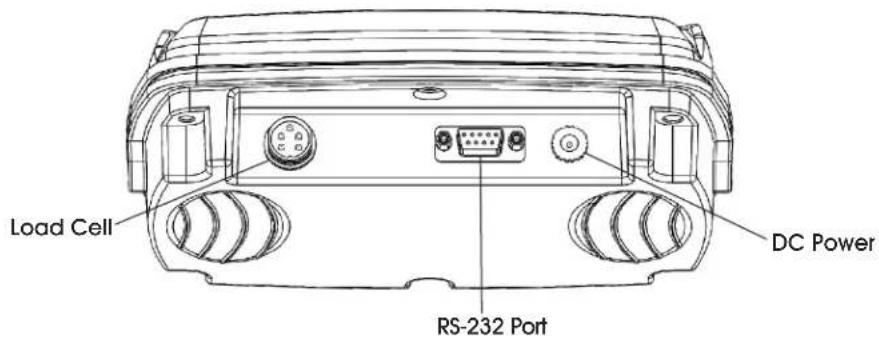

REAR PANEL

PORT FUNCTION

LOAD CELL Port for connecting load cell.

RS-232 PORT Serial interface port (computer, printer).

DC POWER Port for DC power (DC 12 V adapter is available).

OPERATION

POWER ON

Turn on the power by pressing the power button for two seconds. Once on, the scale will ask the voltage and then begin to auto-check and count down from 9-0 sequentially before entering the weighing mode.

NOTE: Anything on the scale before powering on will automatically be tared out.

ZEROING

The zero function is used only when the scale is empty and is not at gross zero due to material buildup.

1. Pressing the ZERO key will reset scale to 0.
2. Depending on what the manual zero range parameter is set to, you can zero out any number within the set selection. After that, you will receive an error and will need to tare out the weight.

UNIT SELECTION

To switch between measuring units (kg./g./lb./oz.), press the UNITS key.

TARE FUNCTION

The fare function is used when you only want to see the current change in weight, not the entire amount of weight that is on the scale.

1. When the indicator is in gross mode (gross light is shown), pressing the TARE key will sare the current weight on the scale and enter the net mode (net light shown). For example, if using a container, add the container to the scale, press TARE and the display will show the sare symbol and reset back to 0.
2. Add product to the scale to weigh without the weight of the container.
3. To exit fare mode, press the TARE key again to enter gross mode and you will see the total weight of the container and the product.

NOTE: If removing the container, the scale will show the negative weight of the container.

OPERATION CONTINUED

NOTE: F1/ESC is pre-set to "HOLD" function. To switch to "COUNT", go to parameter setting C50 and select 2.

HOLD

There are three different hold functions to choose from in the C11 parameter.

PEAK HOLD

Grabs the highest weight (for materials testing, ie. tension and pulling force).

1. Press the F1/ESC key, then add weight to the scale.
2. The indicator will show the highest weight it recorded and hold it on the screen until a higher weight is placed on the scale.

MANUAL HOLD

Grabs the current weight and holds it so it will not change or fluctuate.

1. While weighing, press F1/ESC and the indicator will hold the current weight on the screen until F1/ESC is pressed again.

AVERAGE HOLD

Used for weighing an animal. The indicator will display the average weight sampled from three seconds.

1. Add livestock to scale and press F1/ESC.
2. Indicator screen will show LBC for three seconds, then display the average weight from those three seconds.
3. Press F1/ESC again to exit holding mode.

COUNTING FUNCTION

The counting function is used to count a high volume of identical parts. Set a sample and then either add to the sample or take away from the sample to count the number of objects on the scale.

1. In weighing mode, put a sample weight on the scale. (Sample options are 5, 10, 20, 50, 100, 200, 500.)
2. Press the F1/ESC key to go to the counting mode ("pcs" will light up).
3. It will then display the sample number (ex. PCS which you can change using the up or down arrows.
4. Press the PRINT/ENTER key to confirm the sample number.
5. The scale is now ready to start counting. Load item on the scale and the indicator will show the quantity.
6. To exit counting mode, press the F1/ESC key.
7. If you want to count a different product, hold the F1/ESC key and the sample pieces will reset back to zero.

PRINT

If the indicator is connected to a printer and the weight on the scale is stable, press the PRINT/ENTER key to print the current weight.

CALIBRATION

HOW TO ENTER

1. Turn on the scale by holding ON/OFF for two seconds.
2. Press F1/ESC and PRINT/ENTER together to access the setup menu.

Available Keys:

KEY KEY	NAME KEY FUNCION
	RIGHT ARROW	Move to the right by one place of the set value.
	UP ARROW Inc	Increase the set value.
	DOWN ARROW	Reduce the set value.
esc	ESC	Exit current menu.
enter	ENTER	Move into next menu.

OPERATION CONTINUED

CALIBRATION MENU

1. Turn on the scale by holding ON/OFF for two seconds.
2. Press F1/ESC and PRINT/ENTER together to access the setup menu.
3. If done correctly, the display should now show COI.
4. Press PRINT/ENTER to access the C1 channel. The display should show C / #
5. Press ZERO to choose which unit you want to calibrate in (1 = kg,2 = 1b.)
6. Press PRINT/ENTER to set the value. The display will now show C03.
7. Press PRINT/ENTER to access the C2 channel. The display should show CC #
8. Press ZERO to change the setting to the decimal places desired. (The C2 channel is used to adjust the decimal point on the scale. A value of 1 means there is one digit behind the decimal point.)
9. Press PRINT/ENTER to set the value. The display will now show C03.
10. Press PRINT/ENTER to access the C3 channel. The display should show C3#.
11. Press ZERO to cycle through the values until the desired graduation appears. (The C3 channel adjusts the divisions on the scale. A value of 1 selected and C2 set to 1 means the scale will read in 0.1 lb. increments.)
12. Press PRINT/ENTER to set the value. The display will now show 04.
13. Press PRINT/ENTER to access the C4 channel. The display will show # # # # #
14. Enter in the maximum capacity you want to use for this scale by using UNITS to move the cursor right, and TARE and ZERO to move the values down and up. (The C4 channel is to move the used to enter in the max capacity of the scale. Ensure this does not exceed the maximum capacity of the scale. Maximum capacity divided by the increment set in C02 and C03 above cannot exceed 5,000.)
15. Press PRINT/ENTER to set the value. The display will now show C0S.
16. Press PRINT/ENTER to access the C5 channel. The display should show CS#.

17. The C5 channel calibrates zero on the scale. Ensure the scale is empty.

18. Press ZERO to change the value to 1.

19. Press PRINT ENTER. This display will count down from 10-1 while the scale is calibrating zero. When the display shows zero, the zero calibration is complete.

NOTE: The portable floor scale offers two calibration methods: Single Point, which uses one weight to calibrate, or Linear Calibration, which uses multiple (2-7) weights for a more accurate calibration.

SINGLE POINT CALBIRATION

1. Press PRINT ENTER to continue. The display will now show CO6.
2. Press PRINT ENTER to access the C06 channel. The display will show CSQ.
3. The C6 channel is used to calibrate the scale with a known weight. Press ZERO. The display will flash to set the value of C5 to C6 . Press PRINT ENTER. The display will flash SPART, and then show ## ## #
4. Enter the calibration weight value you will use (at least 10% of max capacity you set in C04) by using UNITS to move the cursor right, and TARE and ZERO to move the values down and up.
5. Place the calibration weight on the empty scale and press PRINT/ENTER.
6. The scale will count down from 10 to 0. Once 0 has been reached, the display will show CALE .
7. Press PRINT ENTER to set the value. The display will now show C07.
8. Press F1/ESC to save and exit the setup menu.
9. The scale has now been calibrated. The display will show the value of the calibration weight on the scale.
10. If the scale does not show the value of the calibration weight, check that the feet on the platform are not screwed in too tightly, and verify that the platform is level.
11. Unload the scale; the display should read 00000
12. If the scale does not display 00000, check that the feet on the platform are not screwed in too tightly, and verify that the platform is level.

OPERATION CONTINUED

LINEAR CALIBRATION

1. Press PRINT/ENTER to continue. The display will now show C06.
2. Press PRINT/ENTER to access the C06 channel. The display will show C E .
3. The C6 channel is used to calibrate the scale with a known weight. Press ZERO to set the value of C6 to C6 2. Press PRINT/ENTER. The display will flash SPIN and then show LnE e
4. Press ZERO to enter the number of weights you want to use (2-7); the more you use, the more accurate the calibration will be. (An example of 2 will be used.)
5. Press PRINT/ENTER to set the value. The screen will flash dbno01 then 000/00.
6. Enter the lowest calibration weight value you will use (at least 10% of max capacity you set in C04) by using UNITS to move the cursor right and TARE and ZERO move the values down and up.
7. Place the calibration weight you have on the empty scale and press PRINT/ENTER.
8. The scale will count down from 10 to 0. Once 0 has been reached, the display will show the screen will flash dbno0/ then 000/00.
9. Enter the next calibration weight value you will use by using UNITS to move the cursor right, and TARE and ZERO to move the values down and up.
10. Place the calibration weight you have on the empty scale and press PRINT/ENTER.
11. The scale will count down from 10 to 0. Once 0 has been reached, the display will show CALE
12. Follow steps 7-12 on the single point calibration instructions.

INDICATOR PARAMETER SETTINGS

The parameter settings menu has a calibration section (C01 to C07 explained above) and a parameter settings section (C08 and up).

To access the calibration section, the seal switch (located at one corner of the PCB) must be off. This will allow access to all C01 and up settings. If the seal switch is on, then only C08 and up can be accessed by the user. If you break the official seal by opening the back of the indicator to access the seal switch, you may need to have the indicator recertified. Adjust the seal switch back to the original setting after calibration/configuration has been performed.

To enter calibration/parameter settings, follow the procedure below.

1. Ensure UNITS is set to either kg or lb.
2. Press and hold F1/ESC and PRINT/ENTER keys at the same time for two seconds.
3. Navigate through the settings (C01 to C45) as shown in the table on page 9 by using the arrow keys and return keys as labeled under each indicator button.
4. Press PRINT key to enter/edit the parameter setting.
5. Press PRINT/ENTER or F1/ESC keys to save and exit settings at any time.

OPERATION CONTINUED

PARAMETER SETTINGS

FUNCTION PARAMETER SETTINGS/OPTIONS
Weighing Unit C01		1 = kg.2 = lb.3 = gram4 = oz.NOTE: For calibration, only kg. or lb. are allowed.
Decimal Setting C02		0 = no decimal1 = 0.02 = 0.003 = 0.0004 = 0.0000
Graduation Setting (readability of the least significant digit)	C03	Options: 1, 2, 4, 10, 20, 50Example with no decimal places (ie. \( C02=0 \))1 = 1 lb.2 = 2 lb.5 = 5 lb.10 = 10 lb.20 = 20 lb.50 = 50 lb.
Maximum Capacity C04 Set max capacity (ex. 100 kg. = 0100.00)
Zero Calibration C05		0 = Zero calibration not needed.1 = Set the zero calibration.NOTE: Ensure scale is empty and the stable light is on.
Calibration C06		0 = Calibration not needed.1 = Ready to calibrate with one calibration weight.2 = Ready to calibrate using multiple calibration weights (linear).3 = Sensitivity output.
Restore Default Settings C07		0 = Do not restore.1 = Restore to default settings.
Warning Tone C08		0 = Turn off warning tone.1 = Turn on warning tone.
Automatic Power-Off	C09	0 = Turn off auto power-off.10 = Power off automatically if no change within 10 minutes.30 = Power off automatically if no change within 30 minutes.60 = Power off automatically if no change within 60 minutes.
Power Saving Mode	C10	0 = Turn off power saving setting.3 = Turn off display if no change within three minutes.5 = Turn off display if no change within five minutes.

OPERATION CONTINUED

FUNCTION PARAMETER SETTINGS/OPTIONS
Hold Function C11		0 = Turn off hold function.1 = Peak hold: Grabs the highest weight.2 = Manual hold: Grabs the current weight.5 = Auto average hold: Average hold without the need to press the hold key.
Unit Conversion	C12	* See Unit Conversion Parameter Settings table on page 12.
Upper Limit Alarm	C13	Set upper limit within the max. capacity.
Lower Limit Alarm	C14	Set lower limit within the max. capacity.
Inner Code Display C15 Check the inner code (raw data).
Set Date C16 Set date from left to right: year/month/day.
Set Time	C17	Set the time from left to right: hour/minute/second.
Communication Setting	C18	Set the time from left to right: hour/minute/secondSet the serial interface data output method:0 = Turn off serial interface data output.1 = Continuous sending mode, for remote display.2 = Print to paper thermal ticket printer.3 = Command request mode, for computer.4 = PC continuous sending mode, for computer.5 = PC/remote display, continuous sending mode.6 = Print to adhesive label thermal printer.7 = Print to Zebra/large adhesive label thermal printer.8 = Reserved.
Baud Rate	C19	0 = 1,2001 = 2,4002 = 4,8003 = 9,6004 = 14,400
Manual Zero Range	C20	0 = Turn off manually zero setting.1 = +/- 1% max capacity2 = +/- 2% max capacity4 = +/- 4% max capacity10 = +/- 10% max capacity20 = +/- 20% max capacity100 = +/- 100% max capacity

OPERATION CONTINUED

FUNCTION PARAMETER	SETTINGS/OPTIONS
Initial Zero Range C21		0 = No initial zero setting.1 = +/- 1% max capacity2 = +/- 2% max capacity4 = +/- 4% max capacity10 = +/- 10% max capacity20 = +/- 20% max capacity100 = +/- 100% max capacity
Zero Tracking C22		0 = Turn off zero tracking.0.5 = +/- 0.5d1.0 = +/- 1.0d2.0 = +/- 2.0d3.0 = +/- 3.0d4.0 = +/- 4.0d5.0 = +/- 5.0dNOTE: Zero tracking range cannot be bigger than manual zero range.NOTE: d = division.
Zero Tracking Time C23		0 = Turn off zero tracking time.1 = 1 second2 = 2 seconds3 = 3 seconds
Overload Range C24		00 = Turn off overload range.01-99d = Overload range setting.
Negative Display C25		0 = -9d10 = -10% max. capacity20 = -20% max. capacity50 = -50% max. capacity100 = -100% max. capacity
Standstill Time C26		0 = Quick1 = Medium2 = Slow
Standstill Range C27		1 = 1d2 = 2d5 = 5d10 = 10d
Digital Filter(for filtering moving weight such as animals)	C28	0 = Turn off dynamic filter.1 = 1 digital filter strength2 = 2 digital filter strength3 = 3 digital filter strength4 = 4 digital filter strength5 = 5 digital filter strength6 = 6 digital filter strengthNOTE: The higher the number, the higher the filter strength.
Noise Filter C29		0 = Turn off noise filter.1 = 1 digital filter strength2 = 2 digital filter strength3 = 3 digital filter strength

OPERATION CONTINUED

FUNCTION PARAMETER	SETTINGS/OPTIONS
Print Time and Date C30		0 = yy.mm.dd1 = mm.dd.yy2 = dd.mm.yy3 = yy.mm.dd
Zero Setting C34		0 = Back to zero.1 = Press ZERO and PRINT together to go back to zero.
Gravity of Calibration Location C36 9.7000 - 9.9999
Gravity of Destination C37 9.7000 - 9.9999
Version No. C38 -----
Weight Reversed Setting C39		0 = Normal Weight.1 = Weight Reversed.
Print Mode	C41	0 = Auto mode1 = Gross mode2 = Tare mode
Print Carriage Return	C42	0-9 (How much space between printouts.)
Space Print	C43	0-9 (Where the data prints on the paper: 0 = left; 9 = right)
Date Print	C44	0 = Do not print the date.1 = Print the date.
Time Print	C45	0 = Do not print the time.1 = Print the time.
Baud Rate for 2nd RS232	C48	0 = 1,200 (for remote display)1 = 2,4002 = 4,8003 = 9,600
F1 (hold or count)	C50	1. hold 2. count

UNIT CONVERSION PARAMETER SETTINGS

PARAMETER SETTINGS	UNITS AVAILABLE
C0 1 = 1 and C 12 = 0	kg.
C0 1 = 2 and C 12 = 0	lb.
C0 1 = 1 and C 12 = 1	kg./lb.

OPERATION CONTINUED

DEFAULTPARAMETER SETTINGS

FUNCTION PARAMETER DEFAULT SETTING
Weighing Unit C01 1
Decimal Setting C02 0
Graduation Setting C03 1
Maximum Capacity C04 100,000
Zero Calibration C05 0
Calibration C06 0
Restore Default C07 0
Warning Tone	C08 1
Automatic Power Off	C09	60
Power Saving Mode	C10	0
Hold Function	C11	0
Unit Conversion	C12	1
Upper Limit Alarm	C13	000000
Lower Limit Alarm	C14	000000
Inner Code Display	C15	--------
Set Date	C16	--------
Set Time	C17	--------
Communication Setting	C18	1
Baud Rate	C19	3 (9,600)
Manual Zero Range C20	10
Initial Zero Range	C21	10
Zero Tracking	C22	1.0
Zero Tracking Time	C23 3
Overload Range	C24 9
Negative Display	C25	10
Standstill Time	C26 1
Standstill Range	C27 2
Digital Filter	C28 3
Noise Filter	C29 2
Print Time and Date	C30 0

OPERATION CONTINUED

FUNCTION PARAMETER	DEFAULT SETTING
Multi-Connection Add C34 0
Gravity of Calibration Location C36 9.7936
Gravity of Destination C37 9.7936

PRINT MODE

For printing on a non-adhesive ticket printer.

Parameters 16, 17, 30 and 42-45 all affect ticket print-out.

Normal Weighing Ticket Printout Example:

Print to Adhesive Label Printers:

Format 1 Format 2

Date: 05/01/2017

Time: 11:30:52

Net: 25.6lb

Tare: 10.3lb

Gross: 35.9lb

Date: 05/01/2017

Net: 25.6lb

Gross: 10.5lb

35.9lb

Date: XX.XX. XX (yy.mm.dd)

Time: XX.XX.XX (hh.mm.ss)

NET 6.00kg (net weight)

TARE 2.88kg (tare)

GROSS 8.88kg (gross weight)

TROUBLESHOOTING

ERROR CODE POSSIBLE CAUSES RECOMMENDATIONS
UCCCCU	Overload. Cables are not connected properly. Load cell is defective.	Reduce the weight. Check load cell connection. Inspect load cell. Check the input/output. If the above actions do not work, try the following instructions: 1. Check if the cable that runs from the indicator to the junction box is damaged. If it is, replace the cable. 2. Check for any water damage inside the junction box. If there is, replace the junction box. 3. Ensure all wires on all five terminal blocks are not loose. Retighten the screws if needed. 4. Recalibrate. 5. If none of the above actions work, one or more load cells may be defective. Call Uline Customer Service at 1-800-295-5510.
cccccc	Calibration is not good. Cables are not connected properly. Load cell is defective.	Ensure scale is leveled. Check load cell connection. Inspect load cell input and output resistance. If the above actions do not work, try the following instructions: 1. Check if the cable that runs from the indicator to the junction box is damaged. If it is, replace the cable. 2. Check for any water damage inside the junction box. If there is, replace the junction box. 3. Ensure all wires on all five terminal blocks are not loose. Retighten the screws if needed. 4. Recalibrate. 5. If none or the above actions work, one or more load cells may be defective. Call Uline Customer Service at 1-800-295-5510.

TROUBLESHOOTING CONTINUED

ERROR CODE EXPLANATION RECOMMENDATIONS
Err1	No weight was used during calibration, or the weight used was above the max capacity.	Use correct weight within the defined range.
Err2	The weight used during calibration was below the minimum required weight.	The calibration weight minimum is 10% of the maximum capacity set in C04. It is recommended to use 60-80% of the maximum capacity.
Err3	During calibration, the input signal is negative.	1. Check all wire connections. 2. Check load cell for damages. 3. Recalibrate. 4. If none of the above actions work, the PCB may need to be replaced.
Err4	Signal is unstable during calibration.	Start calibration after the platform is stable.
Err5	EEPROM Error. Replace the PCB.

TROUBLESHOOTING CONTINUED

ERROR CODE EXPLANATION RECOMMENDATIONS
Err5	Exceed zero range.	1. Check cables for any indentations, crimps or cuts.2. Check scale for damages.3. Try calibration first. Press and hold PRINT/ENTER and F1/ESC at the same time for three seconds to get into calibration mode. C01 should appear.4. With C01 on the screen, press PRINT/ENTER. The left side of the screen should show C1 and the right side should show I. C1 2, 2 stands for lbs.5. Press PRINT/ENTER. C02 should appear. Press PRINT/ENTER. C2 0 should appear. The 0 is the number of decimal places you are weighing in. Press PRINT/ENTER. C03 should appear.6. Press PRINT/ENTER. C3 / should appear. The 1 stands for 1 graduation setting. This means the weight would increase by 1 lb. Press PRINT/ENTER. C04 should appear. Press PRINT/ENTER.7. 100000 should appear. This is the max capacity of the scale. Press PRINT/ENTER. C05 should appear. Press PRINT/ENTER.8. C5 0 should appear. This is the zero calibration. Clear the scale and ensure the feet are attached. Press ZERO ▲ to change the 0 to 1. C5 / appears. Press PRINT/ENTER. CAL 10 to CAL 9...to CAL 1. 0 should appear. Press PRINT/ENTER. C05 should appear.9. Press PRINT/ENTER. C5 0 should appear. This is where the calibration weight of at least 10% of max capacity will be used. Press ZERO ▲ to change the 0 into a 1. C5 / will appear. Press PRINT/ENTER. SPn will appear, followed by D10000.10. Enter the weight to calibrate. If D00000 was on the screen and it should be D00000, press TARE ▼ to decrease the value. Press UNITS ▲ to move left until the tenths place starts blinking. Match the number on the screen to the weight being used. Place the weight on the scale. With the weight on the scale and the matching weight on the screen, press PRINT/ENTER. CAL 10, CAL 9, CAL 8...to CAL 0 will appear with some number on the screen. Then CAL End will appear. Remove weight from the scale.11. Press PRINT/ENTER on the CAL End screen. C07 will appear. With nothing on the scale, press F1/ESC. Calibration is complete.

TROUBLESHOOTING CONTINUED

OPERATING ISSUE POSSIBLE CAUSES RECOMMENDATIONS
The scale does not turn on.	Loose power cord.Outlet is defective.	Ensure the power cord is plugged in.Ensure the power source works. Test the power source by connecting a different appliance to the same outlet to check if it's operational.
The reading goes negative when a load is applied.	The Sig+ and Sig- wires are connected to the wrong ends of the load cell.	Switch the Sig+ and Sig- wires connected to the load cell and/or the junction box (if one is used.)

ULINE H-11933, H-11934 BÁSCULA PORTÁTIL DE PISO

800-295-5510
uline.mx

NET 6.00kg (net weight)

TARE 2.88kg (tare)

GROSS 8.88kg (gross weight)

SOLUTION DE PROBLEMAS

SOURCE D'ALIMENTATION

ADAPTATEUR CA

CONSERVATION MANUELLE

COMMENT ACCÉDER AU MENU

RÉGLAGE DES PARAMÈTRES	UNITÉS DISPONIBLES
C0 1 = 1 and C 12 = 0	kg.
C0 1 = 2 and C 12 = 0	lbs.
C0 1 = 1 and C 12 = 1	kg./lb.

FONCTIONNEMENT SUITE

RéGLAGE DES PARAMÉTRES PAR DÉFAUT

NET 6.00kg (net weight)

TARE 2.88kg (tare)

GROSS 8.88kg (gross weight)

DéPANNAGE
