USER MANUAL H-2917 Uline

ULINE H-2917 ADJUSTABLE PALLET TRUCK

1-800-295-5510 uline.com

Line drawing of a manual pallet jack with wheels and handle (no text or symbols)

TECHNICAL DATA

MODEL	H-2917
Capacity	5,500 lbs.
Max. Fork Height	7.7"
Min. Fork Height	3.0"
Fork Length	45 12 "
Overall Fork Width	21-27"
Fork Wheel Diameter	3" Polyurethane
Steering Wheel Diameter	7" Polyurethane
Net Weight	204 lbs.

OPERATION

WARNING! Operator must read and understand instructions here and on truck prior to use.

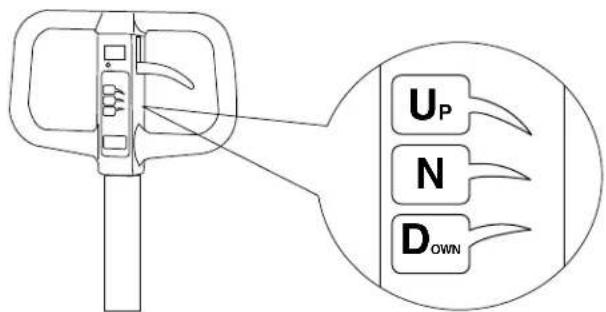

On the handle of the pallet truck, you will find the control lever, which can be set in three positions. (See Figure 1)

Figure 1

UP N DOWN

• UP = to raise the forks
• NEUTRAL = to move the load

• DOWN = to lower the forks

• If the forks elevate while pumping in the NEUTRAL position, turn the setting screw clockwise until pumping the handle does not raise the forks and the NEUTRAL position functions correctly.

• If the forks descend while pumping in the NEUTRAL position, turn the setting screw counterclockwise until the forks do not lower.
• If the forks do not descend when the control lever is in the DOWN position, turn the setting screw clockwise until raising the control lever lowers the forks. Then check the NEUTRAL position as per steps 1 and 2.
• If the forks do not lift while pumping in the UP position, turn the setting screw counterclockwise until the forks elevate while pumping in the UP position. Then check the NEUTRAL and DOWN position as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle side, the setting screw is located on the right side of the pump above the right wheel. The truck will lower faster or slower depending on how far in or out the screw is adjusted.

MAINTENANCE

HOW TO EXPEL AIR FROM THE PUMP UNIT

Air may enter the unit over time or when the seals are replaced. To expel the air, lift the control lever to the DOWN position and move the handle up and down several times.

DAILY CHECK AND MAINTENANCE

Daily checks of the pallet truck can limit wear and tear on the unit. Pay special attention to the wheels, the axles, the handle, the forks and lift and lower control.

LUBRICATION

Use motor oil or grease to lubricate all movable parts.

SAFETY

For safe operation of the Hand Pallet Truck, please read all warning signs and instructions here and on the pallet truck prior to use.

1. Do not operate the pallet truck unless you are familiar with it and have been trained and authorized to do so.
2. Do not use the truck on sloping ground.
3. Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.

4. We advise that operators should wear gloves and safety shoes.

5. Do not handle unstable or loosely stacked loads.

6. Do not overload the truck.

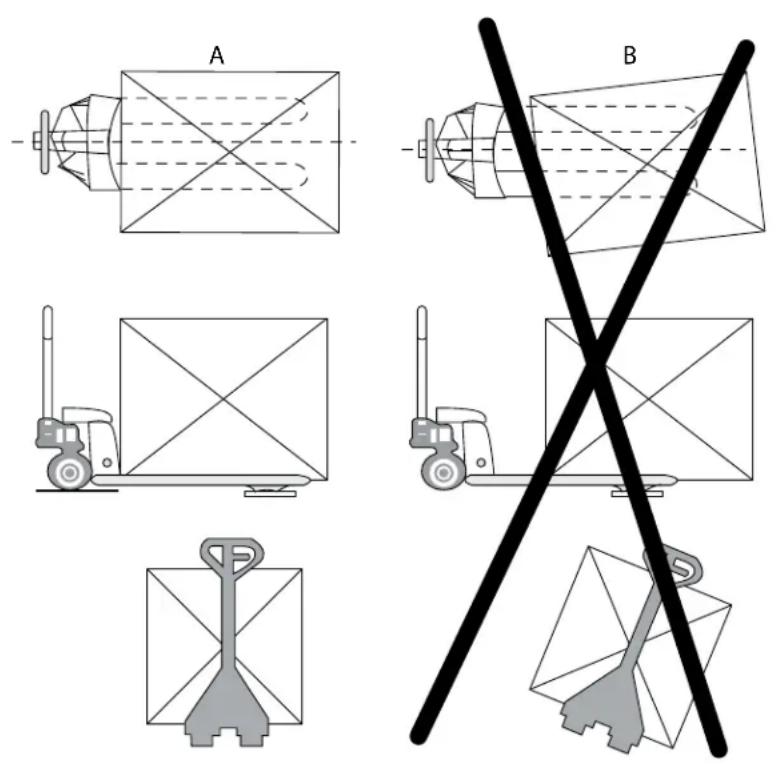

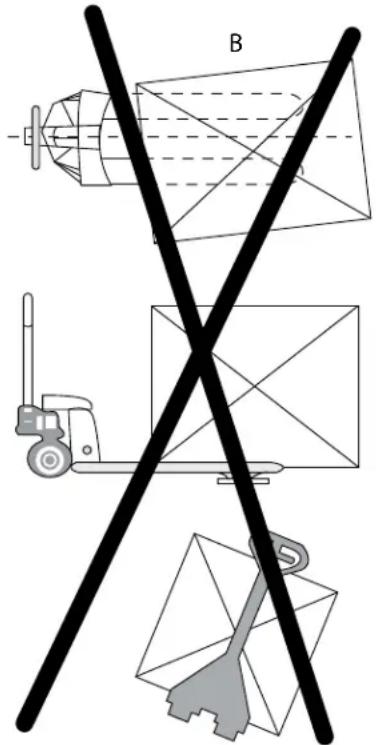

7. Always center loads on the forks, not at the end of the forks. (See Figure 2)
8. The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks.
9. Make sure that length of the forks matches the length of the pallet load.
10. Lower the forks to lowest height when the truck is not being used.

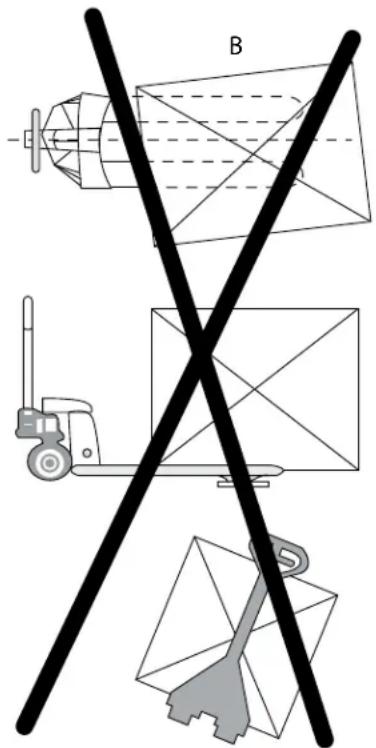

Figure 2

ADJUSTING FORK WIDTH

Figure 3

Figure 4 Figure 6

Figure 5 Figure 7

Technical line drawing of a mechanical assembly with arrows indicating force or movement (no text or symbols)

Technical line drawing of a manual pallet jack with wheels and a handle (no text or symbols)

1. Locate and remove the Allen wrench from its clip on the truck body. (See Figure 3)
2. Loosen the screws on the front and back of each fork of the truck. (See Figure 4)

3. Slide each fork to the desired position. (See Figure 5)

4. Tighten the screws on each fork of the truck. (See Figure 6)

5. Return the Allen wrench to its clip on the truck body. (See Figure 7)

TROUBLESHOOTING

OPERATING ISSUE CAUSES RECOMMENDATIONS
The forks do not lift to maximum height.	Air in the hydraulic system. Expel the air.	(See Maintenance)
The forks do not lift when the handle is in lifting position.	Valve chain or setting screw are out of alignment.Leak from valve cone (No. 16) assembly.	Adjust the valve chain with adjusting nut (No. 71) or adjust the setting screw.(See Operation)Replace pump.
The forks drop after every pump stroke.	Air in the hydraulic system.Leak from valve cone.	Expel the air. (See Maintenance)Replace pump.
The forks do not lower.	Valve chain or setting screw are out of alignment.	Adjust the valve chain with adjusting nut (No. 71) or adjust the setting screw.(See Operation)
The forks drop when the handle is in the neutral position.	Valve chain or setting screw are out of alignment.Leak from the seal rings.	Adjust the valve chain with adjusting nut (No. 71) or adjust the setting screw.(See Operation)Replace pump.
Forks lift when the handle is in the neutral position.	Valve chain or setting screw are out of alignment.	Adjust the valve chain with adjusting nut (No. 71) or adjust the setting screw.(See Operation)
Oil leaks from the pump.	Seal ring damaged or worn out. Replace pump.
