Product type	Wall-mount lavatory faucet
Brand	Kohler
Model	Purist K-T14412
Category	Faucet
Material	Chrome-plated brass
Finish	Chrome
Number of handles	2 (hot/cold)
Mounting type	Wall-mount
Swivel spout	No (fixed)
Aerator	Yes, removable
Flow rate	5.7 L/min (1.5 GPM)
Minimum water pressure	0.5 bar
Maximum water pressure	8 bar
Weight	2.5 kg
Spout length	20 cm
Height	15 cm
Depth	10 cm
Warranty	Lifetime limited warranty
Replacement parts	Available (mounting hardware kit ref. 1038270)
Maintenance	Check for leaks, clean with a soft cloth and soapy water
Required tools for installation	Phillips screwdriver, hex key, plumber's putty
Water supply	Municipal water pressure

Frequently Asked Questions - Purist K-T14412 KOHLER

What type of faucet is the Purist K-T14412?

It is a wall-mount lavatory faucet with two separate handles for hot and cold water.

How do I install the spout?

Screw the spout onto the shank, then secure it with the provided escutcheon and screws. Apply plumber's putty inside the escutcheon before sliding it over the spout.

How do I correctly align the handles?

Position the handles in the closed position (hot on left, cold on right). If alignment is incorrect, remove the handle and rotate the spline adapter a quarter turn until desired alignment is achieved.

What should I do if there is a leak after installation?

Check that all connections are tight. Open the supply valves and inspect the seals. If necessary, apply sealing tape or additional putty.

How do I clean this faucet?

Use a soft cloth and soapy water. Avoid abrasive or acidic cleaners that could damage the chrome finish.

What should I do if the water flow is low?

Remove the aerator and clean it to remove debris. If the problem persists, check the water pressure of your installation.

Is the faucet compatible with tankless water heaters?

Yes, this faucet works with water heaters, but ensure the minimum water pressure of 0.5 bar is met.

Can I replace parts on this faucet?

Yes, replacement parts such as the mounting hardware kit (ref. 1038270) are available from Kohler.

What is the warranty on the Purist K-T14412?

Kohler offers a lifetime limited warranty on this faucet, covering defects in materials and workmanship.

How do I remove the aerator for cleaning?

Unscrew the aerator located under the spout by hand or using a soft pliers. Clean off debris, then screw it back on.

USER MANUAL Purist K-T14412 KOHLER

Wall-Mount Lavatory Faucet Trim

K-T14412 K-T14413

Technical line drawing of three pipe fittings with no text or symbols

Line drawing of three different bathroom fixtures (no text or symbols)

K-T14414 K-T14415

Technical line drawing of a pipe fitting with three different components (no text or symbols)

Technical line drawing of three mechanical components with no visible text or symbols

K-T14416 K-T14417

Technical line drawing of a wall-mounted pipe fitting with flanges and a bent tube (no text or symbols)

Technical line drawing of a bathroom sink with three fixtures (no text or symbols)

M product numbers are for Mexico (i.e. K-12345M)

Phillips Screwdriver

Hex Wrench

Plumbers Putty

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

□ Shut off the main water supply.
□ Observe all local plumbing and building codes.
☐ If needed, complete the finished wall before beginning this installation.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

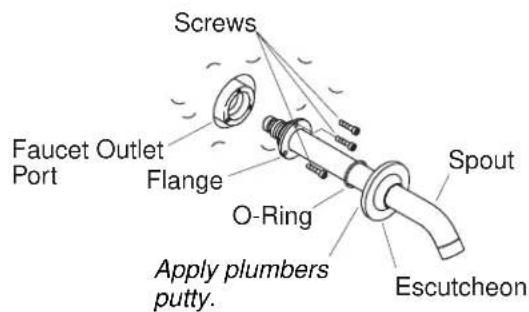

Screws Faucet Outlet Port Flange O-Ring Apply plumbers putty. Spout Escutcheon

1. Install the Spout

IMPORTANT! Use care when installing the spout to avoid scratching the finish.

☐ Thread the spout into the spout shank until it is snug. If needed, adjust the spout slightly to position it so it points straight down.
- Secure the spout in place by tightening the flange with the screws provided.
□ Confirm that the O-ring is inside the escutcheon.
□ Apply plumbers putty or other sealant to the back surface of the spout escutcheon according to the putty manufacturer's instructions.
□ Carefully slide the spout escutcheon over the spout and press firmly against the finished wall.
□ Remove any excess putty or sealant.

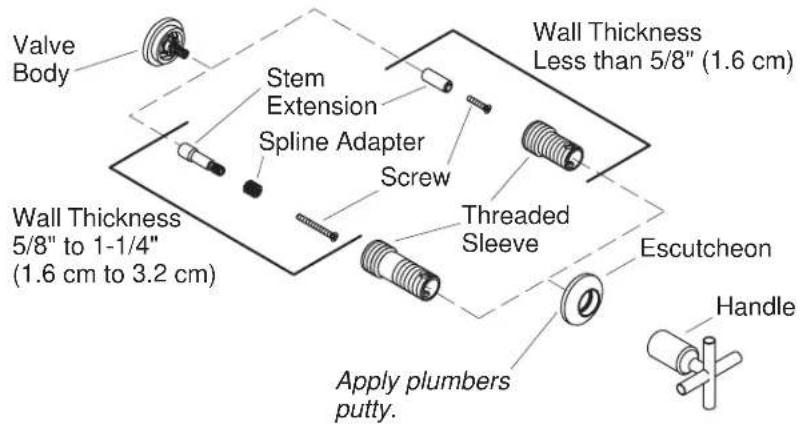

Valve Body Stem Extension Spline Adapter Screw Wall Thickness Less than 5/8" (1.6 cm) Wall Thickness 5/8" to 1-1/4" (1.6 cm to 3.2 cm) Threaded Sleeve Escutcheon Handle Apply plumbers putty.

2. Install the Handles

NOTE: If the finished wall is less than 5/8" (1.6 cm) thick, no spline adapter will be used with the installation.

□ Determine the thickness of the finished wall.
☐ If the finished wall is less than 5/8" (1.6 cm) thick, use the 1" (2.5 cm) long stem extension, 7/8" (2.2 cm) long screw, and the 2" (5.1 cm) long threaded sleeve.
☐ If the finished wall is 5/8" (1.6 cm) to 1-1/4" (3.2 cm) thick, use the 1038270 hardware kit supplied.
☐ If applicable, slide a spline adapter onto the stem extension.
☐ Place a stem extension on the valve stem. Secure with the screw provided.
☐ Thread a threaded sleeve onto the valve body.
□ Apply plumbers putty or other sealant to the back of the escutcheon according to the putty manufacturer's instructions.
☐ Thread an escutcheon onto the threaded sleeve. Remove any excess putty or sealant.
☐ Press a handle over the stem extension and move the handle to the closed position (Hot = Counterclockwise, Cold = Clockwise). Lever handles should be horizontal when closed.

Install the Handles (cont.)

☐ If adjustment is needed to achieve the desired handle alignment, remove the handle, screw and spline adapter or stem extension. Turn the spline adapter 1/4 turn. Check the handle position. Repeat the procedure until the proper handle position is achieved. Secure with the screw.
☐ Thread the handle assembly onto the escutcheon. To maintain the proper handle alignment, hold the handle in place with one hand and turn the base of the handle with the other hand.
☐ Repeat the procedures with the second handle.

Spout Aerator

3. Complete the Installation

☐ Ensure that both faucet handles are turned off (hot = counterclockwise to close, cold = clockwise to close).
□ Turn on the water supplies and check the installation for leaks.
□ Repair as needed.
□ Remove the aerator.
☐ Open the valves and run water through the spout for about a minute to remove any debris. Check for leaks.
□ Remove all debris from the aerator.
☐ Turn the valves off, and reinstall the aerator.
