HL-1050 - Laser printer BROTHER - Free user manual and instructions

Product type	Monochrome laser printer
Print resolution	600 x 600 dpi, up to 1200 x 600 dpi for graphics
Print speed	Up to 10 pages per minute (A4/Letter)
RAM memory	4 MB standard, expandable to 36 MB via SIMM module
Interfaces	Bidirectional parallel, USB (HL-1050), optional serial RS-232C/RS-422A
Supported paper sizes	A4, Letter, Legal, B5, A5, A6, Executive, envelopes, labels, transparencies, planner refills
Paper tray capacity	Multi-purpose tray: 200 sheets (75 g/m²); manual sheet-by-sheet feed
Output tray	100 sheets (face down)
Toner cartridge	Model TN-300, yield approximately 2,400 pages (starter 1,000 pages)
Drum	DR-300, life approximately 20,000 pages (depending on usage)
Power consumption	Printing: 280 W max.; Standby: 60 W; Sleep: 13 W
Power supply	110-120 V AC or 220-240 V AC, 50/60 Hz
Dimensions (W x H x D)	390 x 245 x 365 mm (output tray closed)
Weight	Approximately 7.2 kg (with drum)
Operating conditions	Temperature: 10 to 32.5 °C; Humidity: 20 to 80% (non-condensing)
Laser safety	Class 1 laser product compliant with FDA (USA) and CE (Europe)
Supported emulations	HP LaserJet 6P, Epson FX-850, IBM Proprinter XL
Economy functions	Toner Save mode (25% or 50%), Auto Sleep mode
Duplex printing	Manual (via Windows driver)
Maintenance	Exterior and interior cleaning (scanner window, corona wire); cartridge and drum replacement

Frequently Asked Questions - HL-1050 BROTHER

How to install the toner cartridge in the Brother HL-1050 printer?

Open the top cover, remove the drum assembly, flip the lever of the used cartridge forward to close the shutter, remove it. Take out the new cartridge from its packaging, shake it 5 to 6 times, remove the protective tape, insert it into the drum aligning the guide bar, then push the lever back to open the shutter. Replace the drum and close the cover.

What to do in case of a paper jam?

Open the top cover and remove the drum. Gently pull out the jammed paper. Also check the multi-purpose tray. Close the cover. If the printer does not resume, press the main button on the control panel. Never pull paper from the output tray to avoid toner stains.

How to interpret the control panel indicators?

The Ready (Paper) indicator is on in ready mode, flashes during warm-up or cooling. Data (Toner) flashes when receiving data, is on if data remains in memory. Drum lights up when the drum is nearing its end of life. The Alarm indicator flashes in case of an error, often combined with another indicator to indicate the nature of the problem.

How to clean the interior of the printer?

Turn off the printer and unplug it. Open the top cover, remove the drum. Gently wipe the scanner window with a soft, dry cloth. Flip the drum and clean the primary corona wire by sliding the blue tab several times. Return the tab to its starting position (▲ mark). Reinstall the drum and close the cover.

What types of paper can I use?

The printer accepts plain paper (60-157 g/m²), envelopes (DL, C5, COM-10, Monarch), special laser labels and transparencies, and planner sheets. Avoid curled, highly textured, or pre-printed paper. Preferably use recommended paper such as Xerox 4200 or equivalent.

How to connect the printer to a Macintosh?

You need to install the optional RS-100M serial interface board. Set the slide switch to Apple (RS-422A). Use an appropriate cable ('Macintosh to ImageWriter II' or 'Apple System Peripheral 8') and install the provided Macintosh driver. The port selection in the Chooser must match the physical port used.

What does the Drum indicator mean?

The Drum indicator indicates that the drum is nearing the end of its life. You can continue printing for a while, but plan to replace it as soon as print quality decreases. To turn off this indicator, install a new drum (DR-300).

How to resolve a 'Memory full' error?

For Windows, reduce the print resolution or the document complexity. Under DOS or Mac, lower the resolution. For the HL-1050, install an additional SIMM module (up to 36 MB) and enable the Page Protection function in the driver. You can also change graphics settings in the Windows driver.

The printer does not print, what should I check?

Make sure the printer is powered on, the toner cartridge and drum are correctly installed, the interface cable is connected, and the appropriate Windows driver is selected. Check the indicators: if Alarm flashes, refer to the error table. If Ready flashes quickly, the printer is cooling down; open the cover to speed it up.

How to save toner?

Enable the Toner Save Mode via the Windows driver. You can choose a 25% or 50% reduction in toner consumption. This mode is ideal for drafts. The printer also enters Sleep Mode after 5 minutes of inactivity to reduce power consumption.

USER MANUAL HL-1050 BROTHER

Line drawing of a printer with paper feed and paper clip (no text or symbols)

A PROPOS DES GUIDES ......1–1

FENTE D'ALIMENTATION MANUELLE 2-9

PLATEAU D'EJECTION ET EXTENSION METALLIQUE ....2-11

CHAPITRE 3 TABLEAU DE COMMANDE.... 3-1

TEMOINS ET BOUTON PRINCIPAL....3-1

Témoin Ready (Paper)....3-1

Témoin Data (Toner) 3-2

Témoin Drum....3-2

Témoin Alarm....3-2

Bouton principal 3-3

REPLACEMENT DU TAMBOUR....5-7

NETTOYAGE DE L'IMPRIMANTE....5-11

Technical line drawing of an internal mechanical component with no visible text or symbols

Température élevée!

Diagram showing a cable being inserted into a wall socket connected to a plug (no text or symbols present)

Line drawing of hands operating a printer with a pen inserted (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of an open industrial machine with internal components (no text or symbols)

(Pour le CANADA uniquement)

http://www.brother.com

CHAPITRE 1 INTRODUCTION

A PROPOS DES GUIDES

Commande HRC (High Resolution Control) et technologie APT (Advanced Photoscale Technology)

Illustration of two hands folding a card into a stack of cards (no text or symbols)

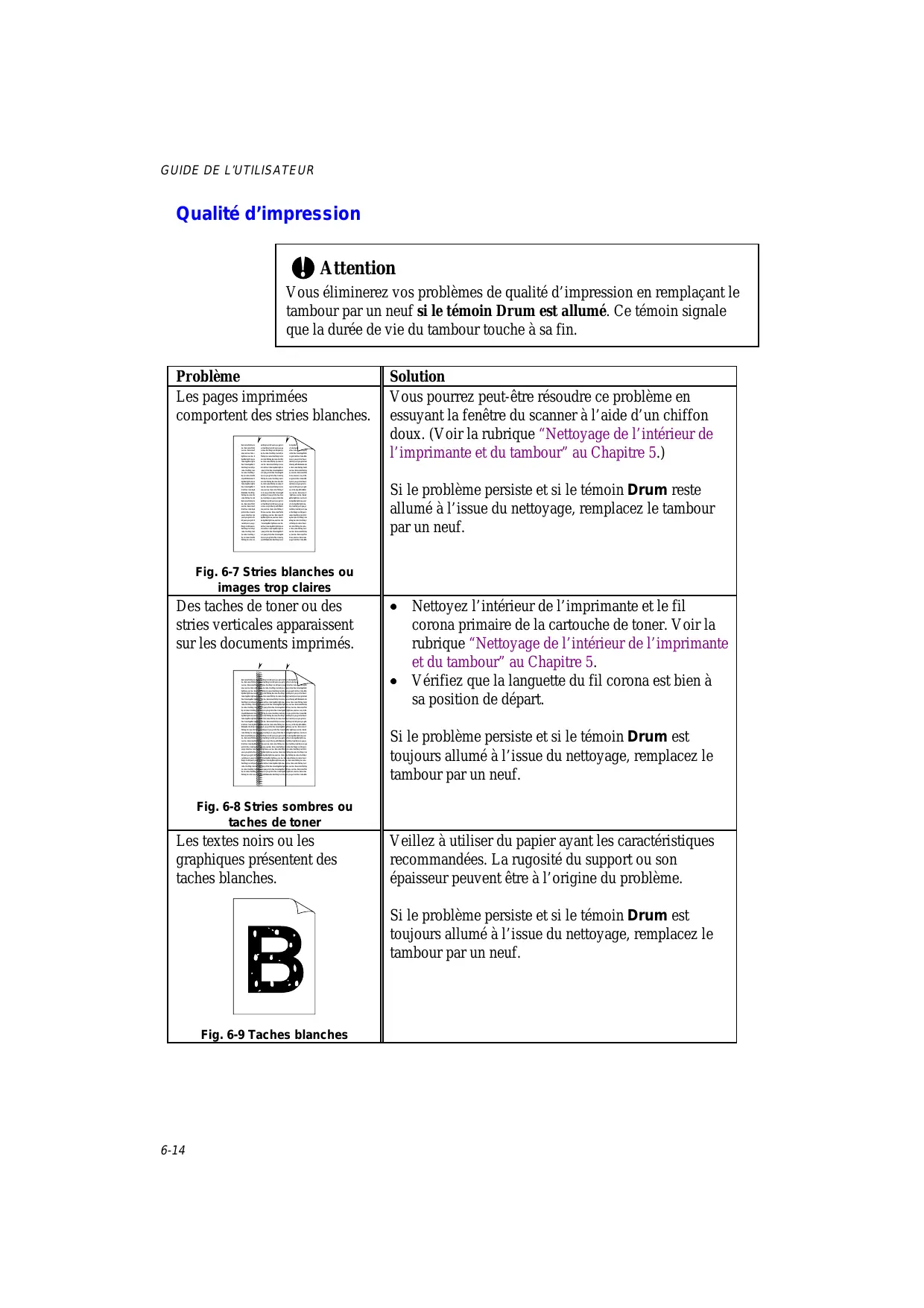

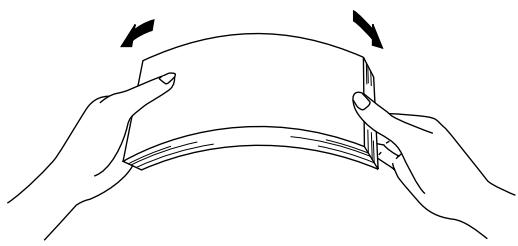

Line drawing of two hands holding a flat object with arrows indicating rotation (no text or symbols)

Three technical line drawings of folded paper sheets with no text or symbols

Fig. 2-2 Enveloppes

Zone d'impression

Two empty rectangular frames with gray borders, no text or symbols present

Zone non imprimable

No. de contacts 72 contacts

Line drawing of an electronic device showing cable connections to a power outlet (no text or symbols)

Technical line drawing showing two views of a computer monitor with connectors and a close-up of the internal components (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a close-up of a component being inserted into a housing (no text or symbols present)

Line drawing of hands operating a printer with a magnified inset showing a mechanical component (no text or symbols)

Technical line drawing of an internal mechanical component with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism with directional arrows (no text or labels)

Line drawing of a hand operating a mechanical device with a black arrow indicating direction (no text or symbols present)

Illustration of a hand holding a cylindrical device with an arrow indicating direction, next to a separate cylindrical device with a lid and cover (no text or symbols present)

Illustration of a mechanical device being adjusted with forceps, showing tool path and magnified detail (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Line drawing of hands operating a printer with an arrow indicating the process (no text or symbols present)

REMLACEMENT DU TAMBOUR

Line drawing of hands operating a printer with a magnified inset showing the internal structure (no text or symbols)

Technical line drawing of an internal mechanical component with no visible text or symbols

Line drawing of a hand operating a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of hands holding a mechanical device with an arrow indicating direction (no text or symbols)

Line drawing of hands operating a printer with a magnified inset showing the internal structure (no text or symbols)

Diagram showing a cable being inserted into a wall socket and connected to a plug (no text or symbols present)

Technical line drawing of an internal mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Fig. 5-23 Nettoyage du fil corona primaire

Line drawing of hands operating a printer with a magnified inset showing the internal components (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal mechanisms (no text or symbols)

Line drawing of a printer with open lid and paper strips, no text or symbols present

Line drawing of a hand using a tool to press or install a component, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a printer's internal structure showing hand placement and clamping mechanism (no text or symbols)

Line drawing of a printer with an open lid and internal structure, showing hands operating the printer (no text or symbols present)

©1998 Brother Industries Ltd.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

bac papier multi-usage, 1-2, 2-5

bouton principal, 3-3

cartouche de toner, 5-1, A-2

capot ouvert, 6-2

Imprimer polices I, 3-4

interface, A-2

erreur, 6-2

interface parallèle

police vectorielle, A-7
