USER MANUAL ERMD4 Essentiel B

Black microwave oven with open lid and food tray, no visible text or symbols

Technical diagram of a portable appliance with labeled parts including a circular component, cable, and accessories

Technical line drawing of a device casing with internal compartments and a red directional arrow indicating movement (no text or symbols)

Technical line drawing of a device casing with internal compartments and a red arrow indicating direction (no text or symbols)

Incorrect Correct

Line drawing of a microwave oven with handle and control panel (no text or symbols)

Plaque de cuisson

• Raclette machine and griddle plate for 2 people
- "Multiplug" system to connect other appliances
• Supply voltage: 230 V\~
• Frequency: 50 Hz
• Energy consumption in standby OFF mode : ≤0.3W
• Power: 320 W
- On/off button with power-on indicator light
- Removable griddle plate with non-stick coating
• Individual raclette pans with non-stick coating

unpacking

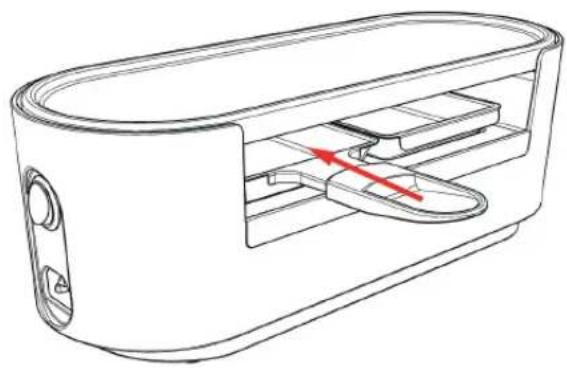

• Remove the appliance from the packaging, taking care to remove the packing materials. The pans and spatulas are stored under the appliance. Rotate the locking tab to remove them.
• If you have to use an extension lead, use only a male to female extension cable that has an earthed plug and is capable of supporting the power of the appliances and unwind it completely.

Before fi rst use

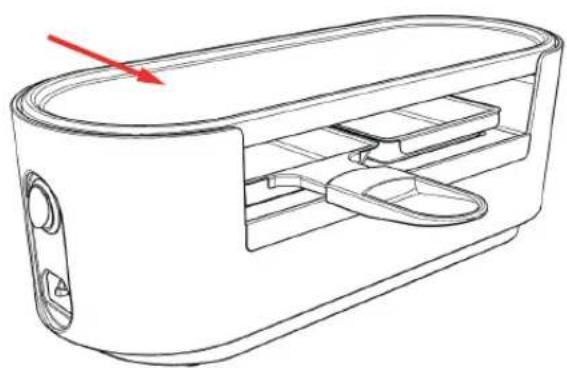

• Wipe the aluminium plate (3) with a soft, dry cloth. Be careful to not let water get inside the appliance.
• Wash the two raclette pans (7) and the removable griddle plate (1) with a soft sponge and hot water with the addition of washing-up liquid. Rinse with clean water and thoroughly dry using a soft cloth.
• A slight odour and a bit of smoke might be emitted the first time the appliance is used. This is normal and will quickly go away.

use

Your appliance is a two-function device: a raclette appliance and/or griddle plate.

RACLETTE / Slide the supplied pans into the unit in the dedicated spaces, to melt cheese. Refer to the "Raclette" section in this chapter.

Technical line drawing of a mechanical housing or enclosure with internal components and a red directional arrow indicating movement (no text or symbols)

GRIDDLE PLATE / Put the raw food on the oiled plate to cook them. Refer to the "Griddle plate" section in this chapter.

Technical line drawing of a mechanical housing or enclosure with internal components and a red arrow indicating direction (no text or symbols present)

You can choose to use either function, or both simultaneously.

Setting up

Warning!

- Do not operate the appliance within 15cm of furniture, walls, partitions or fl ammable products/materials (upholstery, paper, cardboard, etc.). - The removable griddle plate must always be present regardless of how the appliance is being used. Never use the pans (7) without the removable griddle plate.

1. Place the appliance on a flat, stable and heat-resistant surface.
2. Install the griddle plate (1) over the heating element. Make sure that it is sitting correctly on the four pads provided for this purpose.
3. Fully unwind the removable power cable (6). Connect the first end to the socket on the appliance (5), and the other end to a mains socket, making sure that the cable (6) does not come into contact with the element.

Pre-heating

1. Put the on/off switch (4) in the "I" position (on) to switch on the appliance. The indicator light will turn on.
2. Preheat the appliance for 5 to 8 minutes. Preheating of the empty appliance (without food) should not exceed 15 minutes.

Important!

Accessible surfaces may be hot to appliance is running. Never touch (3) or the removable griddle plate (1)

1. After use, put the on/off switch (4) in the "0" position (off) then unplug the appliance from the socket.
2. Wait for the aluminium plate (3), the removable griddle plate (1) and the pans (7) to cool completely before cleaning them.

Raclette

1. Place the cheese in the individual raclette pans (7).

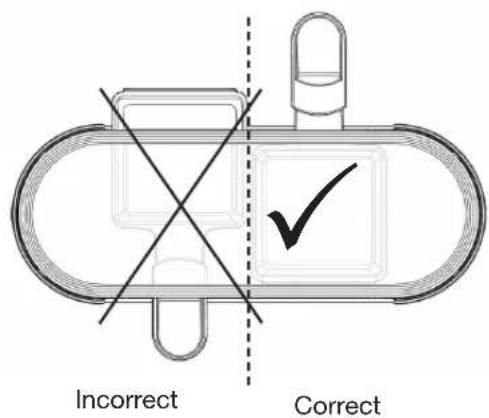

2. Slide the pans (7) into the spaces provided for this purpose on the aluminium plate (3). The pans must be facing the opposite direction to each other. Make sure the pan is not sticking out on the other side. The handle of the pan will get hot and you could burn yourself when you grab hold of it.

Incorrect Correct

When inserting your pan, make sure that food does not come into contact with the heating element.

1. Remove the pans (7) when the cheese has melted, holding them by the handle. Use the wooden spatulas provided to slide the cheese from the pans so as not to damage the non-stick coating.

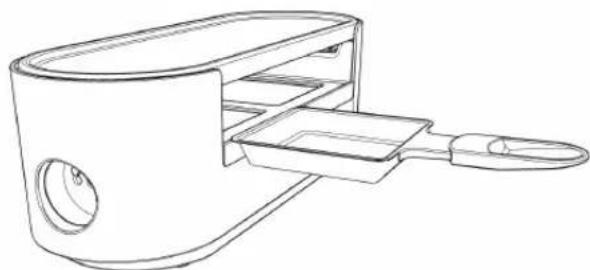

PAN HOLDER

Once you have fi nished using your pan or if you want to take a break, you can place it on the holder provided for this purpose:

1. Hold the empty pan by the handle so as not to burn yourself.
2. Tilt the pan slightly downwards, and carefully insert the end underneath the aluminium plate (3) as shown in the diagram below.
3. Be careful, do not attempt to take hold of the pan if the handle is not on your side (risk of burning yourself on the griddle plate).
4. Leave your pan to cool until you need it again or until the appliance is cleaned.

Line drawing of a microwave oven with handle and control panel (no text or symbols)

Griddle plate

1. Pour a little cooking oil on the griddle plate (1) and wipe off the excess with a piece of kitchen roll.
2. Place meat, fi sh, vegetables or other food items on the plate (1).
3. Turn the food over occasionally.
4. When the food is cooked, season it on the plates (not directly on the griddle).
5. Do not cut food directly on the griddle plate (1).

multiplug SYSTEM

Thanks to the built-in socket (2) on the side of the appliance, you can connect up to six duo "Multiplug" raclette machines together. So you can enjoy a raclette with friends without having to stretch for your pan:

1. Place all the appliances on a flat, stable and heat-resistant surface.
2. Connect the first appliance as described in the "Setting up" section of this manual.
3. Connect the power cable on the second appliance to the socket (2) on the side of the first appliance, making sure that the power cable does not come into contact with the heating element.
4. Do the same with other appliances if necessary.

Important! Do not operate the appliance close to furniture, walls, partitions or fl ammable products/materials (upholstery, paper, cardboard, etc.).

• You can also connect other "multiplug" appliances to your raclette machine (for example: dish warmer, mobile phone, etc. as well as other products equipped with the "multiplug" system). Make sure that the total power of the appliances (sum of the powers of all the appliances connected to each other) does not exceed 1920 W.
• So convenient! You can switch off one appliance, and the others will continue to operate.

Important!

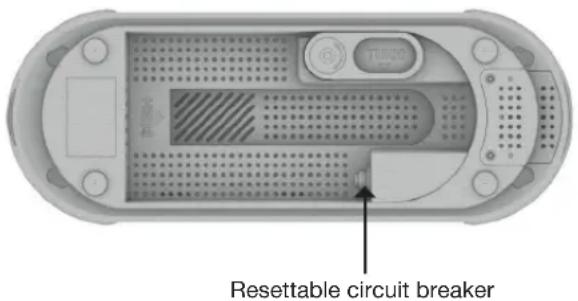

• If you connect appliances together with a combined power of over 1920 W, the electrical circuit will cut out. There is a resettable circuit breaker under the appliance to protect your home from any current overload.
• If you do not follow the safety instructions and the total power of all the items connected to each other exceeds 1920 W, the circuit breaker will cut out. Unplug the appliance causing the overload (above 1920 W), or wait for the appliances to cool down (at least 30 minutes) and re-arm the resettable circuit breaker by pressing the push button located underneath your product (see diagram below).

Resettable circuit breaker

practical tips for use

• To protect the non-stick coating on the griddle plate (1) and pans (7) and to avoid any scratching, we recommend the use of suitable utensils (in wood or heat-resistant plastic). The use of metal utensils should be avoided. If the plate or pans are scratched, stop using them and replace them. You can get them from your retailer or their after-sales service.
• We recommend that you do not put wet food on the griddle plate (1). Wipe meats and fish thoroughly before cooking.
• Meat, fi sh, etc. cut into small pieces will cook more quickly and better than large pieces.
• Never place frozen food on the griddle plate (1) as this may cause a thermal shock.
• Do not prick the meat with a fork or cut it while it is cooking. This will cause the juices to escape, making the meat tough.
• When cooking, if any small bits of food come off and get stuck to the griddle plate (1), they should be removed immediately.
• After cooking fish or seafood, wipe the griddle plate (1) with lemon juice so that future dishes are not affected by the taste.

EN

cleaning and maintenance

Important!

• After each use, turn the on/off switch (4) to the "0" position (off) and unplug the appliance from the power outlet. Leave the different parts to cool down before cleaning.
• Never use scouring powder or an abrasive sponge or pad for cleaning the griddle plate (1), spatulas (8), pans (7), or the aluminium and plastic surfaces. Do not immerse the appliance in water or any other liquid.

Pans, spatulas and plate

1. Lift the griddle plate (1) from the appliance to remove it.
2. Clean the raclette pans (7), spatulas (8) and griddle plate (1) with a non-abrasive sponge and a mild detergent (such as washing up liquid).
3. Rinse everything in clean water and dry using a soft cloth.
4. Put the griddle plate (1) back over the heating element, making sure that it is sitting correctly on the 4 pads provided for this purpose.

• The griddle plate and raclette pans can be placed in the dishwasher.
  • Other parts should be cleaned by hand.

Aluminium surfaces and plastic base

You can wipe the aluminium surfaces and the plastic base using a soft sponge dipped in a little soapy water. Then dry with a soft cloth.

Be careful not to let any water get inside the appliance. Do not spray the appliance with anything. If water has somehow managed to get inside, allow the appliance to dry completely before using it again.

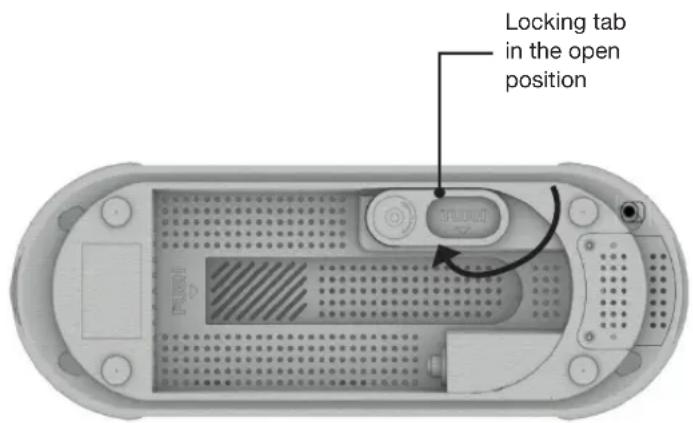

Storing the spatulas and pans

Store the spatulas and pans in the locations provided for this purpose under the appliance, as shown in the diagram below:

Locking tab in the open position

1. Rotate the locking tab to the open position.
2. Place the spatulas in the central compartment provided for this purpose.
3. Place the pans in their compartment with the bottoms of the pans facing up.
4. Rotate the locking tab to the closed position. It should overlap the backs of the pans.

Ihr Produkt

Verpackungsinhalt

• 1 Raclette-Gerät

• 1 Stromkabel

• 1 Kochplatte

• 2 Pfännchen

• 2 Holzspatel

Technical line drawing of a device housing with internal components and a red directional arrow indicating movement (no text or symbols)

Technical line drawing of a device casing with internal compartments and a red arrow indicating direction (no text or symbols)

Line drawing of a microwave oven with handle and lid (no text or symbols)

Kochplatte

Technical line drawing of a mechanical housing or enclosure with internal components and a red directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and a red arrow indicating direction (no text or symbols present)

Line drawing of a microwave oven with handle and lid (no text or symbols)

Bakplaat

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Umweltschutz

Garantie® 2 ans/years Warranty*

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

\* In unseren Labors getestet

Symbolic image showing a crossed-out recycling bin and a stylized 'CE' with a minus sign, likely representing a license or certification.

FR RECO

essentiel b

SERVICE RELATION CLIENTS / Customer Relations Department / Kundenservice / Klantenafdeling

Avenue de la Motte CS 80137 59811 Lesquin cedex [e-mail]

Art. 8011711 / 8011712 Ref. ERMD4 Multiplug Noire / ERMD4 Multiplug Verte

FABRIQUÉ EN R.P.C. / Made in China / Hergestellt in VR China / Gefabriceerd in VRC.

SOURCING & CREATION Avenue de la Motte 59810 Lesquin - FRANCE
