USER MANUAL H-2608 Uline

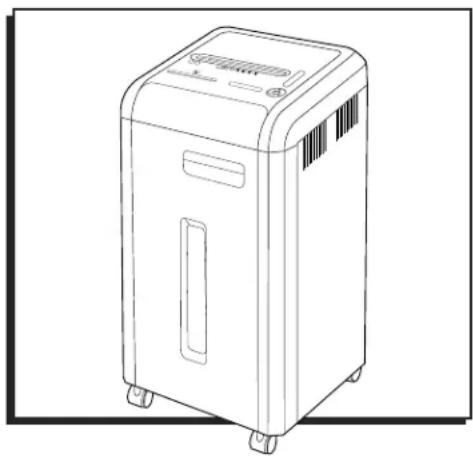

Line drawing of a portable air purifier with control panel and wheels (no text or symbols)

NOTE: Read these instructions before use.

Do not discard. Keep for future reference.

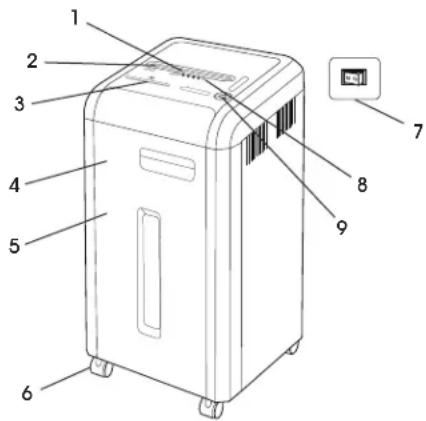

PARTS

Diagram of a portable air purifier with numbered parts labeled for identification.

REF.	DESCRIPTION
1	SafeSense® Technology
2 Paper/card entry
3 CD entry
4 Door
5 Basket
6 Casters
7 Disconnect power switch
8 See safety instructions
9 Control Panel and LEDs

CAPABILITIES

Will shred paper, plastic credit cards, CD/DVDs, staples and small paper clips.

Will not shred adhesive labels, continuous form paper, transparencies, newspaper, cardboard, large paper clips, laminates, file folders, X-rays or plastic other than noted above.

Paper Shred Size

Cross-Cut - 5/32 x 1 ^1/2 "

Maximum

• Sheets per pass – 22*
  • CDs/cards per pass – 1*
• Paper entry width - 9 12

*8½ x 11", 20 lb., paper at 120V, 60 Hz, 8 Amps; heavier paper, humidity or other than rated voltage may reduce capacity.

Maximum recommended daily usage rates:

5,000 sheets, 200 credit cards, 10 CDs.

Fellowes SafeSense ^® shredders are designed to operate in home and office environments ranging between 50-80°F and at 40-80% relative humidity.

SAFETY

• Operation, maintenance and service requirements are covered in these instructions. Read completely before operating shredder.
• Keep away from children and pets. Keep hands away from paper entry. Always set to OFF (O) or unplug when not in use.
• Keep foreign objects – gloves, jewelry, clothing, hair, etc. – away from shredder openings. If object enters top opening, switch to Reverse (40p back out object.
• Never use aerosol products, petroleum-based or aerosol lubricants on or near shredder. Do not use canned air or air dusters on shredder. Vapors from propellants and petroleum-based lubricants may combust causing serious injury.

• Do not use if damaged or defective. Do not disassemble shredder. Do not place near or over heat source or water.

• This shredder has a disconnect power switch that must be in the ON (I) position to operate the shredder. In case of emergency, move switch to OFF (O) position. This action will stop shredder immediately.

• Avoid touching exposed cutting blades under shredder head.
• Shredder must be plugged into a properly grounded wall outlet of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers or extension cords should not be used with this product.
• Fire hazard – do not shred greeting cards with sound chips or batteries.
• For indoor use only.
• Unplug shredder before cleaning or servicing.

OPERATING INSTRUCTIONS

Simple line drawing of a box with 'O' and 'I' markings, no text or symbols present

1. Plug in and put disconnect power switch in ON (I) position.

AUTO

1. Press ON ( ) to activate (blue).

Diagram showing a hand inserting a card into a ballot box with an arrow indicating the process.

1. Feed paper straight into paper entry and release.

Line drawing of a hand using a CD to transfer a CD into a paper filter (no text or symbols)

1. To shred CDs or credit cards, rotate safety flap into place.

AUTO

1. Hold card/CD at edge. Feed into center of entry and release.

Line drawing of a handheld electronic device with a control panel and indicator lights (no text or symbols)

1. When finished shredding, set to OFF ( position.

PRODUCT FEATURES

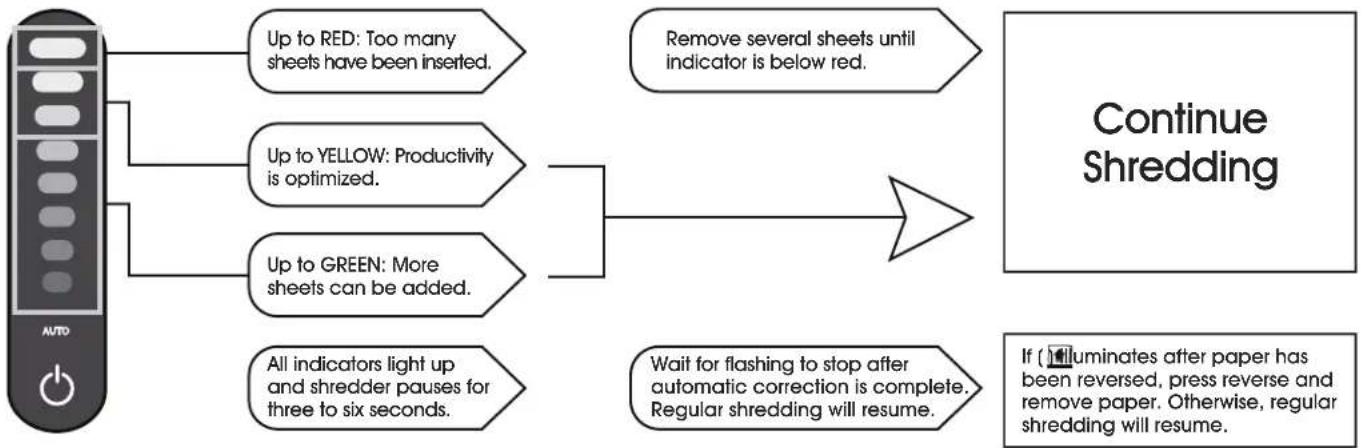

JAM-PROOF SYSTEM

Jam-proof system eliminates paper jams and powers through tough jobs.

Advanced jam prevention electronically measures paper thickness to prevent paper jams:

Continue Shredding

If (luminates after paper has been reversed, press reverse and remove paper. Otherwise, regular shredding will resume.

SAFESENSE® TECHNOLOGY

SafeSense ^® technology stops shredding immediately when hands touch the paper opening.

AUTO

1. Turn the shredder ON ( to activate SafeSense ^® .

Illustration showing a hand pressing down on a paper with visible text and symbols

1. Touch test area and look for the SafeSense® indicator to illuminate.

Line drawing of a hand pressing down on a document with a circular emblem containing the text (no readable symbols or numbers)

1. SafeSense ^® is active and working properly.

Line drawing of a hand pressing down on a paper with visible text and symbols

1. If hand is held on SafeSense® area more than three seconds, shredder will shut o

ENERGY SAVINGS SYSTEM

Optimal energy efficiency 100% of the time – in use and out of use.

• Saves energy in four ways: energy efficient electronics, jam prevention, standby mode and sleep mode.
• Sleep Mode shuts down shredder after two minutes of inactivity.

Line drawing of a mechanical device with no visible text or symbols

1. In sleep mode.

AUTO

1. To exit sleep mode, touch control panel.

Diagram showing a hand inserting a document into a maillet, with an arrow indicating the process.

1. Insert paper.

MAINTENANCE

OILING SHREDDER

All cross-cut shredders require oil for peak performance. If not oiled, a machine may experience diminished sheet capacity, intrusive noise when shredding and could ultimately stop running. To avoid these problems, we recommend oiling shredder each time user empties waste bin.

CAUTION! Use only a non-aerosol vegetable oil in long nozzle container, such as S-16094.

Follow oiling procedures below and repeat twice.

Diagram showing a device with a pointer and an arrow indicating direction, possibly illustrating a process or operation.

1. Apply oil across entry.

AUTO

1. Press and hold Forward ( )▶ for two to three seconds.

CLEANING AUTO-START INFRARED SENSORS

Paper detection sensors are for maintenance-free operation. However, on rare occasions the sensors may become blocked by paper dust, causing the motor to run even when there is no paper present.

NOTE: Two paper detection sensors are located in the center of the paper entry.

AUTO

1. Turn off and unplug shredder.

Line drawing of a mechanical component with no visible text or symbols

1. Locate auto-start infrared sensor.

Simple line drawing of a pair of cotton bolls (no text or symbols)

1. Dip cotton swab in rubbing alcohol.

Diagram showing a hand using a pen to write on a document with visible text and symbols

1. Using cotton swab, wipe away any contamination from the paper sensors.

TROUBLESHOOTING

OPERATING ISSUE RECOMMENDATIONS
Overheat Indicator	When the Overheat Indicator is illuminated:1. Allow the shredder to cool down.2. Resume shredding once the Overheat Indicator is no longer illuminated.
Bin Open	When Bin Open is illuminated:1. Close the bin.2. Resume shredding.
Bin Full	When Bin Full is illuminated:1. Empty the bin.2. Resume shredding.

TROUBLESHOOTING CONTINUED

OPERATING ISSUE RECOMMENDATIONS
Remove Paper	When Remove Paper is illuminated:1. Press the Reverse button (and remove the paper.2. Reduce paper quantity to an acceptable amount and refeed into paper entry.
SafeSense® Indicator	When SafeSense® Indicator is illuminated:1. Remove hands from proximity of the paper entry. NOTE: If illuminated for more than 3 seconds, the shredder will automatically turn off. In this case, press the power button on the control panel to resume shredding.

Line drawing of a portable air purifier with control panel and wheels (no text or symbols)

Diagram of a portable air purifier with numbered parts labeled for identification.

Simple line drawing of a box with 'O' and 'I' markings, no text or symbols present

Diagram showing a hand placing a ballot into a ballot box with an arrow indicating the action.

Line drawing of a hand using a CD to clean a CD inside a machine (no text or symbols)

Line drawing of a portable air conditioner unit with control panel and indicator lights (no text or symbols)

TECNOLOGÍA SAFESENSE®

Line drawing of a hand inserting a card into a trash bin (no text or symbols)

Diagram showing a hand pressing a safety note with a magnified circular label displaying 'SAFE NOT' and a shield icon.

Line drawing of a hand pressing down on a paper airplane (no text or symbols visible)

Line drawing of a closed door with lid and base (no text or symbols)

1. En modo de reposo.

AUTO

Diagram showing a hand inserting a document into a ballot box, with an arrow indicating the process.

1. Inserte el papel.

MANTENIMIENTO

ACEITAR LA TRITURADORA

Diagram showing a mechanical device with a lever and directional arrow, likely illustrating a motion or force system.

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a pair of cotton bolls (no text or symbols)

Diagram showing a hand using a tool to write or print a document with visible text and symbols

Line drawing of a portable air purifier with control panel and wheels (no text or symbols)

Diagram of a portable air purifier with numbered parts labeled for identification.

Simple line drawing of a box with 'O I' on its front face, no text or symbols present

Diagram showing a hand inserting a document into a ballot box with an arrow indicating the process.

Line drawing of a hand using a CD to transfer a CD into a paper filter (no text or symbols)

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

Illustration of a hand pressing down on a paper airplane (no text or symbols visible)

Line drawing of a hand pressing down on a paper filter (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Diagram showing a hand inserting a document into a machine, with an arrow indicating the process.

1. Insérez le papier.

ENTRETIEN

HUILAGE DE LA DÉCHIQUETEUSE

Diagram showing a mechanical or electrical component with an arrow indicating direction, possibly illustrating a process or operation.

Line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a pair of cotton bolls (no text or symbols)

Diagram showing a hand using a tool to write or print text on a device screen, with Chinese characters and symbols.
