USER MANUAL PureSpa PSW-75 Brondell

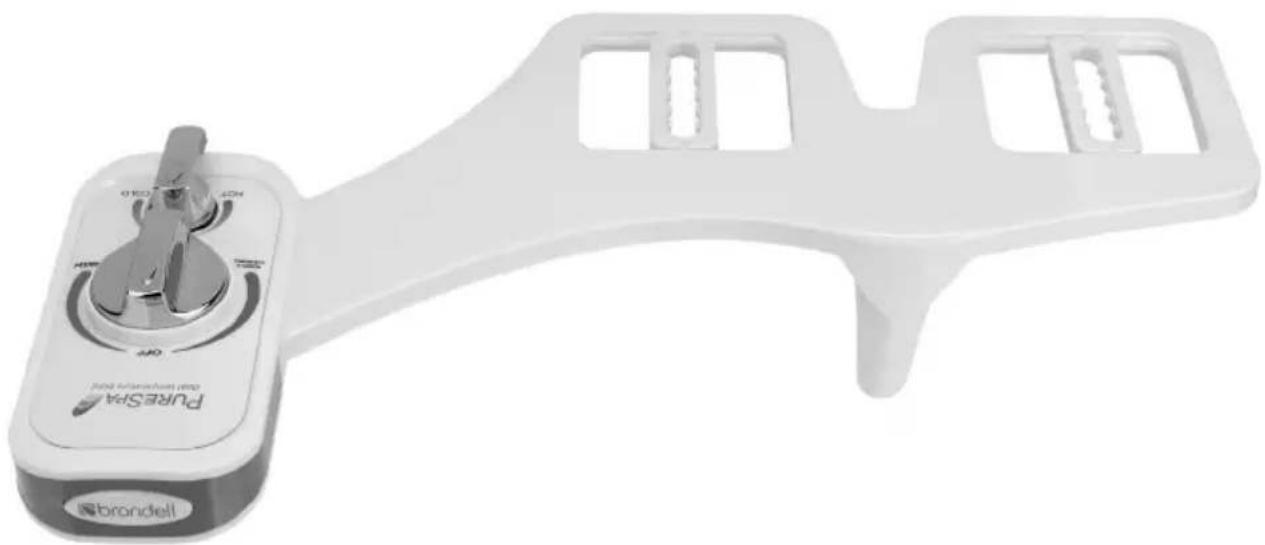

PSW-75 Bidet Attachment

White medical device with a rotary switch and connector, labeled 'Pureresia' and 'brondell', no visible text or symbols on the device itself.

CONTENTS

Product Features .... Page 3

Parts List....Page 4

Product Specs....Page 5

Installation....Page 6

Operation.... Page 13

Maintenance....Page 14

Warranty.....Page 15

Contact..... Page 16

Spanish Version....Page 17

French Version....Page 34

PRODUCT FEATURES

• High-quality ABS material with full body panel
• Hygienic retractable nozzle
- Self-cleaning nozzle feature
- Warm and cool water bidet washes
- Positionable nozzle
- Adjustable water pressure
- Adjustable water temperature
- Ceramic core internal valve with patented uni-body construction for safety
• High-quality metal 7/8" and 3/8" T-valves
• Durable braided metal cold water hose
• High temperature durable hot water flex tubing
• No electricity or batteries required
- Easy installation and adjustable toilet fit
- All accessories included for standard installation
• One-year warranty

PARTS LIST

WHAT'S IN THE BOX?

Line drawing of a mechanical clamp or bracket component (no text or symbols)

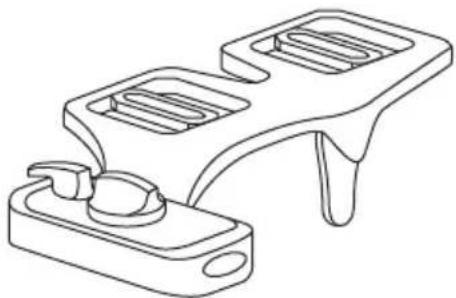

Bidet Attachment with turn dial controls and adjustable brackets

Technical line drawing of a mechanical valve or fitting with threaded ports and a flanged end (no text or symbols)

Cold water T-Valve Connector

$$ \left(7 / 8 ^ {\prime \prime} \times 7 / 8 ^ {\prime \prime} \times 3 / 8 ^ {\prime \prime}\right) $$

Technical line drawing of a mechanical connector assembly (no text or symbols)

Hot water T-Valve with 14 " Pressure Connector & Pressure Cap

$$ \left(\frac {3}{8} \text { " } \times \frac {3}{8}\right) $$

Hot water tubing Pressure Connector with Pressure Cap

Line drawing of a U-shaped pipe with mesh texture (no text or symbols)

25" cold water braided metal hose

Large rubber washer (2)

Small rubber washer (2)

brondell® PURE SPA dual temperature heater CHEMISTRY MANUAL PUZI BANAL ELECTRICUM

Owner manual

Simple line drawing of a coiled spring or coil (no text or symbols)

1/4 " Hot water flex tubing

Hot water supply cap

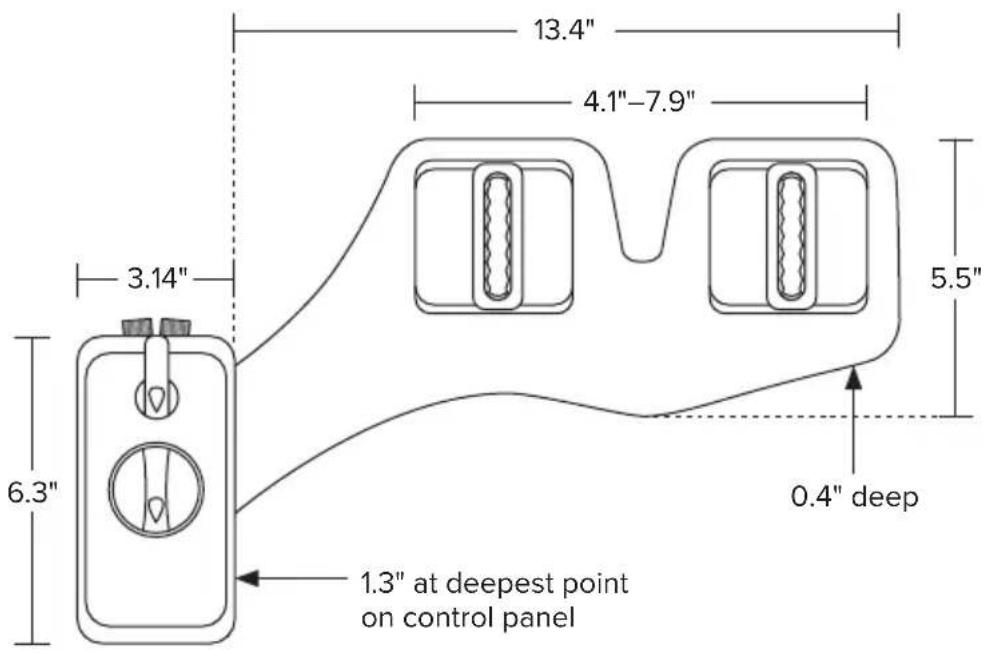

PRODUCT SPECS

13.4" 4.1"-7.9" 3.14" 6.3" 5.5" 0.4" deep 1.3" at deepest point on control panel

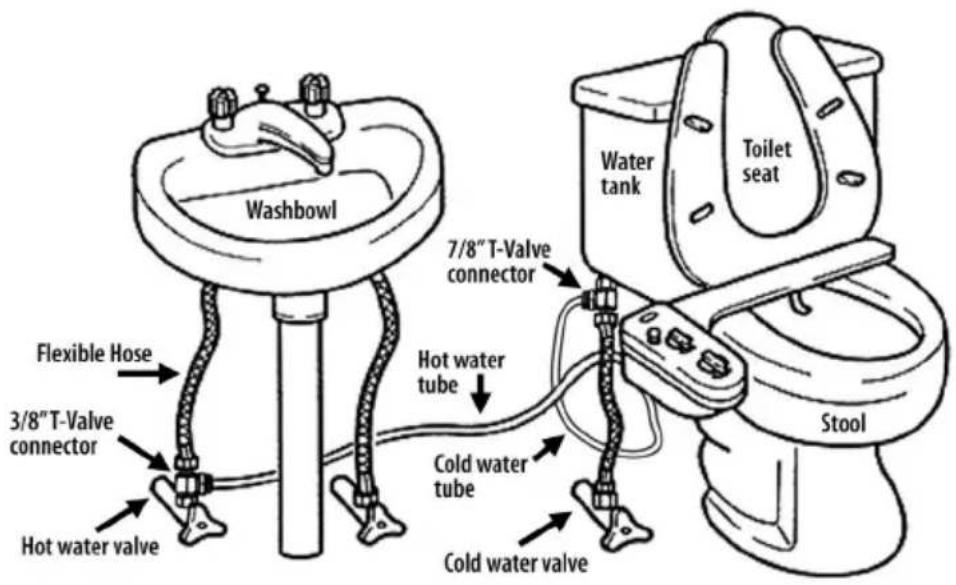

PRODUCT CONFIGURATION

Washbowl Flexible Hose 3/8" T-Valve connector Hot water valve 7/8" T-Valve connector Hot water tube Cold water tube Cold water valve Water tank Toilet seat Stool

Fully installed view with both HOT and COLD water connections

INSTALLATION

IMPORTANT

Please be advised that the provided Cold Water T-Valve should be installed at the Fill Valve under the toilet tank, and NOT at the cold water supply coming from the wall.

Note: the Hot Water T-Valve will be installed at your hot water supply under your bathroom sink.

If you do not have access to the Fill Valve under the toilet tank, contact Brondell Customer Service at 888.542.3355. We may be able to guide you through the process.

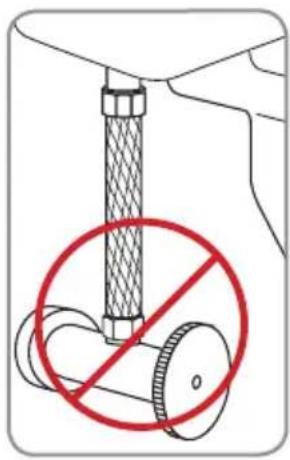

Diagram showing a mechanical assembly with a red prohibition symbol indicating no movement or force.

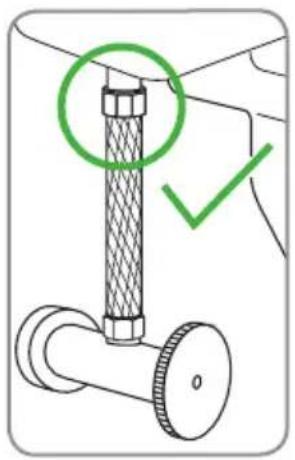

Diagram of a pipe fitting with a green circular annotation highlighting a bolted joint (no text or symbols present)

BEFORE INSTALLATION

Check the size of the hot water supply connection (most likely under the sink/wash basin). This needs to be a 38 " connection for our T-valve to install.

Note: if the connection is a 12 ” connection, you will need to purchase the following reducing adapter available online and at many plumbing hardware stores:

Reducing Adapter, 12 " Female NPT x 38 " Male Compression.

Check Water Supply Line

Check the water supply line that connects the toilet tank fill valve to the water shutoff valve at the wall. If it is a rigid pipe, you will need to purchase a flexible water supply hose to replace it before installing the PureSpa. The length of the hose may vary and the top connection size should be 7/8" Ballcock to connect to the T-valve that you will install under the toilet tank and the bottom connection will vary (most common are 3/8" and 1/2" female compression).

INSTALLATION (cont.)

CONNECTING THE COLD WATER SUPPLY

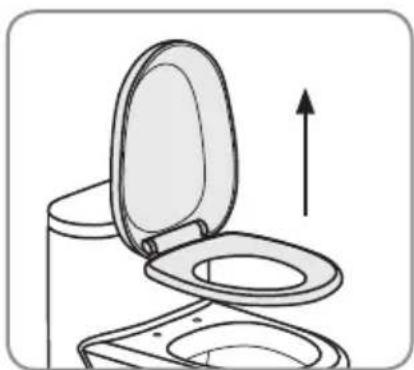

1. Remove existing toilet seat

a. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat, mounting bolts and hardware aside.

Line drawing of a toilet with an open lid and upward arrow indicating motion (no text or symbols)

Step 1b

1. Turn off water supply valve and flush toilet

a. Turn off water supply at the wall to stop flow of water.
b. Flush toilet and hold down handle to completely empty toilet tank.
c. Disconnect water supply hose from the fill valve under the toilet tank.

Diagram of a pipe fitting with a valve and rotating arrow (no text or symbols)

Step 2c

1. Connect 7/8" T-Valve to Water Supply Line and Fill Valve Under Toilet Tank.

a. Install the 7/8" T-valve with one or both of the large rubber washers to the incoming water connection on the bottom of your toilet tank.

Mechanical component diagram showing a valve assembly with a curved arrow indicating rotation (no text or symbols)

Step 3a

b. Connect the cold water supply line coming from the wall to the bottom of the T-valve.

Diagram of a mechanical valve assembly with a rotating arrow indicating rotation (no text or symbols)

Step 3b

CONNECTING THE COLD WATER SUPPLY (cont.)

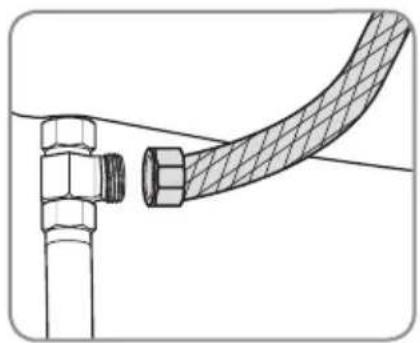

1. Connect Bidet Hose to T-Valve

a. Connect one end of the braided metal cold water bidet hose to the remaining open side of the installed T-valve.

Technical illustration of a pipe fitting with a meshed cable (no text or symbols)

Step 4a

IMPORTANT

If you are only connecting the cold water supply, you must install the Hot Water Supply Cap (provided - see Page 3) over the hot water connection on your PureSpa (see diagram).

Failure to connect or cap the hot water supply will result in leaking during use.

After installing hot water cap, proceed to "Installing the Bidet Attachment" on Page 10.

If you wish to also connect your hot water supply, then proceed to "Connecting the Hot Water Supply" on Page 9.

HOT COLD TEMP WASH MOZZA CLINNAR

INSTALLATION (cont.)

CONNECTING THE HOT WATER SUPPLY

1. Connect the hot water supply

a. Locate the hot water supply line in your bathroom under your sink/washbasin and turn the water supply valve all the way off.

b. Drain the hot water line by turning on the sink tap on the hot setting until no more water comes out.

c. Disconnect hot water supply hose to sink from shut off valve. You may have to use a 3/8" compatible wrench or a similar tool (not supplied).

Note: there may be some residual water in the hose, use a small container or towel to catch any residual water.

Diagram of a valve assembly with a rotating knob and base, no text or symbols present

Step 1c

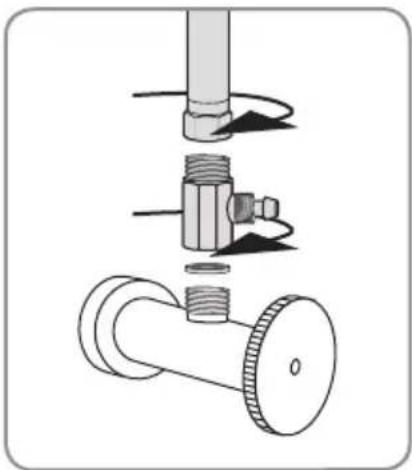

1. Install the Hot Water 38 " T-valve and the small rubber washers as needed onto the hot water shut off valve under the sink.

2. Reconnect hot water supply line to open end (top) of T-valve.

Technical illustration of a valve assembly with threaded components and a valve (no text or symbols)

Steps 2 and 3

1. If it hasn't been removed already, unscrew the Pressure Cap covering the Pressure Connector.

a. Slide the Pressure Cap over the open end of the of Hot Water Flex Tubing with the inside threads facing towards the open end.

Pure technical diagram of a mechanical connector or fitting (no text or symbols)

Step 4a

CONNECTING THE HOT WATER SUPPLY (cont.)

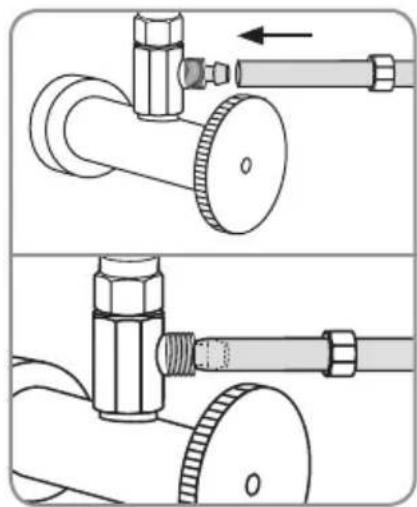

b. Push the Hot Water Flex Tubing over the Pressure Connector.

IMPORTANT: Be sure to slide the Hot Water Flex Tubing over the Pressure Connector until the tubing slides past the "lip" of the pressure connector and it cannot go any further.

Technical illustration showing two mechanical assembly steps with no visible text or symbols

Step 4b

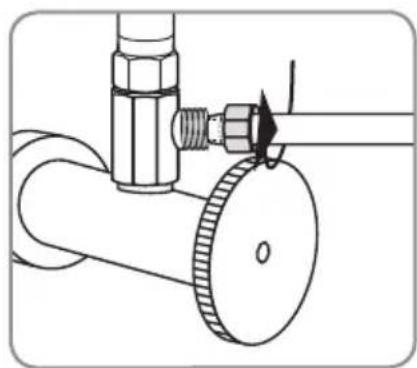

c. Slide the Pressure Cap down until the cap meets the Pressure Connector. Screw the Cap onto the T-Valve until secure and tight.

Caution: Do not over-tighten the Pressure Cap. You will risk damaging the tubing.

Technical line drawing of a mechanical valve assembly with a flanged shaft and threaded fitting (no text or symbols)

Step 4c

INSTALLING THE BIDET ATTACHMENT

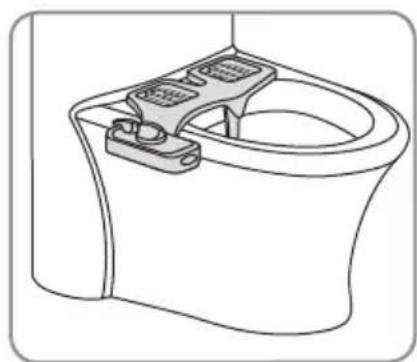

1. Install Bidet Attachment on Toilet

a. Place bidet attachment on the toilet so the nozzle is as close to the back of the toilet bowl as it will go. This will vary by toilet.

Line drawing of a toilet sink with handle and seat (no text or symbols)

Step 1a

INSTALLATION (cont.)

INSTALLING THE BIDET ATTACHMENT (cont.)

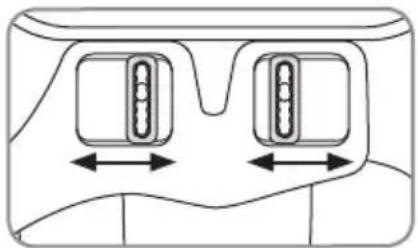

b. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to move the adjustable brackets accordingly to line up properly.

Diagram of a device with two ports and bidirectional arrows indicating movement or flow (no text or symbols)

Step 1b

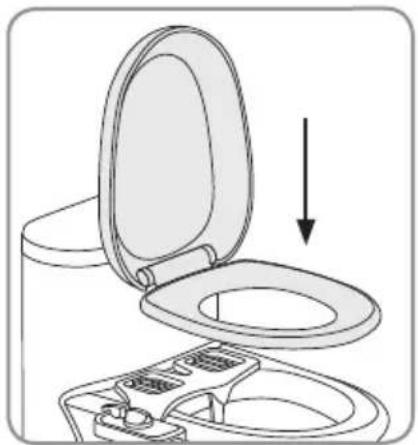

c. Replace the toilet seat on top of bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.

Diagram of a toilet with an open lid and internal compartments, showing a downward arrow indicating a process (no text or symbols present)

Step 1c

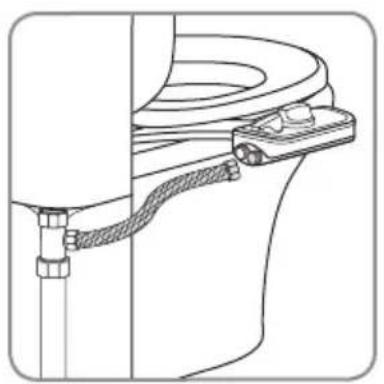

1. Connect Cold Water Bidet Hose to Bidet Attachment

a. Connect the open end of bidet hose to the Cold connection on the back of the bidet attachment.

Technical line drawing of a toilet with a pipe fitting and handle (no text or symbols)

HOT COLD TEMP

Step 2a

Note: If you have already installed the Hot Water Supply Cap over the hot water supply on your PureSpa, Skip to Step 3 on Page 12. Otherwise continue with the installation at the top of Page 12.

INSTALLING THE BIDET ATTACHMENT (cont.)

b. Slide the Pressure Cap over the open end of the of Hot Water Flex Tubing with the inside threads facing towards the open end.

Technical line drawing of a hexagonal bolt head with a cylindrical shaft (no text or symbols)

Step 2b

c. Push the Pressure Connector into the open end of the of Hot Water Flex Tubing with the washer facing out.

IMPORTANT: Be sure to slide the Hot Water Flex Tubing over the Pressure Connector until the tubing slides past the "lip" of the pressure connector and it cannot go any further.

Technical line drawing of a mechanical component with hexagonal flanges and a central threaded section (no text or symbols)

Step 2c

d. Hold the Pressure Connector up against the hot water inlet on the bidet attachment. Slide the Pressure Cap along the tubing and screw the Cap onto the hot water inlet until the Pressure Connector is secure.

HOT COLD

Step 2d

1. Turn on Water Supply & Check for Leaks

a. Open the main water supply valve slowly and check for leaks.
b. Wait 5-10 minutes, check again and if there are no leaks continue.

Note: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use plumbers tape for any leaking connections.

OPERATION

USING THE PURESPA

If only connected to cold water, make sure that the temperature dial on the bidet attachment is turned as far as it can go towards “COLD” setting for best pressure adjustability.

To adjust water temperature (when both hot and cold water are connected), turn temperature dial slowly towards "HOT" until the desired temperature is reached.

Note: There may be a delay in the warm water reaching the bidet attachment as the cold water in your pipes clears and is replaced with hot water (similar to the delay when you turn your faucet on).

Tip: For a quick and easy way to get warm water to the bidet, run the "Nozzle Cleaning" function with the warm water turned on for a short time until the water heats up, then use as normal.

For the general bidet wash function, turn the dial towards the "Wash" position.

- The further the dial is turned, the higher the water pressure will be.

• To lower the water pressure, turn the nozzle back towards the center.

To clean the bidet nozzle, turn the control dial towards the "Nozzle Cleaning" position and water should wash over the nozzle.

WARNING: Risk of scalding. High water temperature can cause severe burns. Be sure to set the water temperature for your hot water heater at or below 120^ F ( 49^ C) and use extreme caution when mixing hot and cold water during use. Brondell is not liable for any misuse of product or failure to use caution when connecting to hot water.

NOZZLE POSITIONING

The nozzle can be easily adjusted by gently pulling the end of the nozzle forward or backwards. Once desired position is set, the nozzle will remain in that position until manually moved.

Circular grayscale illustration of a person standing on a aircraft wing with directional arrows indicating rotation (no text or symbols)

MAINTENANCE

To clean the nozzle, gently pull down on the head of the nozzle, and use a toothbrush or soft cloth and mild detergent (such as dish soap). You may also unscrew the nozzle tip cap for a more thorough cleaning or use a toothpick if any nozzle holes are plugged with hard water buildup. When cleaning, be careful not to drop or flush the nozzle cap.

To clean the bidet, use a mild cleaner such as Simple Green or Windex spray to clean the PureSpa. Do not scrub or use harsh, abrasive products to clean the PureSpa, which may scratch the product.

SHORT TERM NON-USE

If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall for extra precaution.

WARRANTY

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

PureSpa PSW-75 Residential One-Year Limited Warranty

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

PureSpa PSW-75 Commercial Warranty

Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first three years from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

4. Damage or loss which occurs during shipment.

5. Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
6. Damage or loss resulting from sediments or foreign matter contained in a water system.
7. Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.
8. Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products

9. Damage or loss resulting from electrical surges, electrical outages, lightning strikes, or other acts which are not the fault of Brondell or which the Product is not specified to tolerate.

10. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit prepaid to the closest Brondell authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355.

brondell®

a healthy home experience

CONTACT:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com

For questions, contact Brondell Customer Service: 1-888-542-3355

MANUFACTURED BY:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Please retain receipt records for any warranty claims.

PURESPA dual temperature bidet

MANUAL DEL USUARIO

White medical device with a handle and control knob, no visible text or symbols on the device itself.

ÍNDICE

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical line drawing of a mechanical fitting with threaded end and hexagonal top (no text or symbols)

Technical line drawing of a mechanical connector with threaded shaft and threaded fitting (no text or symbols)

Line drawing of a U-shaped pipe with mesh pattern (no text or symbols)

Simple line drawing of a coiled spring or rope with a small looped end (no text or symbols)

Diagram showing a mechanical assembly with a red prohibition symbol over a gear mechanism, indicating no movement or force.

Technical diagram showing a pipe fitting with a green circle highlighting a component and a green checkmark indicating inspection.

Line drawing of a toilet with an open lid and upward arrow indicating motion (no text or symbols)

Etapa 1b

Diagram of a pipe fitting with a rotating valve, showing no text or symbols

Etapa 2c

Diagram of a mechanical valve assembly with a curved line and directional arrow (no text or symbols)

Etapa 3a

Diagram of a valve assembly with a rotating arrow indicating rotation (no text or symbols)

Etapa 3b

INSTALACIÓN (cont.)

Technical illustration of a pipe fitting with a mesh cable (no text or symbols)

Etapa 4a

IMPORTANTE

Diagram of a pipe fitting with a valve and screw, showing rotational motion (no text or symbols)

Etapa 1c

Technical illustration of a mechanical assembly with threaded components and a pipe fitting (no text or symbols)

Etapas 2 y 3

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Etapa 4a

INSTALACIÓN (cont.)

Technical illustration showing two mechanical assembly steps with no visible text or symbols

Etapa 4b

Technical line drawing of a mechanical valve assembly with a flanged base and adjustment knob (no text or symbols)

Etapa 4c

INSTALAR EL ACCESORIO BIDÉ

Line drawing of a toilet with handle and seat (no text or symbols)

Etapa 1a

INSTALAR EL ACCESORIO BIDÉ (cont.)

Diagram of a device with two ports and bidirectional arrows indicating movement or force (no text or symbols)

Etapa 1b

Diagram of a toilet with an open lid and internal compartments, showing a downward arrow indicating a process (no text or symbols present)

Etapa 1c

Technical line drawing of a toilet with attached pipe fitting (no text or symbols)

HOT COLD TWP

Etapa 2a

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Etapa 2b

Technical line drawing of a mechanical component with hexagonal flanges and a central threaded section (no text or symbols)

Etapa 2c

Circular diagram showing a person in uniform standing on an aircraft wing with directional arrows indicating motion (no text or symbols)

MANTENIMIENTO

a healthy home experience

CONTACTAR:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com

White medical device with a rotary switch and connector, no visible text or symbols on the device itself.

TABLE DES MATIÈRES

Installation....Page 40

CARACTÉRISTIQUES DU PRODUIT

Line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical line drawing of a mechanical fitting with threaded end and hexagonal top (no text or symbols)

Technical line drawing of a mechanical connector assembly (no text or symbols)

Line drawing of a U-shaped pipe with mesh pattern (no text or symbols)

Simple line drawing of a coiled spring or rope (no text or symbols)

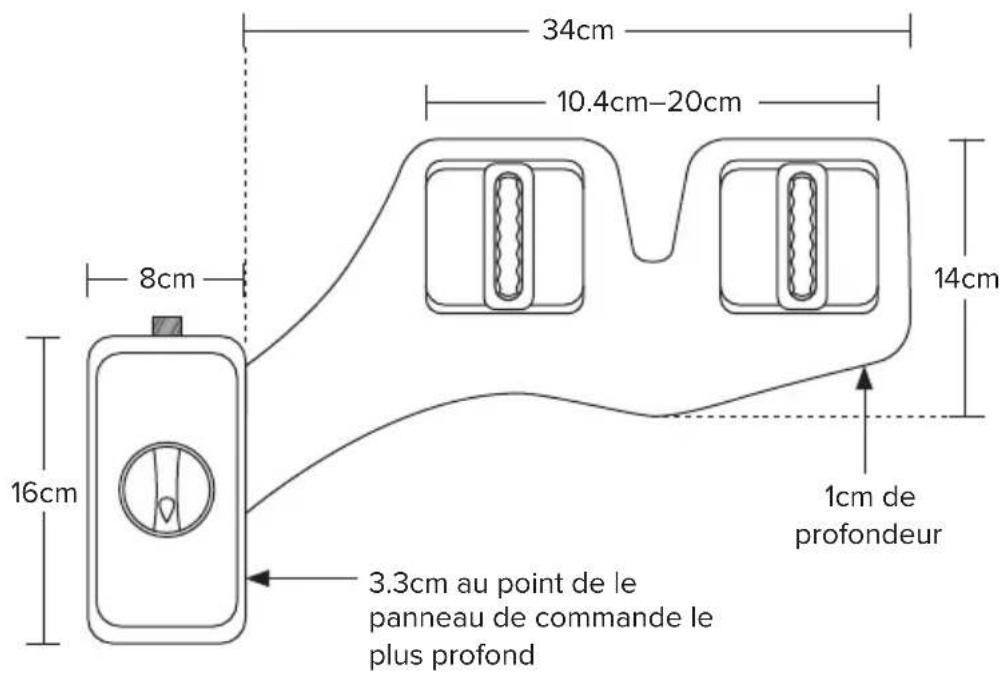

SPÉCIFICATIONS DU PRODUIT

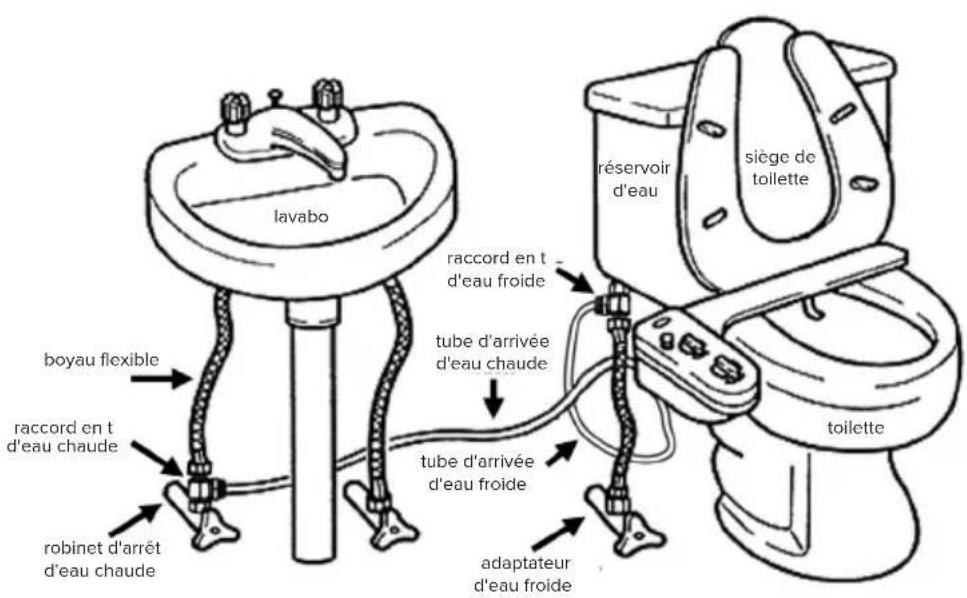

CONFIGURATION DU PRODUIT

Diagram showing a mechanical assembly with a red prohibition symbol indicating no movement or force.

Diagram of a pipe fitting with a green circular annotation highlighting a bolted joint (no text or symbols present)

AVANT L'INSTALLATION

Line drawing of a toilet with an open lid and upward arrow indicating motion (no text or symbols)

Étape 1b

Diagram of a pipe fitting with a valve and rotating arrow (no text or symbols)

Étape 2c

Mechanical component diagram showing a threaded fitting with a curved arrow indicating rotation (no text or symbols)

Étape 3a

Diagram of a mechanical valve assembly with a rotating arrow indicating motion (no text or symbols)

Étape 3b

CONNECTER L'ALIMENTATION DE L'EAU FROIDE (suite)

Technical diagram of a pipe fitting with a meshed cable wrapped around it (no text or symbols)

Étape 4a

IMPORTANT

Diagram of a valve assembly with a rotating knob and base, no text or symbols present

Étape 1c

Technical illustration of a valve assembly with threaded components and a valve (no text or symbols)

Étape 2 et 3

Pure technical diagram of a mechanical connector or fitting (no text or symbols)

Étape 4a

CONNECTER L'ALIMENTATION DE L'EAU CHAUDE (suite)

Technical illustration of a mechanical valve assembly with two views (top and bottom) showing pipe connection details (no text or symbols)

Étape 4b

Technical line drawing of a mechanical valve assembly with a rotating shaft and flange (no text or symbols)

Étape 4c

INSTALLATION DE ACCESSOIRE BIDET

Line drawing of a toilet sink with handle and vent slots (no text or symbols)

Étape 1a

INSTALLATION (suite)

INSTALLATION DE ACCESSOIRE BIDET (suite)

Diagram of a device with two ports and bidirectional arrows indicating movement or flow (no text or symbols)

Étape 1b

Line drawing of a toilet with open lid and internal compartments (no text or symbols)

Étape 1c

Technical line drawing of a toilet sink with pipe fitting and handle (no text or symbols)

HOT COLD TEMP

Étape 2a

Technical line drawing of a hexagonal bolt head with a cylindrical shaft (no text or symbols)

Étape 2b

Technical line drawing of a mechanical component with hexagonal flanges and a central threaded section (no text or symbols)

Étape 2c

PLACEMENT DE LA BUSE

Circular diagram showing a person standing on a aircraft wing with directional arrows indicating rotation (no text or symbols)

ENTRETIEN

Exclusions and Limitations

a healthy home experience

COORDONNÉES:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com
