USER MANUAL FreshSpa Thinline FSP-150 Brondell

Thinline Precision Essential Bidet Attachment with Single Nozzle FSP-150

Line drawing of a handheld electronic device with two circular ports and a central port (no text or symbols)

Attach proof of purchase to this page.

Read this Owner's Manual for correct installation, use and maintenance of this product. After reading and completing installation, keep this manual in a place that is easily accessible.

Product information

2 Product features
3 Product components
4 Product dimensions

Product installation

5 Before installation
5 Installing the bidet attachment

Product information

9 Using The FreshSpa

Maintenance

9 Cleaning the FreshSpa
9 Short term non-use

Technical information

10 Product specifications
11 Warranty
12 Contact

Translations

13 Spanish
25 French

Product features

• high-quality ABS material with full body panel
• hygienic retractable nozzle
• self-cleaning nozzle feature
- ambient temperature bidet wash
- precision adjustable water pressure
• ceramic-core internal valve
• high-quality metal 78 " T-valve
• durable braided metal cold water hose
• no electricity or batteries required
- easy installation and adjustable toilet fit
- all accessories included for standard installation
- one-year warranty

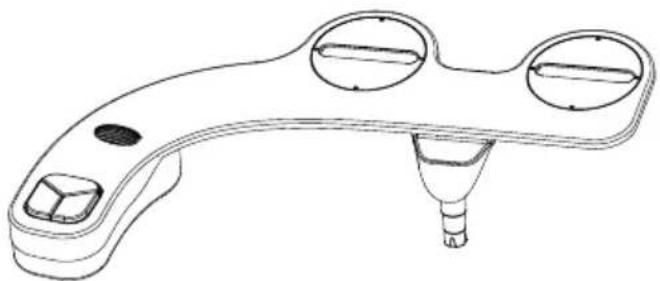

Line drawing of a medical or dental device with two circular cavities and a central tooth (no text or symbols)

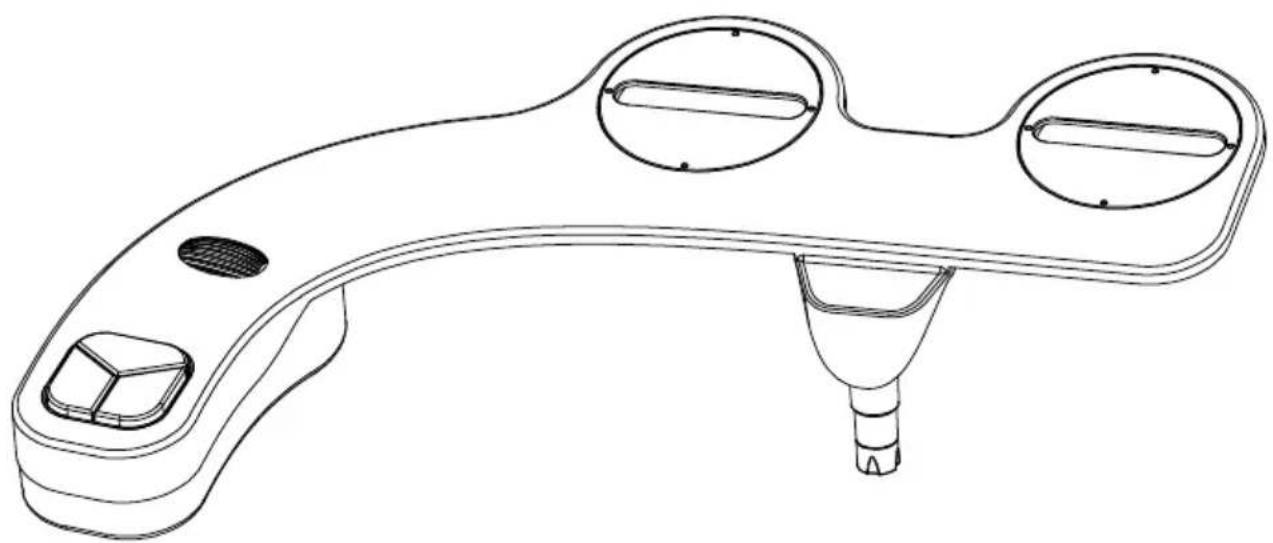

Single nozzle bidet attachment

Two identical circular diagrams with parallel diagonal lines, no text or symbols present

Adjustable mounting brackets (2)

T-valve connector with included rubber cone washer

$$ (7 / 8" \times 7 / 8" \times 3 / 8") $$

U-shaped pipe diagram with mesh pattern, no text or symbols present

29" braided metal bidet hose

Teflon tape

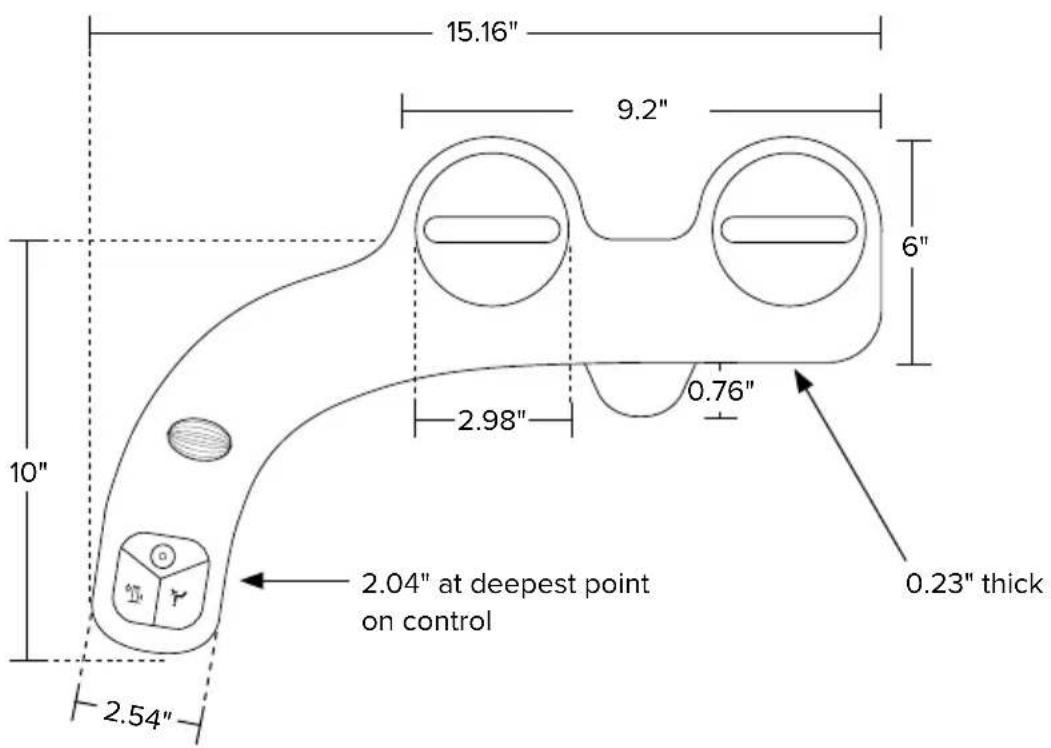

15.16" 9.2" 6" 2.98" 0.76" 10" 2.54" 2.04" at deepest point on control 0.23" thick

Important

Please be advised that the provided T-valve should be installed at the fill valve under the toilet tank, and NOT at the cold water supply coming from the wall.

If you do not have access to the fill valve under the toilet tank, contact Brondell Customer Service at 888.542.3355. We may be able to provide alternative options.

Check water supply line

Check the water supply line that connects the toilet tank fill valve to the water shut-off valve at the wall. If it is a rigid pipe, you will need to purchase a flexible water supply hose to replace it before installing the FreshSpa. The length of the hose you purchase may vary, but the top connection size should be 78 " ballcock (to connect to the T-valve that you will install under the toilet tank), and the bottom connection will be 3/8" or 12 " female compression (to connect at the shut-off valve at the wall).

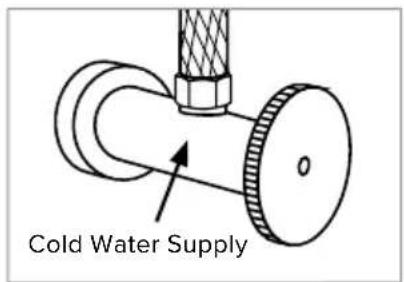

Cold Water Supply

INCORRECT

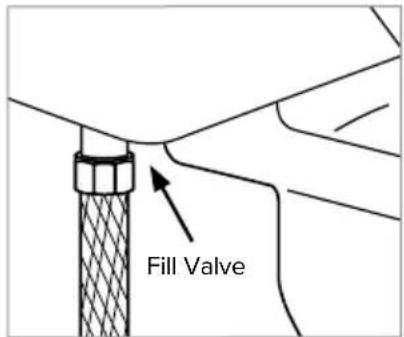

Fill Valve

CORRECT

Installing the bidet attachment

1. Remove the existing toilet seat.

a. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat, mounting bolts, and hardware aside.

1. Turn off water supply valve and flush toilet.

a. Turn off water supply at the wall to stop flow of water.
b. Flush toilet and hold down handle to completely empty toilet tank.
c. Disconnect water supply hose from the fill valve under the toilet tank.

1. Connect 78 " T-valve to water supply line and fill valve under toilet tank.

a. Install the 78 ” T-valve with included rubber washer to the incoming water connection on the bottom of your toilet tank. Ensure the rubber washer is properly seated, tapered side up.
b. Connect the cold water supply line coming from the wall to the bottom of the T-valve.

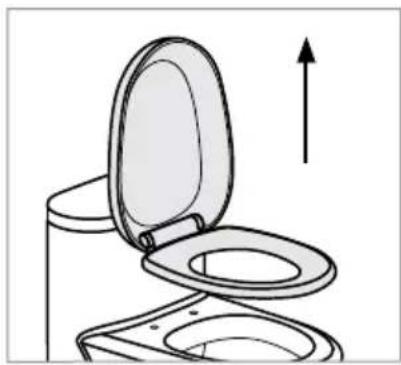

Line drawing of a toilet with open lid and seat, showing upward arrow (no text or symbols)

Step 1b

Diagram of a pipe fitting with a rotating valve, showing no text or symbols

Step 2c

Diagram of a mechanical valve assembly with a rotating arrow indicating motion (no text or symbols)

Step 3a

Diagram of a mechanical valve assembly with a rotating arrow indicating rotation (no text or symbols)

Step 3b

Installing the bidet attachment

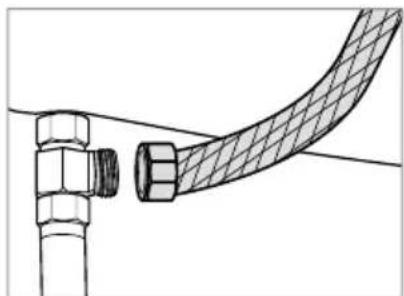

1. Connect the bidet hose to the T-valve.

a. The ends of the bidet hose are two different sizes. Determine which is the smaller of the two ends.
b. Connect the smaller end of the braided metal bidet hose to the remaining open side of the installed T-valve.

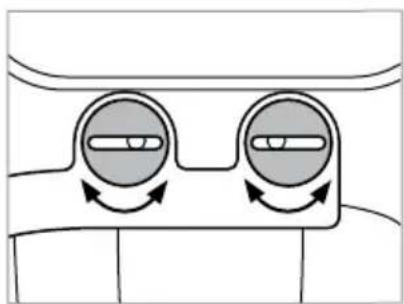

1. Install adjustable mounting brackets into the bidet attachment.

a. Line up the dots of one of the adjustable mounting brackets with the dots around one of the open mounting bracket holders.
b. Push the bracket into the bracket holder until it snaps into place.
c. Repeat steps 1 and 2 to install the other adjustable mounting bracket.

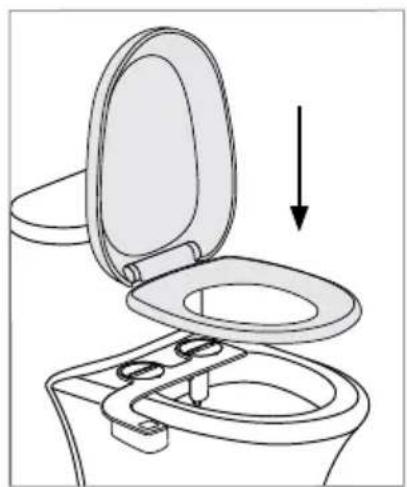

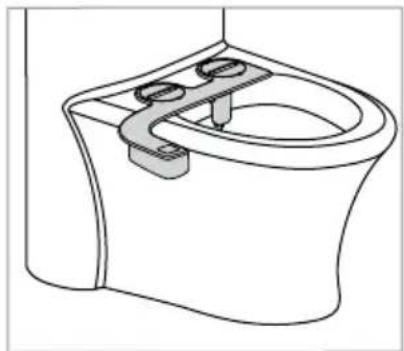

1. Install bidet attachment on toilet.

a. Place bidet attachment on the toilet with the nozzle(s) close to the back of the toilet, leaving a slight gap between the toilet and the nozzles. This will vary by toilet.

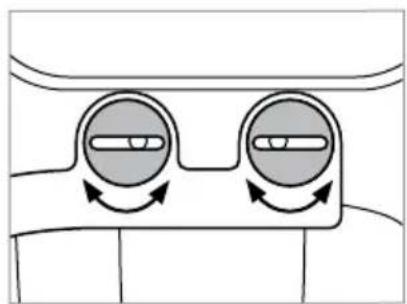

b. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to rotate the adjustable brackets accordingly to line up properly.
c. Replace the toilet seat on top of bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.
d. Ensure that no buttons on the control panel are depressed to prevent water from accidentally spraying out of the toilet bowl.

Technical line drawing of a pipe fitting with a meshed cable (no text or symbols)

Step 4b

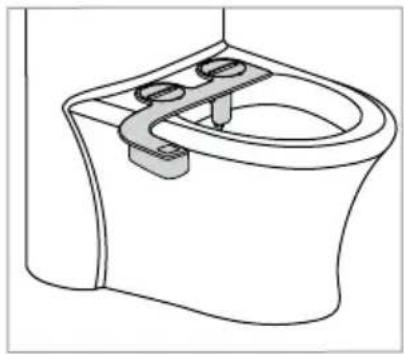

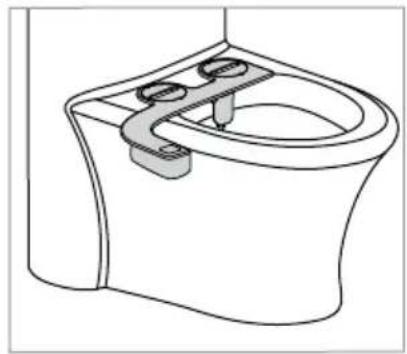

Line drawing of a toilet with a stand and sink (no text or symbols)

Step 6a

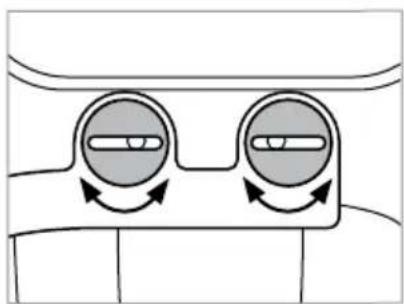

Diagram of two circular objects with curved arrows indicating rotation or movement (no text or symbols)

Step 6b

Line drawing of a toilet with an open lid and outlet, showing a downward arrow indicating a component (no text or symbols present)

Step 6c

Installing the bidet attachment

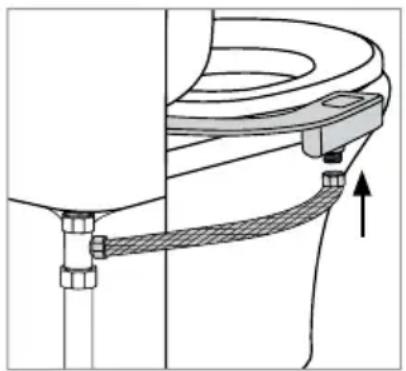

1. Connect the bidet hose to the bidet attachment. Connect open end of bidet hose to the connection underneath the bidet attachment.
2. Turn on the water supply and check for leaks. a. Open the main water supply valve slowly and check for leaks. b. Wait 5-10 minutes, check again and if there are no leaks, continue.
3. Connect the bidet hose to the bidet attachment. Connect open end of bidet hose to the connection underneath the bidet attachment.
4. Turn on the water supply and check for leaks. a. Open the main water supply valve slowly and check for leaks. b. Wait 5-10 minutes, check again and if there are no leaks, continue.

Technical diagram of a mechanical assembly with no visible text or symbols

Step 7

Note: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use the provided Teflon tape (plumber's tape) for any leaking connections.

Using the FreshSpa:

To clean the bidet nozzle, push the “Nozzle Cleaning” button and water will wash over the nozzle. Push the “Off” button to turn off nozzle cleaning.

For the general bidet wash function, push the "Wash" button

• to increase the water pressure, scroll the precision wheel back towards the (+) icon
• to decrease the water pressure, scroll the precision wheel forward towards the (-) icon
• to stop the flow of water, push the "Off" button

Caution: To avoid discomfort or injury, scroll precision roller wheel to lowest pressure before initiating a wash.

Cleaning the FreshSpa:

To clean the nozzle, pull down on the nozzle cap and clean the nozzle spray holes using a toothbrush or soft cloth and mild detergent (such as dish soap). When cleaning, be careful not to drop or flush the nozzle cap. Periodically tighten the nozzle cap so it doesn't become loose with use and cleaning.

To clean the FreshSpa, use a mild cleaner such as Simple Green or Windex spray. Do not scrub or use harsh, abrasive products to clean the FreshSpa, as they may scratch the product.

Short term non-use:

If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall for extra precaution.

Simple line drawing of a test tube with diamond and star symbols (no text or labels)

Nozzle cleaning

Simple black pictogram of a person in motion, no text or symbols present

Wash

Simple diagram of an elliptical shape with directional arrows indicating rotation, no text or symbols present.

Precision wheel

Simple geometric diagram with a circle containing a square, no text or symbols present

Off

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

FreshSpa Thinline Precision Essential Bidet Attachment with Single Nozzle
Model	FSP-150, single nozzle, ambient temperature
Incoming water pressure range 11.60 psi–116.03 psi / 0.08 MPa–0.8 MPa
Incoming water temperature range	32 °F–158 °F / 0 °C–70 °C
Flow rate 0.66 gal/min / 2.5 L/min
Product dimension	15.16in x 10.0in x 3.35in / 38.5cm x 25.4cm x 8.5cm
Product thickness	0.23in / 0.6cm
Product weight	1.1lbs / 0.5kg

Note: The specifications listed above are subject to change without prior notice for reasons of improving the product performance.

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

FreshSpa FSP-150 Residential 1-year limited warranty

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

FreshSpa FSP-150 Commercial warranty

Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

Exclusions and limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first full year from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

4. Damage or loss which occurs during shipment.

5. Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
6. Damage or loss resulting from sediments or foreign matter contained in a water system.
7. Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.

8. Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products

9. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to obtain service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355.

Brondell

Feels better already.

Contact:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

1-888-542-3355

[e-mail]

www.brondell.com

For questions, contact Brondell

Customer Service: 1-888-542-3355

Manufactured by:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Please retain receipt records for any warranty claims.
