USER MANUAL AS601HBB0 LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

AS601H Series

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 READ AND SAVE THESE INSTRUCTIONS
3 WARNING INSTRUCTIONS
6 CAUTION INSTRUCTIONS

8 PRODUCT OVERVIEW

8 Product Features

10 INSTALLATION

10 Before Installation
11 Installing the Unit

12 OPERATION

12 Features
14 Operating the Air Purifier
14 Using the Extra Functions
16 Overall Air Quality

17 SMART FUNCTIONS

17 LG ThinQ Application
18 Smart Diagnosis

19 MAINTENANCE

19 Maintaining the Product

22 TROUBLESHOOTING

22 Before Calling for Service

24 APPENDIX

24 Information

25 LIMITED WARRANTY

25 CANADA

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING INSTRUCTIONS

WARNING

- To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Technical Safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Only an authorized repair person should disassemble, repair, or modify the appliance.
• Do not touch the power plug with wet hands.
• Do not install and use broken parts.
• Do not use the product if it has been dropped on the floor.
• To reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).

• To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

• RISK OF ELECTRIC SHOCK - These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

• This manual is also available in a PDF format at https://www.lg.com and you can obtain a printed copy of the manual from the PDF format.

Installation

• Do not install the appliance on an uneven or inclined surface.
• Do not install the appliance in an area exposed to direct sunlight or near heat-generating equipment.
• Do not install the product in a place where combustible gas may leak or industrial oil or metallic particulates are present.
• Do not allow the appliance to push against the power cord or plug.
• Do not bend the power cable excessively or place a heavy object on top of it.
• Do not extend the length of the power cable or alter it.
• Do not use several devices on a multi-socket extension outlet.
• Make the connection securely so that screw-in terminals will not be loosened when the cable is pulled.
• Make sure that the power cable cannot be pulled out or damaged during operation.
• When unplugging the power cord, always pull it by the plug.
• Unplug the appliance during thunder or lightning storms or when not in use for a long time.

- This appliance has a polarized plug (one blade is wider than the other).

• To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way.
• If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
• Do not attempt to defeat this safety feature.

- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.

- Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

Operation

• If the appliance is immersed in water, stop using it and contact an LG Electronics Customer Information Center.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination or repair.
• If there is a gas leakage (isobutane, propane, LNG, etc.), do not touch the appliance or power plug and ventilate the area immediately.
• If you detect any abnormal noise, odor or smoke, unplug the appliance immediately and contact an LG Electronics Customer Information Center.
• Do not use or store fire, combustibles (ether, benzene, alcohol, drugs, propane, butane, combustible sprays, insecticide, air freshener, cosmetics, etc.) or flammable materials (candles, lamps, etc.) near the product.
• Do not allow animals or pets to chew on the power cord.
• Do not move the appliance when it is in operation.
• Do not hit the appliance.
• Do not insert hands or metal objects into the air inlet or outlet.
• Do not put flammables into the appliance.

• Do not move or operate the appliance while its cover is open.

• Do not allow children to climb on or play with the appliance.

• Do not place anything on top of the appliance.
• User Servicing Instructions.

- Only an authorized repair person from an LG Electronics service center should disassemble, repair, or modify the product.

Maintenance

• Dispose of the packing materials (vinyl, styrofoam, etc.) to keep them out of the reach of children.
  • Take care not to injure or pinch yourself when you detach and reattach parts of the appliance.
• Turn off and unplug the appliance before cleaning it or replacing the filter.
• Do not clean the appliance with brushes, cloths or sponges which are abrasive or made of metal.
• For inner cleaning, contact an Authorized Service Center or a dealer.
• Do not use harsh detergent that can cause corrosion or damage to the unit.
• Harsh detergent may also cause failure of product, fire, or electric shock.

CAUTION INSTRUCTIONS

CAUTION

- To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not tilt the appliance to pull or push it when transporting.
• Do not install the appliance in a vehicle, RV, or marine vessel.
• Do not place the appliance near a TV or stereo equipment.
• Do not place the appliance under bright light.
• Do not place the appliance near curtains.

- The appliance must be installed in accordance with national wiring regulations.

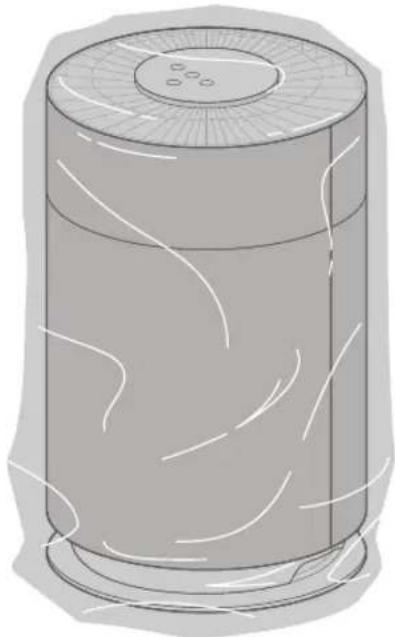

- When moving or storing the appliance, wrap the power cord around the base of the appliance to prevent personal injury, damage to the cord or damage to floors.

Operation

• Do not use the product for removal of toxic gas such as carbon monoxide.
• Do not use the product for ventilation purposes.
• Do not use the appliance for a long time in a region with unstable voltage.
• Do not place obstacles around the air inlet or outlet.
• For safe use of the appliance, children or others with reduced mental capabilities need to be closely monitored by a person who is responsible for their safety.
• Do not use the product for special purposes such as preserving plants, precision instruments, artworks, etc.
• Do not operate the appliance with wet hands.
• Do not let the moisture from a humidifier directly touch the appliance.
• Do not use the appliance while it is not in an upright position.
• Do not use the appliance near objects vulnerable to heat.
• Do not use detergents, cosmetics, chemicals, air fresheners, or disinfectants in the appliance.
• Do not touch any internal parts while the unit is operating or immediately after operation.
• Use the filter only for its intended purpose.
• The Deodorization filter and Dust Collection filter are assembled together. Do not try to detach them from each other.
• Do not insert any objects into the air outlet.

Maintenance

• Do not use strong detergents or solvents to clean the appliance. Use a soft cloth to clean.
• Do not clean the appliance with an alkaline detergent.
• Do not wipe the appliance surface using sulfuric acid, hydrochloric acid or organic solvents (thinner, kerosene etc.) or attach a sticker on the appliance.
• Do not allow water inside the appliance.
• Do not wash the filter with water.

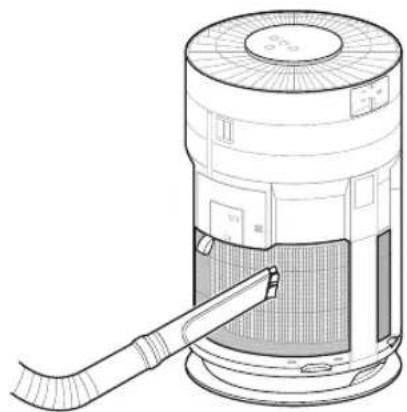

- Be careful not to damage the ultra-fine filter when cleaning it with a vacuum cleaner.

PRODUCT OVERVIEW

Product Features

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

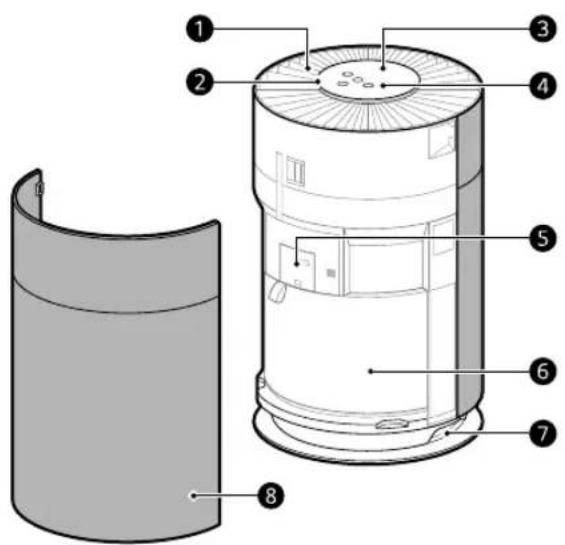

Front

Technical diagram of a cylindrical device with numbered components, showing internal structure and labeled parts.

①Air Outlet

- Emits air purified by the filter.

②Air Quality Light

- Indicates the current air quality by color (green, yellow, orange, red).

③Display Panel

- Use it to check the settings of the appliance and the air quality.

④Control Panel

- Sets the appliance functions.

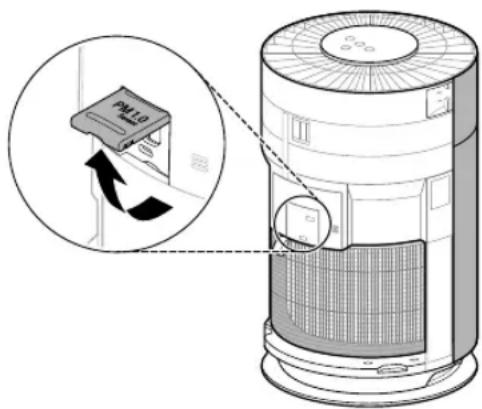

⑤PM1.0 (Super Ultra-Fine Dust) Sensor

• Detects the dust concentration levels.

⑥Filter

- Minimizes fine particulates, possible sources of smog, and other odors.

⑦Handle

- Use it to carry and move the product.

⑧Air Inlet

• Air is sucked into the air purifier through the air inlet.
- The front and rear covers can be removed separately.

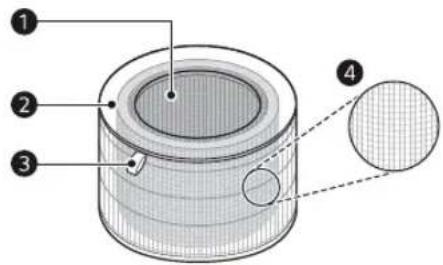

Filter

Technical diagram of a cylindrical mechanical component with numbered parts and a magnified inset showing internal structure.

①Deodorization Filter

- This filter removes smog-causing substances (SO 2 , NO 2 ) and household odors (ammonia, acetic acid, acetaldehyde)

② Dust Collection Filter

- Minimizes PM1.0 and cigarette smoke from the air.

③Filter Handle

• Used to remove or install the filter.
• The side with the handle should face upwards.

④Ultra-Fine Filter

- The Ultra-Fine Filter is attached to the exterior of the filter and primarily removes household dust with large particles from the air.

CAUTION

• Do not forcefully separate the filters, as the filters are attached.
• Do not throw the filters or use them for other purposes.

Accessories

1

①Owner's Manual

INSTALLATION

- The exterior or components of the product may vary depending on the model.

Before Installation

Unpacking the Appliance

Unpack the appliance and remove all packing tape and the filter packaging before using the appliance.

1 Take the product out of the box, and remove the packaging and tape attached to the product.

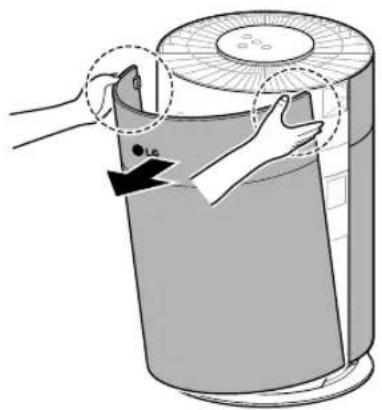

2 While facing the front of the product, hold and gently pull both sides of the air inlet (cover) to remove it.

• The side with the LG logo at the center of the product is the front of the product.

Illustration of hands holding a cylindrical device with a lid, showing internal components and a circular top (no text or symbols)

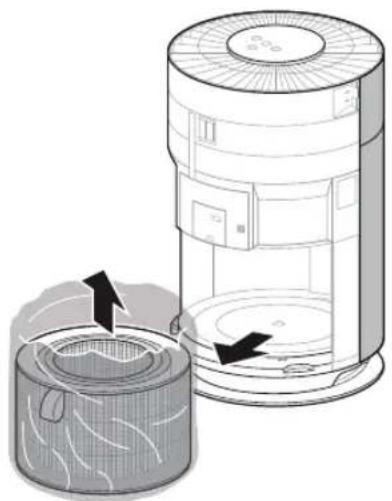

3 Remove the filter and dispose of the packaging.

Diagram of a cylindrical device with internal components and two circular containers, showing internal structure and airflow direction (no text or symbols)

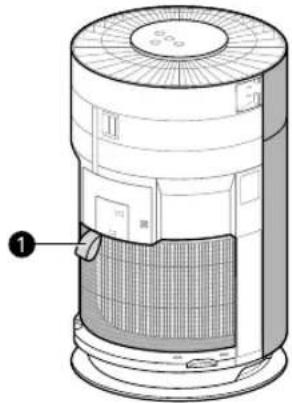

4 Install the filter in the product.

- Make sure that the side with the filter handle(1) is facing up.

Technical line drawing of a cylindrical device with internal components and labeled parts (no text or symbols)

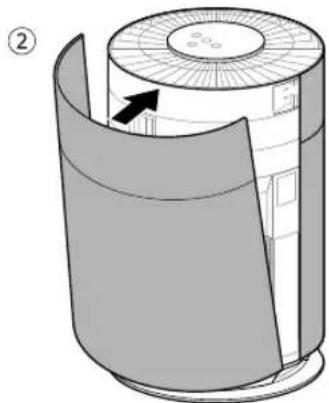

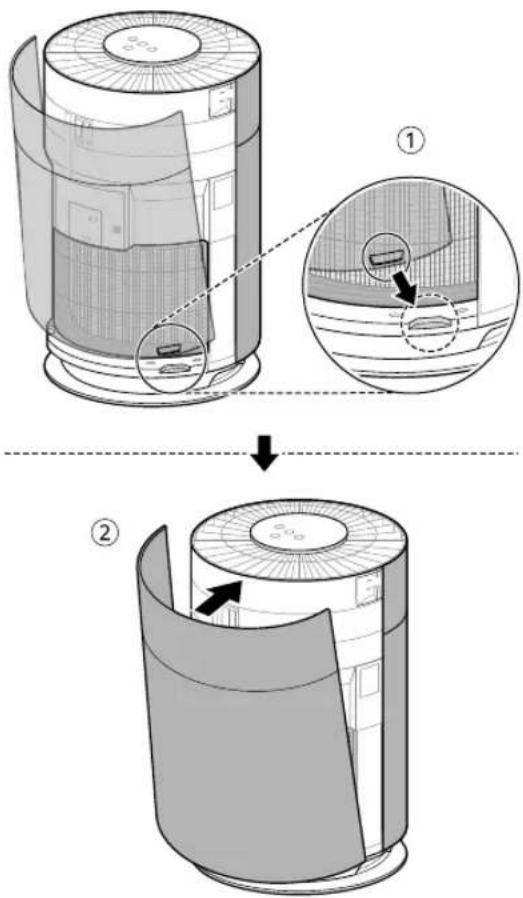

5 To reinstall the cover, insert the tabs at the bottom of the cover into the groove at the bottom of the product and close the cover.

Diagram illustrating the process of a cylindrical device with internal components, showing steps from top view to bottom view.

CAUTION

- Be sure to remove the protective packaging from the filter before using the product.

- When installing the filter, pay attention to the direction of the filter.

- Failure to do so may cause malfunction or product failure.

Transportation Requirements

- Before moving or storing the product, wrap the cord around the lower part of the product to keep the power plug from touching the floor.

- Failure to do so may damage the power plug or scratch the floor.

- Do not transport the product by holding its exterior cover.

- The cover may open and cause the product to drop. Dropping the product may cause injury or product failure.

- Carry the product safely by using the handle(①) at the bottom of the product with both hands.

3D diagram of a cylindrical mechanical component with concentric rings and two dashed circular features, labeled with number 1 (no text or symbols on the object itself)

Installing the Unit

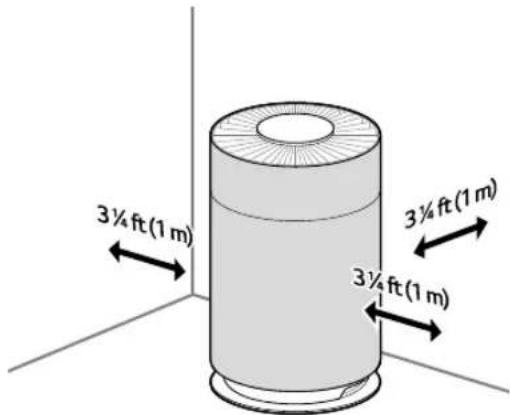

Installation Location Requirements

Install the product at least 3 1/4 ft (1m) from walls.

- If there is not enough room for air suction, the air purification performance may be affected.

• The performance of the product may differ depending on the operating environment (considering factors such as temperature and humidity).

- At humidity levels of 40% – 70%, the product's guaranteed performance standards can be achieved.

- Do not install the product near direct sunlight or bright lighting.

- Doing so may cause discoloration of the product.

OPERATION

- The exterior or components of the product may vary depending on the model.

Features

Controlling the Air Purifier

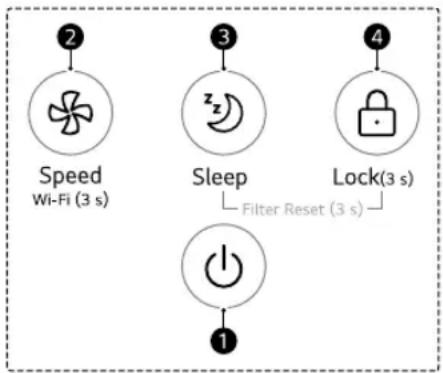

Control Panel


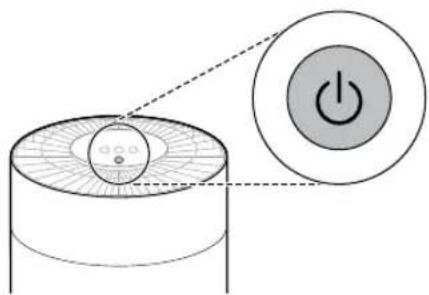

①Start/Stop Button

- Turns the product on or off.

②Speed Button

- Sets the fan speed.

- To prepare the product to connect to Wi-Fi through the LG ThinQ application, press and hold the Speed button for 3 seconds.

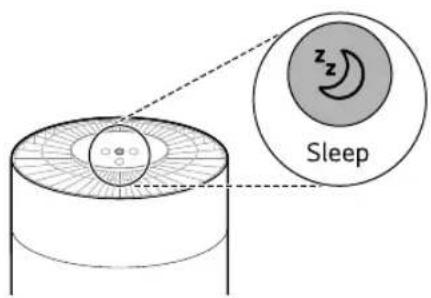

③Sleep Button

- The Sleep mode can be set or cancelled.

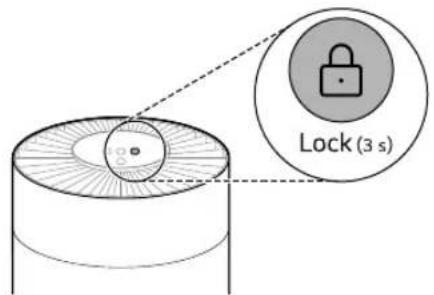

④Lock Button

- To lock or unlock the control panel buttons, press and hold the Lock button for 3 seconds or more.

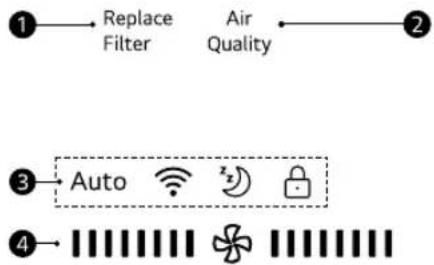

Display Panel

①Filter Replacement Notification

Displays when it is time to replace the filter.

②Overall Air Quality

Indicates the overall air quality using colors (green, yellow, orange, red).

• See Understanding Overall Air Quality for detailed color information.

3Icons

Icon Description
Auto	Clean Auto Lights up when fan speed is set to Auto.
	Wi-Fi Lights up when the Wi-Fi function is activated.
	Sleep Lights up when the sleep mode is activated.
	Lock Lights up when the control panel is locked.

④Fan Speed Indicator

• Displays the fan speed of the air purifier.

Operating the Air Purifier

Start/Stop

Turns the product on and off.

- Press the Start/Stop button.

Diagram showing a power button inside a cylindrical device with a circular component, illustrating electrical or mechanical operation.

NOTE

• The most recently used mode is saved if the power supply is cut off as a result of a power failure.
• When the operation begins, the display of sensor ready will appear for approximately 30 seconds.

Adjusting the Fan Speed

You can adjust the fan speed from the air purifier.

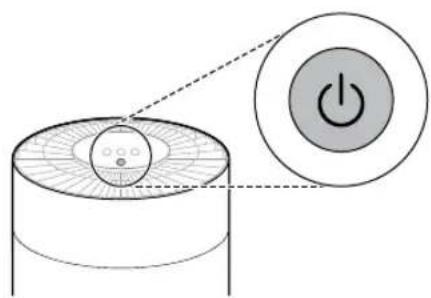

1 Press the Start/Stop button to turn on the product.

Diagram showing a cylindrical device with internal components and an open button labeled 'Power' (no text or symbols present)

2 To adjust the fan speed, press the Speed button.

- When you press the button during product operation, the fan speed changes in the order of Auto → Low → Medium → High → Turbo.

Speed

NOTE

• When the product is started for the first time, Auto is set as the fan speed. In Auto mode, the fan speed is adjusted automatically according to the air quality level of the indoor air.
• The fan speed is displayed on the display panel when it is adjusted. The indication of fan speed increases by 2 columns at a time. It is displayed as below when the fan speed is set to Medium.

|||| ||||

Using the Extra Functions

Using the Sleep Mode

This mode reduces the operating noise and lights of the product so you can use it while you sleep.

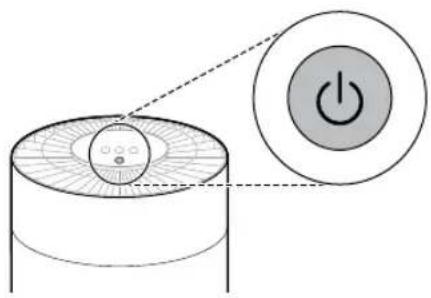

1 Press the Start/Stop button to turn on the product.

Diagram showing a circular component with a power button and a dashed line pointing to it, no text or symbols present.

2 Press the Sleep button.

Sleep

NOTE

• The Sleep mode icon is displayed on the display panel.
- The whole display is turned off except for the display of Sleep mode.
- Fan speed can be adjusted by pressing the Speed button while the Sleep mode is activated.
- You cannot set the operation time in Sleep mode separately. To cancel the Sleep mode, press the Sleep button again.

Locking the Control Panel

You can lock the buttons on the control panel to prevent the appliance from operating due to unforeseen reasons, such as a child manipulating the buttons.

1 Press the Start/Stop button to turn on the product.

Diagram showing a power button inside a cylindrical device with a magnified view of its internal structure.

2 Press the Lock button for 3 seconds or longer.

- Lock icon is displayed on the display panel when the Lock function is set.

Lock (3 s)

NOTE

• To turn the lock function off, press and hold the Lock button again.
• You can also lock or unlock when the operation has stopped.

Overall Air Quality

Understanding Overall Air Quality

The overall air quality is calculated based on the concentration of particulates and is categorized in 4 levels based on the level of pollution in the air. (Green, Yellow, Orange, and Red)

Color	Overall air quality	Concentration of PM ( g/m^3 )
	Status PM10	PM2.5 PM1.0
Red Poor 2	55 or more 56 or more	56 or more
Orange Unhealthy 155 ~ 254 36 ~ 55 36 ~ 55
Yellow Moderate 55 ~ 154	13 ~ 35 13 ~ 35
Green	Good	54 or less	12 or less	12 or less

NOTE

• Overall air quality can be seen by the color of the air quality indicator.
• The color of the overall air quality indicator is determined based on the concentration of particulate matter (PM).
• PM concentration values are based on the data sheet provided by the sensor manufacturer.
• The PM concentration measurement was tested using LG Electronics' standard test materials.

SMART FUNCTIONS

LG ThinQ Application

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Smart Diagnosis

If you experience a problem while using the appliance, this Smart Diagnosis feature will help you diagnose the problem.

Settings

Allows you to set various options on the appliance and in the application.

NOTE

- In the following cases, you must update the network information for each appliance in the LG ThinQ application under Device Cards → Settings → Change Network.

• wireless router is changed
• wireless router password is changed

• Internet service provider is changed

• The application is subject to change for appliance improvement purposes without notice to users.

• Functions may vary by model.

Before Using LG ThinQ Application

This feature is only available on models with Wi-Fi function.

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

- If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to connect or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

Diagram showing hand pointing at a circle with directional arrows, indicating rotation or movement

3 Connect your smartphone to the wireless router.

Diagram showing a hand interacting with a Wi-Fi icon to interact with a Wi-Fi symbol, indicating wireless signal interaction.

NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi 🔊 icon on the status display is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the Internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying it again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, the network setup may fail. Change the security protocol (WPA2 is recommended) and connect the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Radio Equipment Specifications

Type	Operating Frequency Range	Output Power (Max.)
Wireless LAN	2400 MHz - 2472 MHz	< 1 W
Bluetooth ^	2400 MHz - 2483.5 MHz

† This feature is only available on some models.

Smart Diagnosis

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

MAINTENANCE

Maintaining the Product

Scheduled Maintenance

WARNING

• Stop the appliance operation and unplug the power cord before cleaning and replacing the filter.
• Do not spray water directly on the appliance.

Component	Cleaning frequency	Replacement frequency
Filter	Ultra-fine filterClean filter as needed	1 year

NOTE

• The color of the filter may vary depending on the usage environment and color of dust.
• The cleaning frequency may vary depending on the operating hours and environment of the appliance.
• If you do not clean the product according to the cleaning frequency, you may experience a bad odor and poor performance.
• The filter must be replaced at the end of its lifespan, and the cost of replacement filters is not covered under the warranty. To purchase new filters, contact an LG Electronics Customer Information Center or visit the website at www.lg.com
• The upper and lower parts of the filter are made of paper instead of plastic. Repeated removal of the filter may cause scratches on the top and bottom of the filter.
• Scratches on the top and bottom of the filter will not affect its performance.

Cleaning the Exterior

1 Remove dust from the air inlet and outlet using a vacuum cleaner.

2 Wipe the exterior of the product with a soft cloth.

CAUTION

• Do not wipe the appliance with an alkaline detergent.
• Never use sulphuric acid, hydrochloric acid or organic solvent (for example, thinner, kerosene and acetone) to wipe the appliance exterior, or affix labels on the exterior. Doing so may damage the product surface.
• Care should be exercised to prevent water from flowing into the product.

NOTE

- If it is difficult to remove dust from the front and rear covers, disassemble the covers and clean them with water. After cleaning, dry the covers thoroughly in the shade.

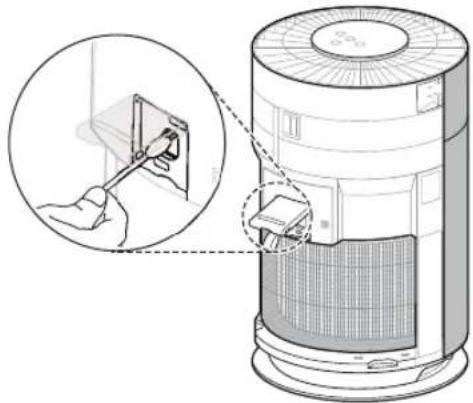

Cleaning the Particle Sensor

The PM1.0 (super ultra-fine dust) sensor detects fine dust and large dust levels. For best results clean the lens periodically, at least once every 2 months.

1 Facing the front of the product, hold and gently pull both sides of the air inlet (cover) to remove it.

- The side with the LG logo at the center of the product is the front of the product.

2 Open the sensor cover.

PK10

3 Clean the lens with a cotton swab soaked with water and dry it off with a dry cotton swab.

Diagram of a cylindrical device with a hand inserting a cable into its side panel, showing internal components and wiring (no text or symbols present)

NOTE

- Do not wipe the sensor with any substances other than water. Doing so may cause the appliance to malfunction.

- When opening or closing the sensor cover, a sound caused by friction may be heard.

Cleaning the Filters

1 Remove the front and rear covers from the product.

- Facing the front of the product with the LG logo, hold and gently pull both sides of the cover on top of the air inlet (cover) to remove it. Repeat with the rear cover.

2 Using a vacuum cleaner or soft brush, remove any dust from the ultra-fine filter surrounding the filter.

Technical line drawing of a cylindrical device with a handle and internal components (no text or symbols)

CAUTION

- Do not clean the filter with water. The service life of the filter may be reduced.

- Be careful not to damage the ultra-fine filter when using a vacuum cleaner.

- Use caution because there is a risk of tearing or loss when removing or assembling the ultra-fine filter.

• Take care to avoid getting liquid on the filter, as it may damage the filter.

Replacing the Filters

Replace the filter when the filter replacement alert is displayed on the display panel.

1 Remove the cover of the product, and replace the filter.

• To avoid spreading dust when replacing the filter, place newspaper on the floor before you remove the filter.

2 When you finish replacing the filter, turn off the Filter Replacement Notification.

NOTE

- The Filter Replacement Notification is turned on according to the maximum period of use, considering the operating time of the product. The replacement interval may vary depending on the hours of use and the environment.

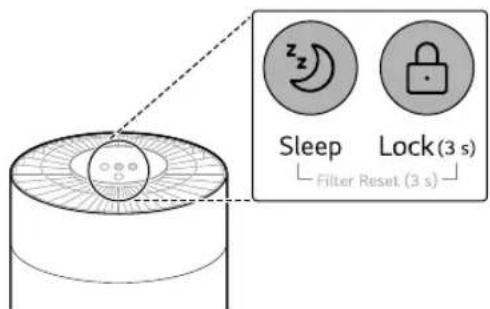

Turning off Filter Replacement Notification

Press and hold the Sleep and Lock buttons on the control panel for 3 seconds or more.

- The filter replacement alert on the display panel disappears and the replacement alarm is reset.

Sleep Lock(3 s) Filter Reset (3 s)

Replacing the Ultra-Fine Filter

To replace the ultra-fine-filter, locate the Velcro and separate it slowly and carefully to remove the ultra-fine filter.

Diagram of a cylindrical object with internal grid pattern and directional arrows indicating flow or movement (no text or symbols)

Storage

Storing the Product

If the product will not be used for a long period of time, store it in a dry and shaded place.

1 Operate the product for one hour or more on a fine day. • This removes moisture and prevents it from building up inside the product.

2 Turn off the power and unplug the product from the electrical outlet.

- Wind the power cord around the bottom of the appliance.

3 Pack the appliance to prevent dust or foreign substances from entering the appliance. Store the packed appliance out of direct sunlight.

Line drawing of a cylindrical container with internal wavy lines and a circular top (no text or symbols)

CAUTION

- Do not store the appliance in a humid location or in an area exposed to direct sunlight. Otherwise the appliance may be deformed, malfunction or generate odor.

TROUBLESHOOTING

Before Calling for Service

Please check the following before calling for service. If the problem persists, contact your local service center.

Operation

Problem Possible Cause & Solution
The product does not power on.	Is the power plug disconnected?• Connect it to an outlet correctly.
	Did the electricity get cut off?• Check the power to other products in the house.
A noise occurs and the fan speed is low.	Has dust accumulated in the ultra-fine filter?• Clean the ultra-fine filter.
	Has dust accumulated in the filter?• Replace the filter.
Air purification is not done properly.	Is the indoor pollution severe?• Ventilate indoors before using the product.
	Has dust accumulated in the ultra-fine filter?• Clean the ultra-fine filter.
	Has dust accumulated in the filter?• Replace the filter.
	Are you using it in a place that is too spacious or too open?• Use a product that suits the size of the room.• Avoid well-ventilated places such as doors, windows, etc.
	Is there an obstacle nearby?• Remove any nearby obstacles before operating the product.
	Is the product installed in a corner?• Move the product and reinstall it.
The air quality light stays red.	Move the appliance to a different room and see if the color changes.• Clean the PM1.0 (super ultra-fine dust) sensor.• Remove the power plug from the outlet and reconnect it one minute later.
	A substance was sprayed near the product.• Do not use sprays near the product.
The buttons on the control panel do not work.	Is the lock icon displayed on the display panel?• Press and hold the Lock button for 3 seconds to unlock.

Odor

Problem Possible Cause & Solution
A strange odor comes out of the air outlet as well as the filter.	Was the product purchased recently?• This is the odor of activated charcoal, and is not harmful. This is similar to the odor you may experience in a brand new car. It will go away within a day following use.
A strange odor comes out of the air outlet as well as the filter.	Is the product used in a place where there is lots of smoke or odors?If the air purifier is operated after an air freshener, diffuser, or scented candle has been used, or interior work or wallpaper replacement have occurred, the filter may absorb and emit an odor. Ventilate the room first before using the product.
	Does the filter have a bad smell?The filter replacement cycle may vary depending on the usage environment. If there is an odor, replace the filter with a new one.
	Is it in an environment in which food is prepared?If you use the product for a long period of time where you cook or broil fish/meat, the filter lifespan may be significantly decreased.If possible, open a window for ventilation while cooking, and use the product to remove any odors left following ventilation.
	Is it a humid environment?The filter may emit an odor if used in a humid environment. Dry the filter in sunlight before use.

LG ThinQ

Problem Possible Cause & Solution
The product and the smartphone cannot be connected through Wi-Fi.	Is the Wi-Fi password used to connect to the smartphone correct?Press the Settings button on your smartphone, and then find your Wi-Fi in the network list. Press and hold the button to select [Clear Network], and then proceed with product registration again from the beginning.
	Is your smartphone using mobile data rather than Wi-Fi?In the smartphone's settings, turn off Mobile Data, turn on Wi-Fi, and then register the product.
	Does the name (ID) of the wireless router contain special characters?Set the name (ID) of the wireless router as a combination of numbers and English letters. Wi-Fi connection may be difficult if you enter special characters.
	Is the frequency of the wireless router not 2.4 GHz?When connecting the product via Wi-Fi, only a 2.4 GHz network can be used. Set the wireless router to 2.4 GHz and then connect. To check the frequency of your wireless router, contact your Internet carrier or router manufacturer.
	Are the product and the wireless router too far apart?If the distance between the product and the wireless router is too great, the wireless signal may be weak, and the connection may not be smooth. Move the wireless router closer to the product.

APPENDIX

Information

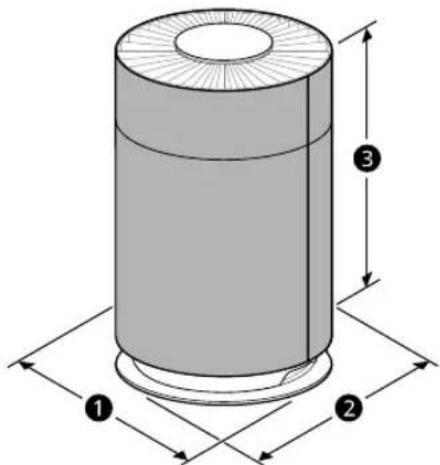

APPLIANCE SPECIFICATIONS

- Appearance and specifications may vary without notice to improve the quality of the appliance.

① ② ③

Name AS601H***
Power AC 120 V~	60 Hz
Exterior Dimensions(1 x 2 x 3)	12.4" x 12.4" x 20.1" (315 mm x 315 mm x 511 mm)

LIMITED WARRANTY

CANADA

ARBITRATION NOTICE:

THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. FOR FURTHER CLARITY, THIS ARBITRATION PROVISION IS NOT APPLICABLE TO CONSUMERS RESIDING IN ONTARIO AND QUÉBEC. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

WHAT THIS WARRANTY COVERS:

LG Electronics Canada, Inc. ("LG") warrants your LG Air purifier ("product") against defect in materials or workmanship under normal household use. During the warranty period set forth below, LG will, at its option, repair or replace the product. This limited warranty is (except to some extent in Quebec and where otherwise prohibited) valid only to the original retail purchaser of the product, is not assignable or transferrable to any subsequent purchaser or user, and applies only when the product is purchased through an LG authorized dealer or distributor and used within Canada.

NOTE

• Replacement products and repair parts may be new or factory-remanufactured at LG's option and are warranted for the remaining portion of the original unit's warranty period or ninety (90) days, whichever is longer.
• Please retain dated receipt or delivery ticket as evidence of the Date of Purchase for proof of warranty (you may be required to submit a copy to LG or authorized representative).
• If the Date of Purchase cannot be verified, the warranty period will begin 15 months from the date of manufacture.

INFORMATION

WARRANTY PERIOD:

1 year from the Date of Purchase: Any internal/ functional Parts and Labor

HOW SERVICE IS HANDLED: In-Home Service

HOW SERVICE IS HANDLED: In-Home Service or Swap SVC LG may elect, at our option, to provide Swap or In home Service. To receive in-home service, the product must be unobstructed and accessible to service personnel. If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. OR LG may elect, at our option, to provide Swap Service by providing an authorized service exchange through the distribution center you originally purchased the product from.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install or set up the Product; Instruction on Product use.
• Adjustments of user controls.
• Products that have had a serial number or any part thereof altered, defaced or removed.

• Property damages, malfunction or failure of the product, or personal injury caused by or resulting from: - accident, abuse, negligence or misuse;

• operating the Product in a corrosive or wet environment containing chlorine, fluorine or any other hazardous chemicals;

• installation, alteration, repair or service by anyone other than a licensed, authorized LG contractor or other than pursuant to the manufacturer's instructions, including installation not in accordance with applicable laws, codes and standards applying in the province in which the Product is installed;
• improper matching of Product components;
• improper sizing or design of the Product;
• improper or deferred maintenance contrary to the manufacturer's instructions;
• physical abuse to or misuse of the Product (including failure to perform any maintenance as described in the Operation Manual such as air filter cleaning, or any Product damaged by excessive physical or electrical stress);
• Product used in other than normal use or in any manner contrary to the Operation Manual;
• freight damage or damage caused by force majeure or other factors such as power surge damage caused by lightning and fluctuations in or interruptions of electrical power.

DISCLAIMER: IF YOU ARE A CONSUMER SUBJECT TO QUÉBEC AND ONTARIO'S CONSUMER PROTECTION ACT, THE EXCLUSION OF WARRANTIES CONTAINED IN THIS SECTION DO NOT EXCLUDE OR LIMIT THE RIGHTS AND REMEDIES THAT YOU MAY HAVE UNDER SUCH ACT, INCLUDING THE RIGHT TO MAKE A CLAIM UNDER ANY OF THE STATUTORY WARRANTIES PROVIDED THEREUNDER.

THIS LIMITED WARRANTY SHALL NOT BE ENLARGED, EXTENDED OR AFFECTED BY, AND NO OBLIGATION OR LIABILITY SHALL ARISE OR GROW OUT OF, LG PROVIDING, DIRECTLY OR INDIRECTLY, ANY TECHNICAL ADVICE, INFORMATION AND/OR SERVICE TO OWNER IN CONNECTION WITH THE PRODUCT. EXCEPT AS OTHERWISE PROVIDED IN THIS LIMITED WARRANTY, LG MAKES NO OTHER WARRANTIES OR CONDITIONS OF ANY KIND WHATSOEVER REGARDING THE PRODUCT. LG DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS NOT EXPRESSLY PROVIDED HEREIN AND ALL REMEDIES WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND (EXCEPT IN QUEBEC, ONTARIO AND WHERE OTHERWISE PROHIBITED) OF FITNESS FOR ANY PARTICULAR PURPOSE. NO ONE IS AUTHORIZED TO CHANGE THIS LIMITED WARRANTY IN ANY RESPECT OR TO CREATE ANY OTHER OBLIGATION OR LIABILITY FOR LG IN CONNECTION WITH THE PRODUCT. LG DISCLAIMS ALL LIABILITY FOR THE ACTS, OMISSIONS AND CONDUCT OF ALL THIRD PARTIES (including, without limitation, the installing contractor) IN CONNECTION WITH OR RELATED TO THEPRODUCT.

UNDER NO CIRCUMSTANCES SHALL LG BE LIABLE FOR ANY INCIDENTAL, SPECIAL, PUNITIVE, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, PRODUCT FAILURE, IMPAIRMENT OF OTHER GOODS, COSTS OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING OUT OR RELATED TO THE PRODUCT WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE, EVEN IF LG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IN NO EVENT SHALL LG'S LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE PRODUCT WITH RESPECT TO WHICH ANY CLAIM IS MADE.

SOME PROVINCES (INCLUDING QUEBEC AND ONTARIO) DO NOT ALLOW LIMITATIONS ON WARRANTIES OR EXCLUSIONS OR LIMITATION OF DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY. Where any term of this warranty is prohibited by such laws, it shall be null and void, but the remainder of this warranty shall remain in effect. THIS LIMITED WARRANTY GIVES THE OWNER SPECIFIC LEGAL RIGHTS AND THE OWNER MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM PROVINCE TO PROVINCE.

HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION:

Call 1-888-LG-CANADA(542 2623)or visit our website at www.lg.ca

Mail to: LG Electronics Canada Inc. 20 Norelco Drive, North York, ON M9L 2X6

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. This does not apply to consumers in Ontario and Québec. In accordance with provincial legislation, the consumer and LG may agree to resolve the dispute using any procedure available, including commencing the action before the competent courts of those provinces.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. For consumers in Ontario and Québec, the applicable arbitration legislation only applies if consumers agree to submit the dispute to arbitration. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that, or, in other jurisdictions, if you choose to opt out. The arbitration provision does not apply to consumers in Ontario and Québec.

For individuals that fall within the binding arbitration provisions, you may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/findmodel_serial/).

In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUEL D'UTILISATION

PURIFICATEUR D'AIR

Technical diagram of a cylindrical device with numbered components, showing internal structure and labeled parts.

①Sortie d'air

Technical diagram of a cylindrical mechanical component with numbered parts and a magnified inset showing internal structure.

Illustration of a hand holding a cylindrical device with a lid, showing airflow direction (no text or symbols)

Diagram of a cylindrical device with internal components and two circular parts, showing internal structure and directional arrows (no text or symbols)

Technical diagram of a cylindrical device with internal components and labeled parts (no readable text or symbols)

Diagram of a cylindrical device with internal components and an inset close-up showing a component detail (no text or symbols present)

Diagram of a cylindrical device with internal components and a black arrow indicating a directional component (no text or symbols present)

MISE EN GARDE

3D diagram of a cylindrical object with internal structure and two circular base elements, labeled with number 1 (no text or symbols on the object itself)

Diagram showing a cylindrical device with a power button and a dashed circle highlighting it (no text or symbols present)

REMARQUE

Diagram showing a circular device with a power button and a magnified view of its internal structure (no text or symbols)

Diagram showing a power button connected to a circular component with a dial indicator and dashed lines indicating connection.

Diagram showing a device with a power button and a magnified view of its internal structure.

Application LG ThinQ

Diagram showing hand pointing at a circle with directional arrows, indicating rotation or movement

Diagram showing a hand pointing at a Wi-Fi button followed by an arrow to indicate wireless signal transformation.

REMARQUE

Diagram of a device with a hand inserting a cable into a wall-mounted panel, showing internal components and wiring (no text or symbols)

REMARQUE

Technical line drawing of a cylindrical device with a handle and internal components (no text or symbols)

MISE EN GARDE

Diagram of a cylindrical object with internal grid structure and directional arrows indicating flow or movement (no text or symbols)

Entreposage

Illustration of a cylindrical container with internal structure and spout pattern (no text or symbols)

MISE EN GARDE

For inquiries or comments, visit www.lg.com or call:

1-800-243-0000 U.S.A.

1-888-542-2623 CANADA

Register your product Online!

www.lg.com
