USER MANUAL Jarves K-5057 KOHLER
K-5055, K-5056, K-5057, K-5058
M product numbers are for Mexico (i.e. K-12345M)
M corresponden a Mexico (Ej.
K-12345M)
Hole Cutting Equipment
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.
Before You Begin
- Observe all local plumbing and building codes.
Refer to local codes and manufacturer's instructions for flush valve requirements.
Carefully inspect the new urinal for damage.
CAUTION: Risk of personal injury or product damage. Cast iron urinals are extremely heavy. Wear appropriate safety apparel when installing this product.
Fixture dimensions are nominal and conform to tolerances by ANSI Standard A112.19.1M.
- Site preparation may require additional tools and hardware.

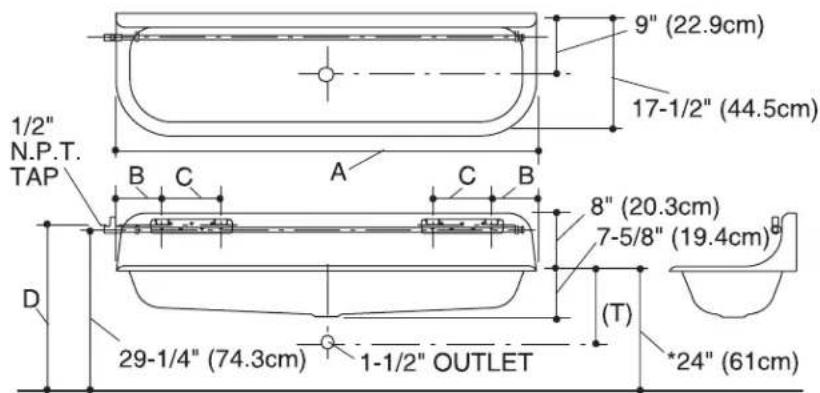

The dimensions listed above are the same on all four models.
| Product Number | Product Dimensions | |||
| A | B | C | D | |
| K-5055 | 36" (91.4cm) | 6-1/2" (16.5cm) | 7-1/2" (19.1cm) | 31" (78.7cm) |
| K-5056 | 48" (121.9cm) | 8" (20.3cm) | 10" (25.4cm) | 30-1/2" (77.5cm) |
| K-5057 | 60" (152.4cm) | 8" (20.3cm) | 10" (25.4cm) | 30-1/2" (77.5cm) |
| K-5058 | 72" (182.9cm) | 8" (20.3cm) | 10" (25.4cm) | 30-1/2" (77.5cm) |
Roughing-In Dimensions
-
- The urinal complies with ADA requirements when the rim is mounted no higher than 17^ (43.2cm) from the finished floor.
(T) Drain is typically 11 - 7 / 8'' (30.2cm)
- The urinal complies with ADA requirements when the rim is mounted no higher than 17^ (43.2cm) from the finished floor.
1. Preparation
Turn the water supply off.
- Install or relocate the supply tubing and waste pipe as necessary to conform to the roughing-in dimensions.
Install the shut-off valve.
Install adequate support framing as needed.
2. Install the Urinal
Install the hangers according to the roughing-in illustration.
- Apply thread sealant tape to the pipe threads and install the female collar to the waste pipe.
Place the gasket onto the female collar with the beveled surface facing away from the collar.
Install the Urinal (cont.)
CAUTION: Risk of personal injury or product damage. Cast iron urinals are extremely heavy. Wear appropriate safety apparel when installing this product.
Carefully position the urinal on the wall hangers.
- Install the strainer and washdown pipe (not included) to the urinal according to the manufacturer's instructions.
3. Complete the Installation
Install the flush valve according to the manufacturer's instructions.
- Connect the water supply and complete the waste pipe connections.
Turn on the water supply.
Flush and check the entire installation for leaks.
Repair as needed.
| Número demodelo | Dimensiones del producto | |||
| A | B | C | D | |
| K-5055 | 36" (91,4cm) | 6-1/2" (16,5cm) | 7-1/2" (19,1cm) | 31" (78,7cm) |
| K-5056 | 48" (121,9cm) | 8" (20,3cm) | 10" (25,4cm) | 30-1/2" (77,5cm) |
| K-5057 | 60" (152,4cm) | 8" (20,3cm) | 10" (25,4cm) | 30-1/2" (77,5cm) |
| K-5058 | 72" (182,9cm) | 8" (20,3cm) | 10" (25,4cm) | 30-1/2" (77,5cm) |
