USER MANUAL CB405NFDK D SABA

Specifications techniques. 40

Sav garantie 42

INSTRUCTIONS DE SÉCURITÉ

COLD COLD COLLENT

Bac à légumes

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Safety instructions 44

Description of the device 50

Installation....51

Use 52

Function setting 53

Temperature indicate....58

DAILY USE. 62

Reversing the door 68

Maintenance....71

Cleaning 73

Troubleshooting....74

Servicing 76

Accessories....76

Disposal. 76

Disposal of old electrical appliances 77

Technical specifications....79

Customer service 81

SAFETY INSTRUCTIONS

To mitigate the risks associated with explosion, fire, fatalities, electric shock, personal injury, or scalding when using this product, it is imperative to adhere to fundamental safety measures, as outlined below.

1. IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
2. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments.

• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments.

• catering and similar non-retail applications.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.

6.. If the refrigerant circu is damaged: Avoid naked flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is situated.
7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
8. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
10. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
2. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
3. WARNING: Fill the ice-maker with potable water only.
4. For information on the installation, handling, maintenance and disposal of the device, and the method of replacing the lamp, please refer to the following paragraphs of this manual.
5. Gas warning: risk of fire /flammable materials

Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas, Before you scrap the appliance, please take off the doors to prevent children trapped.

1. To avoid contamination of food, please respect the following instructions:

2. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

3. Clean regularly surfaces that can come in contact with food and accessible drainage systems.
4. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
5. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
6. One-, two- and three-star compartments are not suitable for the freezing of fresh food.
7. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
8. If you are discarding an old freezer or refrigerator with a lock catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
9. Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
10. Do not insert oversized food as this could cause incorrect operation.

21.1. Extreme caution must be used when mov an appliance.
22. Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freezer burns' on the lips.
23. The appliance must be installed on the ground, on a flat, horizontal surface, making sure that the ventilation openings are completely clear.
24. Never try to replace or repair any part or component of the appliance yourself; seek the assistance of professional, qualified personnel, if need be.
25. This refrigerating appliance is not intended to be used as a built-in appliance.
26. In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.
27. To save energy, please avoid keeping the door open for a longtime when using the appliance.

28.8. Replacing certain parts of your househ electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repairoperations safely. Otherwise, please contact a qualified professional.
29. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.
30. The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.
31. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

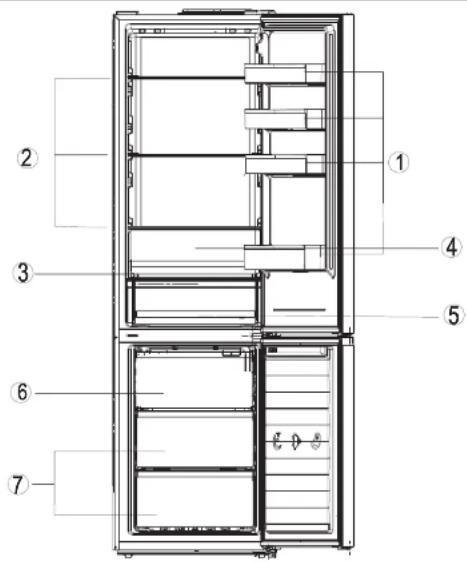

DESCRIPTION OF THE DEVICE

① ② ③ ④ ⑤ ⑥ ⑦

1. Bottle
2. Care+ temperature space
3. Fridge shelves
4. Freezer tray
5. Crisper drawer cover
6. Freezer drawers
7. Crisper drawer

NOTE: The appliance design is subject to change without prior notice.

INSTALLATION

Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the refrigerator near a heat source such as cooker, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking electricity. The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 1m^3(space)/8g(refrigerant) .

NOTE: The amount of refrigerant charged for the refrigerator can be found on the nameplate.

Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least 30mm of free space should be spared at the top side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator.

Dimensions in mm:

W	D	H	A	B	C(°)	E	F
599	660	2000	872	1225	120	10	5

Note: Figure 1, Figure 2 only illustrate the space demand of the product.

Level ground

Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise.

When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, so as to prevent color change due to heat dissipation.

⚠ Unobstructed ventilation shall be maintained around the appliance or in an embedded structure.

USE

• This appliance is designed! to operate in ambient temperature between 10°C and 43°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the température in the freezer section will rise above -18°C and food spoilage may occur.
• Remove ail packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5ml to 0.5 liter of water). Dry the appliance thoroughly.
• If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 8 hours. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

FUNCTION SETTING

When the refrigerator system is connected to power supply for the first time, all icons on the display panel gets illuminated for 5s. When the refrigerator door is close, the display gets extinguished automatically if no key operation within 3 minutes. When the display is off, it will light up if refrigerator door is opened or any key is pressed.

The following key operations are valid only when keys are unlocked and gets illuminated on the display.

Temperature setting

1. Fridge temperature setting.

Press the "Fridge" key to adjust the fridge temperature to the expected temperature value, and then press the "OK" key within 5 seconds to validate the setting, with the flickering of the current temperature setting stopped.

The fridge temperature setting cycles as following:

$$ \begin{array}{l}5 ^ {\circ} \mathrm{C} \rightarrow 6 ^ {\circ} \mathrm{C} \rightarrow 7 ^ {\circ} \mathrm{C} \rightarrow 8 ^ {\circ} \mathrm{C} \rightarrow 0 \mathrm{F} \rightarrow 2 ^ {\circ} \mathrm{C} \rightarrow 3 ^ {\circ}\\mathrm{C} \rightarrow 4 ^ {\circ} \mathrm{C} \rightarrow 5 ^ {\circ} \mathrm{C};\end{array} $$

'OF' represents the OFF state, and when the OF setting takes effect, the fridge will be shut off, with no refrigeration request.

-88.0°C Fridge Freezer Care+ Vegetables Fruit Chill Function OK Do to unlock

Be sure to take out all the foods in the fresh food compartment before setting this function.

1. Freezer temperature setting.

Press the Freezer key to adjust the Freezer temperature to the expected temperature value, and then press the "OK" key within 5 seconds to validate the setting, with the flickering of the current temperature setting stopped.

The freezer temperature setting cycles as following:

$$ - 1 8 ^ {\circ} \mathrm{C} \rightarrow - 1 7 ^ {\circ} \mathrm{C} \rightarrow - 1 6 ^ {\circ} \mathrm{C} \rightarrow - 2 4 ^ {\circ} \mathrm{C} \rightarrow - 2 3 ^ {\circ} \mathrm{C} \rightarrow - 2 2 ^ {\circ} \mathrm{C} \rightarrow - 2 1 ^ {\circ} \mathrm{C} \rightarrow $$

$$ - 2 0 ^ {\circ} \mathrm{C} \longrightarrow - 1 9 ^ {\circ} \mathrm{C} \longrightarrow - 1 8 ^ {\circ} \mathrm{C}. $$

1. Care+ temperature setting.

Press the Care+ key to adjust the temperature of the Care+ temperature space, until the expected temperature mode is set, and then press the "OK" key within 5 seconds to validate the setting, with the flickering of the current mode indicator stopped.

The temperature modes of the Care+ temperature space cycle as following:

Vegetables → Fruits → chill → Vegetables.

ECO

1. When the refrigerator ECO function is enabled, the fridge temperature will be controlled at 5 °C and the freezer temperature at -18 °C, which ensures that foods are stored in a better temperature range, with the refrigerator operating with better efficiency and performance.

When the ECO function is active, the fridge temperature and freezer temperature are subject to no change.

1. To enter "ECO".

Press the "Function" key until the icon of ECO starts flickering, and then press the "OK" key within 5 seconds to validate the setting, with the icon of "ECO" normally On.

1. To exit "ECO".

- When the ECO function is active, press the "Function" key until the icon of ECO gets flickering, and then press the "OK" key within 5 second to validate the setting, with the icon of "ECO" extinguished and the ECO function disabled.

- When the Fast Freezing or Fast Cooling function is enabled, the ECO function gets exited automatically.

Fast cooling

1. When the Fast cooling function is enabled, the fridge temperature will be set at 2^ C, with the temperature in the fresh food compartment cooling down in a fast manner. After 8 hours, the fast-cooling function will automatically exit. This function ensures that the fresh storage foods have fresh taste and maintain nutritious.

When the fast-cooling function is active, the fridge temperature is subject to no change.

1. To enter "Fast Cooling".

Press the "Function" key until the icon of "Fast Cooling" starts flickering, and then press the "OK" key within 5 seconds to validate the setting, with the icon of "Fast Cooling" normally On.

1. To exit "Fast Cooling".

2. After a cumulative running period of 8 hours, the fast-cooling function will exit automatically.

3. When the fast-cooling function is active, press the "Function" key until the icon of "Fast Cooling" gets flickering, and then press the "OK" key within 5 seconds to validate the setting, with the icon of "Fast Cooling" extinguished and the fast-cooling function disabled.

- When the ECO function is enabled, the fast-cooling function will be disabled automatically.

Fast freezing

1. When the Fast Freezing function is enabled, the freezer temperature will be controlled at -32^ C automatically, and after 26 hours of running, the Fast freezing function gets exited. Cooling down the freezer temperature in a rapid manner is good for the prevention against food nutrition loss and the preservation of freshness.

When the fast-freezing function is active, the freezer temperature is subject to no change.

1. To enter "Fast Freezing".

- Press the "Function" key until the icon of "Fast Freezing" starts flickering, and then press the "OK" key within 5 seconds to validate the setting, with the icon of "Fast Freezing" normally On.

1. To exit "Fast Freezing".

2. After a cumulative running period of 26 hours, the fast-freezing function will exit automatically.

3. When the fast-freezing function is active, press the "Function" key until the icon of "Fast Freezing" getsflickering, and then press the "OK" key within 5 second to validate the setting, with the icon of "Fast Freezing" extinguished and the fast-freezing function disabled.
4. When the ECO function is enabled, the fast-freezing function will be disabled automatically.

Child Lock

When the Child Lock function is enabled, the temperature and function are subjected to no change to prevent maloperation.

1. In case of no key operation within 15 seconds, the Child Lock function will be enabled automatically.
2. Enabling/Exiting the Child Lock function manually.

- Press and hold down the OK (3s to Unlock) for 3s, then the Child Lock function can be enabled/disabled.

Door open alarm

If the refrigerator door is open for more than 3 minutes, buzzer alarms will be continuously issued, which can be stopped when any key is pressed, but will be restored after 3 minutes if the door keeps open. The alarms will not be lifted until the refrigerator door is closed.

Power cut memory

In the case of power failure, the refrigerator will maintain the running state that is set before the power outage when the power supply is restored.

Power-on delay

In order to protect the refrigerator compressor from being damaged in the case of short-time power failure (i.e., less than 5 minutes), the compressor will not be started immediately after it is powered on.

Over-temperature alarm (Only after the power outage)

When energized, if the freezer sensor temperature is higher than -10^ C, its corresponding icon and temperature gets flickering. The temperature of the freezer when it is energized can be displayed by pressing any key. And the normal display is restored 10s later or by pressing any key again.

Fault alarm

In case E0, E1, E2, Eb, EH, EC, EL, etc. is displayed on the operation panel, it indicates fault with the refrigerator. Please contact the aftersales person for visiting service in such case.

TEMPERATURE INDICATE

In order to help you get the correct adjustment of your device, it is equipped with a temperature gauge placed in the coldest area. For the proper storage of food in your refrigerator and in particular in the coldest area, make sure that «OK» appears in the temperature indicator.

The symbol on the left side indicates the location of the coldest area of your refrigerator. It defines the height of this area.

If «OK» is not displayed, the average température in this area will be very high. You ought to adjust the thermostat to a colder setting.

For every modification of your thermostat, you are supposed to wait for the stabilization of the temperature inside the unit before proceeding, if necessary, to a new setting. Do change the position of the thermostat gradually and wait at least 12 hours before re-checking.

NOTE: after charging the device for fresh food or after repeated or prolonged door openings, it is normal that the inscription «OK» does not appear in the temperature indicator. Wait at least 12 hours before readjusting the thermostat.

Shopping for frozen food

The appliance is rated as a 4 star freezer and can freeze fresh food and store pre-frozen food. When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating.

Check the Fridge/Freezer temperature

Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18^ C.

Choose packs carefully

Make sure the frozen food package is in perfect condition.

Purchase frozen food last

Always buy frozen products last on your shopping trip or visit to the supermarket.

Keep frozen foods together

Try to keep frozen food together whilst shopping, and on the journey home as this will help to keep the food cooler.

Store food straight away

Dont buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.

Thawing frozen food

For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.

Freezing fresh food

Ensure that your freezing operations are carried out under the most hygienic conditions as freezing alone does not improve the food.

Never put hot or even warm foodstuffs into the freezer. Prior to freezing the food, food should always be covered tightly with foil, plastic film, placed in plastic bags or stored in airtight containers. This will prevent food from dehydrating and to prevent any strong odors of some foods transferring to milder ones.

To freeze raw meat, wrap in plastic bags or in airtight containers and place on the lowest shelf to avoid cross contamination.

Do not allow raw meat to come into contact with cooked foods. For safety, only store raw meat for two or three days Fruit and vegetables should be thoroughly cleaned and placed in the crisper.

Milk and other liquids should be sealed with lids and placed in the bottle shelf in the door. NOTE: The ambient temperature of the freshly stored food and how often the door is opened affect the temperature in the refrigerator. If required, change the thermostat temperature settings.

Storing frozen food

Ail frozen food you purchase should be placed in the freezer as soon as possible to avoid them from defrosting and spoiling. Ail storage recommendations printed on the packaging of frozen food by the manufacturer should always be followed.

When using the freezer for the first time or after defrosting, set the thermostat knob to the maximum position for at least 2

hours before introducing food to be stored, and then readjust it to the normal position.

The technical data mentioned in the 'Specifications' are obtained in the case that the freezing drawers are removed.

Storing food in fridge Cool area

This is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses e.g. Cheddar.

Opened jars and bottles of salad dressings, sauces and jams. fats, e.g. Butter, margarine, cooking fats and lard.

Coldest area: 0°C to 5°C

This is where foods which must be cold to keep them safe should be kept:

• Raw and uncooked foods should always be wrapped.
• Pre-cooked chilled foods, e.g. Ready meals, meat pies, soft cheeses.
• Pre-cooked meats e.g. Ham,
  – Prepared salads (including pre-packed mixed green salads, rice, potato salad etc.).
  – Desserts, e.g. Fromage frais, home-prepared food and leftovers or cream cakes.

Salad bin

This is the most humid part of the Fridge. Vegetables, fruit, fresh salad items e.g. Unwashed whole lettuce, whole tomatoes, radishes etc can be stored here.

WE RECOMMEND THAT ALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.

NOTE: Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom of the fridge. This will stop them dripping onto, or touching other foods. Do not store inflammable gasses or liquids in the fridge.

DAILY USE

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.

MAKING ICE CUBES

1. Fill the ice tray with 3/4 full of clean water
2. Place the tray in the top freezing drawer
3. Close the door

To remove the ice cubes from the tray, put the tray under running water for a while and then twist the tray slightly to loosen the ice cubes

FRIDGE FOOD

In the fridge mode: Most pre-packed dairy foods have a recommended use by/best before/best by/date stamped on them. Store them in the fridge compartment and use within the recommended time.

Refridgerator comportments	Type of food	Recommended storage temperature and time
Door or balconies of fridge compartment	Food with natural preservatives, such jams, juices, drinks, condiments.Do not store perishable foods.	Set appliance at +4°C, using it within 2 days
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in the refrigerator.	Set appliance at +4°C, using it within 5 days
Fridge shelf - middle	Dairy products, eggs	Set appliance at +4°C, using it within 7 days
Fridge shelf - top	Foods that do not need cooking, such sa ready-to-eat food, deli meats, leftovers	Set appliance at +4°C, using it within 7 days

Use of the Care+ temperature space

The Care+ temperature space of this refrigerator is a Care+ temperature crisper box that is designed at the lower part of the fresh food compartment. Users can choose the appropriate function mode to meet the storage needs.

1. When the "Vegetables" mode is selected, the Fresh zone temperature space can maintain the appropriate temperature and humidity of fruits and vegetables, to extend the fresh-keeping period.
2. When the "Chill" mode is selected, the Care+ temperature space is suitable for storage of beer, drinks, etc.

Take care not to store the following at temperatures of less than 7°C for long periods

• Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.
• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
• Do not refrigerate avocados (until they are ripe), bananas and mangoes.

FREEZING FRESH FOOD

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

- The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

STORING FROZEN FOOD

• When first starting-up or after a period out of use. Before putting the product in the compartment, let the appliance run at least 2 hours on the lowest temperature.
• IMPORTANT! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

- In the freezer mode: These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 (minimum at -18^ ).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shell fish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whale and yolks, cooked crayfish, mincedmeat (raw),pork (raw)	6 months
Fruit (dry ar in syrup), egg whites, beef (raw), whole chicken, lamb (raw), frui tcakes	12 months

Never forget

• When you freeze fresh food with a 'use by / best before/best by/' date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed frozen food that has thawed completely must not be re-frozen.
• Once defrosted, food should be consumed quickly.

THAWING

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

MOVABLE SHELVES

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

POSITIONING THE DOOR BALCONIES

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Energy-saving tips

Install the fridge or freezer in a cool place out of direct sunlight and away from cookers, heaters, dishwashers or any hot air emitting items.

Do not set the fridge and freezer temperatures lower than necessary. Set the internai temperature within the correct range e.g. adjust the thermostat at middle position for 4^ C in the fridge compartment and -18^ C in the freezer respectively. Let pre-cooked foods cool down before placing them in the fridge or freezer. This will prevent the internai temperature of the fridge from rising.

Keep your fridge full, but not over crowded, this helps reduce «cold» air loss. Meanwhile, avoid overloading the fridge or freezer. Try to leave about 20% free space for air circulation. To prevent cold air escaping, limit the frequency of opening door. When retuning from shopping, sort foods to be kept in your fridge before opening the door. Only open the door to put food in or take it out.

Make sure the door seal is clean and in good condition. It should hold a piece of paper tightly in place when shut. Defrost regularly or when ice is more than 5mm thick. Thick ice covering the inner sides significantly increases energy use. The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

REVERSING THE DOOR

This refrigerator can be opened either from the left or right side. The default way of opening the door is from the right side. If you want to open the door from the left side, please follow the instructions below.

Tools Required: Phillips style screwdriver / Fiat blated screwdriver / Hexagonal spanner

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• Ail parts removed must be saved to do the reinstallation of the door.
  • The refrigerator inclination angle should be less than 45^ .
• Do not lay the unit fat as this may damage the coolant System.
• You should rest the Appliance on something solid e.g. a chair just below the top panel.
  • We recommend that 2 people handle the unit during assembly.

First: Remove the door of refrigerator and freezer, You need the following tools to reverse the door:

If the appliance is placed on its back or side during this process it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components.

√ How to dismantle the fridge door
	1	Screw off the screws of the upper hinge cover, and then remove the upper hinge cover.
	2	Install the communication cable into the junction box on the top of the refrigerator.
	3	Screw off the three bolts on the upper hinge, and then remove the upper hinge.
	4	Screw off the bolt on the left hole cover on the top of the refrigerator, and then remove the hole cover.
	5	Screw off the two bolts and one screw that fix the middle hinge, remove the middle hinge, and then remove the freezer door.
	6	Remove the screw cover, screw, and hole plug on the left side of the refrigerator cabinet, and install them on the right side of cabinet.
	7	Remove the left trim strip cover, take out the wiring harness inside, and then put the trim strip cover back on.
	8	Unscrew the two screws on the door stopper at the bottom of the fridge door and freezer door respectively, and remove the door stoppers.
√ How to dismantle the lower hinge assembly and adjustable foot.
	1	Remove the bolts fixing the lower hinge assembly, and take down the lower hinge assembly.
	2	Remove the left adjustable foot.
√ How to dismantle the lower hinge assembly.
	1	Disassemble the lower hinge.
		Remove the fasteners and pin shafts on the lower hinge assembly in turn.
	2	Assemble the lower hinge
		Move the fasteners and hinge shaft to the left side. Install the pin shaft on the right side of the lower hinge plate (the hole symmetrical to the original hole of the pin shaft). In this way can the lower hinge be assembled.
√ How to install the lower hinge assembly and adjustable feet.
	1	Install the assembled lower hinge assembly on the left side of the bottom of the cabinet.
	2	Install the adjustable foot on the right side of the bottom of the cabinet.
√ How to install the doors.
	1	Take out the left stopper (plastic) from the accessory bag, install it on the other side of the door together with the metal stopper removed from the right side, and then fix them with two screws.
	2	Remove the right trim strip cover, put the door communication line inside the trim cover, and then put the trim strip cover back on.
	3	Remove the shaft sleeve from the refrigerator door change their positions to the other side.
	4	Install the freezer door onto the cabinet. Install the middle hinge on the left side of the freezer door, and fix it on the cabinet with two bolts and one screw.
	5	Install the fridge door onto the cabinet.
	6	Install the upper hinge on the left side, fix it on the cabinet with bolts, and connect the wire harness.
	7	Take out the upper left hinge cover from the right, and install it on the cabinet.
	8	Install the hole cover on the top right side of the refrigerator, and fix it with a bolt.

MAINTENANCE

Noise from your appliance

You may notice some rather unusual noises. The noises are caused by circulation of refrigerant in the cooling System. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your fridge.

Prolonged off periods

If the appliance is not in use for a long period of time, proceed as follows:

1. Disconnect from the mains supply.
2. Clean and dry the inside (see 'Cleaning and maintenance').
3. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

Notes for use

Do clean and defrost your appliance regularly. Do check contents of the compartments every so often.

Do store commercially prepared food in accordance with the instructions given on the packets.

Do choose high quality fresh food and be sure it is thoroughly clean before freezing it.

Do wrap ail food in food quality polythene bags or air tight containers and make sure any air is excluded.

Do Not store poisonous or any dangerous substances in your freezer. It is designed for the freezing of edible foodstuffs only.

Do Not consume food which has been frozen for an excessive length of time.

Do Not leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation. Do Not use sharp objects such as knives to remove the ice from the appliance. Only use a plastic scraper.

Do Not put hot food into the appliance. Let it cool down to room temperature.

Do Not put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.

Do Not give children ice-cream and water ices direct from the freezer as the low température may cause 'freezer burns' on the lips.

Do Not try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

Changing the light bulb

The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. In case of any abnormality, please contact the after-sales personnel for visiting service.

Lamp type: LED light.

Energy efficiency level: G

This product contains a light source of energy efficiency class G.

LED lighting source

Replaceable by professional

CLEANING

1. Unplug the appliance.
2. Remove ail substances.

Cleaning inside the Fridge/Freezer

You should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/ Freezer.

Cleaning outside the Fridge/Freezer

Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer exterior. The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer

TROUBLESHOOTING

With regard to the following small faults, not every failure needs to be fixed by the technical service personnel; you can try to solve the problem.

Note: If the above descriptions are inapplicable to troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made. This product should be serviced by an authorized engineer and only genuine spare parts should be used.

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Case Inspection		Solution
No refrigerating at all.	Is power plug off?	Re-plug.
	Are breakers and fuses broken?	Opening the door and checking whether the lamp is lit.
	No electricity or line trip?
Abnormal noise	Is refrigerator stable? Adjusting refrigerator's leveling foot.
	Does refrigerator contact the wall?	Off the wall.
Poor refrigerating efficiency.	Do you put hot food or too much food?	Putting food into refrigerator when hot food becomes cool.
	Do you open the door frequently?	Checking and closing the door.
	Do you clip food bag to the door gasket?	Removing the refrigerator from the heat source.
	Direct sunlight or near a furnace or stove?	Emptying the distance to maintain good ventilation.
	Is it well-ventilated?	Emptying the distance to maintain good ventilation.
	Temperature setting in too high?	Setting to the appropriate temperature.
Peculiar smell in refrigerator	Any spoiled food?	Throwing away spoiled food.
	Do you need to clean refrigerator?	Cleaning refrigerator.
	Have you packed food of strong flavors?	Packing food of strong flavors.
No key response	Check whether the Child Lock function is enabled on the display panel.	Press & hold the "OK/3s to Unlock" key for 3 seconds to unlock the key, and then conduct the key operation. (For details, refer to the Child Lock function.)
Temperature setting impossible	Check whether the function of ECO, Fast Cooling, or Fast Freezing is enabled.	When the ECO, Fast Cooling, or Fast Freezing function is active, the temperature of the corresponding compartment is subject to no change. In such case, get the above-mentioned function disabled first before adjusting the temperature.
The set freezer temperature is displayed on the panel and thetemperature digits keep flickering.	Please check whether power failure has occurred.	Press any key to lift the alarm (see the overtemperature alarm function for details), and be sure to check whether the fresh storage foods and frozen storage foods have spoiled.

SERVICING

This product should be serviced by an authorized engineer and only genuine spare parts should be used.

Under no circumstances should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made. When the appliance is not in use for long periods, disconnect from the electricity supply, empty ail foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

This instruction book is also available on our website: www.conforama.fr

ACCESSORIES

Energy label

FR/ENG manual

Ice box

Egg tray

Stopper

DISPOSAI

The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.

Disposal of old electrical appliances

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

SABA since 1923

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

TECHNICAL SPECIFICATIONS

Flash the QR code on the energy label or below to access its main information.

Model Website QR Code
CB405NFDK D	https://eprel.ec.europa.eu/qr/2260842

Reference:	CB405NFDK D
Rated voltage:	220-240V~
Ampere:	1.4A
Rated frequency:	50Hz
Climate class:	SN/N/ST/T
Refrigerant:	R600a (52g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

This instruction book is also available on our website:

www.conforama.fr

Climate class:

• Extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’.
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'.

CUSTOMER SERVICE

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

Duration of availability of spare parts: 10 years.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

https://sav-client.conforama.fr /

09 69 32 05 05

From Monday to Saturday, 08:30 to 19:00 price of a local call

This instruction manual is also available on our website: www.conforama.fr
