USER MANUAL SBS5625WDDKD SABA

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Safety instructions 39

Description of the device 45

Installation 46

Use 47

Operation 48

Temperature indicate. 53

DAILY USE. 57

Maintenance 63

Cleaning 65

Troubleshooting 66

Servicing 69

Accessories. 69

Disposal. 70

Disposal of old electrical appliances 70

Technical specifications 73

Customer service 75

SAFETY INSTRUCTIONS

To mitigate the risks associated with explosion, fire, fatalities, electric shock, personal injury, or scalding when using this product, it is imperative to adhere to fundamental safety measures, as outlined below.

1.IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
2. This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments.

• farm houses and by clients in hotels, motels and other residential type environments.

• bed and breakfast type environments.

• catering and similar non-retail applications.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
  40 6. If the refrigerant circuit is damaged:

-Avoid naked flames and sources of ignition.

• Thoroughly ventilate the room in which the appliance is situated.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: When positioning the appliance. ensure the supply cord is not trapped or damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• WARNING: Fill the ice-maker with potable water only.

• For information on the installation, handling, maintenance and disposal of the device, and the method of replacing the lamp, please refer to the following paragraphs of this manual.

• Gas warning: risk of fire /flammable materials

Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas, Before you scrap the appliance, please take off the doors to prevent children trapped.

1. To avoid contamination of food, please respect the following instructions:

2. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

3. Clean regularly surfaces that can come in contact with food and accessible drainage systems.

4. Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.

5. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
6. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
7. One-, two- and three-star compartments are not suitable for the freezing of fresh food.
8. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
9. If you are discarding an old freezer or refrigerator with a lock catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
10. Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
11. Do not insert oversized food as this could cause incorrect operation.

12. Extreme caution must be used when moving an appliance.

13. Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freezer burns' on the lips.

14. The appliance must be installed on the ground, on a flat, horizontal surface, making sure that the ventilation openings are completely clear.
15. Never try to replace or repair any part or component of the appliance yourself; seek the assistance of professional, qualified personnel, if need be.
16. This refrigerating appliance is not intended to be used as a built-in appliance.
17. In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.
18. To save energy, please avoid keeping the door open for a longtime when using the appliance.
19. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair

operations safely. Otherwise, please contact a qualified professional.

1. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.
2. The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.
3. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

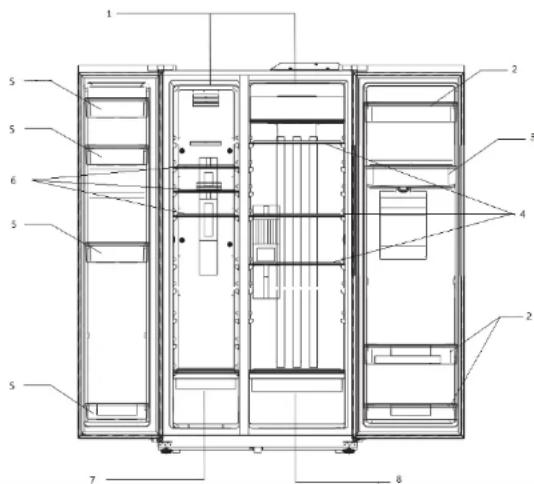

DESCRIPTION OF THE DEVICE

1.Ligh t
2. Balcony (Fridge)
3. Water tank
4. Glass shelf (Fridge)

1. Balcony (Freezer)
2. Glass rack (Freezer)
3. Freezer drawer
4. Fridge crisper

NOTE: The appliance design is subject to change without prior notice.

INSTALLATION

Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the refrigerator near a heat source such as cooker, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking electricity. The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 1m^3 (space) / 8g(refrigerant)

NOTE: The amount of refrigerant charged for the refrigerator can be found on the nameplate.

Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least 30mm of free space should be spared at the top side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator.

Dimensions in mm:

W D H A B C(°) B F
912 704 1770 1524 1062 160 50 100

Note: Figure 1, Figure 2 only illustrate the space demand of the product.

Level ground

Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise.

When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, so as to prevent color change due to heat dissipation.

Unobstructed ventilation shall be maintained around the appliance or in an embedded structure.

USE

• This appliance is designed! to operate in ambient temperature between 10^ and 43^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer section will rise above -18^ and food spoilage may occur.
• Remove all packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5ml to 0.5 liter of water). Dry the appliance thoroughly.
• If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 9 hours. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

OPERATION

Fig. 3. Control panel

1. Freezer-compartment indicator light.
2. Smart indicator light (Holiday mode)
3. Inverter indicator light
4. Fast freezing indicator light
5. Temp. Zone icon
6. Function icon
7. Unlock icon
8. Refrigerator-compartment indicator light
9. Digital temperature indicator
10. Temperature setting icon
11. OK icon

• When you connect the refrigerator to the power supply for the first time, all indicator lights on the display will light up for 2 seconds, and the system will activate the Smart function by default. When all doors are closed, the display will automatically switch off if no icon is pressed within 3 minutes. The display will

light up if you open a door or press an icon. Please note that the child lock is activated after 3 minutes of inactivity, so the icons will be inactive until you deactivate the child lock.
- The Inverter indicator light will light up when the refrigerator is connected to the mains and the compressor starts.

Functions

Temperature setting

Setting the refrigerator compartment temperature

• Press the Temp. icon. until the refrigerator-compartment indicator light starts flashing, then press the Temp. icon to select the desired temperature; finally, press the OK icon to confirm the setting.
• The temperature setting cycles of the refrigerator compartment are: 5^ 6^ 7^ 8^ 0FF 2^ 3^ 4^ 5^ .
• OFF means the refrigerator compartment is off, and when you activate this function, the refrigerator will stop cooling.
• Make sure you remove all the food from the refrigerator compartment before setting this function.

Setting the freezer compartment temperature

• Press the Temp. Zone icon until the freezer-compartment indicator light starts flashing, then press the Temp. icon to select the desired temperature; finally, press the OK icon to confirm the setting.
• The temperature setting cycles of the freezer compartment are:□□□□□j→□-17j→□-16j→□-24j→□-23°C→□-22j→□-21j→-20j→□-19j→□□8j$□

Fast freezing

• When you activate the Fast freezing function, the freezer

compartment temperature will be set to -32^ automatically. The fast freezing function is used to prevent loss of nutritional quality and to preserve food freshness.

• With the Fast freezing function, you cannot set the freezer compartment temperature.

Activating the Fast freezing function

Press the Function icon until the Fast freezing indicator light starts flashing, then press the OK icon within 5 seconds to confirm your choice. If you do not press the OK icon within 5 seconds, this function will not be activated.

Deactivating the Fast freezing function

• After 26 hours of operation, the Fast freezing function will be automatically deactivated.
• With the Fast freezing function activated, press the Function icon until the Fast freezing indicator light starts flashing, then press the OK icon to confirm and the Fast freezing function will be deactivated
• When you activate the Smart function, the Fast freezing function deactivates automatically.

Smart

• When you activate the Smart function, the temperature in the refrigerator compartment will be set to 5^ and the temperature in the freezer compartment will be set to -18^ , so that food will be preserved in the best possible conditions and the refrigerator will operate as efficiently as possible.
• With the Smart function, you cannot modify the temperature of any compartment.

Activating the Smart function

Press the Function icon until the Smart indicator light starts flashing, then press the OK icon within 5 seconds to confirm your choice. If you do not press the OK icon within 5 seconds, this function will not be activated.

Deactivating the Smart function

• With the Smart function activated, press the Function icon until the Smart indicator light starts flashing, then press the OK icon within 5 seconds to confirm your choice. The Smart function will be deactivated.
• When you activate the Fast freezing function, the Smart function deactivates automatically.

Child Lock

• When you activate the child lock, you will not be able to modify the temperature and function to avoid undesired changes.
• If you do not press any icon within 3 minutes, the child lock function will be activated automatically.

Manual deactivation of the child lock

Hold down the Unlock icon for 3 seconds to deactivate the child lock.

Open door alarm

If any door is open for more than 3 minutes, the refrigerator will emit an alarm sound, which can be stopped by pressing any icon, but will sound again if the door is still open 3 minutes later. The alarm sound will not stop until you close the door.

Function memory after power failure

In the event of a power failure, the refrigerator will save the functions set before the power failure and will activate them when the power is restored.

Delay Start

To prevent damage to the refrigerator compressor in the event of a short power failure (i.e. less than 5 minutes), the compressor will not start immediately after switch-on.

Overheating warning (only after a power failure) When the refrigerator cooling system is on, if the freezer-compartment temperature is above -10^ , the freezer-compartment temperature digits will flash on the display. The display will show the freezer-compartment temperature when you press any icon, and it will return to its usual state when you press any icon again or after 10 seconds.

Tips for Water dispenser

• Open the refrigerator door to ensure the water dispenser fixed well.
• Open the filler cover of the water tank, slowly fill the water tank to prevent any spills until the tank is filled. Then close the filler cover of the water tank. See image C.

• Once full, adjust the fridge temperature to minimum level and come back 30 minutes later, then fill your cup on water dispenser. See image D.

• When using the water dispenser, some water may drip and accumulate at the bottom of the water dispenser Please wipe it with a cloth when necessary.
  The maximum fill must be lower than the tank cover as indicated by the maximum fill line.

TEMPERATURE INDICATE

In order to help you get the correct adjustment of your device, it is equipped with a temperature gauge placed in the coldest area. For the proper storage of food in your refrigerator and in particular in the coldest area, make sure that «OK» appears in the temperature indicator.

The symbol on the left side indicates the location of the coldest area of your refrigerator. It defines the height of this area.

If OK is not displayed, the average temperature in this area will be very high. You ought to adjust the thermostat to a colder setting.

For every modification of your thermostat, you are supposed to wait for the stabilization of the temperature inside the unit before proceeding, if necessary, to a new setting. Do change the position of the thermostat gradually and wait at least 12 hours before re-checking.

NOTE: after charging the device for fresh food or after repeated or prolonged door openings, it is normal that the inscription OK does not appear in the temperature indicator. Wait at least 12 hours before readjusting the thermostat.

Shopping for frozen food

The appliance is rated as a 4 star freezer and can freeze fresh food and store pre-frozen food. When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating.

Check the Fridge/Freezer temperature

Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18^

Choose packs carefully

Make sure the frozen food package is in perfect condition.

Purchase frozen food last

Always buy frozen products last on your shopping trip or visit to the supermarket.

Keep frozen foods together

Try to keep frozen food together whilst shopping, and on the journey home as this will help to keep the food cooler.

Store food straight away

Dont buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.

Thawing frozen food

For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.

Freezing fresh food

Ensure that your freezing operations are carried out under the most hygienic conditions as freezing alone does not improve the food. Never put hot or even warm foodstuffs into the freezer. Prior to freezing the food, food should always be covered tightly with foil, plastic film, placed in plastic bags or stored in airtight containers. This will prevent food from dehydrating and to prevent any strong odors of some foods transferring to milder ones.

To freeze raw meat, wrap in plastic bags or in airtight containers and place on the lowest shelf to avoid cross contamination. Do not allow raw meat to come into contact with cooked foods. For safety, only store raw meat for two or three days Fruit and vegetables should be thoroughly cleaned and placed in the crisperr.

Milk and other liquids should be sealed with lids and placed in the bottle shelf in the door. NOTE: The ambient temperature of the freshly stored food and how often the door is opened affect the temperature in the refrigerator. If required, change the thermostat temperature settings.

Storing frozen food

Ail frozen food you purchase should be placed in the freezer as soon as possible to avoid them from defrosting and spoiling. Ail storage recommendations printed on the packaging of frozen food by the manufacturer should always be followed.

When using the freezer for the first time or after defrosting, set the thermostat knob to the maximum position for at least 2

hours before introducing food to be stored, and then readjust it to the normal position.

The technical data mentioned in the 'Specifications' are obtained in the case that the freezing drawers are removed.

Storing food in fridge Cool area

This is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses e.g. Cheddar. Opened jars and bottles of salad dressings, sauces and jams. fats, e.g. Butter, margarine, cooking fats and lard.

Coldest area: 0^ C to 5^ C

This is where foods which must be cold to keep them safe should be kept:

• Raw and uncooked foods should always be wrapped.
• Pre-cooked chilled foods, e.g. Ready meals, meat pies, soft cheeses.
• Pre-cooked meats e.g. Ham,
• Prepared salads (including pre-packed mixed green salads, rice, potato salad etc.).
• Desserts, e.g. Fromage frais, home-prepared food and leftovers or cream cakes.

Salad bin

This is the most humid part of the Fridge. Vegetables, fruit, fresh salad items e.g. Unwashed whole lettuce, whole tomatoes, radishes etc can be stored here.

WE RECOMMEND THAT ALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.

NOTE: Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom of the fridge. This will stop them dripping onto, or touching other foods. Do not store inflammable gasses or liquids in the fridge.

DAILYUSE

FIRSTUSE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.

MAKING ICE CUBES

1. Fill the ice tray with 34 full of clean water
2. Place the tray in the top freezing drawer
   3.Close the door

To remove the ice cubes from the tray, put the tray under running water for a while and then twist the tray slightly to loosen the ice cubes

FRIDGE FOOD

In the fridge mode: Most pre-packed dairy foods have a recommended use by/best before/best by/date stamped on them. Store them in the fridge compartment and use within the recommended time.

Refridgerator compartments	Type of food	Recommendede storage temperature and time
Door or balconies of fridge compartment	·Food with natural preservatives, such jams,juices, drinks, condiments. ·Do not store perishable foods.	Set appliance at +4°C, using it within 2 days
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the risper bin. ·Do not store bananas, onions, potatoes, garlic in the refrigerator.	Set appliance at +4°C, using it within 5 days
Fridge shelf - middle	·Dairy products, eggs	Set appliance at +4°C, using it within 7 days
Fridge shelf - top	·Foods that do not need cooking, such sa ready-to-eat food, deli meats, leftovers	Set appliance at +4°C, using it within 7 days

Take care not to store the following at temperatures of less than 7^ for long periods

• Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.
• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
• Do not refrigerate avocados (until they are ripe), bananas and mangoes.

FREEZING FRESH FOOD

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24hours is specified on the rating plate.

• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

• The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

STORING FROZEN FOOD

• When first starting-up or after a period out of use. Before putting the product in the compartment, let the appliance run at least 2 hours on the lowest temperature.
• IMPORTANT! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).
• In the freezer mode: These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 (minimum at -18^ ).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shell fish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whale and yolk, cooked crayfish, minced meat (raw),pork (raw)	6 months
Fruit (dry ar in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget

• When you freeze fresh food with a 'use by / best before/best by/' date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed frozen food that has thawed completely must not be re-frozen.
• Once defrosted, food should be consumed quickly.

THAWING

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

MOVABLE SHELVES

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

POSITIONING THE DOOR BALCONIES

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Energy-saving tips

Install the fridge or freezer in a cool place ont of direct sunlight and away from cookers, heaters, dishwashers or any hot air emitting items.

Do not set the fridge and freezer temperatures lower than necessary. Set the internali temperature within the correct range e.g. adjust the thermostat at middle position for 4^ in the fridge compartment and -18^ in the freezer respectively. Let precooked foods cool down before placing them in the fridge or freezer. This will prevent the internali temperature of the fridge from rising.

Keep your fridge full, but not over crowded, this helps reduce «cold» air loss. Meanwhile, avoid overloading the fridge or freezer. Try to leave about 20% free space for air circulation. To prevent cold air escaping, limit the frequency of opening door. When retuning from shopping, sort foods to be kept in your fridge before opening the door. Only open the door to put food in or take it out.

Make sure the door seal is clean and in good condition. It should hold a piece of paper tightly in place when shut. Defrost regularly or when ice is more than 5mm thick. Thick ice covering the inner sides significantly increases energy use. The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

MAINTENANCE

Noise from your appliance

You may notice some rather unusual noises. The noises are caused by circulation of refrigerant in the cooling System. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your fridge.

Prolonged off periods

If the appliance is not in use for a long period of time, proceed as follows:

1. Disconnect from the mains supply.
2. Clean and dry the inside (see 'Cleaning and maintenance').
3. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

Notes for use

Do clean and defrost your appliance regularly. Do check contents of the compartments every so often.

Do store commercially prepared food in accordance with the instructions given on the packets.

Do choose high quality fresh food and be sure it is thoroughly clean before freezing it.

Do wrap all food in food quality polythene bags or air tight containers and make sure any air is excluded.

Do Not store poisonous or any dangerous substances in your freezer. It is designed for the freezing of edible foodstuffs only.

Do Not consume food which has been frozen for an excessive length of time.

Do Not leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation. Do Not use sharp objects such as knives to remove the ice from the appliance. Only use a plastic scraper.

Do Not put hot food into the appliance. Let it cool down to room temperature.

Do Not put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.

Do Not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freeze burns' on the lips.

Do Not try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

Changing the light bulb

The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. In case of any abnormality, please contact the after-sales personnel for visiting service.

Lamp type: LED light.

Energy efficiency level: G

This product contains a light source of energy efficiency class G.

LED lighting source

Replaceable by professional

CLEANING

1. Unplug the appliance.
2. Remove oil substances.

Cleaning inside the Fridge/Freezer

You should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/ Freezer.

Cleaning outside the Fridge/Freezer

Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer exterior. The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer

TROUBLESHOOTING

With regard to the following small faults, not every failure needs to be fixed by the technical service personnel; you can try to solve the problem.

Note: If the above descriptions are inapplicable to troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made. This product should be serviced by an authorized engineer and only genuine spare parts should be used.

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Fault	Possible causes	Possible solutions
The refrigerator does not work	The refrigerator is not connected to the mains.The circuit breakers or fuses are damaged.There is no electricity or there has been a power cut.	Plug the refrigerator into the mains.Open the door and check the light is on.
Abnormal noise	The refrigerator is not stable. The refrigerator is in contact with the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The refrigerator receives direct sunlight or is close to a heat source. The refrigerator is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature. Check and close the door. Remove the refrigerator from the heat source. Keep the recommended distances in the installation section so the refrigerator is well ventilated.Set a suitable temperature.
Unpleasant smells in the refrigerator	There is spoiled food inside. The refrigerator is dirty.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator. Pack food, especially if it has a strong smell.
The icons do not work	Check if the child lock is active.	Hold down the Unlock icon for 3 seconds to deactivate the child lock and press any icon (to get more information, read the instructions on the child lock).
You cannot set the temperature	Check if the Smart or fast freezing functions are not active on the control panel.	Deactivate the special functions and then set the temperature (for more details, check the Functions section).

The freezer-compartment temperature is shown on the panel, but it flashes

Check that the power supply has not been cut off before.

Press any icon to activate the alarm (check the overheating warning section) and check that the food inside the refrigerator is not spoiled.

SERVICING

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

Duration of availability of spare parts: 10 years.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances: http://sav-client.conforama.fr / or call :09 69 32 05 05 from

Monday to Saturday, 08:30 to 19:00 price of a local call.

ACCESSORIES

Energy label

FR/ENG manual

ice box

Egg tray

DISPOSAL

The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.

Disposal of old electrical appliances

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE - further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

TECHNICAL SPECIFICATIONS

Flash the QR code on the energy label or below to access its main information.

Model Website QR Code
SBS5625WDDKD	https://eprel.ec.europa.eu/qr/2179710
Reference:	SBS5625WDDKD
Rated voltage:	220-240V~
Ampere:	1.3A
Rated frequency:	50Hz
Climate class:	SN/N/ST/T
Refrigerant:	R600a (78g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate class:

• Extended temperate(SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C' ;
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^' ;
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C' ;

CUSTOMER SERVICE

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

Duration of availability of spare parts: 10 years.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

https://sav-client.conforama.fr/

09 69 32 05 05

From Monday to Saturday, 08:30 to 19:00 price of a local call
This instruction manual is also available on our website: www.conforama.fr
