USER MANUAL FR4D4664WDDKE SABA

Exterior view of a modern double-door refrigerator with black panels and a small side panel (no visible text or symbols)

SABA

FR4D4664WDDKE

FR

GB

Warning sign depicting a flame inside a triangle (no text or symbols)

H F I G F

A	795
B	740
C	1800
D	min=50
E	min=50
F	min=50
G	1580
H	1530
I	135°

MISE À NIVEAU DE L'UNITÉ

Diagram showing a refrigerator with an upward arrow and a hand holding a tool, alongside an oval diagram illustrating the correct vs. incorrect positioning of the device.

FR

Technical line drawing of a rectangular device with internal compartments and an oval-sectional view showing internal structure (no text or symbols)

FR

Technical line drawing of a mechanical component with an inset detail showing a detailed detail (no text or symbols)

Technical diagram of a refrigerator interior layout with numbered components for identification

Simple black-and-white warning symbol with exclamation mark and circular elements inside a downward arrow (no text)

OK

FR

ACHAT DE PRODUITS SURGELÉS

Line drawing of a hand cleaning or adjusting a shelf with a tool (no text or symbols)

POSITIONNEMENT DES BALCONNETS DE PORTE

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

ENTRETIEN

BRUIT DE L'APPAREIL

REPLACEMENT DE LA LUMIÈRE LED

LED lighting source

Replaceable by professional

https://sav-client.conforama.fr

09 69 32 05 05

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

SABA since 1923

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE S.A..

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE S.A. – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

TABLE OF CONTENT

SAFETY INSTRUCTIONS 3

DESCRIPTION OF THE DEVICE 9

INSTALLATION 10

USE 14

DAILY USE 26

MAINTENANCE 29

TROUBLESHOOTING 34

DISPOSAL 35

DISPOSAL OF OLD ELECTRICAL

APPLIANCES 35

TECHNICAL INFORMATION 36

CLIMATE CLASS 38

SAFETY INSTRUCTIONS

1. IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

2. This appliance is intended to be used in household and similar applications such as:

3. staff kitchen areas in shops, offices and other working environments;

4. farm houses and by clients in hotels, motels and other residential type environments;
5. bed and breakfast type environments;

6. catering and similar non-retail applications;

7. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

8. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
9. WARNING: Do not damage the refrigerant circuit.
10. If the refrigerant circuit is damaged:

- Avoid naked flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated.

1. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved.

1. Children shall not play with the appliance.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
6. WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

7. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

8. WARNING: fill the ice-maker with potable water only.

9. For information on the installation, handling, maintenance and disposal of the device, and the method of replacing the lamp, please refer to the following paragraphs of this manual.
10. Gas warning: risk of fire / flammable materials

GB

Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas, Before you scrap the appliance, please take off the doors to prevent children trapped.

1. To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

WARNINGS

1. If you are discarding an old freezer or refrigerator with a lock/ catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
2. Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
3. Do not insert oversized food as this could cause incorrect operation.
4. Extreme caution must be used when moving an appliance.
5. Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause ‘freezer burns’ on the lips.
6. The appliance must be installed on the ground, on a flat, horizontal surface, making sure that the ventilation openings are completely clear.

7. Never try to replace or repair any part or component of the appliance yourself; seek the assistance of professional, qualified personnel, if need be. 6

8. This refrigerating appliance is not intended to be used as a built-in appliance.

9. In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

10. To save energy, please avoid keeping the door open for a long time when using the appliance.

11. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

12. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

13. As old refrigeration equipment may contain CFC's which will damage the ozone layer, when disposing of any refrigeration equipment please contact your local waste disposal department for advice on the correct method of disposal.

14. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

15. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

16. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

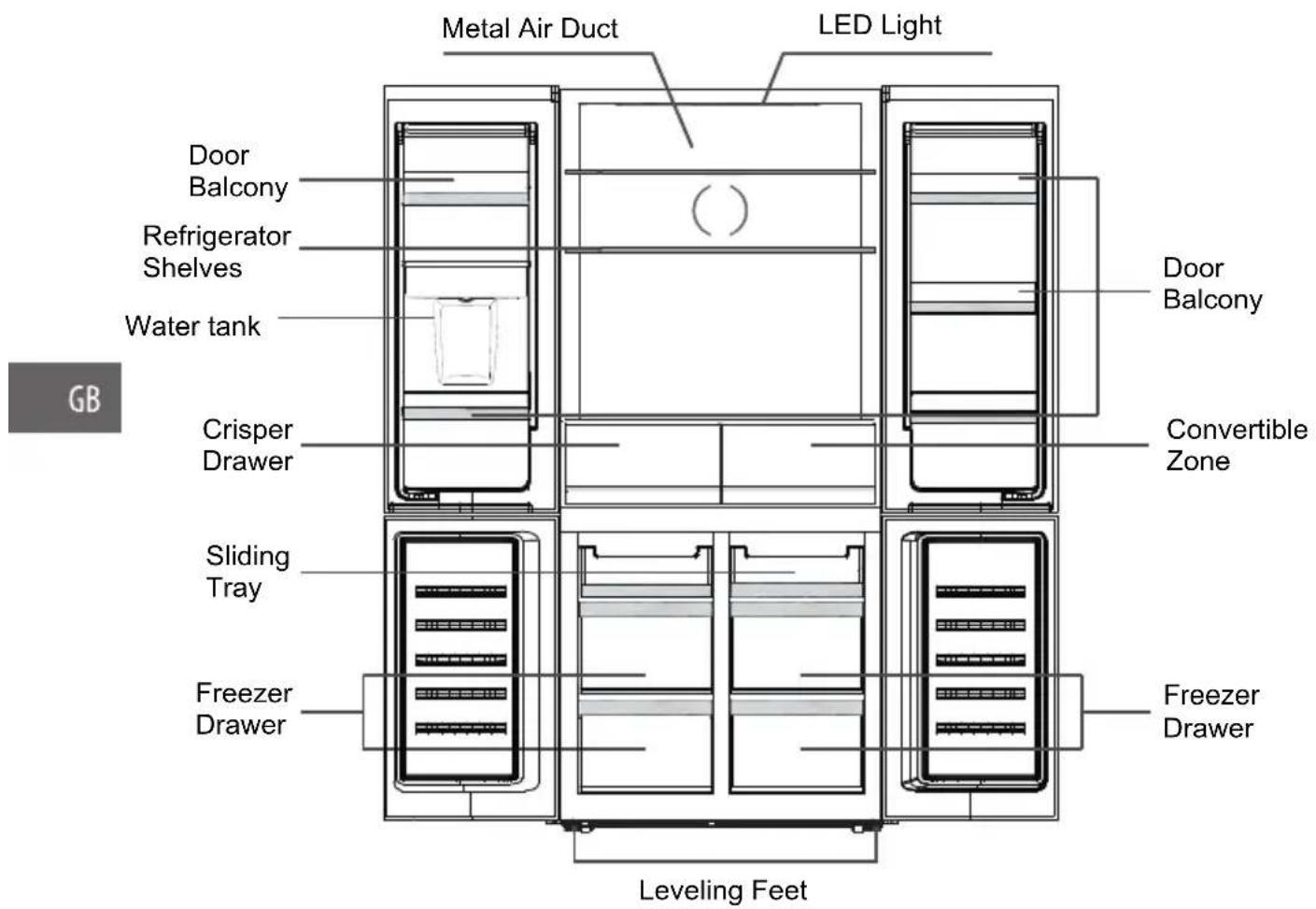

DESCRIPTION OF THE DEVICE

Metal Air Duct LED Light Door Balcony Refrigerator Shelves Water tank Crisper Drawer Sliding Tray Freezer Drawer Leveling Feet Door Balcony Convertible Zone Freezer Drawer GB

NOTE: The appliance design is subject to change without prior notice.

INSTALLATION

• Position the appliance and allow it to stand for two to three hours before it is turned on for the first time to allow the system to settle. Do not position next to any heat source e.g. cooker, boiler or in direct sunlight etc.
• Allow at least 10cm of space at the top and 10 cm of space on both sides of the appliance and between the back of the appliance and the wall for adequate air circulation. The appliance is not designed for recessed installation (“building in”).
  • Install on a good firm level surface, and any unevenness of the floor should be corrected prior to installation, slight unevenness can be overcome by adjusting the front feet.
• NOTE: If the appliance is positioned on a carpet, soft floor covering you should readjust the front feet once the appliance has had time to settle.

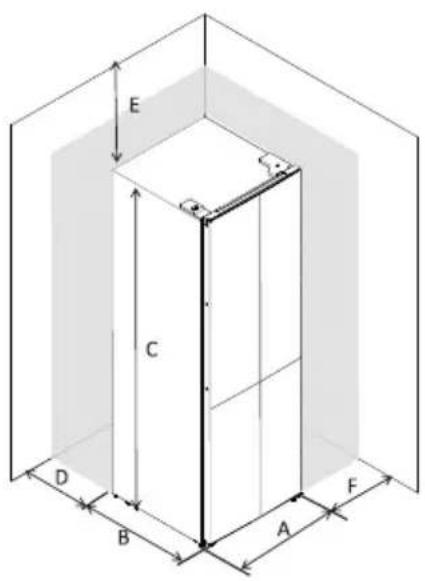

SPACE REQUIREMENT

• Keep enough space of door open.
• Keep at least 100mm gap at two sides and back.

E C D B A F

F H I G F

A	795
B	740
C	1800
D	min=50
E	min=50
F	min=50
G	1580
H	1530
I	135°

GB

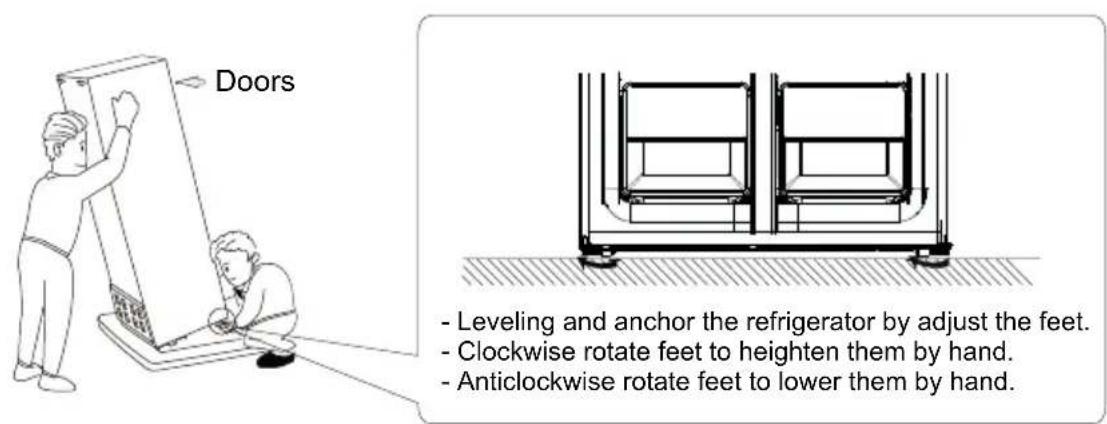

LEVELLING THE UNIT

To do this adjust the two levelling feet at front of the unit.

Doors - Leveling and anchor the refrigerator by adjust the feet. - Clockwise rotate feet to heighten them by hand. - Anticlockwise rotate feet to lower them by hand.

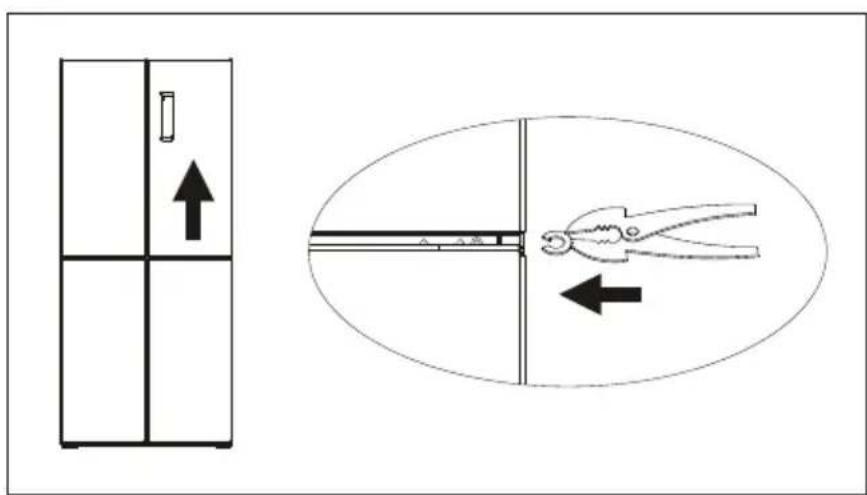

LEVEL DOORS

After transportation or door balconies are loaded by food or beverage, upper two doors may not be aligned. There are 3 C type washers which are used to adjust doors. Please follow below process to level doors.

1. Before check alignment of doors, please make sure appliance stand levelly.

2. If top of upper two doors looks not in a line, please slightly lift lower door and insert a pieces of C type washer by a clip between bottom of door and middle hinge.

Diagram showing a refrigerator with an upward arrow and a hand holding a tool, alongside an oval diagram illustrating the correct direction of a pliers.

⚠ Warning! Please be careful to avoid fingers are clipped by door. Please use tool.

Warning! Please keep C type washers far away children to avoid them are swallowed by children. They are small parts.

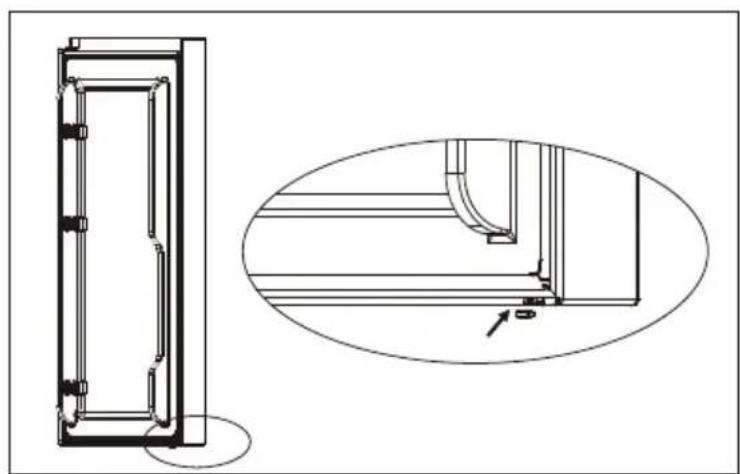

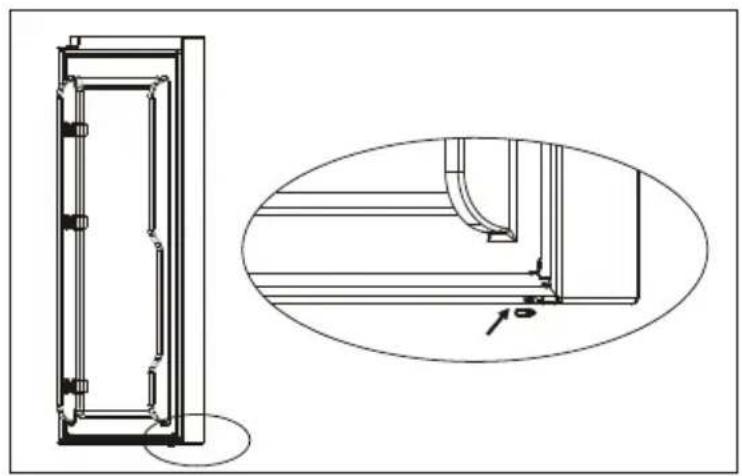

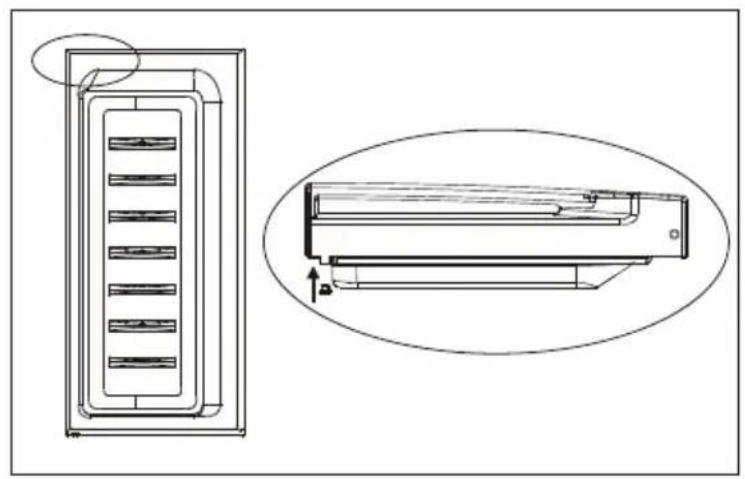

RUBBER BLOCKS

There is one rubber block on each door. They function as spring to relieve impact when door closes.

Please not pull the rubber blocks. If they absent from the doors, please take one from accessory bag and insert it to the hole of door.

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with an inset detail showing a corner detail (no text or symbols)

⚠ Warning! Please keep rubber blocks far away children to avoid them are swallowed by children. They are small parts.

USE

• This appliance is designed to operate in ambient temperature between 10^ and 43^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer section will rise above -18^ and food spoilage may occur.
• Remove all packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5ml to 0.5 liter of water). Dry the appliance thoroughly.
• When you use the freezer for the first time or after defrosting, set the thermostat control to the maximum position for at least 2 hours before introducing food to be stored, and then readjust to the normal position.
• If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 12 hours. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

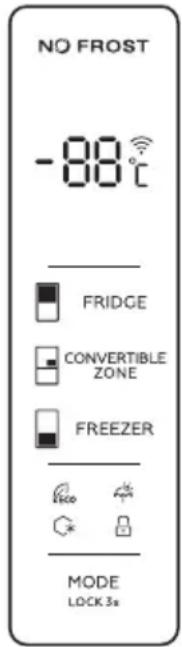

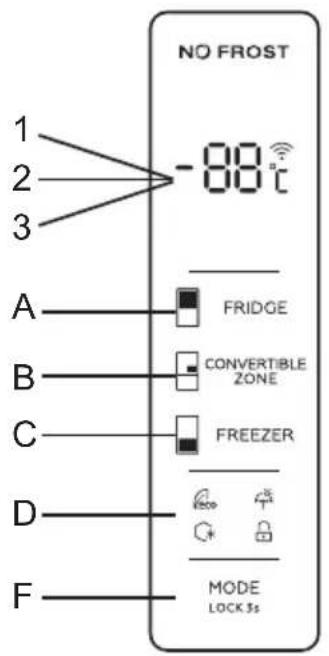

USING THE CONTROL PANEL

NO FROST 1 2 3 -88°C A FRIDGE B CONVERTIBLE ZONE C FREEZER D MODE LOCK 3s F

1.1 KEY OPERATION

A. Fridge Temp. setting
B. Convertible Zone Temp. Setting
C. Freezer Temp. Setting
D. Mode Setting (Eco, Holiday, Super freezing)
F. Locking / Unlocking Setting

1.2 LED DISPLAY

1. Temperature of Fridge Compartment
2. Temperature of Freezer Compartment
3. Temperature of convertible Compartment

a. The control panel is 100 % lit up for 3 seconds, which operates exactly as per the setting (mode and temperature) before the power off. The system will be automatically locked 25 seconds after the last key operation. After locking, the light of the panel would be out 120 seconds after the last key operation.

b. The Fridge/Freezer/Convertible Zone temperature will be showed Separately by setting each zone temperature.

2.1 DISPLAY

2.1.1 The panel will be lit up for 2 minutes once the door of fridge compartment or freezer compartment is opened. (one door signal is sensed at a time)

2.1.2 The panel will be lit up by any key operation whereas the light would be out 2 minutes after the last operation.

2.1.3 Display during normal operation Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting.

Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.

Temperature Display of the Convertible Compartment: Indicating the temperature of the current setting.

3.0 ILLUSTION OF THE KEY

3.1 Temperature Control of the Fridge Compartment

Temperature Control of the Fridge Compartment: This key is workable both in User Defined Mode as well as Super Mode. After entering the temperature control of the fridge compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of 2^ C, 3^ C, 4^ C, 5^ C, 6^ C, 7C, 8^ C, after which 5-second flashing means the selection of temperature is settled.

3.2 Temperature Control of the Freezer Compartment

Temperature Control of the Freezer Compartment: This key is workable both in User Defined Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment the key flashes. By touching the key consecutively, the temperature would change in a circle of -14^ , -15^ , -16^ , -17^ , -18^ , -19^ , -20^ , -21^ , -22^ , after which a 5-second flashing means the selection of temperature is settled.

3.3 Temperature Control of the Convertible Compartment

Temperature Control of the Convertible Compartment: This key is workable both in User Defined Mode as well as other models. After entering the temperature control of the Convertible compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of 5°C, 4°C, 3°C, 2°C, 1°C, 0°C, -1°C, -2°C, -3°C, after which 5-second flashing means the selection of temperature is settled.

3.4 Mode / Locking / Unlocking

a. By touching this key consecutively, the operation mode of the refrigerator will change in a circle of "ECO Mode - Holiday Mode - Super Mode - User Defined Mode. A 5-second flashing means the selection of temperature is settled.

b. Long Press to Enter / Exit Locking Mode

- Unlocking: Press for 3 seconds in the mode of locking, all the keys would be unlocked after the a beep.

- Locking: Press for 3 seconds in the mode of unlocking, all the keys would be locked after the a beep.

3.5 Press Button

Short beep after per press button. All buttons will only valid under unlock mode.

3.6 Lock Function

No operation in 25 sec will lock the display automatically.

GB

3.7 ECO Mode

Press mode to choose ECO Mode. ECO icon keeps bright after 5 sec flashing to enter ECO Mode. The temperature of Fridge and Freezer is set according to environment temperature.

"Freezer & Fridge" button will not work in ECO Mode. The temperature of convertible compartment can be adjusted freely by operating the convertible zone temp. setting Exit Eco Mode: Choose mode. Exit ECO Mode after 5 sec, entering the selected mode.

3.8 Holiday Mode

Press mode to choose Holiday Mode, the icon keeps bright after 5 sec flashing, entering holiday mode.

Temperature fix 17°C in fridge compartment, "fridge" button in vain, while Holiday icon will flash three times in alarm.

Temperature of freezer compartment and convertible compartment can be adjusted freely.

Exit Holiday Mode:

Choose mode, exit Holiday Mode after 5 sec, entering the selected mode

3.9 Super Freezing mode

Choose mode, the icon keeps bright after 5 sec flashing, entering Freezing Mode.

Freezing mode:

Temperature fix -25°C in freezing compartment, "freezer" button in vain, while freezing icon will flash three times in alarm. Temperature of fridge compartment and convertible compartment can be adjusted freely.

Exit Freezing Mode:

meeting below conditions.

• manually exit Freezing Mode.
• freezing period more than 50 hours

Mode remains the same before entering super freezing mode

4.0 Door Open Alarm

If fridge (upper) door keeps open for 60 seconds, periodical alarm will be arisen until the door is closed.

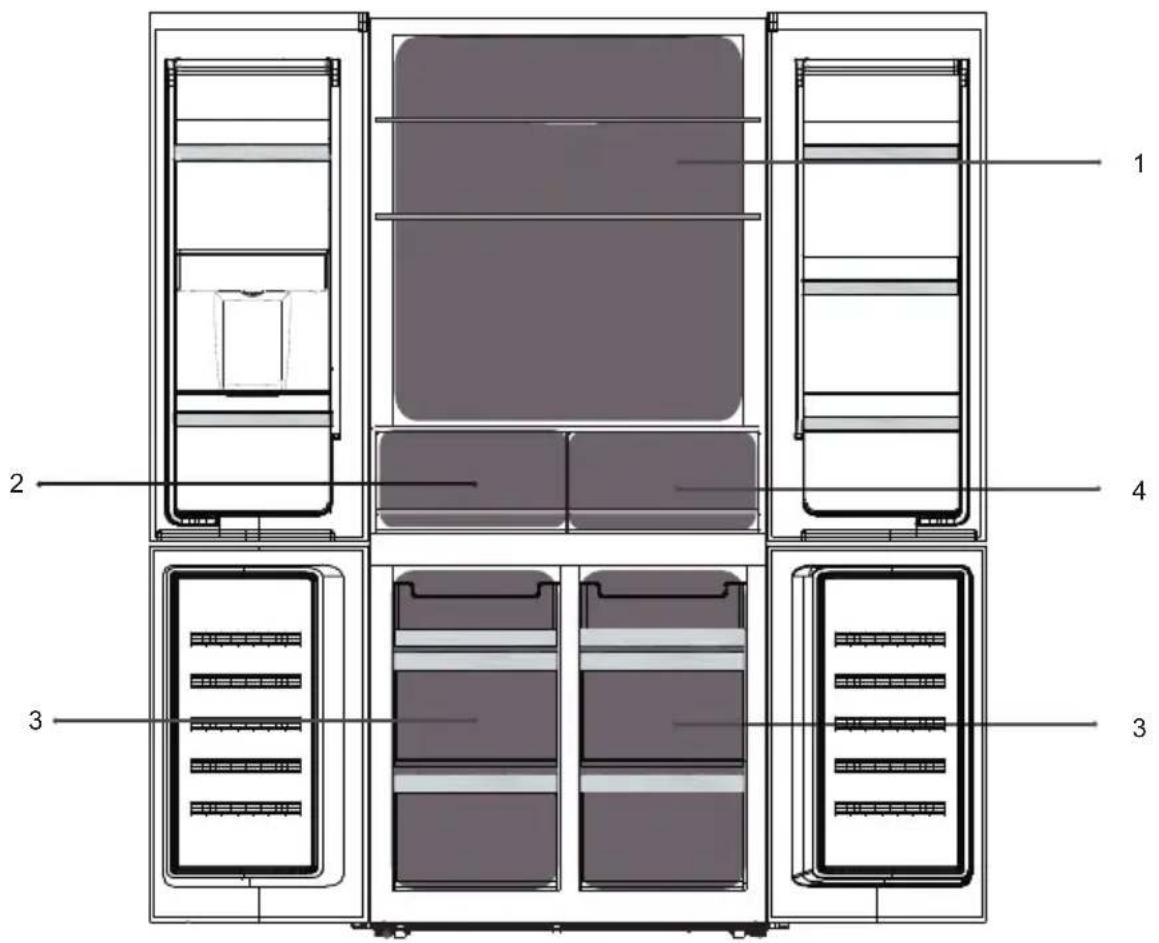

MULTI-TEMPERATURE ZONE

Technical diagram of a refrigerator interior layout with numbered compartments and storage compartments labeled 1 to 4.

1. Fridge temp. 2^ C 8^ C
   Controlled by operating display panel
2. Fresh temp. 2^ C 8^ C
   3.Freezer temp. -22^ C -14^ C
   Controlled by operating display panel
3. Convertible zone temp. -3°C \~ 5°C
   Controlled by operating display panel

TEMPERATURE SETTING RECOMMENDATION

Environment Temperature	Temperature Setting
Summer (Above 38°C)		Fridge set on 2°C
		Freezer set on -20°C
Normal		Fridge set on 4°C
		Freezer set on -18°C
Winter (Below 16°C)		Fridge set on 5°C
		Freezer set on -18°C

• Information above give users recommendation of temperature setting.
• Temperature of convertible zone setting depends on food leading.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
• The best storage time may reduce under other settings.

TEMPERATURE INDICATE

• In order to help you get the correct adjustment of your device, it is equipped with a temperature gauge placed in the coldest area.
• For the proper storage of food in your refrigerator and in particular in the coldest area, make sure that “OK” appears in the temperature indicator.

Warning symbol with exclamation mark and OK/OK/OK buttons, likely indicating absence of a warning sign or error.

GB

• The symbol on the left side indicates the location of the coldest area of your refrigerator. It defines the height of this area.
• If “OK” is not displayed, the average temperature in this area will be very high. You ought to adjust the thermostat to a colder setting.
• For every modification of your thermostat, you are supposed to wait for the stabilization of the temperature inside the unit before proceeding, if necessary, to a new setting. Do change the position of the thermostat gradually and wait at least 12 hours before re-checking.
• NOTE: after charging the device for fresh food or after repeated or prolonged door openings, it is normal that the inscription “OK” does not appear in the temperature indicator. Wait at least 12 hours before readjusting the thermostat.

SHOPPING FOR FROZEN FOOD

- The appliance is rated as a 4 star freezer and can freeze fresh food and store pre-frozen food. When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating.

FREEZING FRESH FOOD

GB

- Ensure that your freezing operations are carried out under the most hygienic conditions as freezing alone does not improve the food.

- Never put hot or even warm foodstuffs into the freezer.

- Prior to freezing the food, food should always be covered tightly with foil, plastic film, placed in plastic bags or stored in airtight containers. This will prevent food from dehydrating and to prevent any strong odors of some foods transferring to milder ones.

- To freeze raw meat, wrap in plastic bags or in airtight containers and place on the lowest shelf to avoid cross contamination.

- Do not allow raw meat to come into contact with cooked foods. For safety, only store raw meat for two or three days. Fruit and vegetables should be thoroughly cleaned and placed in the crisper.

- Milk and other liquids should be sealed with lids and placed in the bottle shelf in the door.

- NOTE: The ambient temperature of the freshly stored food and how often the door is opened affect the temperature in the refrigerator. If required, change the thermostat temperature settings.

STORING FROZEN FOOD

• All frozen food you purchase should be placed in the freezer as soon as possible to avoid them from defrosting and spoiling.
• All storage recommendations printed on the packaging of frozen food by the manufacturer should always be followed.
• When using the freezer for the first time or after defrosting, set the thermostat knob to the maximum position for at least 2 hours before introducing food to be stored, and then readjust it to the normal position.

ENERGY-SAVING TIPS

• Install the fridge or freezer in a cool place out of direct sunlight and away from cookers, heaters, dishwashers or any hot air emitting items.
- Do not set the freezer temperatures lower than necessary. Set the internal temperature within the correct range e.g. adjust the thermostat at middle position -18°C in the freezer respectively.
- Let pre-cooked foods cool down before placing them in the fridge or freezer. This will prevent the internal temperature of the fridge from rising.
- Keep your freezer full, but not over crowded, Try to leave about 20% free space for air circulation.
- To prevent cold air escaping, limit the frequency of opening door. When retuning from shopping, sort foods to be kept in your freezer before opening the door. Only open the door to put food in or take it out.

• Make sure the door seal is clean and in good condition. It should hold a piece of paper tightly in place when shut.
• Defrost regularly or when ice is more than 5mm thick. Thick ice covering the inner sides significantly increases energy use.
• The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

DAILY USE

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.

GB

FRIDGE FOOD

Storage time of different food in different compartments according to be below table.

Refridgeratorcomportments	Type of food	Storage time
Door or balconies offridge compartment	·Food with natural preservatives, such jams,juices, drinks, condiments.·Do not store perishable foods.	3 days
Crisper drawer(salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.	1 week
Fridge shelf - middle	·Dairy products, eggs	1 week
Fridge shelf - top	·Foods that do not need cooking, such as ready-to-eat food, deli meats, leftovers	1 week

FREEZING FRESH FOOD

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.
• The combination of the drawers, baskets and shelves shown in the device description is optimal for efficient energy savings. Changing the combination proposition could alter the efficiency.

STORING FROZEN FOOD

When first starting-up or after a period out of use. Before putting the product in the compartment, let the appliance run at least 2 hours on the lowest temperature.

IMPORTANT! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shell fish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whale and yolks, cooked crayfish, mincedmeat (raw),pork (raw)	6 months
lamb (raw), fruit cakes	n,Fruit (dry ar in syrup), egg 12 months

GB

whites, be

THAWING

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

MOVABLE SHELVES

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand placing a component into a shelf (no text or symbols)

POSITIONING THE DOOR BALCONIES

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

MAINTENANCE

NOISE FROM YOUR APPLIANCE

You may notice some rather unusual noises. The noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your fridge.

GB

PROLONGED OFF PERIODS

If the appliance is not in use for a long period of time, proceed as follows:

1. Disconnect from the mains supply.
2. Clean and dry the inside (see ‘Cleaning and maintenance’).
3. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

NOTES FOR USE

• Do clean and defrost your appliance regularly.
• Do check contents of the compartments every so often.
• Do store commercially prepared food in accordance with the instructions given on the packets.
• Do choose high quality fresh food and be sure it is thoroughly clean before freezing it.

• Do wrap all food in food quality polythene bags or air tight containers and make sure any air is excluded.

• Do Not store poisonous or any dangerous substances in your freezer. It is designed for the freezing of edible foodstuffs only.

• Do Not consume food which has been frozen for an excessive length of time.
• Do Not leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.
• Do Not use sharp objects such as knives to remove the ice from the appliance. Only use a plastic scraper.
• Do Not put hot food into the appliance. Let it cool down to room temperature.
• Do Not put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.
• Do Not give children ice-cream and water ices direct from the freezer as the low temperature may cause freezer burns' on the lips.
• Do Not try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

LED LIGHT REPLACEMENT

LED lighting source

Replaceable by professional

WARNING: the LED light must not be replaced by the user! If the LED light is damaged, contact an authorized service representative for repairing.

The product contains two light sources of energy efficiency class G.

CLEANING

1. Unplug the appliance.
2. Remove all substances.
3. Clean the inside and outside walls with a clean sponge or soft cloth using warm water or 1 teaspoon of bicarbonate of soda to 1.2 liters of water.
4. Rinse well and wipe dry with a clean soft cloth.

- If the appliance is not to be used for a long period of time then it is recommended to remove all the food stuff, clean the inside of the appliance and leave the door open to allow the air to circulate thus avoiding unpleasant odors.

- Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

- The interior of the refrigerator should be cleaned regularly to avoid odor.

- Check the door gasket regularly to make sure there are no debris.

- Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

- Clean the door gasket with mild soap and water. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

- For areas that are difficult to clean in the refrigerator(such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft

brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.
• Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Boiling water and benzene may deform or damage plastic parts.

• Do not rinse with water so as not to affect the electrical insulation properties.
• It is advisable to clean the appliance regularly and to remove any food deposits or splashes; in particular, clean the door seals, recesses and adjacent parts.

• Don’t overlook parts of the appliance such as the humidity controller, light casing, racks, egg and butter compartments, ice cube tray, and all of the drainage areas, etc.

• If the appliance is not kept clean and in good condition, its surface could deteriorate and inexorably affect the length of its service life, and could lead to a dangerous situation.

• The appliance must not be steam cleaned.
• Use only a non-abrasive sponge, rinse with clean water then dry thoroughly before putting the parts back in place.
• Never use abrasive cleaning products or hard metal scrapers to clean the appliance, as they could scratch the surfaces and break down the coating.
  • After cleaning, leave the inside of the appliance to dry with the door open before plugging it into the mains again. • When re-stocking the appliance, be especially careful not to hit, scratch, crack or break the internal surfaces.

TROUBLESHOOTING

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation)

Problem		SolutionPossible Caus
Appliance does not work	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at SUPER modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that its correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panels are hot	It's normal. Heat exchange is in the side panels.	Take gloves to touch side panels if need.

If the malfunction shows again, contact the Service Center.

DISPOSAL

The refrigerating gas contained in the circuit of this appliance is is obutane (R600a); it causes a low level of pollution but is in flammable. Please contact your local disposal department for advice on the correct method of disposal.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not

thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

This instruction book is also available on our website: www.conforama.fr.

TECHNICAL INFORMATION

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019 / 2016
Supplier's name or trade mark: SABA
Supplier'saddress:BOULEVARD DU MANDINET 80, 77432 LOGNESMARNE LA VALLEE (LOGNES), FR
ModelIdentifier: FR4D4664WDDKE
Type of refrigerating appliance
					Free standingDesign type:nGBmeterValueI
Wine storage appliance:			Other refrigerating appliance:no Yes
General product parameters:
					ValueParamValueI
Overall dimensions (millimeter)	Height	1800	Total volume (dm3 or l)		464
	Width	795
	Depth	740
EEI		100	Energy Efficiency Class		E
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		298	Climate class		SN,N,ST,T
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C),for which the refrigerating appliance is suitable		43
		NoWinter setting
Comportment Parameters:
Comportment type		Comportment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (Kg/24h)	Defrosting type(outodefrost=A, manual defrost =M)
					----noPantry
					----noWine storage
					----noCellar
	yesFresh food 271		4	-	A
					----noChill
Comportment type		Comportment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (Kg/24h)	Defrosting type (outodefrost =A, manual defrost =M)
					----no0-star or ice-n
					----no1-star
					----no2-star
					----no3-star
	yes4-star -18	175		13	A
					----no2-star section
Variable temperature compartment	Fresh food	18		-4	A
	Chill		2	-
For 4-star compartment:
Fast freeze facility		yes
Light source parameters:
		LEDType of light source
Energy efficiency class		G
Minimum duration of the guarantee offered by the manufacturer: 24 Months
Additional information: N/A
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU)2019/2019 is found: www.conforama.fr

Flash the QR code on your appliance to access its main information.

Reference:	FR4D4664WDDKE
	220-240V~Rated voltage:
Ampere:	1.50A
	50HzRated frequency
Climate class:	SN,N,ST,T
Refrigerant:	R600a(70g)
	IProtection against electrical shock:
	CYCLOPENTANEInsulation foam:

CLIMATE CLASS

• Extended temperate(SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C;
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C;
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C;
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C;

- Period of availability of repair spare parts: 10 years.

- If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

https://sav-client.conforama.fr

09 69 32 05 05

CONFORAMA France SA
