USER MANUAL GEN-3600-0MM0 Mi-T-M

Abstract geometric logo design resembling the letter 'M' in stylized gray shapes with black outlines (no text or symbols)

Mi-T-M®

CORPORATION

THIS MANUAL IS AN IMPORTANT PART OF THE GENERATOR AND

MUST REMAIN WITH THIS UNIT!

INTRODUCTION

THANK YOU for purchasing a Mi-T-M product.

READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage.

THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it.

MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners. Metric and inch fasteners may require a specific metric or inch wrench.

RIGHT HAND AND LEFT HAND sides are determined by facing the motor end of the machine.

The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine.

WARRANTY is provided from your dealer for customers who operate and maintain their equipment as described in this manual. The warranty is explained on the warranty certificate shown in this manual.

This warranty provides you the assurance that your dealer will back products where defects appear within the warranty period. Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void.

THIS SPARK IGNITION SYSTEM COMPLIES WITH CANADIAN ICES-002. CE SYSTÈME D'ALLUMAGE PAR ÉTINCELLE EST CONFORME À LA NORME NMB-002 DU CANADA.

WARNING

⚠ WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

▲ WARNING

⚠ WARNING: This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

CONTENTS

INTRODUCTION....2

CONTENTS....3

SAFETY....4

CONTROLS 12

PREPARING THE GENERATOR....13

OPERATION....16

TROUBLESHOOTING....20

SERVICE 21

STORAGE 25

SPECIFICATIONS 26

ALL INFORMATION, ILLUSTRATIONS AND SPECIFICATIONS IN THIS MANUAL ARE BASED ON THE LATEST INFORMATION AVAILABLE AT THE TIME OF PUBLICATION. THE RIGHT IS RESERVED TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.

Black triangular warning symbol with exclamation mark (no text or numbers)

SAFETY

RECOGNIZE SAFETY INFORMATION

This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury.

Follow recommended precautions and safe operating practices.

⚠️ DANGER

WARNING

CAUTION

UNDERSTAND SIGNAL WORDS

A signal word--DANGER, WARNING or CAUTION--is used with the safety-alert symbol. DANGER identifies the most serious hazards.

DANGER or WARNING safety signs are located near specific hazards. General precautions are listed on CAUTION safety signs. CAUTION also calls attention to safety messages in this manual.

WARNING CAUTION

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual and safety signs on your machine. Keep safety signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your Mi-T-M Customer Service Representative.

Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction.

Keep your machine in proper working condition. Unauthorized modifications to the machine may impair the function and/or safety and affect machine life.

If you do not understand any part of this manual and need assistance, contact your Mi-T-M Customer Service Representative.

CARBON MONOXIDE - POISONOUS GAS

Use generator outdoors, away from open windows, vents, or doors.

Generator exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas.

Never use a generator in enclosed or partially-enclosed spaces. Generators can produce high levels of carbon monoxide very quickly. When you use a portable generator, remember that you cannot smell or see carbon monoxide. Even if you can't smell exhaust fumes, you may still be exposed to carbon monoxide.

If you start to feel sick, dizzy, or weak while using a generator, get to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide from generators can rapidly lead to full incapacitation and death.

If you experience serious symptoms, get medical attention immediately. Inform medical staff that carbon monoxide poisoning is suspected. If you experienced symptoms while indoors, have someone call the fire department to determine when it is safe to re-enter the building.

Never operate the generator in an explosive atmosphere, near combustible materials or where ventilation is not sufficient to carry away exhaust fumes. Exhaust fumes can cause serious injury or death.

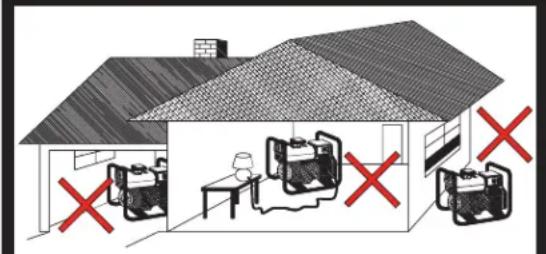

NEVER use a generator indoors, including in homes, garages, basements, crawl spaces, and other enclosed or partially-enclosed areas, even with ventilation. Opening doors and windows or using fans will not prevent carbon monoxide build-up in the home.

Follow the instructions that come with your generator. Locate the unit outdoors and away from doors, windows, and vents that could allow the carbon monoxide gas to come indoors.

ONLY run generator outdoors and away from air intakes.

NEVER run generator inside homes, garages, sheds, or other semi-enclosed spaces. These spaces can trap poisonous gases EVEN IF you run a fan or open doors and windows.

If you start to feel sick, dizzy, or weak while using the generator, shut if off and get fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up in your home, according to the manufacturer's installation instructions. The carbon monoxide alarms should be certified to the requirements of the latest safety standards for carbon monoxide alarms. (UL 2034, IAS 6-96, or CSA 6.19.01).

Test your carbon monoxide alarm frequently and replace dead batteries.

Abstract black-and-white graphic of a stylized bird or creature with a circular head and beak, set against a dotted grid background (no text or symbols)

DANGER / PELIGRO

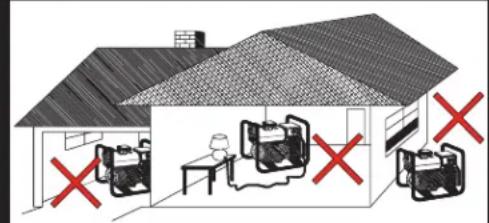

Diagram of a house with two machines and a table, marked with red Xs (no text or symbols present)

• DO NOT USE INDOORS OR OUTSIDE OPEN WINDOWS FUMES CAN KILL YOU!
- NE PAS UTILISER À L'INTÉRIEUR OU À L'EXTÉRIEUR DES FENÊTRES
OUVERTES. LES VAPEURS DE GAZ PEUVENT VOUS TUER!
•¡NO USE ADENTRO O AFUERA DE VENTANAS ABIERTAS LOS
GASES PUEDEN MATARLE!
34-1563-E/F/S-062104-ENG

Safety warning sign showing a person using a fuel pump with a no-smoking symbol above, next to a warning sign.

SAFETY WARNING WHEN REFUELING

Gasoline is extremely flammable and its vapors can explode if ignited.

Observe all safety regulations for the safe handling of fuel. Handle fuel in safety containers. If the container does not have a spout, use a funnel.

Do not overfill the fuel tank, leave room for the fuel to expand.

Do not refill fuel tank while the engine is running. Before refueling the generator, turn it off and let it cool down. Gasoline spilled on hot engine parts could ignite.

Fill the tank only on an area of bare ground. While fueling the tank, keep heat, sparks and open flame away. Carefully clean up any spilled fuel before starting engine.

Always fill fuel tank in an area with plenty of ventilation to avoid inhaling dangerous fumes.

NEVER store fuel for your generator in the home. Gasoline, propane, kerosene, and other flammable liquids should be stored outside of living areas in properly-labeled, non-glass safety containers. Do not store them near a fuel-burning appliance, such as a natural gas water heater in a garage. If the fuel is spilled or the container is not sealed properly, invisible vapors from the fuel can travel along the ground and can be ignited by the appliance's pilot light or by arcs from electric switches in the appliance.

GROUND FAULT CIRCUIT INTERRUPTER PROTECTION

These generators are equipped with two GFCI (Ground Fault Circuit Interrupters) 120V duplex receptacles for protection against the hazards of electrical shock from defective attachments such as, tools, cords, and cables.

WARNING: THE GFCIS MAY NOT FUNCTION UNLESS THE GENERATOR IS PROPERLY GROUNDED. FOLLOW THE CORRECT PROCEDURE SPECIFIED IN THE SECTION LABELED "GROUNDING INSTRUCTIONS"

A GFCI is a device that interrupts electricity from either the utility or generator by means of a special type of circuit breaker if a fault current flow to the ground occurs.

WARNING: ONLY THE 120V DUPLEX RECEPTACLES ARE PROTECTED BY THE GFCI.

A GFCI can be used only with generators that have the neutral wire internally bonded to the frame, and the frame properly grounded to the earth. A GFCI will not work on generators that do not have the neutral wire bonded to the frame, or on generators which have not been properly grounded. All Mi-T-M generators have internally bonded ground wires. A GFCI will not work if the unit is not properly grounded.

A GFCI may be required by OSHA regulations, the National Electric Code and/or local and federal codes when operating a generator.

For additional protections against shock hazards due to defective equipment attached to the twist-lock receptacles, consider the use of a GFCI on each of these receptacles as well.

GFCIs and GFCI protected cord sets and cables may be purchased from local electrical supply houses.

ELECTRICAL HAZARDS

THERE IS A PERMANENT CONDUCTOR BETWEEN THE GENERATOR (STATOR WINDING) AND THE FRAME.

This product must be grounded. It has permanent conductor between the generator (stator winding) and the frame. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

DANGER - IMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTROCUTION. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO WHETHER THE UNIT IS PROPERLY GROUNDED.

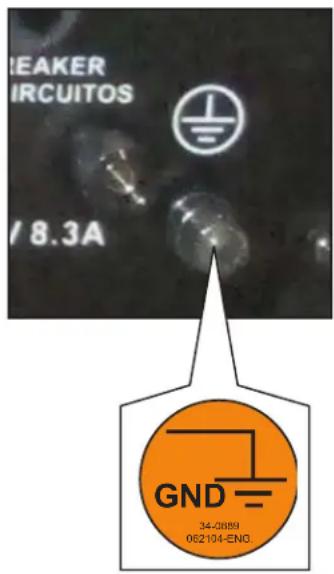

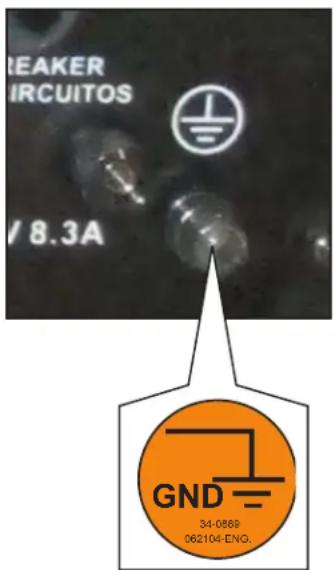

This generator is equipped with a grounding terminal for your protection. Always complete the ground path from the generator to an external ground source as instructed in the section labeled "Grounding Instructions" in the Preparation section of this manual.

The generator is a potential source of electrical shock if not kept dry. Keep the generator dry and do not use in rain or wet conditions. To protect from moisture, operate it on a dry surface under an open, canopy-like structure. Dry your hands if wet before touching the generator.

Risk of electric shock if you operate this generator with a faulty GFCI (Ground Fault Circuit Interrupter). Test GFCI before each use, see Operations Instructions for further information. If GFCI fails test, DO NOT use your generator. Contact your Mi-T-M customer service representative.

Plug appliances directly into the generator. Or, use a heavy duty, outdoor-rated extension cord that is rated (in watts or amps) at least equal to the sum of the connected appliance loads. Check that the entire cord is free of cuts or tears and that the plug has all three prongs, especially a grounding pin.

NEVER try to power the house wiring by plugging the generator into a wall outlet, a practice known as "back feeding". This is an extremely dangerous practice that presents an electrocution risk to utility workers and neighbors served by the same utility transformer. It also bypasses some of the built-in household circuit protection devices.

If you must connect the generator to the house wiring to power appliances, have a qualified electrician install the appropriate equipment in accordance with local electrical codes. Or, check with your utility company to see if it can install an appropriate power transfer switch.

For power outages, permanently installed stationary generators are better suited for providing backup power to the home. Even a properly connected portable generator can become overloaded. This may result in overheating or stressing the generator components, possibly leading to a generator failure.

Black-and-white illustration of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

AWARN NO CAUTION

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF INJURY, READ THIS OPERATOR'S MANUAL COMPLETELY BEFORE USING. WHEN USING THIS PRODUCT, THE FOLLOWING BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED:

1. Read all the instructions before using the product.
2. This product is equipped with a Ground Fault Circuit Interrupter (GFCI) in the power cord to reduce the risk of electrical shock. If replacement of the plug or cord is needed, use only identical replacement parts.
3. Do not allow children or untrained persons to operate the generator.
4. Do not operate the generator when fatigued or under the influence of drugs or chemicals. Stay alert. Watch what you are doing.
5. Follow the maintenance instructions specified in this manual.
6. When starting the generator, using recoil starter grip, be sure that nothing is in a position to be hit by the operator's hand or arm.
7. Be sure the switch on electric power tools is in the "OFF" position before plugging them into the generator.
8. Keep the immediate area free of all bystanders.
9. Be sure each person who operates this generator is properly instructed in its safe operation.
10. Do not operate the generator or any electrical tool in any area where water or similar materials constitute an electrical hazard to the operator. Do not operate on wet surfaces, in rain or in snow.
11. Always be sure that the generator is on secure footing so that it cannot slide or shift around, endangering workers.
12. Avoid contacting the hot exhaust manifold, muffler or cylinder(s). Keep clear of all rotating parts.
13. Unless the tool or appliance is double insulated, it must be grounded through a properly grounded receptacle. (See Preparing the Generator, Grounding Instructions). Tools and appliances which have 3 prong plugs must be plugged into extension cords and electrical receptacles with 3 holes. Before operating any electrical item, be sure it is in good repair.
14. Follow instructions in this manual when testing Ground Fault Circuit Interrupter to insure reliable operation.
15. Beware of using this equipment in confined spaces. Confined spaces, without sufficient fresh air ventilation, can contain dangerous gases. Running gasoline engines in such environments can lead to deadly explosions and/or asphyxiation.
16. If your generator comes equipped with a transport dolly, make sure this unit is secure during operation and when transporting to prevent unexpected movement or rolling.
17. Use extreme caution when lifting this generator. Do not use dolly handles to lift this generator, use only designated lifting hook to lift this generator. This generator is heavy so proper lifting techniques should be used.

SAVE THESE INSTRUCTIONS

WEAR PROTECTIVE CLOTHING

Wear close fitting clothing and safety equipment appropriate to the job.

Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.

Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine.

PREPARE FOR EMERGENCIES

Keep a first aid kit and fire extinguisher handy.

Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone.

Be prepared if a fire starts.

INSPECT GENERATOR

Be sure all covers, guards and shields are tight and in place.

Locate all operating controls and safety labels.

Inspect power cords for damage, on any equipment before using. There is a hazard of electrical shock from crushing, cutting or heat damage.

SERVICE GENERATOR SAFELY

Before servicing the generator, disconnect all equipment and battery (if equipped) and allow unit to cool down.

Service generator in a clean dry flat area.

Silhouette of a person wearing various safety gear and clothing items (no text or symbols)

Illustration of a first aid kit, fire extinguisher, and medical kit with cross symbols (no text or labels)

SAFETY SIGNS GEN-3600

⚠ WARNING AVERTISSEMENT

WARNING: Cancer and Reproductive Ham -

www.Ptclwamings.ca.gov

POISONJOS GAS

THIS SENSIFICATION OF THE KONOMATO

a potential gas that can be used. The solution, which is well, is useful.

+回拨了am/6000

- NEVER but meaningfully inside home space sheets to

The 1st from generation of these names, generations, ultra-s, or other semi-enclosed spaces. These spaces can trap

pulsoryous guides EVEN IF you don't a fan or open doors and windows.

(四) 布州有限公司

If you start to tell me, sorry, or what will be doing the

generator, shall of and get fresh air RIGHT WWW

a doctor. You may have carbon monoxide poisoning

EXPLOSIVE FUEL

Gasoline is extremely flammable and its

vapors can explode if ignited causing serious

Injury or death.

• Store entrance only in approved containers

In self-ventilated, unoccupied areas away

from sparks and flames

• Always slow unit and slow unit to cost before

infusion

• Do NOT fill fuel tank while, engine is hot or

BUTTER

Do NOT avail fuel tank

• LA NOT COUNA YAD SANK. a Nerve rate approval se a delivering approval

- When size gas can be a cooling agent.

The image is too blurry to recognize any text content.

SHOCK

A generator is a potential shock hazard which

can result in serious injury or death.

• Generator must be kept dry.

• Do NOT operate until with end hands.

• Generator MUST be grounded before

See operators manual for specific instructions.

• Use extreme valuation and reducing unit

• GEOI repositioning must be tested before each

use. See operators manual.

• Above known operator free (4) feed from your

and the structure

a. Most common valuations are given from

- Always remove boiling gas can from

[Unreadable]

The following table is in English:

• Stabilization, leversing the cold-dec

The Journal of Research in Research and Development

2017年1月1日

THE PACS, INC., LLC. A recommendation of business.

The following table provides the original text:

Read Operator's Manual careful

START UP:

START-UP

Open fuel valve

Z. Move choke lever to full

chake

1. Tum engine ignition switch

in ON positioning

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

2. Full record to start engine.

3. Once opening lots eluted

4. Once engine has started,

somy move broke lever to

no choke.

1. Allow unit to run (2)

minutes to want-up.

T. Louis and now he applied

1. Cousus can now be applied

16 ONE

la cool may result in

to becoming result in damage to unit

Turing to quit.

Turn on engine

tionlon switch.

Close fuel valve

opprimers' charges on

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

SAFETY SIGNS GEN-6000 AND GEN-8000

⚠ WARNINGAVERTISSEMENT

WARNING: Cancer and Reproductive Harm

www.F65wainings.ca.gov

25.01/06/18 GAS

This product gives off cancer monocytes

a poisonous gas that can fill you. You cannot smell it.

see it, or taste it.

• ONLY your generator outdoors and away from air intake

- NEVER run generator inside homes, garages, sheds or

NEVERITAN storage, double channels, batteries, sheets, or other semi-enclosed devices. These units can loan

Other semi-released spaces. These spaces can wrap outogenous space (EVEUE) you live a fan or open frame.

pessimistic gases EVEN IF you turn a lat of open clocks and windows

(1) 2017年1月1日

If you start to feel sick, dizzy, or much while using the

generator, shut it off and get fresh air RIGHT AW92

a docker. You may have carbon monoxide poisoning

EXPLOSIVE FUEL

Gasoline is extremely remarkable and ta

waps can exclude if ignored causing

serious, many or dead

• Store gasoline only in approved

- State people will be approached participants in well-annitated unoccupied

control here, it won-workman, electrocopic

a bees away from spots and frames.

* Always Stop Unit and Show Unit to cool

Belle Rechen.

• Do NOT fill fuel bank while engine is hot

erunning

- Do NOT overfill fuel tank

- Never use gasoline as a cleaning agent

Nice we are still immediately

(1) 本报告期公司利润分配情况如下：

SHOCK

A generator is a potential shock hazard

which can result in serious injury or death.

Generator must be kept dry.

Do NOT organize unit with wet hands

DO NOT operate link with We'll be a Generator MUST be copyed before using

Geworthen IMOT DE CHAPLES BEFORE DES Econoproter manual, los specificos instrumentos

See operational information for specific institutions

+ Use extreme caution when reducing unit.

• CFC reçepisodes must be tested before

each use. See operators manual.

• Always keep generator four (4) feet from

any structure

• Always remove reducing gas can from

oenerator area.

(1) 2017年1月1日

34-2015100817

A

www.PB5wainings.ca.gov

GAZ TOXIQUE

IN CHINESE OF CHINESE

It is a way, that's just one even often of longer than love to try to deposit or expense.

Road Operator's Manual carefully before operating unit

STARTUP:

1. Crop 1: Plant

2. 中国银行

3. Mean choice level for full choice

4. More claims over 12 fall charge.

5. Temporary inflation switch to

6. Diversified services

7. РОЛГЕСКИЙ КАЛК ЕНДИЕ.

ng 31E

1. Once engine has started, slowly more

choke lever to no choice.

1. Allow unit to run two (2) minutes to

(3) 10-12

1. Turnicle normal switch to ON position

Leads can now be applied to Unit.

(1) 按照《业务规则》规定，交易价格

BUTTER PHARM

SHOT-DOWRE

1. Remove allowed by turning of

electrical applications and

CHINA RESEARCH

1. Allow engine to run at idle

speed to eco fine (21 minutes

Valese, a

Net operating engine is good

We result to damage to unit

. Tumrun engineering 1931, 2012.

CBBB

(1)基因通过控制 通过控制

342916820418

m = 311

constant down (21 minutes per cut)

Board Operator's Manual carefully before operating unit

1. 2017年1月1日

SIRK Flip:

4.1.2005 and 3.1.2006 was the second position, piesto switch once open in

gevolution, therefore would take into

Earnings

1. Once rearing has invested cloudy

u. We do engine that demand, many more phone units to no phone

Looker can now be applied to one.

SHUT-DOWN

1. Remove all load by turning

off electrical applications and

unplacing electric cords.

1. After engine to run article

speed to cool two [2]

minutes. Not allowing engine

to end may result in advance

In visit

Tum off engine prices

2.1.1

Close final value

(1) 2017年1月1日

2018年1月

D'UTILISATION

(1) character on a line form of

Emission in the United States

2017年1月1日

Figure 10.1.2018

introduction Limited and other

anlunw##d#n#s#m#cr#

au mokur's school.

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

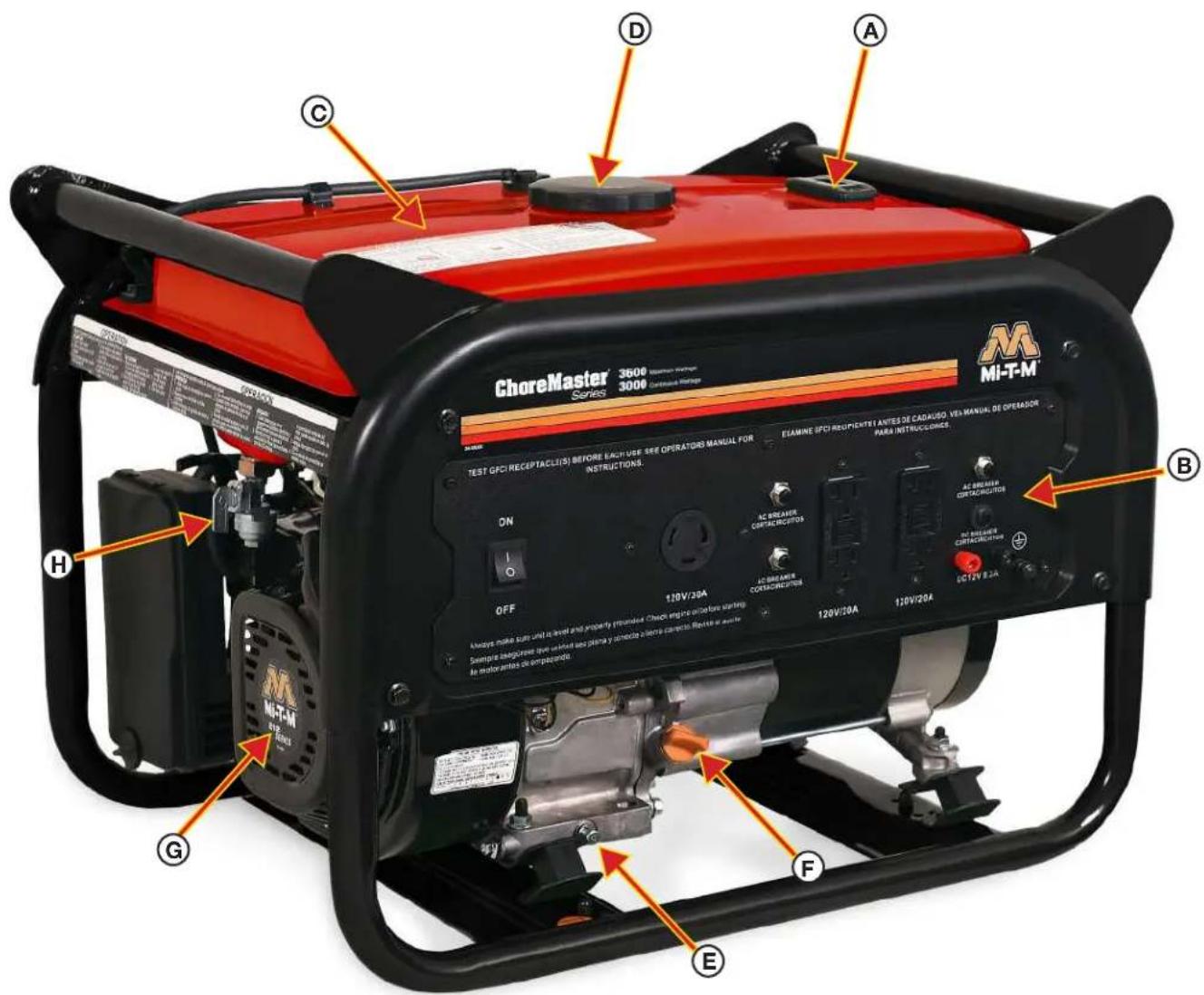

CONTROLS

MODEL SHOWN GEN-3600-0MM0

ChoreMaster 3600 Series MI-T-M TEST GFCI RECEPTACU(S) BEFORE EACH USE SEE OPERATOR MANUAL FOR INSTRUCTIONS. EAMINE (GFCI RECEPTACU(S) ANTES DE CADASO, VEX MANUAL DE OPERATOR PARA INSTRUCTIONS. ON OFF 120V/20A AC BREAKER CORTACRUCTOS AC BREAKER CORTACRUCTOS AC BREAKER CORTACRUCTOS 120V/20A 120V/20A CCT12V R.2A A B C D E F G H MI-T-M

A -- Fuel Gauge

B -- Control Panel

C -- Fuel Tank

D -- Fuel Cap

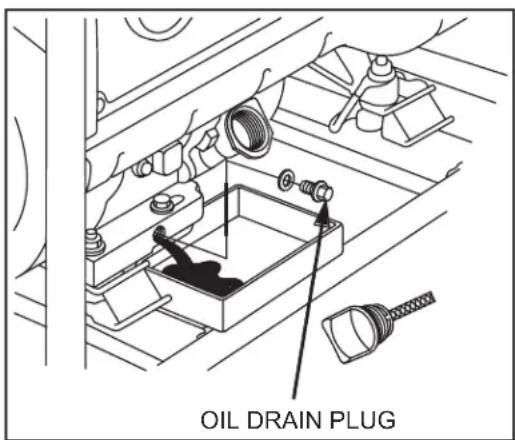

E-- Oil Drain Plug

F-- Oil Dipstick

G-- Recoil

H-- Fuel Shut Off

PREPARING THE GENERATOR

GROUNDING INSTRUCTIONS

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

DANGER - IMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTROCUTION. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO WHETHER THE UNIT IS PROPERLY GROUNDED.

The wing nut and ground terminal on the frame must always be used to connect the generator to a suitable ground source. The ground path should be made with #8 size wire. Connect the terminal of the ground wire between the two star washers and wing nut then tighten the wing nut fully. Connect the other end of the wire securely to a suitable ground source.

The National Electric Code contains several practical ways in which to establish a good ground source. Examples given below illustrate a few of the ways in which a good ground source may be established.

A metal underground water pipe in direct contact with the earth for at least 10 feet can be used as a grounding source. If a pipe is unavailable, an 8 foot length of pipe or rod may be used as the ground source. The pipe should be 3/4 inch trade size or larger and the outer surface must be noncorrosive. If a steel or iron rod is used it should be at least 5/8 inch diameter and if a nonferrous rod is used it should be at least 1/2 inch diameter and be listed as material for grounding. Drive the rod or pipe to a depth of 8 feet. If a rock bottom is encountered less than 4 feet down, bury the rod or pipe in a trench. All electrical tools and appliances operated from this generator, must be properly grounded by use of a third wire or be "Double Insulated".

It is recommended to:

1. Use electrical devices with 3 prong power cords.
2. Use an extension cord with a 3 hole receptacle and a 3 prong plug at the opposite ends to ensure continuity of the ground protection from the generator to appliance.

We strongly recommend that all applicable federal, state and local regulations relating to grounding specifications be checked and followed.

LINE TRANSFER SWITCH

If this generator is used for standby service, it must have a transfer switch between the utility power service and the generator. The transfer switch not only prevents the utility power form feeding into the generator, but is also prevents the generator form feeding out into the utility company's lines. This is intended to protect the serviceman who may be working on a damaged line.

THIS INSTALLATION MUST BE DONE BY A LICENSED ELECTRICIAN AND ALL LOCAL CODES MUST BE FOLLOWED.

Black-and-white icon of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

BEAKER IRCUITOS / 8.3A GND 34-0689 062104-ENG

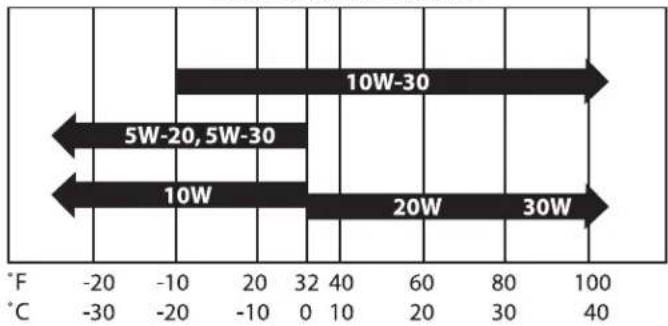

TEMPERATURE CHART

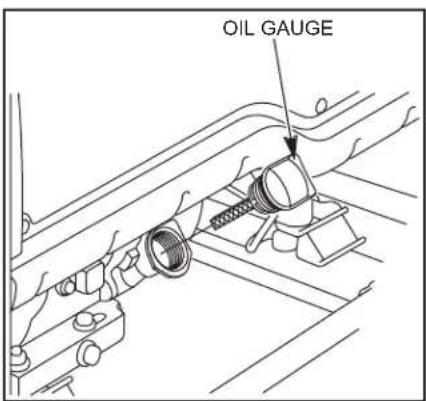

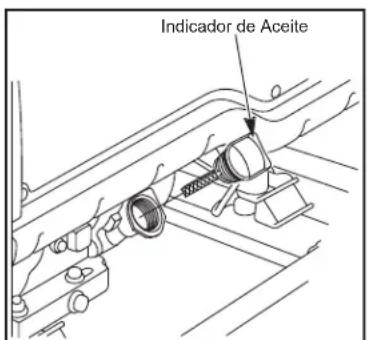

OIL GAUGE

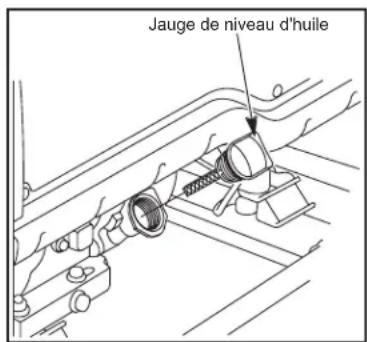

(Fig. 1)

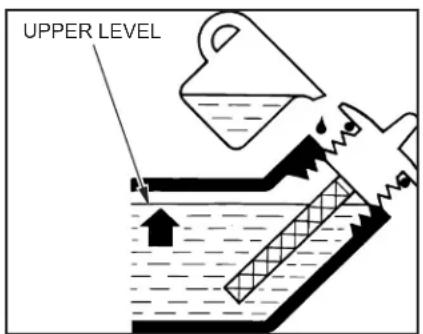

UPPER LEVEL

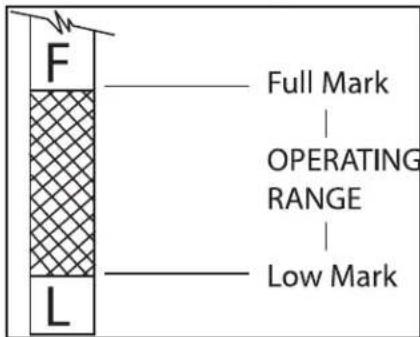

F Full Mark | OPERATING RANGE | Low Mark L

(Fig. 2)

ENGINE OIL

Use oil viscosity based on the expected air temperature range during the period between oil changes.

Use a high quality detergent oil with API classifications of SJ or higher.

Check oil level before each operation and ensure that it is maintained.

CAUTION: THIS ENGINE CRANKCASE IS NOT FILLED WITH OIL AT THE FACTORY, SO BE SURE TO FILL IT BEFORE OPERATING THE ENGINE.

ENGINE OIL CAPACITY

MODEL # LITERS QUART OUNCES

GEN-3600-0MM0/0DM0 0	.6 0.63 20.3
GEN-6000-0MM0/0DM0 1	.1 1.16 37.2
GEN-8000-0MME/0DME	1.1 1.16 37.2

NOTE: These engines are equipped with a "Low Oil" shut-off system for engine protection. If the engine fails to start, check engine crankcase for oil.

To fill with oil:

1. Level the engine to ensure accurate inspection and to prevent overfilling.
2. Unscrew the oil gauge (Fig. 1), wipe the dipstick dry. Reinsert the oil gauge back into the oil fill gauge opening. Remove the oil gauge and check the oil level.
3. The oil level should be between the full and low marks on the dipstick. (Fig. 2)
   NOTE: When checking the oil be sure the engine is level.
4. Fill with oil as required through the oil fill gauge opening.
5. Replace the oil gauge and screw in firmly.
6. Wipe up any spilled oil.

FUELING

WARNING: EXPLOSIVE FUEL! GASOLINE IS EXTREMELY FLAMMABLE AND ITS VAPORS CAN EXPLODE IF IGNITED.

STORE GASOLINE ONLY IN APPROVED CONTAINERS, IN WELL VENTILATED, UNOCCUPIED BUILDINGS AND AWAY FROM SPARKS OR FLAMES.

O NOT FILL THE FUEL TANK WHILE THE ENGINE IS HOT OR RUNNING, SINCE SPILLED FUEL COULD IGNITE IF IT COMES IN CONTACT WITH HOT PARTS OR SPARKS FROM IGNITION. DO NOT START THE ENGINE NEAR SPILLED FUEL.

NEVER USE GASOLINE AS A CLEANING AGENT.

WARNING: DO NOT OVERFILL THE FUEL TANK, LEAVE ROOM FOR THE FUEL TO EXPAND.

GENERAL RECOMMENDATIONS

• Purchase gasoline in small quantities and store in clean, approved containers.
• To minimize gum deposits in your fuel system and to insure easy starting, do not use gasoline left over from the previous season.
• Do not add oil to the gasoline.

FUEL TYPE

• For best results use only clean, fresh, unleaded gasoline with a pump sticker octane rating of 87 or higher.
• Unleaded gasoline is recommended as it leaves less combustion chamber deposits.

GASOLINE/ALCOHOL BLENDS:

Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline by volume) is approved, as a fuel. Other gasoline/alcohol blends are not approved.

GASOLINE/ETHER BLENDS:

Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline blends (up to a maximum of 15% MTBE by volume) are approved as a fuel. Other gasoline/ether blends are not approved.

HIGH ALTITUDE

At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.

High altitude performance can be improved by specific modifications to the carburetor. If you always operate your generator at altitudes above 3,000 feet (900 meters), have your dealer perform this carburetor modification. This engine, when operated at high altitude with the carburetor modifications for high altitude use, will meet each emission standard throughout its useful life. If a carburetor is replaced, the proper high altitude kit will need to be installed in the replacement carburetor.

Even with carburetor modification, engine horsepower will decrease about 3.5% for each 1,000-foot (300-meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no carburetor modification is made.

NOTE: When the carburetor has been modified for high altitude operation, the air/fuel mixture will be too lean for low altitude use. Operation at altitudes below 3,000 feet (900 meters) with a modified carburetor may cause the engine to overheat and result in serious engine damage. At elevations above 8000 ft, the engine may experience decreased performance, even with a high altitude kit.

For use at low altitudes, have your servicing dealer return the carburetor to original factory specifications.

OPERATION

RECOIL START

NOTE: Read Operator's Manual carefully before operating this unit. Always make sure the unit is level and properly grounded. Check engine oil before starting.

Close-up of a mechanical assembly with a green component and metallic fittings (no visible text or symbols)

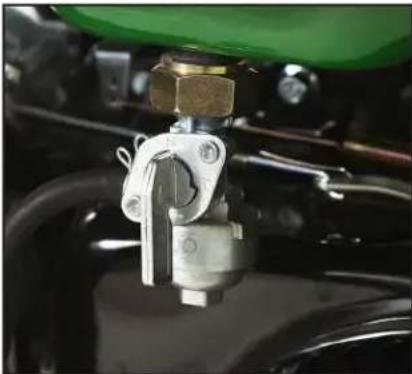

(Fig. 3)

1. Open fuel valve on unit or engine. (See Fig. 3)
2. Move choke lever to full choke. If re-starting a warm engine, the choke should be left in the off position. (See Fig. 4)
3. Turn the engine ignition switch to the ON position.
4. Pull recoil to start engine.
5. Once engine has started, slowly move choke lever to the off position.

NOTE: When engine fails to start after several attempts, repeat the starting procedures mentioned above with the choke lever in the off position.

1. Allow the unit to run for two (2) minute warm-up.
2. Make sure the generator is grounded. See Preparing the Generator; Grounding Instructions.
3. Test the GFCI receptacle(s) on the unit. Push the test button. The reset button should pop out and there should be no power at the receptacle. Apply a test load or lamp to each receptacle to verify. IF THE RESET BUTTON DOES NOT POP OUT, DO NOT USE THE RECEPTACLES(S). SEE DEALER FOR SERVICE IMMEDIATELY.

4. If GFCI receptacle(s) test correctly, firmly push the reset button to restore power. A distinctive click should be heard or felt when this is complete. IF THE RECEPTACLE(S) DO NOT RESET PROPERLY, DO NOT USE THE RECEPTACLE(S). SEE DEALER FOR SERVICE IMMEDIATELY.

5. Loads can now be applied to the unit. NOTE: This engine is equipped with a "Low Oil" shutdown system for engine protection. The engine stops when the oil level gets too low. The engine will not restart without adding oil. Refer to Preparing the Generator; Engine Fuel Capacity for instructions on adding oil.

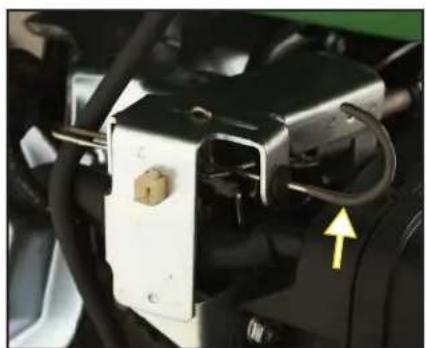

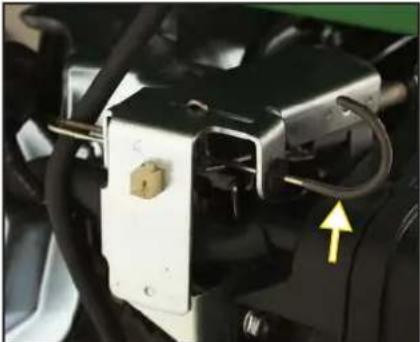

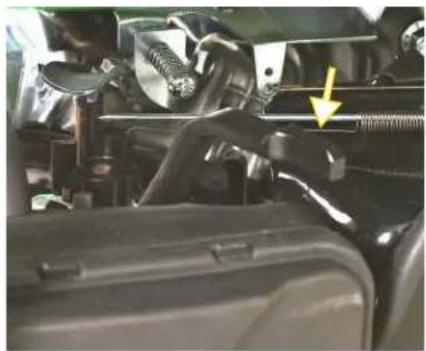

Close-up of a mechanical component with wires and a yellow arrow pointing to a specific part (no visible text or symbols)

(Fig. 4a) GEN-6000_8000

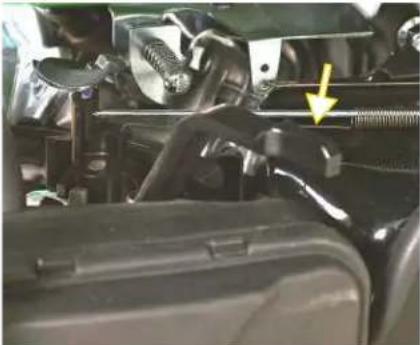

Close-up of a mechanical assembly with visible components and a yellow arrow pointing to a component (no text or symbols)

(Fig. 4b) GEN-3600

ELECTRIC START

NOTE: Read Operator's Manual carefully before operating this unit. Always make sure the unit is level and properly grounded. Check engine oil before starting.

1. Open fuel valve on unit or engine. (See Fig. 3)
2. Turn the idle control switch to the OFF position.
3. Move choke lever to full choke. If re-starting a warm engine, the choke should be left in the off position.
4. Start the engine by pressing and holding switch in the START position, release switch once engine is running.

NOTE: Do not crank the engine continuously for more than 30 seconds at a time. If the engine does not start, allow for a 3 minute cool down period between starting attempts. Failure to follow these guidelines can damage the starter motor.

If the starter does not turn the engine over, shut off the starter immediately. Do not make further attempts to start the engine until the condition is corrected. Do not jump start using another battery.

1. Once engine has started, slowly move choke lever to no choke.

OPERATING THE GENERATOR

1. Allow the unit to run for two (2) minute warm-up.

2. Turn main breaker to ON position.

3. Test the GFCI receptacle(s) on the unit. Push the test button. The reset button should pop out and there should be no power at the receptacle. Apply a test load or lamp to each receptacle to verify. IF THE RESET BUTTON DOES NOT POP OUT, DO NOT USE THE RECEPTACLES(S). SEE DEALER FOR SERVICE IMMEDIATELY.

4. If GFCI receptacle(s) test correctly, firmly push the reset button to restore power. A distinctive click should be heard or felt when this is complete. IF THE RECEPTACLE(S) DO NOT RESET PROPERLY, DO NOT USE THE RECEPTACLE(S). SEE DEALER FOR SERVICE IMMEDIATELY.

5. Turn idle control switch to ON position. Loads can now be applied to unit.

NOTE: This engine is equipped with a “Low Oil” shutdown system for engine protection. The engine stops when the oil level gets too low. The engine will not restart without adding oil. Refer to Preparing the Generator; Engine Fuel Capacity for instructions on adding oil.

SHUTDOWN

1. Remove all load by turning off electrical appliances and unplugging electric cords.

2. Allow engine to run no load condition to cool for two (2) minutes.

NOTE: Failure to allow the engine to cool for two (2) minutes may result in damage to the generator.

1. Close fuel valve on unit or engine.

CONTROL PANEL:

The generators are equipped with the following items:

GEN-3600-0MM0/0DM0:

• Circuit Breaker
• Two 125 Volt GFCI 20 Amp
  • One 30 Amp 120V twist
  • One 12V 8.3 Amp receptacle

GEN-6000-0MM0/0DM0:

• Circuit Breakers
• Two 125 Volt, 20 Amp, Duplex (2 outlets), GFCI protected receptacles
  • One 125/250 Volt, 30 Amp, Locking Type Receptacle
  • One 125V 30 Amp twist

GEN-8000-0MME/0DME:

• Circuit Breakers
• Two 125 Volt, 20 Amp, Duplex (2 outlets), GFCI protected receptacles
  • One 125/250 Volt, 30 Amp, Locking Type Receptacle
  • One 125V 30 Amp twist

NOTE: The 125 Volt, 30 Amp locking receptacles ARE NOT GROUND FAULT PROTECTED. If ground fault protection on these receptacles is necessary or desired, external protection devices must be used. Refer to the section on “Ground Fault Interrupter” for more information.

WARNING: NEVER EXCEED THE RATING OF A RECEPTACLE. THESE RECEPTACLES ARE PROTECTED AGAINST OVERLOADS BY RESETTING MAGNETIC TYPE CIRCUIT BREAKERS. IF A CIRCUIT BREAKER TRIPS, THE CAUSE SHOULD BE DETERMINED AND CORRECTED PRIOR TO CONTINUING USE.

OIL WARNING DEVICE:

NOTE: This engine is equipped with a "Low Oil" shutdown system for engine protection. The engine stops when the oil level gets too low. The engine will not restart without adding oil. If the unit is tilted too much during operation, it may suddenly stop even though the oil level is not low.

Check the engine oil before restarting the engine. If the unit is tilted, level the engine, then check the oil before restarting the engine.

BATTERY CHARGING:

DC Application

The DC terminal is used only for charging 12 volt batteries. It provides up to 12V - 8.3A (100W) of maximum power.

Connection of Cable

Connect positive terminal (red) on generator to positive (+) terminal on battery. Connect negative terminal (black) on generator to negative (-) terminal on battery.

WARNING: AN EXPLOSIVE HYDROGEN GAS IS DISCHARGED THROUGH VENT HOLES IN THE BATTERY DURING THE CHARGING PROCESS. DO NOT ALLOW SPARK OR OPEN FLAME AROUND THE GENERATOR OR BATTERY DURING THE CHARGING PROCESS.

When charging a large capacity battery or totally discharged battery, excessive current may force the DC breaker to turn off.

In such cases, use a battery charger to charge a large battery with AC output. Battery defects may cause the DC breaker to trip. Check the battery before resetting the DC breaker.

CONTROLS

CABLE SIZE:

Equipment damage can result from low voltage. Therefore, to prevent excessive voltage drop between the generator and the equipment, the cable should be of adequate gauge for the length used. The cable selection chart gives the maximum cable lengths for various gauges of wire which can adequately carry the loads shown.

CURRENTIN AMPS	LOAD IN WATTS			MAXIMUM CABLE LENGTH (FEET)
	120 VOLTS		240 VOLTS #8 WIRE #10 WIRE #12 WIRE #14 WIRE #16 WIRE
2.5 300 60	0 1000	600	375	250
5	600		1200		500	300	200	125
7.5 900 18	00 350	200	125	100
10	1200		2400		250	150	100	50
15	1800		3600		150	100	65
20	2400		4800	175	125	75	50
25	3000		6000	150	100	60
30	3600		7200	125	65
40	4800		9600	90

ELECTRIC MOTOR LOADS:

It is characteristic of common electric motors in normal operation to draw up to six times their running current while starting. This table may be used to estimate the watts required to start “CODE G” electric motors.

WATTS REQUIRED TO START MOTOR
MOTOR (H.P.)	RUNNING WATTS	REPULSION INDUCTION CAPACITOR		SPLIT PHASE
1/8	275	600	850	1200
1/6	275	600	850	2050
1/4	400	850	1050	2400
1/3	450	975	1350	2700
1/2	600	1300	1800	3600
3/4	850	1900	2600
1	1100	2500	3300

CAUTION: IF AN ELECTRIC MOTOR FAILS TO START OR REACH RUNNING SPEED, TURN OFF THE APPLIANCE OR TOOL IMMEDIATELY TO AVOID EQUIPMENT DAMAGE. ALWAYS CHECK THE REQUIREMENTS OF THE TOOL OR APPLIANCE BEING USED COMPARED TO THE RATED OUTPUT OF THE GENERATOR.

TROUBLESHOOTING

Symptom Problem Solution
Engine will not start. Engine switch	is off. Turn engine switch to the ON position.
	Fuel Tank empty. Fill tank per instructions in this manual.
	Fuel Valve is off. Turn Fuel Valve on.
	Inadequate engine oil. Check oil level.	This engine is equipped with a low oil sensor.
		The engine cannot be started unless the oil level is above the prescribed lower limit.
	No spark at spark plug. Remove the spark plug cap. Clean any dirt from around the plug base, then remove the spark plug. Install the spark plug in the plug cap. Turn the engine switch on.
			Grounding the electrode to any engine ground, pull the recoil starter to see if sparks jump across the gap. If there is no spark, replace the plug.
			Reinstall the plug and start engine according to instructions in this manual.
			Consult Mi-T-M Customer Service.
Generator has no output. Circuit breakers tripped. Reset circuit breakers.
		Check cord sets or extension cords capabilities in section Controls; Cable Size in this manual.
		Consult Mi-T-M Customer Service.

SERVICE

Keep all air vents clear.

Keep the generator clean. DO NOT spray with water.

Periodically check all fasteners and tighten, see the periodic maintenance chart.

GFCI TEST RECORDS:

As with any other safety devices, the GFCIs supplied with these generators must be checked every month to insure that they are functioning properly. To test the GFCIs, follow the instructions and then enter the date of the test below.

1. With the generator running and the idle control switch in the "START" position, push the "TEST" button. The "RESET" button should pop out. This should result in the power being off at both outlets of the duplex receptacle. Verify this by plugging a test lamp into each outlet.

ARNING: IF THE RESET BUTTON DOES NOT POP OUT, DO NOT USE THE RECEPTACLE(S). SEE AUTHORIZED MI-T-M CUSTOMER SERVICE REPRESENTATIVE FOR SERVICE IMMEDIATELY.

1. If the GFCI test correctly, restore power by FIRMLY pushing the "RESET" button back in until you hear or feel a distinctive "click". IF THE GFCI FAILS TO RESET PROPERLY, DO NOT USE EITHER OUTLET OF THE DUPLEX RECEPTACLE. Have the unit serviced by an authorized Mi-T-M Customer Service Representative immediately.

2. High vibration or severe mechanical shock loads may cause the GFCIs to trip. IF EITHER GFCI TRIPS BY ITSELF AT ANY TIME, reset it and perform test procedures 1 and 2.

3. Repeat steps 1-3 for the second GFCI.

WARNING: ALTHOUGH THE ABOVE TEST PROCEDURES WILL INDICATE PROPER GFCI OPERATION ON AN UNGROUNDED OR IMPROPERLY GROUNDED GENERATOR, THE GENERATOR MUST STILL BE GROUNDED PER THE GROUNDING INSTRUCTIONS LISTED IN THIS MANUAL FOR THE GFCI TO FUNCTION PROPERLY AND PROTECT THE USER FROM ELECTRICAL FAULTS.

Year

Jan.

Feb.

March

April

May

June

July

Aug.

Sept.

Oct.

Nov.

Dec.

NOTE: Situations exist where a GFCI will not afford any protection against the hazards of electrical shock.

EXAMPLE: if a person touches two or more conductors from a damaged cord set and is not in direct contact with the ground, he or she may receive a shock. Since there is no path to ground for a ground fault current to flow through, the GFCI will not operate and serious injury may result.

The GFCI are merely an added safety feature. There are no substitutes for good safety precautions, correct electrical practices and proper maintenance of cords, equipment and connections.

SERVICE

EVAPORATIVE EMISSION COMPONENTS:

The unit you have purchased includes the following components that are in compliance with California Air Resources Board Evaporative Emission Standards;

1. Fuel Hose
2. Fuel Hose Fittings
3. Fuel Tank and Cap
4. Carbon Canister and Mounting Brackets

These components should be inspected on a daily basis for cracks, leaks, and abnormal wear. If cracking, leaks or abnormal wear has occurred, the components should be replaced immediately. Service should be done by authorized technician.

ENGINE:

The engine for this generator is governed to operate at speeds close to 3600 RPM (60Hz) throughout the operating load range. The no load speed (before a load is applied) will be just a bit higher than the load speed and is normally set to 3750 RPM.

OIL DRAIN PLUG

(Fig. 6)

WARNING: DO NOT TAMPER WITH THE GOVERNOR MECHANISM, CHANGE THE SETTING EXPERIMENTALLY, OR PUSH THE THROTTLE OPEN IN AN ATTEMPT TO GENERATE MORE ELECTRICAL CURRENT; EQUIPMENT DAMAGE OR PERSONAL INJURY MAY RESULT.

GOVERNOR SPEED ADJUSTMENT SHOULD BE MADE ONLY BY A MI-T-M CUSTOMER SERVICE REPRESENTATIVE.

CHECKING ENGINE OIL:

Check oil level before each operation and ensure that it is maintained per Preparing the Generator; Engine Oil Capacity section.

CHANGING ENGINE OIL:

Change oil after the first 20 hours of operation. Thereafter it should be changed every 100 hours.

1. Make sure the unit is on level ground. Run the engine to warm the oil.
2. Stop the engine.
3. Remove the oil drain plug. (See Fig. 6)

UPPER LEVEL

(Fig. 7)

CAUTION: OIL BEING DRAINED MAY BE HOT. TO REDUCE THE RISK OF BURN INJURY, HANDLE WITH CARE. DISPOSE OF USED OIL PROPERLY.

1. Drain oil while engine is warm, into a suitable container.
2. Reinstall the oil drain plug.
3. Remove oil gauge and refill with new oil. (Fig. 7)
4. Check the oil level as instructed in Preparing the Generator; Engine Oil Capacity section.
5. Wipe up any spilled oil.

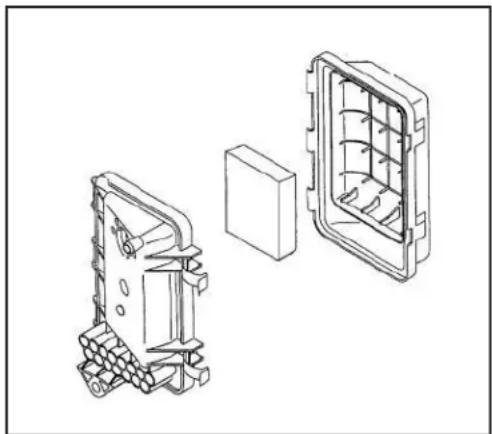

AIR CLEANER:

WARNING: RISK OF FIRE OR EXPLOSION. DO NOT USE GASOLINE OR LOW FLASH-POINT SOLVENTS TO CLEAN THE ELEMENT. CLEAN THE ELEMENT IN A WELL VENTILATED AREA. ENSURE THAT NO SPARKS OR FLAMES ARE NEAR THE WORKING AREA, THIS INCLUDES ANY APPLIANCE WITH A PILOT LIGHT.

CAUTION: NEVER RUN THE ENGINE WITHOUT THE AIR FILTER, SERIOUS DANGER CAN RESULT.

Check the air cleaner daily or before starting the engine. Check for and correct heavy buildup of dirt and debris along with loose or damaged components. (See Fig. 8)

1. Unscrew the air cleaner cover and remove the element.
2. Clean the element:

FOAM FILTER: Wash the foam element in warm water with detergent. Rinse the foam element thoroughly until all traces of detergent are eliminated. Squeeze out excess water, but do not wring. Allow the foam element to air dry.

Saturate the foam element with new engine oil. Squeeze out all excess oil. DO NOT put engine oil on the foam damper.

NOTE: Clean the foam filter every 25 hours of operation (more often under extremely dusty or dirty condition)

1. Reinstall the foam filter and close air cleaner cover and clasp shut.

CLEANING AND GAPPING SPARK PLUG:

If the plug is contaminated with carbon, remove it using a plug cleaner or wire brush.

Check the spark plug gap and reset it if necessary. The spark plug gaps are listed below. To change the gap, bend the side-electrode only, using a spark plug tool. (Fig. 9)

Install and tighten the spark plug. Connect the spark plug lead.

Recommended Spark Plug:

ENGINE (3600) MI-T-M
Spark Plug f6Rtc
Spark Plug Gap 0.7 - 0.8 mm	(0.03 in.)
Torque - New 8.7-10.9 ft-lb
Torque - Retighten 16.6-19.5 ft-lb

ENGINE (6000 AND 8000) MI-T-M
Spark Plug f6Rtc
Spark Plug Gap 0.7 - 0.8 mm	(0.03 in.)
Torque - New 8.7-10.9 ft-lb
Torque - Retighten 16.6-19.5 ft-lb

SPARK ARRESTOR:

If the generator has been running, the muffler will be very hot. Allow it to cool before proceeding.

NOTE: Remove and clean spark arrestor every 100 hours or as necessary.

NOTE: Product users on United States forest service land, and in some states, must comply with fire prevention regulations.

Clean the spark arrestor as follows:

1. Loosen the screw by the exhaust port of the muffler and remove the spark arrestor.

2. Use a brush to remove carbon deposits from the spark arrestor screen. Inspect the screen for breaks or tears and replace it if necessary.

3. Install the spark arrestor in the reverse order of removal.

Spark arrestors are available from your local Mi-T-M Customer Service. Other user requirements may apply, check with your Federal, State or local authorities.

Technical line drawing of a mechanical component with three views: top, side, and front (no text or symbols)

(Fig. 8)

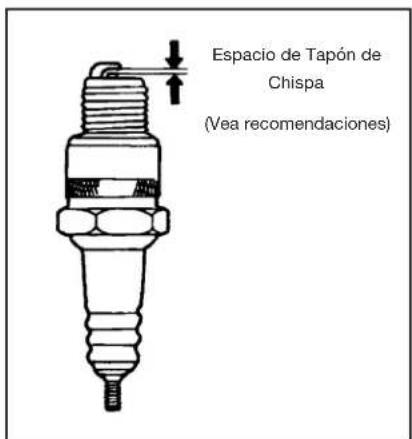

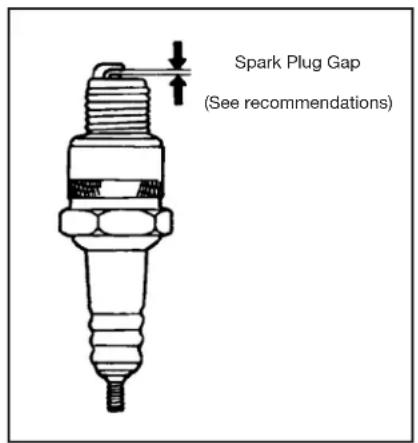

Spark Plug Gap (See recommendations)

(Fig. 9)

SERVICE

PERIODIC MAINTENANCE CHART:

To ensure satisfactory operation over an extended period of time, an engine requires normal maintenance at regular intervals. The Periodic Maintenance Chart below shows periodic inspection and maintenance items and suitable intervals. The bullet mark designates that the corresponding item should be performed at that interval.

NOTE: Some adjustments require the use of special tools or other equipment. An electronic tachometer will facilitate setting idle and running speeds.

Procedure	Daily	Every 20 hrs.	Every 50 hrs.	Every 100 hrs.	Before Storage
Check fuel	●
Check engine oil	●
Check for loose or lost nuts and bolts	●
Check for leaks	●
Check cylinder and head fins for dust and dirt	●
Check battery electrolyte level	●
Check fuel lines (replace if necessary)	●
Clean air cleaner foam element (**)		●
Tighten nuts and bolts (*)			●
Change engine oil (*)			●
Clean fuel filter			●
Clean dust and dirt from cylinder and cylinder head fins (**)			●
Clean and regap spark plug				●
Add fuel stabilizer					●
Run unit dry					●

* Perform these operations after the first 5 hours of use, then at the recommended intervals.
** Service more frequently under dusty conditions.
NOTE: These items must be performed with the proper tools. See your Mi-T-M Customer Service Representative for service, unless you have the proper equipment and mechanical proficiency.

STORAGE

STORING GENERATOR

SHORT TERM (1-6 months):

1. Add gasoline conditioner and stabilizer at the specified concentration.
2. Run the unit for two (2) minutes to ensure the mixed fuel is in the entire fuel system. Close the fuel valve and run the unit until it stops.
3. Remove the spark plug, pour 1-2 teaspoons (5-10cc) of engine oil into the cylinder, slowly pull the starter handle 2 or 3 times, reinstall the spark plug and tighten securely.
4. Clean the exterior surface of the generator and apply a rust inhibitor.
5. Store the generator in a dry, well ventilated place.

LONG TERM (More than 6 months):

1. Add gasoline conditioner and stabilizer at the specified concentration.
2. Run the generator until the fuel tank and carburetor are dry. As the engine is beginning to die, move the choke lever to the choke position.
   NOTE: Turn off the idle control to decrease the run time.
3. Remove the spark plug, pour 1-2 teaspoons (5-10cc) of engine oil into the cylinder, slowly pull the starter handle 2 or 3 times, reinstall the spark plug and tighten securely.
4. Clean the exterior surface of the generator and apply a rust inhibitor.
5. Store the generator in a dry, well ventilated place.

WARNING: FUEL SHOULD BE DRAINED IN A WELL VENTILATED AREA AND STORED IN A CONTAINER APPROVED FOR GASOLINE.

SPECIFICATIONS

ITEM	GEN-3600-0MM0/0DM0	GEN-6000-0MM0/0DM0	GEN-8000-0MME/0DME
Engine	Mi-T-M	Mi-T-M	Mi-T-M
Watts (AC) Max.	3600 watts	6000 watts	8000 watts
Watts (AC) Rated	3000 watts	5500 watts	7000 watts
Rated Voltage (AC)	120V	120V/240	120V /240
Max. Amperage	30	50/25	66.6/33.3
Cont. Amperage	25	45.8/22.9	59.1/29.5
Frequency	60	60	60
Fuel Tank Capacity	4.0 gal.	6.6 gal.	6.6 gal.
Run Time Hours /Tank of Fuel*	8.5 hrs.	6.5 hrs.	6.0 hrs.

* Rated at Full Load

NOTE: Unit ratings are established based on operation at standard conditions of 60^ F and at sea level. The performance of the generator must be de-rated for temperature and altitude by 1% for every 10^ F above 60^ F and 3.5% for every 1000 feet above sea level. Due to the operational characteristics of the thermal type circuit breaker, the power available from the generator will decrease slightly with a corresponding increase in ambient temperature.

Due to continuing product improvements, specifications are subject to change without notice.

Write you model number, machine serial number and date of purchase in the spaces provided below. Your dealer needs this information when ordering parts.

Model No. ____ Machine Serial No. ____ Date of Purchase ____ (To be filled in by purchaser)

STATEMENT OF WARRANTY

Mi-T-M warrants all parts, (except those referred to below), of your new generator to be free from defects in materials and workmanship during the following periods:

For one (1) year from the date of original purchase.

Defective parts not subject to normal wear and tear will be repaired or replaced at our option during the warranty period. In any event, reimbursement is limited to the purchase price paid.

EXCLUSIONS

1. This warranty does not cover parts damaged due to normal wear, misapplication, misuse, operation at other than recommended. Failure to follow recommended operating and maintenance procedures also voids warranty.
2. The use of other than genuine manufacturer repair parts will void warranty.
3. Parts returned, prepaid to our factory or to an Authorized Mi-T-M Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty. There are no warranties which extend beyond the description of the face hereof. Under no circumstances shall the manufacturer bear any responsibility for loss of use of the unit, loss of time or rental, inconvenience, commercial loss or consequential damages.

For Service or Warranty Consideration, contact

Mi-T-M® Corporation, 50 Mi-T-M Drive, Peosta, IA 52068

563-556-7484 / 800-553-9053 / Fax [phone]

Monday - Friday 8:00 a.m. - 5:00 p.m. CST

WARRANTY

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board and Mi-T-M are pleased to explain the emission control system's warranty on your 2022/2023 small off-road engine/equipment (SORE). In California, new equipment that use small off-road engines must be designed, built and equipped to meet the State's stringent anti-smog standards. Mi-T-M must warrant the evaporative emissions control system (EECS) on your SOREs for the period listed below provided there has been no abuse, neglect or improper maintenance of your equipment leading to the failure of the evaporative emission control system.

Your EECS may include parts such as the carburetor, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps, connectors, and other associated components. Where warrantable conditions exist, Mi-T-M will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER'S WARRANTY COVERAGE:

This EECS is warranted for two years. If any evaporative emissions-related part on your small off-road engine/equipment is defective, the part will be repaired or replaced by Mi-T-M. OWNER'S WARRANTY RESPONSIBILITIES:

-As the SORE owner, you are responsible for performance of the required maintenance listed in your owner's manual. Mi-T-M recommends that you retain all receipts covering maintenance on your SORE, but Mi-T-M cannot deny warranty coverage solely for the lack of receipts.

-As the SORE owner, you should be aware that Mi-T-M may deny you warranty coverage if your SORE or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

-You are responsible for presenting your SORE to distribution center or service center authorized by Mi-T-M Corporation, 50 Mi-T-M Drive, Peosta, IA 52068 (herein Mi-T-M) as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days.

If you have a question regarding your warranty coverage, you should contact Mi-T-M Customer Service Department at 1-800-553-9053 or by emailing us at [e-mail].

GENERAL EMISSIONS WARRANTY COVERAGE - CALIFORNIA ONLY -

Mi-T-M warrants to the ultimate purchaser and each subsequent purchaser that the SORE (1) has been designed, built and equipped so as to conform with all applicable regulations; and (2) is free from defects in materials and workmanship that cause the failure of a warranted part to conform with those regulations as may be applicable to the terms and conditions stated below.

(a) The warranty period begins on the date the engine is delivered to an ultimate purchaser or first placed into service. The warranty period is two years.

(b) Subject to certain conditions and exclusions as stated below, the warranty on emissions related parts is as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in your owner's manual is warranted for the warranty period stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by Mi-T-M according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.

(2) Any warranted part that is scheduled only for regular inspection in your owner's manual is warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.

(3) Any warranted part that is scheduled for replacement as required maintenance in your owner's manual is warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by Mi-T-M according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

(4) Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner.

(5) Not withstanding the provisions herein, warranty services or repair will be provided at all of our distribution centers that are franchised to service the subject engines.

(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.

(7) Throughout the engine warranty period stated above, Mi-T-M will maintain a supply of warranted parts sufficient to meet the expected demand for such parts.

(8) Any replacement parts that do not increase the exhaust or evaporative emissions of the engine or evaporative emission control system must be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of Mi-T-M.

(9) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claims. Mi-T-M will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

WARRANTY

(10) Mi-T-M shall provide any documents that describe that Mi-T-M warranty procedures or policies within five working days of request by the Executive Officer.

(c) WARRANTED PARTS:

The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if Mi-T-M demonstrates that the engine has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed, and properly operating, adjustment limiting device is still eligible for warranty coverage. The following emissions warranty parts list are covered.

(1) Fuel Tank*
(2) Fuel Cap
(3) Fuel Lines (for liquid fuel and fuel vapors)
(4) Fuel Line Fittings
(5) Clamps*
(6) Pressure Relief Valves*
(7) Control Valves*
(8) Control Solenoids*
(9) Electronic Controls*

(10) Vacuum Control Diaphragms*

(11) Control Cables*
(12) Control Linkages*
(13) Purge Valves*
(14) Gaskets*
(15) Liquid/Vapor Separator
(16) Carbon Canister
(17) Canister Mounting Brackets
(18) Carburetor Purge Port Connector

* Note: As they relate to the evaporative emission control system.

INTRODUCTION

Black triangular warning symbol with exclamation mark (no text or numbers)

COMPRENDRE LES MOTS D'ALERTE

Abstract black-and-white graphic of a stylized bird-like figure with a circular head, set against a dotted grid background (no text or symbols)

DANGER / PELIGRO

• DO NOT USE INDOORS OR OUTSIDE OPEN WINDOWS FUMES CAN KILL YOU! • NE PAS UTILISER À L'INTÉRIEUR OU À L'EXTÉRIEUR DES FENÊTRES OUVERTES. LES VAPEURS DE GAZ PEUVENT VOUS TUER! • NO USE ADENTRO O AFUERA DE VENTANAS ABIERTAS LOS GASES PUEDEN MATARLE! 34-1563-EFF/S-062104-ENG.

OXYDE DE CARBONE - GAZ TOXIQUE

Black explosion symbol with jagged spikes inside a square frame (no text or numbers)

Silhouette of a person using a fuel pump with a no-smoking symbol, next to a gas station (no text or labels)

PROTECTION PAR DISJONCTEUR DIFFÉRENTIEL

Black-and-white icon of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

RISQUES ÉLECTRIQUES

IL Y A UN CONDUCTEUR PERMANENT ENTRE LE GROUPE ÉLECTROGÈNE (BOBINAGE DU STATOR) ET LE CHÂSSIS.

Silhouette of a person in protective gear with corresponding safety icons (no text or symbols)

PORTER DES VÊTEMENTS DE ROTECTION

Illustration of first aid kit, fire extinguisher, and medical kit (no text or symbols)

PRÉPARATION POUR LES URGENCES

WARNING: Cancer and Reproductive Harm

www.PGwmings.co.gov

POISONOUS GAS

This production of the new worldwide

a poisonous and that can ill you. You DIDSIN'T email it

in personality of the group 11 or partner 2

-051 V run operator outlook and output from air intake

• OAS Tilt generation controls and bblay tools as needed • SEVER are presented in this home, covers stocks and

- SEVER: half-generation: first-hand, generation structure: all of the second generation. These are present that

preparation games EVEN IT - You can't tell to open water and windows.

and passengers. Hindi, alad to folkalah, dmy, or wach while using the

In your work of books, fuzzy or weak words being the

Gasoline is extremely tanmable and ita

vapour can capindo. Invited counseling

vivipatia clavi coquidaria e sylvatica taotianing seminio

Injury of death.

- Store gasoline only in approved containers,

in well-stand stock, introduced shares are

from awards and games.

• Always step unit and allow unit to cool before

returning

- Do not be a small book, engine is better

- DO NOT: It will not want to give it a bit of

taining. Do NOT over all book

• DO NOT 36AMM 10A 10mA

- Revers use gasoline as a cleaning agent.

Wipe up any spots immediately.

SHOCK

A generator is a potential shock hazard which

can result in serious injury products.

Curt rendered in schedule inquiry for clients.

- Generator must be kept dry.

• Co NOT operate unit with Well hands.

- Generators MUST be grouped before use.

See operations manual for specific instructions

Use extreme caution when refusing unit.

+ (E) reneutralize must be tested before each

The following table is presented in the following table:

• 2017, 30: 2017

1. 本说明仅供参考。

8000000

• A. 2015年1月7日国际经济

(1) 2017年1月1日

AVERTISSEMENT: Capx

www.niun.com.cn

CAZ TOVIQUE

(1) 2017年1月1日

vous back. You're not present in series, it is not too hypersized

m. 作法

Mystok. on Pohemontel is in Vorka, Koreliz. 2009 when it is not to be a

practures are sensitive to the questionists, but lives on any senior life of course

grand air immed stement. Vor un dodeut, 900 mmolles opel

1. presence and e-mail: emoest inflammatory at sea

vare un purport avolores el en fondavamo mil

The following table is provided in the image.

The Fosd into Review, so there is no change.

the following: Gas consumption, gasoline oil and

• Lan prince GEO, dianet film boxline, wami chong in utilization

- 103 (MUSK) OF THE EUROPE WITH YOUR INFORMATION IN EURONIA

Read Operator's Manual Carefull

START UP-

START OF

. Open fuel valve

1. Move choke lever to full

choke.

1. Turn engine ignition switch

2. Trust Virginia Hamilton Switch to ON eSaid

ID ON

1. Pull record to start engine.

y before operating this unit.

Once engine has started.

slowly move choke layer to

no choke

10 CHINE. Many unit in gun bus (70)

1. A##K SIT EL TUTTM (2)

minutes to warm-up.

. Loads can now be applied

to unit

2017年

SHUT-DOWN

1. Passes allowed by keeping

2. Remove all load by turning

on electrical applications and

unplugging electric cards.

1. Allow engine to run at idle

speed to pool two (2)

speed to cost two 21 minutes. No cleaning

minutes. Not allowing engine

to cool may result i

to back they result in damage to unit

damage is unit.

Juni off engine

ignition switch.

Close fuel valve

1. 2017年1月1日

2. 实验原理及实验方法

Theorem 1.2. (A) Let be a finite field and let (x) be the set of all elements of such that x (x) . Then (x) is a prime ideal of .

The image is too blurry to recognize any text content.

The endometriation is proved

elle endoorn made st on the

Generator exhaust contains carbon monoxide. This is a

poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

WARNING: Cancer and Reproductive Harm —

www.PGwarings.ca.com

POISONOUS GAS

This product gives off carbon monoxide.

a suspicious gas that can kill you. You

see 1, or (see 2)

• DM 2 gun generator outdoors and aquiferous picotakes

ONE JON GENERAL MUSCHRY AND SHAY FROM AN INTEREST. ANVER, no consumer, trading, sales, charges, sales, or

THEVER full generator should be able to get a good, reliable, or clear cord endoars space. These groups are up

Other benefit closed space. These applied can trap

poxisous gases EVEN IF you run a ran or open doors

2019年1月26日

If you can to see sick, crazy, or weak will be using the

generator, shut it off and get fresh air FIGHT AWAY.

a doctor. You may have carbon monoxide poisoning.

(1)基因通过控制 通过控制

EXPLOSIVE FUEL

Gasoline is extremely flammable and its

The following table provides the original text:

serious injury or death

a Step applicable only in approved

- Store gasoline only in approved corporates, in wall/stabilized, unoccupied

Corris 1920, the Wall-Vantilated, unoccupied

areas away from spots and themes.

• Always stop unit and allow unit to cool

before refueling.

- Do NOT fill fuel tank while engine is hot

OF BURNING

• Do NOT attend fuel bank.

The following table is provided in the image.

(1) 2017年1月1日星期六

SHOCK

A generator is a potential shock hazard

which can result in serious injury or day

- Which can't have an unknown inquiry of the Generator must be kept down

• De NOT georgio unit with

• Do NOT update all will not miss. • Geometer LIST the ground before

• Severdiam l'acte per gullanisabetide use.

2018年1月1日

- Use extreme caution when refusing unit.

• ORF investigations must be tested before

each use. See operators manual.

• Flows keep generator four (4) feet from

any structure.

- Parnety's remonies, following gas and steel operator gas

(3) 通过自然人介绍信息

34-2915000017

One of the following: a rescue the cascade

CARBURANT EXPLOSIF

[Unreadable due to extreme blurriness]

We have a very interesting view of the following methods:

DéCHARGE

Read Operator's Manual carefully before operating unit

STARTUP

1. Open just color

2. Two jobs remain with CEE position

3. Tuni: The 500 Bantal is CHT SCHWJ.

4. He's choke livers to full choke.

5. The company is a member of CN, with

6. Dugood to start approve

7. Fountecal A B, Engino

ing unit

1. Once engine has started slowly move

chole must to no chole

1. Nice unit to run by 120

warm-up

1. Turn idle control switch to ON position

Loes can now be applied to unit.

SHUT-DOWN:

1. Remount of lead by jumina pli

electrical appliances and

unclusive electric code

1. A new line is a short

speed to cool two (2) minutes.

Not alcing engine to cool

may result in damage to unit

Turn of Engine (open switch)

Clean fuel valve

DEMARRAGE: 5. The Is procure

Read Desomn's Manual carefully before opening unit

START-ID-

1. Coup-tov

2. from V.C control survey to CEE position

3. Vincs have continued with a 4-positioned 2. Vincs choke was in full choke

4. Electric claim rate of the current.

5. Power and bolt switch in the START

6. Ples and non-Satari II the Share

Pension, Refrance switch and electric engine is

1. 2017年1月1日

2. Cross-bridge has started a cloud

3. Once entire has stored slowly

The following rules to the criteria

1. ALLS unit in run two (2) minutes 15

Warm-Up.

1. um file control switch in UN program

Lease can now be applied to unit.

(1) 2017年1月1日

SHUT-DOUM

1. Premium all load by foreign

In Kullan, 2014, 30: 2017.

on the following: a large number of small numbers in the upper range of the

1. 3000 grams to run at day

2. Allow origins to turn at least

spleen to and own 21

Montgomery, Nat. Georgia Virginia

16 and more in the

to 020 may result in damage

[Unreadable due to extreme blurriness]

1. Turn of engine ignition

名称：

1. Close price

34.2817031715

姓名:杨俊波身份证件

D'UTILISATION

The following table is provided in the image:

and opposition to the American law

The following table is the following table:

DANGERDANGERPELIGRO

Using a generator indoors CAN KILL YOU IN MINUTES

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home

or garage. EVEN IF doors

and windows are open.

Only use OUTSIDE and far

away from windows, doors.

and vents.

Black-and-white icon of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

BEAKER IRCUITOS / 8.3A GND 34-0889 062104-ENG

INSTRUCTIONS DE MISE À LA TERRE

Close-up of a mechanical assembly with green and metallic components (no visible text or symbols)

(Fig. 3)

Close-up of a mechanical component with wires and a yellow arrow pointing to a specific part (no visible text or symbols)

(Fig. 4a)

GEN-6000_8000

Close-up of a mechanical assembly with visible gears and shafts, no text or symbols present

(Fig. 4b)
GEN-3600

DIMENSION DES CÂBLES:

Technical line drawing of a mechanical component with internal structure and housing (no text or symbols)

(Fig. 8)

AVERTISSEMENT : RISQUE D'INCENDIE OU D'EXPLOSION. NE PAS UTILISER D'ESSENCE OU DE SOLVANTS AVEC UN POINT D'ÉCLAIR BAS POUR NETTOYER L'ÉLÉMENT. NETTOYER L'ÉLÉMENT DANS UN ENDROIT BIEN VENTILÉ. S'ASSURER QU'IL N'Y A AUCUNE ÉTINCELLES OU FLAMMES PRÈS DE LA ZONE DE TRAVAIL: CECI INCLUT TOUT APPAREIL MÉNAGER AVEC UNE VEILLEUSE.

ATTENTION: IL NE FAUT JAMAIS FAIRE FONCTIONNER LE MOTEUR SANS FILTRE À AIR, SOUS PEINE DE DOMMAGES SÉRIEUX.

Ampérage Maximum....30....50/25....66.6/33.3

Ampérage Continu 25....45.8/22.9....59.1/29.5

Fréquence 60 60 60

CONDITIONS DE LA GARANTIE

Black triangular warning symbol with exclamation mark (no text or numbers)

COMPRENDA PALABRAS DE ALERTAS

WARNING CAUTION 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 2. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 3. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 4. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 5. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 6. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 7. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0 8. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 9.

Abstract black-and-white graphic of a bird-like figure with a circular head and tail, set against a dotted grid background (no text or symbols)

DANGER / PELIGRO

Diagram showing a house with multiple machines and red X marks indicating failure or absence of operation.

• DO NOT USE INDOORS OR OUTSIDE OPEN WINDOWS FUMES CAN KILL YOU!
- NE PAS UTILISER À L'INTÉRIEUR OU À L'EXTÉRIEUR DES FENÊTRES
OUVERTES. LES VAPEURS DE GAZ PEUVENT VOUS TUER!
•INO USE ADENTRO O AFUERA DE VENTANAS ABIERTAS LOS
GASES PUEDEN MATARLE! 34-1563-E/F/S-062104-ENG.

MONÓXIDO DE CARBONO- GAS VENENOSO

Abstract black starburst graphic on white background (no text or symbols)

Silhouette of a person refueling a fuel pump with no visible text or symbols

Black-and-white icon of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

RIESGOS DE ELECTRICOS

HAY UNA CORRIENTE ELECTRICA PERMANENTE ENTRE EL GENERADOR (ESTATOR SERPENTEANTE) Y EL ARMAZON.

APPAR APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP App

Illustration of a person wearing safety gear and gloves, with no visible text or symbols.

USE ROPA PROTECTORA

Illustration of a first aid kit, fire extinguisher, and medical kit (no text or symbols)

WARNING: Cancer and Reproductive Harm www.PDscamings.ca now

POISONOUS GAS

This product gives off carbo

a poisonous gas that can kill you. You CANNOT smell it

see it, or based it

• CML, a run battery can be used to find an inductor.

- MEVEK TAT GARRIED THOM FAMILS, GARINGS, MUSGS, OR other SMMERGING SPACES. These diseases can free

poronous games EVEN If you run a fan or open door

and windows.

If you start to feel sick, dizzy, or weak while using the

gamback, when it is on and got from all RIGHT AY/AT. See a display. You may have risen more than 50%

a colour. You may have carbon monoxide poisoning.

EXPLOSINE FUEL

Catalyst is exclusively technological and its values can be made if implied causing a

many or death.

- Store gasoline only in approved containers,

in well-ventilated, unoccupied areas away

from sparks and flames.

• always help and show and be odd below

- The oil fuel tank while engine is hot or

running.

- Do NOT overfill fuel tanks.

- Never use gasoline as a cleaning agent.

Wipe up any spills immediately.

shock

A generator is a potential shock hazard which can result in serious injury or death.

• Generator must be back dry.

- Do NOT operate unit with w

- Generator MUST be grounded before use.

See operators manual for specific instructions

- Use extreme caution when refusing unit. - GPSI reactivating until be locked before next

- EPC hospitalists must be tested before each

+ Always keep generator four (4) feel from any

structures.

• Always remove retunting gas can from

generator area.

www.265wainings.ca.gov

GAZ TOXIQUE

Note 1. Visas the perovitax pass to screen, for visit, but no perovitax

P. Pernoposter Industries plc has been

The following table provides the information in English:

Reed Operator's Manual careful

START-UP:

1. Open fuel valve.

2. Move choke lever to full

choke.

1. Turn ending ignition switch

to ON position.

1. Pull recol to start engine.

y before operating this unit

Once engine has started.

slowly move choke lever to

no choke.

1. Allow unit to run two (2)

minutes to warm-up.

. Loads can now be applied

to unit.

SHUT-DOWN: to cool may result in

1. Remove all load by turning damage to unit.

off electrical appliances and 3. Turn off engine

urplugging electric cords. ignition switch.

1. Allow engine to run at idle 4. Close fuel valve.

speed to cool two (2)

minutes. Not allowing engine

D'UTILISATION

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

WARNING: Cancer and Reproductive Harm —

www.P65wamings.ca.gov/

POIBONDUS GAS

This product gives off carbon monoxide.

a poisonous gas that can kill you. You CANNOT smell it.

see it, or below it.

• ONLY run generator outdoors and away from air intakes.

• NEVER run nonperform inside houses, garages, sheds, or

plus semi-endbased shares. These shares can be

ORIENTS, MUNICIPAL, BISCUITAN, ECONOM, THERM, WOODS, CHATI, KARU, ENTRONICIPAL OCEAN, ELEMON, UNTON, L. 2019, 45

personalized given EVEN IF you can be left for open before and win time.

图3 有图2所示

If you start to feel sick, dizzy, or weak while using the

generator, shut it off and get fresh air RIGHT AWAY

a doctor. You may have carbon monopole poisoning

a. 2017, the market is a significant portion of

EXPLOSIVE FUEL

Gasoline is extremely flammable and its

vapors can episode if ignited causing

serious injury or death.

• Steve passed no only in approved

conclusions in well-optimized unconsist

• How to use more and how to be

before making.

DO NOT NULL AND WRITE ORGERS

or running

• Do NOT overfill fuel tank

a Never use qualifying as a clearing open

- Never use gasoline do a closing day. - I'm up one point immorbidus.

trape up any else immediately

Shock

A generator is a potential shock hazard

which can result in serious injury or death.

- Generator must be kept dry.

• On NOT agree with wet hands

• Computer MUST be grounded help

2016年1月1日

One week's 15 months, the next day

1. Use the function of a function

• GFC receptacles must be tested best

each usa. See operators manual

• Always been general for 14 feet

[Unreadable]

a. Diastat, common defending man can free

Alloy-Enelmore Retaining gas can find

generator area.

2.2.19

date. You are not very past to close, so you can go to yesterday the week.

- 16. Disinoperated Technologies Group Services (ESG) Corporation, Inc., Ltd. and the company's subsidiaries, Inc.

TECHNOLOGIES, HAIJI QIIE CUNIONE DEAN ALON DE MAGUARIA EN LAURA DIASOLICHIPE

Inscapes are the other company's trading.

No. JAMA'S Utilities Insurance company

No derivative (residence) can be found for the immediate condition

- No. 1, No. 2, No. 3, No. 4, No. 5, No. 6, No. 7, No. 8, No. 9, No. 10, No. 11, No. 12, No. 13, No. 14, No. 15, No. 16, No. 17, No. 18, No. 19, No. 20, No. 21, No. 22, No. 23, No. 24, No. 25, No. 26, No. 27, No. 28, No. 29, No. 30, No. 31, No. 32, No. 33, No. 34, No. 35, No. 36, No. 37, No. 38, No. 39, No. 40, No. 41, No. 42, No. 43, No. 44, No. 45, No. 46, No. 47, No. 48, No. 49, No. 50, No. 51, No. 52, No. 53, No. 54, No. 55, No. 56, No. 57, No. 58, No. 59, No. 60, No. 61, No. 62, No. 63, No. 64, No. 65, No. 66, No. 67, No. 68, No. 69, No. 70, No. 71, No. 72, No. 73, No. 74, No. 75, No. 76, No. 77, No. 78, No. 79, No. 80, No. 81, No. 82, No. 83, No. 84, No. 85, No. 86, No. 87, No. 88, No. 89, No. 90, No. 91, No. 92, No. 93, No. 94, No. 95, No. 96, No. 97, No. 98, No. 99, No.100

[Unreadable due to extreme blurriness]

• Los poses CFC down are less than what can be

Read Operator's Manual carefully before operating unit

START-UP:

1. Open fuel value

2. Turn the control switch to OFF position.

3. Wave chose lower to full cycle

4. Tum spine, ingler assist to ON serio

5. Pull recall in last year

m = 311

1. Bose engine has started, skuty move

chase later to no chase.

1. Allow until to run the Zumples to

WITH-UP

B. Turn idle centre switch to ON position

Loats turn now be applied to unit

1. Sarmen all had by turning on

electrical appliances and

urp uqging elektric cards

1. Allow signs to run articles

speed to cool two (2) minutes

[Table 1]

Not allowing engine to cool.

may result in damage to unit.

.Turn off engine ignition switch

Close fuel valve.

(1) 本次股东大会的召集和召开程序

34.2916093413

D'UTILISATION

1. Paper is made on a

2. Notre le context du mode

1. Summer, the charges on (de maret

The following table is in English:

Food Operator's Manual carefully before operating unit.

STARTUP:

Open fun

Tom Mio control

, a great choice lever to full choice.

Press and hot switch in the St

positive, minimize switch pour spread is

producers, oil & gas, natural gas and other energy prices

10.2.19

1. 本次股东大会的召集和召开程序

2. Once engine has slatted slowly

move shake lever to no choke.

1. Allow until to run two (2) minutes to

[Unreadable]

1. Turn idle control switch to ON position

Loats can move the applied to limit

SHUT-DOWN

1. Remissel

of electrical capacitance so

THE TRANSPORTATION OF THE WORLD'S WELKING

1. Allow frame to run slide

at a French origin is then given spred in cool down 17.

minutes. First eleven minutes

to find any result in disques

min

Turn oil engine ignition

2014年1月

Close fuel price

(1) 2017年1月1日

2.基金转换行情

D'UTILISATION

dour avan

The following table provides the original data:

1. Service to maintain business operations

2. MELONI ELENDIO, 100% SICUANO, 2018

[Unreadable due to severe distortion and noise]

nifinlase 10000000

8.1114.8.1013.11.15

The quick brown fox jumps over the lazy dog.

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage. EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

Black-and-white icon of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

BREAKER IRCUITOS / 8.3A GND 34-0889 062104-ENG.

Close-up of a mechanical assembly with green component and metallic components (no visible text or symbols)

(ilustración 3)

Close-up of a mechanical component with black wires and a yellow arrow pointing to a component (no visible text or symbols)

Close-up of internal mechanical components with a yellow arrow pointing to a component (no visible text or symbols)

Technical line drawing of a mechanical component assembly (no text or symbols)

(ilustración 8)

Corriente Nominal (AMP)

30

50/25

66.6/33.3

Lunes - Viernes 8:00 a.m. - 5:00 p.m. CST

Manufactured by Mi-T-M

50 Mi-T-M Drive, Peosta IA 52068

563-556-7484/ Fax [phone]
