Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 26

Device Overview 30

Operation 36

Cleaning and Maintenance 39

Troubleshooting 40

Product Data Sheet 42

Disposal Considerations 44

Manufacturer & Importer (UK) 44

TECHNICAL DATA

Item number 10045043 10045044
Power supply 220-240 V ~ 50 Hz

SAFETY INSTRUCTIONS

Information on the safety of children and persons at risk

• This appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised during use or have received instruction in the safe use of the appliance and understand the risks involved.
  • Children aged 3 to 8 years may fill refrigerators with food and remove food.
• Ensure that children do not play with the appliance.
• Cleaning and maintenance of the appliance may only be carried out by children if they are at least 8 years old and supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When you dispose of the appliance, unplug it from the wall outlet, cut the power cord and remove the door. This will prevent children playing on the appliance from injuring themselves, getting hit or getting trapped.
• If this machine replaces an older machine with a spring lock and latch on the door or lid, disable the spring lock and latch before disposing of the old machine. This will prevent children from getting trapped and suffocating.

General advice

• Keep ventilation openings in the unit housing or in the built-in cabinet free of obstacles.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use other electrical appliances, such as ice machines, inside refrigeration appliances unless they are approved for this purpose by the manufacturer.
• If there is a light bulb inside the appliance, do not touch it. If it has been switched on for a long time, it can become very hot. The light bulb supplied with this unit is a special bulb that may only be used with the unit supplied. This light bulb is not suitable for household lighting. Do not use the unit without the light bulb.
• When setting up the machine, take care not to pinch or damage the power cord.
• Do not store explosive substances such as spray cans containing a flammable propellant in this appliance.
• During transport and installation of the unit, take care not to damage any components of the refrigerant circuit.

- Avoid naked flames and sources of ignition near the unit.

- Thoroughly and regularly ventilate the room in which the unit is located.

- It is dangerous to modify this product in any way. Any damage to the cable may cause a short circuit, fire or electric shock.

- All electrical components such as the plug, power cord and compressor must be replaced by a certified service centre or by qualified service personnel.

• The power cord must not be extended.

- Be careful not to pinch or damage the power plug. A pinched or damaged power plug may overheat and cause a fire.

• Make sure that you can reach the power plug of the machine at any time.

- Do not pull on the power cord.

- If the power outlet is loose, do not plug in the power plug. There is a risk of electric shock or fire.

• This machine is heavy. Be careful when moving it.

- Do not touch the freezer compartment if your hands are damp or wet, as this may cause skin abrasions or cold burns.

- Do not place the unit in direct sunlight.

- This appliance is intended for use in the home and similar environments. These include:

- Staff kitchens in shops, offices and other working environments

- Farms, hotels, motels and other residential facilities

- Pensions that offer breakfast (Bed & Breakfasts)

- Catering and similar applications outside the retail trade

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Notes on daily use

• Do not put hot food in the machine.
• Do not place food directly against the rear panel.
• Frozen food must not be refrozen after defrosting.
• Store packaged frozen food according to the instructions of the frozen food manufacturer.
• Do not place carbonated fizzy drinks in the freezer compartment as the pressure they generate can cause them to explode and damage the appliance.
• Open the door as rarely as possible.
• Do not leave the door open too long.
• Do not set the thermostat too low.
• To reduce energy consumption, leave all accessories, such as drawers, shelves or racks in the appliance.

Notes on installation

• Unpack the machine and check for damage. Do not connect the machine if it is damaged. Report any damage immediately to the manufacturer. Save the original packaging for possible return shipment.
• Wait at least four hours before connecting the unit to allow the coolant to distribute itself in the cooling circuit.
• Ensure that there is sufficient air circulation around the unit. Otherwise, the unit may overheat.
• If possible, the spacers on the unit should rest against the wall. This prevents burns caused by touching the hot compressor or condenser.
• The unit must not be installed near radiators or cookers.
• Make sure that the mains plug is always accessible after the unit has been installed.
• Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate:

SN	Low	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Moderate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

Notes on cleaning and maintenance

• Before cleaning and maintenance, switch the machine off and unplug the power cord from the wall outlet.
• Do not clean the machine with metal objects. Do not use sharp objects to remove frost from the machine. Use a plastic scraper.
• All electrical work required to service the unit should be performed by a qualified electrician or competent person.

Special instructions for freezers and chest freezers

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the machine, make sure that the mains cable is not pinched or damaged.
• Ensure that there are no multiple sockets or power supply units on the rear of the machine.

To avoid contamination of food, please follow the instructions below:

• Prolonged opening of the door can cause a significant temperature rise in the compartments of the unit.
• Clean surfaces that may come into contact with food regularly. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip onto other foods.

Notes on the freezer compartments

• Two-star freezer compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star freezer compartments are not suitable for freezing fresh food.
• If the refrigerator is left empty for a long period of time, switch it off, let it defrost, clean it, dry it and leave the door open to prevent mould from forming in the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

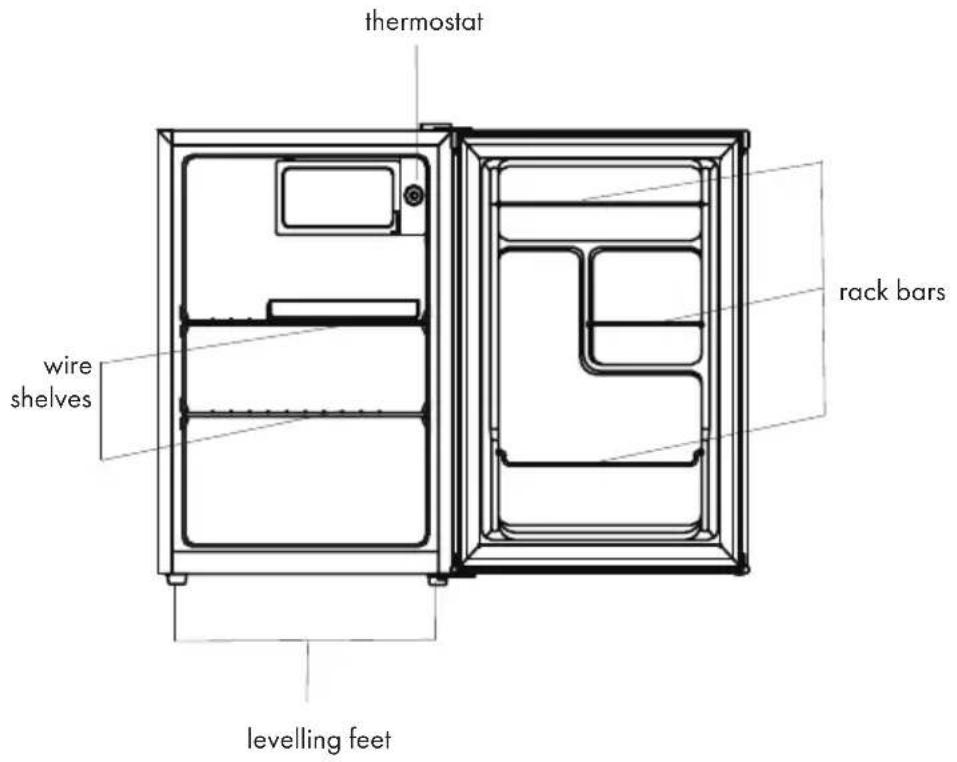

DEVICE OVERVIEW

thermostat wire shelves rack bars levelling feet

INSTALLATION

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It's better that 2 people handle the unit during assembly.

123
Remove the top right hinge cover.	Undo the screws. Then remove the hinge bracket.		Remove the top left screw cover.

4
	Move the cover from the left side to the right side. Lift out the door at the top and place it on a soft surface.
5
	Remove the adjustable feet.Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
Unscrew Screw

6
	Refit the bracket on the opposite side.Replace both adjustable feet.
7	8
Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.		Insert the hinge bracket and screw it to the top of the unit. Use a spanner to tighten it if necessary.

9
	Put the hinge cover and the screw cover back on.

10

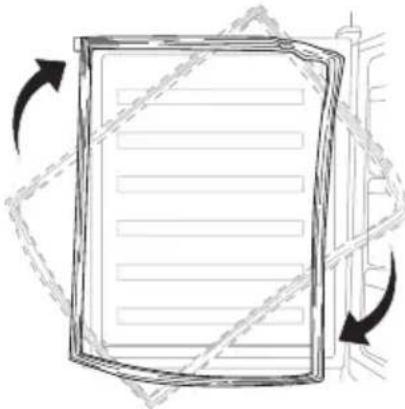

	Detach the refrigerator door gaskets and attach them after rotating.

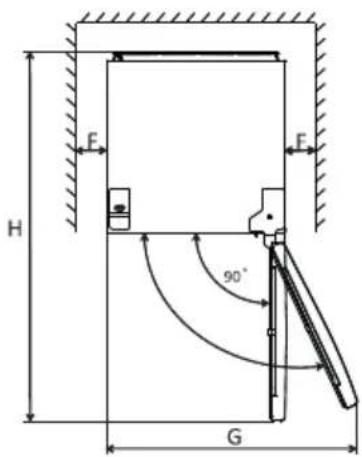

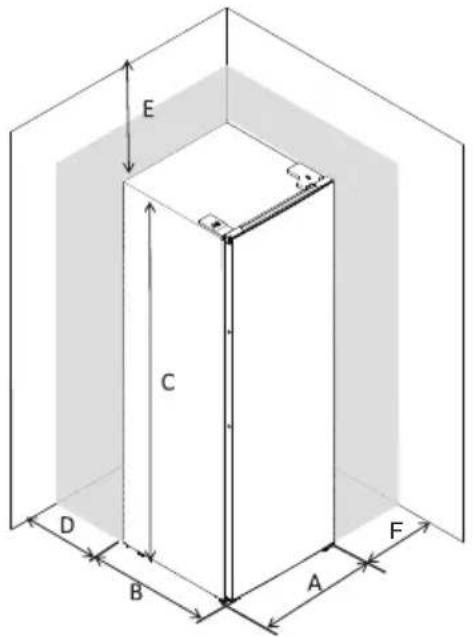

Dimensions

- Leave enough space to open the door.

E C D B A F

H F F 90° G

A	440
B	510
C	640
D	min=9
E	min=50
F	min=50
G	880
H	950

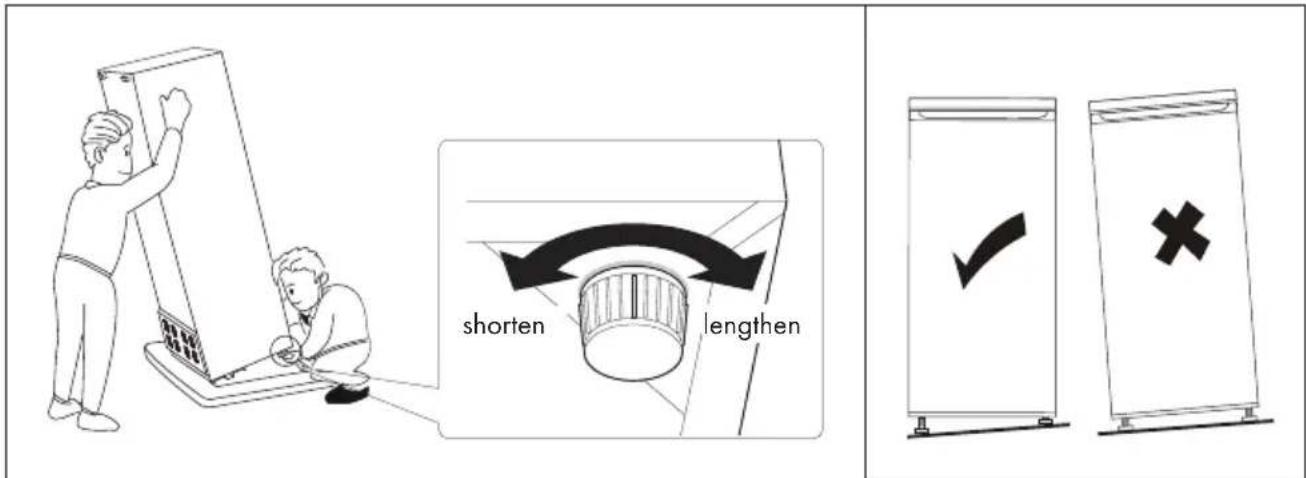

Aligning the refrigerator horizontally

• Adjust the two feet on the front to level the refrigerator.
• If the appliance is not level, the door may not close properly at the magnetic seals.

shorten lengthen

Location

• The appliance should be placed far away from heat sources such as radiators, boilers and direct sunlight.
  • Make sure that the air can circulate freely at the back of the cabinet.
• If the appliance is placed under an overhanging wall unit, the minimum distance between the top of the refrigerator and the wall unit must be at least 50 mm to ensure optimum performance. Ideally, however, the appliance should not be placed under overhanging wall units. By adjusting the two feet on the bottom of the refrigerator, you can precisely align the refrigerator.
• The refrigerator is not suitable for installation and must be free-standing.

Electrical connection

WARNING

Risk of electric shock! It must be possible to disconnect the appliance from the mains. Make sure that the plug is easily accessible after installation.

• Check the voltage on the rating plate before use. Only connect the appliance to sockets that correspond to the voltage of the appliance.
• The appliance must be earthed. If the household socket is not earthed, connect the appliance to a separate earth connection in accordance with the applicable regulations and consult a qualified electrician.
• The manufacturer accepts no liability if the above safety precautions are not observed.

OPERATION

Before first use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral cleaner so as to remove the typical smell of a brand new product, then dry thoroughly. Important: Do not use strong detergents or abrasive cleaners as they will damage the surfaces.

Temperature setting

Plug on your appliance. The internal temperature is controlled by a thermostat. There are 6(S) settings. 1 is warmest setting and 5 is the coldest setting and O is off

Note: The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

4 3 5 2 0 1

Positioning the door shelves

In order to storage food or beverage with different size, the door shelves can be placed at different height. Follow below process to adjust the shelves.

1. Pull the shelf to be free.
2. Step 2. Select suitable position and press the shelf to two convex plates until it is totally blocked.

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in a fridge compartment or at room temperature. Place the frozen food in a dish or bowl to avoid the following condensate water hen thawing it in the compartment. This refrigerating appliance is not suitable for freezing foodstuff.

Recommended temperature settings

At the recommended setting, the optimum food storage time is no more than 3 days. At other settings, the storage time may be shorter.

Ambient temperature	Freezer Fridge
Summer -			2-3
Transitional period -			2-3
Winter -			1-2

Daily use

Place different foods in different compartments, as described in the following table:

Storage location Food type
Door compartments	Food with natural preservatives, such as jams or juices, drinks or spices.Do not put perishable food in the door compartments.
Drawer	Fruits, herbs and vegetables should be stored separately in the drawer. Do not store bananas, onions, potatoes and garlic in the refrigerator.
Middle cooling shelf Dairy products and eggs.
Upper cooling shelf	Foods that do not need to be cooked, as well as ready-to-eat foods, sausages or leftovers.

Refrigerating fresh food

• Do not put warm or steaming foods in the refrigerator.
• Always wrap food or store it in airtight containers. This is especially true for foods with strong odors.
• Make sure air can circulate freely between foods in the refrigerator.
• Wrap any type of meat in plastic wrap and store it on the shelf, directly above the vegetable drawer, for a maximum of 2 days.
  • Cooked foods can be placed on any of the shelves.
• Store fresh fruits and vegetables in the vegetable drawer.
• Pack butter and cheese in airtight containers, aluminum foil or plastic wrap.
• Store milk bottles or milk cartons in the door compartment only when closed.
• Do not store bananas, onions, potatoes and garlic in the refrigerator.

Defrosting frozen food

Frozen foods can be thawed in one of the refrigerator compartments or at room temperature before use. Place the frozen food in a tray to catch any condensation that occurs during thawing.

This refrigerator is not suitable for freezing food.

CLEANING AND MAINTENANCE

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION

Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.

Defrosting

The evaporator is gradually covered with frost. This should be removed.

Never use sharp metal tools to scrape the ice off the evaporator as you could damage the evaporator. If the ice on the evaporator becomes very thick, you should defrost the appliance completely. Proceed as follows:

• Unplug the appliance from the wall socket.
• Remove all food stored in the refrigerator, wrap it in several layers of newspaper and store it in a cool place.
• Leave the refrigerator door open and place a bowl under the appliance to catch the condensation.
• Wipe the refrigerator thoroughly dry after defrosting.
• Insert the plug into the socket to put the appliance back into operation.

Cleaning the unit

• Remove all shelves and the vegetable compartment. First remove the lower door compartment so that you can remove the vegetable compartment.
• Wipe the inside of the appliance with a damp cloth and a little detergent. Then wipe with clear, warm water.
• Wash the shelves and the vegetable compartment in water with detergent and dry them before putting them back into the appliance. Clean the outside of the appliance with a damp cloth.
• The condenser grille on the back of the unit and the adjacent components can be vacuumed with a soft brush attachment.

Cleaning tips

Condensation may form on the outside of the unit. This may be due to a change in the room temperature. Wipe off the condensation water. If the problem persists, contact a qualified technician.

Maintenance

• When you move the unit, hold it by the sides or floor. Do not hold it by the edges of the top.
• The unit should be serviced by an authorized technician and only original spare parts should be used. Do not attempt to repair the unit yourself. Repairs by inexperienced persons may result in injury or serious malfunction.
• If the unit is not to be used for an extended period of time, disconnect it from the power supply. Remove all food and clean the appliance. Leave the door open to prevent unpleasant odours.

TROUBLESHOOTING

Problem Possible	Cause Suggested Solution
Appliance does not work	Temperature regulation knob is set at number “0”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective. Check fuse, replace if necessary.
	Socket is defective. Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold. Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises Appliance is not level. Re-adjust the feet.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045043, 10045044
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 640		Total volume (dm3 or L)	67Width 440
	Depth 510
EEI		99	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		82	Climate class:	temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 67 - M
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
