USER MANUAL HANDY VC24 FAR

Exterior view of a white handheld device with black handle and gray grip, no visible text or symbols

HANDY VC-24 G

MANUEL D'INSTRUCTIONS

Diagram of a smart air conditioner with numbered parts for identification and assembly reference.

Schéma 1 Schéma 2

CONSIGNES D'UTILISATION

Technical diagram showing two mechanical components with labeled arrows B and C indicating directional movement or force.

Schéma 6

Diagram showing a cylindrical device being processed with an arrow indicating motion, and a separate view of a mechanical component (no text or symbols present)

Schéma 7

Diagram showing a cylindrical device with internal components and a rotating arrow indicating rotation (no text or symbols)

Schéma 8

Thank you for choosing FAR quality. This product has been developed by our team of professional and according to European regulations in force. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

IMPORTANT SAFEGUARDS...... GB-2

TECHNICALPARAMETER...... GB-5

GENERAL PRESENTATION...... GB-5

CHARGING INSTRUCTION GB-6

OPERATION INSTRUCTION...... GB-7

CLEANINGANDMAINTENANCE...... GB-8

CUSTOMER SERVICE......GB-10

DISPOSAL OF YOUR OLD APPLIANCES......GB-12

IMPORTANT SAFEGUARDS

IMPORTANT: READ ALL THE INSTRUCTIONS BEFORE USE. KEEP THE INSTRUCTION MANUAL FOR FUTRUE REFERENCE.

1. This appliance has been designed for domestic dry vacuum cleaning only. Do not use the appliance to remove liquids or use it on wet surfaces to avoid causing damage to the appliance.
2. Never immerse the charger or unit in water to avoid danger.
3. Keep the appliance and accessories away from hot surfaces like hot gas or microwave-oven.
4. Do not block the openings of appliances so as not to affect its heat-dissipation effect.
5. Do not use the appliance to remove anything that is flammable, burning or smoking, like cigarette end, matchstick, or ashes with waste heat.
6. The charger has been designed for a special voltage.
   Always check that the mains voltage is the same as that stated on the rating plate.
7. Do not use the appliance if any signs of charger or power wire damage or aging occurred.

8. Only use batteries and chargers supplied by the manufacturer. Never use any of them provided by other companies.

9. Ensure the appliance is power off before cleaning, otherwise, accidental electric shock may be caused.

10. The main body cannot be rinsed by water, and it can be cleaned with a piece of dry cloth.
11. Repairs should be carried out by a service agent in accordance with relevant safety regulations if the battery cannot be charged normally; The battery cannot be removed for other purposes.
12. Care should be taken on dispose of the battery pack safely in accordance with local regulations. Never dispose in the fire or water as this may increase the risk of explosion or contamination.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
14. Misuse or use of any accessory or attachment other than manufacture's recommended, may present a risk of personal injury.
15. Do not use the appliance for other purposes.

16. Do not use the appliance outdoors.

17. The appliance is only to be used with the power supply unit provided with the appliance.

18. WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
19. This appliance contains batteries that are non-replaceable.
20. For detailed information on the charging process, please refer to the "CHARGING INSTRUCTION" section.
    ☐-☐-C: Detachable power unit

TECHNICAL PARAMETER

Product Model	VC3952-GS
Customer Reference	FAR HANDY VC-24 G
Working Voltage	7.2V ---
Battery capacity	2200mAh
Model of power adapter	JOD-S-100050GS-C-2
Input of power adapter	100-240V~ 50/60Hz
Output of power adapter	10.0V --- 0.5A

TECHNICAL PARAMETER

Diagram of a smart air conditioner with numbered parts for identification and assembly reference.

1	Flat nozzle	6	Dust cup release button
2	Small brush	7	Filter cover
3	Main body	8	Filter cloth
4	Power button	9	Wall rack
5	Dust cup	10	Charger

CHARGING INSTRUCTION

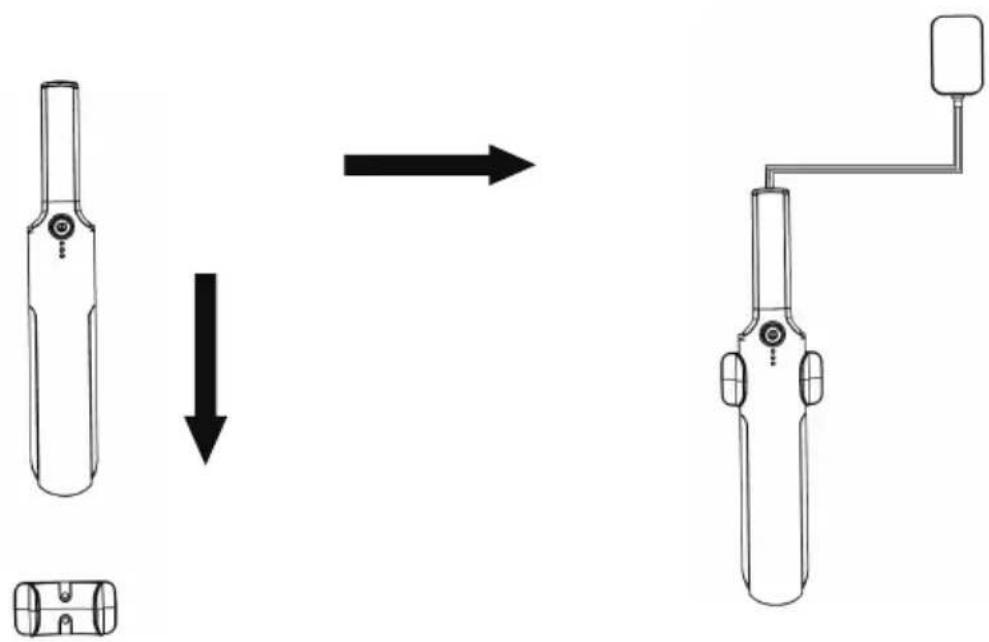

Fix the wall rack in a proper place which is close to the wall outlet and then install the appliance onto the wall rack (see Fig.1). And then connect the adapter with the appliance to energize (see Fig.2). At that time, the charging indicators flash alternately, which means the appliance enters the charging condition. It means that the charging is completed when all the charging indicators illuminate (see Fig.2).

NOTE: The appliance cannot be activated when it is being charged.

Fig.1 Fig.2

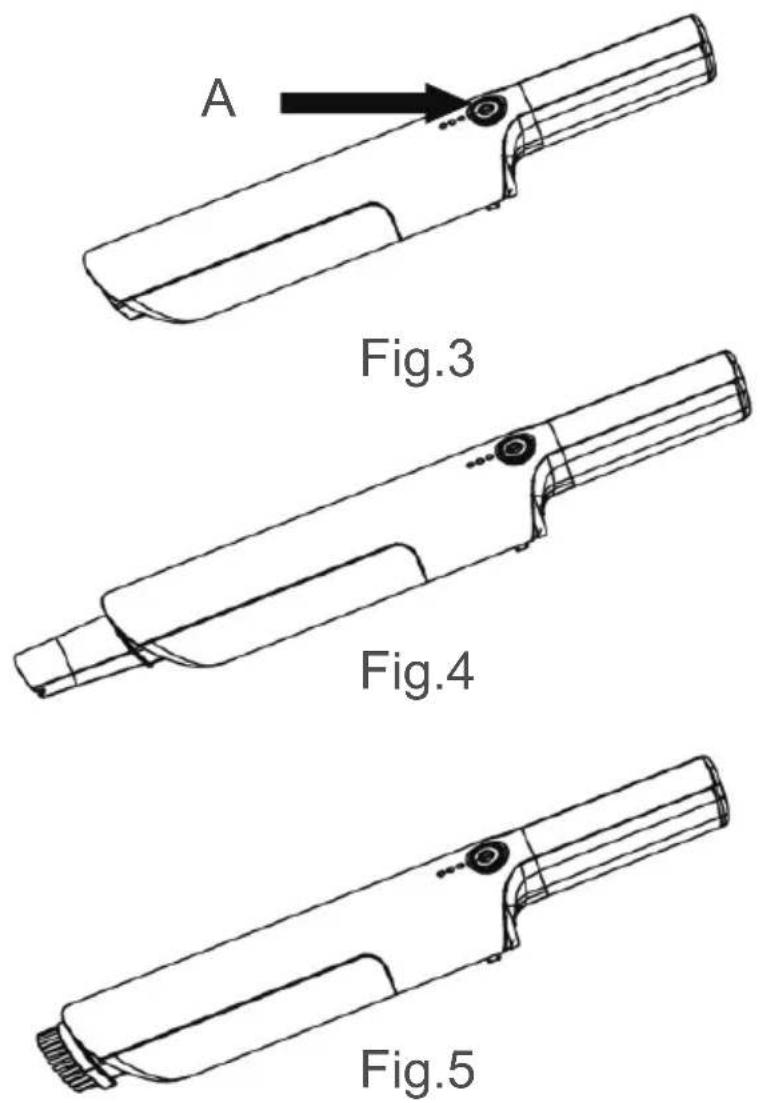

Press the Power button (A) (see Fig.3), the appliance enters the working condition. Press the Power button again, the appliance stops working. If need to use the flat nozzle, insert the flat nozzle into the main body as shown in Fig.4 and then activate the appliance. If need to use the small brush, insert the small brush into the main body as shown in Fig.5 and then activate.

CLEANING AND MAINTENANCE

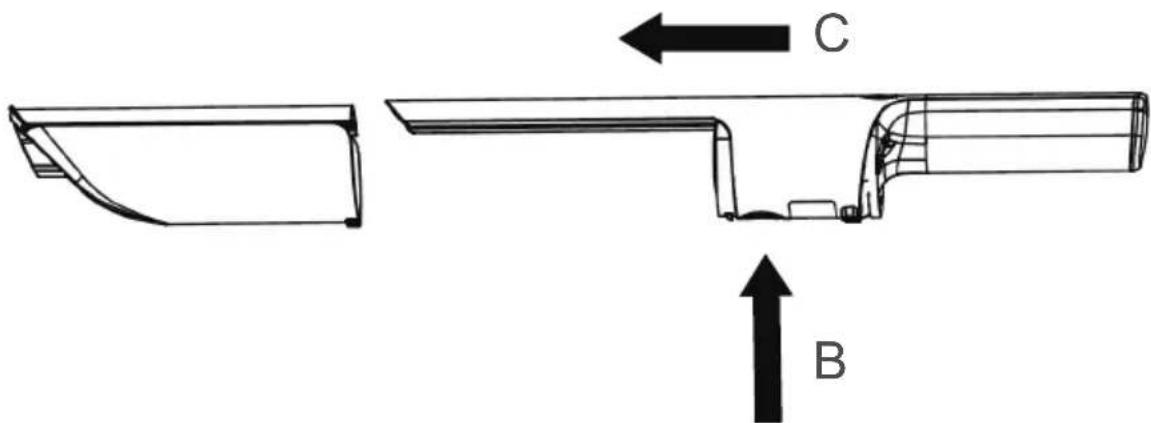

1. Follow the operation as below to remove the dust cup: Press the Dust cup release button (B) and remove the dust cup forwards at the same time (C) to make the dust cup detach from the main body (see Fig.6).

Technical diagram showing two mechanical components with labeled arrows C and B indicating directional movement or force.

Fig.6

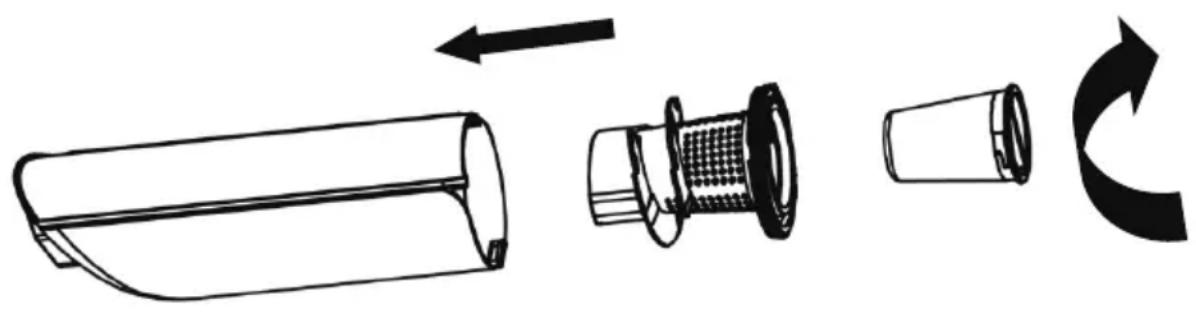

1. Grasp the Filter cover and rotate it anticlockwise at the same time to remove the filter cloth and empty the dust cup (see Fig.7). The dust cup can be rinsed with water, but the dust cup shall be dried after being rinsed with water.

Diagram showing a cylindrical device being processed with an arrow indicating rotation, and then assembled into a multi-cylindrical component (no text or symbols present)

Fig.7

1. When the vacuuming performance degrades, you can use water to clean the filter cloth but do not use the small brush to clean it. After cleaning, dry it thoroughly before using again.

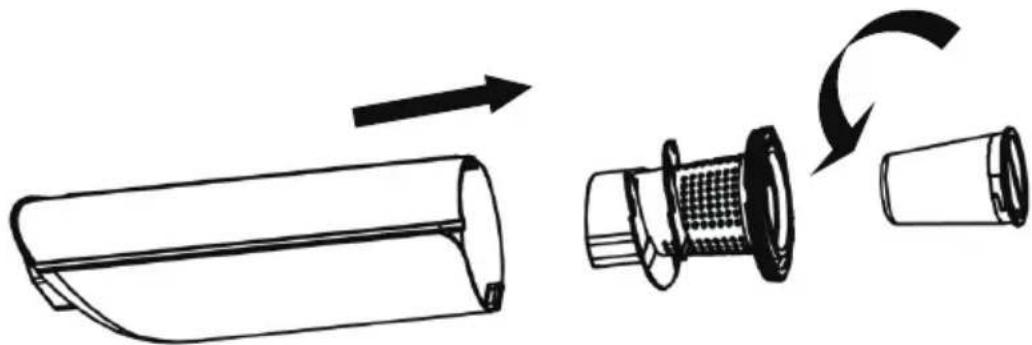

2. After the dust cup is cleaned well, firstly install the filter cloth into the filter cover clockwise and then install them into the dust cup, finally, install the dust cup onto the main body (see Fig.8).

Diagram showing a cylindrical device with internal components and a rotating arrow indicating rotation (no text or symbols)

Fig.8

NOTE: The dust cup needs to be cleaned in time after each use. And it needs to be cleaned or replaced to ensure the high efficiency of vacuum cleaner when the filter cloth is blocked by dust.

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

Purchase product at Conforama store:

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

http://sav-client.conforama.fr/

or call :09 69 32 05 05 from Monday to Saturday, 8:30 to 19:00 price of a local call.

If you need access to the list of spare parts and technical, documentation for your product, please go to https://sav-pieces.conforama.fr. There you will be able to buy spare parts for repairing your product or having it repaired.

Purchase product at BUT store:

This instruction book is also available on our website: www.but.fr

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97

From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).

If you need access to the list of spare parts and technical documentation for your product, please go to https://pieces-detachees-butelectro.sfg.fr

There you will be able to buy spare parts for repairing your product or having it repaired.

Disposal of your old appliance

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment.

The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.
