USER MANUAL Shiraz 8 Uno Klarstein

QR code image containing encoded data, no visible human-readable text

INHALT

Technische Daten 3

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

Temperatureinstellung

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 21

Safety Instructions 22

Overview 25

Operation 26

Energy saving recommendations 27

Cleaning and Care 28

Troubleshooting 29

Electric diagram 30

Product Data Sheets 31

Disposal Considerations 35

Manufacturer & Importer (UK) 35

TECHNICAL DATA

Article number 10045295 10045296
Power supply 100-240 V~ 50/60 Hz
Capacity 21 L	8 standard bottles
Temperature range 5-18 °C (41-64 °F)
Dimensions 430x495x290 mm 265x510x475 mm
Weight 10,5 kg 11,3 kg

SAFETY INSTRUCTIONS

Advice for the safety of children and vulnerable people

• This device can be used by children aged from 8 years and above and people with limited physical, sensory or mental abilities or a lack of experience and knowledge only if they are supervised during use or have received instruction in the safe use of the device and understand the hazards involved.
  • Children aged 3 to 8 may fill refrigerators with food and remove food.
• Make sure that children do not play with the device.
• Cleaning and maintenance of the device may be carried out by children only if they are at least 8 years old and are supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When disposing of the appliance, unplug it from the mains outlet, cut off the power cord and remove the door. This prevents playing children from injuring themselves on the device, being hit or locking themselves in it.

General Instructions

• Keep ventilation openings in the device housing or in the built-in closet free of obstacles.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not use other electrical devices, such as ice machines, inside refrigerators unless approved for this purpose by the manufacturer.
• If there is a light bulb in the device, do not touch it. If left on for a long period of time, it can become very hot. The light bulb supplied with this device is a special lamp that must only be used with the supplied device. This bulb is not suitable for household lighting. Do not use the device without the light bulb.
• When setting up the device, make sure that the power cord is not pinched or damaged.
• Avoid open flames and sources of ignition in the vicinity of the device.
• Ventilate the room in which the device is located thoroughly and regularly.
• It is dangerous to modify this product in any way. Any damage to the cord can cause a short circuit, fire, or electric shock.
• All electrical components such as the plug, power cord and compressor may only be replaced by a certified service centre or by qualified service personnel.
• The power cord must not be extended.
• Make sure that the mains plug is not crushed or damaged. A crushed or damaged mains plug can overheat and cause a fire.
• Make sure that you can access the mains plug of the device at all times.
• Do not pull on the mains cord.
• If the outlet is loose, do not insert the power cord. There is a risk of electric shock or fire.
• Do not touch the freezer compartment when your hands are damp or wet as this may cause abrasions or cold burns.
• Do not place the device in direct sunlight.
• This appliance is intended for use in households and similar environments.

These include:

• Staff kitchens in shops, offices and other work environments
• Farms, hotels, motels and other residential establishments
• Guest houses that offer breakfast (Bed & Breakfasts)

• Catering and similar non-retail applications.

• The refrigerator performs best at an ambient temperature of 16-32 degrees. We recommend turning off the cooler when the ambient temperature is less than 10^ .
  • After plugging in the mains cord, allow the device to cool down for 2-3 hours before placing a drink in the cooling compartment.

• Ventilation is very important for this type of thermoelectric refrigerator. The inner circuit board can be easily damaged if ventilation is poor. Poor ventilation will also reduce the life of the refrigerator.
• These models feature a thermoelectric refrigeration system with automatic defrost, eliminating the need for manual defrosting.
• The refrigerator must be plugged into a properly grounded electrical outlet that conforms to local codes before operation.
• Check the data plate located on the side of the refrigerator to ensure that the voltage and frequency correspond to local values; if not, do not plug the cord into the outlet.

Placement

When installing a thermoelectric refrigerator, you must consider ventilation, namely the following points:

• At least 200 cm ^3 should be left for ventilation.
• The distance between the wall and the cooler side should be at least 20 mm.
• At least 50 mm should remain free for the air flow on the back.
• The air flowing through must not be preheated.
• The entire cooling system must be considered for ventilation.

Special notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
  • This appliance is not suitable for freezing food.
• The racks were pre-set to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been pre-set to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN	Extended temperate	This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.

OVERVIEW

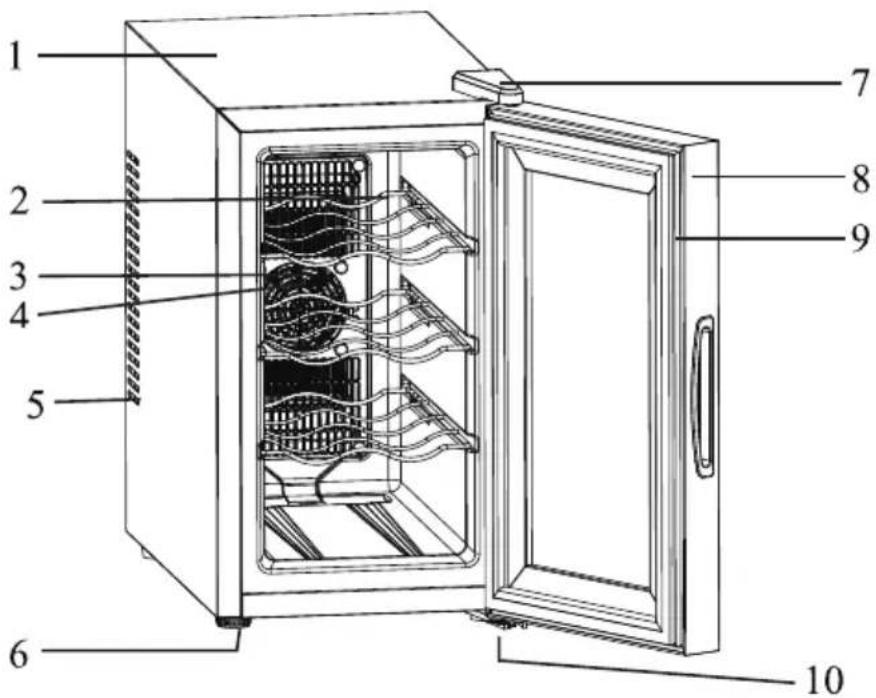

Device

1 2 3 4 5 6 7 8 9 10

1 Housing

6 Height-adjustable feet

2 Shelves

7 Upper door hinge/cover

3 Heat sink fan

8 Door

4 Fan cover

9 Gasket

5 Ventilation slots

10 Lower hinge

It is recommended to place the refrigerator in a place where the ambient temperature is between 16-32°C/61-90°F. If the ambient temperature is above or below the recommended temperatures, the performance of the device may be affected. For example, if you place the unit in an extremely cold or hot place, the internal temperature may fluctuate. The temperature range of 5 °C–18°C may not be reached.

OPERATION

Pure graphical icons including gear, sun, light, and checkmark on dark background (no text or symbols)

Temperature setting

You can turn the interior light on or off by pressing the 🎨 button once. The light will turn off automatically after 10 minutes. Press the 🎨 button to turn the light back on.

You can switch the temperature display from Celsius to Fahrenheit by pressing and holding the 🎨 button for 2 seconds.

1. Your cooling device is equipped with an automatic control panel lock that is activated 20 seconds after the last time a button is touched. Press the button for 2 seconds to unlock the control panel. You will hear a beep indicating that the control panel is now active.

2. You can set the temperature as you like by pressing the ^ or ^ buttons on the control panel. The desired temperature increases by 1 °C when you press the ^ button once. The temperature decreases by 1 °C when you press the √ button once.

Note: When you turn on the refrigerator for the first time or turn it on again after a long period of time not in use, there may be a difference of a few degrees between the temperature you have selected and the temperature shown on the LED display. This is normal and is related to the duration of the on-time. Once the cool box has been running for a few hours, everything will be back to normal.

Storage capacity

Note: You can put 8 standard bottles in the wine fridge. Many bottles may vary in size and dimensions. As such, the actual number of bottles you can accommodate may vary. Bottle capacities are approximate maximums for storing traditional 750 ml Bordeaux bottles and include bulk storage.

Interior lighting

You can turn the interior light on or off by pressing the ✦ button. The light turns off after 10 minutes of use. Press the ✦ button again to turn the light back on.

ENERGY SAVING RECOMMENDATIONS

• The shelves have been pre-set to allow the most efficient use of energy.
• Use only the shelves provided by the manufacturer.
• Never block the holes in the shelves and do not use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
  • We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

The model 10045295 has a total of 1 shelf.

Shelf 1

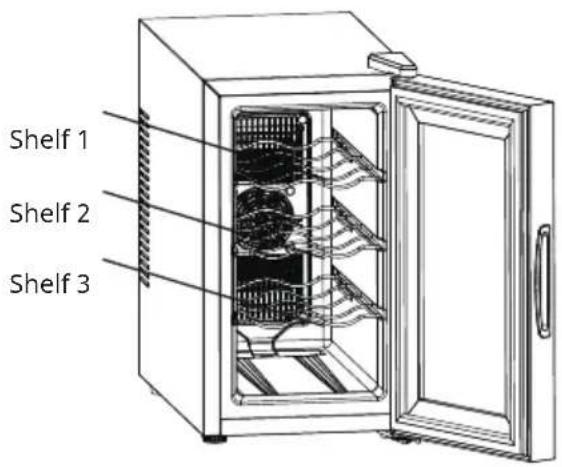

The model 10045296 has a total of 3 shelves.

Shelf 1 Shelf 2 Shelf 3

When the surrounding temperature is 25 °C and the pantry has no load, it will take around 3.5 hours to decrease the pantry's temperature from 25 °C to 17 °C .

The pantry is recommended to be designed at 17 °C . The energy consumption is shown in the Product Data Sheets. If the setting temperature is higher than 17 °C , the energy consumption will be lower. If the setting temperature is lower than 17 °C , the energy consumption will be higher.

CLEANING AND CARE

Cleaning the appliance

• Switch off the appliance first and disconnect the power cord from the mains socket.
• Remove all the contents.
• Wipe the inside with a damp cloth dipped in lukewarm water with a little washing-up liquid.
• Make sure the rubber seal on the door is clean so that the appliance remains efficient.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
• Dry the inside and outside with a soft cloth.
• Dust and anything else that clogs the exhaust vents will reduce the cooling capacity of the appliance. If necessary, vacuum the exhaust air opening.

Decommissioning during absence

• First switch off the appliance. Then disconnect the power cord from the power outlet.
• Remove all the contents.
• Clean the appliance.
• Leave the lid on slightly to prevent condensation, mould or odours from forming.

Installation at another location

• First switch off the appliance. Unplug the power cord.
• Remove all the contents.
• Secure all loose items with tape.
• Tape up the doors.

Energy saving recommendations

The wine refrigerator should be placed in the coolest place in the room, away from appliances that generate heat, heating pipes and direct sunlight. Make sure that the door is properly closed when the wine refrigerator is switched on.

TROUBLESHOOTING

Problem Possible cause Solution
No cooling	No power supply Check the power supply.
	Circuit board defective Have the circuit board replaced.
	Fan defective Have the fan replaced.
	Cooling module broken Replace a new cooling module with silicone
Insufficient cooling power	High ambient temperature	The room temperature is higher than normal.
	The door is opened too often	Open the door less often.
	Poor fan performance Set up the cooler according to the instructions for adequate air flow.
	Poor sealing Replace the door seal.
Noise development	Dust Clear the fan of dust
	Fan defective Have the fan replaced.
Ice formation in the refrigerator compartment.	No automatic defrosting Shut down the device for at least an hour and restart it.
	Low ambient temperature	Set the ambient temperature to room temperature.

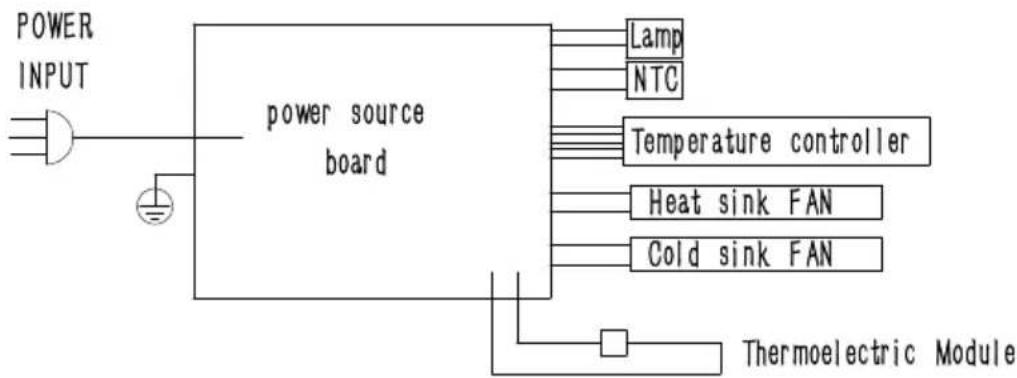

ELECTRIC DIAGRAM

10045295

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045295
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 475		Total volume (dm3 or L) 21	Width 265
	Depth 510
EEI 99 Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		75 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 21.0 ---
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
For wine storage appliances
Number of standard wine bottles
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045296
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 290		Total volume (dm3 or L) 21	Width 430
	Depth 495
EEI 99 Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW)		33	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		75 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 21.0 ---
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
For wine storage appliances
Number of standard wine bottles
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 37

Pure graphical icons including gear, sun, square, and checkmark on dark background (no text or symbols)

Clayette 1

Clayette 1 Clayette 2 Clayette 3

FICHE DE DONNÉES PRODUIT

10045295

Symbol of a trash bin with crossed x and y axes, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 51

Pure graphical icons including gear, sun, square, and checkmark on dark background (no text or symbols)

Ripiano 1

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Datos técnicos 65

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

Configurar la temperatura

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
