USER MANUAL ARH1956300ENF ASPES

Read this manual carefully and keep it for future reference

www.aspes.es

Important safety instructions 1
Transportation and Placement 2
Product Features 3
Operation of the Temperature control knob. 4
Electrical Connection 4
Details of Product 5
Caution for Safety. 5
Caution for Using 5
Ordinary Trouble and Remedies 6
Correct Disposal of this product. 7

Importer :

Dear users (customer), this manual contains the product's basic knowledge, use instruction, fault diagnosis and basic trouble shooting methods. In order to better understand and use this product, please take good care of this manual and read it carefully.

Important safety instructions

1. The Range of operating voltage: 187V 254V . In order to avoid damaging the electrical performance of the compressor, please equip with a Voltage Stabiliser appliance of power not less than 500W , to protect the Cooler when the voltage is lower than 187V or higher than 254V .
2. Individual single-phase socket must be used. It should be reliably connected to a grounding wire. Caution: The grounding wire is not allowed to connect to a water pipe or a gas pipe.
3. Strong base, strong acid, organic solvent and corrosive goods or those are easy to pollute to food are prohibited storing in the showcase; otherwise, it can cause corrosiveness or accident.
4. Don't raise the showcase or the shell of the electric parts, or it will cause the decline in insulation and cause corrosion.
5. When the showcase will be out of use for a long time, disconnect the power first, then clean it. Please examine the circuit whether it is ok before reuse.
6. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
7. The appliance shall be disconnected from its power source during cleaning or maintenance and when replacing parts.
8. The A-weighted emission sound pressure level is below 70Db(A).
9. Do not store explosive substances such as aerosol cans with a flammable propellant inside the appliance.
10. Warning: Risk of fire / flammable materials, taking care to avoid causing a fire by igniting flammable material.
11. Max. loading of shelves: 195.3kg / m^2 , the deformation < 1.04cm / m
12. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.
13. WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.
14. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
15. WARNING: Do not damage the refrigerant circuit.

16. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

17. The ambient temperature and humidity conditions of the show case climate class following the tab below:

Test room climate class	Dry bulb temperature (℃)	Relative humidity (%)	Dew point (℃)	Water vapour mass in dry air (g/kg)
0	20	50	9.3	7.3
1	16	80	12.6	9.1
8	23.9	55	14.3	10.2
2	22	65	15.2	10.8
3	25	60	16.7	12.0
4	30	55	20.0	14.8
6	27	70	21.1	15.8
5	40	40	23.9	18.8
7	35	75	30.0	27.3
NOTE: the water vapour mass dry air is one of the main points influencing the performance and the energy consumption of the cabinets. Therefore, the order of the climate class in the table is based on the water vapour mass column. See also Annex B to compare lab and store conditions.

Note: The illustration is a reference image, your device may differ.

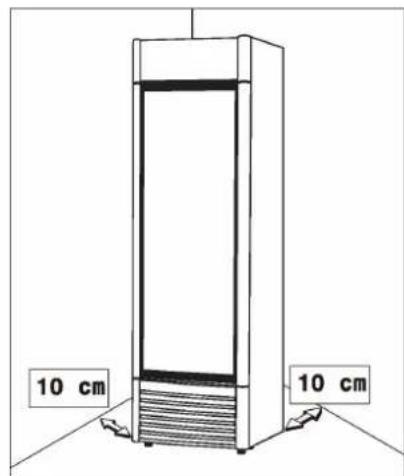

Transportation and Placement

Take out packing and clean all the cabinet using warm water together with 5% of neutral soap then dry it with a soft-cloth; for the glass parts only use specific products, avoiding the use of water which can leave on the glasses limestone residues.

1. Keep a distance from the wall of 10cm at least. Please level the unit settling the adjustable feet.
   2.Cabinet must be installed on a perfectly even surface, far away from any heat source included sun rays.
   3.Do not install the unit in open places and do not expose it to rain.

Note: The illustration is a reference image, your device may differ.

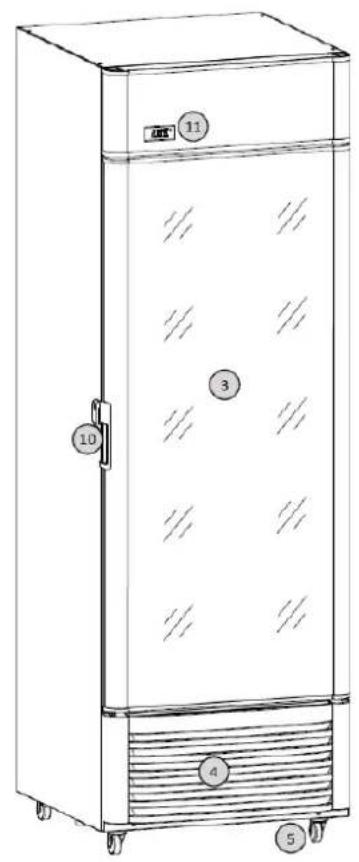

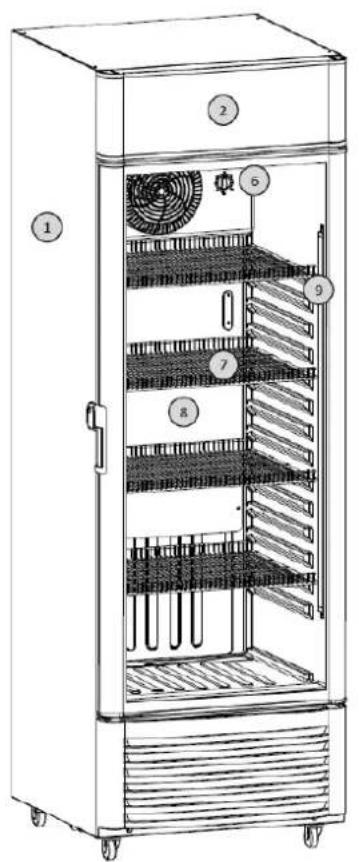

Product Features

No	Description
1	Box
2	Lamp box
3	Glass door
4	Panel
5	Foot
6	Temperature control knob
7	Shelf
8	Evaporator
9	Lamp
10	Lock
11	Display

Note: The illustration is a reference image, your device may differ.

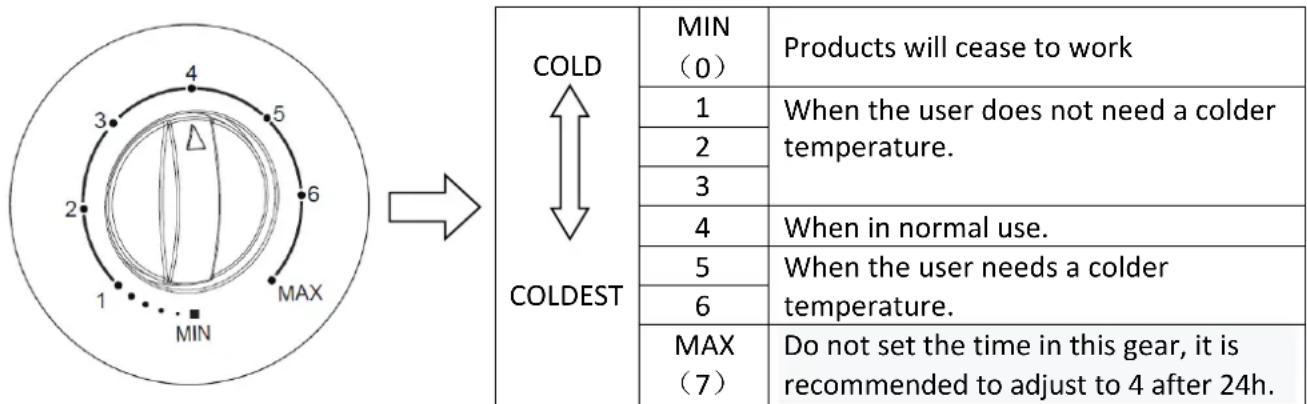

Operation of the Temperature control knob

1. The temperature inside the cabinet can be controlled with the temperature control knob.
2. The knob should be kept upright normally to adjust the temperature. FREEZING MAX is the strongest cooling position and is suitable for fast freezing. Do not keep the knob at this point for long.

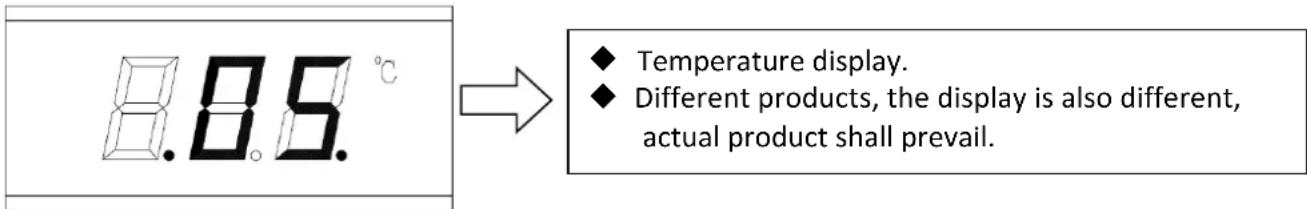

3.Note: The illustration is a reference image, your device may differ.

Electrical Connection

WARNING

1. Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator appliance is not designed to be used with an inverter.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

1. Never unplug the refrigerator (freezer) by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
2. Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.
3. Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

Details of Product

1. It uses quality, effective and hermetic compressor with broad rang of starting voltage, suitable ambient temperature: not higher than 40^ , reasonable matching of the showcase system guarantees its powerful refrigerant ability and energy saving.
   2.Goods stored can be displayed clearly through the door made from luxurious hollow glass.
2. The thermal insulation layer of the showcase made from hard polyurethane foamed plastics makes it be light and good ability to keep the contents cold.

Caution for Safety

Warning! Do not damage the cooling fluid circuit
Warning! Do not damage walls of the machine: the cooling fluid circuit may damage
Warning! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Warning! The equipment must not be used by persons (including children) whose physical, sensorial, or mental capacities are reduced, or who lack experience and know-how, unless they have been provided, by means of a person responsible for their safety, with suitable monitoring or instructions about the use of the equipment. Children must be monitored to ensure they do not play with the equipment.

Caution for Using

1. Unpack all packages before using the showcase. Don't Bend it over more than 60^ , while moving it.
2. When initial operation, the refrigerator should run emptily about two hour before storing food in it
3. The thermostat could adjust the temperature inside the showcase. When you turn the knob in clockwise. The bigger the figure, the lower the temperature. Generally, the position of '3-4' is suitable.'6'position will be operating continually.
   4.To save energy, the door should not be frequently opened for left open for a long time.
   5.The surface and the inside of the showcase should be dry and clean. Long term moisture with cause the showcase rust slowly. (There will be some stains on the surface.)
   6.Periodical cleaning is suggested for your reference. Generally, 30-45 days once is best. When cleaning, it is best to wipe the inside and the surface of the showcase with the soft cloth with neutral soap or detergent.
   Caution: To ensure safety, the power plug must be pulled out before cleaning.

Ordinary Trouble and Remedies

Please refer to the below trouble shooting lists to overcome any minor problems that occurs during operations.

Trouble	Reason		Check	Solution	Remark
Lamp not lighting	No voltage	Fuse breaking off	Checking fuse	Renew Checking fuse	If it is necessary, please ask to the electrician to maintain.
		Poor connection between the plug and socket	The connection lease or not	Repair or change socket
	Have voltage	lamp is poor contact or wear down	Check the circuit and lamp	Tight the leaf contact or renew lamp	Ask professional to maintain.
		Lamp knob is poor contact	Joint is loose or not	Tight the leaf contact
Condenser fan Not running	Compressor work rderly	Condenser fan broken down	Remove Condenser fan	Renew Condenser fan
	Compressor out of work	Thermostat is not to the work position	Check temperature controller	Revolve the knob to the operate position
		Poor contact with the temperature controller	Leaf contact	Tight leaf contact
		The temperature Controller is wear down.	Electricity broken down.	Change the temperature controller	Ask professional to maintain.
Continue operating	Too high temperature inside of the box.	Open the door too frequently		Open the door as little as possible	Ask professional to maintain.
		Too much storage	The circulation of cooling air has been affected	Take out part of the storage
		Leakage of refrigerant.		Repair at a named maintenance department
	Too low temperature inside of the box.	Temp. controller out of work		Change the temp. controller
					Ask professional to maintain.
Large noise	Cabinet isn't put horizontally.		The four wheels to the ground or not	Pad the box in time	Ask professional to maintain.
	Fixing screw of compressor or condenser is loose		Screw tight or not	Tight the screw	Ask professional to maintain.
Condenser fan is working, but the compressor doesn't operate.	The plug of starter or heat relay is slack.		Leaf contact damage or not	Tight leaf contact.	Ask professional to maintain.
	Compressor out of work			Repair or change compressor	Ask professional to maintain.
	Voltage is below 187V		Check the Voltage	Connect with >1000W manostat
Evaporator fan Not running	It is not touch the fan switch when the door colsed		Check the door touch the fan switch or not	Adjust the axes of the door to be a little upper	Ask professional to maintain
	Poor contact with the fan switch or		Check the fan switch and circuit	Tight the connection or renew the fan switch
	Evaporator fan broken down		Remove evaporator fan	Renew evaporator fan
Electrical cable Broken down				Change the electrical cable	Ask professional to maintain
Screen no	Temperature display no voltage		Check the voltage		If it is necessary,
display			Check the temperature display		please ask to the electrician to maintain.
Screen display"E1" or "E2"	Sensor fault		Check the sensor		Ask professional to maintain

Notice: Following cases are not trouble but common phenomenon:

1.Upright freezer showcase has a slight bicker.
2. Compressor and condenser become hot.
3.If the ambient humidity is high, there may be dewdrop on the surface, please use soft and dry cloth to clean in time.
4.Note: The illustration is a reference image, your device may differ.

Correct Disposal of this product

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the frame work for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION: Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
