USER MANUAL Fireside Ultrasonic Humidifier UHE-CMF56 HOMEDICS

please take a moment now register your product at www.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.

INSTRUCTION MANUAL AND WARRANTY INFORMATION

2-year limited warranty

UHE-CMF56 | L-03828, Rev 1

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always place humidifier on a firm, flat surface. A waterproof mat or pad is recommended for use under the humidifier. Never place it on a rug or carpet, or on a finished floor that may be damaged by exposure to water or moisture.
• Always unplug the unit from the electrical outlet immediately after using and before cleaning.
• DO NOT reach for a unit that has fallen into water. Unplug it immediately.
• DO NOT place or store the unit where it can fall or be pulled into a tub or sink.
• DO NOT place or drop into water or other liquids.
  • DO NOT use water above 86°F.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by Homedics; specifically, any attachments not provided with this unit.
• NEVER drop or insert any object into any opening.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a Homedics Service Center for examination and repair.
• Always unplug the unit when filling or moving the unit.
• Ensure that your hands are dry when operating the controls or removing the plug.
• NEVER use the humidifier in an environment where explosive gases are present.
• DO NOT place the humidifier near heat sources, such as a stove, and do not expose the humidifier to direct sunlight.
• DO NOT carry this unit by the power cord or use the power cord as a handle.
• To disconnect, turn all controls to the off position, then remove the plug from the outlet.
• DO NOT use any other AC Adapter than what is supplied with the product. Use of any other AC adapter may damage the product and may increase risk of harm to user or property. Only AC Adapter bearing the Part # PP-UHECMF56ADP should be used.

WARNING: To reduce the risk of fire, electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

CAUTION: All servicing of this humidifier must be performed by authorized Homedics service personnel only.

SAVE THESE INSTRUCTIONS

CAUTION – PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

• This product is intended for household use only.
• NEVER cover the unit while it is operating.
• Always keep the cord away from high temperatures and fire.
• Perform regular maintenance on the ultrasonic membrane.
• NEVER use detergent to clean the ultrasonic membrane.
• NEVER clean the ultrasonic membrane by scraping with a hard object.
• DO NOT attempt to adjust or repair the unit. Servicing must be performed by professional or qualified personnel.
• Stop using this unit if there is an unusual noise or smell.
• Unplug this unit when not in use for a long period of time.
• DO NOT touch the water or any parts of the unit that are covered by water while the unit is on or plugged in.
• NEVER operate without water in the tank.
• Only use water in the tank.
• NEVER use any additive in the water including essential oils.
• DO NOT wash, adjust, or move this unit without first unplugging it from the electrical outlet.
• Keep this unit out of reach of children. Do not allow children to use this unit without supervision.
• DO NOT use outdoors. For indoor use only.

CAUTION: DO NOT place humidifier on furniture.

CAUTION: ALWAYS use a waterproof mat or pad on wood floors.

CAUTION: Before filling the tank with water, turn the power off and unplug the humidifier from the outlet.

NOTE: Always use 2 hands to carry the water tank. The convenient top-fill tank can be filled with a pitcher or at the faucet.

Hand holding a black plastic tray (no text or symbols visible)

MAX FILL

1. Remove the top cover. Rinse tank with water before filling. Fill with clean, cool water or distilled water (if in area with hard water) until the water level reaches the MAX fill line. DO NOT fill with warm or hot water. CAUTION: Never add essential oils or other additives to the water tank or water reservoir.

Hand holding a black plastic tray (no text or symbols visible)

1. Replace the top cover.

TO FILL AT THE FAUCETTO FILL WI

Hand holding a black plastic tray (no visible text or symbols)

MAX FILL

1. Remove the top cover. Rinse tank with water before filling. Fill with clean, cool water or distilled water (if in area with hard water) until the water level reaches the MAX fill line. DO NOT fill with warm or hot water. CAUTION: Never add essential oils or other additives to the water tank or water reservoir.

Hand holding a black rectangular object with a lid, possibly a food item or container (no visible text or symbols)

1. Replace the top cover.

ABOUT WHITE DUST

Use of high mineral content hard water may cause a white mineral residue to accumulate on surfaces in the room near the humidifier. The mineral residue is commonly called “white dust”. The higher the mineral content (or the harder your water is), the greater the potential for white dust. The white dust is not caused by a defect in the humidifier. It is caused only by minerals suspended in the water. Use distilled water if you experience white dust near the humidifier.

HOW TO OPERATE

Insert single pin plug into the back of the humidifier, then plug the adapter into a 120-volt AC electrical outlet. When the humidifier is out of water, the power/out of water LED will glow red.

POWER BUTTON

Press to turn humidifier on/off.

MIST OUTPUT

Cycles through 3 mist settings.

NIGHT-LIGHT/DISPLAY LIGHTS

Cycles through 3 brightness levels or off.

HOW TO USE OIL TRAY

CAUTION: Putting oil anywhere but the oil tray will damage the humidifier.

Close-up of a finger pointing at a textured surface with three horizontal lines (no text or symbols visible)

1. The oil tray is located on the back of the humidifier. Push to open and remove the oil tray.

Hand holding a small circular object with a pointed tip, possibly a device or component (no visible text or symbols)

1. Use the 1 preinstalled essential oil pad in the oil tray (3 total included).

Hand holding a small object with a black tag, possibly a device or component (no visible text or symbols)

1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. CAUTION: Only place essential oil on the pad and NOT directly into the tray.

Close-up of a hand holding a small electronic component, possibly a battery or sensor, with no visible text or symbols.

1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the mist is turned on.

NOTE: For use with the included Homedics essential oil pads only.

NOTE: Do not leave a used essential oil pad in the oil tray if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around pets. Keep all essential oil and aromatherapy products (like diffusers) out of the reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

HOW TO CLEAN AND CARE

CAUTION: Before cleaning, turn off and unplug the humidifier from the wall outlet and unplug the AC adapter plug from the back of the humidifier. Clean over a waterproof surface near a faucet.

DO NOT place any parts of the humidifier in the dishwasher.

DO NOT submerge the humidifier in water or any other liquid. Doing so will damage the humidifier.

DO NOT use abrasive pads or brushes, harsh chemicals, detergents, or liquid soaps to clean the humidifier. Clean with a soft cloth, cotton swab or soft brush.

WEEKLY CLEANING

Hand holding a black rectangular object with a lid, no visible text or symbols

1. Remove the tank cover and pour out any water from the tank.

Close-up of a stainless steel kitchen sink with a dark spatula partially visible (no text or symbols)

Hand holding a small object over a dark oval object with a ruler, no visible text or symbols

1. Rinse the water tank with room temperature water. Dry with a soft cloth and set aside.

Close-up of a hand holding a small object near a curved surface (no visible text or symbols)

1. Wipe the 2 transducer/ultrasonic membranes with a damp cotton swab.

Hand pressing down on a flat surface with a small patch of paper (no text or symbols visible)

1. Wipe the inside of the top cover with a damp soft cloth.

Close-up of a dark, elongated object with a white cloth-like band extending from it (no visible text or symbols)

1. Dry thoroughly and reassemble.

Hand holding a black plastic lid (no text or symbols visible)

SCALE REMOVAL

Perform every 2 months, before storage, or as needed. Failure to do so may cause reduced or no mist output.

Prepare 2 cups/0.5 ml of a cleaning solution using a 50/50 mix of white vinegar and water.

Hand holding a black electronic device (no visible text or symbols)

1. Remove the tank cover and pour out any water from the tank.

Close-up of a stainless steel kitchen sink with a spatula resting inside (no visible text or symbols)

Close-up of a hand holding a black object with a white circular mark (no visible text or symbols)

Close-up of a black and white object with a small white mark, possibly a device or component (no visible text or symbols)

1. Fill the tank with 2 cups/0.5 ml of 50/50 white vinegar and water. Place the top cover on the water tank. Let soak for 15-20 minutes to loosen scale/water mineral buildup.

Close-up of a stainless steel kitchen sink with a dark tool partially visible (no text or symbols)

1. Remove the top cover and pour out the solution from the water tank. Rinse the water tank with clean water until the vinegar smell is gone and wipe dry with a soft cloth. CAUTION: Never submerge the base in water or any other liquid.

Hand pressing a rectangular object on a dark surface, no visible text or symbols

Hand pressing down on a black electronic device with a paper sheet (no visible text or symbols)

1. Wipe the inside of the top cover with a damp soft cloth until the vinegar smell is gone.

Hand holding a black plastic tray or container (no visible text or symbols)

1. Dry thoroughly and reassemble.

CLEANING THE OIL TRAY

1. Open the oil tray and remove the pad.
2. Rinse the oil tray with water and wipe dry with a soft cloth. DO NOT clean with detergent or liquid cleaners.

NOTE: If continuing to use the same scent, set the oil pad aside for reuse.

DO NOT leave a used pad in the oil tray when storing.

STORAGE

Store in a cool, dry location.

Before storing

1. Descale the humidifier following the Scale Removal instructions.
2. Clean the oil tray following the Cleaning the Oil Tray instructions. DO NOT leave a used pad in the oil tray when storing.

After storing

1. Rinse the tank with water prior to operating.

SPECIFICATIONS

ULTRASONIC TECHNOLOGY

This humidifier uses ultrasonic, high-frequency technology to convert water into a fine mist that is dispersed evenly into the air.

ELECTRICAL RATING

100-240 VAC, 50/60 Hz, 0.8 A

AUTO-SHUTOFF PROTECTION

When the tank is empty, the humidifier will shut off automatically. The LED below the power button will glow red.

CAPACITY

0.26 gallons - 1.0 liters

RUNTIME

Up to 11 hours. Runtime is based on setting the mist level on the low setting. Based on the natural humidity level in your home, the temperature of water you use, and the mist-level setting, you may experience longer or shorter runtimes.

ROOM SIZE

216 sq. feet / 20 sq. meters. Based on AHAM HU-1-2016 measurement as shown by independent laboratory testing.

QUIET OPERATION

31-32 dBA

REPLACEMENT PARTS

To purchase genuine Homedics Replacement parts, go to the retailer where you purchased your Homedics Ultrasonic Humidifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

AC ADAPTER

Model #: PP-UHECMF56ADP

AROMA PADS

Model #: UHE-PAD1

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
No power • Unit	is not plugged inUnit is not turned onNo power at unit	Plug unit inPress power button to turn humidifier onCheck circuits and fuses or try a different outlet
Reduced or no mist	Humidifier has not warmed upLow mist settingScale buildupOut of water	Allow humidifier to run 20 minutes to warm upTurn to a higher mist settingClean following the Scale Removal instructionsFill the water tank to the MAX FILL line
Humidifier does not turn on or turns off during operation	Out of water • Fill the water tank to the MAX FILL line
Peculiar odor •	Unit is newIf unit is in use, the odor may be a dirty tank	Remove the tank cover and let the tank air out in a cool, dry place for 12 hoursClean following the Weekly Cleaning instructions. If odor persists, clean following the Scale Removal instructions.
Excessive noise	Unit is not levelLow water level	Place unit on a flat, even surfaceCheck the water level; refill the tank if the water is low
White dust accumulation	Hard water used • Use distilled water

CAUTION: All servicing of this humidifier must be performed by authorized Homedics service personnel only.

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: FIRESIDE ULTRASONIC HUMIDIFIER CMF56

Model Number: UHE-CMF56

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This product has been tested and compiles with the requirements for Federal Communication Commission, Part 18. Although this product is tested and compiles with FCC, it may interfere with other devices. If this product is found to interfere with another device, separate the other device and this product. Conduct only the user maintenance found in this instruction manual. Other maintenance and servicing may cause harmful interference and can void the required FCC compliance.

CAN ICES-001(B)/NMB-001(B)

Homedics

2-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 2 years from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.homedics.com. For Canada, please visit www.homedics.ca.

FOR SERVICE IN THE USA

[e-mail]

8:30am-7:00pm EST Monday-Friday

1-800-466-3342

FOR SERVICE IN CANADA

[e-mail]

8:30am-5:00pm EST Monday-Friday

1-888-225-7378

Homedics ^MD

UHE-CMF56 | L-03828, Rev 1

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

LORS DE L'UTILISATION DE PRODUITS ÉLECTRIQUES, IL EST TOUJOURS IMPORTANT DE SUIVRE DES PRÉCAUTIONS ÉLÉMENTAIRES DE SÉCURITÉ, NOTAMMENT LES SUIVANTES :

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION.

DANGER - AFIN DE RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE :

Line drawing of a cylindrical object with vertical supports and a flat base (no text or symbols)

QIL TRAY - PUSH HERE

FICHE À BROCHECOMMANATESACOMMRESOIR
À HUILE D'EAU

Simple line drawing of a medical or laboratory device with a bulb and connector (no text or symbols)

ADAPTATEUR SECTEUR

PLATEAU À HUILE

TAMPONS D'HUILE ESSENTIELLE (3 PCS)

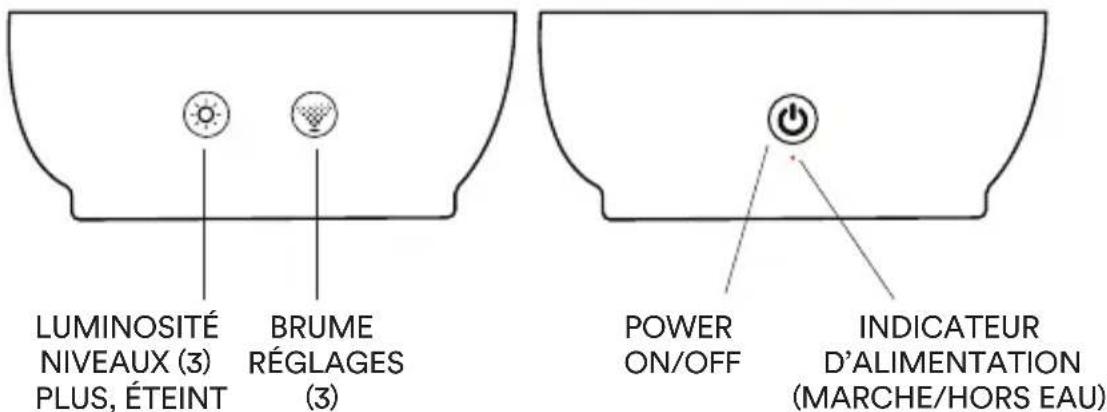

CONTRÔLES DU CÔTÉ GAUCHE CONTRÔLES DU CÔTÉ DROIT

LUMINOSITÉ NIVEAUX (3) PLUS, ÉTEINT BRUME RÉGLAGES (3) POWER ON/OFF INDICATEUR D'ALIMENTATION (MARCHE/HORS EAU)

COMMENT REMPLIR

Hand holding a black electronic device with a lid (no visible text or symbols)

MAX FILL

Hand holding a black plastic tray with lid, no visible text or symbols

POUR REMPLIR AU ROBINETPOUR R

Hand holding a black electronic device with a lid (no visible text or symbols)

MAX FILL

Hand holding a black plastic container (no text or symbols visible)

Hand holding a small object with a circular element, possibly a device or tool (no visible text or symbols)

Hand holding a small object with a circular top, possibly a device or component (no visible text or symbols)

Close-up of a hand holding a small object with a ruler, against a dark background (no visible text or symbols)

Hand holding a black plastic tray (no visible text or symbols)

Close-up of a metallic bowl with a spatula resting inside (no visible text or symbols)

Close-up of a metallic bowl with a spatula resting inside (no visible text or symbols)

Hand holding a rectangular object on a circular surface, with no visible text or symbols

Close-up of a hand holding a small object near a dark curved surface (no visible text or symbols)

Close-up of a hand pressing down on a small object, possibly a tool or device (no visible text or symbols)

Close-up of a hand holding a dark object with a white cloth (no visible text or symbols)

Hand holding a black plastic tray (no text or symbols visible)

ÉLIMINATION DU CALCAIRE

Close-up of a kitchen sink with a spatula resting inside (no visible text or symbols)

Close-up of a hand holding a black object with white markings (no visible text or symbols)

Close-up of a black and silver electronic device with a small white clip, possibly a lens or cover (no visible text or symbols)

Close-up of a stainless steel kitchen sink with a dark plastic spatula partially visible (no text or symbols)

Hand pressing a small object on a dark surface, possibly a battery or electronic component (no visible text or symbols)

Hand holding a piece of paper over a dark tray (no visible text or symbols)

Hand holding a black plastic container (no text or symbols visible)

Adresse : 3000 N Pontiac Trail, Commerce Township, MI 48390

POUR OBTENIR DU SERVICE AU CANADA

[e-mail]

UHE-CMF56 | L-03828, Rev 1

Simple line drawing of a bowl with two circular icons above it, no text or symbols present.

NIVELES DE BRILLO (3) NIVEL DE NIEBLA APAGADO (3)

Simple line drawing of a bowl-shaped container with a power button and two dashed lines pointing to the bottom (no text or symbols)

ENCENDIDO INDICADOR DE ENCENDIDO O NIVEL DE AGUA

CÓMO LLENAR

Hand holding a black plastic tray (no text or symbols visible)

MAX FILL

Hand holding a black plastic tray with a lid, no visible text or symbols

Hand holding a black plastic tray (no visible text or symbols)

MAX FILL

Hand holding a black plastic tray with a lid, against a white background (no text or symbols visible)

Close-up of a finger pressing down on a textured surface with a perforated edge (no text or symbols visible)

Hand holding a small object with a circular element, possibly a device or component (no visible text or symbols)

Hand holding a small object with a circular top, possibly a droplet or container (no visible text or symbols)

Close-up of a hand holding a small electronic component with visible traces and components (no text or symbols)

CÓMO LIMPIAR Y CUIDAR

Close-up of a stainless steel kitchen sink with a dark spatula resting inside (no visible text or symbols)

Hand holding a small object over a dark oval object with a ruler, no visible text or symbols

Close-up of a hand holding a small object near a curved surface (no visible text or symbols)

Hand pressing down on a flat surface with a small patch of paper (no text or symbols visible)

Close-up of a dark, elongated object with a white cloth on its side (no visible text or symbols)

Hand holding a black plastic container with lid (no text or symbols visible)

ELIMINACIÓN DE CAL

Hand holding a black electronic device (no visible text or symbols)

Close-up of a kitchen utensil inside a bowl (no visible text or symbols)

Close-up of a hand holding a black cylindrical object with a white handle (no visible text or symbols)

Close-up of a black and white electronic device casing (no visible text or symbols)

Close-up of a stainless steel kitchen sink with a spatula partially visible (no text or symbols)

Hand pressing a rectangular object on a dark surface, no visible text or symbols

Hand pressing down on a small object with a paper-like substance (no visible text or symbols)

Hand holding a black plastic container with lid (no text or symbols visible)
